Human Genetics

Mutations, Sex-linked traits, Disorders, Pedigrees. Human Genetics. What’s a Mutation?. A change in DNA sequence Two types: Changes in a single gene (called gene mutation) Changes in a whole chromosome (called chromosomal mutation). What’s a Mutation?. Gene Mutations: Two types…

isha
Download Presentation

Human Genetics

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

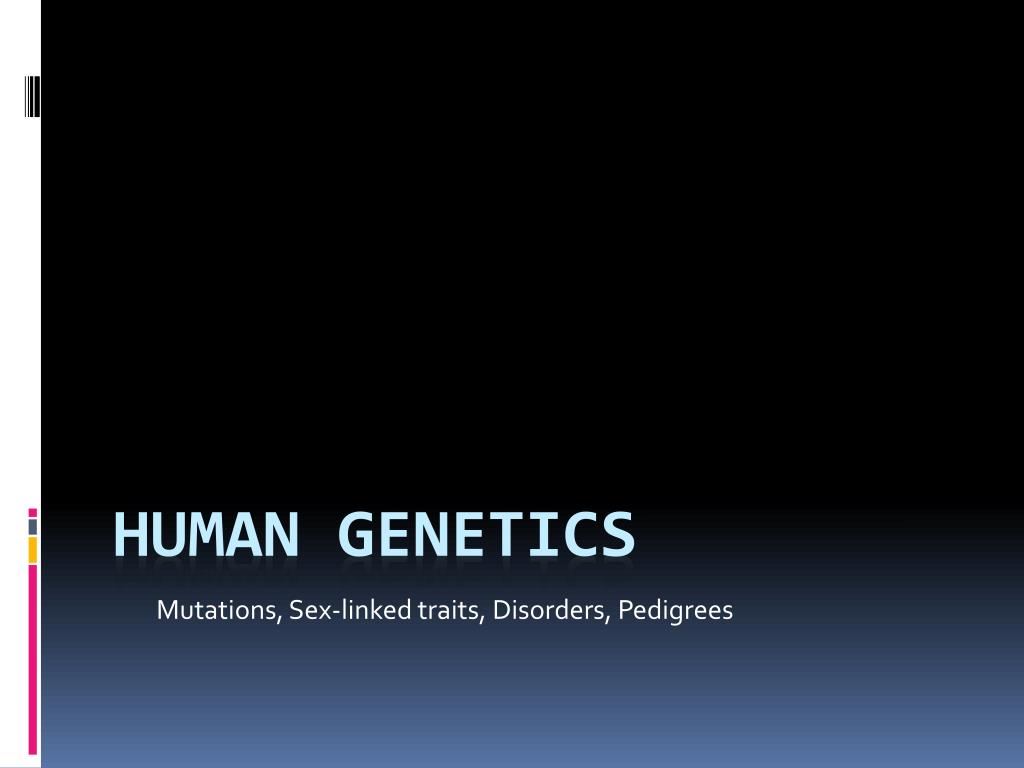

  1. Mutations, Sex-linked traits, Disorders, Pedigrees Human Genetics

  2. What’s a Mutation? • A change in DNA sequence • Two types: • Changes in a single gene (called gene mutation) • Changes in a whole chromosome (called chromosomal mutation)

  3. What’s a Mutation? • Gene Mutations: Two types… • 1. Point Mutation • One nucleotide is affected … that is… ONE LETTER IS WRONG! • TTA-GTA-CCG becomes • TAA-GTA-CCG (usually changes one amino acid in a protein)

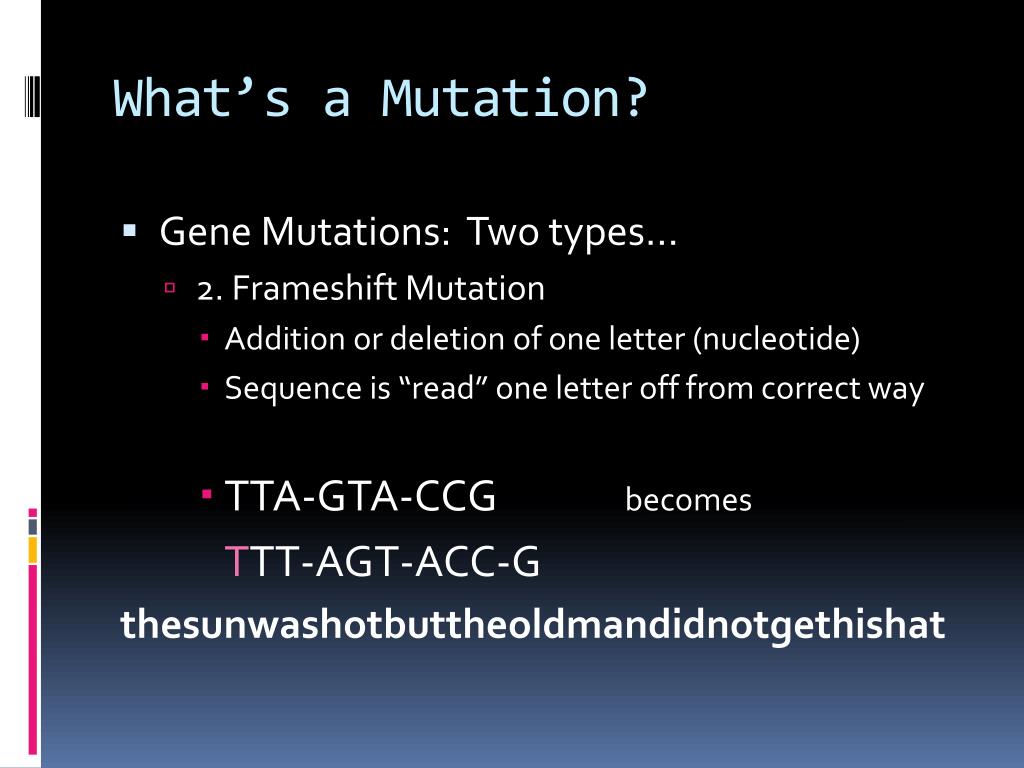

  4. What’s a Mutation? • Gene Mutations: Two types… • 2. Frameshift Mutation • Addition or deletion of one letter (nucleotide) • Sequence is “read” one letter off from correct way • TTA-GTA-CCG becomes TTT-AGT-ACC-G thesunwashotbuttheoldmandidnotgethishat

  5. What’s a Mutation? • Chromosomal Mutations • 1. Deletion • Part of chromosome is missing

  6. What’s a Mutation? • Chromosomal Mutations • 1. Deletion • Part of chromosome is missing • 2. Duplication • Part of chrom. is included twice

  7. What’s a Mutation? • Chromosomal Mutations • 1. Deletion • Part of chromosome is missing • 2. Duplication • Part of chrom. is included twice • 3. Inversion • Part of chrom. is reversed from usual direction

  8. What’s a Mutation? • Chromosomal Mutations • 1. Deletion • Part of chromosome is missing • 2. Duplication • Part of chrom. is included twice • 3. Inversion • Part of chrom. is reversed from usual direction • 4. Translocation • Two non-homologouschrom. exchange portions

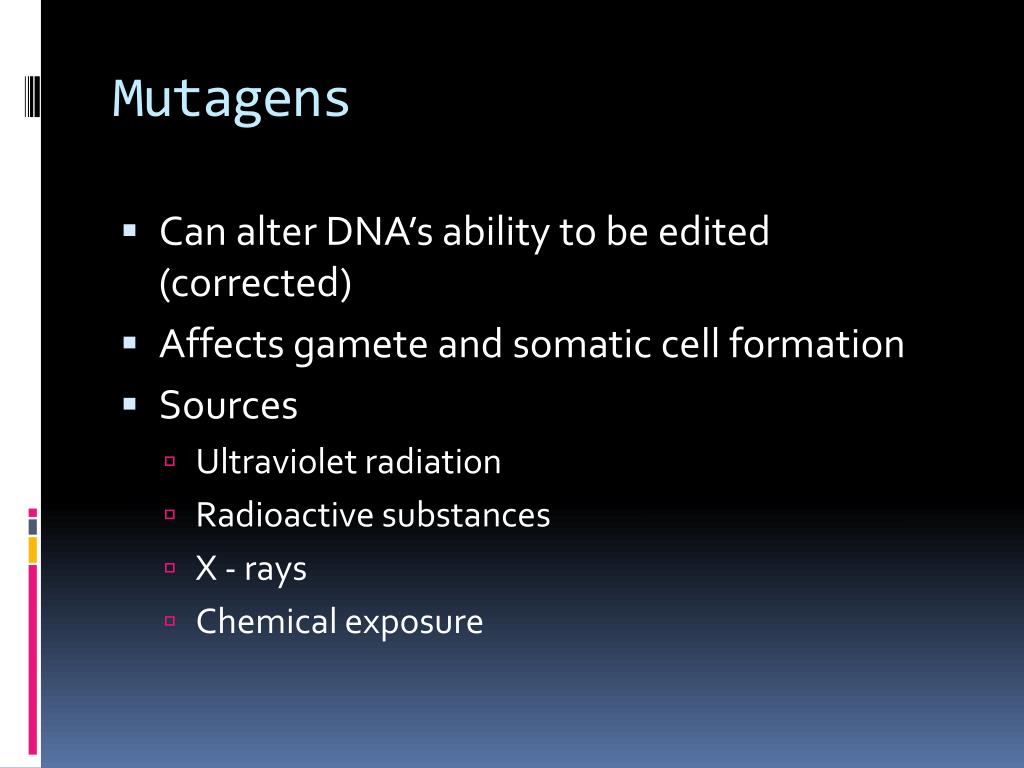

  9. Mutagens • Can alter DNA’s ability to be edited (corrected) • Affects gamete and somatic cell formation • Sources • Ultraviolet radiation • Radioactive substances • X - rays • Chemical exposure

  10. What’s a Mutation? • Some mutations are significant and severe, some are less so, some are never noticed… • Consider the car…

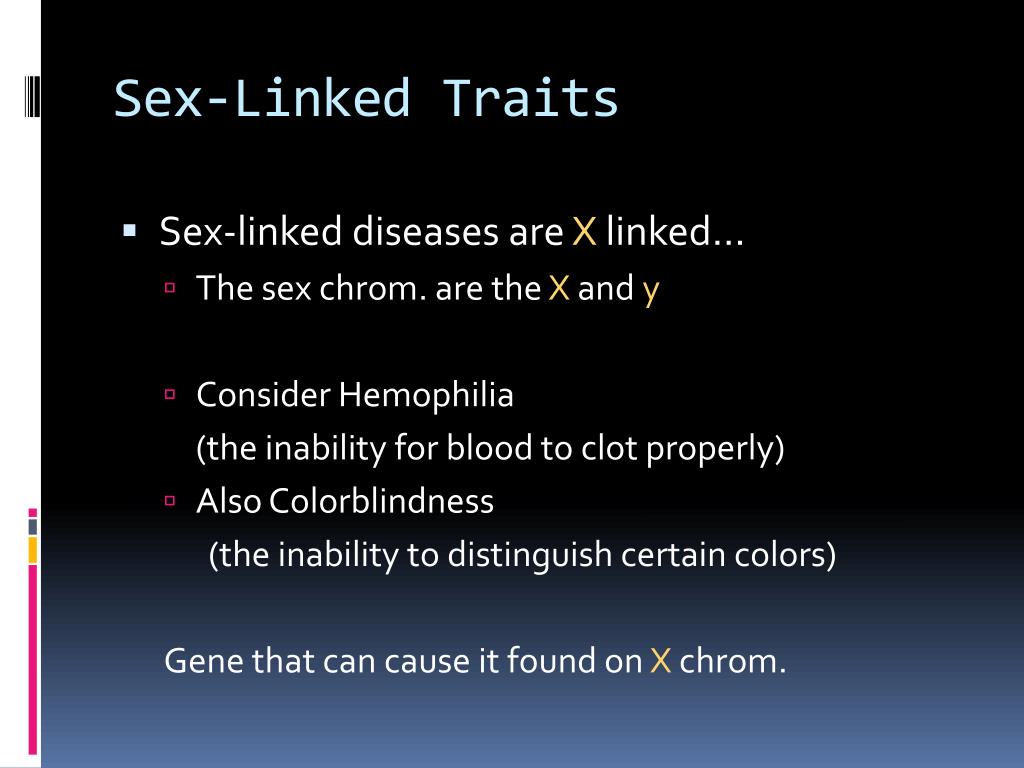

  11. Sex-Linked Traits • Sex-linked diseases are X linked… • The sex chrom. are the X and y • Consider Hemophilia (the inability for blood to clot properly) • Also Colorblindness (the inability to distinguish certain colors) Gene that can cause it found on Xchrom.

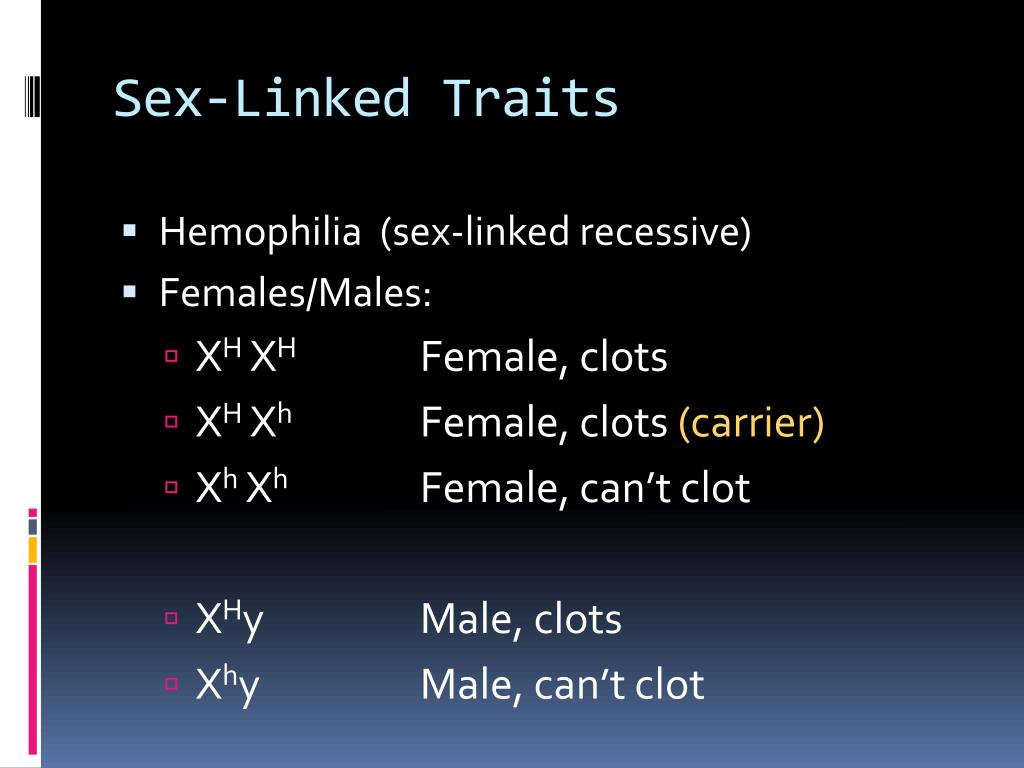

  12. Sex-Linked Traits • Hemophilia (sex-linked recessive) • Females/Males: • XHXH Female, clots • XHXhFemale, clots (carrier) • XhXhFemale, can’t clot • XHy Male, clots • Xhy Male, can’t clot

  13. Other Disorders • While mutations are generally gene related and inherited from one or both parents, sometimes OTHER reasons cause problems… • NONDISJUNCTION • The parent’s genes can be fine. But during MEIOSIS of the gametes, too many or too few chromosomes were pulled into the new gamete cell…

  14. Normal Male Karyotype: 22 sets of autosomes, 1 set of sex chromosomes

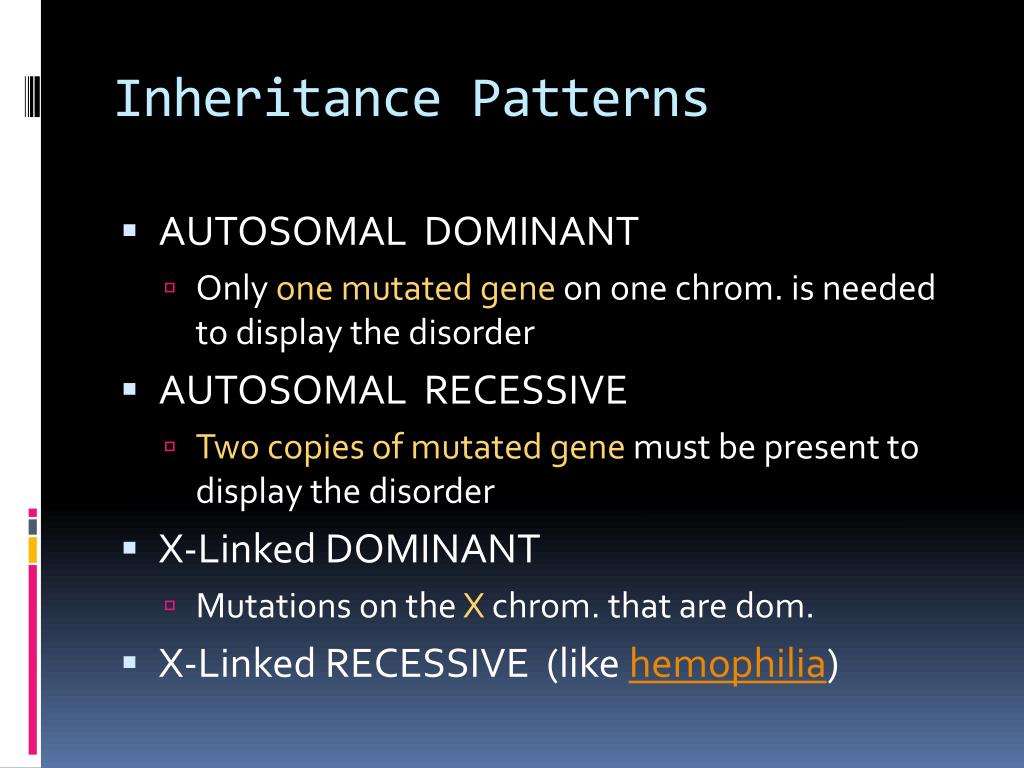

  15. Inheritance Patterns • AUTOSOMAL DOMINANT • Only one mutated gene on one chrom. is needed to display the disorder • AUTOSOMAL RECESSIVE • Two copies of mutated gene must be present to display the disorder • X-Linked DOMINANT • Mutations on the Xchrom. that are dom. • X-Linked RECESSIVE (like hemophilia)

  16. Pedigrees • A pedigree chart is a tool used to show all the known phenotypes of an organism and its ancestors… • Used in human genealogy study

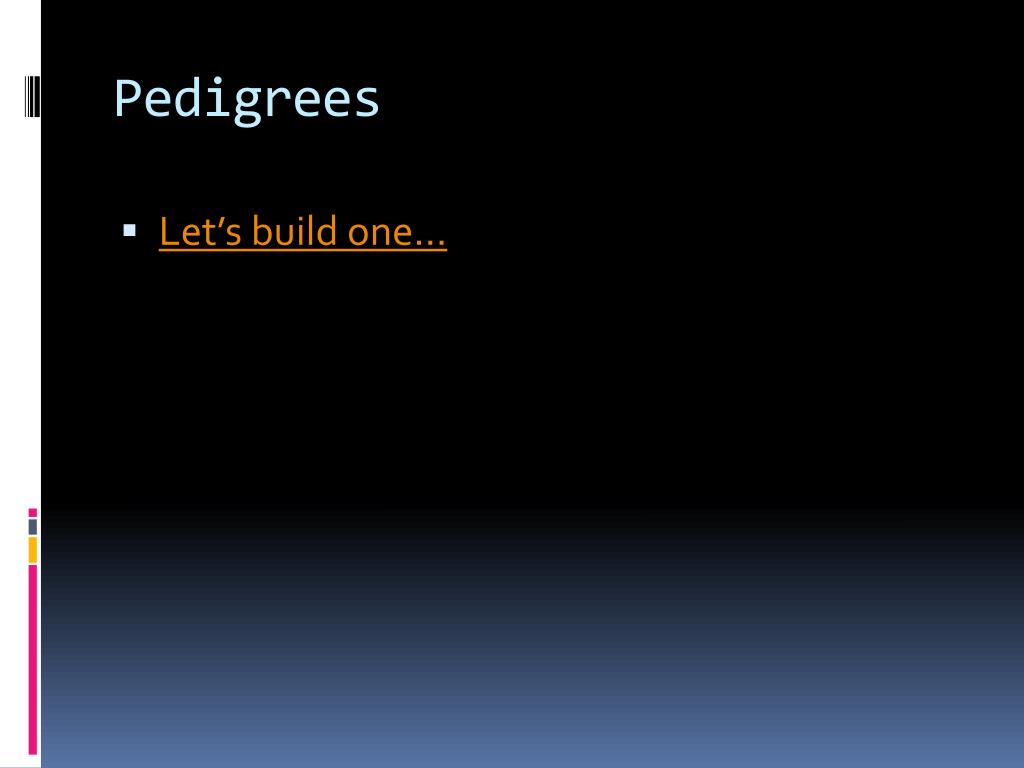

  17. Pedigrees • Let’s build one…
