Research to Support Robust Cyber Defense

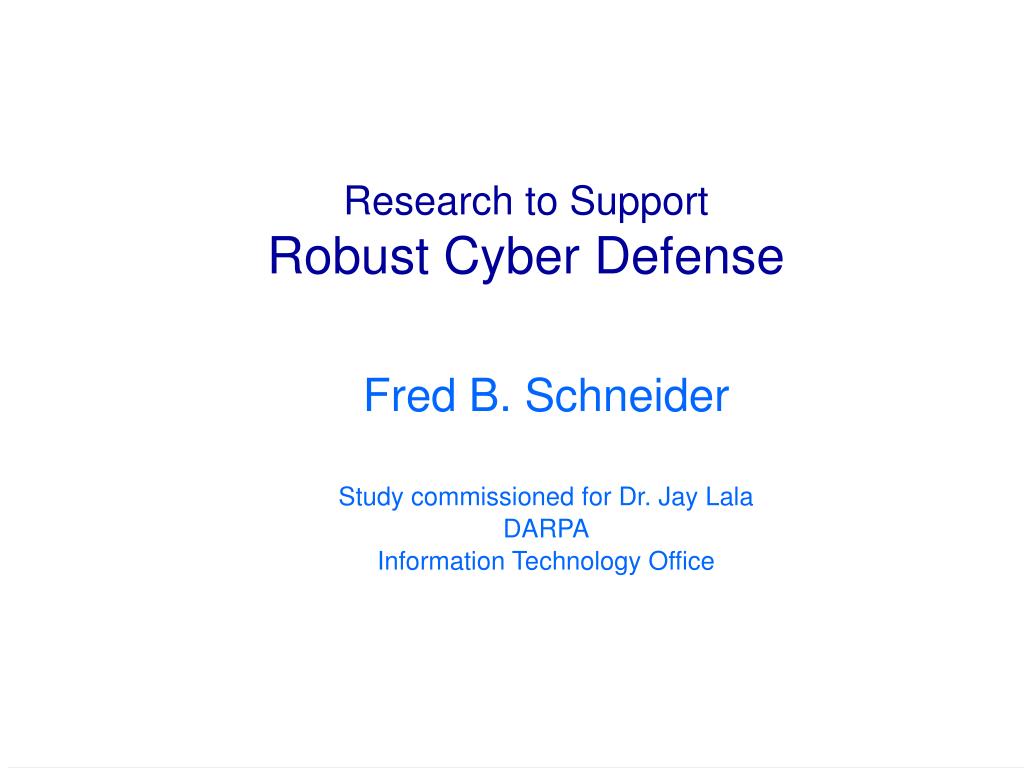

1. Research to SupportRobust Cyber Defense Fred B. Schneider Study commissioned for Dr. Jay Lala DARPA Information Technology Office

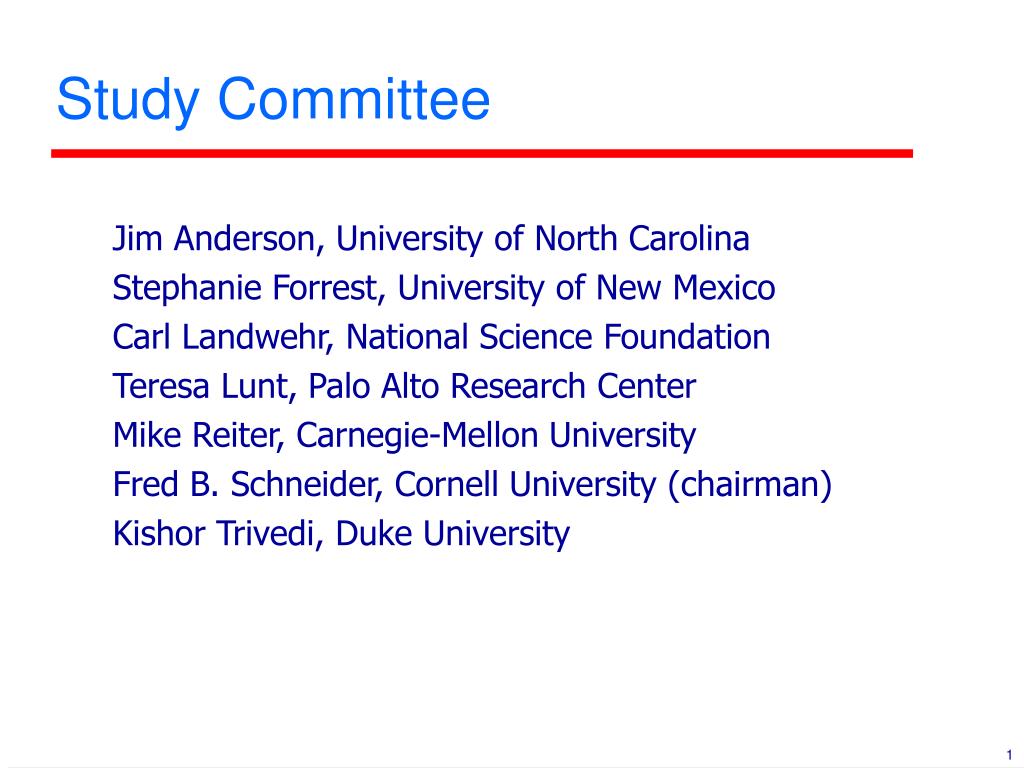

2. Study Committee Jim Anderson, University of North Carolina Stephanie Forrest, University of New Mexico Carl Landwehr, National Science Foundation Teresa Lunt, Palo Alto Research Center Mike Reiter, Carnegie-Mellon University Fred B. Schneider, Cornell University (chairman) Kishor Trivedi, Duke University

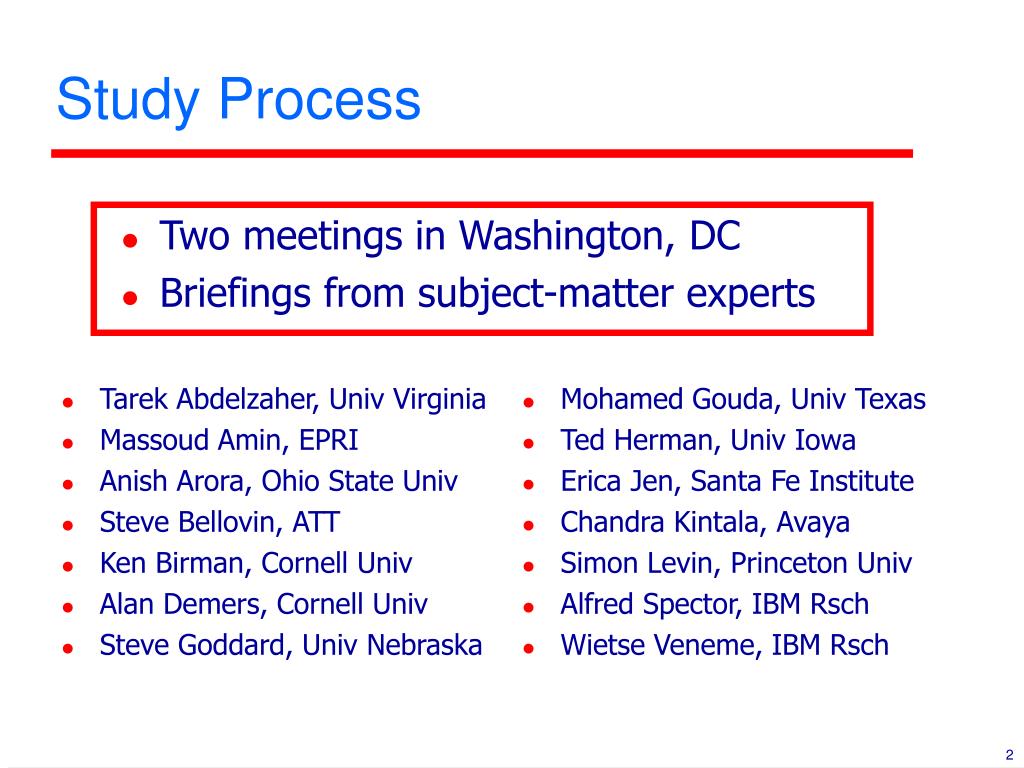

3. Tarek Abdelzaher, Univ Virginia Massoud Amin, EPRI Anish Arora, Ohio State Univ Steve Bellovin, ATT Ken Birman, Cornell Univ Alan Demers, Cornell Univ Steve Goddard, Univ Nebraska Mohamed Gouda, Univ Texas Ted Herman, Univ Iowa Erica Jen, Santa Fe Institute Chandra Kintala, Avaya Simon Levin, Princeton Univ Alfred Spector, IBM Rsch Wietse Veneme, IBM Rsch Study Process • Two meetings in Washington, DC • Briefings from subject-matter experts

4. Study Goals Identify research areas to enable the design and implementation of networked computer systems that tolerate attacks and failures by automatically changing state or structure during execution. Strategy for defense: • [Prior]: Prevention eliminates vulnerabilities. • [Near term]: Render ongoing attacks ineffective through dynamic changes to state. • [Longer term]: Alter vulnerabilities (viz co-evolution). • [Eventually]: Self-repair of identified problems.

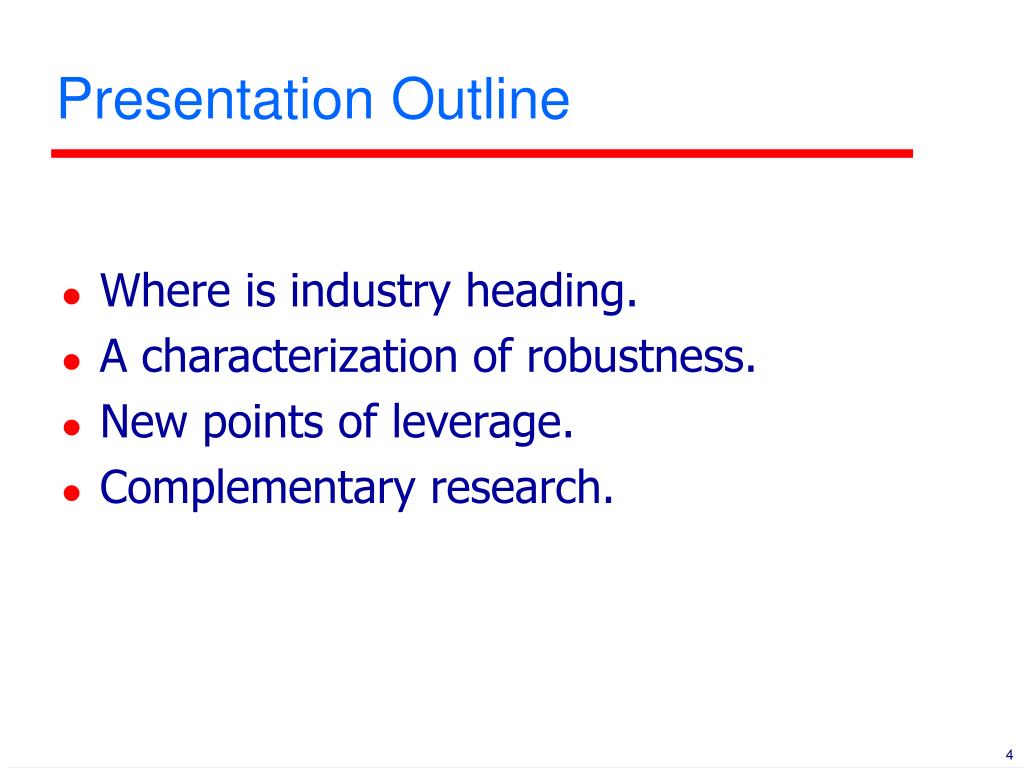

5. Presentation Outline • Where is industry heading. • A characterization of robustness. • New points of leverage. • Complementary research.

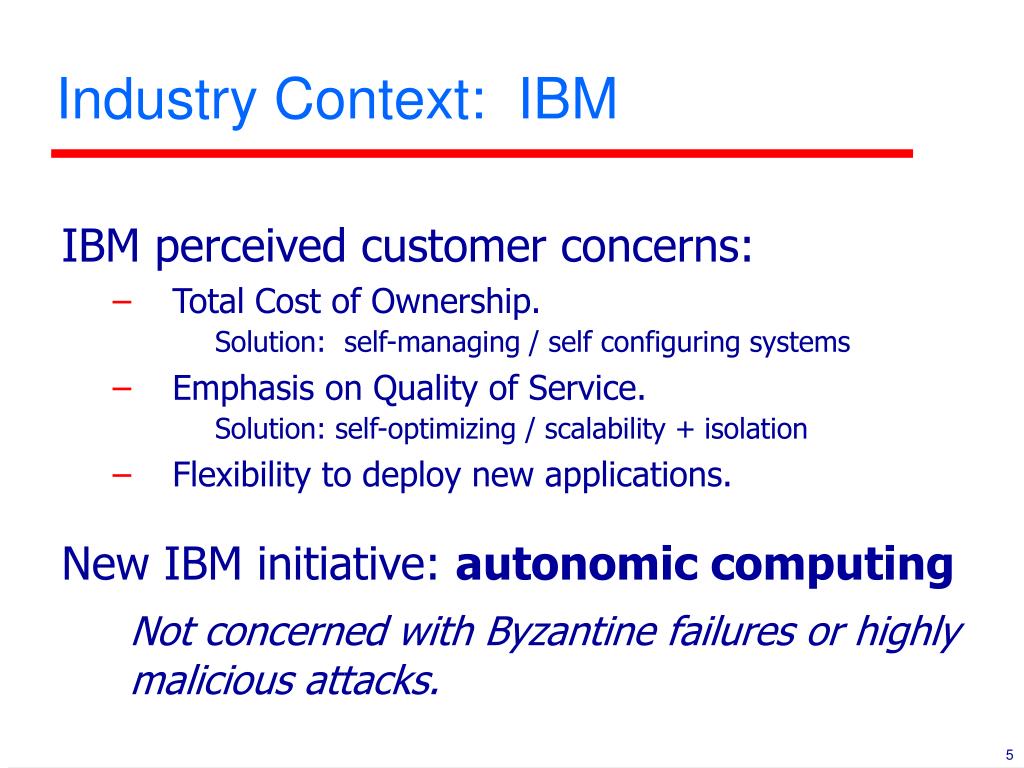

6. Industry Context: IBM IBM perceived customer concerns: • Total Cost of Ownership. Solution: self-managing / self configuring systems • Emphasis on Quality of Service. Solution: self-optimizing / scalability + isolation • Flexibility to deploy new applications. New IBM initiative: autonomic computing Not concerned with Byzantine failures or highly malicious attacks.

7. Industry Context: Microsoft Microsoft perceived customer concerns: • Total Cost of Ownership. Solution: automatic patch and upgrade • Harness the network. Solution: interoperability and transparency • Security [Bill Gates internal memo on “Trustworthy Computing”, approx Jan 16, 2002] Trade assurance for bugs and complexity (?) New Microsoft initiative: .NET Not concerned with Byzantine failures or highly malicious attacks.

8. Industry Context: Power Grid EPRI perceived concerns: • Reliability of grid • Propagation of effect. • Operation with reduced capacity cushion. • Move to decentralized, market-based control. • Separate delivery channel and control channels. • Little concern about about hostile attacks (either in delivery channel or control channel).

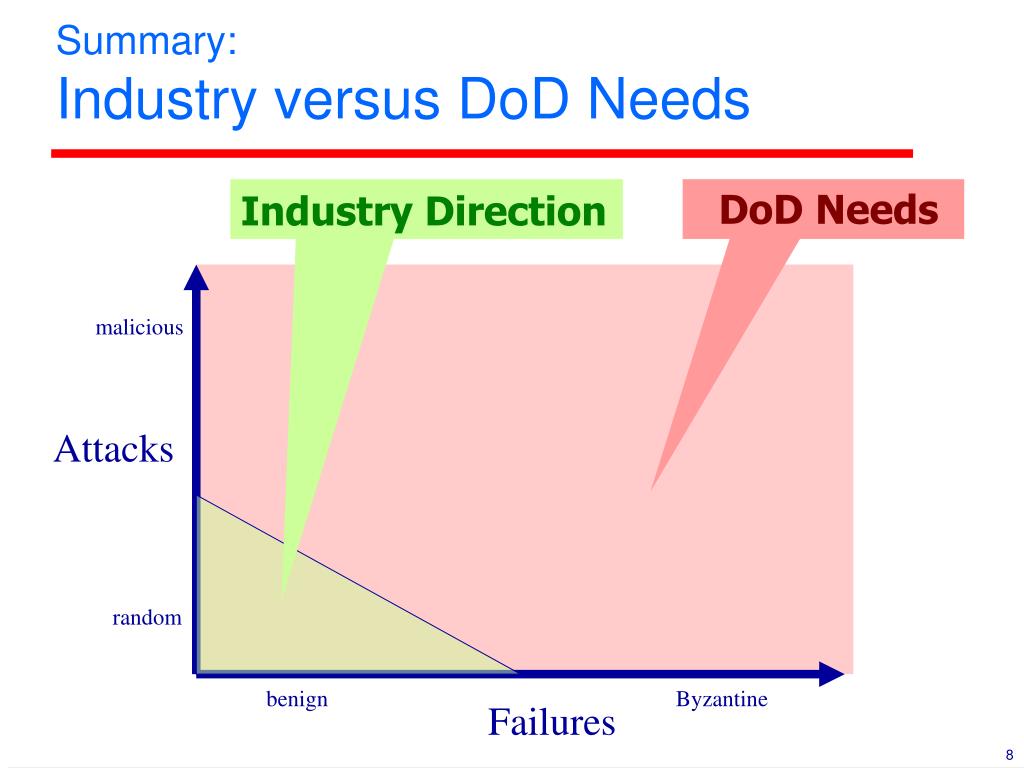

9. Summary:Industry versus DoD Needs DoD Needs Industry Direction malicious Attacks random benign Byzantine Failures

10. Addressing DoD Needs:Dimensions of Robustness [S. Levin] Diversity Robustness = Redundancy Modularity The time is right to exploit new opportunities!

11. Addressing DoD Needs:New Research Opportunities • Temporal and spatial run-time diversity. • Scalable redundancy. • Self-stabilization. • Natural robustness via biological metaphors and systemic effects.

12. Research Thrust:Run-time Diversity Limited success to date: • Obtaining diversity manually is expensive. • Multiplies costs associated with: • design • implementation • test • Integration and interoperation expensive. • Obtaining diversity automatically has not been explored aggressively. • Modern compiler technology could help here. • Run-time environments also possible leverage points

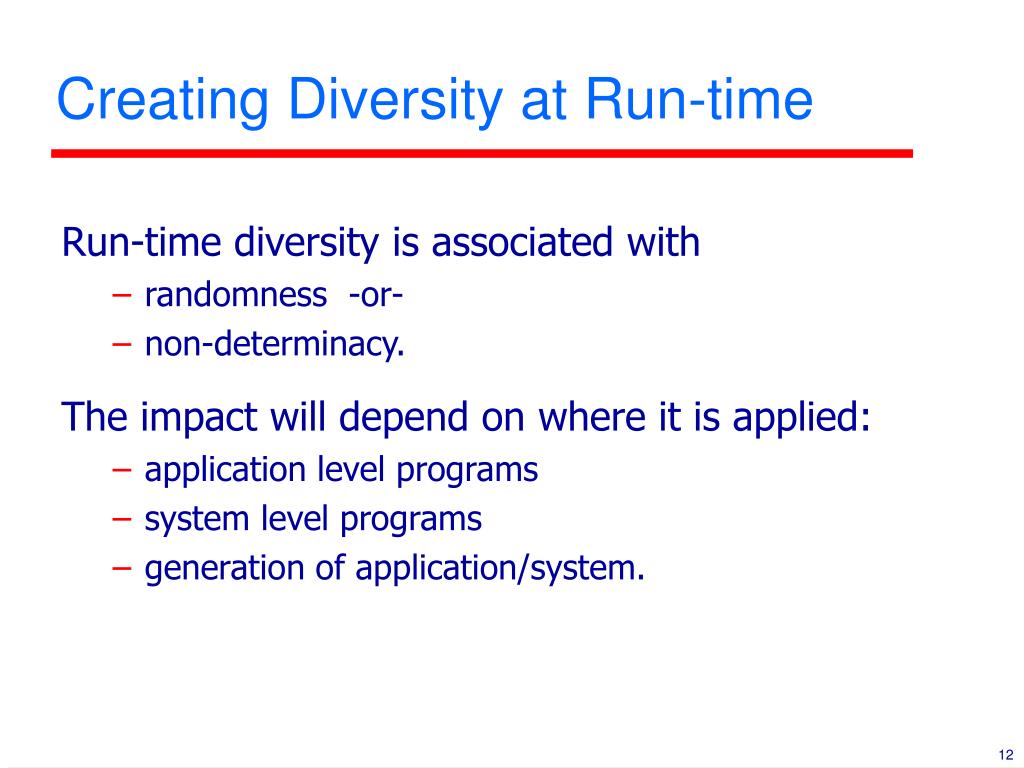

13. Creating Diversity at Run-time Run-time diversity is associated with • randomness -or- • non-determinacy. The impact will depend on where it is applied: • application level programs • system level programs • generation of application/system.

14. Run-time Diversity in Cryptography Recent crypto advances introduce: Spatial diversity: Different components hold different, but related, secrets. • Compromising one doesn’t compromise all. Temporal diversity: Secret state changed from time to time. • Limits adversary’s abilities after compromises.

15. Public K / private k = [s1, s2, s3, s4] s1 Example of Spatial Diversity in Cryptography:Function Sharing m s2 s3 s4 pr1 pr2 pr3 server service sig  combine({pr1, pr2, pr3}) verify(K, m, sig) succeeds

16. Example of Temporal Diversity in Cryptography:Forward-Secure Signatures Time period Private key Public key i ki K (roll forward) i+1 K ki+1 verify(K, m, i+1, sign(ki+1, m)) succeeds verify(K, m, i, sign(ki+1, m)) fails

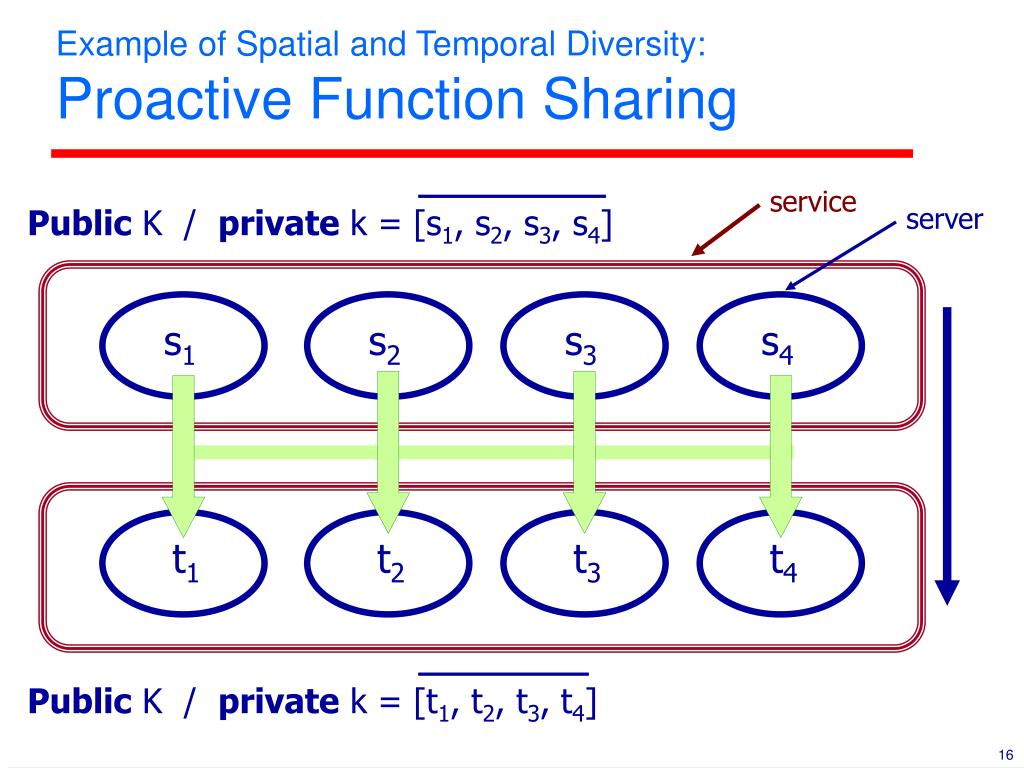

17. Public K / private k = [s1, s2, s3, s4] s1 Example of Spatial and Temporal Diversity:Proactive Function Sharing service server s2 s3 s4 t1 t2 t3 t4 Public K / private k = [t1, t2, t3, t4]

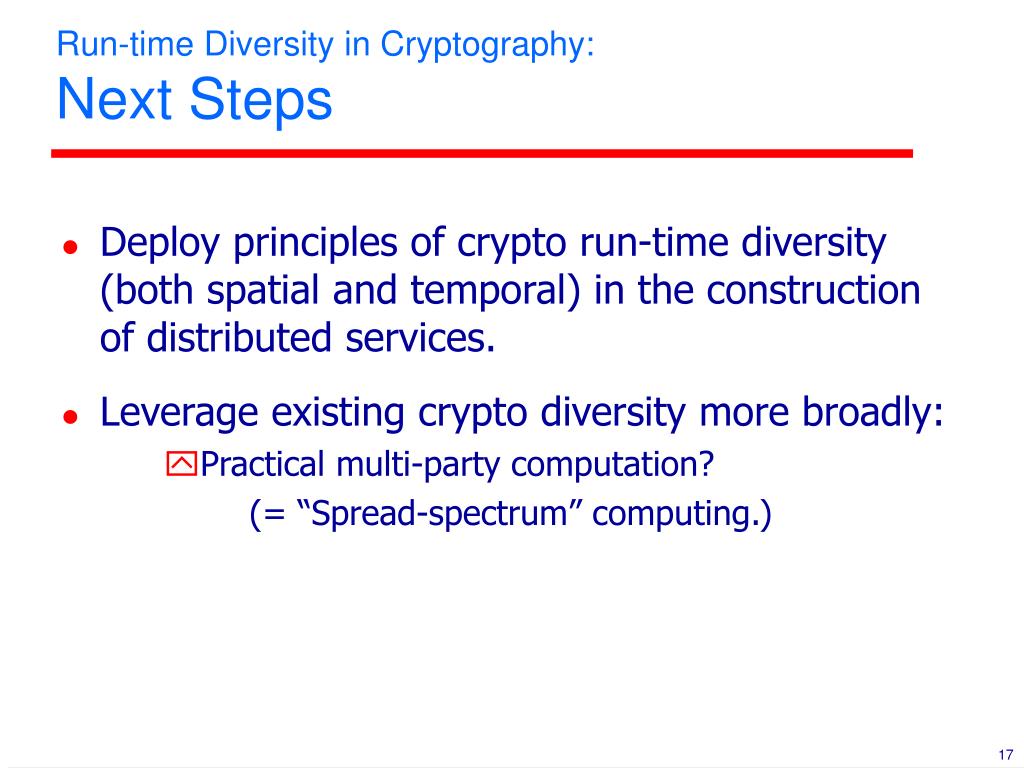

18. Run-time Diversity in Cryptography:Next Steps • Deploy principles of crypto run-time diversity (both spatial and temporal) in the construction of distributed services. • Leverage existing crypto diversity more broadly: • Practical multi-party computation? (= “Spread-spectrum” computing.)

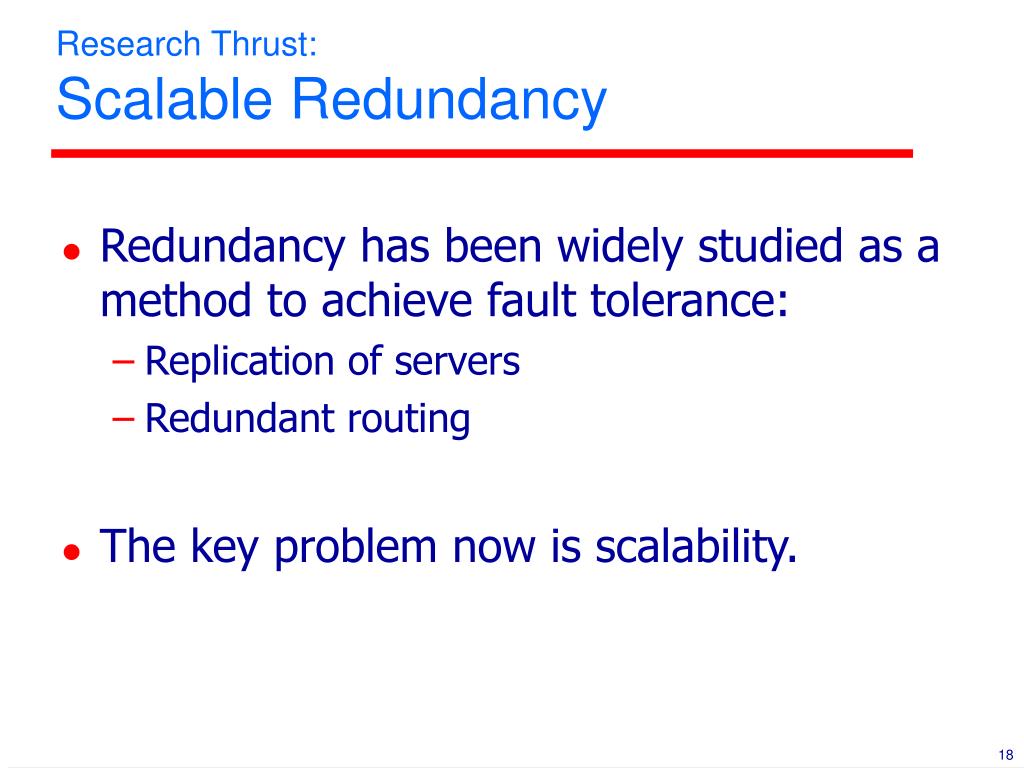

19. Research Thrust:Scalable Redundancy • Redundancy has been widely studied as a method to achieve fault tolerance: • Replication of servers • Redundant routing • The key problem now is scalability.

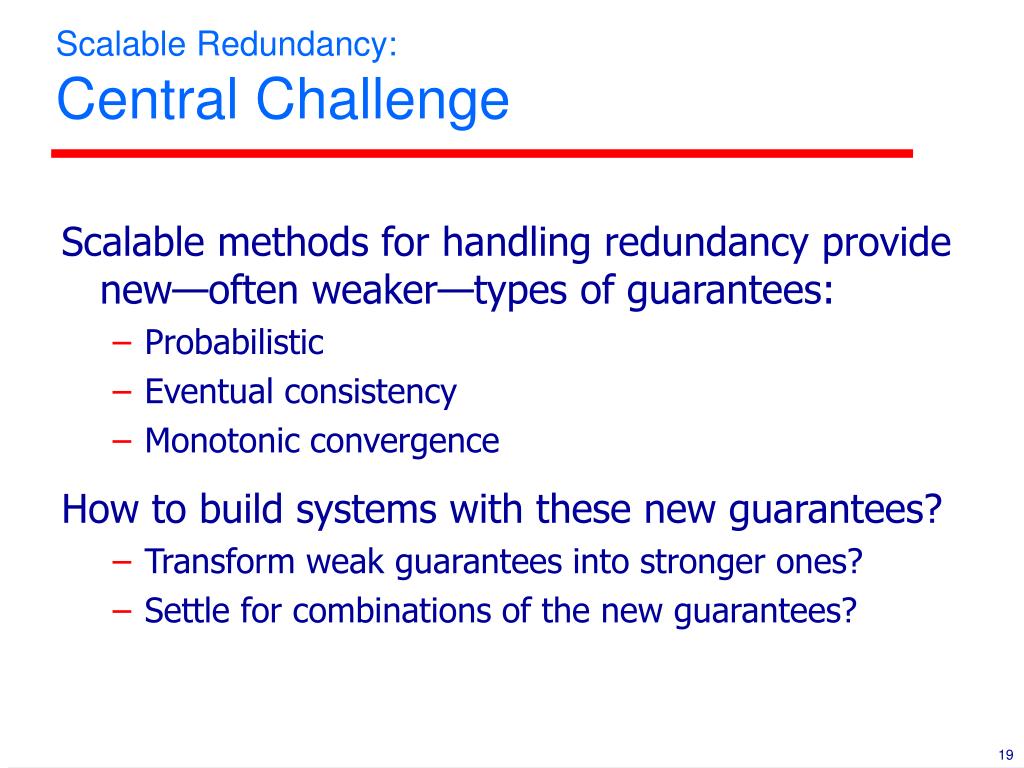

20. Scalable Redundancy:Central Challenge Scalable methods for handling redundancy provide new—often weaker—types of guarantees: • Probabilistic • Eventual consistency • Monotonic convergence How to build systems with these new guarantees? • Transform weak guarantees into stronger ones? • Settle for combinations of the new guarantees?

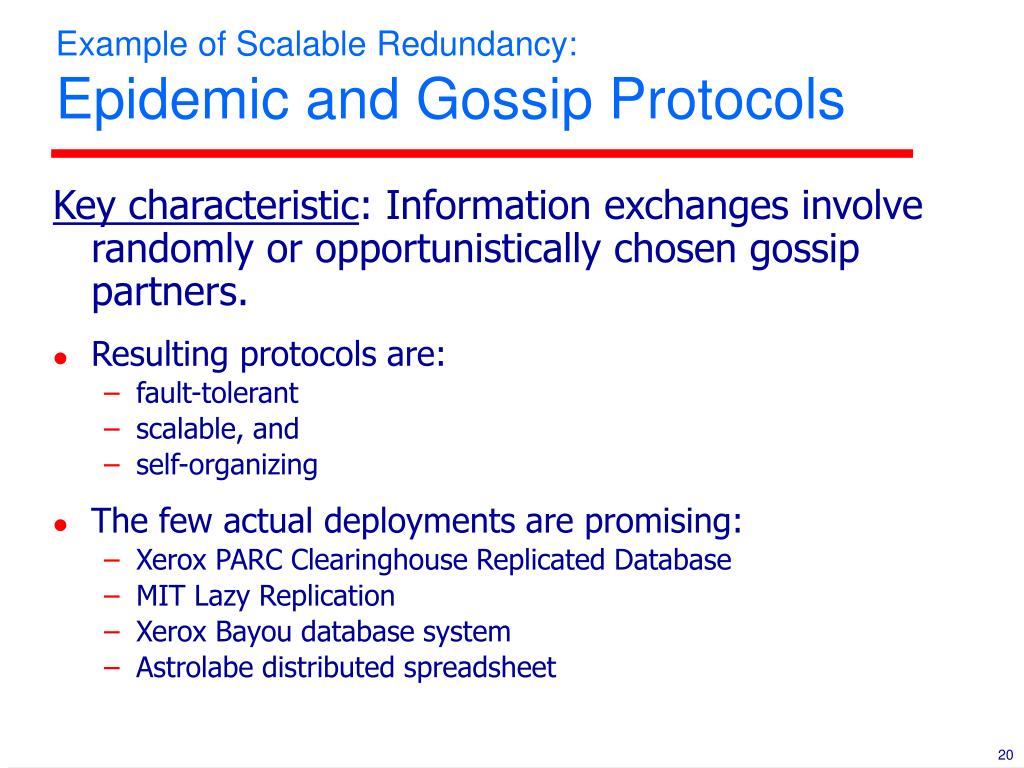

21. Example of Scalable Redundancy:Epidemic and Gossip Protocols Key characteristic: Information exchanges involve randomly or opportunistically chosen gossip partners. • Resulting protocols are: • fault-tolerant • scalable, and • self-organizing • The few actual deployments are promising: • Xerox PARC Clearinghouse Replicated Database • MIT Lazy Replication • Xerox Bayou database system • Astrolabe distributed spreadsheet

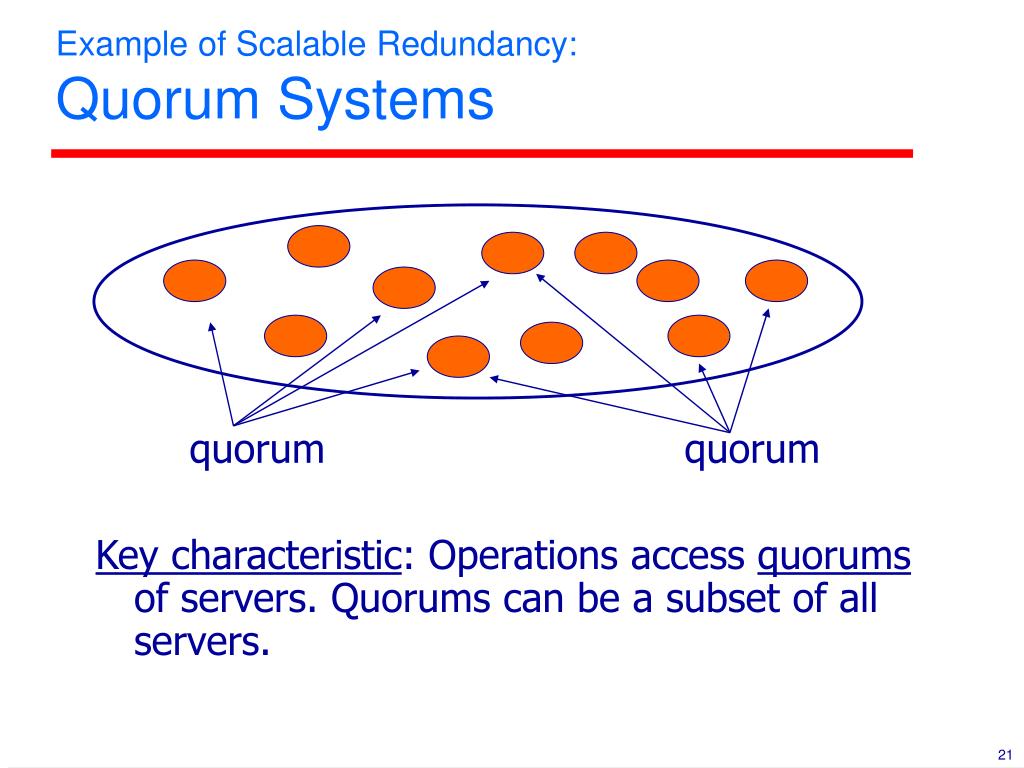

22. Example of Scalable Redundancy:Quorum Systems Key characteristic: Operations access quorumsof servers. Quorums can be a subset of all servers. quorum quorum

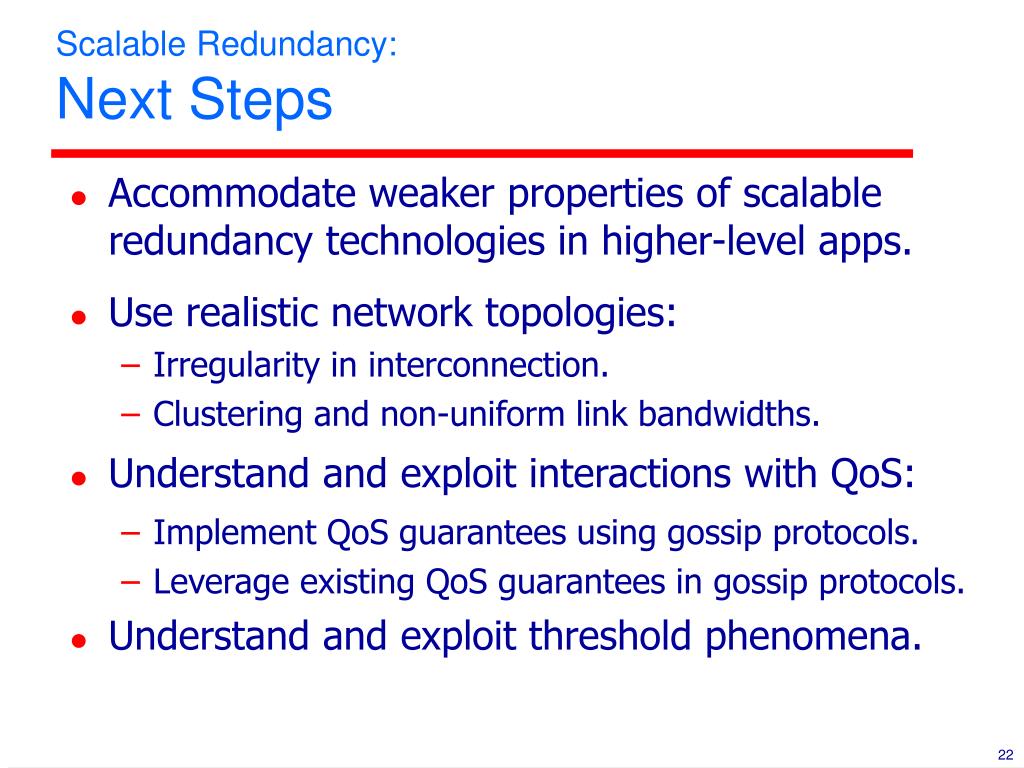

23. Scalable Redundancy:Next Steps • Accommodate weaker properties of scalable redundancy technologies in higher-level apps. • Use realistic network topologies: • Irregularity in interconnection. • Clustering and non-uniform link bandwidths. • Understand and exploit interactions with QoS: • Implement QoS guarantees using gossip protocols. • Leverage existing QoS guarantees in gossip protocols. • Understand and exploit threshold phenomena.

24. Research Thrust:Self-Stabilization Key characteristic: System eventually transitions to normal operating states in response to arbitrary transitions (to arbitrary states). Self-stabilization expands the diversity of states from which a system can operate. More states: • Fewer assumptions. • Fewer vulnerabilities. fault/attack bad good

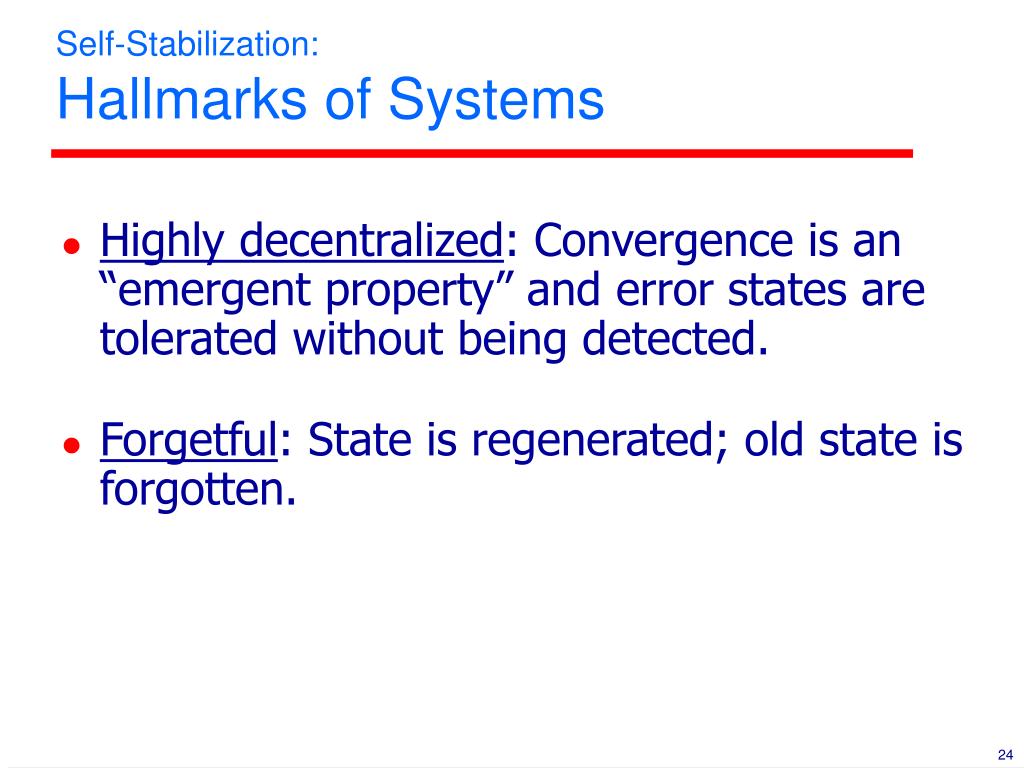

25. Self-Stabilization:Hallmarks of Systems • Highly decentralized: Convergence is an “emergent property” and error states are tolerated without being detected. • Forgetful: State is regenerated; old state is forgotten.

26. Self-Stabilization:Promise of Success • The few actual deployments are promising: • SUN’s Netra Proxy Server • MS Research Aladdin Lookup Service • DEC/Compaq Autonet Configuration Protocols • Self-stabilization well suited to network protocols, where transient disruptions are already tolerated by upper system levels.

27. Self-Stabilization:Next Steps • How might self-stabilization be extended? • Convergence from only some configurations. • Distinguish state components (e.g. keys, secrets, models of reality) and have only some converge. • Scalability? • System size, convergence time, severity of transient. • Dimensions of containment: • Space: bound infection / contamination. • Time: speed for convergence. • Safety: how badly is function degraded during repair. • Composition and control: • Go beyond control structure to abstract data types, etc. • Develop basis for compositional construction.

28. Research Thrust:Natural Robustness Biological and other robustness metaphors… • Work at multiple levels: • Time scale (lifetime of organism vs species). • Structure (cell vs organism vs eco-system). • Hallmarks of such robustness: • Robustness at one level translates into robustness at a different level. • Highly decentralized: Convergence is an “emergent property.” • Widespread use of diversity. • Adaptive and always evolving. • Use disposable components.

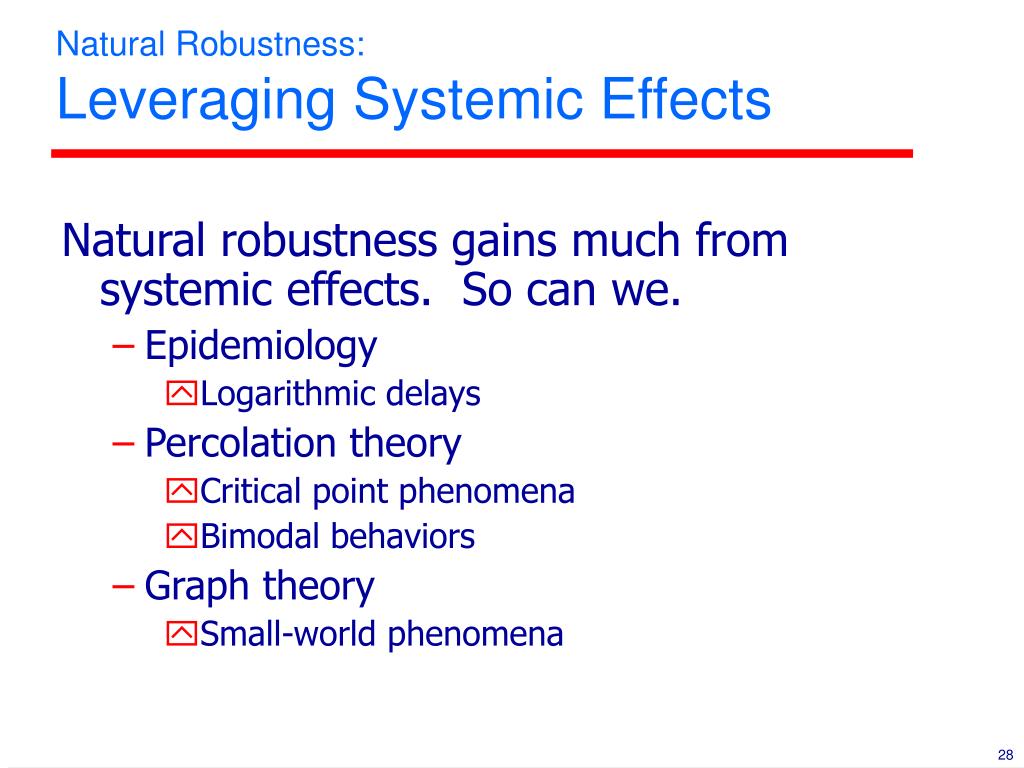

29. Natural Robustness:Leveraging Systemic Effects Natural robustness gains much from systemic effects. So can we. • Epidemiology • Logarithmic delays • Percolation theory • Critical point phenomena • Bimodal behaviors • Graph theory • Small-world phenomena

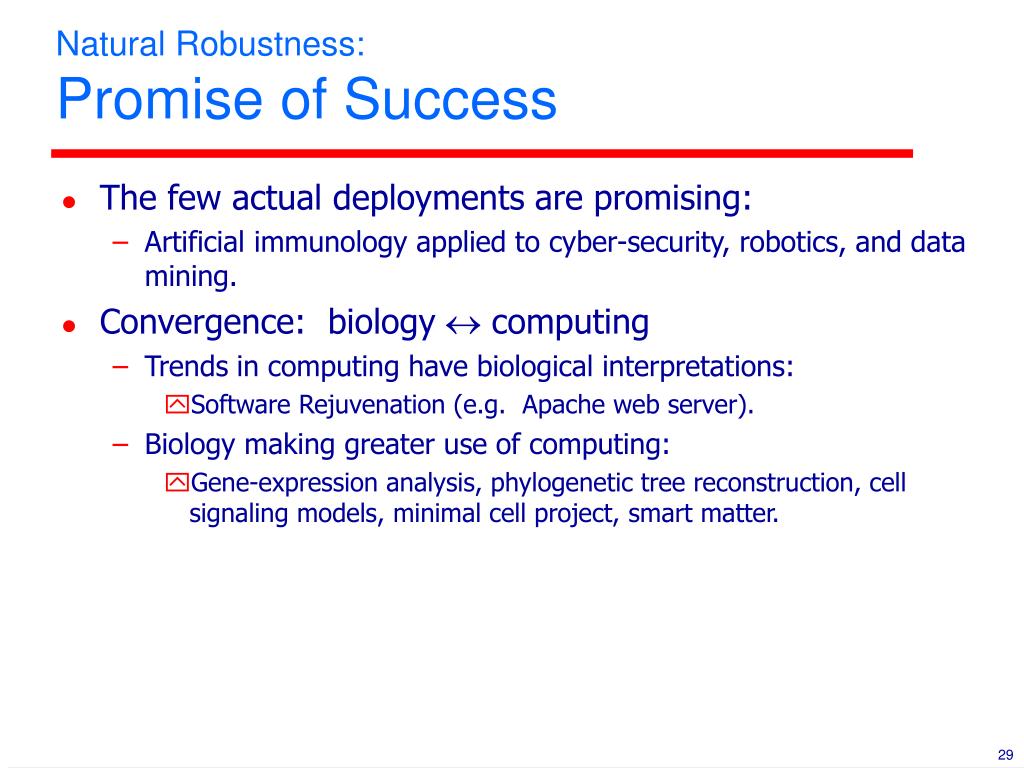

30. Natural Robustness:Promise of Success • The few actual deployments are promising: • Artificial immunology applied to cyber-security, robotics, and data mining. • Convergence: biology  computing • Trends in computing have biological interpretations: • Software Rejuvenation (e.g. Apache web server). • Biology making greater use of computing: • Gene-expression analysis, phylogenetic tree reconstruction, cell signaling models, minimal cell project, smart matter.

31. Natural Robustness:Next Steps (1) • Pair new results from biology with robustness challenges in computer networks. • Exploit information about software evolution. • E.g., Phylogenetic trees for predicting vulnerabilities. • Intra-cellular signaling and cascades (chemostaxis). • Inter-cellular signaling networks (e.g., immune systems). • Genetics: • Genetic buffering. • Individual gene repairs. • Evolutionary mechanisms (genotype/phenotype mappings). • Ecosystem modeling: • Diversity, keystone species, patch models, allometry, resource flows.

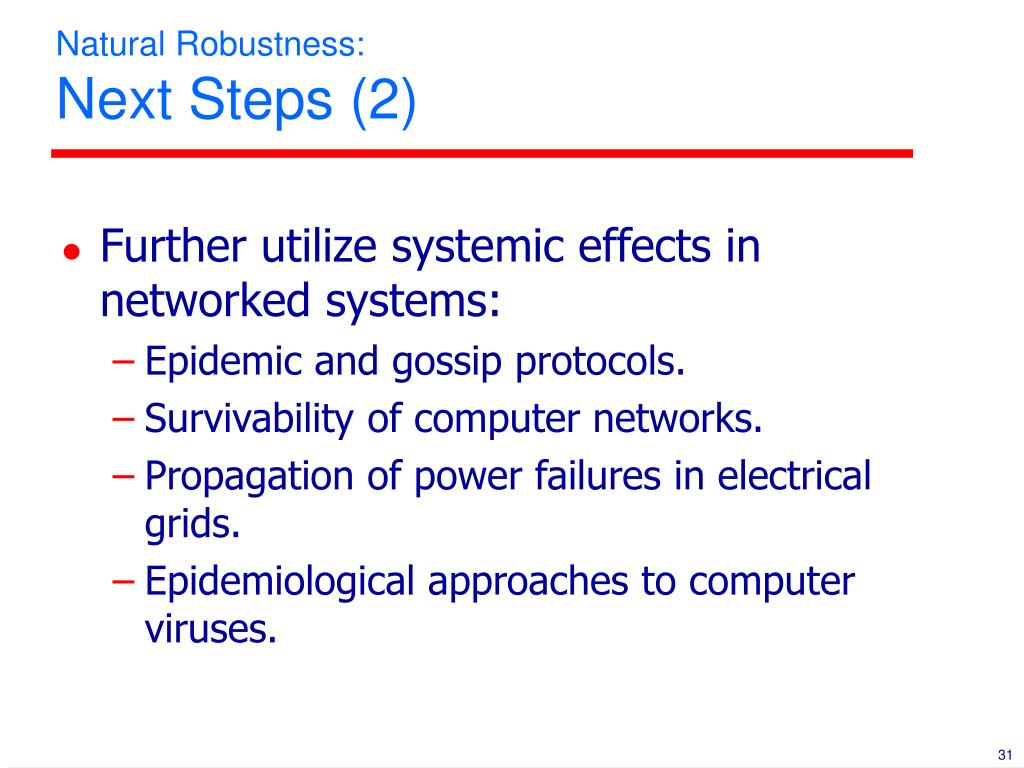

32. Natural Robustness:Next Steps (2) • Further utilize systemic effects in networked systems: • Epidemic and gossip protocols. • Survivability of computer networks. • Propagation of power failures in electrical grids. • Epidemiological approaches to computer viruses.

33. Robust Cyber Defense:Complementary research (1) • Support for on-the-fly system change: • Software rejuvenation (refresh data or environment) • Control structure/data rep change • Adaptive fault-tolerance (ftol asmpt change) • Self-healing real-time schedulers • Enhanced detection: • Growing memory size, enables rollback to a previous state • Application-specific monitoring

34. Robust Cyber DefenseComplementary Research (2) • Machine learning • Reinforcement learning (to adjust parameters in accordance with new information or feedback). • Genetic programming (to evolve small software components).
