Oxidative Phosphorylation

Oxidative Phosphorylation. What is it? Process in which ATP is formed as a result of the transfer of electrons from NADH or FADH 2 to O 2 via a series of electron carriers Oxidation of glucose: Glycolysis: 2ATP 2NADH (5ATP) Pyruvate dehyd: 2NADH (5ATP)

jaimie
Download Presentation

Oxidative Phosphorylation

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Oxidative Phosphorylation What is it? Process in which ATP is formed as a result of the transfer of electrons from NADH or FADH2 to O2 via a series of electron carriers Oxidation of glucose: Glycolysis: 2ATP 2NADH (5ATP) Pyruvate dehyd: 2NADH (5ATP) Citric acid cycle: 2ATP 6NADH (15ATP) 2FADH2 (3ATP) Oxidative phos: ~26-28ATP TOTAL: ~30-32ATP Occurs in mitochondria K, lec18, p2

  2. Oxidative Phosphorylation What is mitochondria? 2 membranes: Inner - only permeable to O2, H2O transporters req’d for ATP, Pi, pyruvate, etc. folding increases surface area (site of ox. phos. machinery) Matrix contains: citric acid cycle enzymes Fatty acid oxidation enzymes (discuss later)

  3. Oxidative Phosphorylation Summary F type transporter ATP synthase

  4. Oxidative Phosphorylation History 1961 - Peter Mitchell proposed chemiosmotic hypothesis: energy from e- transport is stored in a proton gradient which is then used to make ATP Experimental support: 1. Uncouplers: dinitrophenol carries H+ across membrane, dissipating the H+ gradient DNP-treated mito endlessly consume O2 with NO ATP synthesis 2. Artificial H+ gradients drive ATP synthesis K, lec18, p16 K, lec18, p17

  5. Oxidative Phosphorylation What are the electron carriers? NADH, NADPH (cannot cross inner mito membrane, shuttle their e-) FMN, FAD (directly involved in Ox phos) NADH, NADPH and FADH2 each carry 2e- FMN can carry 1 or 2e-

  6. Oxidative Phosphorylation Membrane bound Hydrophobic quinone (coenzyme Q) Q can carry 1 or 2e- Q floats free in lipid bilayer and moves e- from complexes I and II to III

  7. Oxidative Phosphorylation Iron-containing proteins (cytochromes and Fe-S proteins) Cyt carry 1 e-, heme, found in complexes III and IV and cytochrome c FeS carry 1 e-, found in complexes I, II, and III, Fe2+ or Fe3+

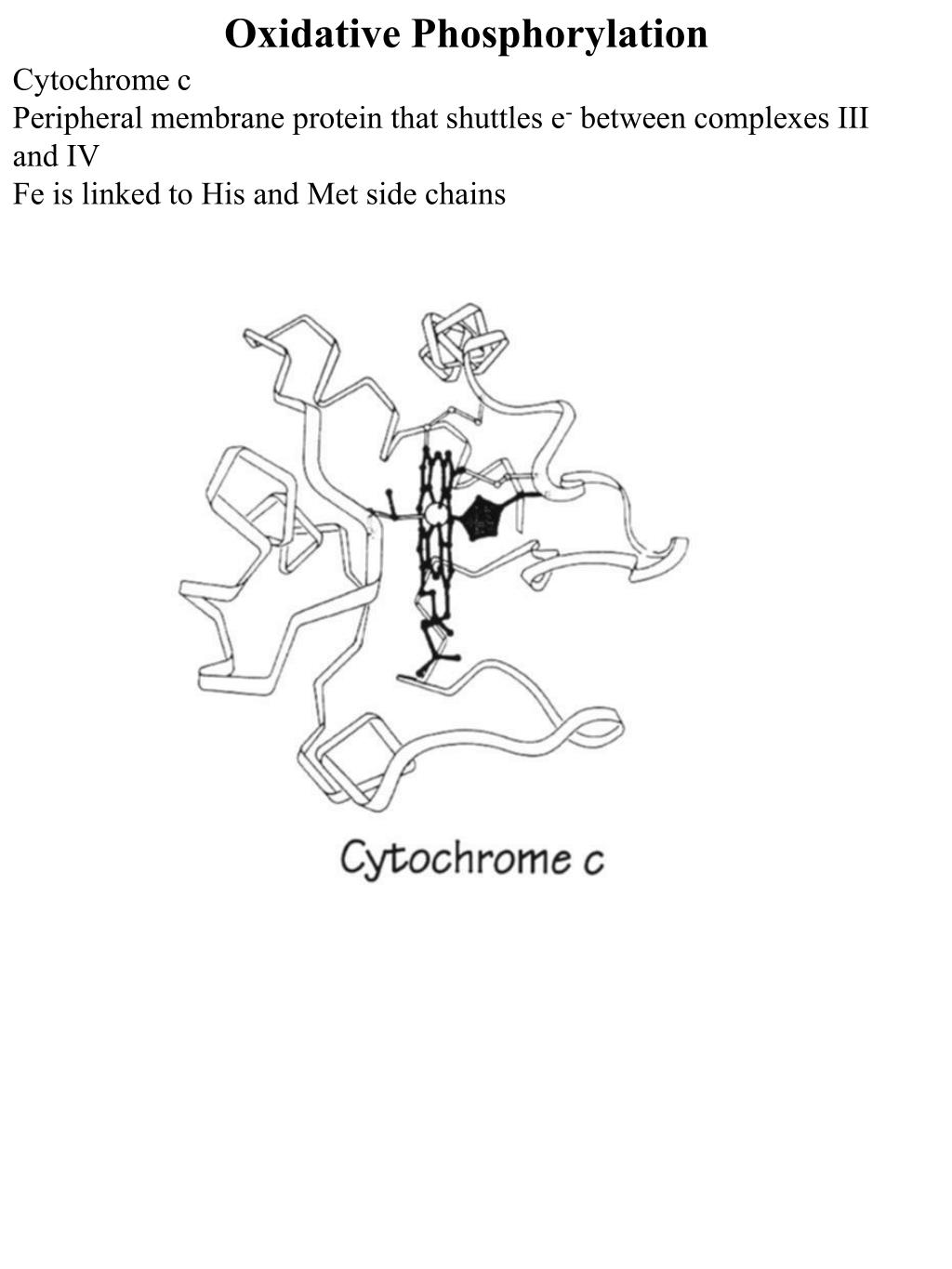

  8. Oxidative Phosphorylation Cytochrome c Peripheral membrane protein that shuttles e- between complexes III and IV Fe is linked to His and Met side chains K, lec 18, p11

  9. Oxidative Phosphorylation Electron transport chain (respiratory chain) Series of oxidation/reduction components that carry electrons Protein e- carrying components Complex I (NADH-Q dehydrogenase) Complex II (Succinate-Q dehydrogenase) Coenzyme Q Complex III (Cytochrome reductase) Cytochrome c Complex IV (cytochrome oxidase) FMN, FeS FAD, FeS itself Cyt bH, Cyt bL, FeS, Cyt c1 itself Cyt a, Cyt a3, CuA, CuB

  10. Oxidative Phosphorylation Order of electron carriers determined by respiratory inhibitors NADH  FMN  FeS  Q  cyt b  FeS  cyt c1  cyt c  cyt a  cyt a3  O2 rotenone antimycin A cyanide, azide

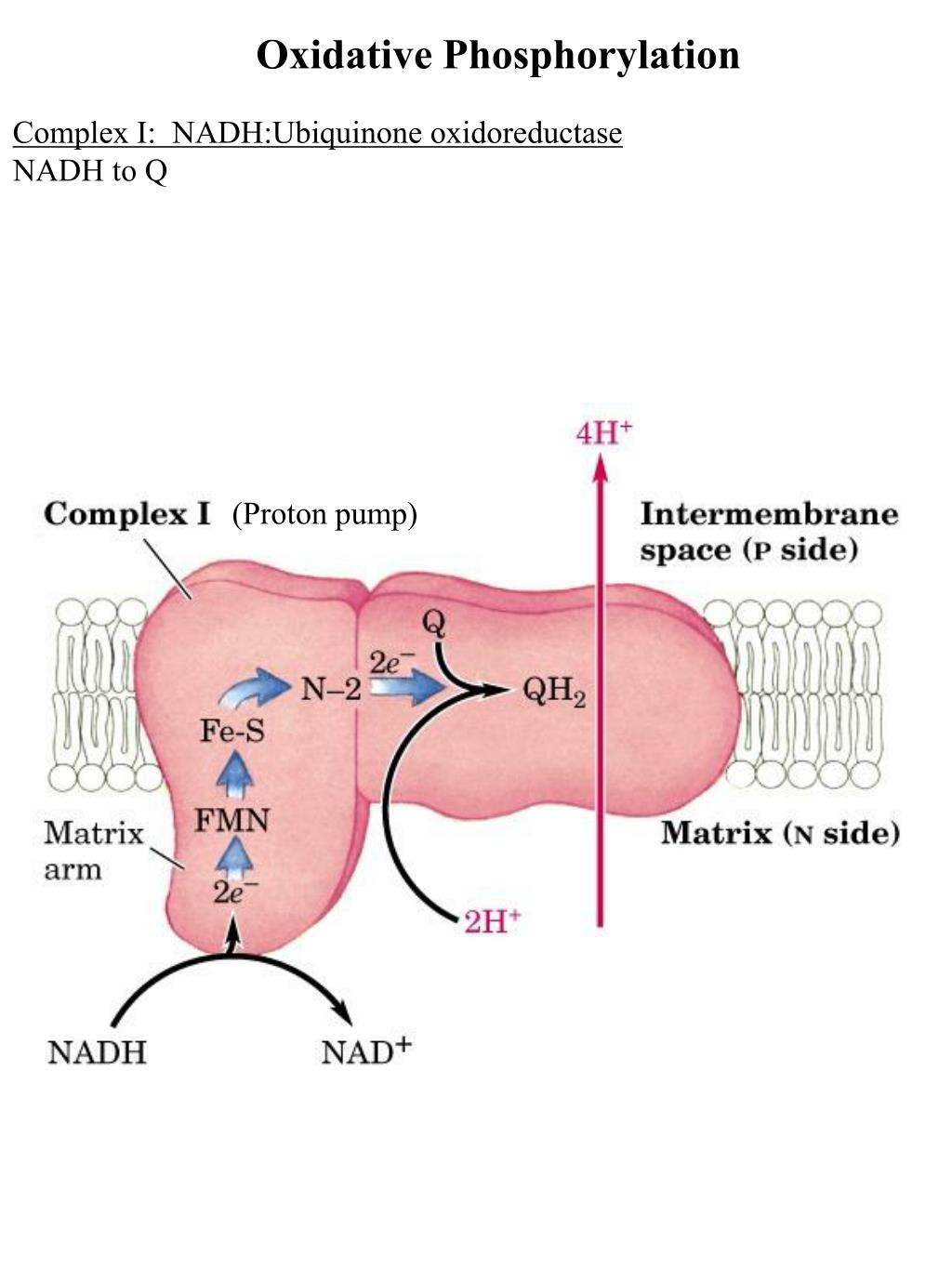

  11. Oxidative Phosphorylation Complex I: NADH:Ubiquinone oxidoreductase NADH to Q (Proton pump)

  12. Oxidative Phosphorylation Complex II: Succinate dehydrogenase Succinate to Q QH2

  13. Oxidative Phosphorylation Complex III: Cytochrome bc1 complex or ubiquinone:cytochrome c oxidoreductase Ubiquinol (QH2) to cytocrome c

  14. Oxidative Phosphorylation Complex IV: Cytochrome oxidase Cytocrome c to molecular O2 (reducing it to H2O)

  15. Oxidative Phosphorylation ATP synthase Multiprotein complex 3H+ pass through for each ATP made K, lec18, p18 INNER MEMBRANE OUTER MEMBRANE

  16. Oxidative Phosphorylation Energetics of Ox. Phos. 1/2 O2 + NADH + H+ H2O + NAD+ G˚ = -220 kJ/mol An electrochemical gradient across the inner membrane is formed: electrical: outside is more positive chemical: proton concentration gradient (pHout is 1.4 units < pHin Energy of 3H+ transported drives ATP synthesis ADP + Pi + 3H+  ATP + H2O G˚ = +30.5 kJ/mol

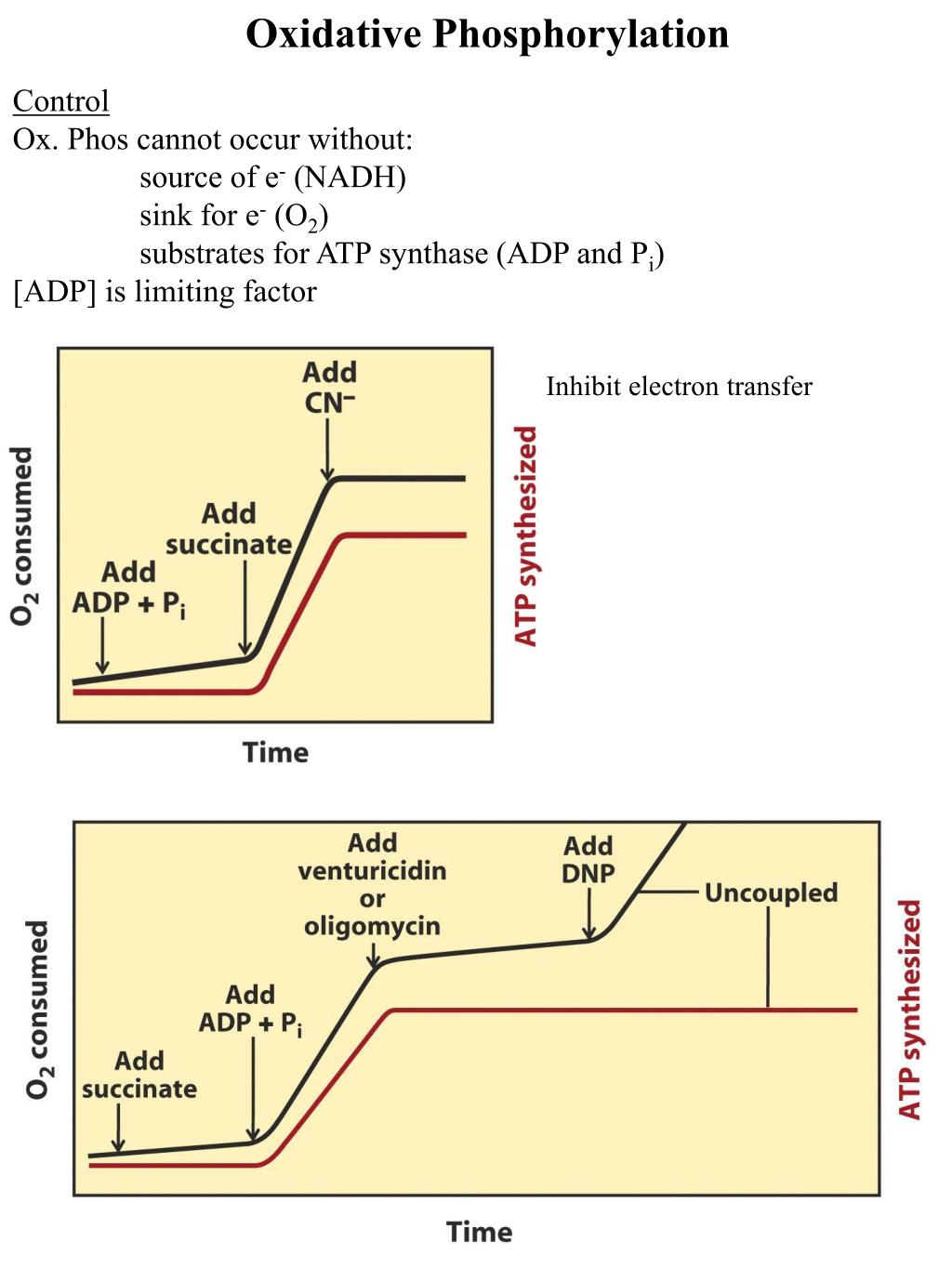

  17. Oxidative Phosphorylation Control Ox. Phos cannot occur without: source of e- (NADH) sink for e- (O2) substrates for ATP synthase (ADP and Pi) [ADP] is limiting factor Inhibit electron transfer

  18. Oxidative Phosphorylation How does ATP made in mito get out?
