  1. Chronos: A Graph Engine for Temporal Graph Analysis Wentao Han1,3, Youshan Miao2,3, Kaiwei Li1,3, Ming Wu3, Fan Yang3, Lidong Zhou3, Vijayan Prabhakaran3, Wenguang Chen1, Enhong Chen2 Tsinghua University1University of Science and Technology of China2Microsoft Research3

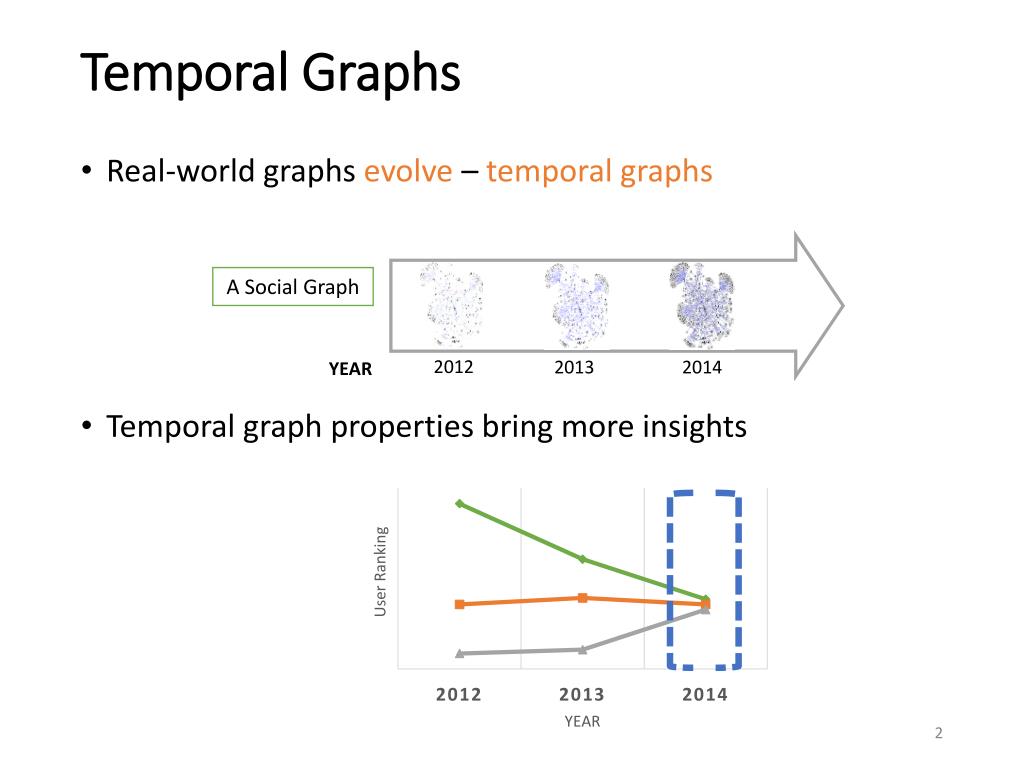

  2. Temporal Graphs • Real-world graphs evolve – temporal graphs • Temporal graph properties bring more insights A Social Graph 2012 2014 2013 YEAR

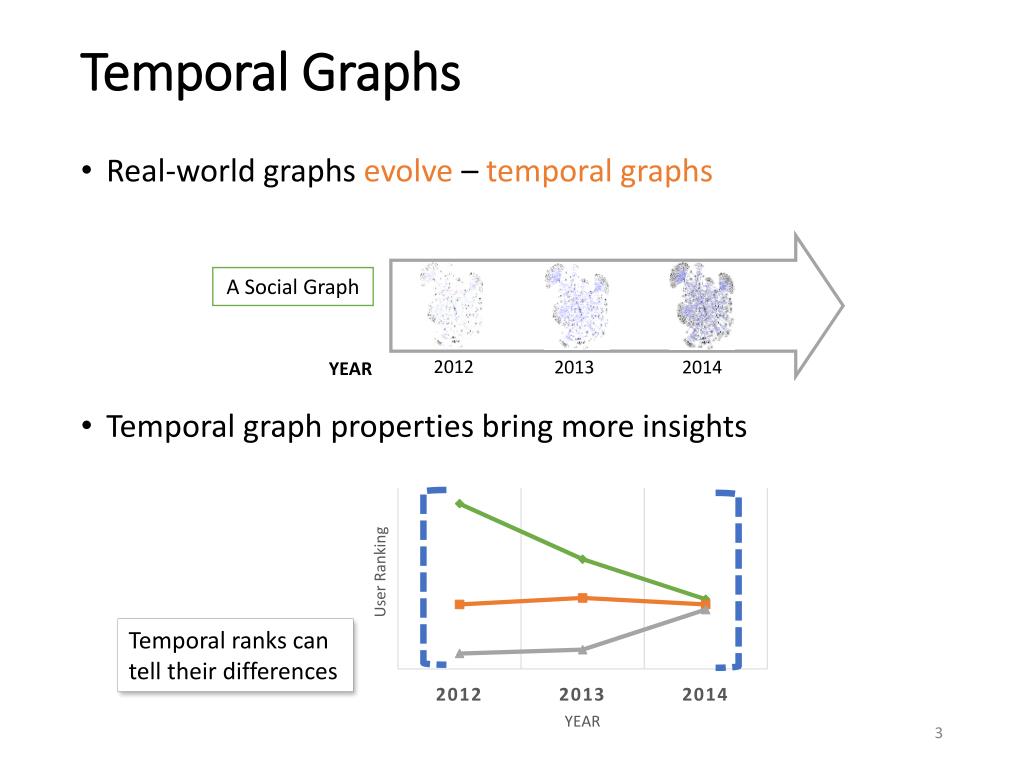

  3. Temporal Graphs • Real-world graphs evolve – temporal graphs • Temporal graph properties bring more insights A Social Graph 2012 2014 2013 YEAR Temporal ranks can tell their differences

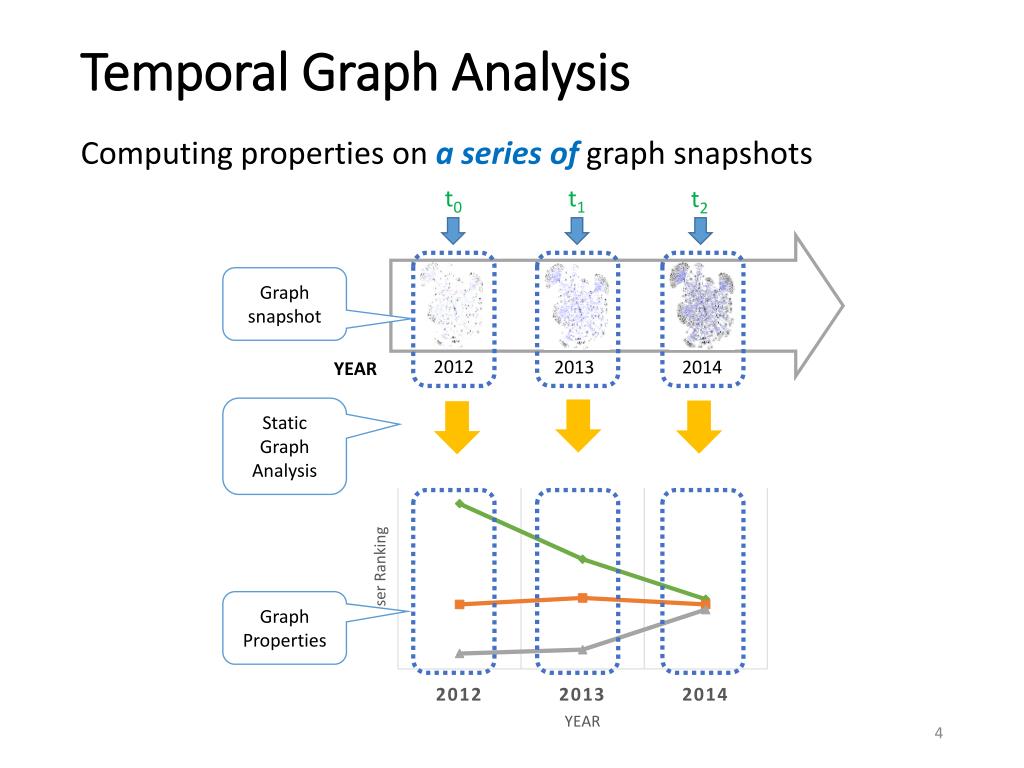

  4. Temporal Graph Analysis Computing properties on a series of graph snapshots t0 t1 t2 Graph snapshot 2012 2014 2013 YEAR Static Graph Analysis Graph Properties

  5. Temporal Graph Analysis • Existing graph engines: targeting static graph analysis • A possible solution: computing snapshot by snapshot 2012 2014 2013 YEAR Task 1 Task 2 Task 3

  6. Performance Issues

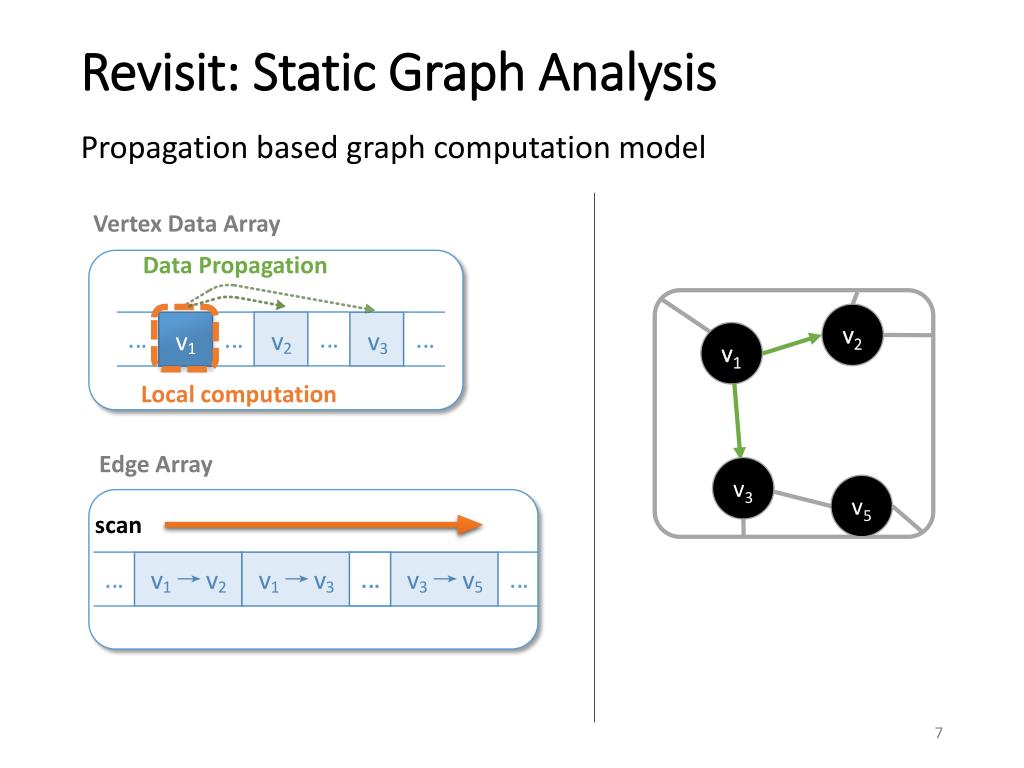

  7. Revisit: Static Graph Analysis v2 v1 Propagation based graph computation model Vertex Data Array Data Propagation v3 v5 Local computation Edge Array scan

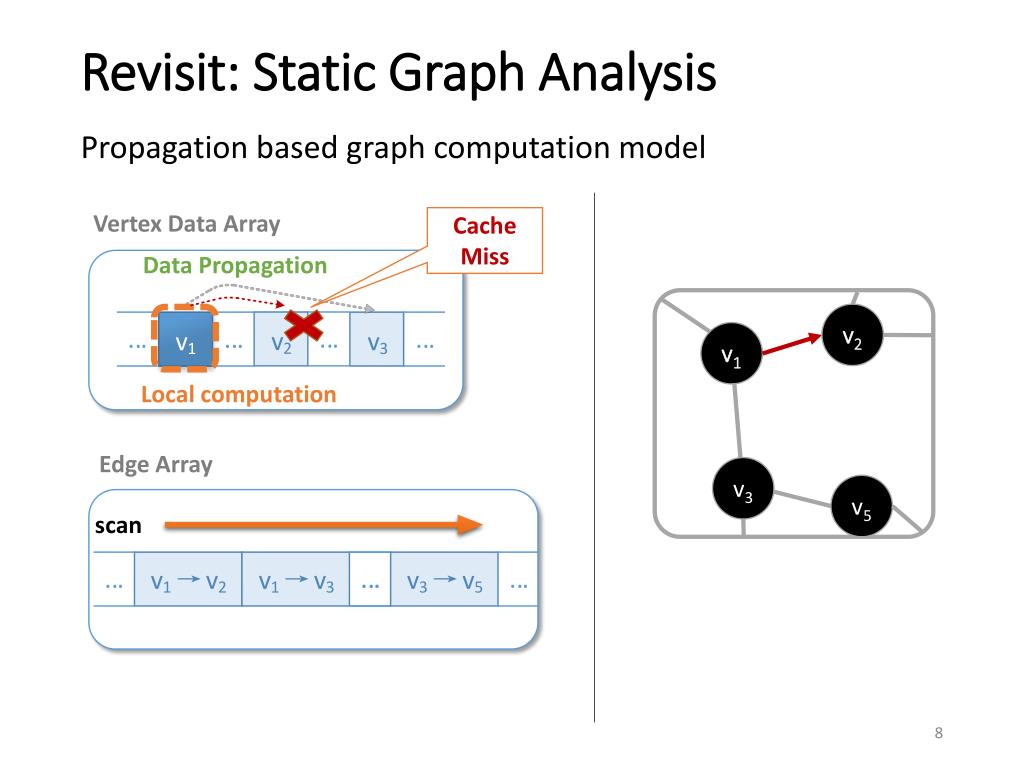

  8. Revisit: Static Graph Analysis v2 v1 Propagation based graph computation model Vertex Data Array Cache Miss Data Propagation v3 v5 Local computation Edge Array scan

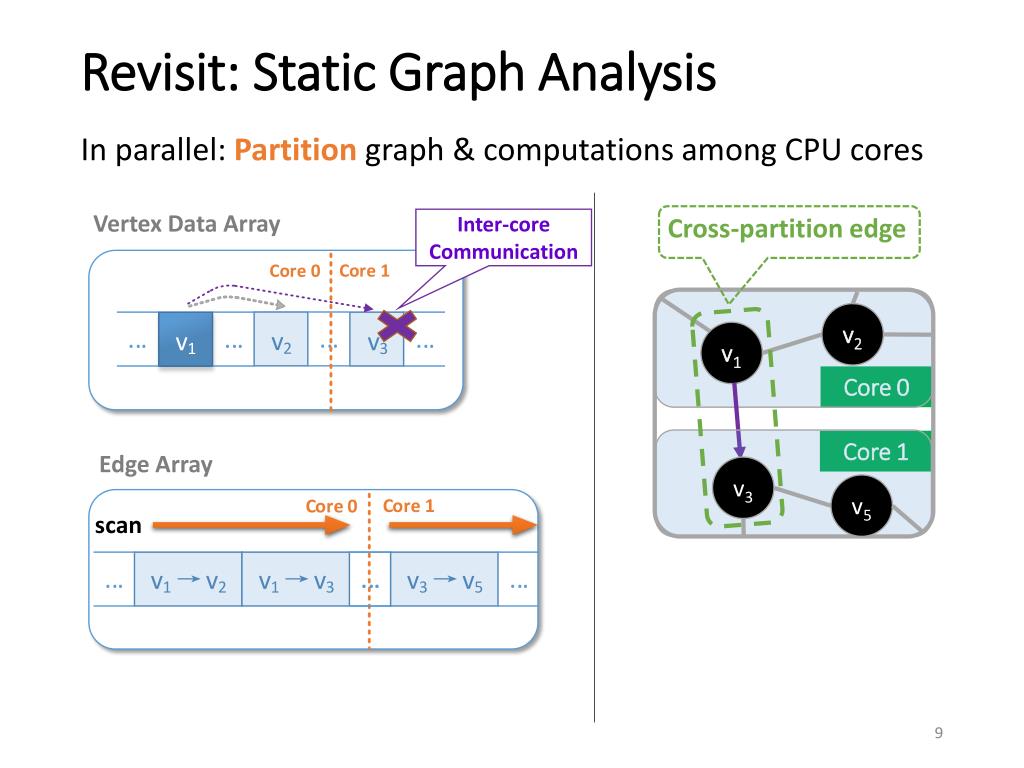

  9. Revisit: Static Graph Analysis v2 v1 In parallel: Partition graph & computations among CPU cores Vertex Data Array Cross-partition edge Inter-core Communication v3 v5 Core 0 Core 1 Edge Array scan

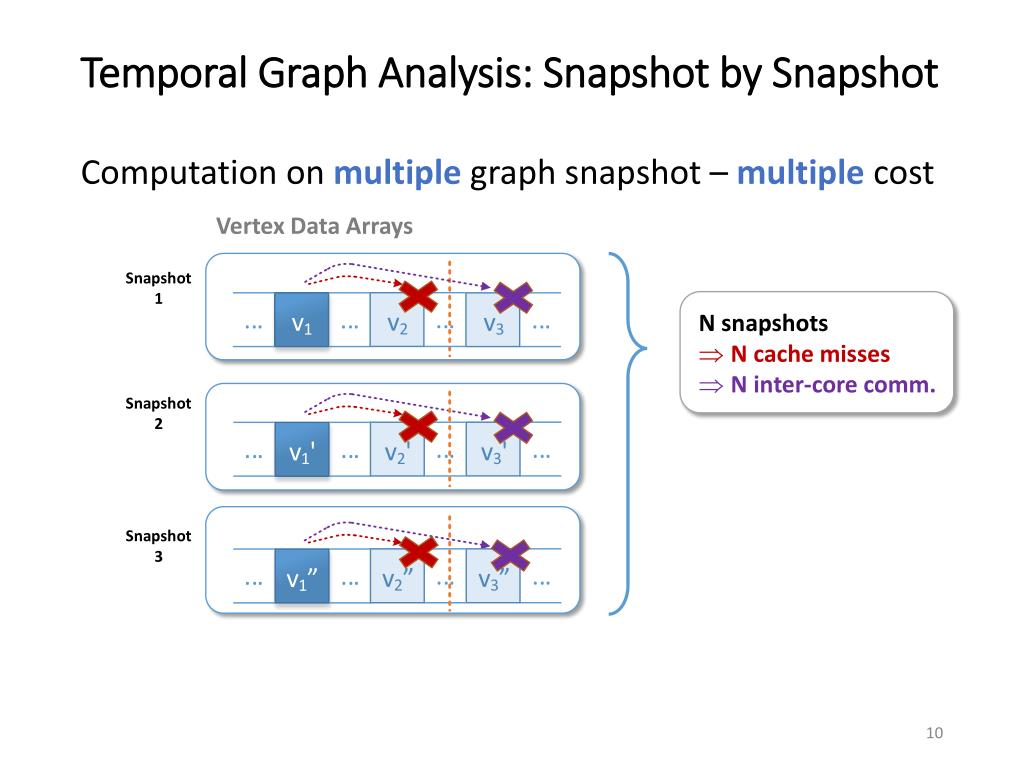

  10. Temporal Graph Analysis: Snapshot by Snapshot Computation on multiple graph snapshot – multiple cost Vertex Data Arrays Snapshot 1 Snapshot 2 Snapshot 3 • N snapshots • N cache misses • N inter-core comm.

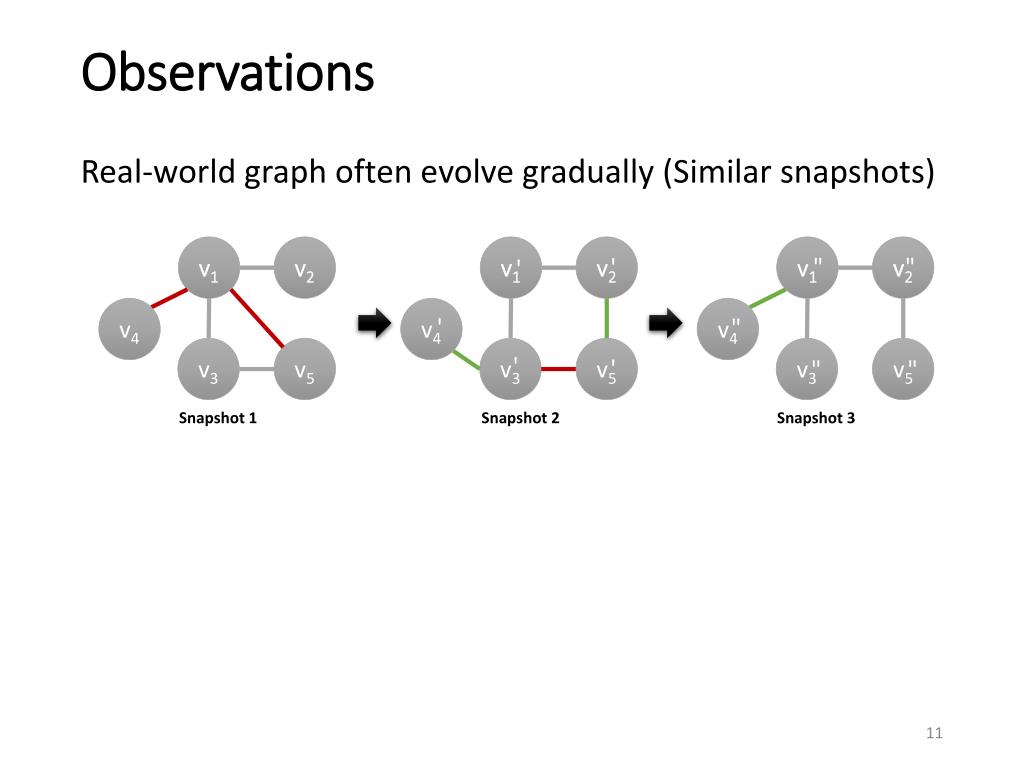

  11. Observations Real-world graph often evolve gradually (Similar snapshots) v1 v2 v1 v2 v1 v2 " " ' ' v4 v4 v4 ' " v3 v5 v3 v5 v3 v5 ' ' " " Snapshot 1 Snapshot 2 Snapshot 3

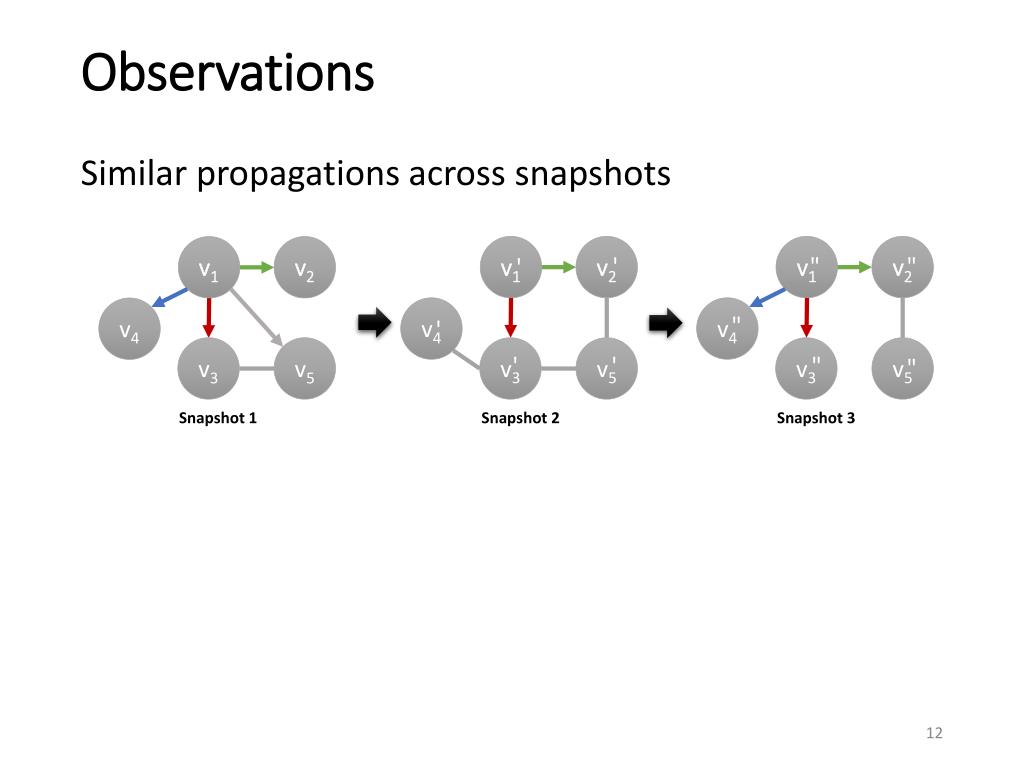

  12. Observations Similar propagations across snapshots v1 v2 v1 v2 v1 v2 " " ' ' v4 v4 v4 " ' v3 v5 v3 v5 v3 v5 ' ' " " Snapshot 1 Snapshot 2 Snapshot 3

  13. Idea Group propagations by source & target, not by snapshot v1 v2 v1 v2 v1 v2 " " ' ' v4 v4 v4 " ' v3 v5 v3 v5 v3 v5 ' ' " " Snapshot 1 Snapshot 2 Snapshot 3 Step 2 Step 1 Step 3 Step 1 Step 2 Step 4 Step 3 Propagations: 1 3 1 4 1 5 1 2

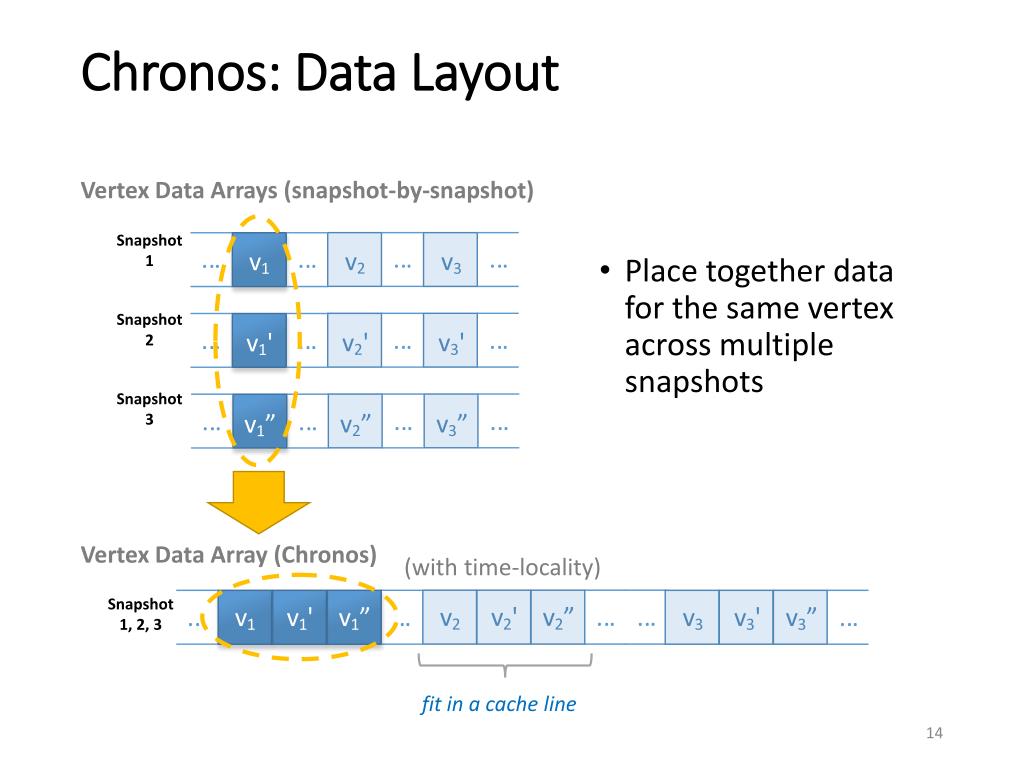

  14. Chronos: Data Layout • Place together data for the same vertex across multiple snapshots Vertex Data Arrays (snapshot-by-snapshot) Snapshot 1 Snapshot 2 Snapshot 3 Vertex Data Array (Chronos) (with time-locality) Snapshot 1, 2, 3 fit in a cache line

  15. Chronos: Propagation Scheduling • Locality Aware Batch Scheduling (LABS): • Batching propagating across snapshots vertex 1 -> vertex 3 across snapshots vertex 1 -> vertex 2 across snapshots Edge Array scan Vertex Data Array fit in a cache line

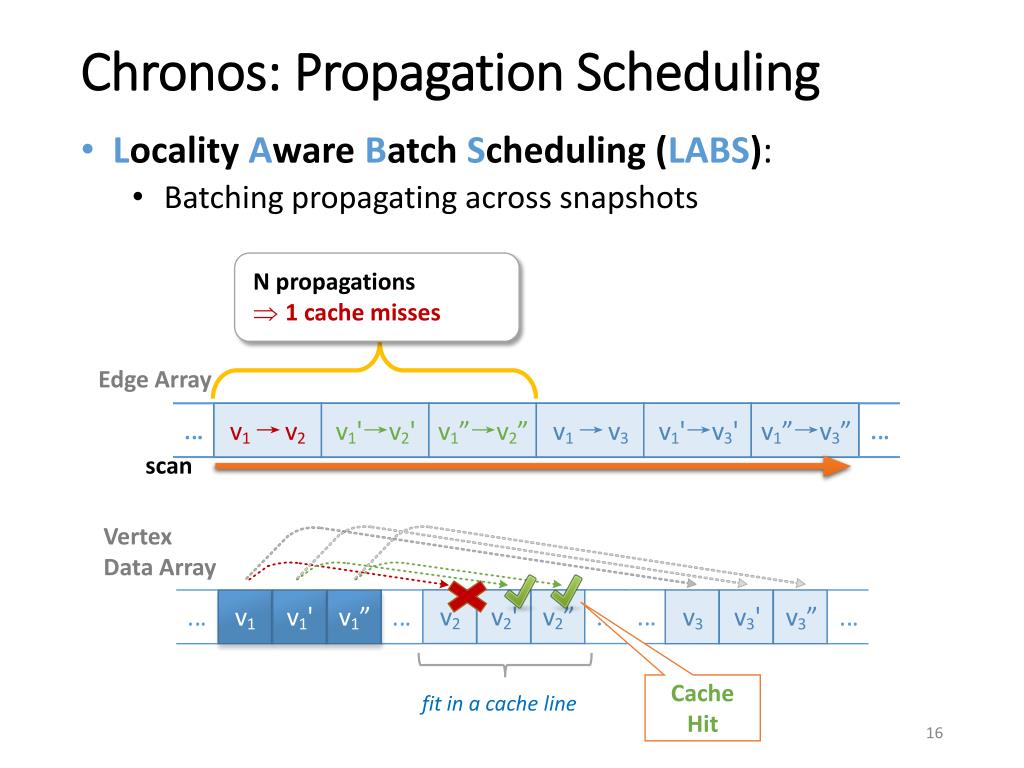

  16. Chronos: Propagation Scheduling • Locality Aware Batch Scheduling (LABS): • Batching propagating across snapshots Edge Array scan Vertex Data Array • N propagations • 1 cache misses Cache Hit fit in a cache line

  17. Chronos: Propagation Scheduling • Locality Aware Batch Scheduling (LABS): • Batching propagating across snapshots Edge Array scan Vertex Data Array • N propagations • 1 inter-core comm. Inter-core Communication access in a batch

  18. LABS: The Key of Chronos • A graph layout • Place together vertex/edge data across snapshots • A scheduling mechanism • Batch propagations across snapshots • Efficient • Reduced cache miss / inter-core comm.

  19. Experimental Evaluation • Large temporal graphs • Various graph algorithms • PageRank • Weakly-connected components (WCC) • Single-source shortest path (SSSP) • Maximal independent set (MIS) • Sparse matrix-vector multiplication (SpMV) • Settings

  20. Chronos: Single-Thread Effectiveness • 5~9x speedup 1 • Baseline: Snapshot by snapshot

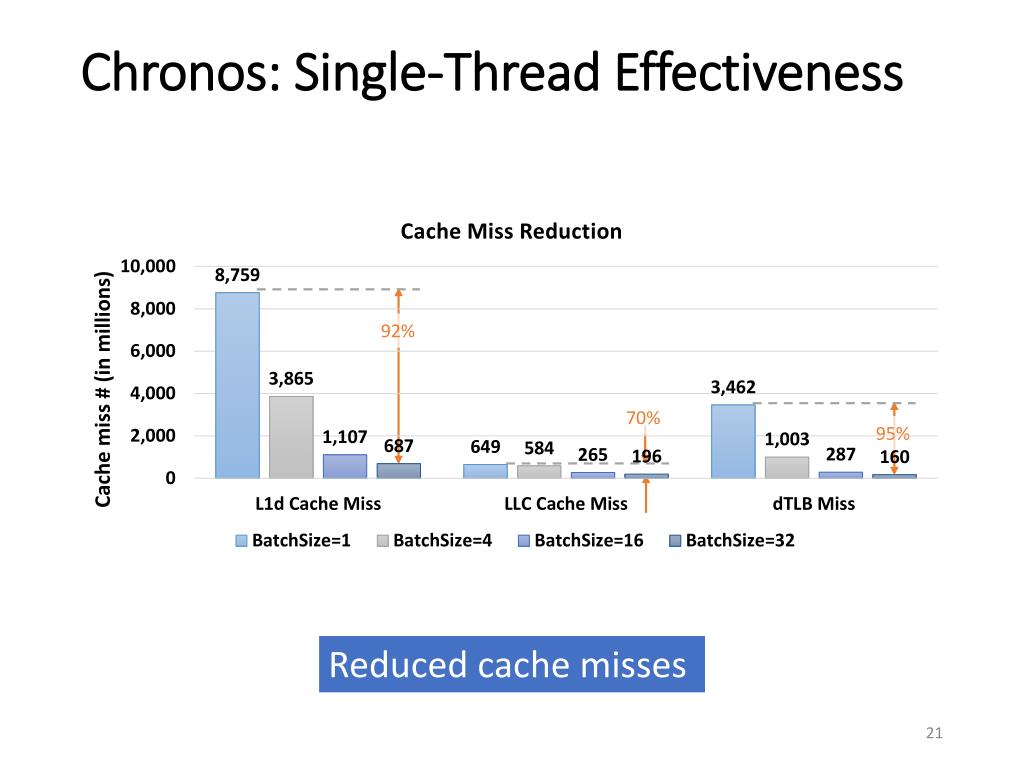

  21. Chronos: Single-Thread Effectiveness 92% 70% 95% Reduced cache misses

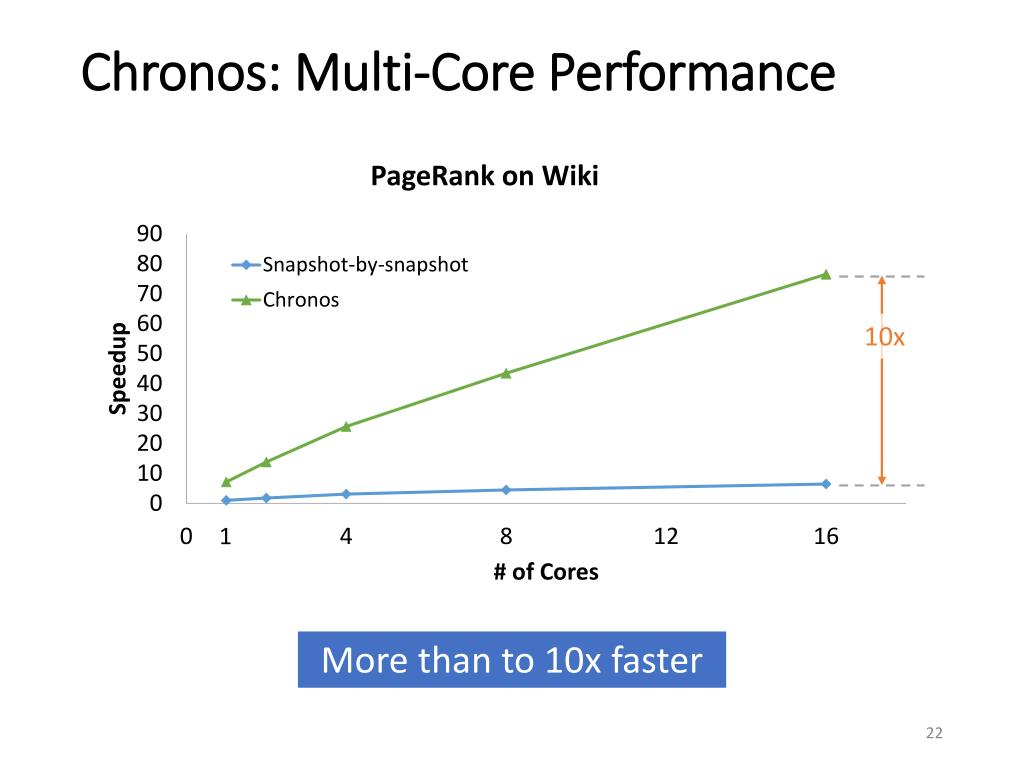

  22. Chronos: Multi-Core Performance 10x 1 More than to 10x faster

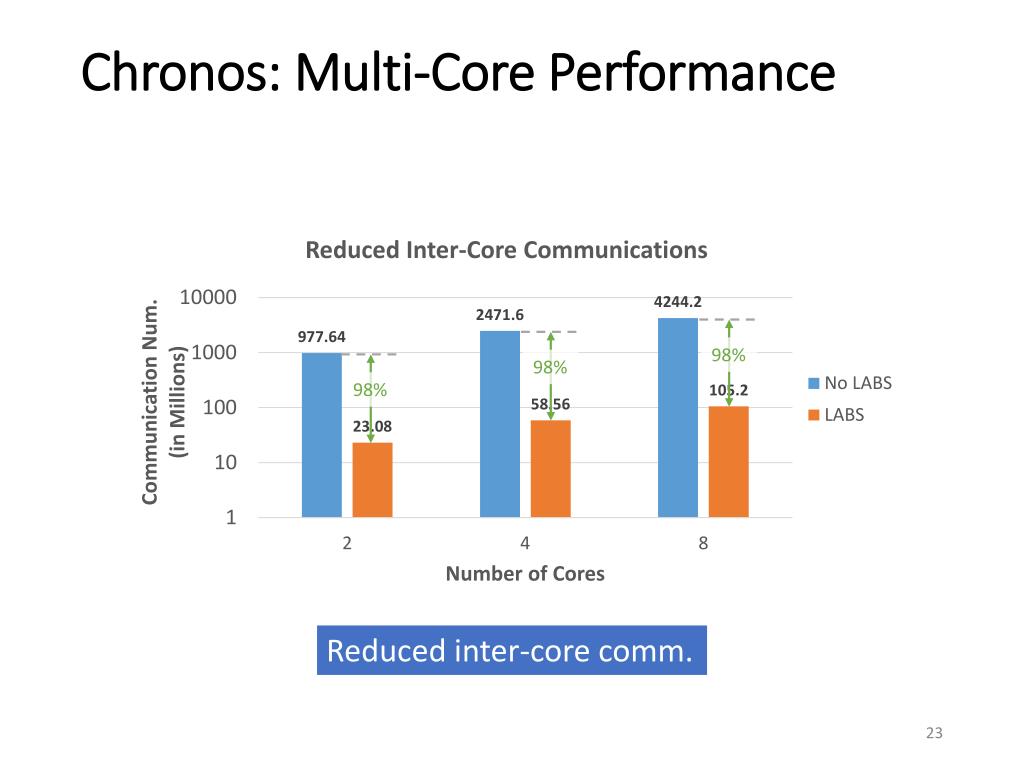

  23. Chronos: Multi-Core Performance 98% 98% 98% Reduced inter-core comm.

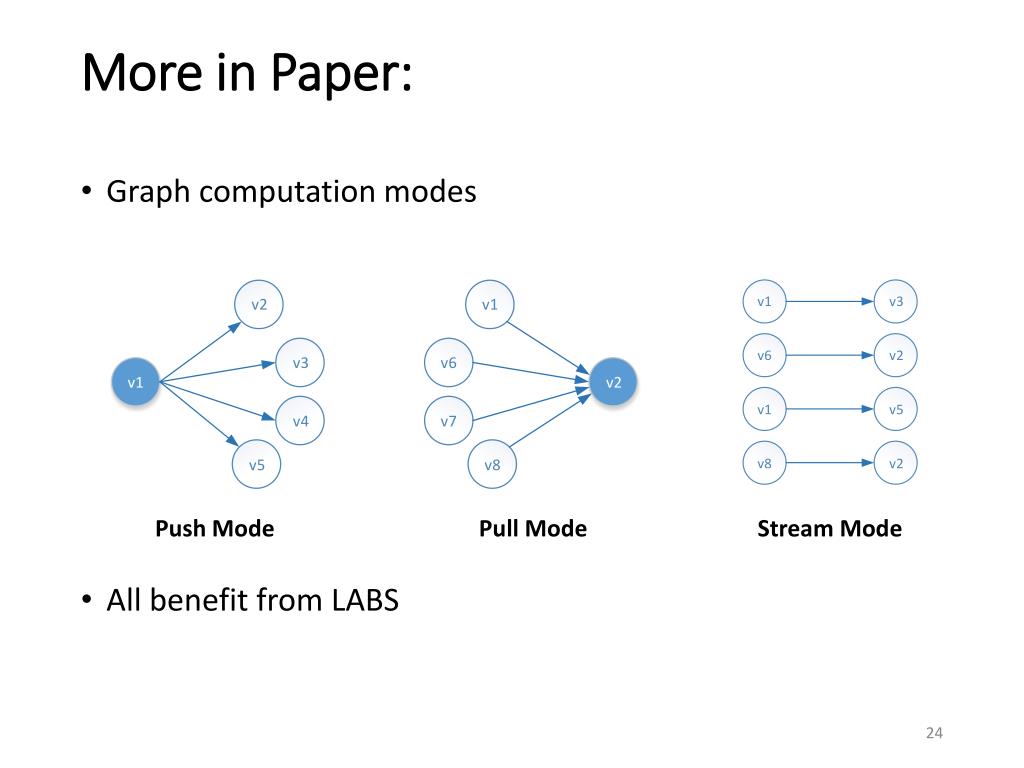

  24. More in Paper: • Graph computation modes • All benefit from LABS Push Mode Pull Mode Stream Mode

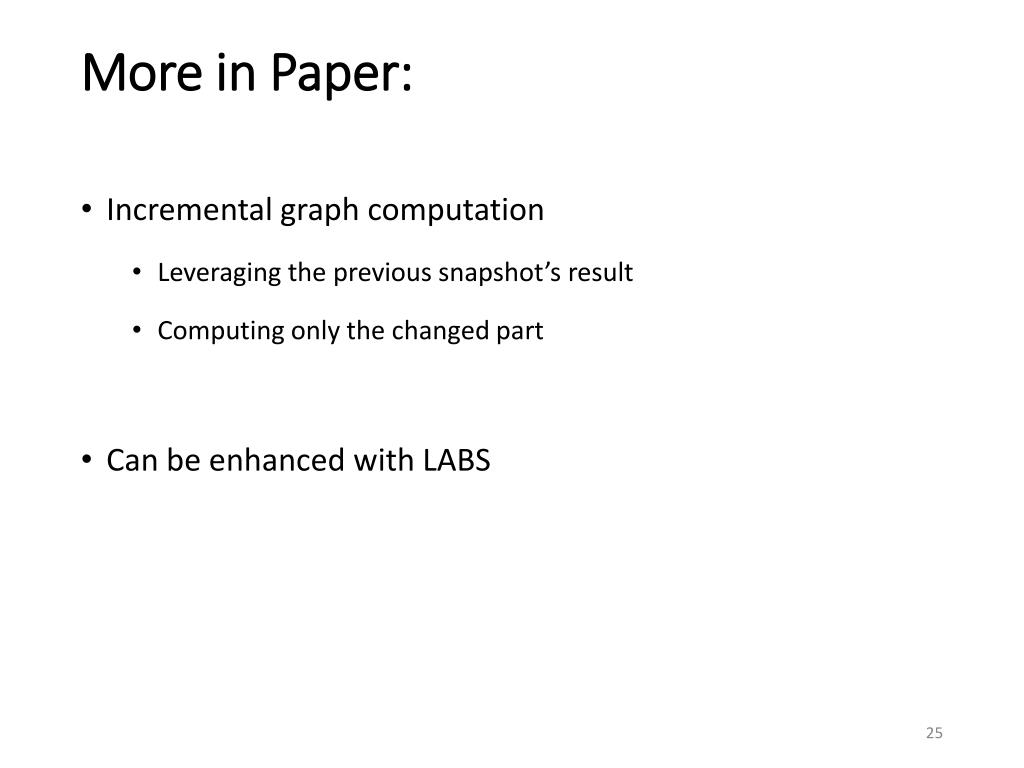

  25. More in Paper: • Incremental graph computation • Leveraging the previous snapshot’s result • Computing only the changed part • Can be enhanced with LABS

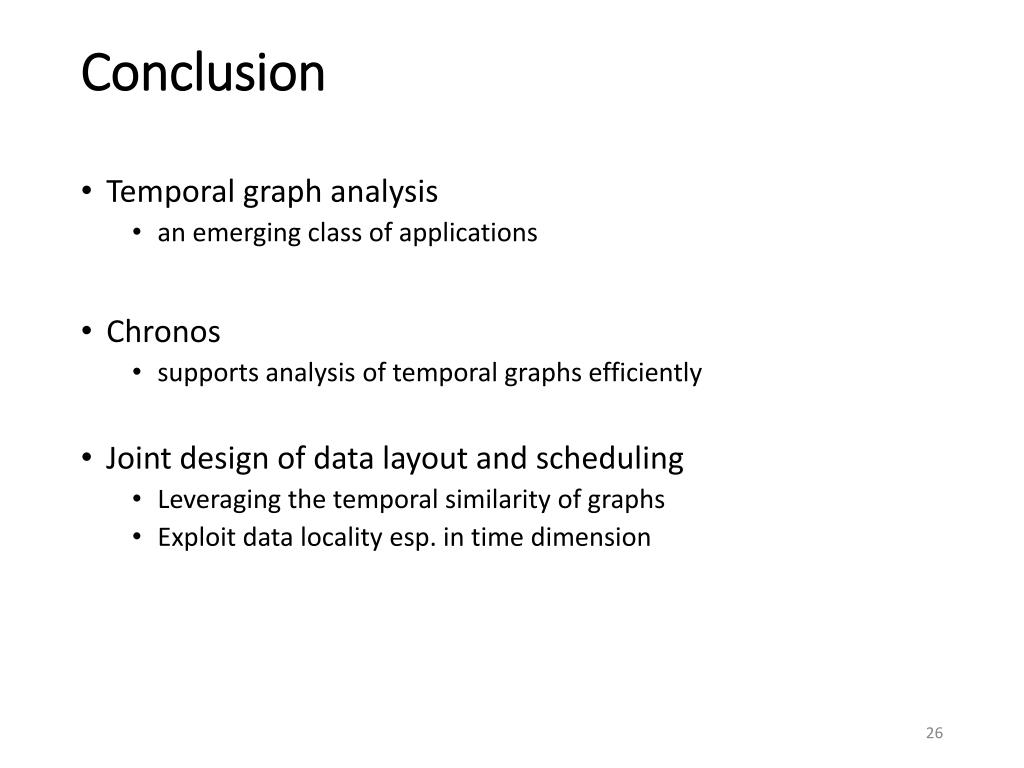

  26. Conclusion • Temporal graph analysis • an emerging class of applications • Chronos • supports analysis of temporal graphs efficiently • Joint design of data layout and scheduling • Leveraging the temporal similarity of graphs • Exploit data locality esp. in time dimension

  27. Thank You! Questions? Tsinghua University University of Science and Technology of China Microsoft Research

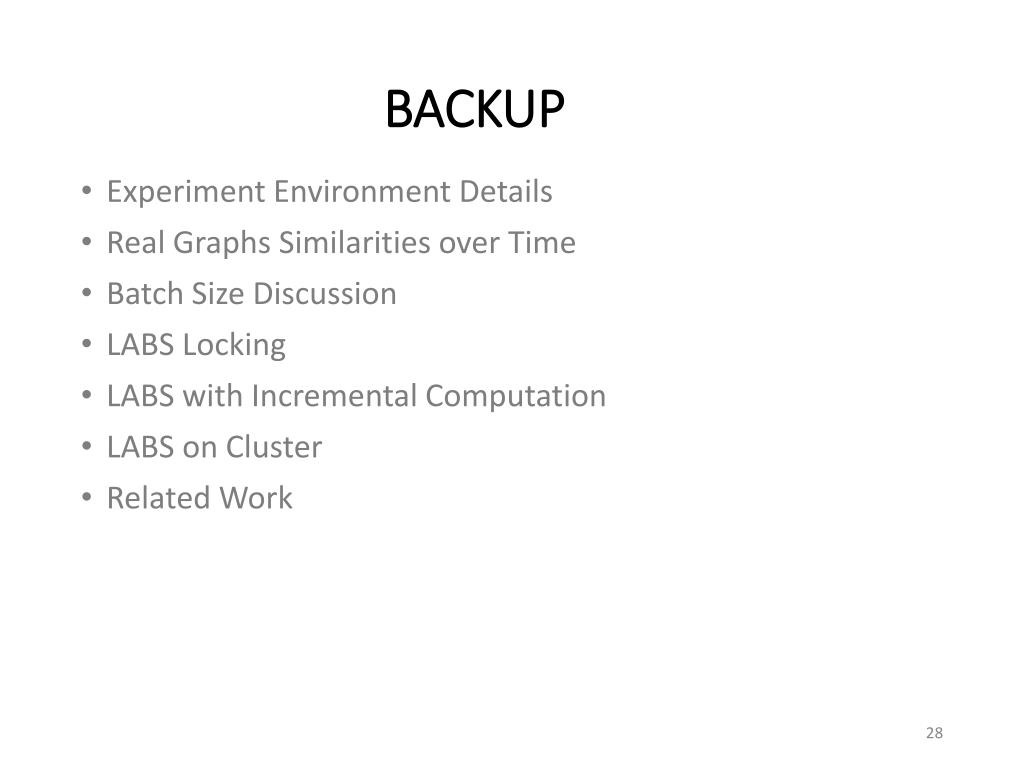

  28. BACKUP • Experiment Environment Details • Real Graphs Similarities over Time • Batch Size Discussion • LABS Locking • LABS with Incremental Computation • LABS on Cluster • Related Work

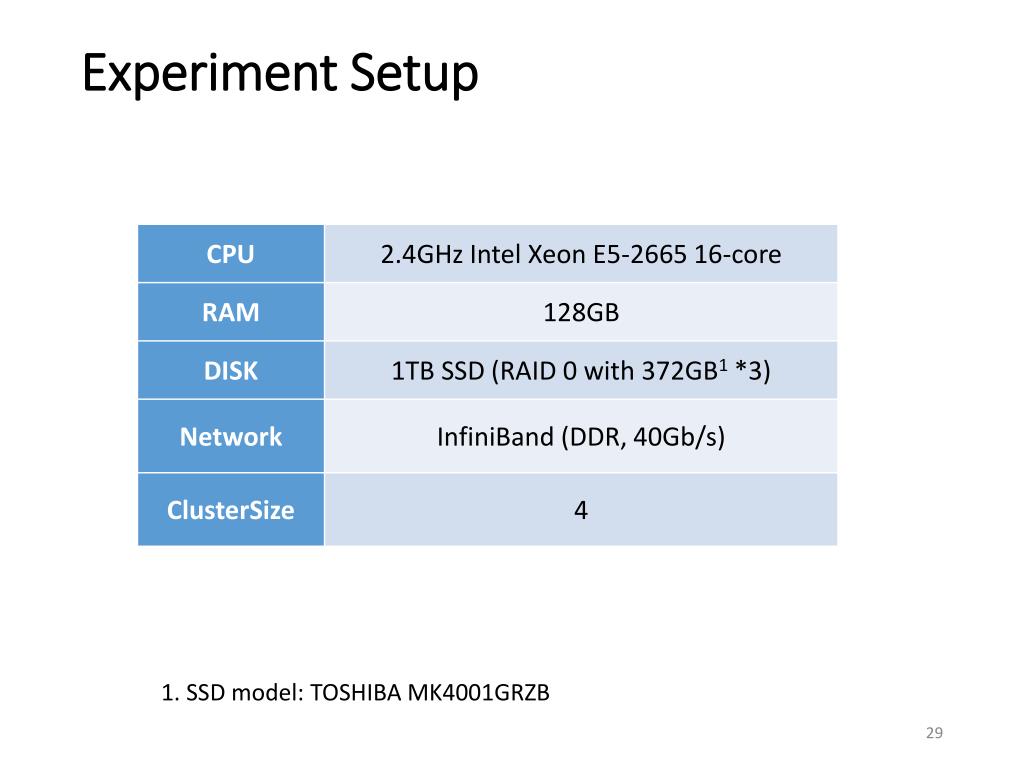

  29. Experiment Setup 1. SSD model: TOSHIBA MK4001GRZB

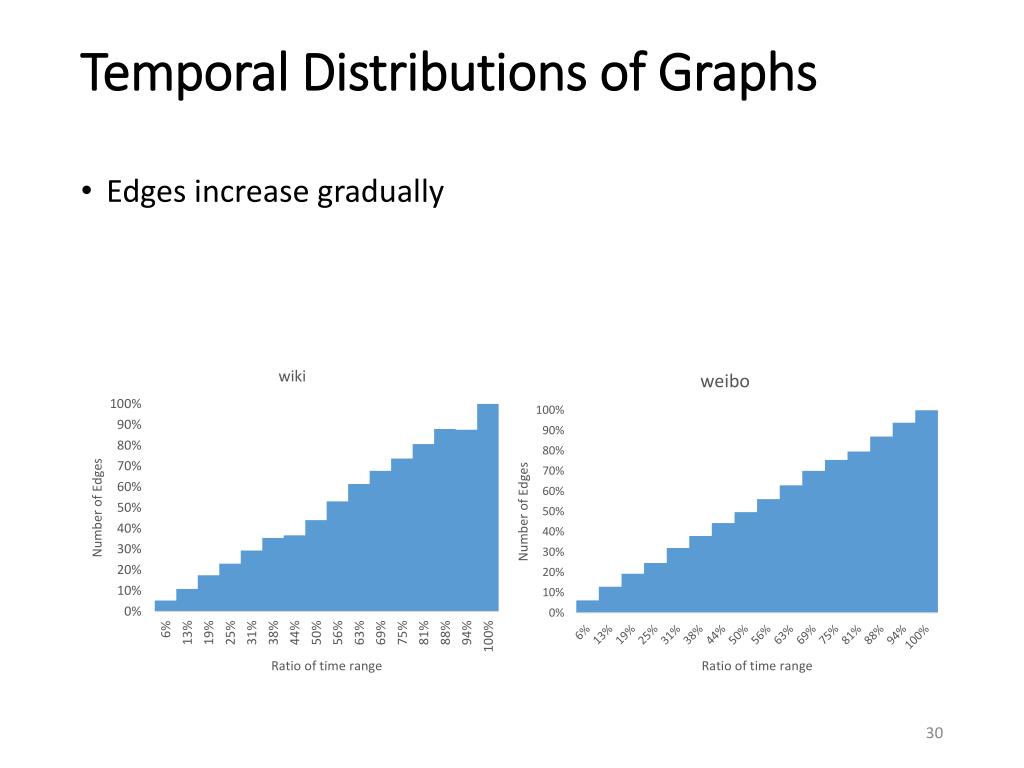

  30. Temporal Distributions of Graphs • Edges increase gradually

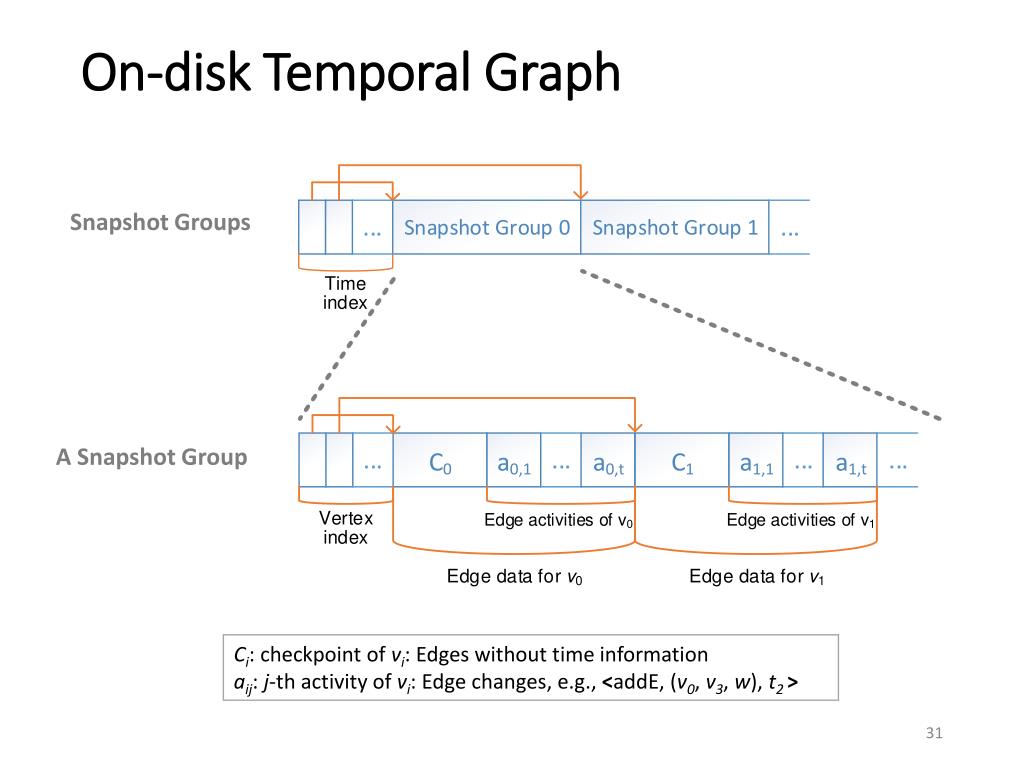

  31. On-disk Temporal Graph Snapshot Groups A Snapshot Group Ci: checkpoint of vi: Edges without time information aij: j-th activity of vi: Edge changes, e.g., <addE, (v0, v3, w), t2 >

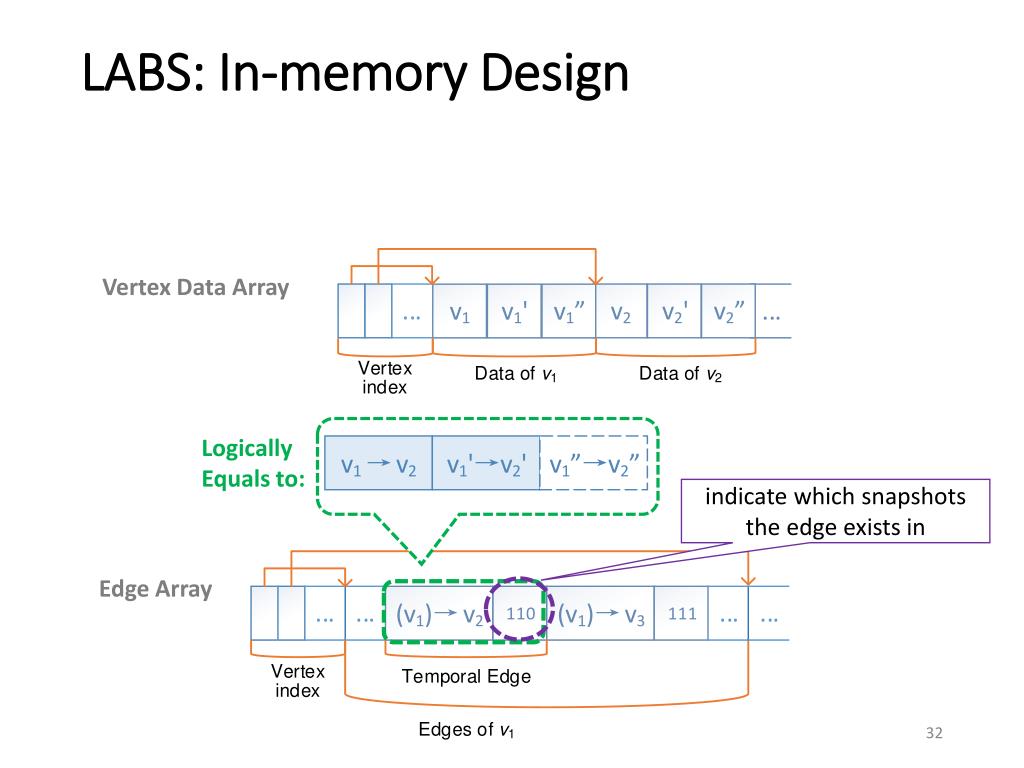

  32. LABS: In-memory Design Vertex Data Array Logically Equals to: indicate which snapshots the edge exists in Edge Array

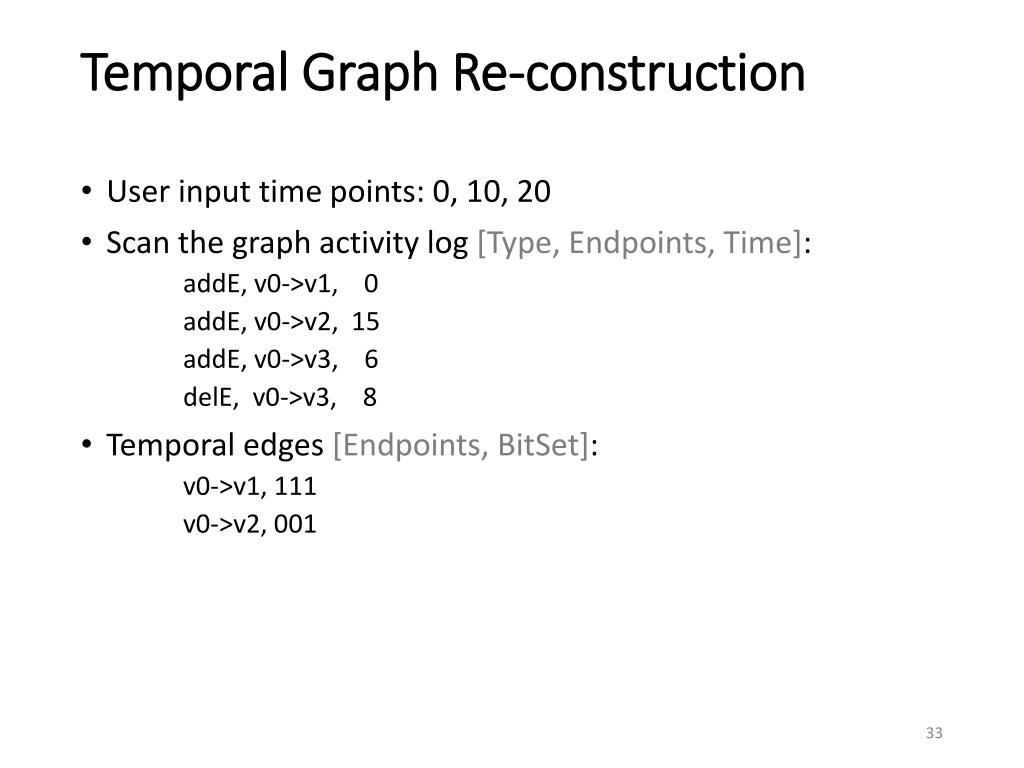

  33. Temporal Graph Re-construction • User input time points: 0, 10, 20 • Scan the graph activity log [Type, Endpoints, Time]: addE, v0->v1, 0 addE, v0->v2, 15 addE, v0->v3, 6 delE, v0->v3, 8 • Temporal edges [Endpoints, BitSet]: v0->v1, 111 v0->v2, 001

  34. Chronos System Overview On-Disk Temporal Graph Contains all the graph evolving activities User input multiple time points Scan activities(log) Reconstruct graph snapshots In-Memory Temporal Graph Contains only snapshots of interest Temporal Properties

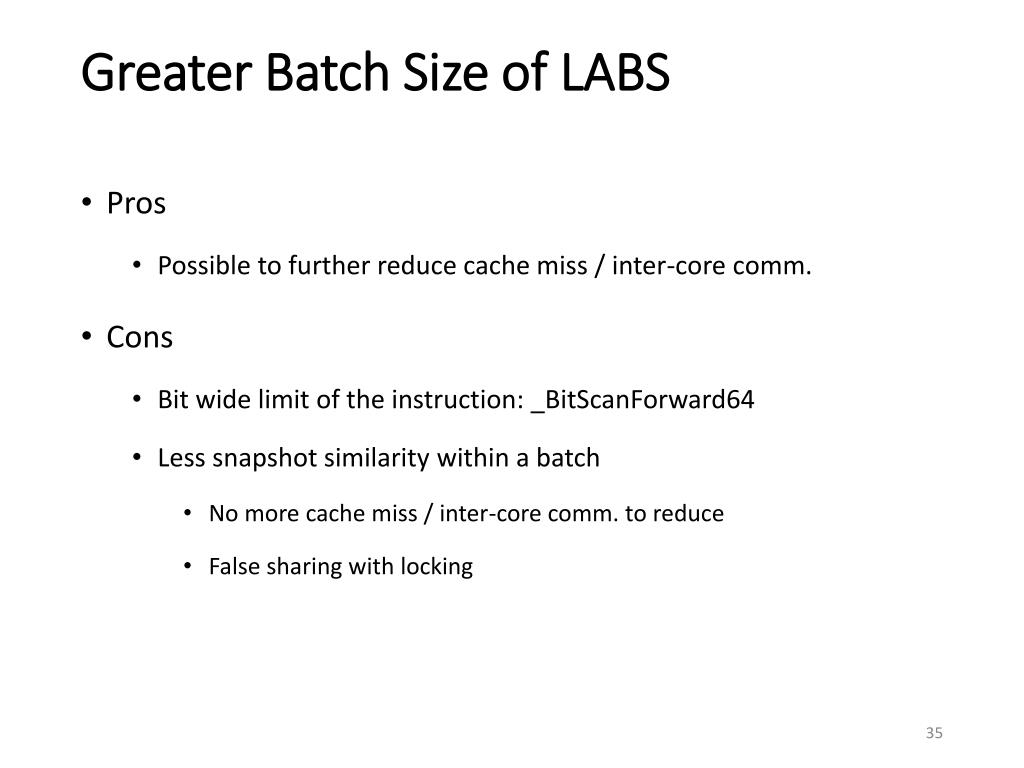

  35. Greater Batch Size of LABS • Pros • Possible to further reduce cache miss / inter-core comm. • Cons • Bit wide limit of the instruction: _BitScanForward64 • Less snapshot similarity within a batch • No more cache miss / inter-core comm. to reduce • False sharing with locking

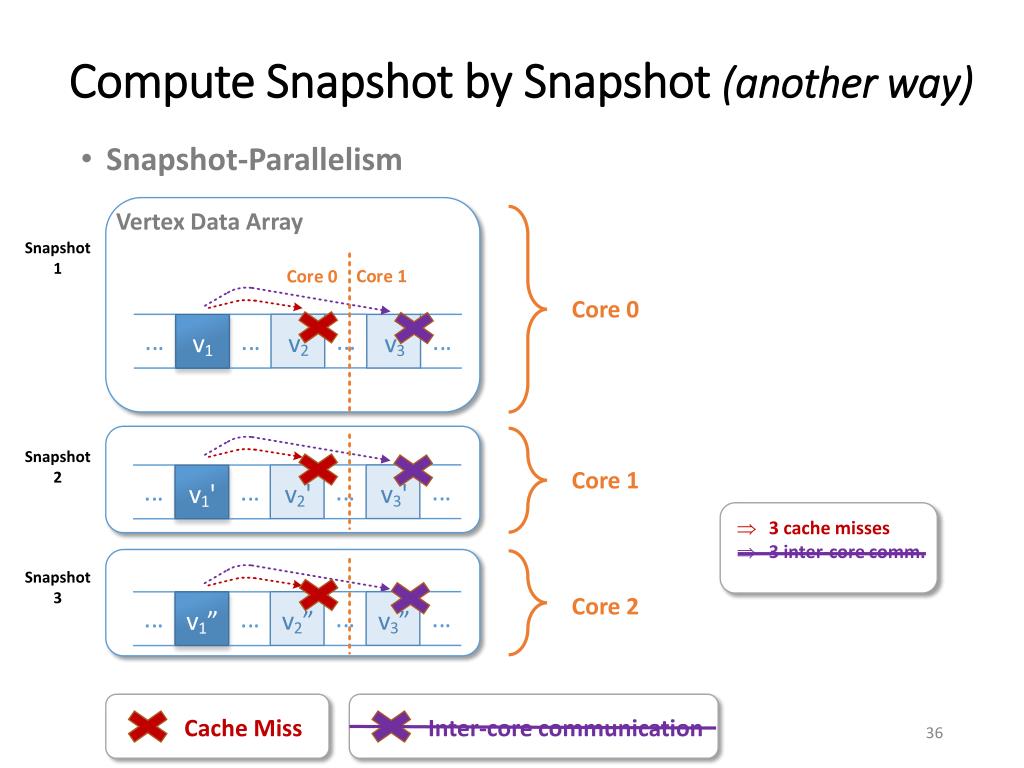

  36. Compute Snapshot by Snapshot (another way) • Snapshot-Parallelism Vertex Data Array Snapshot 1 Core 0 Snapshot 2 Core 1 Snapshot 3 Core 2 • 3 cache misses • 3 inter-core comm. Cache Miss Inter-core communication

  37. Parallelization -- Summary Good partitioning: Num. of intra-partition edge > Num. of inter-partition edge ? Snapshot by snapshot LABS Partition-Parallelism: Computing partitions of the same snapshot in parallel Snapshot-Parallelism: Computing snapshots in parallel LABS-Parallel: Computing LABS-batched partitionin parallel

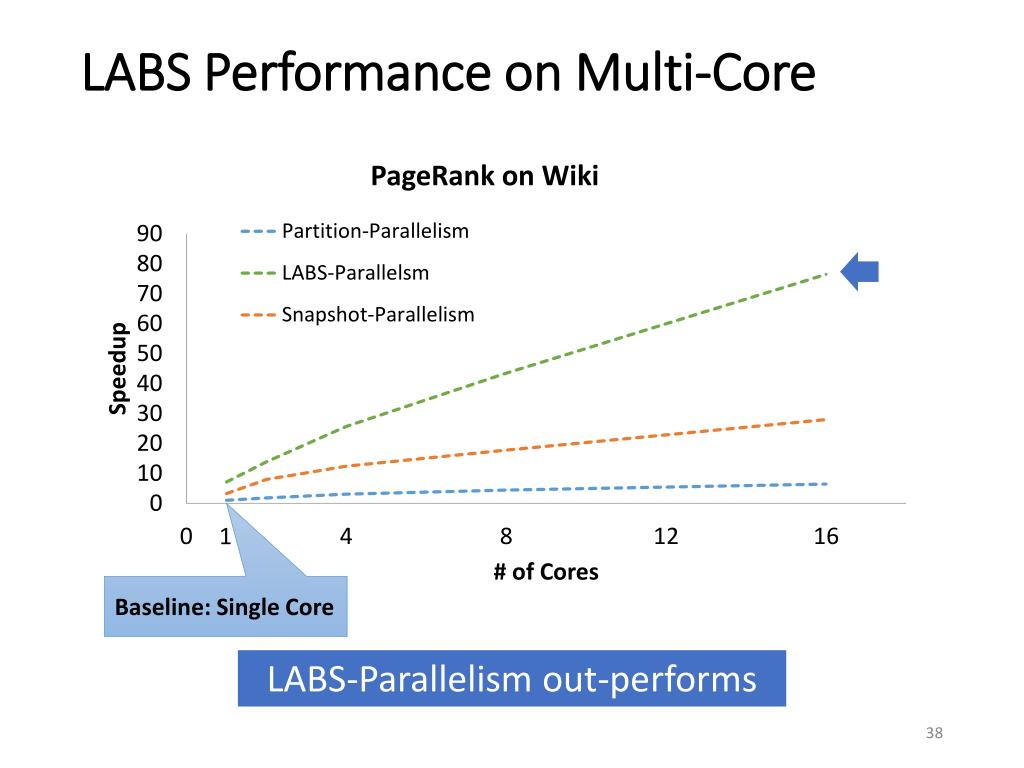

  38. LABS Performance on Multi-Core 1 • Baseline: Single Core LABS-Parallelism out-performs

  39. LABS Performance on Cluster • A small cluster with 4 machines • Benefit less than in single machine test • The benefit of LABS hided by the high overhead of network Up to 10x speed up

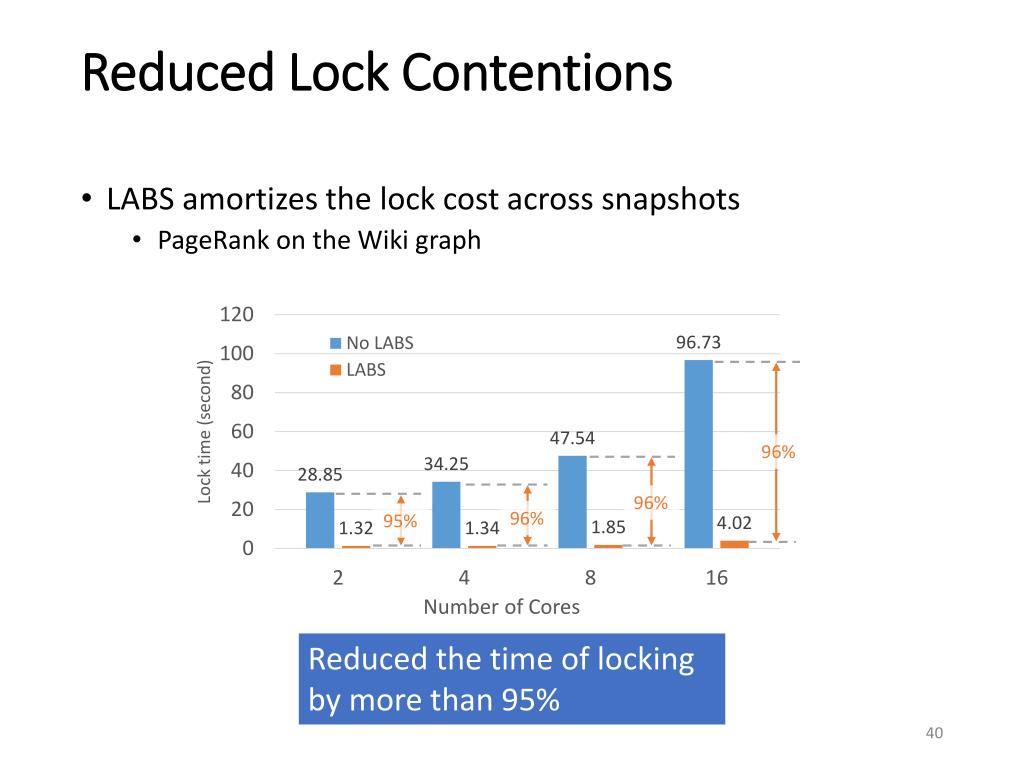

  40. Reduced Lock Contentions • LABS amortizes the lock cost across snapshots • PageRank on the Wiki graph 96% 96% 96% 95% Reduced the time of locking by more than 95%

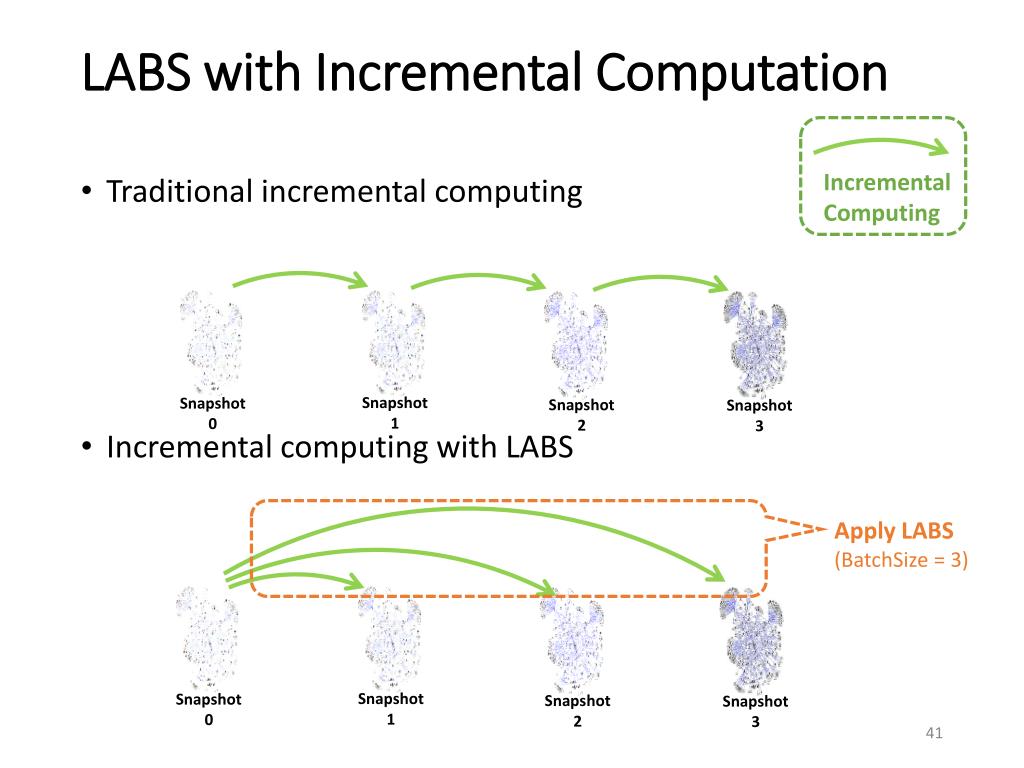

  41. LABS with Incremental Computation Incremental Computing • Traditional incremental computing • Incremental computing with LABS Snapshot 1 Snapshot 0 Snapshot 2 Snapshot 3 Apply LABS (BatchSize = 3) Snapshot 1 Snapshot 0 Snapshot 2 Snapshot 3

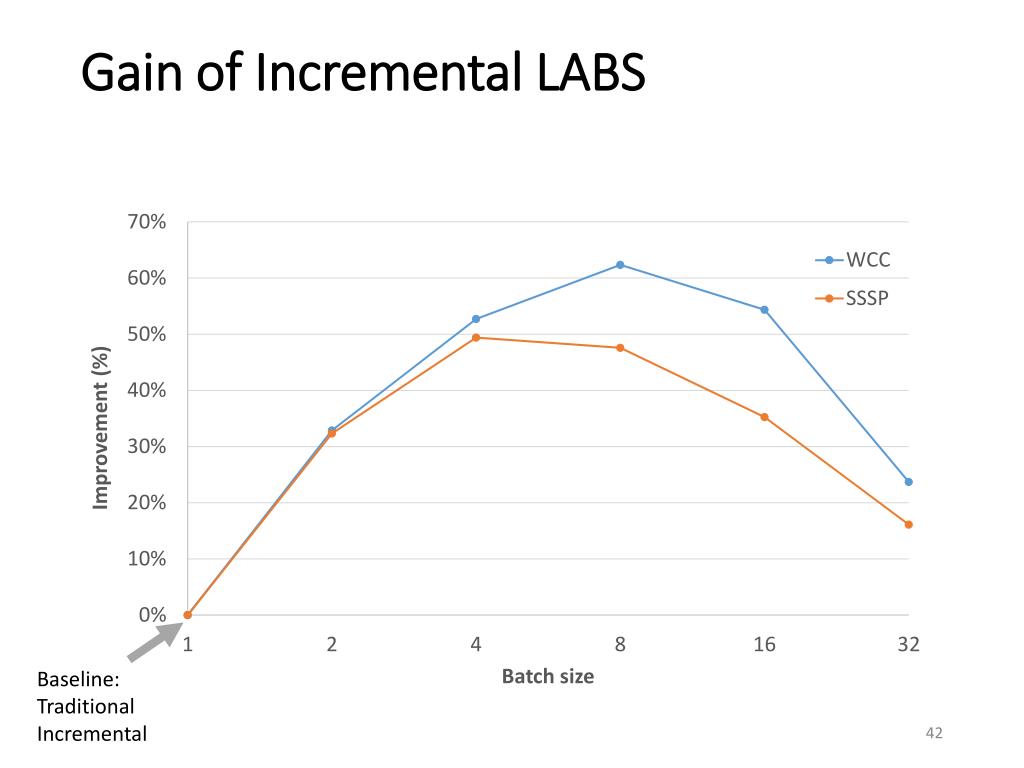

  42. Gain of Incremental LABS Baseline: Traditional Incremental

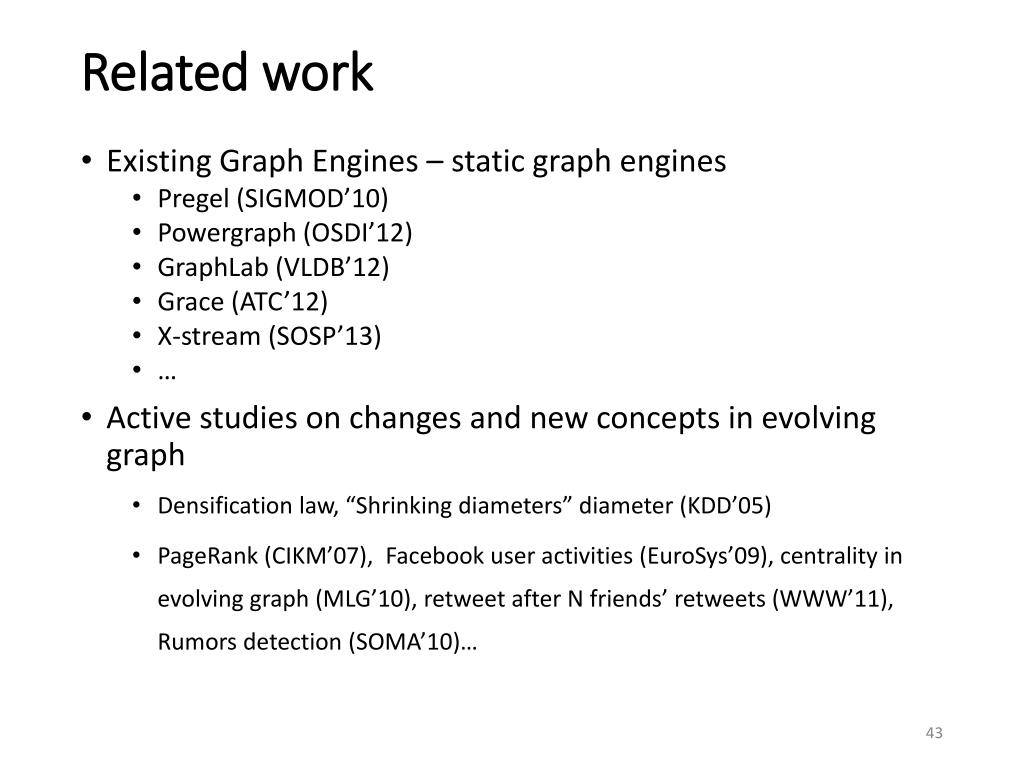

  43. Related work • Existing Graph Engines – static graph engines • Pregel(SIGMOD’10) • Powergraph (OSDI’12) • GraphLab (VLDB’12) • Grace (ATC’12) • X-stream (SOSP’13) • … • Active studies on changes and new concepts in evolving graph • Densification law, “Shrinking diameters” diameter (KDD’05) • PageRank (CIKM’07), Facebook user activities (EuroSys’09), centrality in evolving graph (MLG’10), retweet after N friends’ retweets (WWW’11), Rumors detection (SOMA’10)…
