Kuat geser Beton ( Vn )

Kuat geser Beton ( Vn ). 600 mm ( d ). 2 8. 600 mm ( d ). 300 mm ( bw ). s. d. d. 2 8. fy = 414 N / mm ² fc’ = 27,5 N / mm ². 300mm. Tahanan geser max yg bisa ditahan beton

jatin
Download Presentation

Kuat geser Beton ( Vn )

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

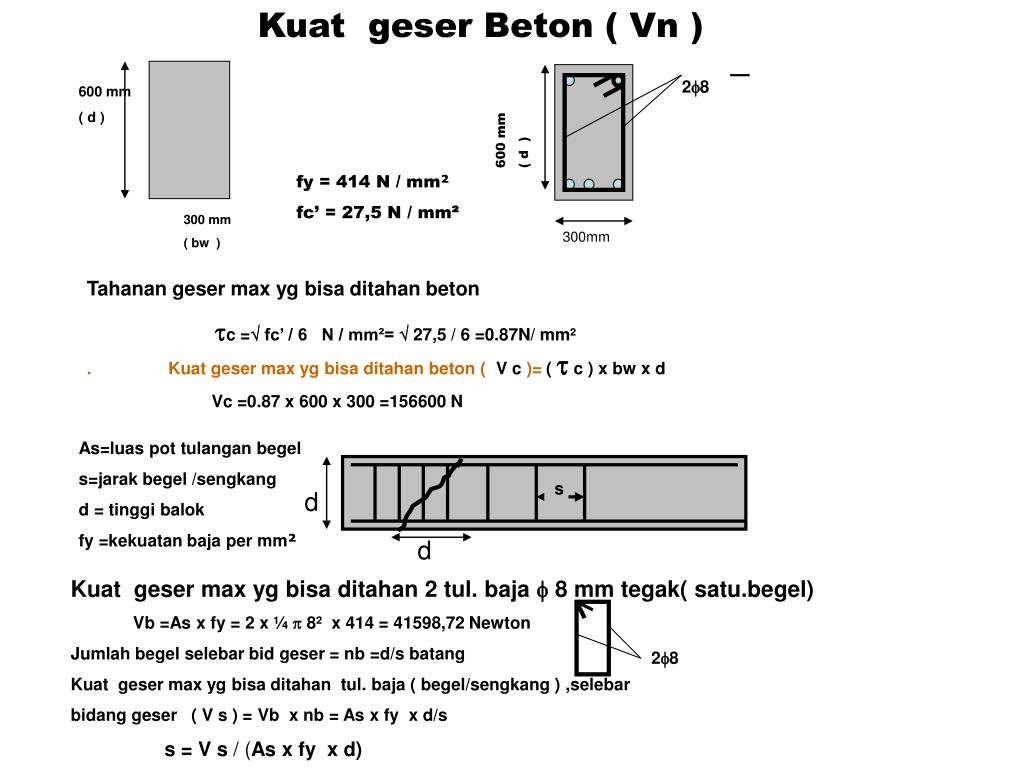

  1. Kuat geser Beton ( Vn ) 600 mm ( d ) 28 600 mm ( d ) 300 mm ( bw ) s d d 28 fy = 414 N / mm² fc’ = 27,5 N / mm² 300mm Tahanan geser max yg bisa ditahan beton c = fc’ / 6 N / mm²=  27,5 / 6 =0.87N/ mm² . Kuat geser max yg bisa ditahan beton ( V c )=(  c ) x bw x d Vc =0.87 x 600 x 300 =156600 N As=luas pot tulangan begel s=jarak begel /sengkang d = tinggi balok fy =kekuatan baja per mm² Kuat geser max yg bisa ditahan 2 tul. baja  8 mm tegak( satu.begel) Vb =As x fy = 2 x ¼  8² x 414 = 41598,72 Newton Jumlah begel selebar bid geser = nb =d/s batang Kuat geser max yg bisa ditahan tul. baja ( begel/sengkang ) ,selebar bidang geser ( V s ) = Vb x nb = As x fy x d/s s = V s / (As x fy x d)
