  1. Lecture 9 Testing CSCE 492 Software Engineering • Topics • Testing • Readings: Spring, 2008

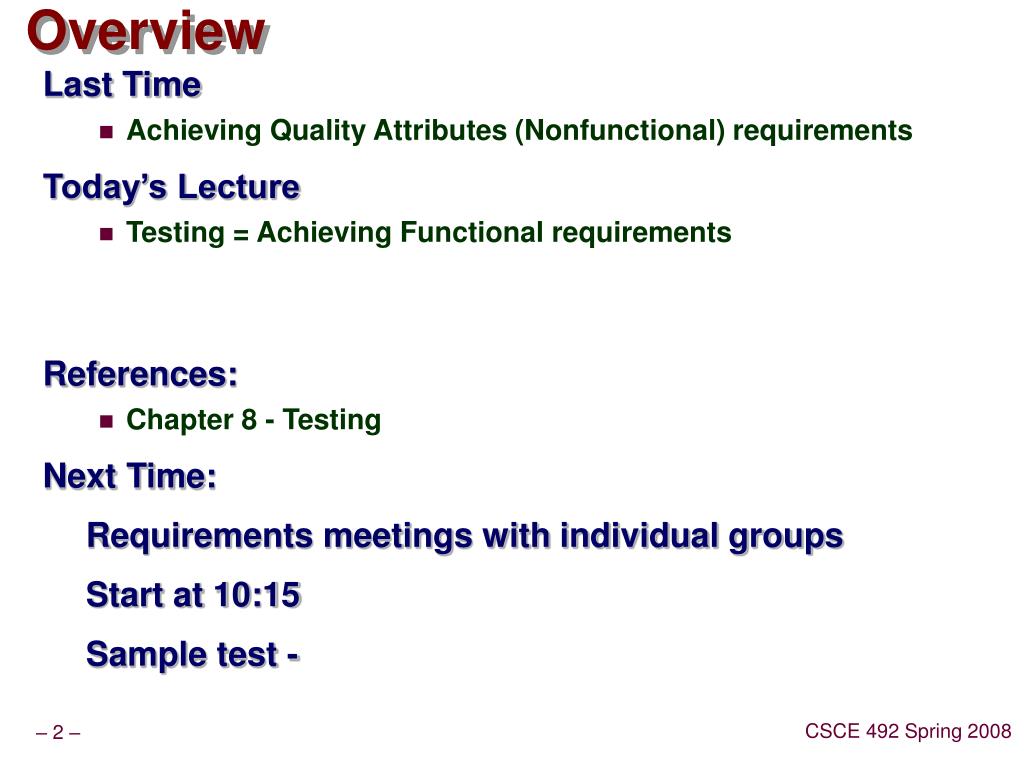

  2. Overview • Last Time • Achieving Quality Attributes (Nonfunctional) requirements • Today’s Lecture • Testing = Achieving Functional requirements • References: • Chapter 8 - Testing • Next Time: • Requirements meetings with individual groups • Start at 10:15 • Sample test -

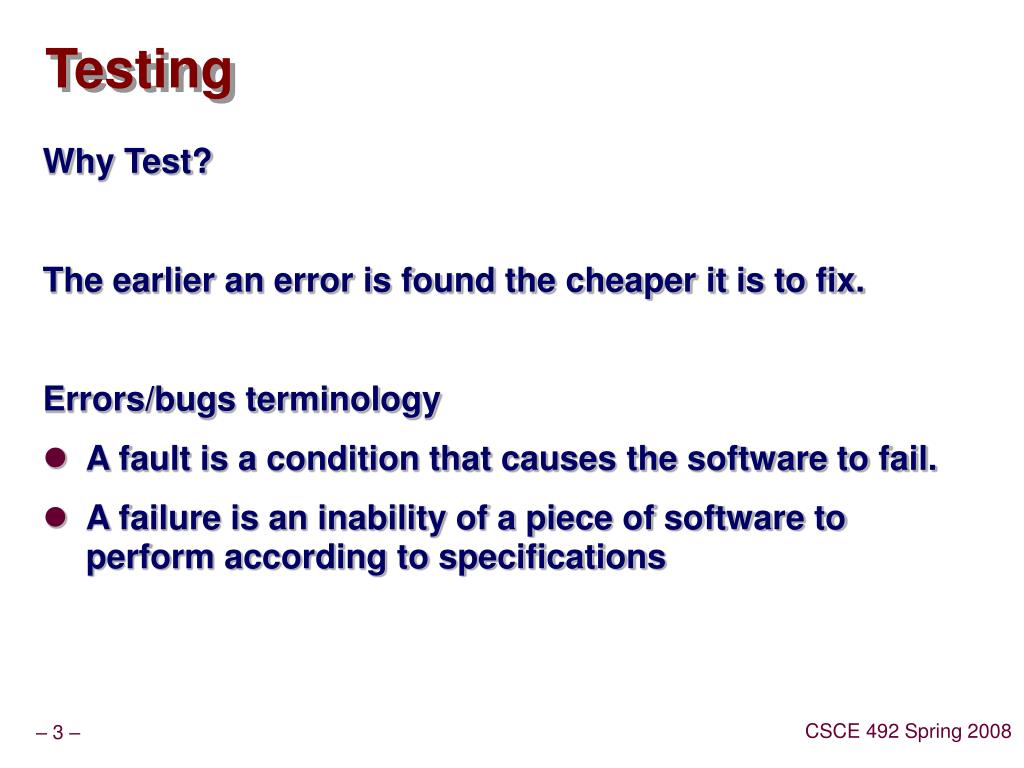

  3. Testing • Why Test? • The earlier an error is found the cheaper it is to fix. • Errors/bugs terminology • A fault is a condition that causes the software to fail. • A failure is an inability of a piece of software to perform according to specifications

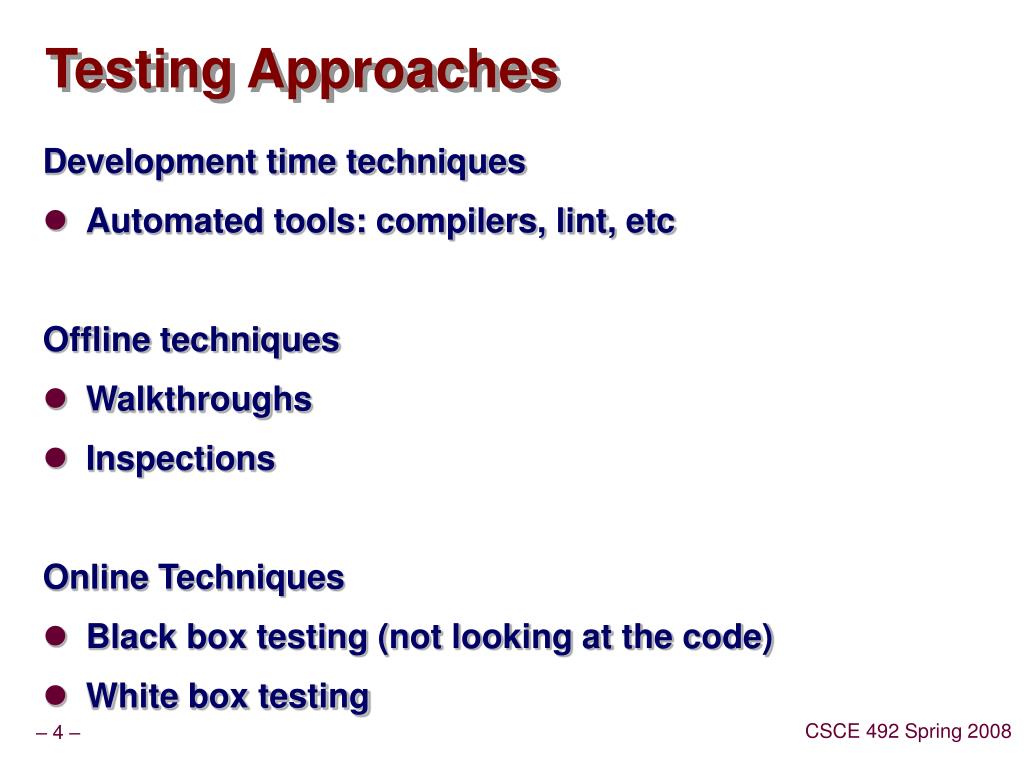

  4. Testing Approaches • Development time techniques • Automated tools: compilers, lint, etc • Offline techniques • Walkthroughs • Inspections • Online Techniques • Black box testing (not looking at the code) • White box testing

  5. Testing Levels • Unit level testing • Integration testing • System testing • Test cases/test suites • Regression tests

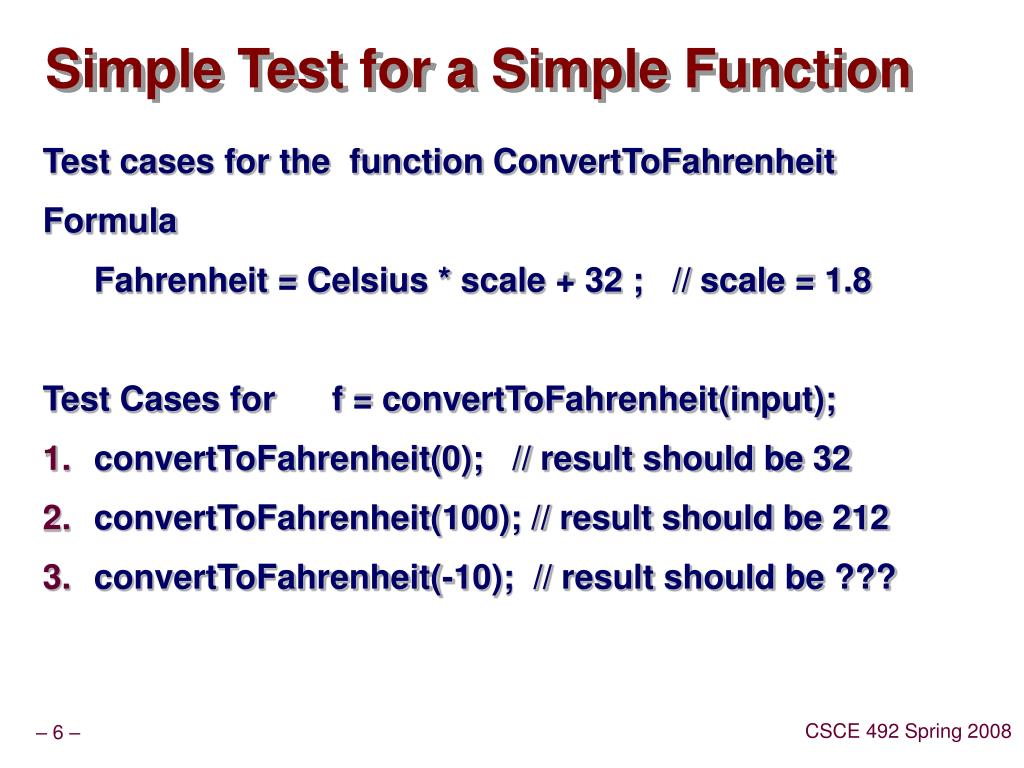

  6. Simple Test for a Simple Function • Test cases for the function ConvertToFahrenheit • Formula • Fahrenheit = Celsius * scale + 32 ; // scale = 1.8 • Test Cases for f = convertToFahrenheit(input); • convertToFahrenheit(0); // result should be 32 • convertToFahrenheit(100); // result should be 212 • convertToFahrenheit(-10); // result should be ???

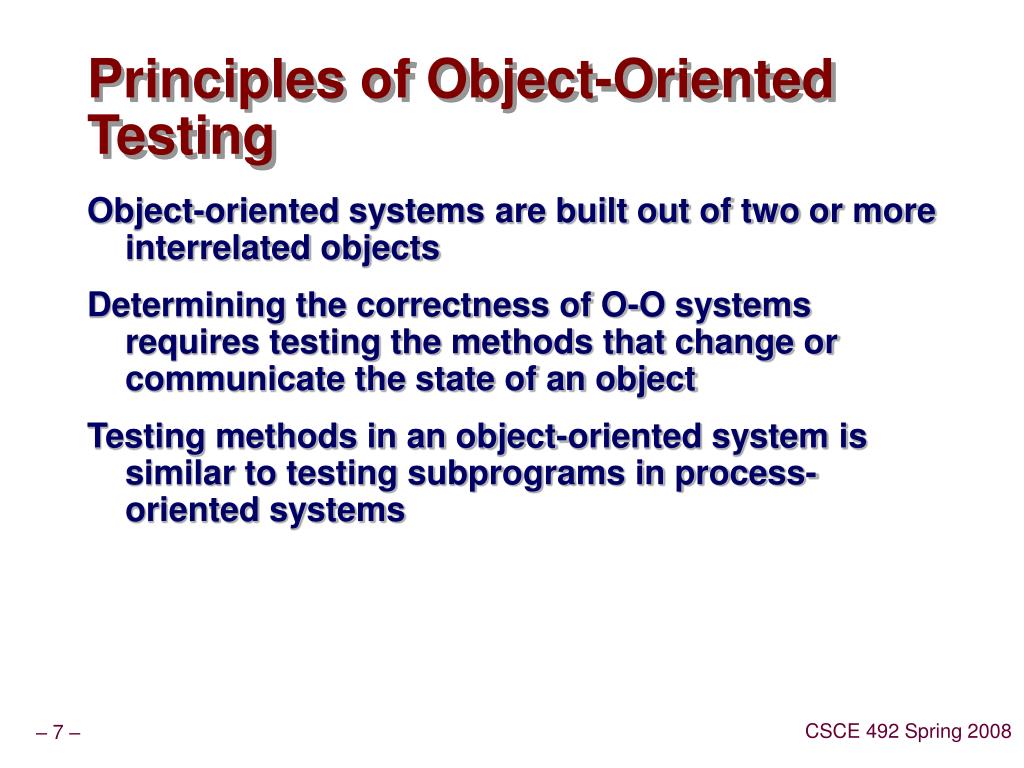

  7. Principles of Object-Oriented Testing • Object-oriented systems are built out of two or more interrelated objects • Determining the correctness of O-O systems requires testing the methods that change or communicate the state of an object • Testing methods in an object-oriented system is similar to testing subprograms in process-oriented systems

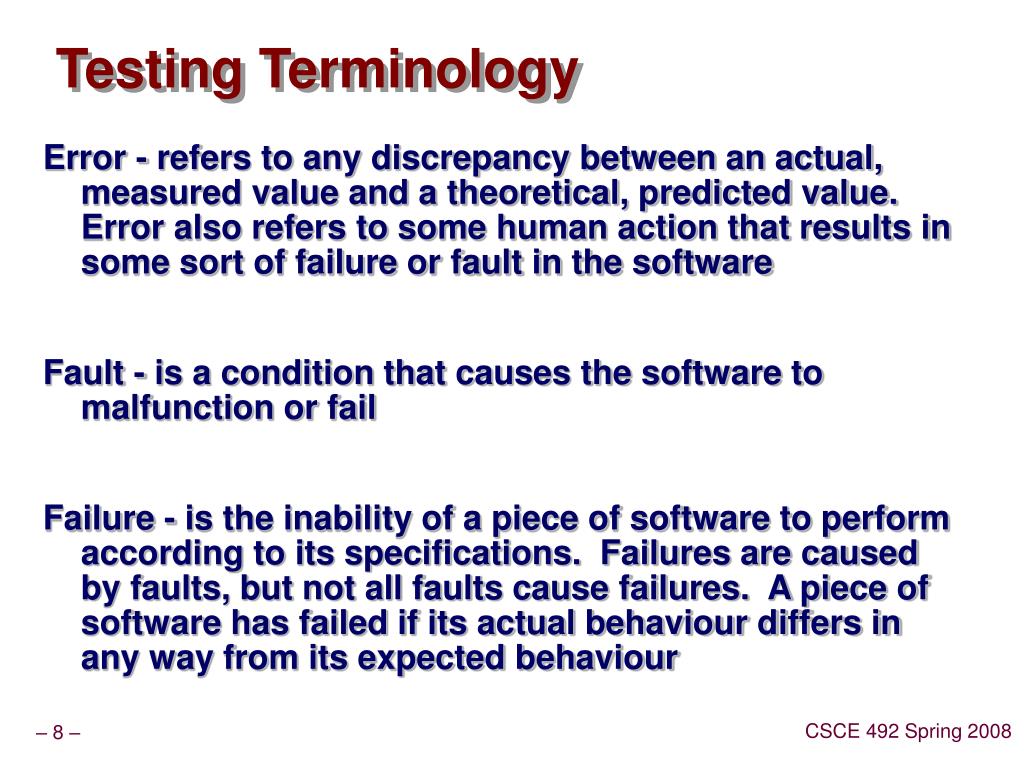

  8. Testing Terminology • Error - refers to any discrepancy between an actual, measured value and a theoretical, predicted value. Error also refers to some human action that results in some sort of failure or fault in the software • Fault - is a condition that causes the software to malfunction or fail • Failure - is the inability of a piece of software to perform according to its specifications. Failures are caused by faults, but not all faults cause failures. A piece of software has failed if its actual behaviour differs in any way from its expected behaviour

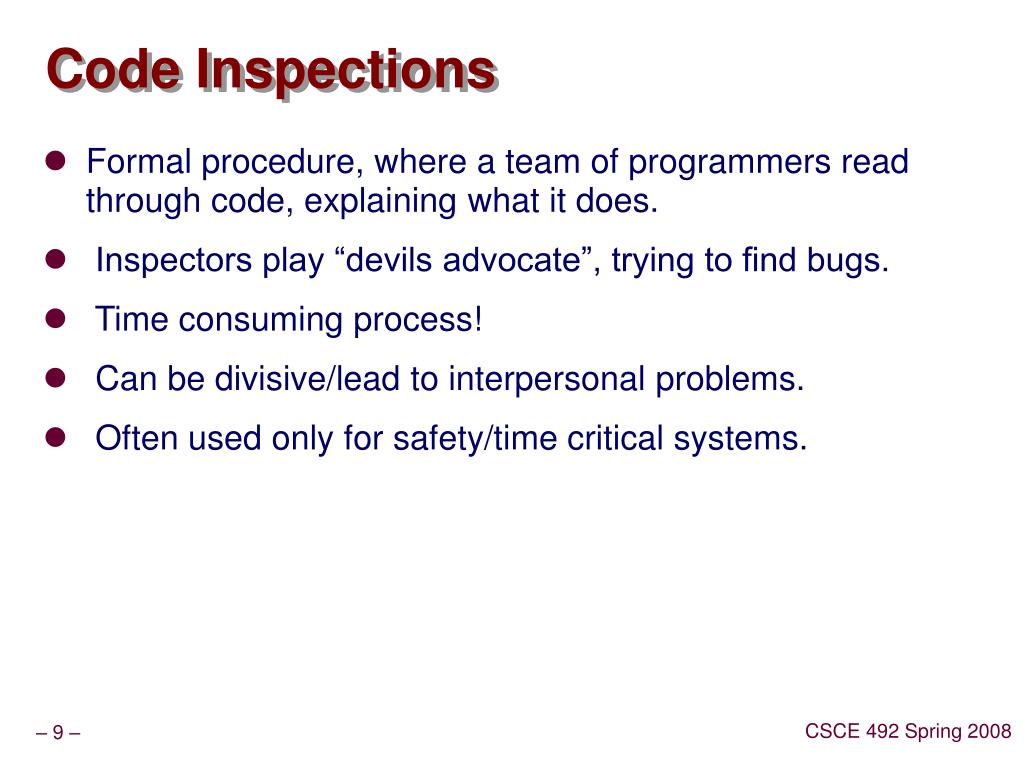

  9. Code Inspections • Formal procedure, where a team of programmers read through code, explaining what it does. • Inspectors play “devils advocate”, trying to find bugs. • Time consuming process! • Can be divisive/lead to interpersonal problems. • Often used only for safety/time critical systems.

  10. Walkthroughs • Similar to inspections, except that inspectors “mentally execute” the code using simple test data. • Expensive in terms of human resources. • Impossible for many systems. • Usually used as discussion aid.

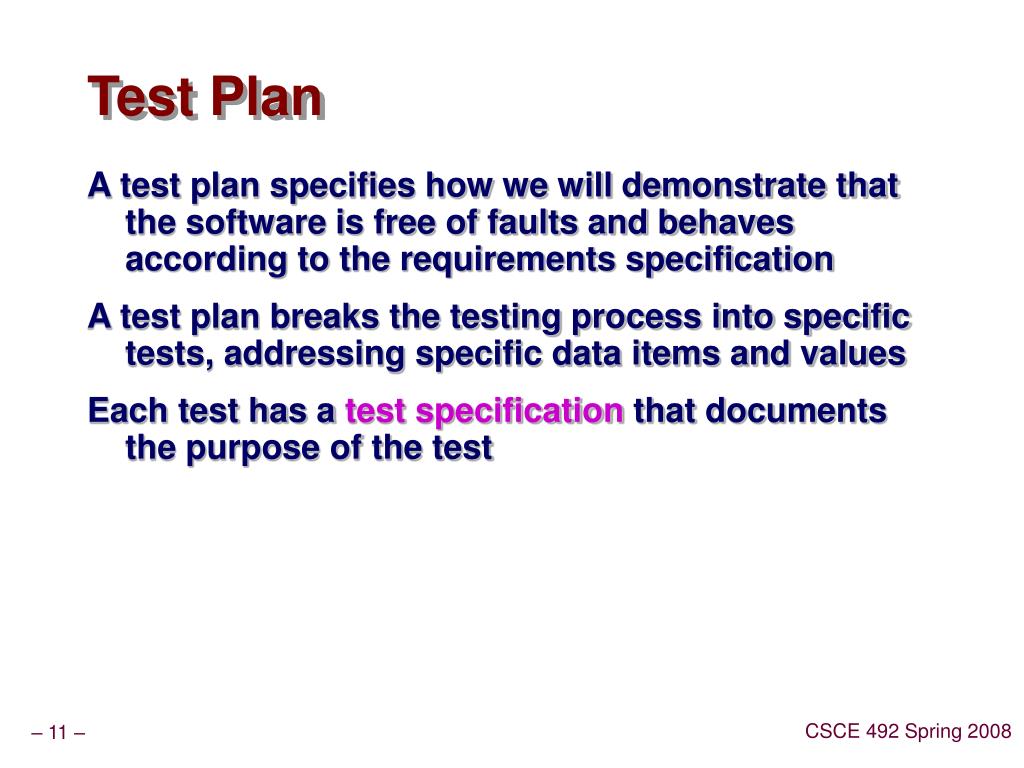

  11. Test Plan • A test plan specifies how we will demonstrate that the software is free of faults and behaves according to the requirements specification • A test plan breaks the testing process into specific tests, addressing specific data items and values • Each test has a test specification that documents the purpose of the test

  12. Test Plan • If a test is to be accomplished by a series of smaller tests, the test specification describes the relationship between the smaller and the larger tests • The test specification must describe the conditions that indicate when the test is complete and a means for evaluating the results

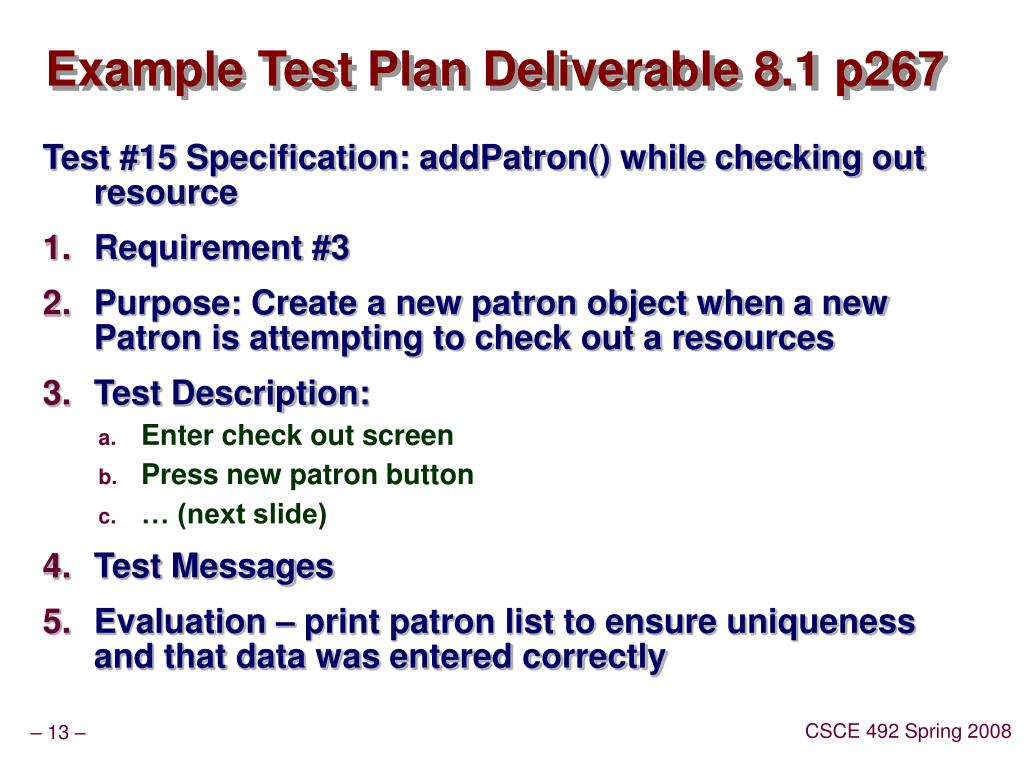

  13. Example Test Plan Deliverable 8.1 p267 • Test #15 Specification: addPatron() while checking out resource • Requirement #3 • Purpose: Create a new patron object when a new Patron is attempting to check out a resources • Test Description: • Enter check out screen • Press new patron button • … (next slide) • Test Messages • Evaluation – print patron list to ensure uniqueness and that data was entered correctly

  14. Example Test Description of Test Plan • 3. Test Description: • Enter check out screen • Press new patron button • Enter Jill Smith Patron Name field • Enter New Boston Rd.  Address field • Enter … • Choose Student from status choice box • A new Patron ID Number is generated if the name?? is new.

  15. Test Oracle • A test oracle is the set of predicted results for a set of tests, and is used to determine the success of testing • Test oracles are extremely difficult to create and are ideally created from the requirements specification

  16. Test Cases • A test case is a set of inputs to the system • Successfully testing a system hinges on selecting representative test cases • Poorly chosen test cases may fail to illuminate the faults in a system • In most systems exhaustive testing is impossible, so a white box or black box testing strategy is typically selected

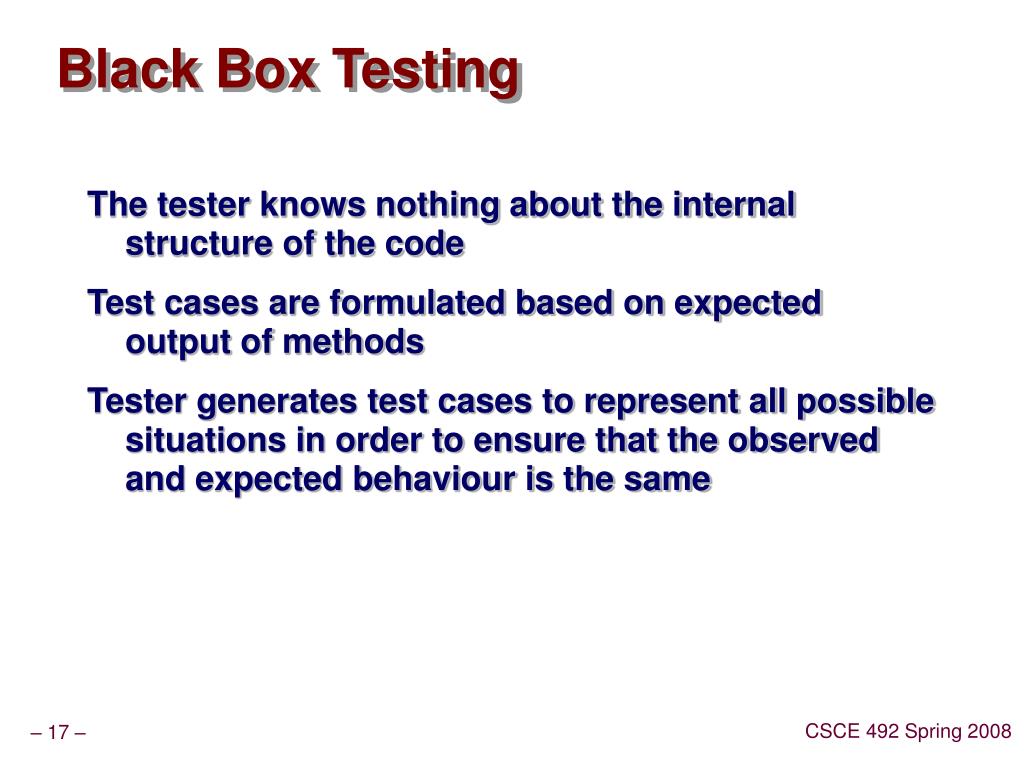

  17. Black Box Testing • The tester knows nothing about the internal structure of the code • Test cases are formulated based on expected output of methods • Tester generates test cases to represent all possible situations in order to ensure that the observed and expected behaviour is the same

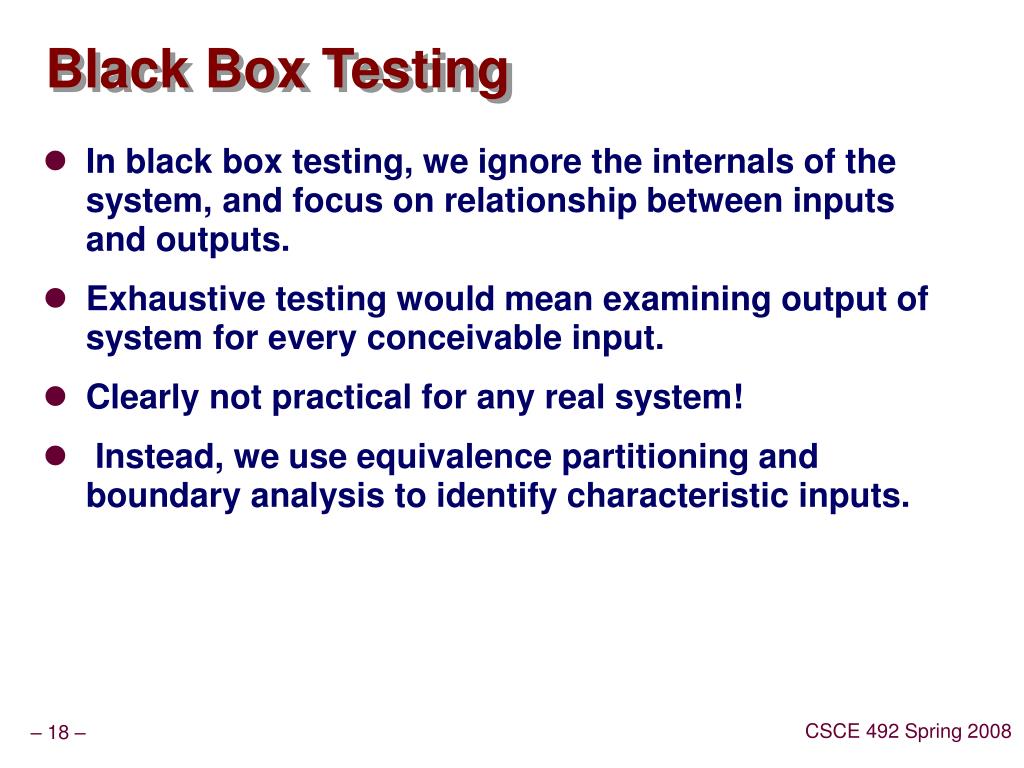

  18. Black Box Testing • In black box testing, we ignore the internals of the system, and focus on relationship between inputs and outputs. • Exhaustive testing would mean examining output of system for every conceivable input. • Clearly not practical for any real system! • Instead, we use equivalence partitioning and boundary analysis to identify characteristic inputs.

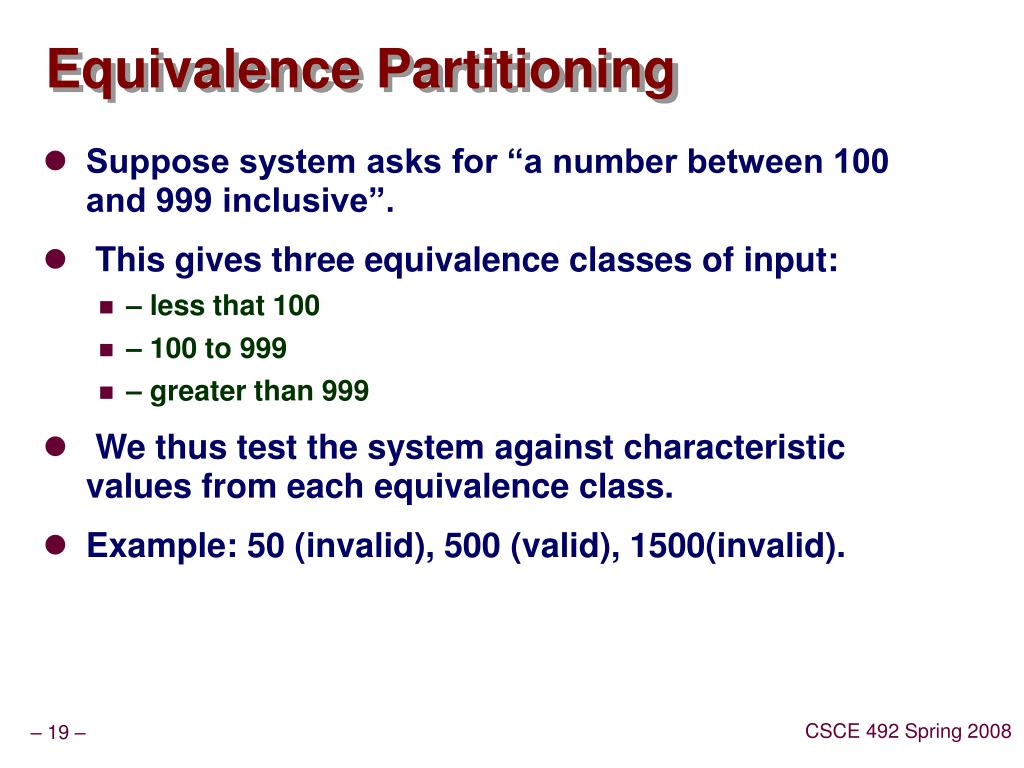

  19. Equivalence Partitioning • Suppose system asks for “a number between 100 and 999 inclusive”. • This gives three equivalence classes of input: • – less that 100 • – 100 to 999 • – greater than 999 • We thus test the system against characteristic values from each equivalence class. • Example: 50 (invalid), 500 (valid), 1500(invalid).

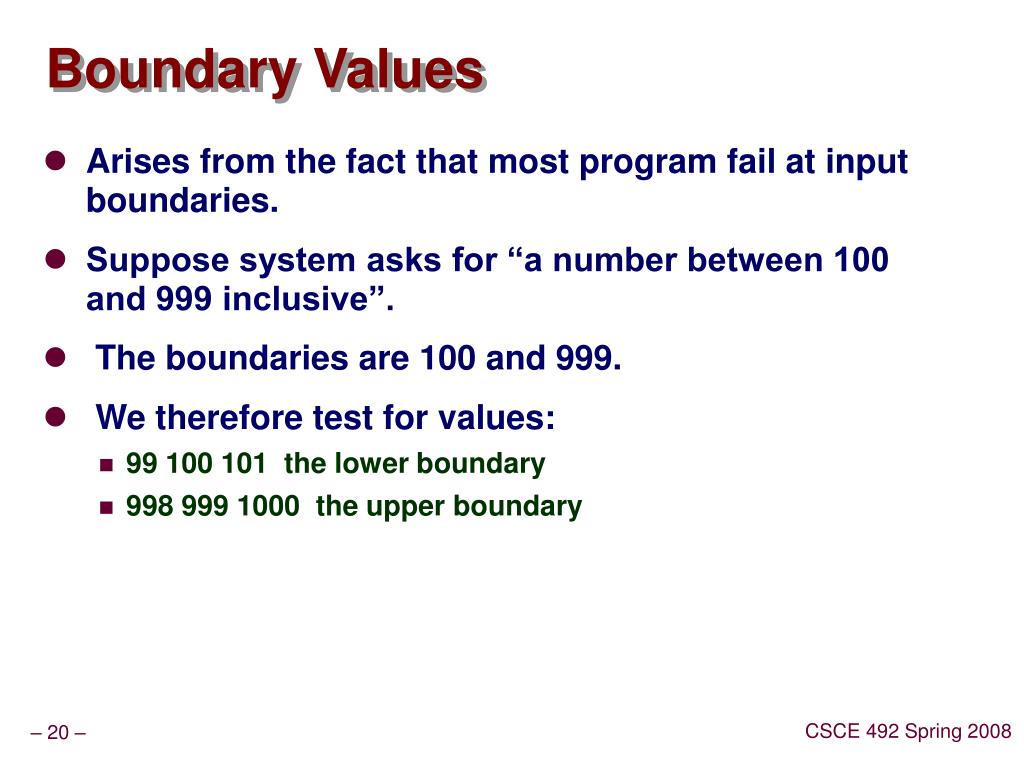

  20. Boundary Values • Arises from the fact that most program fail at input boundaries. • Suppose system asks for “a number between 100 and 999 inclusive”. • The boundaries are 100 and 999. • We therefore test for values: • 99 100 101 the lower boundary • 998 999 1000 the upper boundary

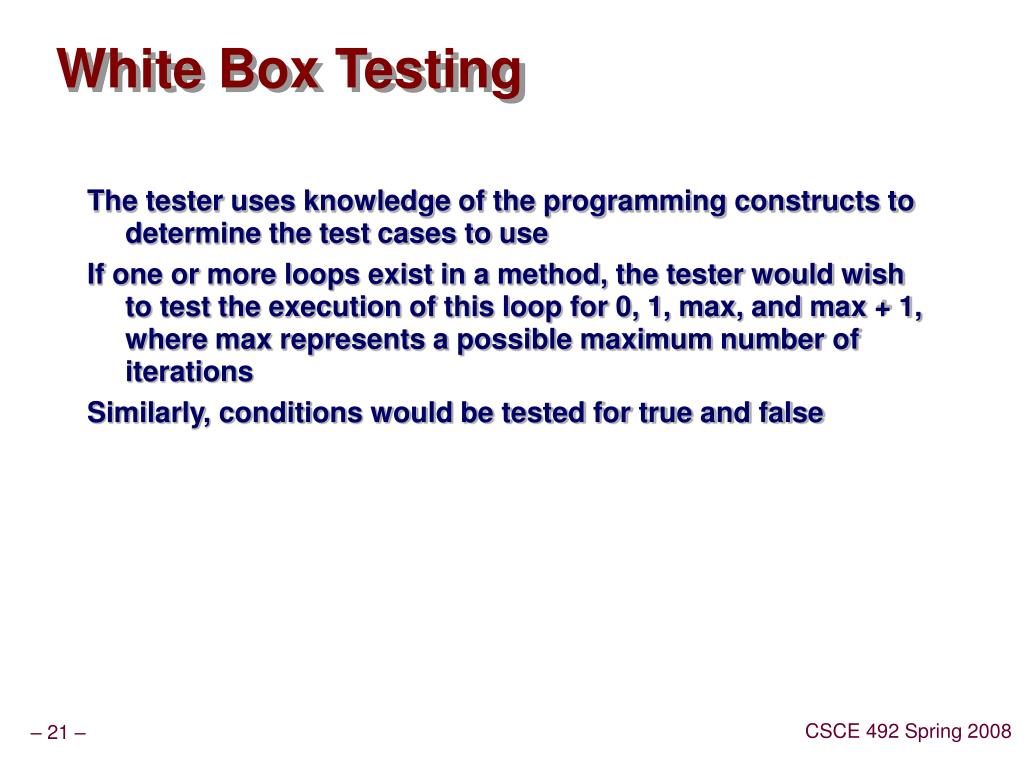

  21. White Box Testing • The tester uses knowledge of the programming constructs to determine the test cases to use • If one or more loops exist in a method, the tester would wish to test the execution of this loop for 0, 1, max, and max + 1, where max represents a possible maximum number of iterations • Similarly, conditions would be tested for true and false

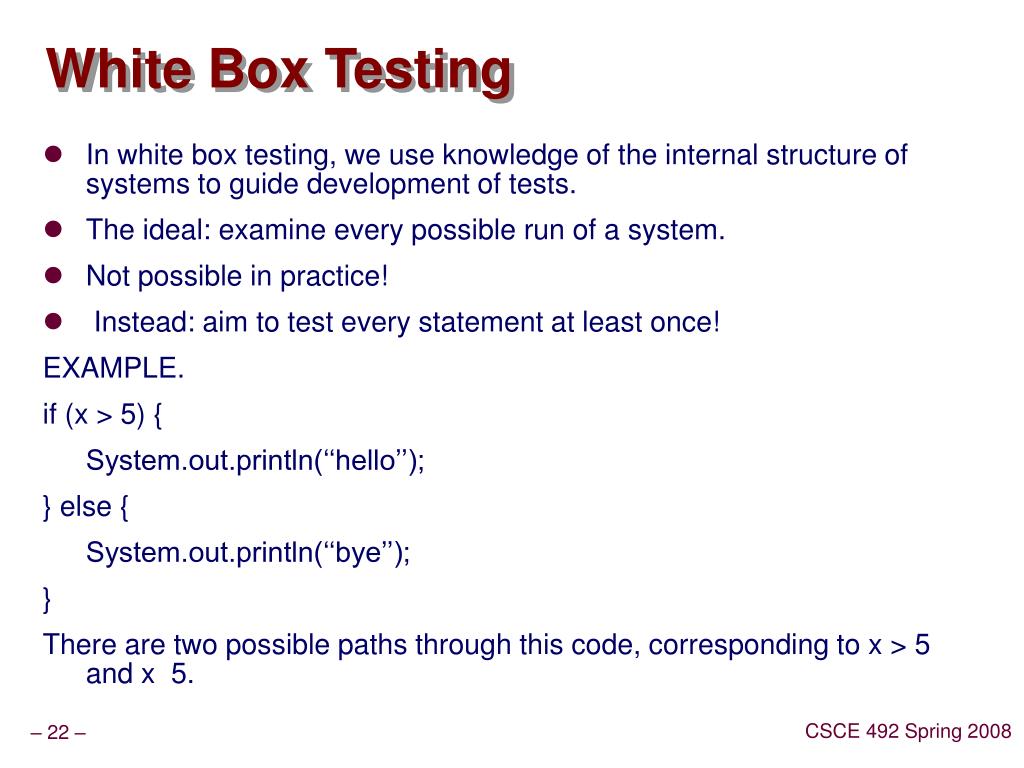

  22. White Box Testing • In white box testing, we use knowledge of the internal structure of systems to guide development of tests. • The ideal: examine every possible run of a system. • Not possible in practice! • Instead: aim to test every statement at least once! • EXAMPLE. • if (x > 5) { • System.out.println(‘‘hello’’); • } else { • System.out.println(‘‘bye’’); • } • There are two possible paths through this code, corresponding to x > 5 and x 5.

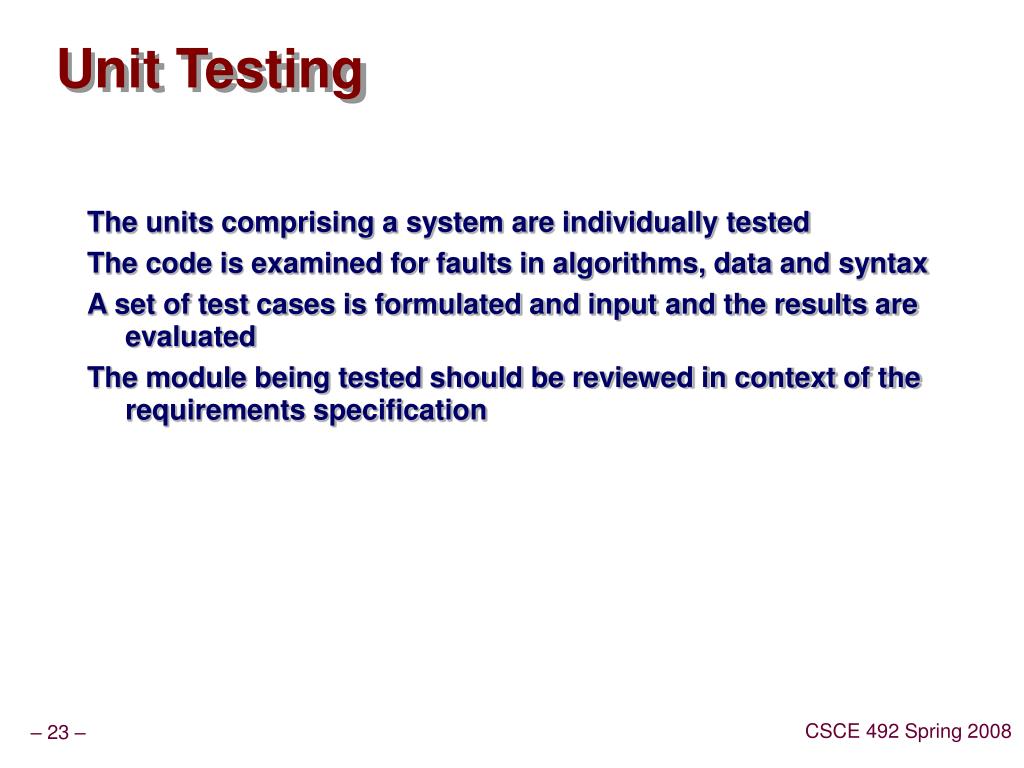

  23. Unit Testing • The units comprising a system are individually tested • The code is examined for faults in algorithms, data and syntax • A set of test cases is formulated and input and the results are evaluated • The module being tested should be reviewed in context of the requirements specification

  24. Integration Testing • The goal is to ensure that groups of components work together as specified in the requirements document • Four kinds of integration tests exist • Structure tests • Functional tests • Stress tests • Performance tests

  25. System Testing • The goal is to ensure that the system actually does what the customer expects it to do • Testing is carried out by customers mimicking real world activities • Customers should also intentionally enter erroneous values to determine the system behaviour in those instances

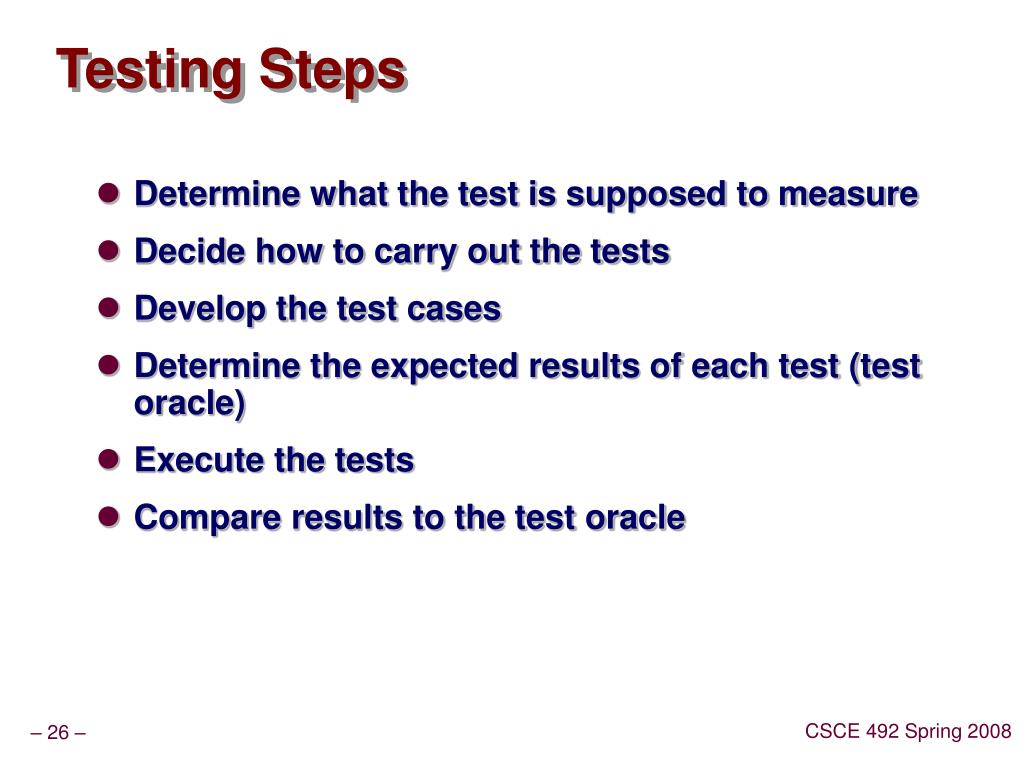

  26. Testing Steps • Determine what the test is supposed to measure • Decide how to carry out the tests • Develop the test cases • Determine the expected results of each test (test oracle) • Execute the tests • Compare results to the test oracle

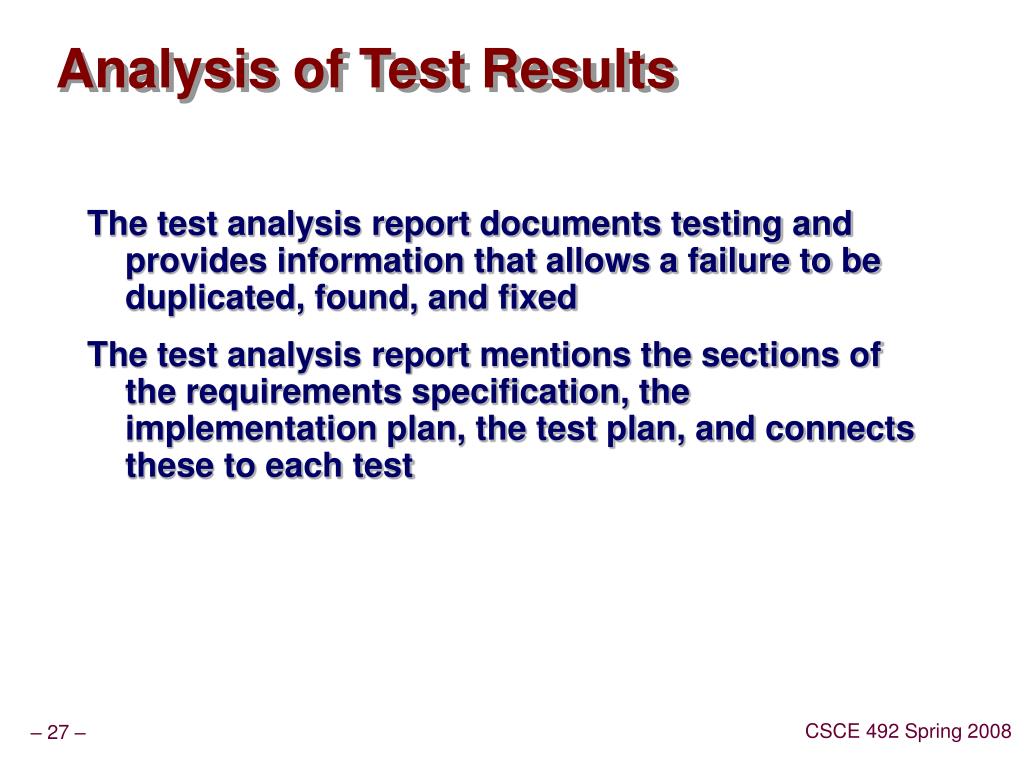

  27. Analysis of Test Results • The test analysis report documents testing and provides information that allows a failure to be duplicated, found, and fixed • The test analysis report mentions the sections of the requirements specification, the implementation plan, the test plan, and connects these to each test

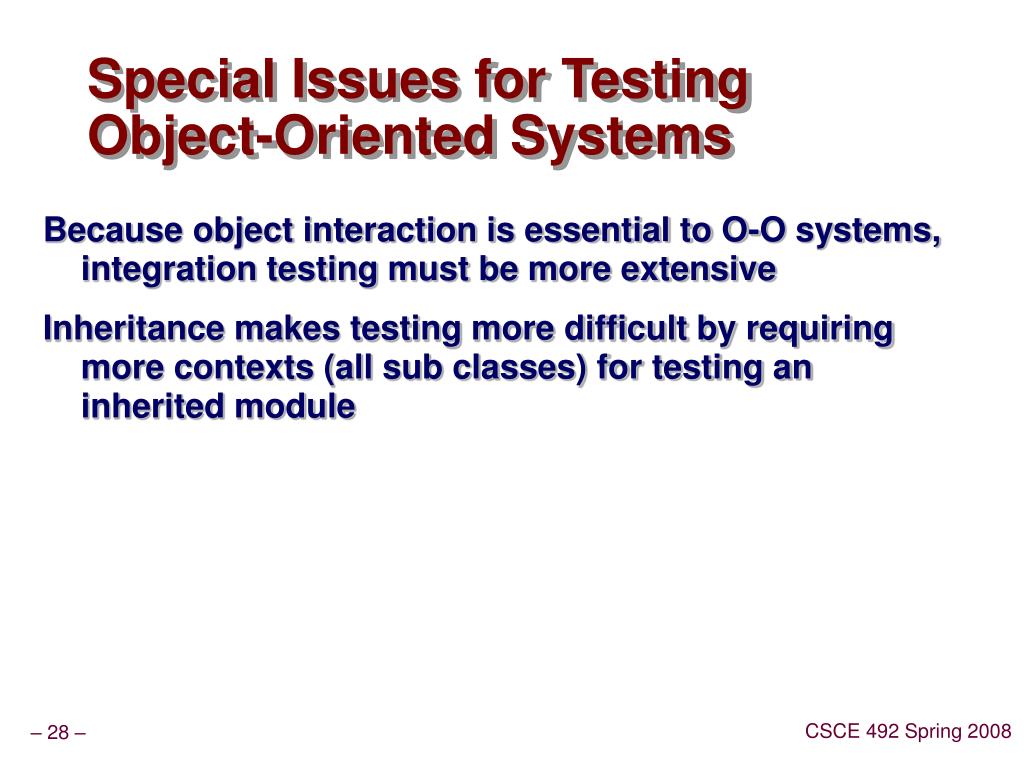

  28. Special Issues for Testing Object-Oriented Systems • Because object interaction is essential to O-O systems, integration testing must be more extensive • Inheritance makes testing more difficult by requiring more contexts (all sub classes) for testing an inherited module

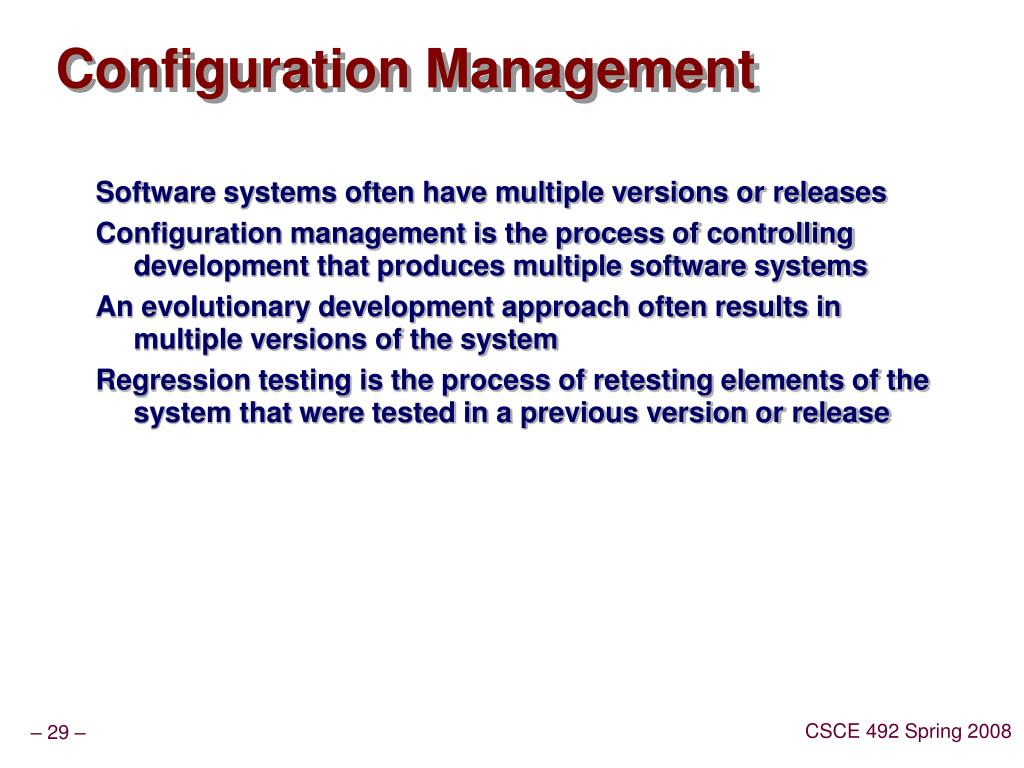

  29. Configuration Management • Software systems often have multiple versions or releases • Configuration management is the process of controlling development that produces multiple software systems • An evolutionary development approach often results in multiple versions of the system • Regression testing is the process of retesting elements of the system that were tested in a previous version or release

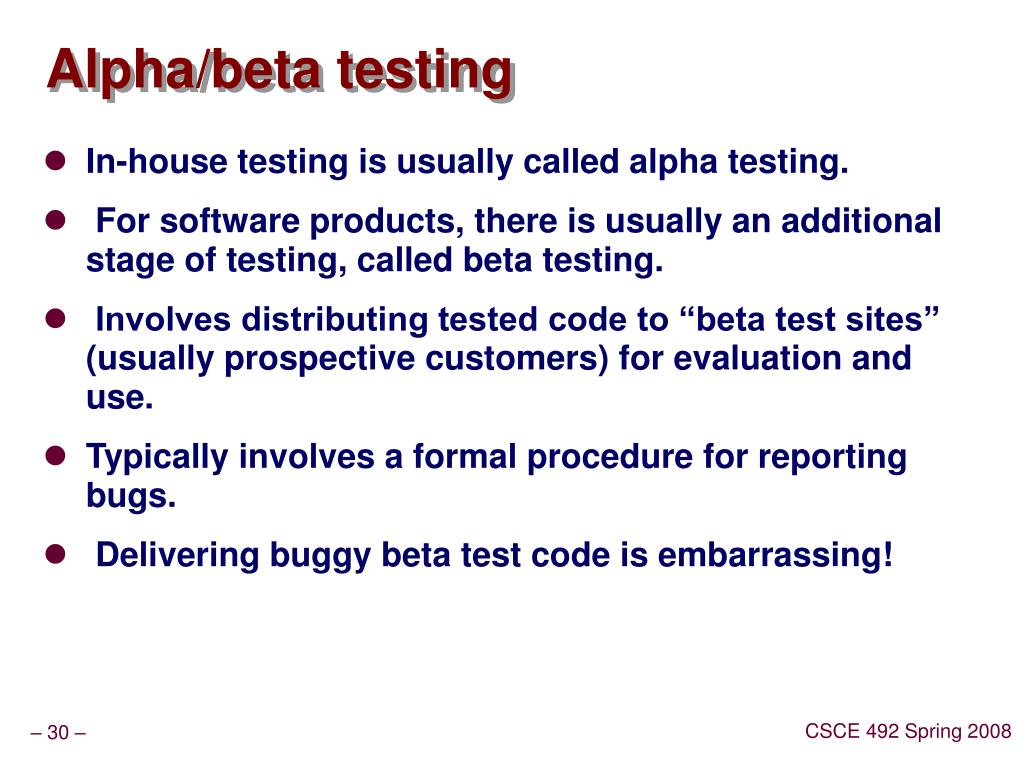

  30. Alpha/beta testing • In-house testing is usually called alpha testing. • For software products, there is usually an additional stage of testing, called beta testing. • Involves distributing tested code to “beta test sites” (usually prospective customers) for evaluation and use. • Typically involves a formal procedure for reporting bugs. • Delivering buggy beta test code is embarrassing!
