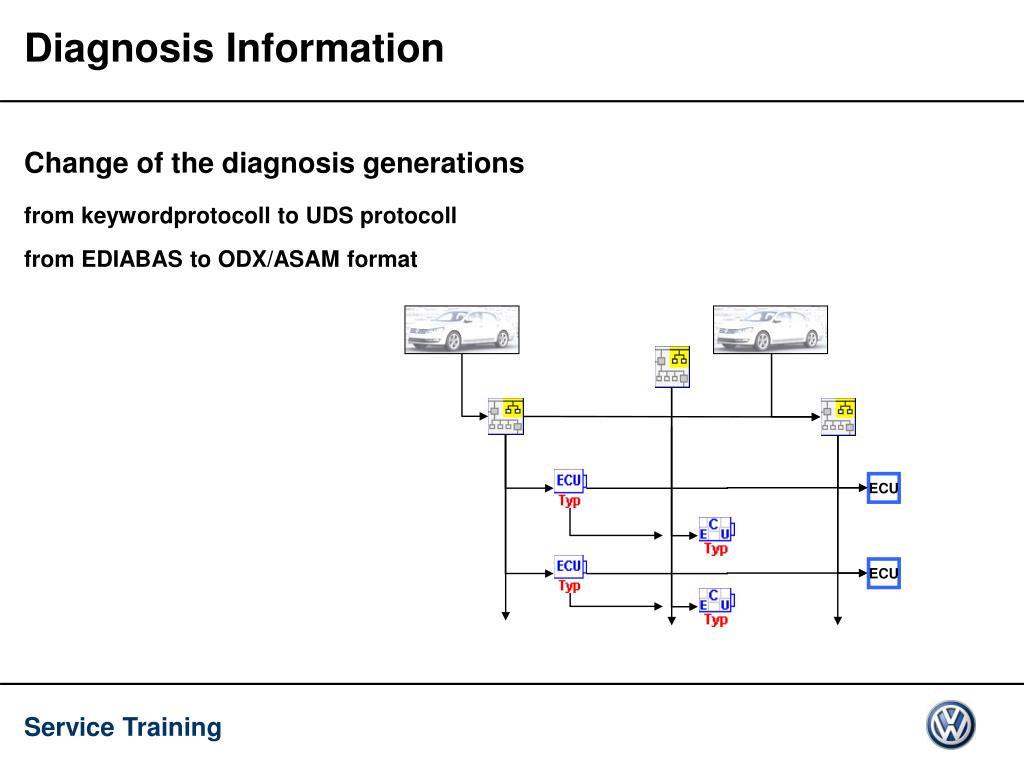

  1. Diagnosis Information ECU ECU Change of the diagnosis generations from keywordprotocoll to UDS protocoll from EDIABAS to ODX/ASAM format

  2. Network communication at Volkswagen Development of communication protocols at Volkswagen Interface K-line Development of in-house protocol KWP1281 via K-line. Design of K-line complies with ISO 9141 Merging of statutory OBD diagnostics and the workshop diagnostics of OEMs. ISO-KWP2000 and KWP1281 were combined to make KWP2000 light-plus. Therefore, this is not a 100% international standard K-line and CAN CAN
