  1. Network and CommunicationsNetwork Security Department of Computer Science Virginia Commonwealth University

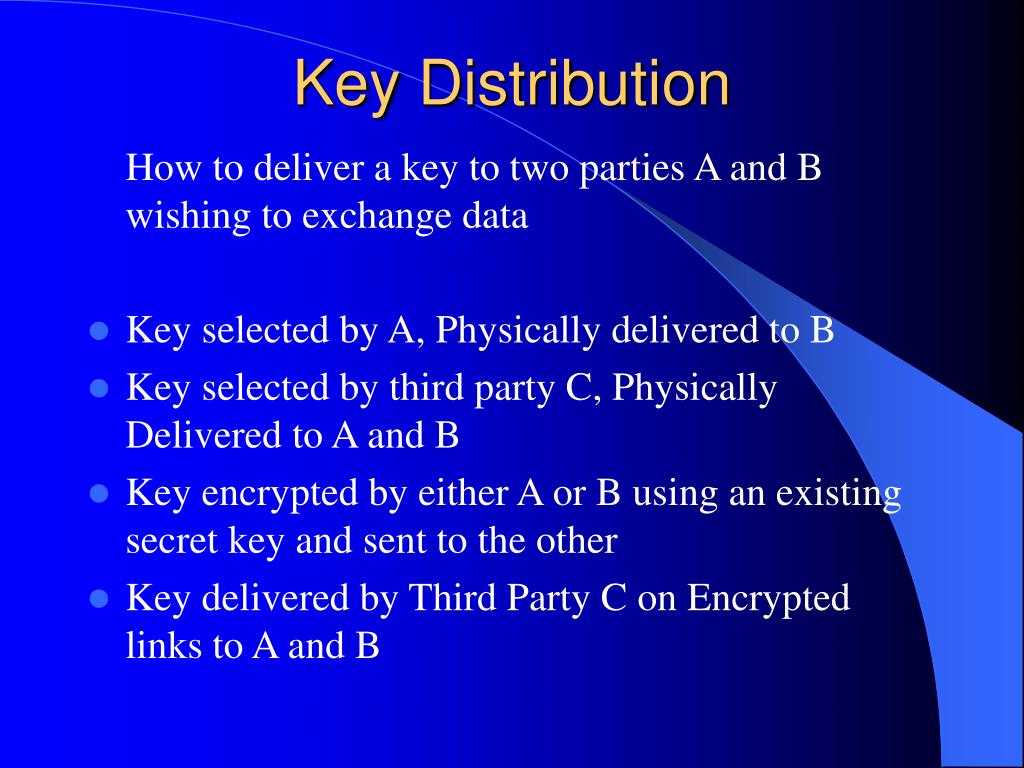

  2. Key Distribution How to deliver a key to two parties A and B wishing to exchange data • Key selected by A, Physically delivered to B • Key selected by third party C, Physically Delivered to A and B • Key encrypted by either A or B using an existing secret key and sent to the other • Key delivered by Third Party C on Encrypted links to A and B

  3. How many keys are necessary? • A given host needs to do message exchange with many other hosts • A key needed for each pair of hosts • Many keys need to be supplied dynamically • Number of required keys depends on level of network where encryption is done: • Node-level encryption for 1000 nodes: half million keys • Application-level encryption (for 1000 nodes, 10000 applications): 50 million keys (A key for every pair of users or processes)

  4. Center approach? • Responsible for distributing keys to pairs of users: • Hosts, processes, applications • Each user shares a unique key with center • based on a hierarchy of keys: • Session key (temporary key) used to Encrypt End-systems Communication; • Master Key (Shared by KDC and end user) used to encrypt Session keys (a unique Master key for each end user) • Question: How many master keys are required for N users? • Question: How to distribute master keys?

  5. In Symmetric Cryptography This protocol assumes that Alice and Bob, users on a network, each share a secret key with the Key Distribution Center, which is Trent. • Alice requests Trent a session key to communicate with Bob. • Trent generates a random session key. He encrypts two copies of it: one in Alice’s key and the other in Bob’s key. Trent sends both copies to Alice. • Alice decrypts her copy of the session key. • Alice sends Bob his copy of the session key. • Bob decrypts his copy of the session key. • Both Alice and Bob use this session key to communicate securely.

  6. SKEY • Relies on a one-way function for its security. • Alice enters a random number, R. The computer computes f(R), f(f(R)), f(f(f(R))), and so on, about a hundred times. Call these numbers x1, x2, …x100. The Computer gives these to Alice for safekeeping. • When Alice wants to log in, she types her name and x100. The computer calculates f(x100) and compares it with x101; if they match, Alice is authenticated. Then, the computer replaces x101, with x100 in the database. Alice crosses x100 off her list. • Every time Alice logs in, she enters the last uncrossed number on her list: x1. The computer calculates f(x1) and compares it with xi+1 stored in its database. Eve cant get useful information because each number is only used once, and the function is one-way. Similarly, the database is not useful to an attacker. Of course, when Alice runs out of numbers on her list, she has to reinitialize the system.

  7. A Key Distribution Scenario • Connection between users A and B is required • Session key needs to be generated and transmitted to A and B • Ka(Kb) Secret key of A(B) known only to A(B) and KDC • IDA(IDB): Identity of A(B) • N1, N2: Nonce

  8. Steps in Previous Key Distribution • A requests KDC for a session key for a logical connection to B: • A sends IDA, IDB, N1 to KDC (N1: timestamp, counter, or random number, that is different each time) • KDC responds with a message consisting of two parts: • Session key KS and Original request of A • KS and IDA encrypted using Kb Both of the above are encrypted using Ka • A stores Ks and sends Ekb[KS || IDA] to B • B receives message from A and sends N2 encrypted using KS to A • A responds by sending f(N2) encrypted using KS to B (After step 3, KS has been securely delivered to A and B) Steps 1-3: Key Distribution; Steps 3-5 Authentication

  9. Hierarchical key control • For large networks, single KDC is impractical; Hierarchy of KDCs better suited • Local KDCs for each of the Domains • Global KDC facilitates key transfers across domains • Minimizes effort in distributing Master keys

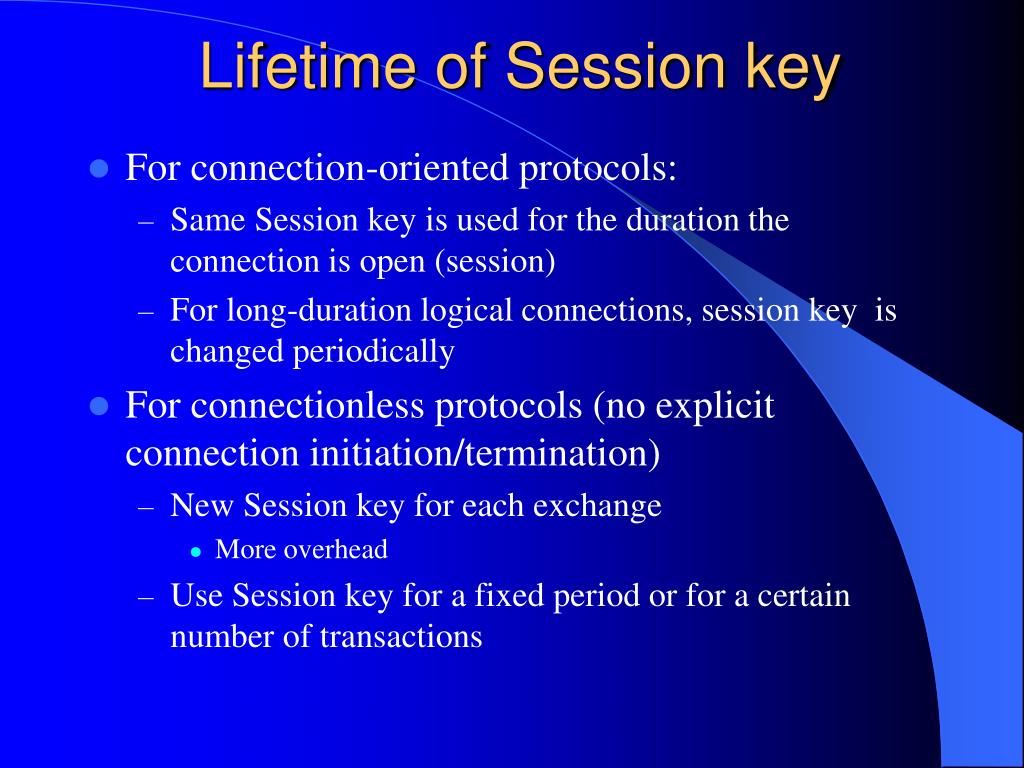

  10. Lifetime of Session key • For connection-oriented protocols: • Same Session key is used for the duration the connection is open (session) • For long-duration logical connections, session key is changed periodically • For connectionless protocols (no explicit connection initiation/termination) • New Session key for each exchange • More overhead • Use Session key for a fixed period or for a certain number of transactions

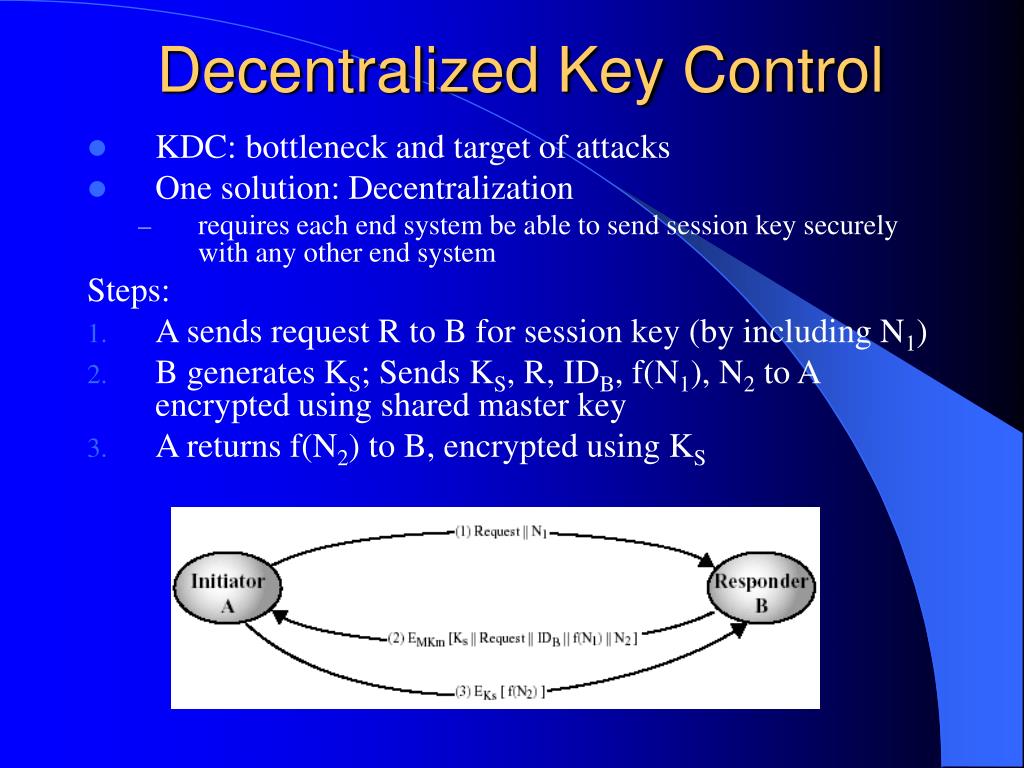

  11. Decentralized Key Control • KDC: bottleneck and target of attacks • One solution: Decentralization • requires each end system be able to send session key securely with any other end system Steps: • A sends request R to B for session key (by including N1) • B generates KS; Sends KS, R, IDB, f(N1), N2 to A encrypted using shared master key • A returns f(N2) to B, encrypted using KS

  12. Controlling Key Usage • Impose controls on ways keys are used • Separation of master keys from session keys • Define different types of session keys: • Data Encrypting key (for general communication) • PIN Encrypting key (for EFT, POS applications) • File Encrypting Key (for files in publicly accessible locations)

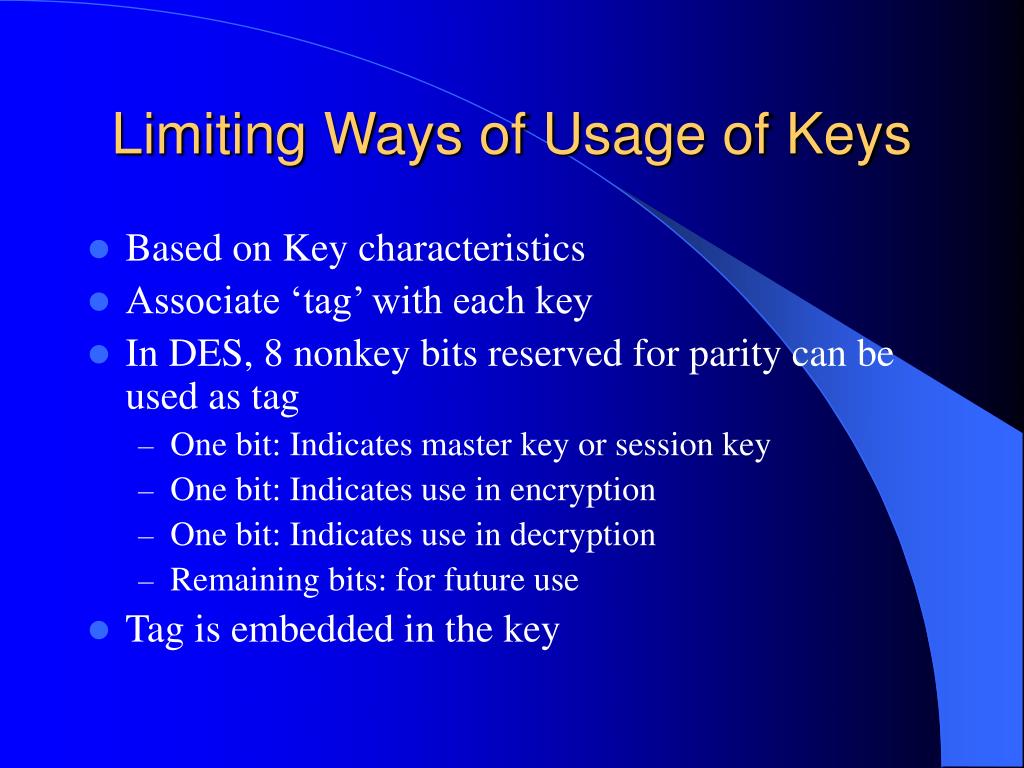

  13. Limiting Ways of Usage of Keys • Based on Key characteristics • Associate ‘tag’ with each key • In DES, 8 nonkey bits reserved for parity can be used as tag • One bit: Indicates master key or session key • One bit: Indicates use in encryption • One bit: Indicates use in decryption • Remaining bits: for future use • Tag is embedded in the key

  14. Key Management Using Public-key Encryption

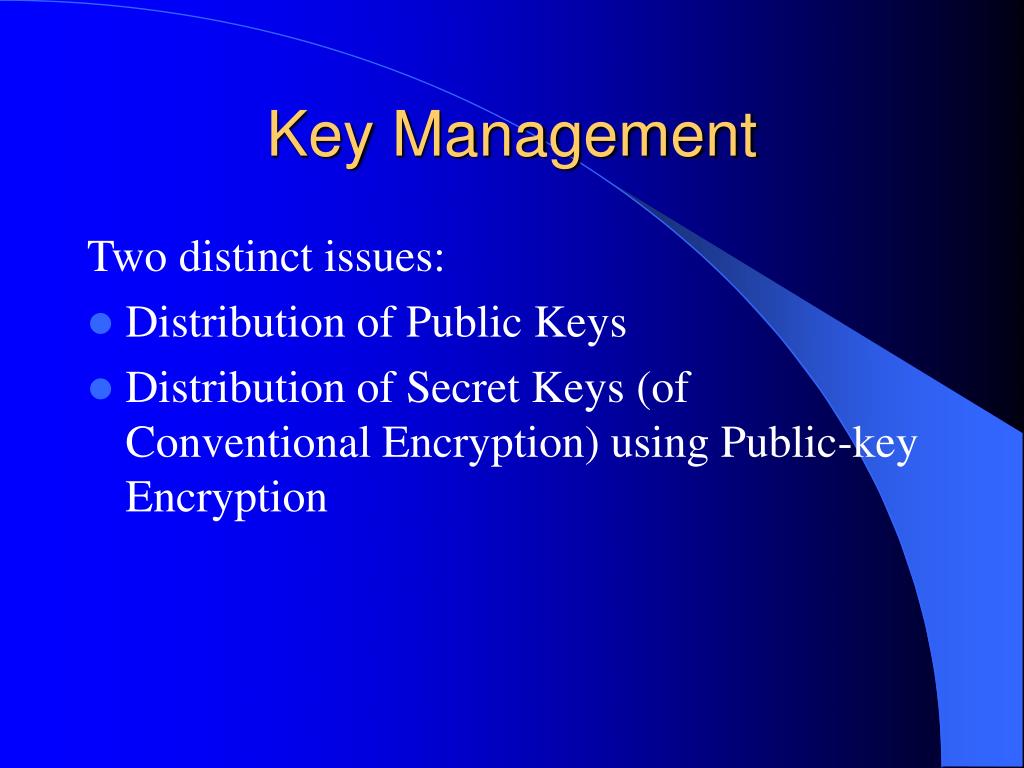

  15. Key Management Two distinct issues: • Distribution of Public Keys • Distribution of Secret Keys (of Conventional Encryption) using Public-key Encryption

  16. Distribution of Public Keys Broad Schemes: • Public Announcement • Each participant broadcasts the public key • Publicly Available Directory • Public-key Authority • Public-key Certificate

  17. Publicly Available Directory • A central authority maintains directory • One entry for each participant: {name, public key} • Each participant registers the public key • Secure, authenticated communication needed • Participant may replace existing key • Secrecy of authority’s private key is critical

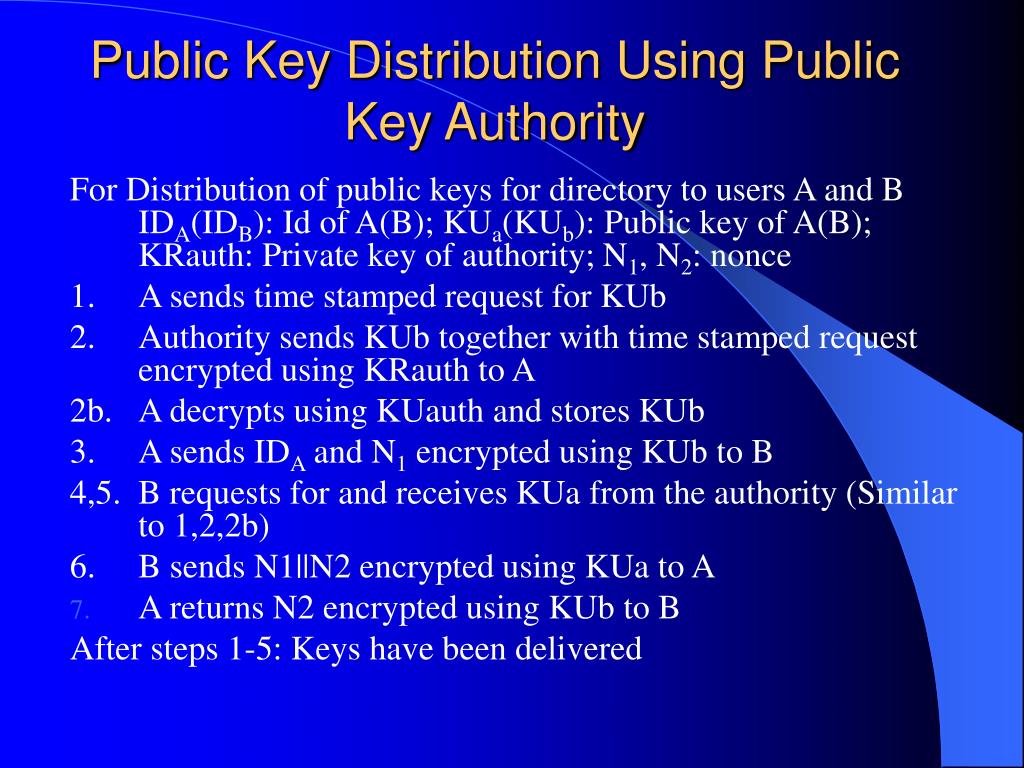

  18. Public Key Distribution Using Public Key Authority For Distribution of public keys for directory to users A and BIDA(IDB): Id of A(B); KUa(KUb): Public key of A(B); KRauth: Private key of authority; N1, N2: nonce 1. A sends time stamped request for KUb 2. Authority sends KUb together with time stamped request encrypted using KRauth to A 2b. A decrypts using KUauth and stores KUb 3. A sends IDA and N1 encrypted using KUb to B 4,5. B requests for and receives KUa from the authority (Similar to 1,2,2b) 6. B sends N1||N2 encrypted using KUa to A • A returns N2 encrypted using KUb to B After steps 1-5: Keys have been delivered

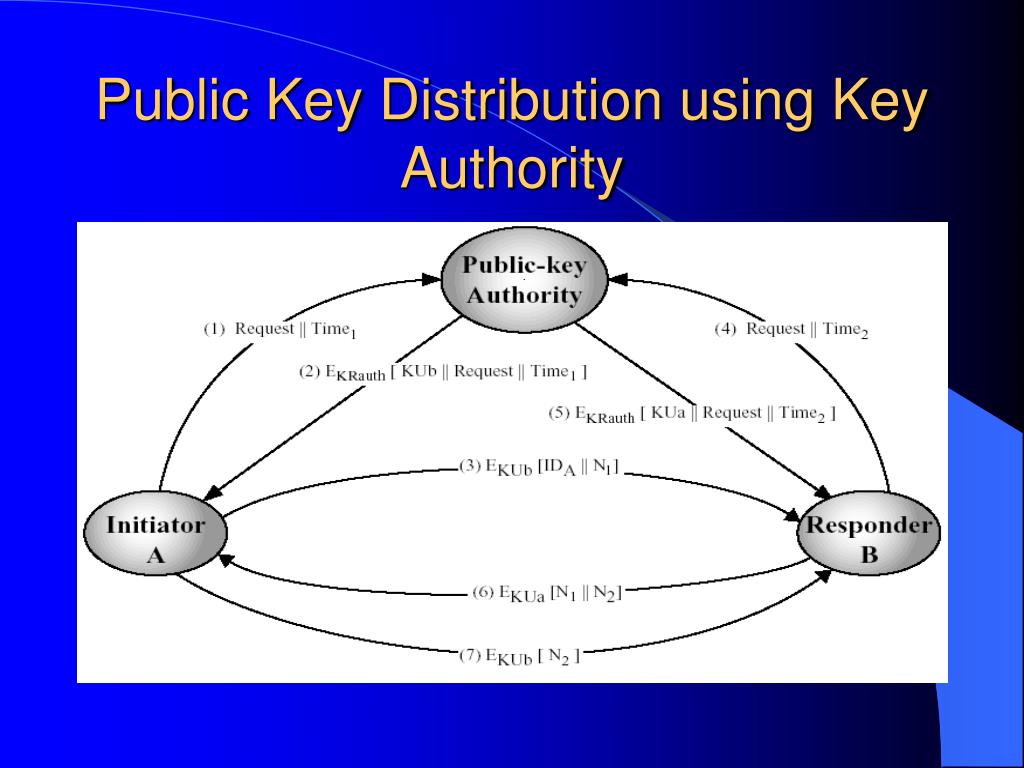

  19. Public Key Distribution using Key Authority

  20. Public Keys Certificates • Overcomes bottleneck in Public Key Authority • Each user requesting authority for the public key of every other user • Certificates facilitate exchange of keys without contacting key authority • Certificate created by certificate authority • Certificate contains Public Key plus some other information • Certificate given to user with matching private key • Certificate: Timestamp, ID, Public Key encrypted using certificate authority’s Private key

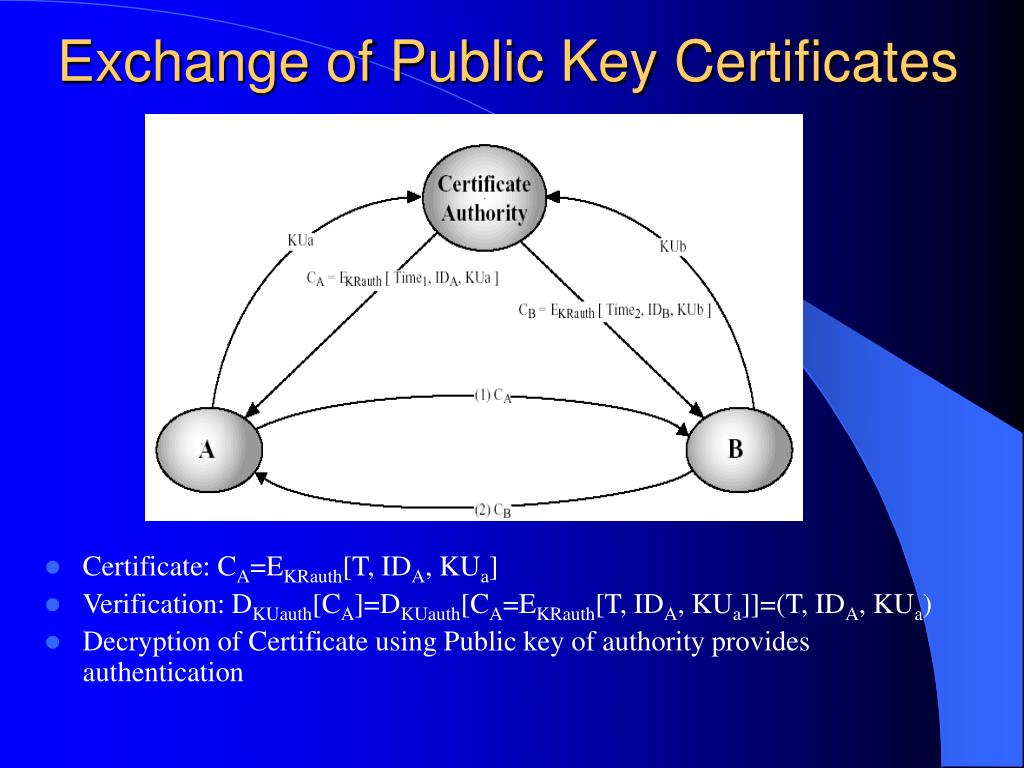

  21. Exchange of Public Key Certificates • Certificate: CA=EKRauth[T, IDA, KUa] • Verification: DKUauth[CA]=DKUauth[CA=EKRauth[T, IDA, KUa]]=(T, IDA, KUa) • Decryption of Certificate using Public key of authority provides authentication

  22. Public Key Infrastructure (PKI) • For commercial applications, there is need for infrastructure to keep track of public keys. • PKI is a framework consisting of policies: • Define rules of operation of cryptographic systems • Define procedures for generating and publishing keys and certificates • PKI consists of certification and validation operations • Certification binds public key to an entity • Validation guarantees that certificates are valid

  23. Public Key Certificate • Certificate: information that has been validated (signed) by a certification authority (CA) • Two popular types: Identity Certificates and Credential certificates • Identity Certificate: Contain ID (ex. email address) and a list of public keys for the entity • Credential Certificates: contain information about access rights • Data in certificates (usually) encrypted using CA’s private key

  24. X.509 PKI • International Standard (ISO and ITU) • Provides authentication for directory services on large computer networks • Used in Visa and Mastercard’s SET (Secure Electronic Transaction) Standard • Allows inclusion of trust policies within certificates.

  25. Secret Key Distribution Using Public-key Systems

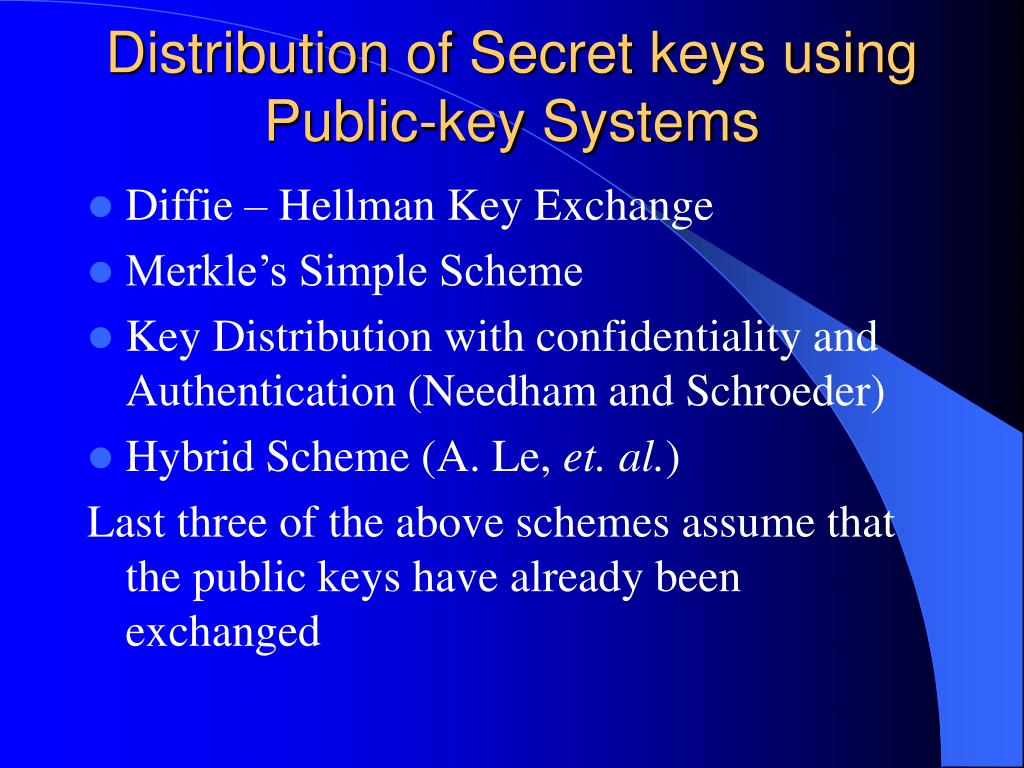

  26. Distribution of Secret keys using Public-key Systems • Diffie – Hellman Key Exchange • Merkle’s Simple Scheme • Key Distribution with confidentiality and Authentication (Needham and Schroeder) • Hybrid Scheme (A. Le, et. al.) Last three of the above schemes assume that the public keys have already been exchanged

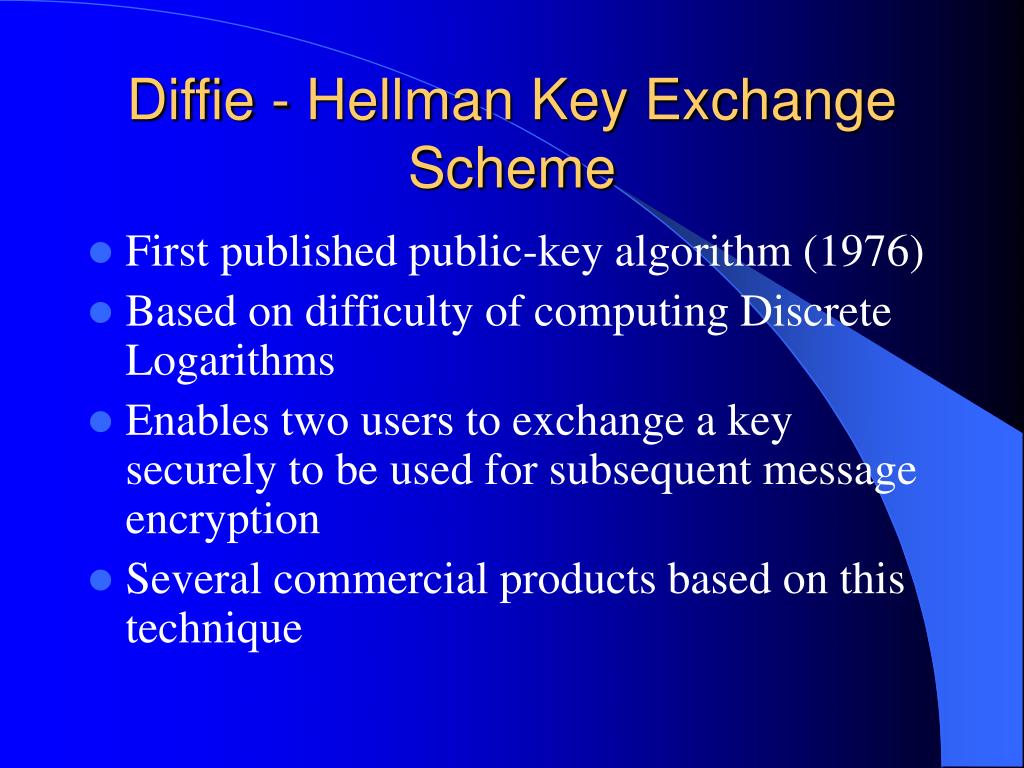

  27. Diffie - Hellman Key Exchange Scheme • First published public-key algorithm (1976) • Based on difficulty of computing Discrete Logarithms • Enables two users to exchange a key securely to be used for subsequent message encryption • Several commercial products based on this technique

  28. Diffie - Hellman Key Exchange Algorithm

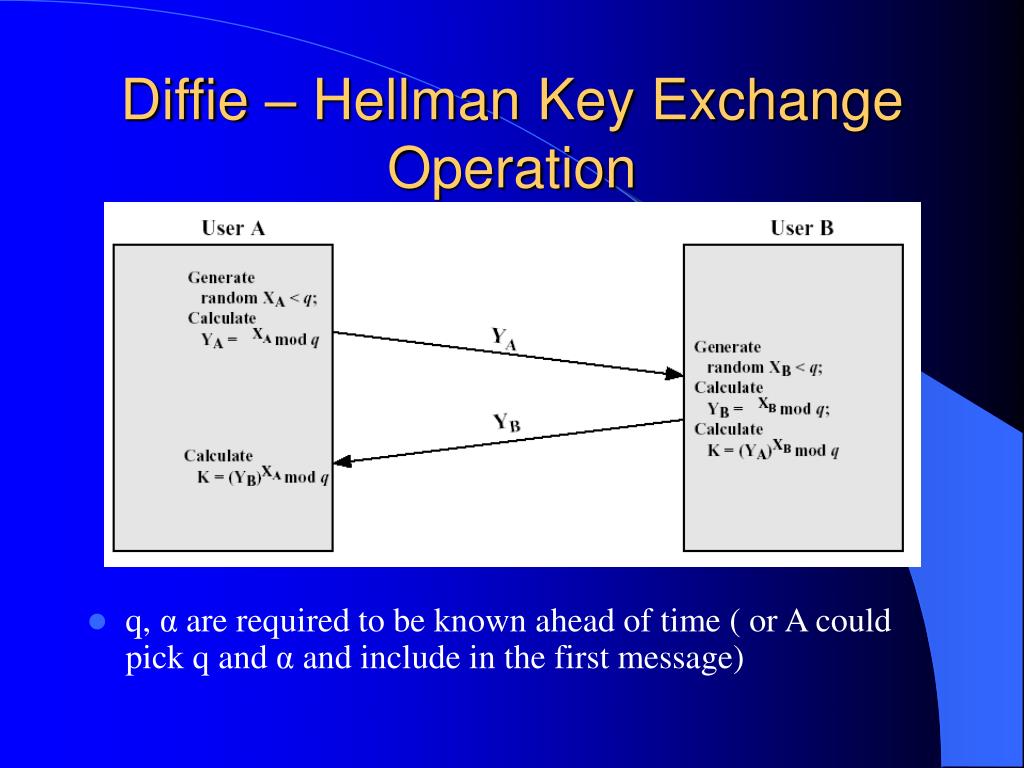

  29. Diffie – Hellman Key Exchange Operation • q, α are required to be known ahead of time ( or A could pick q and α and include in the first message)

  30. Merkle’s Secret Key Distribution Scheme • A generates a public/private key pair [KUa, KRa] and transmits a message to B consisting of KUa and an identifier of A, IDA • B generates a secret key, KS, and transmits it to A, encrypted with A’s public key. • A computes DKRa[EKUa[KS]] to recover the secret key. Because only A can decrypt the message, only A and B will know the identity of KS. • A discards KUa and KRa and B discards KUa

  31. Key Exchange with Public-Key Cryptography • Alice gets Bob’s public key from the KDC. • Alice generates a random session key, encrypts it using Bob’s public key, and sends it to Bob. • Bob them decrypts Alice’s message using his private key. • Both of them encrypt their communications using the same session key.

  32. Man-in-the-middle Attack • Alice sends Bob her public key. Mallory intercepts this key and sends Bob his own public key. • Bob sends Alice his public key. Mallory intercepts this key and sends Alice his own public key. • When Alice sends a message to Bob, encrypted in “Bob’s” public key, Mallory intercepts it. Since the message is really encrypted with his own public key, he decrypts it with his private key, re-encrypts it with Bob’s public key an sends it on to Bob. • When Bob sends a message to Alice, encrypted in “Alice’s” public key, Mallory intercepts it. Since the message is really encrypted with his own public key, he decrypts it with his private key, re-encrypts it with Alice’s public key an sends it on to Alice.

  33. Interlock Protocol(Foils Man-in-the-middle attack) • Alice sends Bob her public key. • Bob sends Alice his public key. • Alice encrypts her message using Bob’s public key. She sends half of the encrypted message to Bob. • Bob encrypts his message using Alice’s public key. He sends half of the encrypted message to Alice. • Alice sends the other half of her encrypted message to Bob. • Bob puts the two halves of Alice’s message together and decrypts with his private key . Bob sends the other half of his encrypted message to Alice. • Alice puts the two halves of Bob’s message together and encrypts it with her private key.

  34. Key and Message Transmission Alice and Bob need not complete the key-exchange protocol before exchanging messages. In this protocol, Alice sends Bob the message, M, without any previous key exchange protocol: • Alice generates a random session key , K and encrypts M using K. EK(M) • Alice gets Bob’s public key from the database • Alice encrypts K with Bob’s public key. EB(K) • Alice sends both the encrypted message and encrypted session key to Bob. EK(M), EB(K) • Bob decrypts Alice’s session key, K using his private key. • Bob decrypts Alice’s message using the session key.

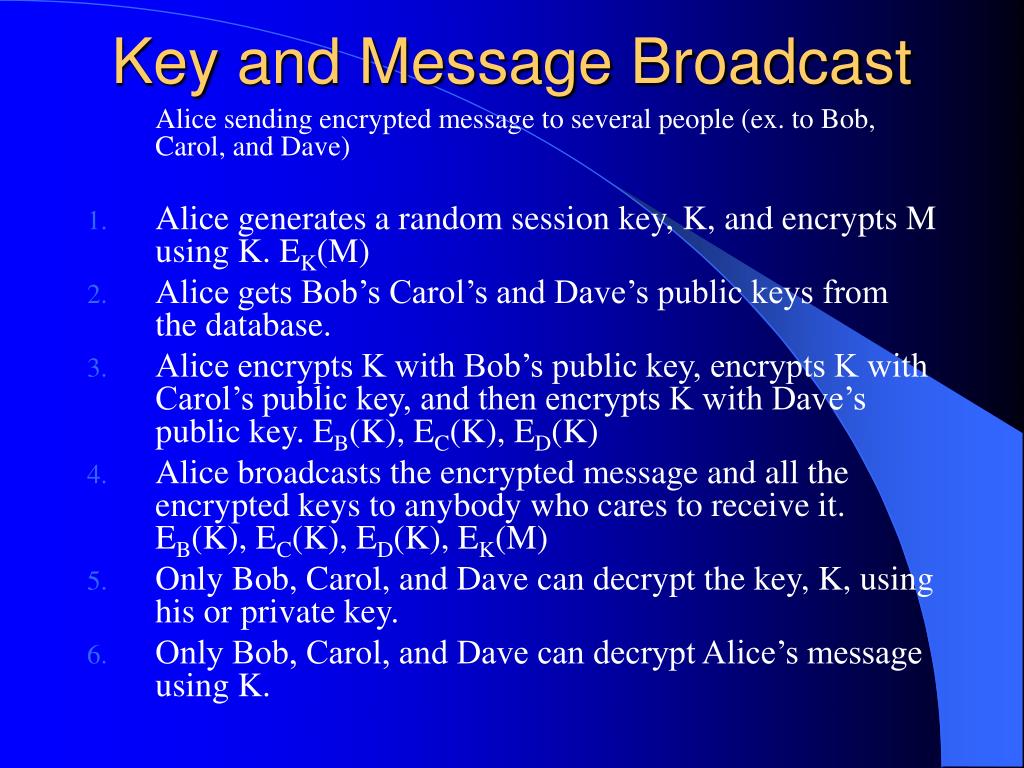

  35. Key and Message Broadcast Alice sending encrypted message to several people (ex. to Bob, Carol, and Dave) • Alice generates a random session key, K, and encrypts M using K. EK(M) • Alice gets Bob’s Carol’s and Dave’s public keys from the database. • Alice encrypts K with Bob’s public key, encrypts K with Carol’s public key, and then encrypts K with Dave’s public key. EB(K), EC(K), ED(K) • Alice broadcasts the encrypted message and all the encrypted keys to anybody who cares to receive it. EB(K), EC(K), ED(K), EK(M) • Only Bob, Carol, and Dave can decrypt the key, K, using his or private key. • Only Bob, Carol, and Dave can decrypt Alice’s message using K.

  36. Needham & Schroeder Scheme with Confidentiality and Authentication • A uses B’s public key to encrypt a message to B containing an identifier of A (IDA) and a nonce (N1) which is used to identify this transaction uniquely. • B sends a message of A encrypted with KUa and containing A’s nonce (N1) as well as a new nonce generated by B (N2). Because only B could have decrypted message (1), the presence of N1 in message (2) assures A that the correspondent is A. • A selects a secret key KS and sends M=EKUb[EKRa[KS]] to B. Encryption of this message with B’s public key ensures that only B can read it; encryption with A’s private key ensures that only A could have sent it. • B Computes DKUa[DKRb[M]] to recover the secret key.

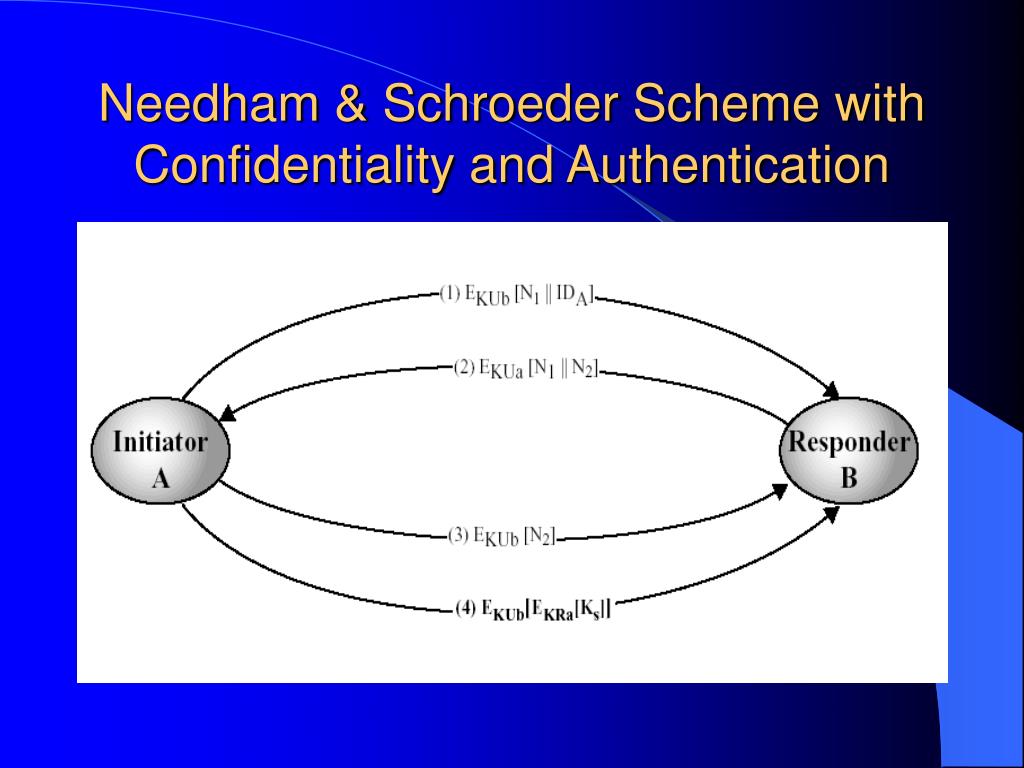

  37. Needham & Schroeder Scheme with Confidentiality and Authentication

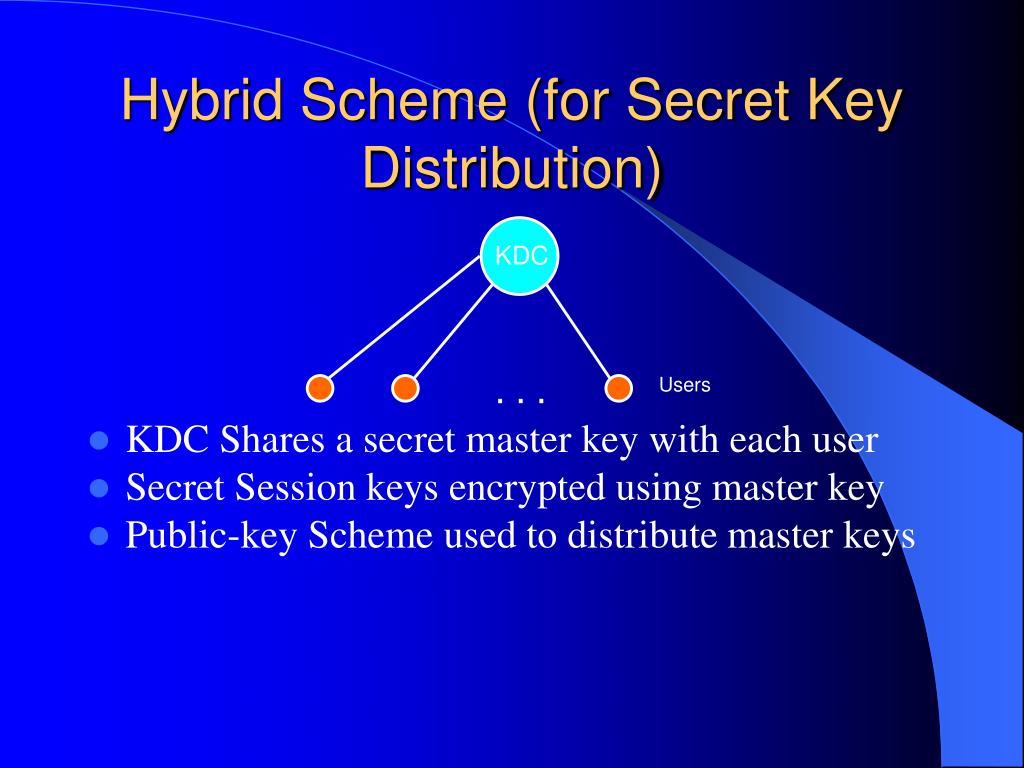

  38. Hybrid Scheme (for Secret Key Distribution) • KDC Shares a secret master key with each user • Secret Session keys encrypted using master key • Public-key Scheme used to distribute master keys KDC Users . . .

  39. End of semester Thank you! Chapter 5 & 6 Chapter 8 (7,8,11,14,15,17,18,24,31)
