ApGrid: Current Status and Future Direction

1. ApGrid: Current Status and Future Direction Yoshio Tanaka (AIST)

2. ApGrid: Asia Pacific Partnership for Grid Computing North America Europe • International Collaboration • Standardization Asia ApGrid Testbed International Grid Testbed over the Asia Pacific countries • ApGrid focuses on • Sharing resources, knowledge, technologies • Developing Grid technologies • Helping the use of our technologies in create new applications • Collaboration on each others work • Possible Applications on the Grid • Bio Informatics • （Rice Genome, etc.） • Earth Science • （Weather forecast, Fluid prediction, Earthquake prediction, etc.）

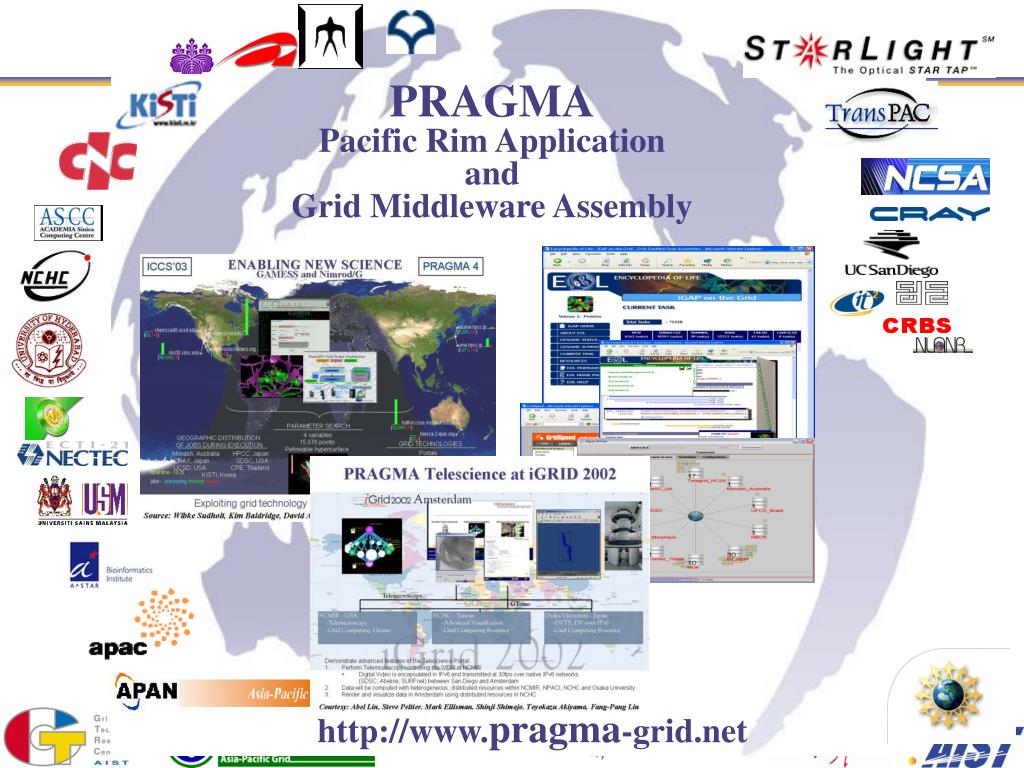

3. PRAGMA Pacific Rim Application andGrid Middleware Assembly http://www.pragma-grid.net

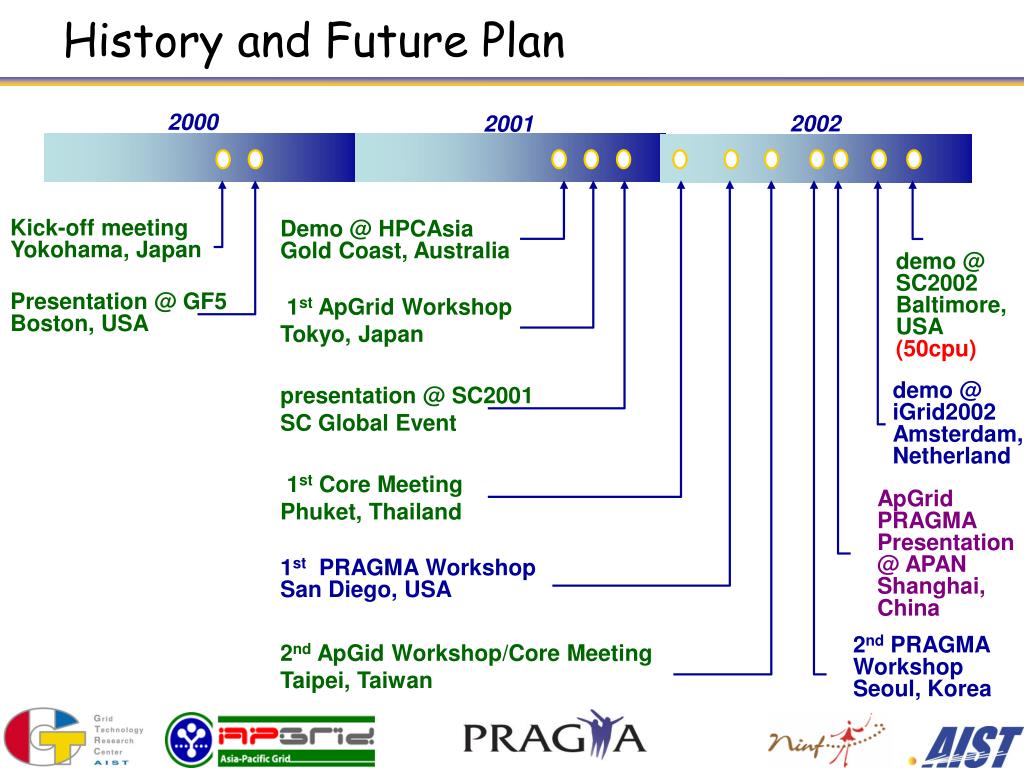

4. History and Future Plan 2000 2002 2001 Kick-off meeting Yokohama, Japan Demo @ HPCAsia Gold Coast, Australia demo @ SC2002 Baltimore, USA (50cpu) Presentation @ GF5 Boston, USA 1st ApGrid Workshop Tokyo, Japan presentation @ SC2001 SC Global Event demo @ iGrid2002 Amsterdam, Netherland 1st Core Meeting Phuket, Thailand ApGrid PRAGMA Presentation @ APAN Shanghai, China 1st PRAGMA Workshop San Diego, USA 2nd PRAGMA Workshop Seoul, Korea 2nd ApGid Workshop/Core Meeting Taipei, Taiwan

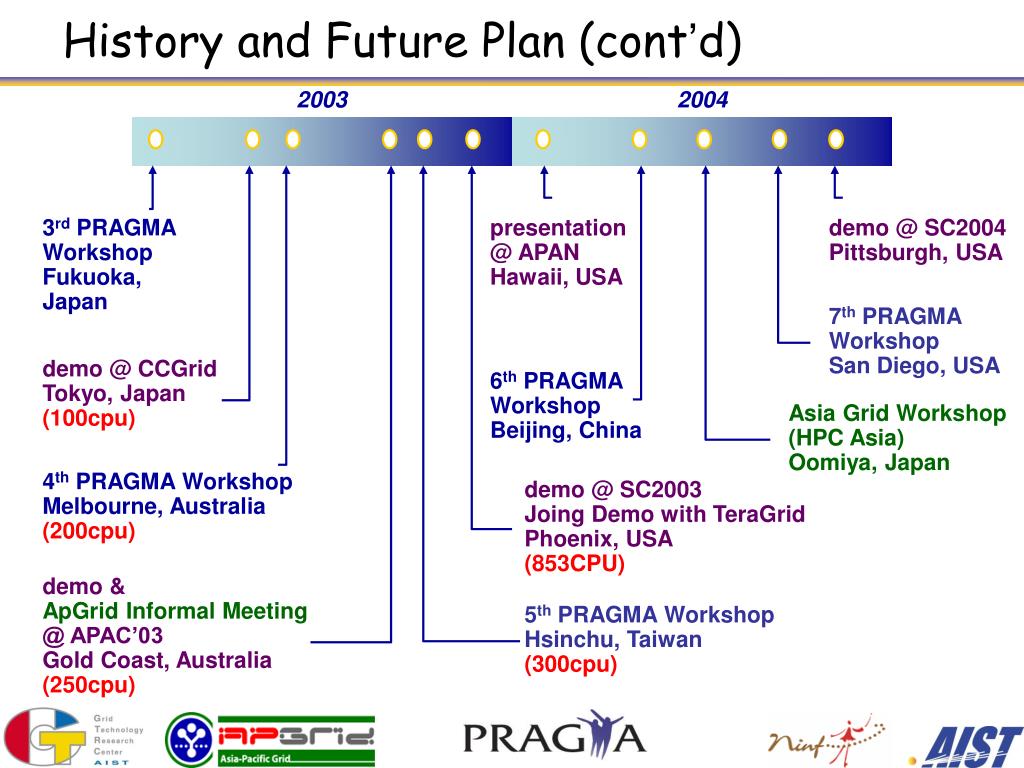

5. History and Future Plan (cont’d) 2003 2004 3rd PRAGMA Workshop Fukuoka, Japan presentation @ APAN Hawaii, USA demo @ SC2004 Pittsburgh, USA 7th PRAGMA Workshop San Diego, USA demo @ CCGrid Tokyo, Japan (100cpu) 6th PRAGMA Workshop Beijing, China Asia Grid Workshop (HPC Asia) Oomiya, Japan 4th PRAGMA Workshop Melbourne, Australia (200cpu) demo @ SC2003 Joing Demo with TeraGrid Phoenix, USA (853CPU) demo & ApGrid Informal Meeting @ APAC’03 Gold Coast, Australia (250cpu) 5th PRAGMA Workshop Hsinchu, Taiwan (300cpu)

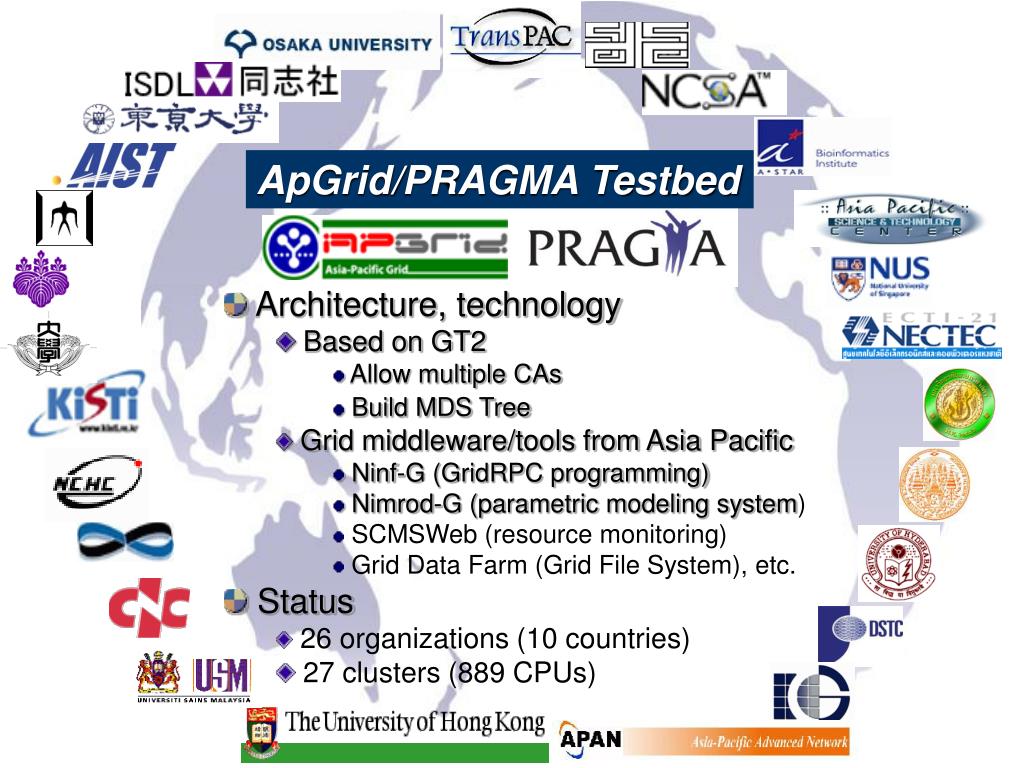

6. ApGrid/PRAGMA Testbed • Architecture, technology • Based on GT2 • Allow multiple CAs • Build MDS Tree • Grid middleware/tools from Asia Pacific • Ninf-G (GridRPC programming) • Nimrod-G (parametric modeling system) • SCMSWeb (resource monitoring) • Grid Data Farm (Grid File System), etc. • Status • 26 organizations (10 countries) • 27 clusters (889 CPUs)

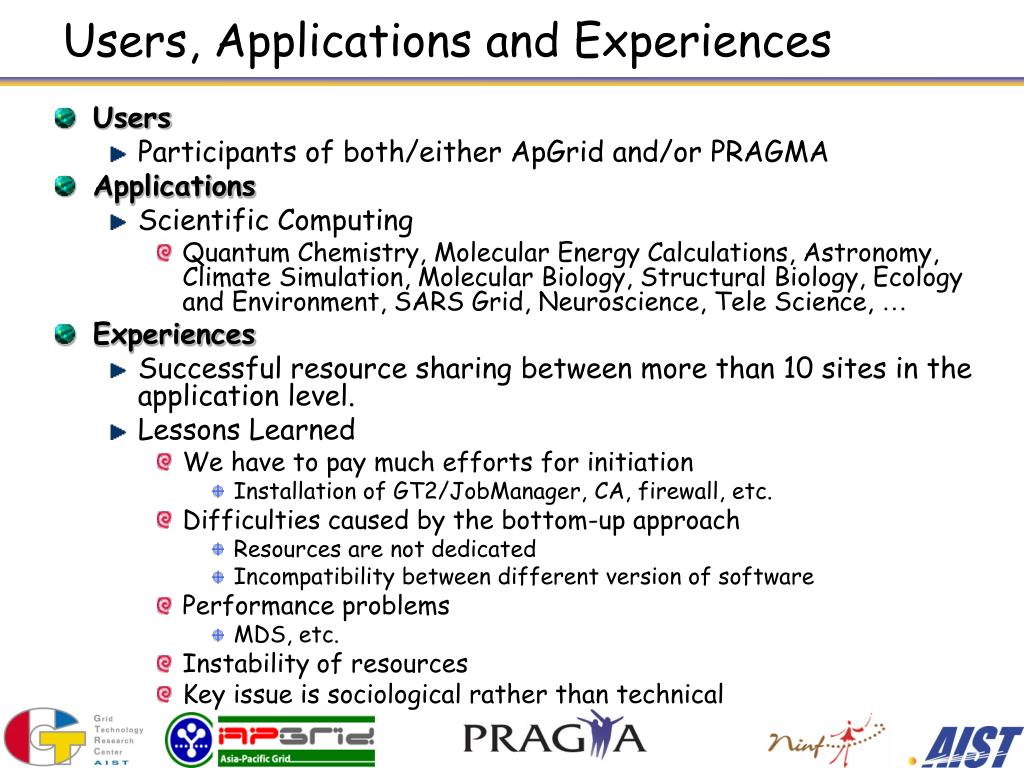

7. Users, Applications and Experiences • Users • Participants of both/either ApGrid and/or PRAGMA • Applications • Scientific Computing • Quantum Chemistry, Molecular Energy Calculations, Astronomy, Climate Simulation, Molecular Biology, Structural Biology, Ecology and Environment, SARS Grid, Neuroscience, Tele Science, … • Experiences • Successful resource sharing between more than 10 sites in the application level. • Lessons Learned • We have to pay much efforts for initiation • Installation of GT2/JobManager, CA, firewall, etc. • Difficulties caused by the bottom-up approach • Resources are not dedicated • Incompatibility between different version of software • Performance problems • MDS, etc. • Instability of resources • Key issue is sociological rather than technical

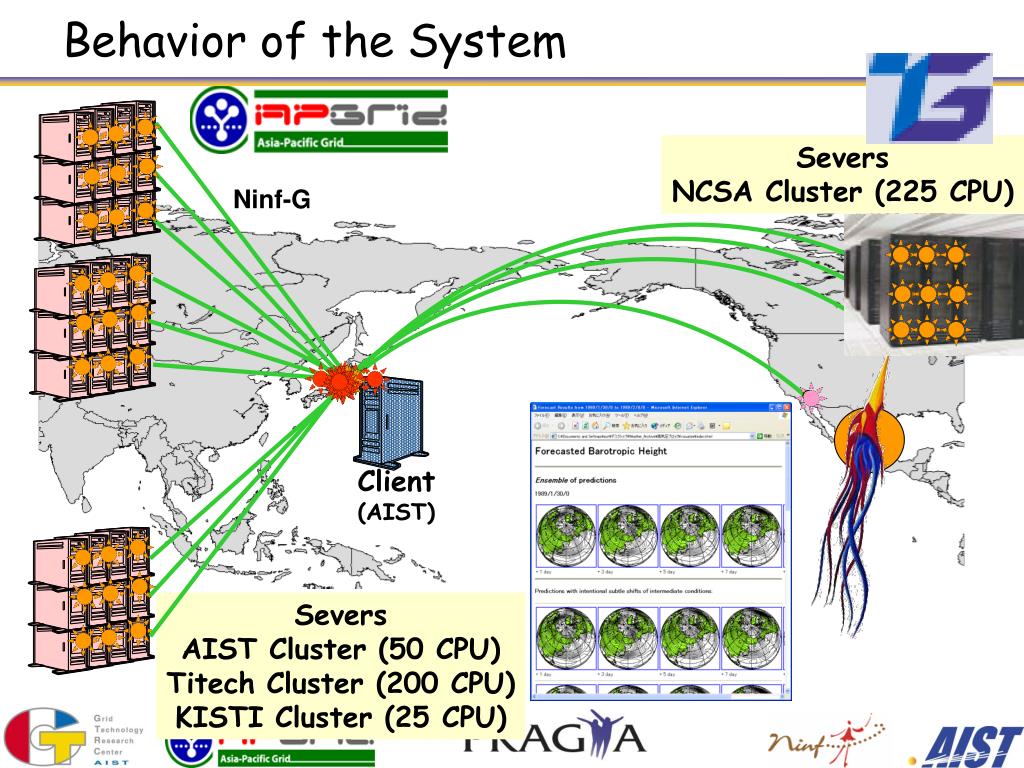

8. Behavior of the System Severs NCSA Cluster (225 CPU) Ninf-G Client (AIST) Severs AIST Cluster (50 CPU) Titech Cluster (200 CPU) KISTI Cluster (25 CPU)

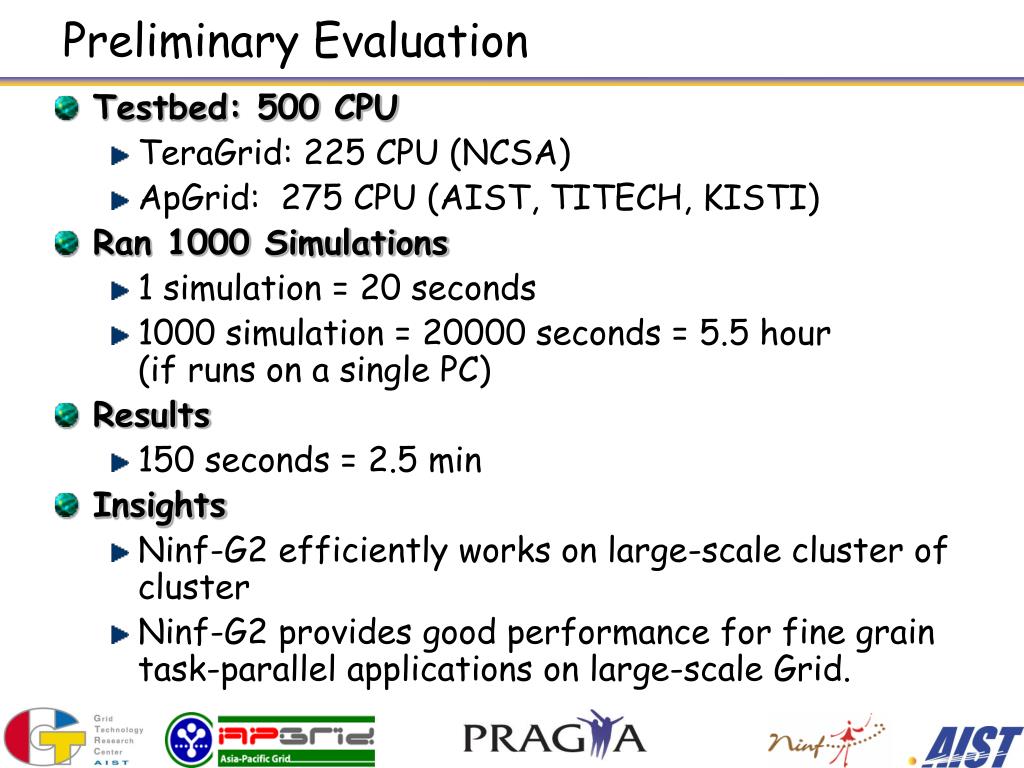

9. Preliminary Evaluation • Testbed: 500 CPU • TeraGrid: 225 CPU (NCSA) • ApGrid: 275 CPU (AIST, TITECH, KISTI) • Ran 1000 Simulations • 1 simulation = 20 seconds • 1000 simulation = 20000 seconds = 5.5 hour (if runs on a single PC) • Results • 150 seconds = 2.5 min • Insights • Ninf-G2 efficiently works on large-scale cluster of cluster • Ninf-G2 provides good performance for fine grain task-parallel applications on large-scale Grid.

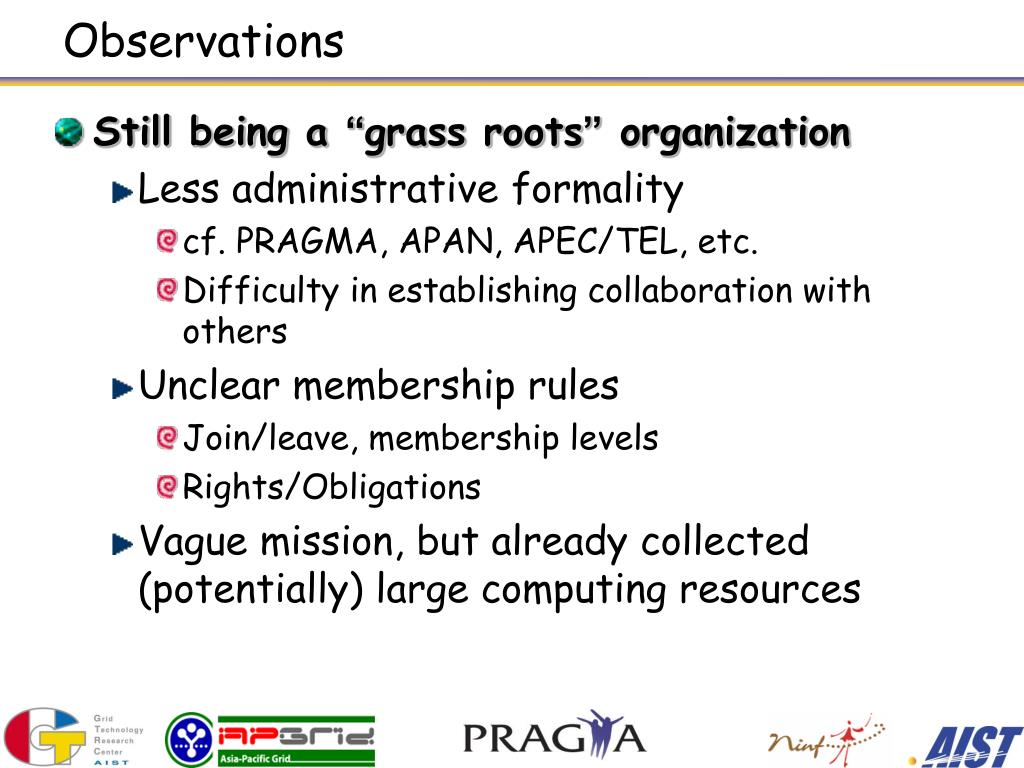

10. Observations • Still being a “grass roots” organization • Less administrative formality • cf. PRAGMA, APAN, APEC/TEL, etc. • Difficulty in establishing collaboration with others • Unclear membership rules • Join/leave, membership levels • Rights/Obligations • Vague mission, but already collected (potentially) large computing resources

11. Observations (cont’d) • Duplication of efforts on “similar” activities • Organization-wise • APAN - participation by country • PRAGMA – most organizations are overlapped • Operation-wise • ApGrid testbed vs PRAGMA-resource • may cause confusion • technically, the same approach • Multi-grid federation • Network-wise • Primary APAN – TransPAC • Skillful engineering team

12. Summary of current status • Difficulties are caused by not technical problems but sociological/political problems • Each site has its own policy • account management • firewalls • trusted CAs • … • Differences in interests • Application, middleware, networking, etc. • Differences in culture, language, etc. • Human interaction is very important

13. Summary of current status (cont’d) • Activities at the GGF • Production Grid Management RG • Draft a Case Study Document (ApGrid Testbed) • Groups in the Security Area • Policy Management Authority RG (not yet approved) • Discuss with representatives from DOE Science Grid, NASA IPG, EUDG, etc. • Federation/publishing of CAs (will kick off) • I’ll be one of co-chairs

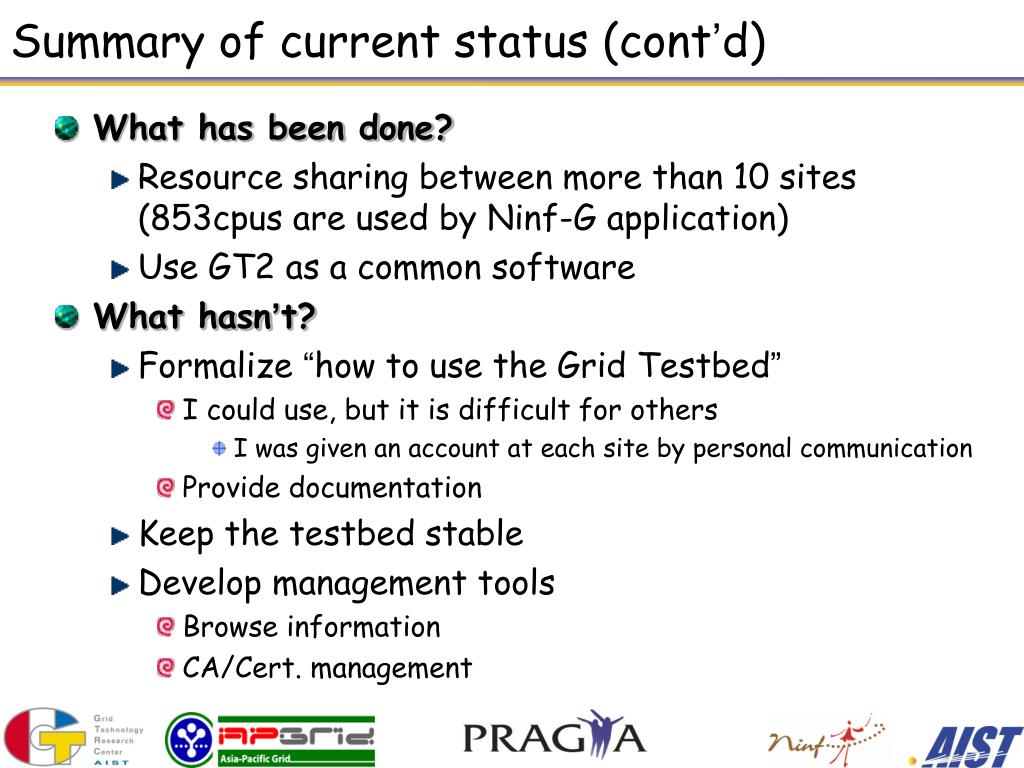

14. Summary of current status (cont’d) • What has been done? • Resource sharing between more than 10 sites (853cpus are used by Ninf-G application) • Use GT2 as a common software • What hasn’t? • Formalize “how to use the Grid Testbed” • I could use, but it is difficult for others • I was given an account at each site by personal communication • Provide documentation • Keep the testbed stable • Develop management tools • Browse information • CA/Cert. management

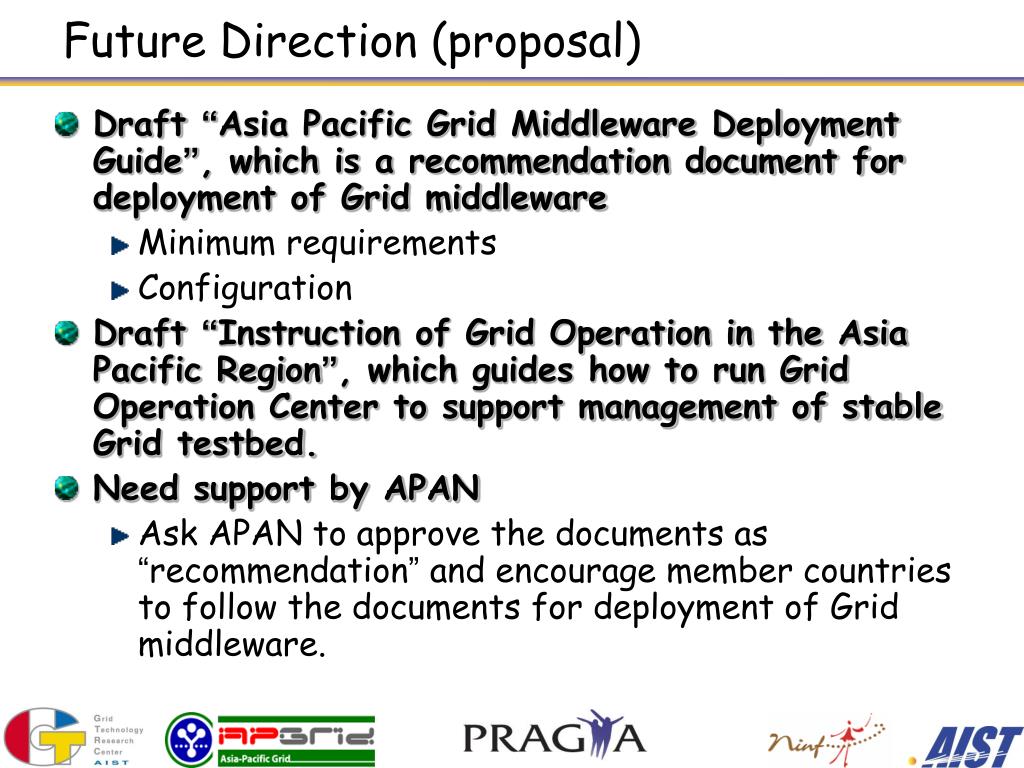

15. Future Direction (proposal) • Draft “Asia Pacific Grid Middleware Deployment Guide”, which is a recommendation document for deployment of Grid middleware • Minimum requirements • Configuration • Draft “Instruction of Grid Operation in the Asia Pacific Region”, which guides how to run Grid Operation Center to support management of stable Grid testbed. • Need support by APAN • Ask APAN to approve the documents as “recommendation” and encourage member countries to follow the documents for deployment of Grid middleware.

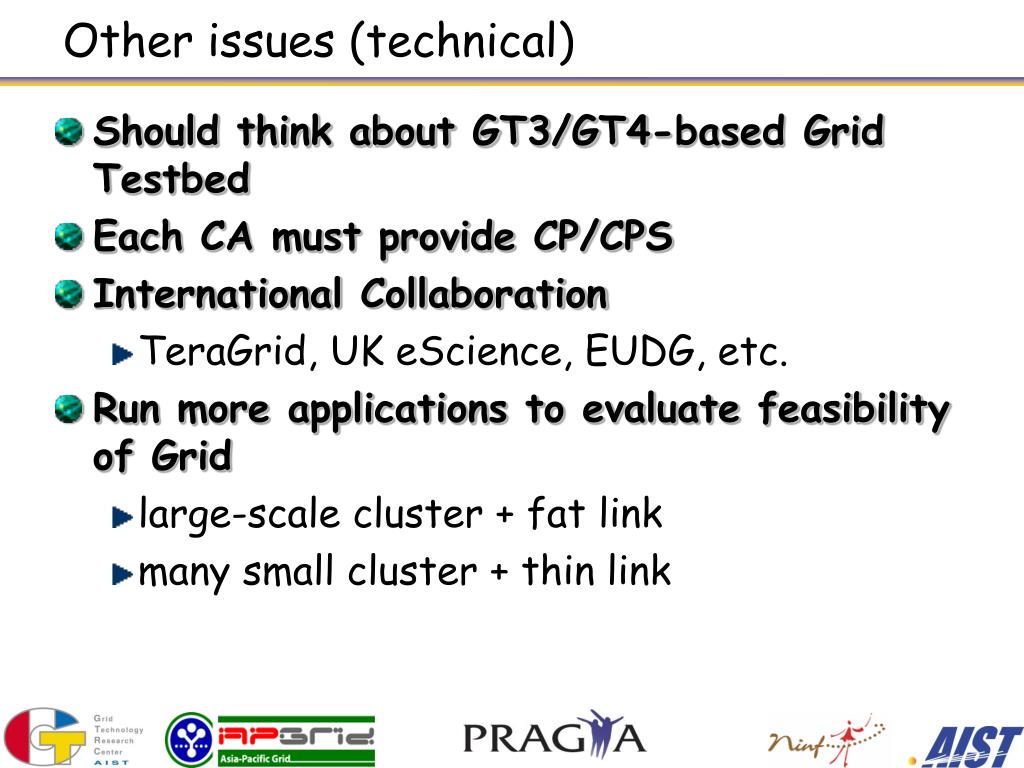

16. Other issues (technical) • Should think about GT3/GT4-based Grid Testbed • Each CA must provide CP/CPS • International Collaboration • TeraGrid, UK eScience, EUDG, etc. • Run more applications to evaluate feasibility of Grid • large-scale cluster + fat link • many small cluster + thin link
