  1. Introduction to storage system

  2. Topics to be discussed • Memory • Types of Memory • Memory Representation • Random Access Memory • Read Only Memory • Storage Systems & It’s types • Storage Evaluation Criteria

  3. Memory Memory: Storing the data that are being currently handled by the CPU, generally known as “memory”. back

  4. Types of Memory • Primary memory • Secondary memory back

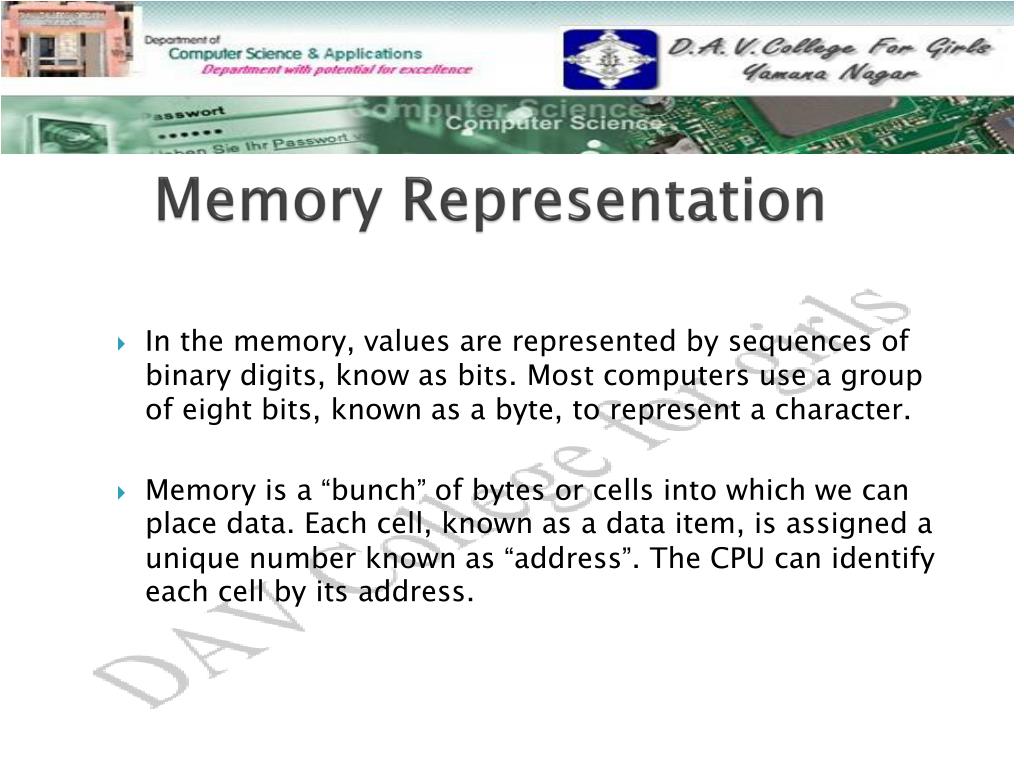

  5. Memory Representation • In the memory, values are represented by sequences of binary digits, know as bits. Most computers use a group of eight bits, known as a byte, to represent a character. • Memory is a “bunch” of bytes or cells into which we can place data. Each cell, known as a data item, is assigned a unique number known as “address”. The CPU can identify each cell by its address.

  6. Memory Representation • The byte is defined as the “smallest addressable unit” of memory. Most computers use groups of bytes, usually 2 or 4, known as “words” to represent information. • Computer memories are often rated in terms of their capacity to store information. Typically, capacities are described using the unit of byte as follows: (1) 1 KB (Kilobyte)=1,024 bytes (2) 1 MB (Megabyte)=1,048,576 bytes (3) 1 GB (Gigabyte)=1,073,741,824 bytes (4) 1 TB (Terabyte)=1,099,511,627,776 bytes back

  7. Random Access Memory • Static RAM: is a type of RAM in which data is stored till the power of the computer system is switched on. SRAM uses a number of transistors to store a single bit of digital information. • Dynamic RAM: is the RAM in which data is stored in a storage cell, consisting of a transistor and a capacitor. The DRAM needs to be continuously refreshed with power supply because the capacitor has the tendency to get discharged.

  8. EXAMPLESRandom Access Memory • Random Access Memory (RAM) is a volatile memory and loses all its data when the power is switched off. • It is the main memory of the computer system that stores the data temporarily and allows the data to be accessed in any order. • RAM can be categorized into two main types, namely, Static RAM and Dynamic RAM. back

  9. Read Only Memory • ROM is the memory that stores the data permanently. • The data can be easily read from this type of memory but cannot be changed. • ROM is most commonly used in devices such as calculators, laser printers, etc. • ROM does not allow the random access of data, and allows sequential access of data.

  10. Read Only Memory ROM is divided into four types: (1) Programmable ROM: a memory chip on which the write operation of data can be performed only once. PROM is reliable and stores the data permanently without making any change in it. It is mostly used in video games and electronic dictionaries. (2) Erasable PROM: a type of ROM in which data can be erased or destroyed using Ultraviolet Light. (3) Electrically Erasable PROM: a type of ROM in which data can be erased or destroyed by exposing it to an electric charge. (4) Flash ROM: a type of EEPROM that stores the information using floating-gate transistors, which can store electric charge for a longer period of time as compared to the normal transistors. back

  11. Storage Systems & It’s types • Storage systems are the devices used for data storage. The main objective of the storage system is to permanently store data. The storage systems can be classified as follows: (1) Magnetic (2) Optical (3) Solid state (4) Magneto Optical

  12. EXAMPLES Magnetic Storage Systems • Magnetic storage systems can be defined as the storage systems that store the data on a magnetized medium, with the help of magnetized particles. Magnetic tapes, magnetic disks, hard disks, floppy disks are examples of magnetic storage systems. • Can store any type of data, such as text, audio, video, image

  13. Magnetic Storage Systems • Magnetic tapes: The plastic tapes with magnetic coating that are used for storing the data. They are similar to the normal recording tapes. The data stored on the magnetic tapes can be accessed using the sequential access method. • Magnetic Disks: A flat disk that is covered with magnetic coating for holding information. It is used to store digital information in the form of small and magnetized needles. These needles help in encoding a single bit of information by getting polarized in one direction represented by 1, and opposite direction represented by 0.

  14. Optical Storage Systems • The optical storage systems use the laser light as the optical medium to retrieve as well as record data. • The optical storage devices are either read-only or writable.

  15. Solid-State Storage Devices • Solid-state Storage Devices were developed in 1978 . • Do not use magnetic and optical medium to store data. Instead, use the semiconductor devices. • Contains all the properties of hard disk drives to store the data and use solid-state memory, which has no moving parts. • The examples of SSD are flash memory cards and Universal Serial Bus (USB) devices. back

  16. THANKS…… back
