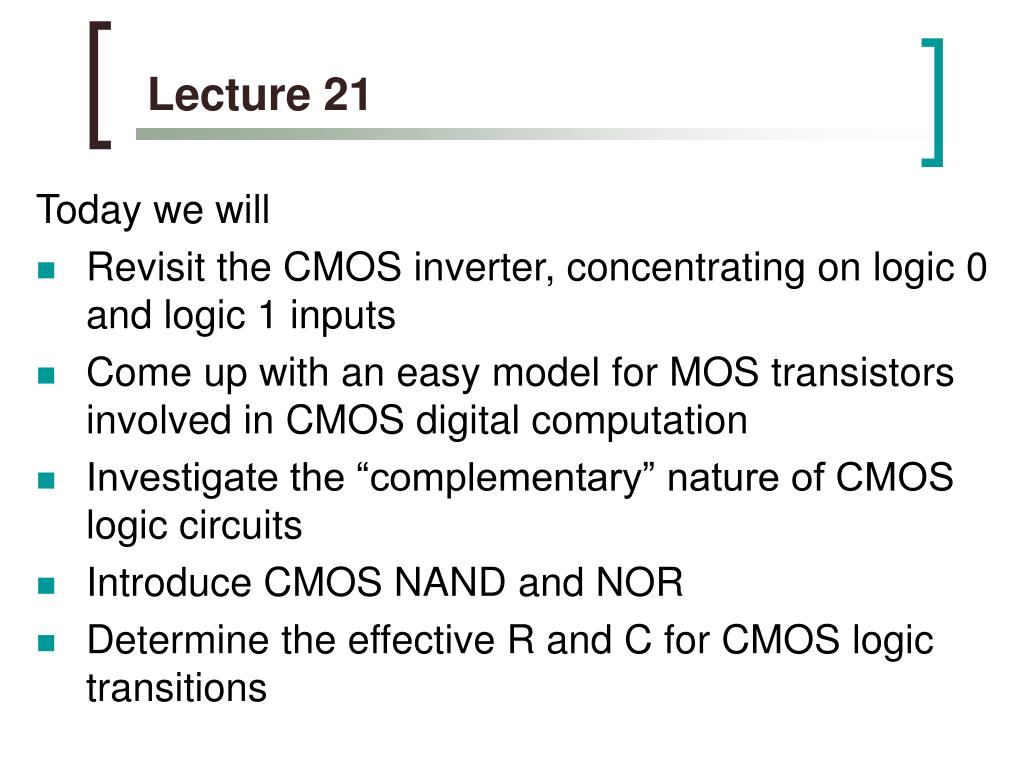

  1. Lecture 21 Today we will • Revisit the CMOS inverter, concentrating on logic 0 and logic 1 inputs • Come up with an easy model for MOS transistors involved in CMOS digital computation • Investigate the “complementary” nature of CMOS logic circuits • Introduce CMOS NAND and NOR • Determine the effective R and C for CMOS logic transitions

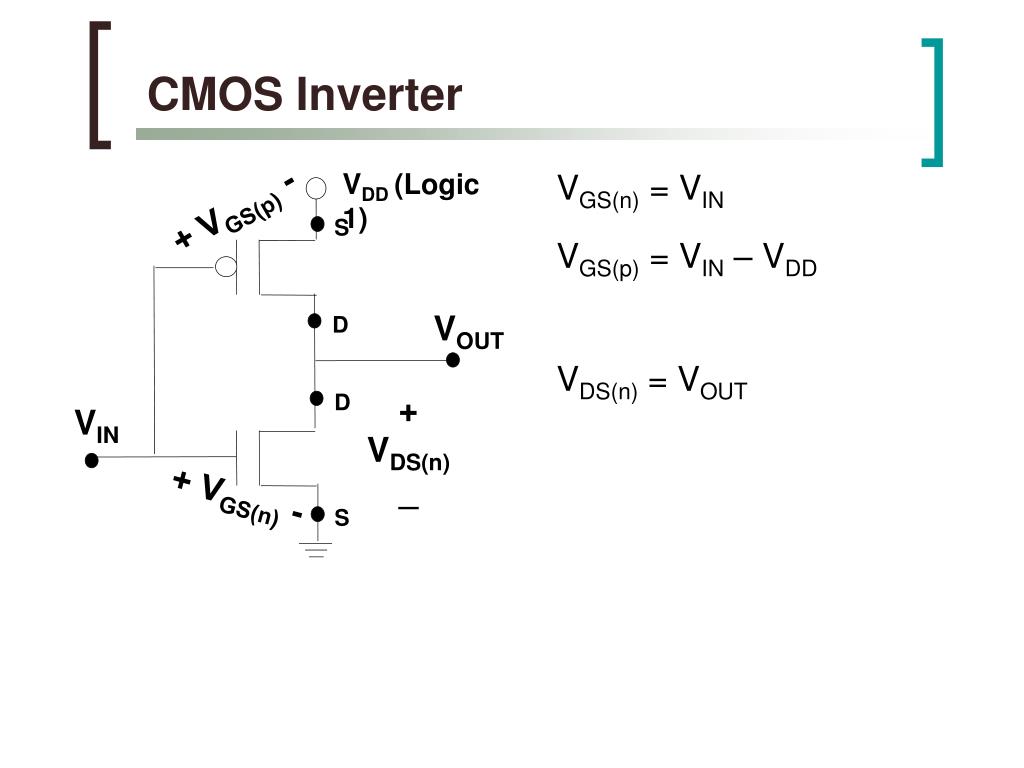

  2. CMOS Inverter VDD (Logic 1) VGS(n) = VIN VGS(p) = VIN – VDD VDS(n) = VOUT + VGS(p) - S VOUT D + VDS(n) _ D VIN + VGS(n) - S

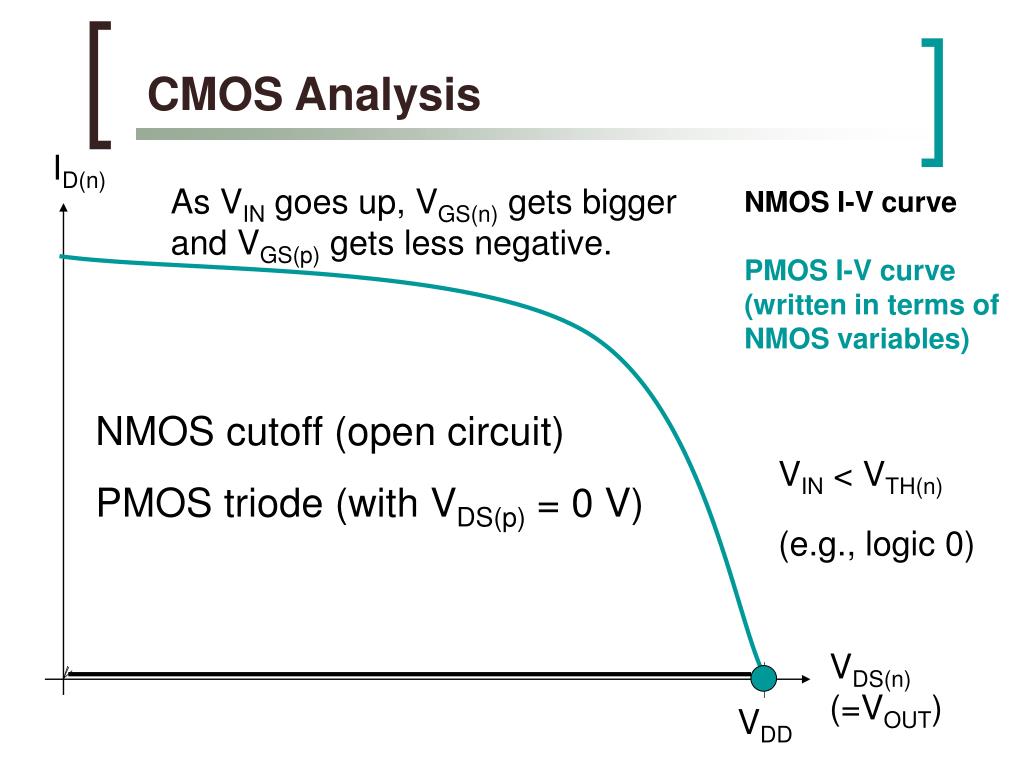

  3. CMOS Analysis ID(n) As VIN goes up, VGS(n) gets bigger and VGS(p) gets less negative. NMOS I-V curve PMOS I-V curve (written in terms of NMOS variables) NMOS cutoff (open circuit) PMOS triode (with VDS(p) = 0 V) VIN < VTH(n) (e.g., logic 0) VDS(n) (=VOUT) VDD

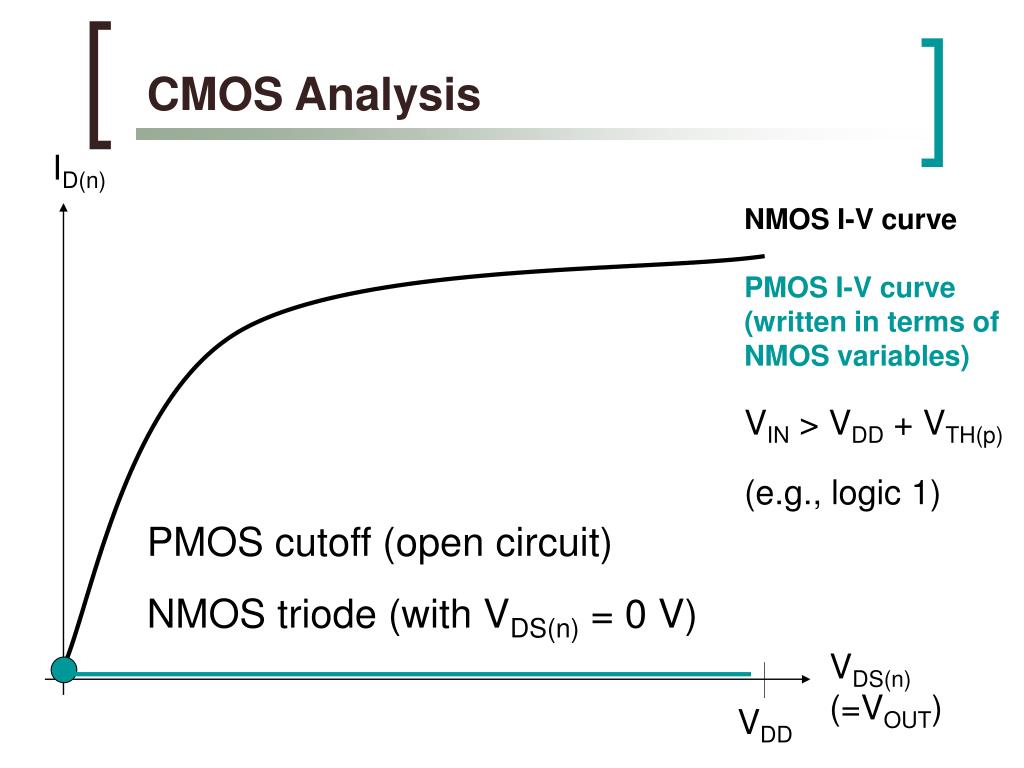

  4. CMOS Analysis ID(n) NMOS I-V curve PMOS I-V curve (written in terms of NMOS variables) VIN > VDD + VTH(p) (e.g., logic 1) PMOS cutoff (open circuit) NMOS triode (with VDS(n) = 0 V) VDS(n) (=VOUT) VDD

  5. D G S Model for Digital Computation • This leads us to a simpler model for transistors in CMOS circuits, when VIN is fully logic 0 or logic 1. VGS = VDD (for NMOS) VGS = -VDD (for PMOS) VGS = 0 V D G S Transistor is not cutoff, but zero current flow of partner transistor causes VDS = 0 V. Transistor is cutoff. Zero current flow.

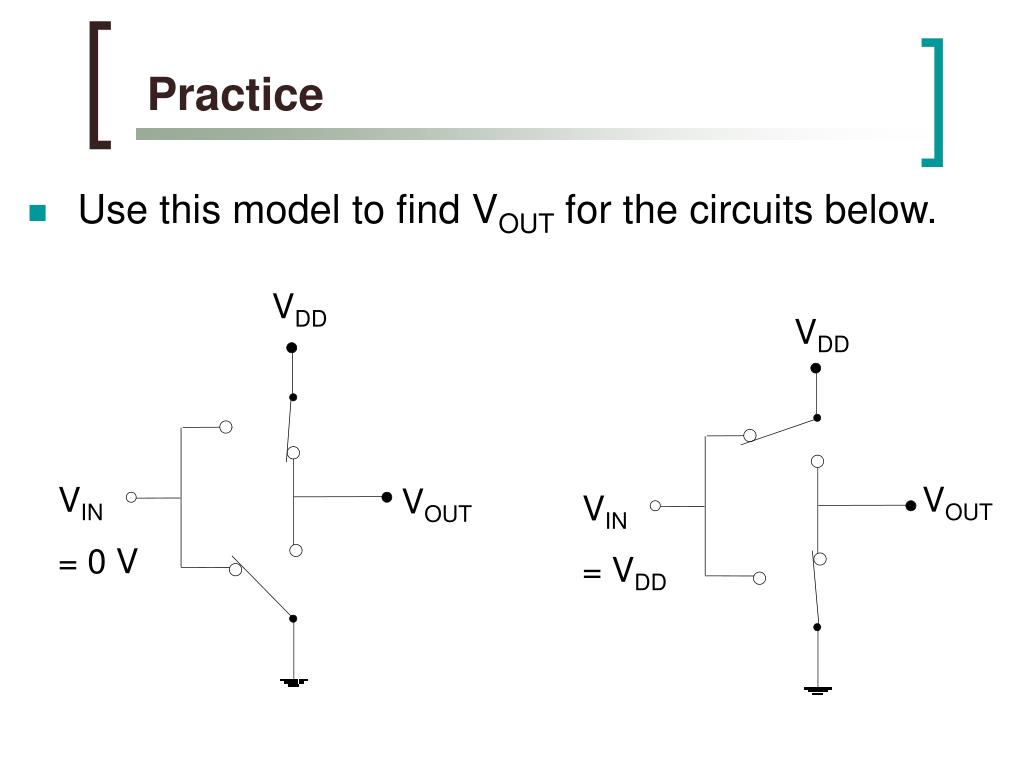

  6. Practice • Use this model to find VOUT for the circuits below. VDD VDD VOUT VIN = 0 V VOUT VIN = VDD

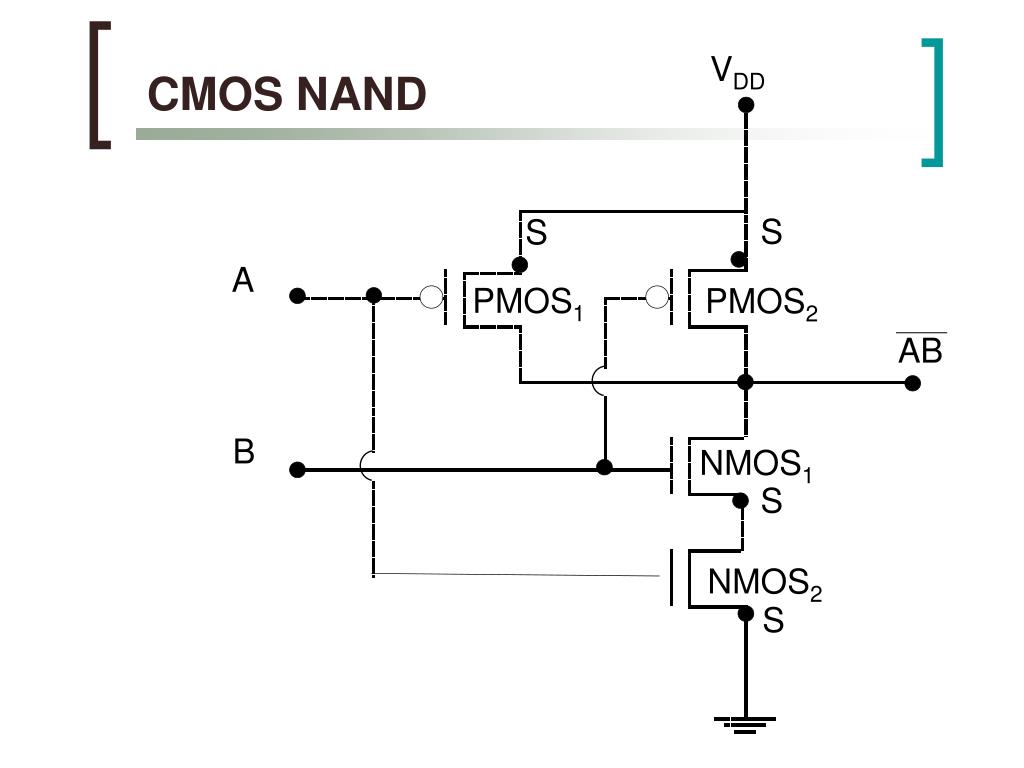

  7. CMOS NAND VDD S S A PMOS1 PMOS2 AB B NMOS1 S NMOS2 S

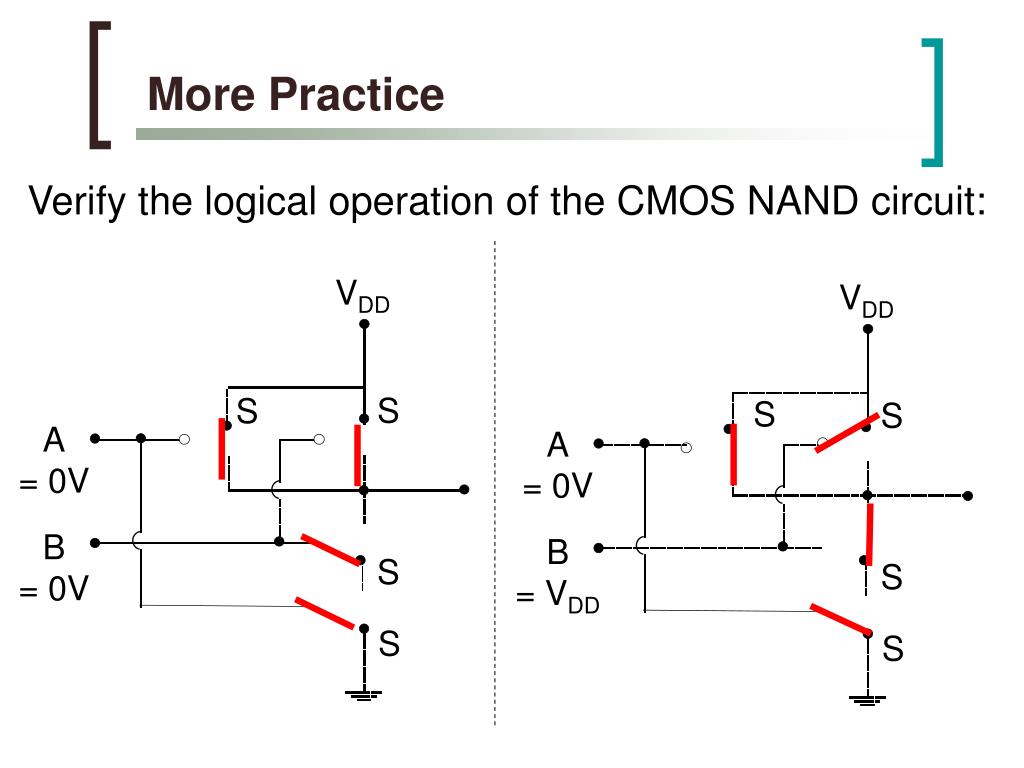

  8. More Practice Verify the logical operation of the CMOS NAND circuit: VDD VDD S S S S A = 0V A = 0V B = 0V B = VDD S S S S

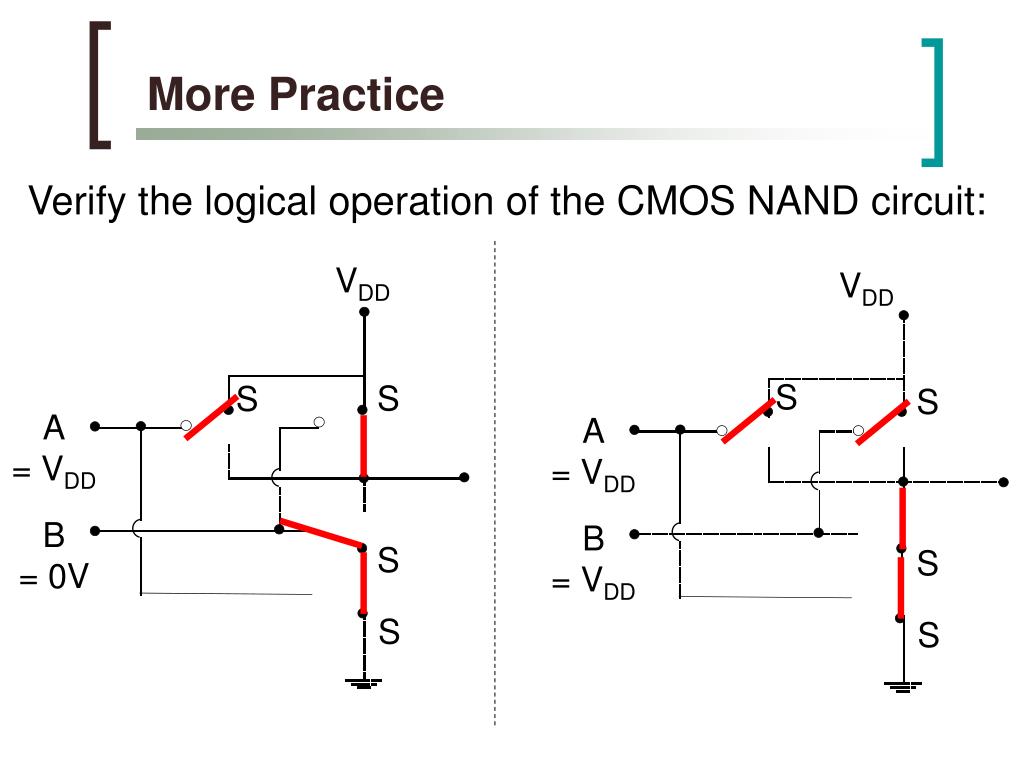

  9. More Practice Verify the logical operation of the CMOS NAND circuit: VDD VDD S S S S A = VDD A = VDD B = 0V B = VDD S S S S

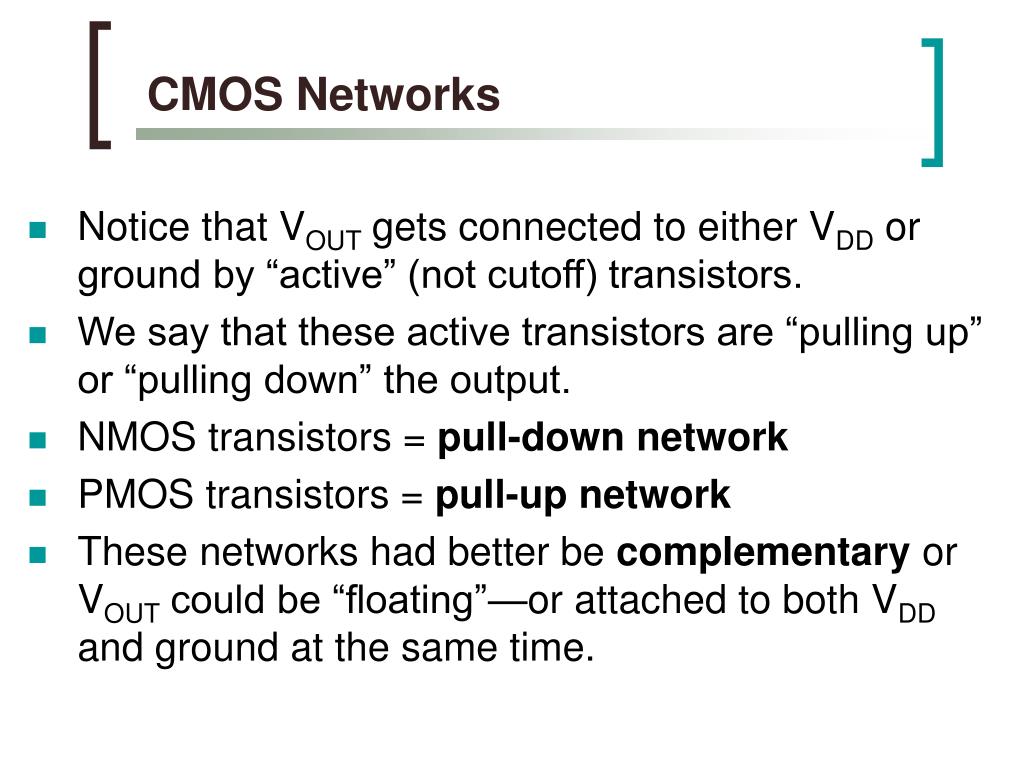

  10. CMOS Networks • Notice that VOUT gets connected to either VDD or ground by “active” (not cutoff) transistors. • We say that these active transistors are “pulling up” or “pulling down” the output. • NMOS transistors = pull-down network • PMOS transistors = pull-up network • These networks had better be complementary or VOUT could be “floating”—or attached to both VDD and ground at the same time.

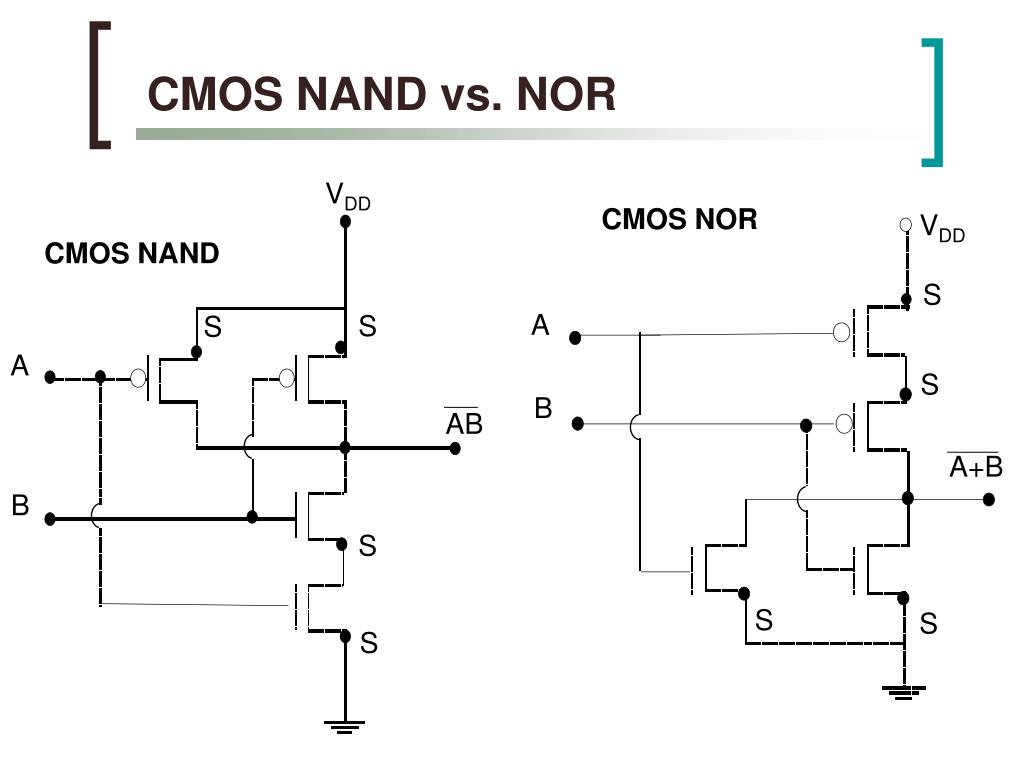

  11. VDD CMOS NOR VDD S A S S A S B B S S S S CMOS NAND vs. NOR CMOS NAND AB A+B

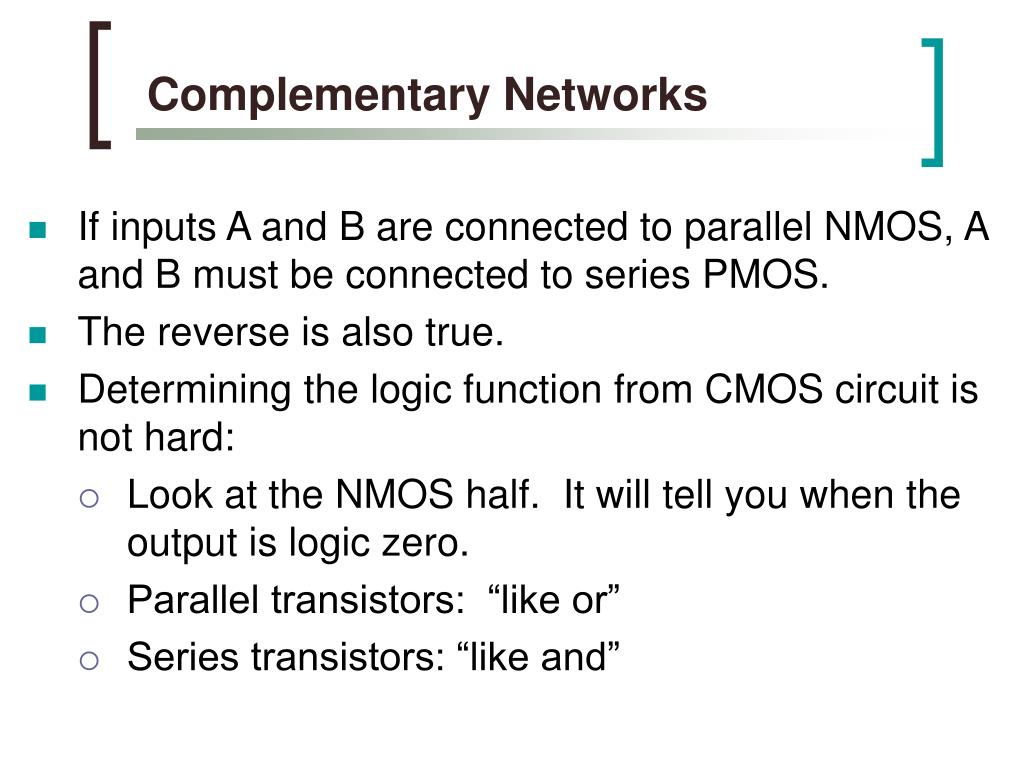

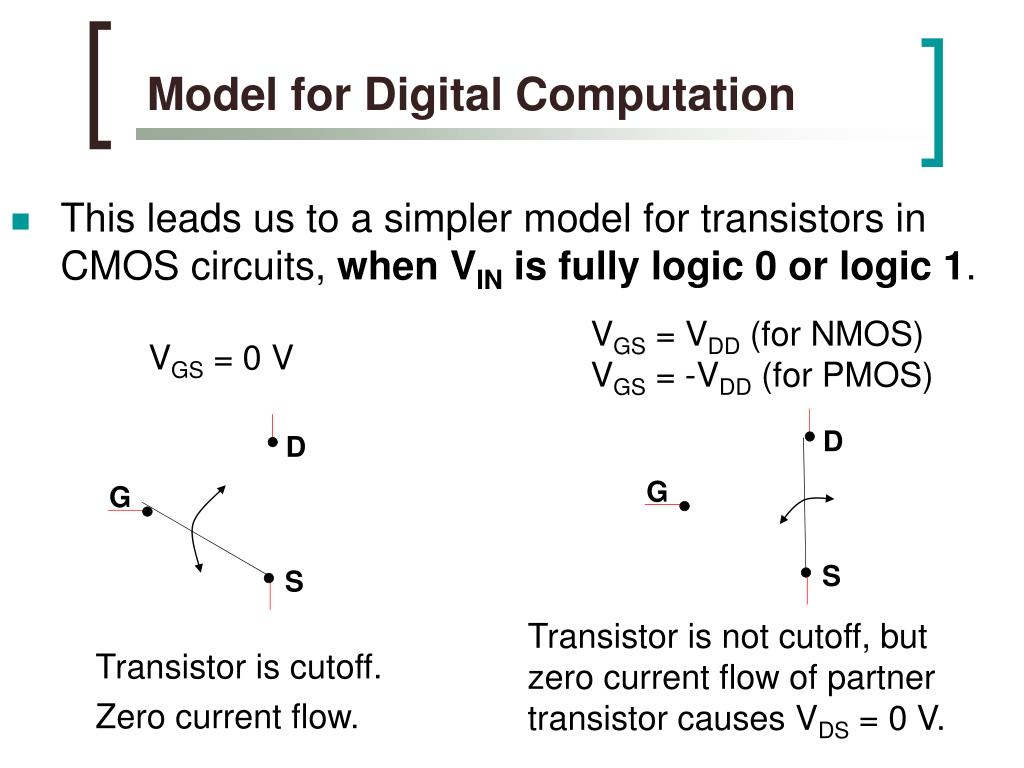

  12. Complementary Networks • If inputs A and B are connected to parallel NMOS, A and B must be connected to series PMOS. • The reverse is also true. • Determining the logic function from CMOS circuit is not hard: • Look at the NMOS half. It will tell you when the output is logic zero. • Parallel transistors: “like or” • Series transistors: “like and”

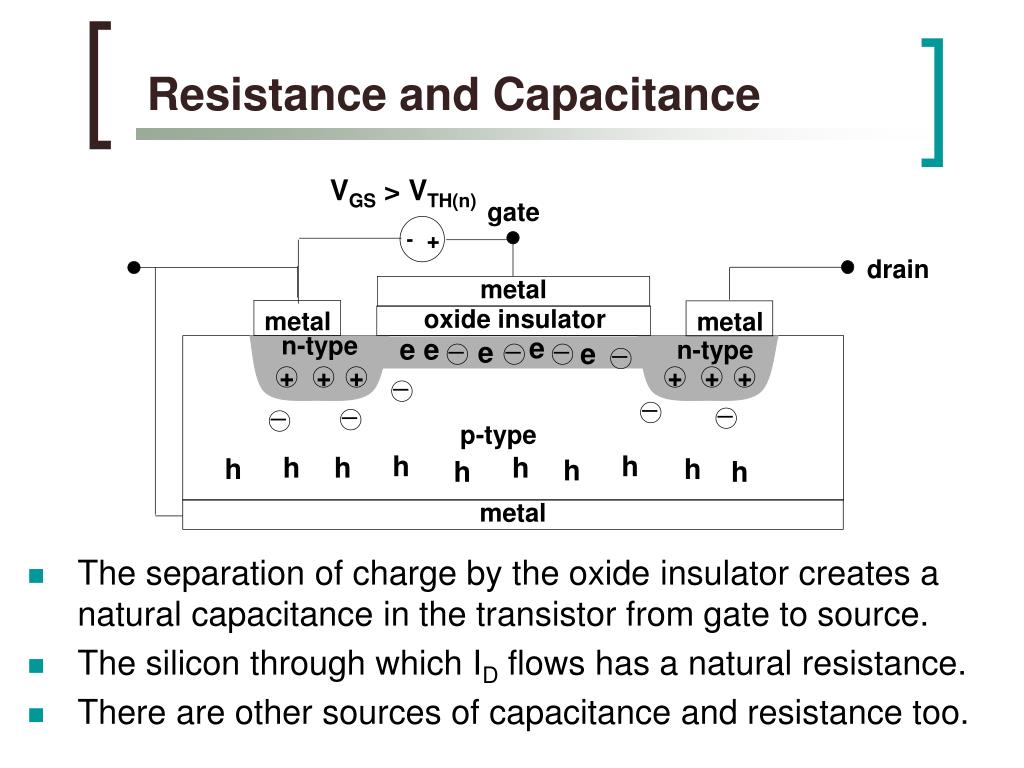

  13. metal metal + - Resistance and Capacitance VGS > VTH(n) gate • The separation of charge by the oxide insulator creates a natural capacitance in the transistor from gate to source. • The silicon through which ID flows has a natural resistance. • There are other sources of capacitance and resistance too. drain metal oxide insulator _ _ _ _ n-type e e e n-type e e + + + _ + + + _ _ _ _ p-type h h h h h h h h h h metal

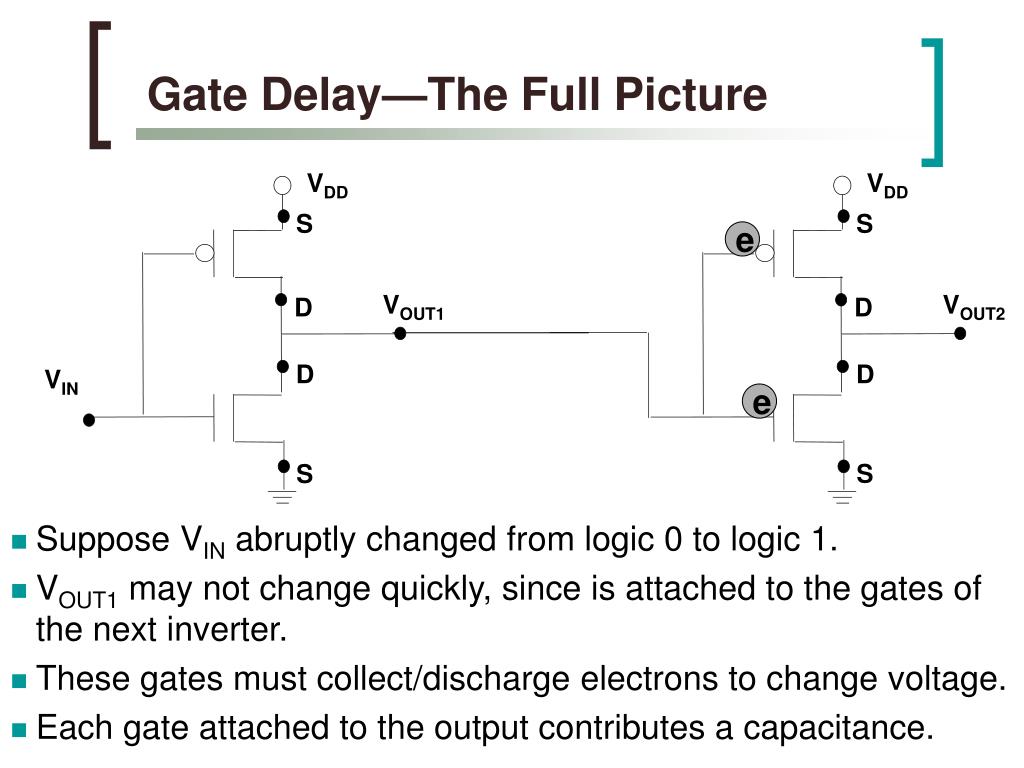

  14. VDD S VOUT1 VDD D e e S D VOUT2 D D S S Gate Delay—The Full Picture • Suppose VIN abruptly changed from logic 0 to logic 1. • VOUT1 may not change quickly, since is attached to the gates of the next inverter. • These gates must collect/discharge electrons to change voltage. • Each gate attached to the output contributes a capacitance. VIN

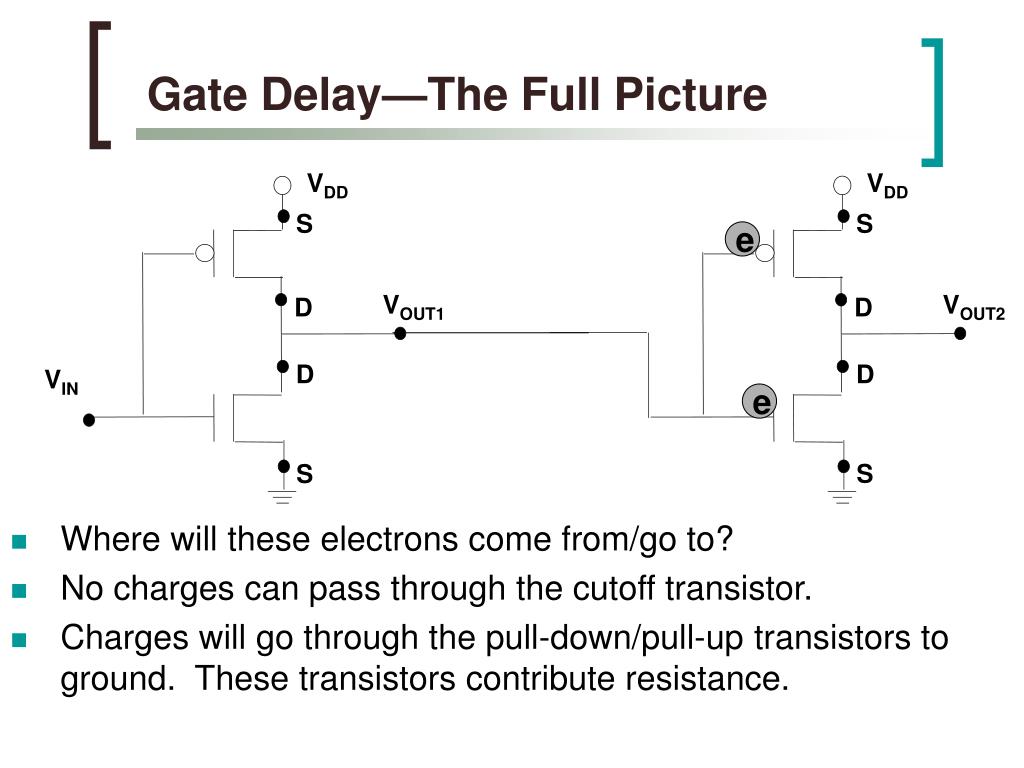

  15. VDD S VOUT1 VDD D e e S D VOUT2 D D S S Gate Delay—The Full Picture • Where will these electrons come from/go to? • No charges can pass through the cutoff transistor. • Charges will go through the pull-down/pull-up transistors to ground. These transistors contribute resistance. VIN

  16. VDD S VOUT1 VDD D S D VOUT2 D D S S Computing Gate Delay 1. Determine the capacitance of each gate attached to the output. These combine in parallel. Higher fan-out = more capacitance. 2. Determine which transistors are pulling-up or pulling-down the output. Each contributes a resistance, and may need to be combined in series and/or parallel. 3. The C from 1) and R from 2) are the RC for the VOUT1 transition. VIN tp = (ln 2)RC

  17. Example • Suppose we have the following circuit: • If A and B both transition from logic 1 to logic 0 at t = 0, find the voltage at the NAND output, VOUT(t), for t ≥ 0. Logic 0 = 0 V Logic 1 = 1 V NMOS resistance Rn = 1 kW PMOS resistance Rp = 2 kW Gate capacitance CG = 50 pF

  18. Answer VOUT(t) = 0 + (1-0) e-t/(2 kW 200 pF) V VOUT(t) = e-t/(400 ns) V • A and B both transition from 0 to 1. Since VOUT comes out of a NAND of A with B, VOUT transitions from 1 to 0. VOUT(0) = 1 V VOUT,f = 0 V • Since the output is transitioning from 1 to 0, it is being pulled down. Both NMOS transistors in the NAND were previously cutoff, but are now active. The NMOS in the NAND are in series, so the resistances add: R = 2 RN = 2 kW • The output in question feeds into 2 logic gate inputs (one inverter, one NOR). Each CMOS input is attached to two transistors. Thus we have 2 x 2 = 4 gate capacitances to charge. All capacitances are in parallel, so they add: C = 4 CG = 200 pF
