Assembling a PC . Alton, Dahlmon, Robert, Spencer CIS 265. Safety Precautions. Keep first aid kit handy. Remove all jewelry. Always wear short sleeve shirts or roll up long sleeves Use anti-static mats to protect computer and anti-static wristbands to protect you.

kaipo
Download Presentation

Assembling a PC

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

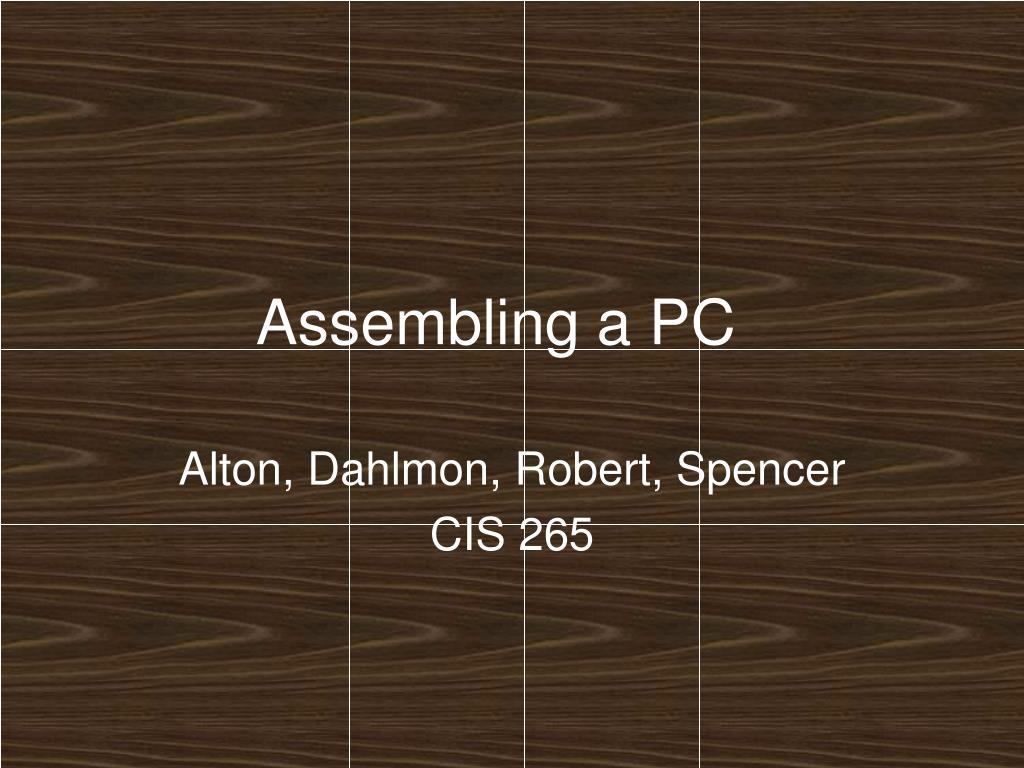

  1. Assembling a PC Alton, Dahlmon, Robert, Spencer CIS 265

  2. Safety Precautions • Keep first aid kit handy. • Remove all jewelry. • Always wear short sleeve shirts or roll up long sleeves • Use anti-static mats to protect computer and anti-static wristbands to protect you. • Watch sharp edges of computer.

  3. Disassembly • Lay down anti-static mat • Find how to open case • Unlock from back • Push front button to remove panel • Remove side panel and lay computer case on its side

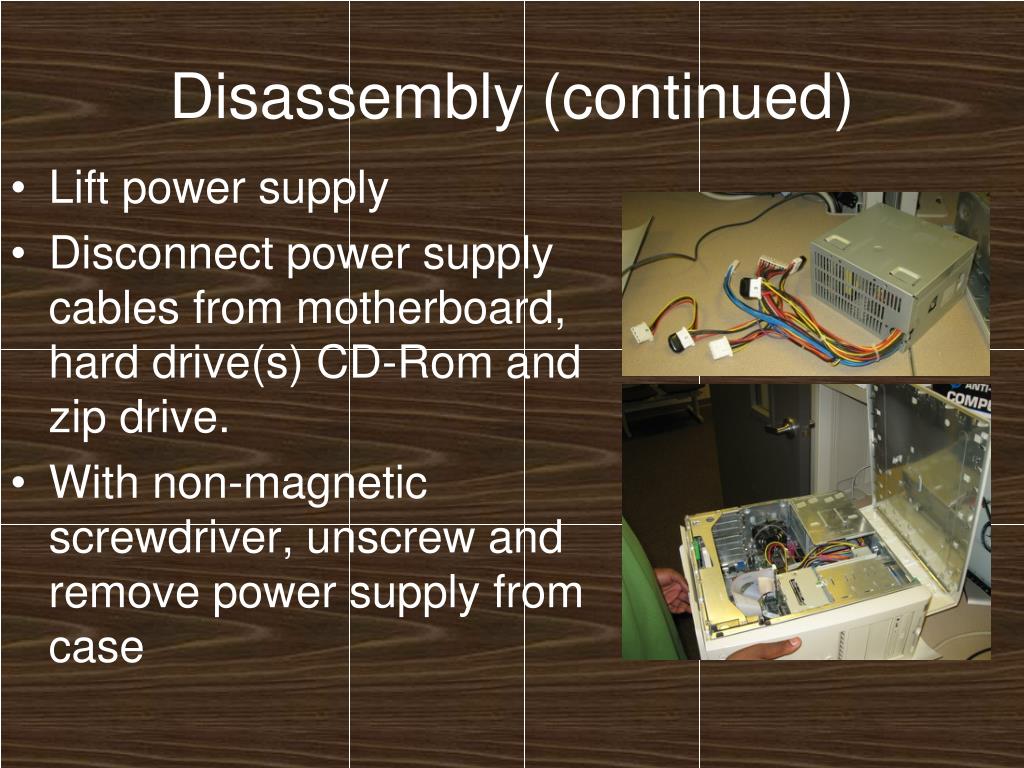

  4. Disassembly (continued) • Lift power supply • Disconnect power supply cables from motherboard, hard drive(s) CD-Rom and zip drive. • With non-magnetic screwdriver, unscrew and remove power supply from case

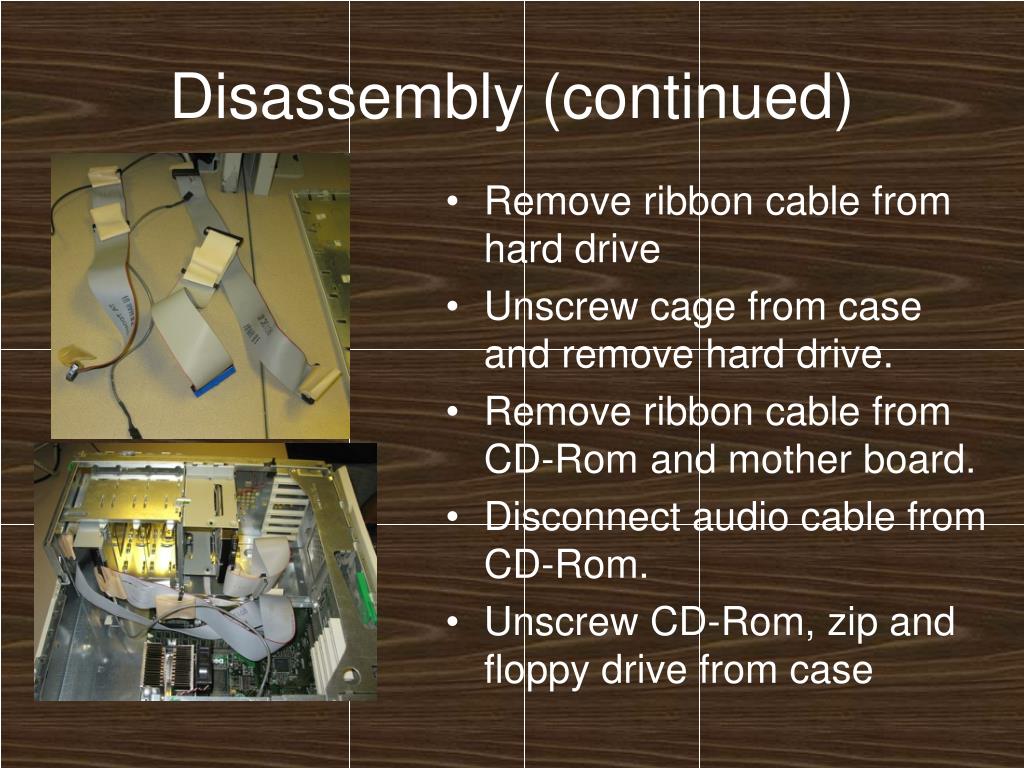

  5. Disassembly (continued) • Remove ribbon cable from hard drive • Unscrew cage from case and remove hard drive. • Remove ribbon cable from CD-Rom and mother board. • Disconnect audio cable from CD-Rom. • Unscrew CD-Rom, zip and floppy drive from case

  6. Disassembly (continued) • Remove riser board from case • Remove memory • Disconnect power button from motherboard • Remove motherboard

  7. Reassembly • CAREFULLY place motherboard back into computer case and screw into place • Connect memory • Screw zip drive, floppy drive, and CD-Rom back in to computer case

  8. Reassembly (continued) • Insert riser board into case • Connect audio cable from CD-Rom to motherboard. • Attach ribbon cables from motherboard to CD-Rom, zip drive, and floppy drive. • Screw the hard drive case back into the case

  9. Reassembly (continued) • Connect ribbon cables from hard drive to motherboard • Screw power supply back into case. • Connect power supply to all the necessary components in computer case. (motherboard, CD-Rom, zip drive, hard drive.)

  10. Reassembly (continued) • Attach front panel • Slide side panel into place • Remove anti-static pad • Sit computer upright and lock case
