Surface Currents

Surface Currents. Currents. Current: A horizontal movement of water in a well-defined pattern. In the ocean, there are surface currents and deep currents. Surface Currents. What do you think causes surface currents? Answer: WIND.

kaiser
Download Presentation

Surface Currents

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Surface Currents

  2. Currents • Current: A horizontal movement of water in a well-defined pattern. • In the ocean, there are surface currents and deep currents.

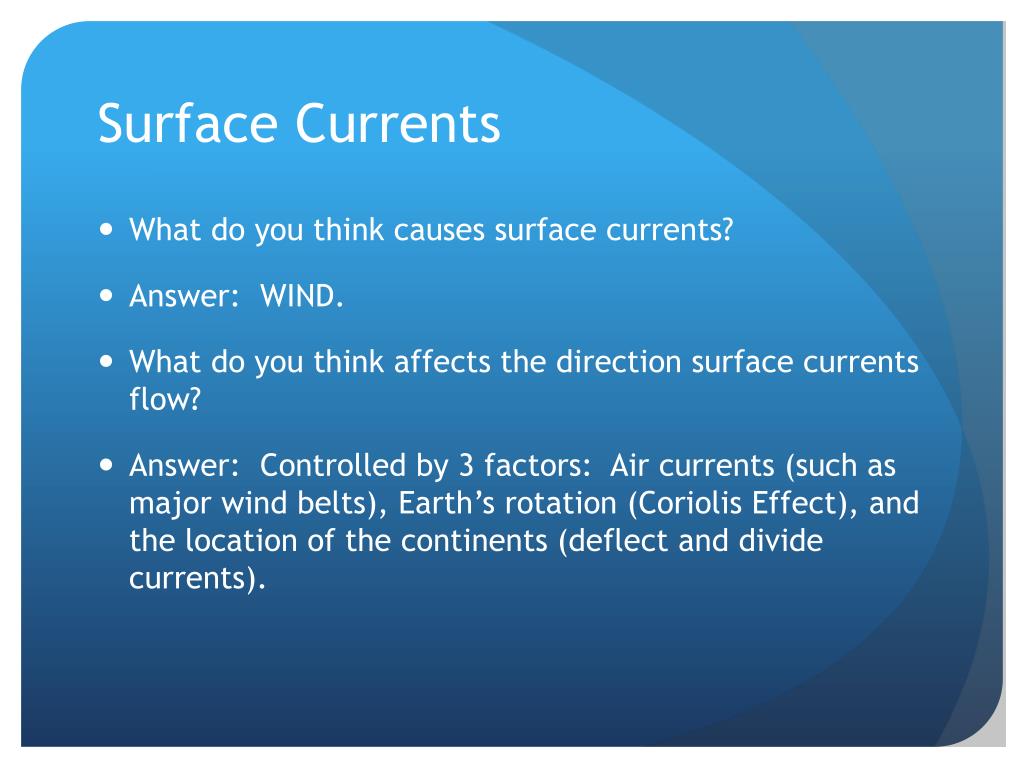

  3. Surface Currents • What do you think causes surface currents? • Answer: WIND. • What do you think affects the direction surface currents flow? • Answer: Controlled by 3 factors: Air currents (such as major wind belts), Earth’s rotation (Coriolis Effect), and the location of the continents (deflect and divide currents).

  4. Atmospheric Circulation • Drives Surface Currents • Drives El Nino, La Nina (we will look at this next class). • Drives Monsoons and Hurricanes (we will also look a these in more detail).

  5. Layers of the Atmosphere

  6. Label the wind belts, pressure zones, and calm winds on your sheet.

  7. Global Winds over the Pacific

  8. Atmospheric Circulation Cells • Hadley Cells: 0-30 degrees (tropics). Brings warm, moist air from equator towards the poles. • Ferrel Cells: 30-60 degrees (mid-latitude). Cold air moves from the poles toward the equator. • Polar Cells: 60-90 degrees. Cold air ascends and moves toward the poles.

  9. Global Winds and Surface Currents affected by Coriolis Effect. • Coriolis Effect: The bending of winds due to Earth’s rotation. • Winds and Currents bend to the right (Clockwise) in Northern Hemisphere. • Winds and Currents bend to the Left (Counterclockwise) in Southern Hemisphere.

  10. Doldrums and Horse Latitudes Doldrums: Zone of calm equatorial winds where two Hadley cells meet. The word doldrums means gloomy, perhaps because sailors felt that way when they were stuck here. Horse Latitudes: Zone of high pressure where Hadley Cells and Ferrel Cells meet. Called this because sailors would get stuck and have to either throw their horses overboard or eat them.

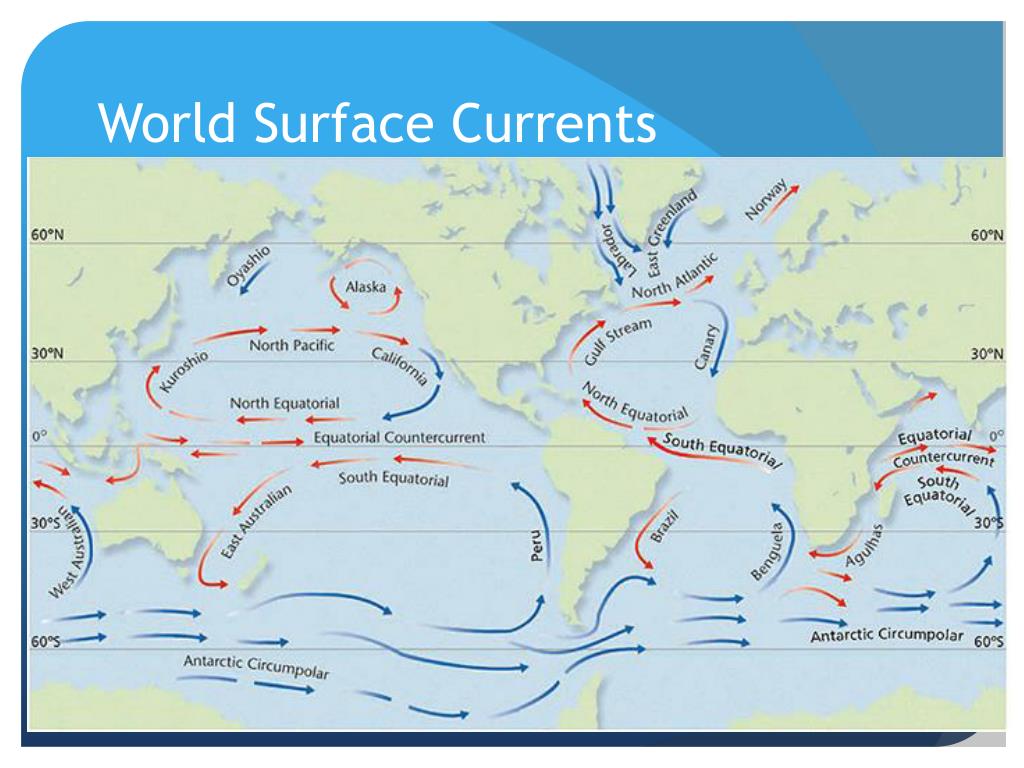

  11. World Surface Currents

  12. Gyres: Circular flow around an ocean basin. Made of multiple, connected currents.

  13. Heat transfer by surface currents • What do you notice about how surface currents transfer heat? • Answer: Warm water is brought from equator towards poles. Cold water from poles to the equator. • What causes England to be fairly warm even though it is the same latitude as Canada? • Answer: Warm water from Gulf Stream.

  14. Western and Eastern Boundary Currents Western Boundary Eastern Boundary Shallow and slower Eastern boundary of ocean basins or western boundary of continents Move cold water from the poles towards the equator Includes the Canary current off the coast of Europe and the Humboldt Current off the coast of Peru. • Fastest (2 m/s) and deepest (up to 1500 feet) • Western boundary of ocean basins or eastern boundary of continents • Move warm water from equator towards the poles • Includes the Gulf Stream and the East Australian Current (EAC).

  15. World Surface Currents

  16. Eddies:Turbulent rings of circulating water on the edge of a current. • Formed by abrupt changes in water temperature, speed, and direction. • Only form along western boundary currents. Gulf Stream Eddies
