  1. Background and Customizing SMOKE CaseBeta Testing February 11, 2010

  2. ASSIGNS file • generic ASSIGNS file • works for all Jobs within a Case • works for all Cases • all specific parameters and inputs are specified in Job wrapper script • controls naming convention for files/directories • many of the names derived from SECTOR, CASE and GRID • intermed • reports • logs • model-ready outputs • recommend not modifying this file • if you want to change the naming conventions or the directory hierarchy, be VERY careful modifying the ASSIGNS file. The rerunning of Jobs and the similarities b/w Cases can make naming, overwriting files, etc. quite tricky

  3. script directories under the scripts folder (/data4/smoke_emf/subsys26/smoke26/scripts): • cases: case specific Job directories • Uses Case abbreviation • Job wrapper scripts • Job logs • EMF command client logs • emf: EMF enabled scripts • semi-generic (area annual, point annual, point daily, etc) • controls running of SMOKE executables (smkinven, temporal, etc) • run: helper scripts • smk_run • helper scripts (set_days, qa_run, emf_cleanup) • annual_report: creates annual report by state/pollutant • log_analyzer: creates summaries of SMOKE logs

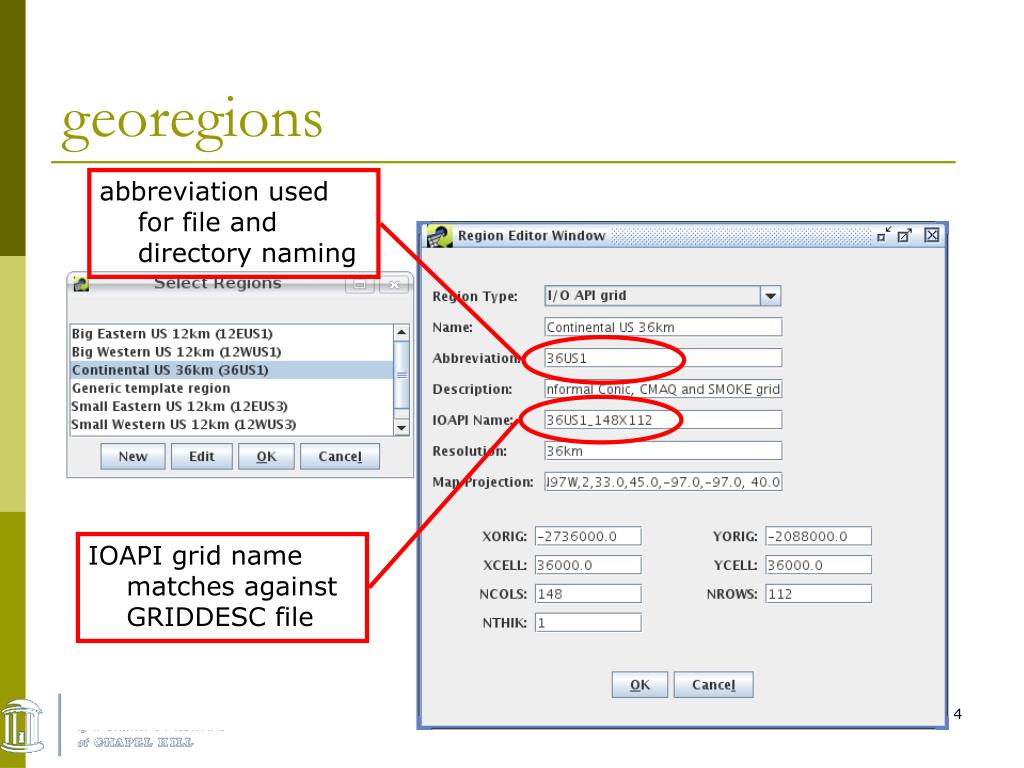

  4. georegions abbreviation used for file and directory naming Sector: Emissions modeling sector(e.g., ptipm, ptnonipm) processing processing IOAPI grid name matches against GRIDDESC file

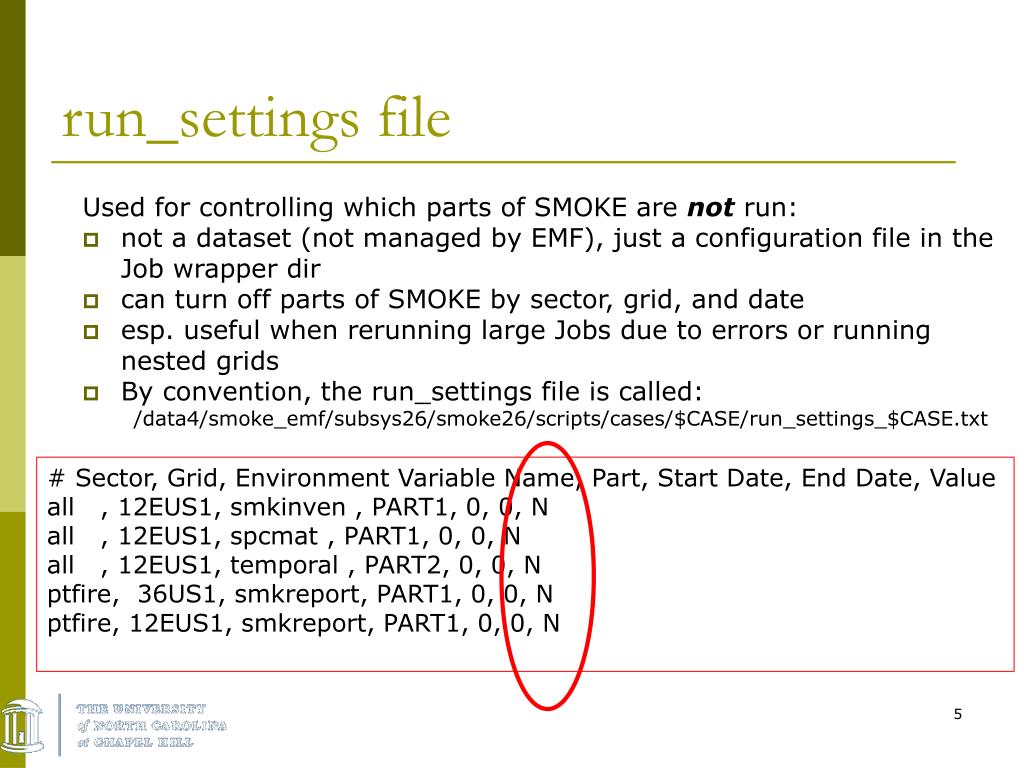

  5. run_settings file • Used for controlling which parts of SMOKE are not run: • not a dataset (not managed by EMF), just a configuration file in the Job wrapper dir • can turn off parts of SMOKE by sector, grid, and date • esp. useful when rerunning large Jobs due to errors or running nested grids • By convention, the run_settings file is called: • /data4/smoke_emf/subsys26/smoke26/scripts/cases/$CASE/run_settings_$CASE.txt # Sector, Grid, Environment Variable Name, Part, Start Date, End Date, Value all , 12EUS1, smkinven , PART1, 0, 0, N all , 12EUS1, spcmat , PART1, 0, 0, N all , 12EUS1, temporal , PART2, 0, 0, N ptfire, 36US1, smkreport, PART1, 0, 0, N ptfire, 12EUS1, smkreport, PART1, 0, 0, N

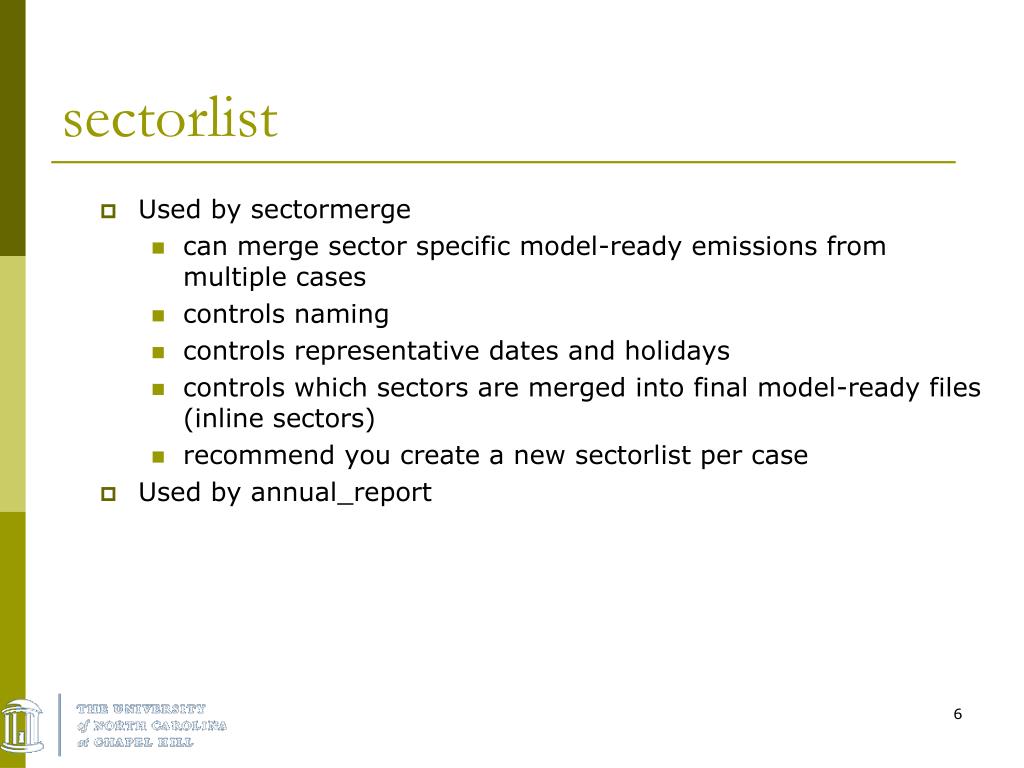

  6. sectorlist • Used by sectormerge • can merge sector specific model-ready emissions from multiple cases • controls naming • controls representative dates and holidays • controls which sectors are merged into final model-ready files (inline sectors) • recommend you create a new sectorlist per case • Used by annual_report

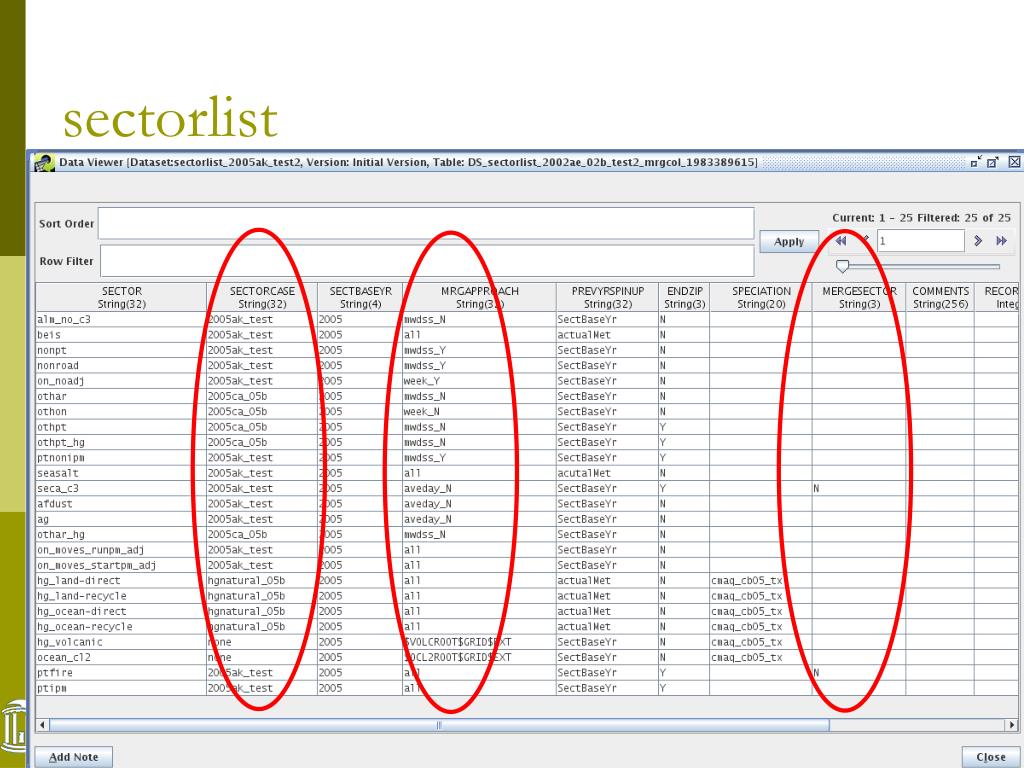

  7. sectorlist

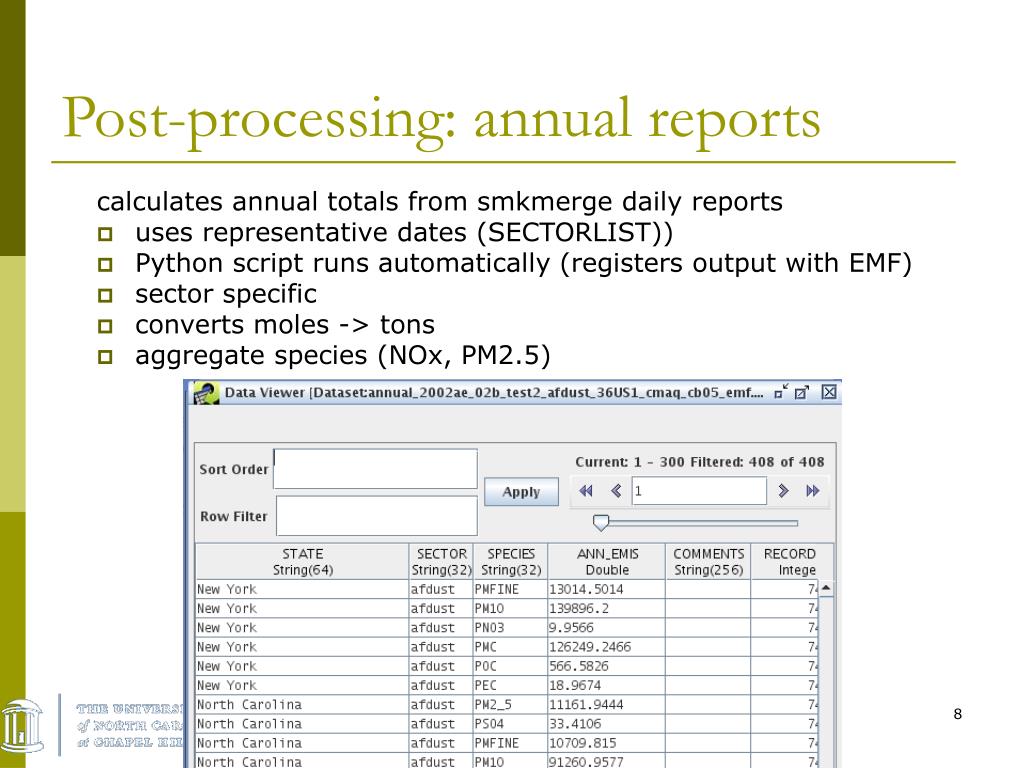

  8. Post-processing: annual reports • calculates annual totals from smkmerge daily reports • uses representative dates (SECTORLIST)) • Python script runs automatically (registers output with EMF) • sector specific • converts moles -> tons • aggregate species (NOx, PM2.5)

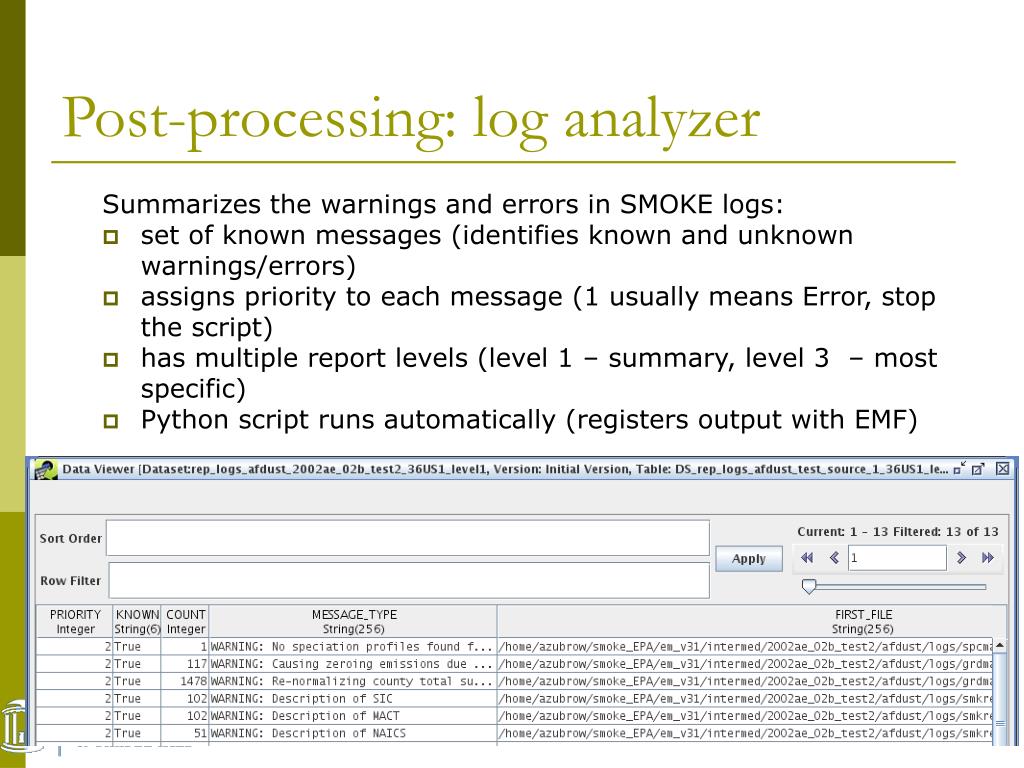

  9. Post-processing: log analyzer • Summarizes the warnings and errors in SMOKE logs: • set of known messages (identifies known and unknown warnings/errors) • assigns priority to each message (1 usually means Error, stop the script) • has multiple report levels (level 1 – summary, level 3 – most specific) • Python script runs automatically (registers output with EMF)
