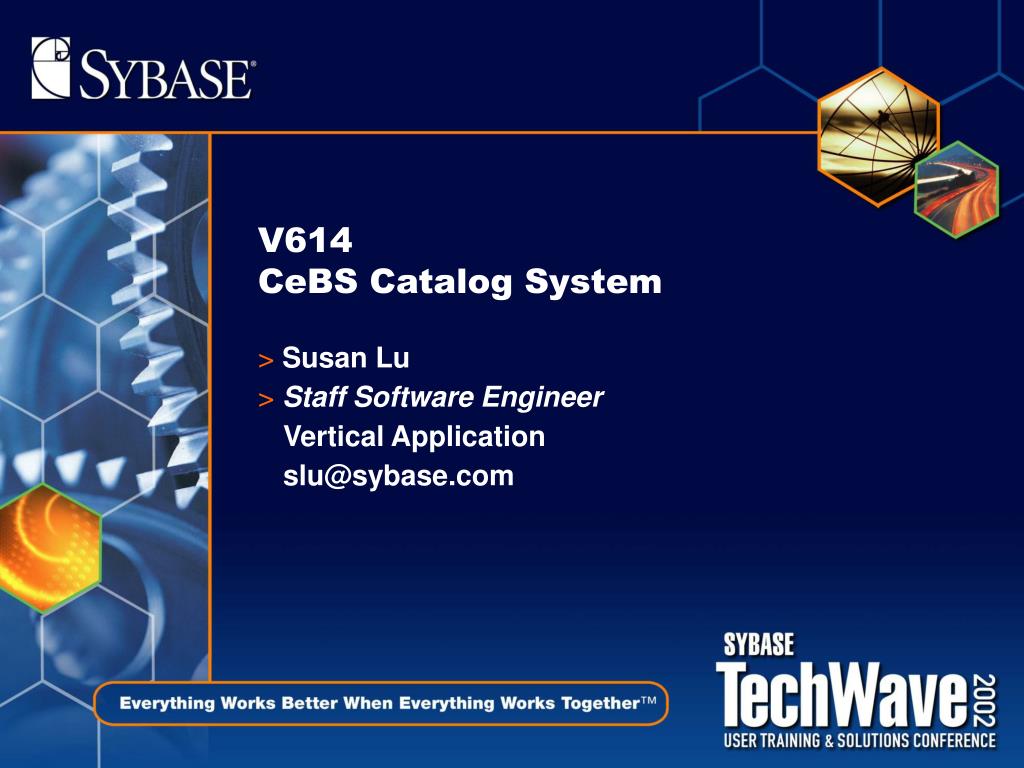

  1. V614CeBS Catalog System • Susan Lu • Staff Software Engineer • Vertical Application • slu@sybase.com

  2. Challenges in Managing and Presenting Products & Services • Typical environment • Products and services are offered through multi-vendor and multi-network environment. • Multiple copies of catalogs: • Order system, provisioning system, billing system, etc. • Wireless services, DSL services, etc. • Residential services, small business services, etc.

  3. Challenges in Managing and Presenting Products & Services • Typical problems • Out of sync catalogs • Distinct systems handling different types of catalogs • Manual process to keep multiple copies of catalog in sync • Hard to provide a consistent presentation through out different catalogs

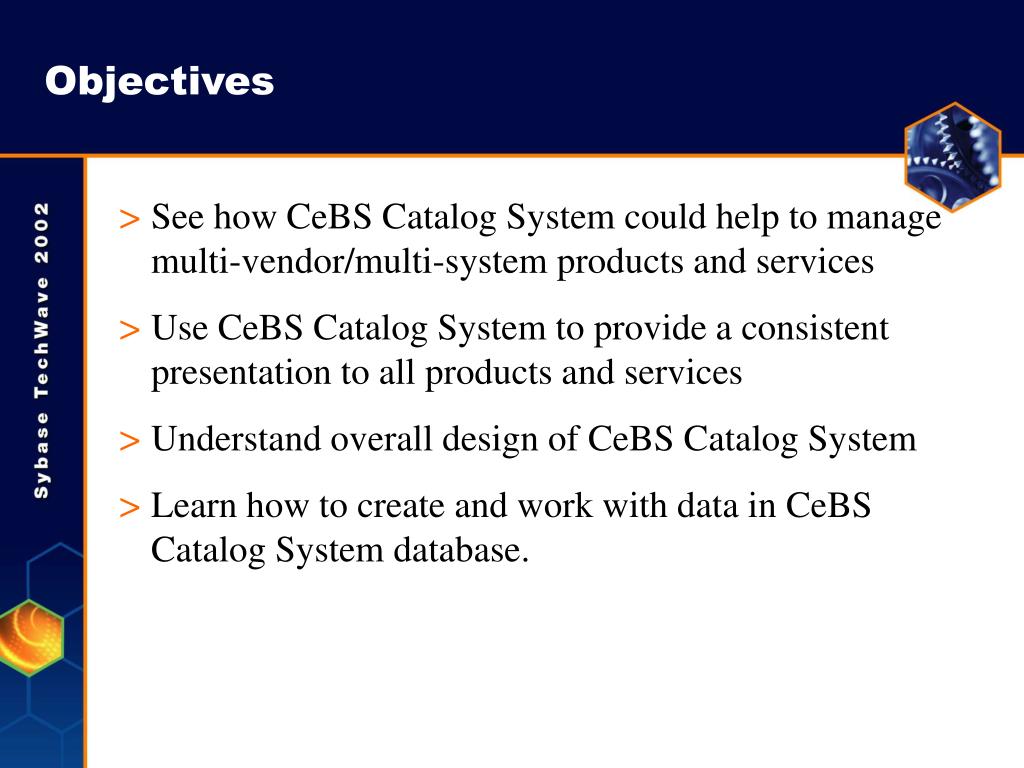

  4. Objectives • See how CeBS Catalog System could help to manage multi-vendor/multi-system products and services • Use CeBS Catalog System to provide a consistent presentation to all products and services • Understand overall design of CeBS Catalog System • Learn how to create and work with data in CeBS Catalog System database.

  5. Agenda • Catalog System Overview • Catalog Publisher • Basic Structures • Product Pricing Structure • Product Parameter Info • Catalog System UI • Multi-lingual Support • ETL

  6. Catalog System Overview • To allow telecommunication companies to easily publish their catalogs and provide their customers an environment to browse, search and therefore order products and services. • Front-end presentation to existing back office products and services • Provide an out-of-the-box catalog publisher implementation without regeneration of the templates. • Flexibility to incorporate customized logic

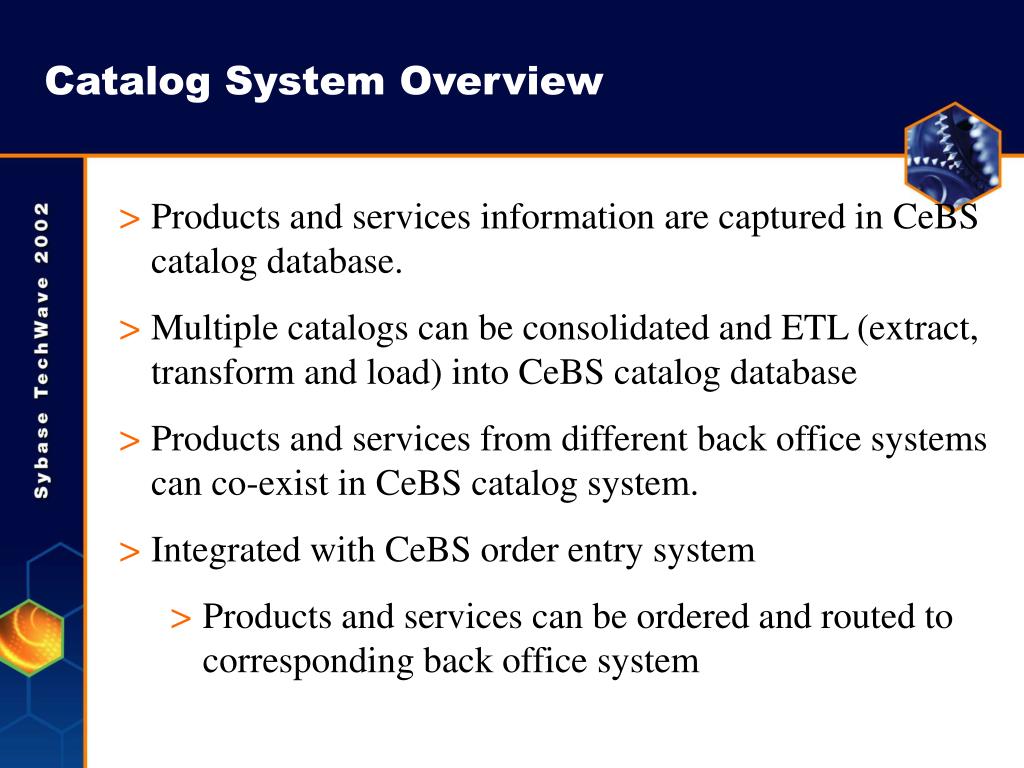

  7. Catalog System Overview • Products and services information are captured in CeBS catalog database. • Multiple catalogs can be consolidated and ETL (extract, transform and load) into CeBS catalog database • Products and services from different back office systems can co-exist in CeBS catalog system. • Integrated with CeBS order entry system • Products and services can be ordered and routed to corresponding back office system

  8. Catalog System Overview • Flexible products structure • Regular products & services • Bundled products & services • Promotion products & services • Up-sale and cross-sale

  9. Catalog System Overview • Based on CeBS framework including • Business Logic • Catalog System EJB - to retrieve product information from CeBS Catalog Database • UI Framework • Catalog System UI templates - to present information retrieved from Catalog System EJB • Slave mode only • Depend on back office to supply and update the actual catalog data

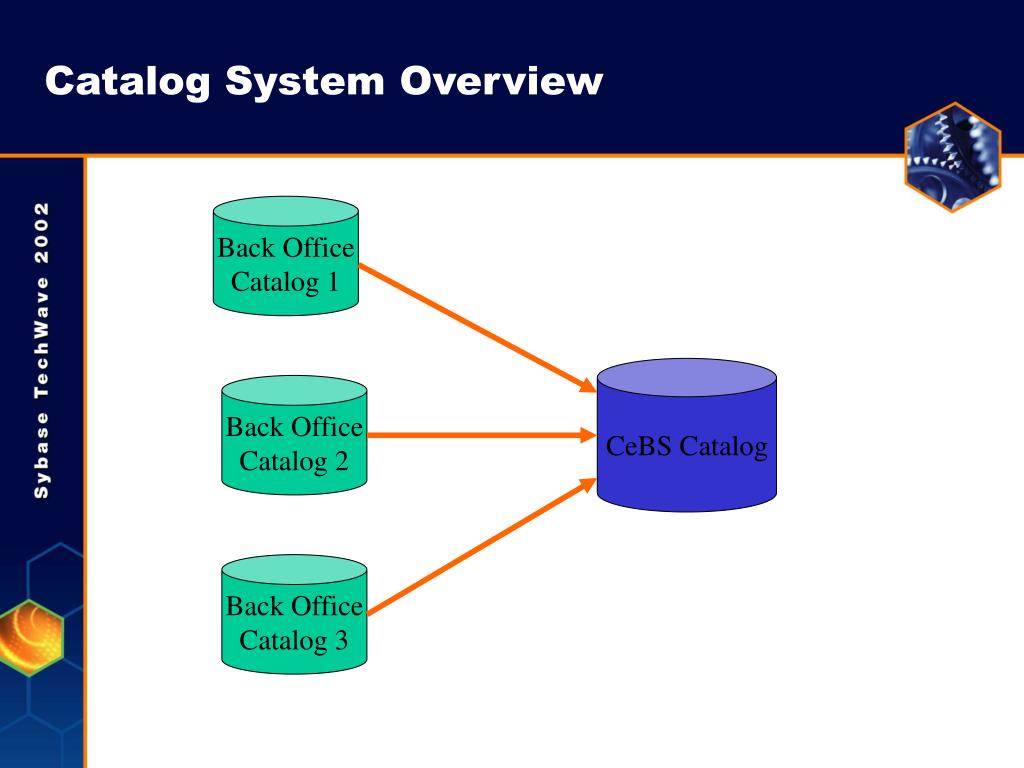

  10. Catalog System Overview Back Office Catalog 1 CeBS Catalog Back Office Catalog 2 Back Office Catalog 3

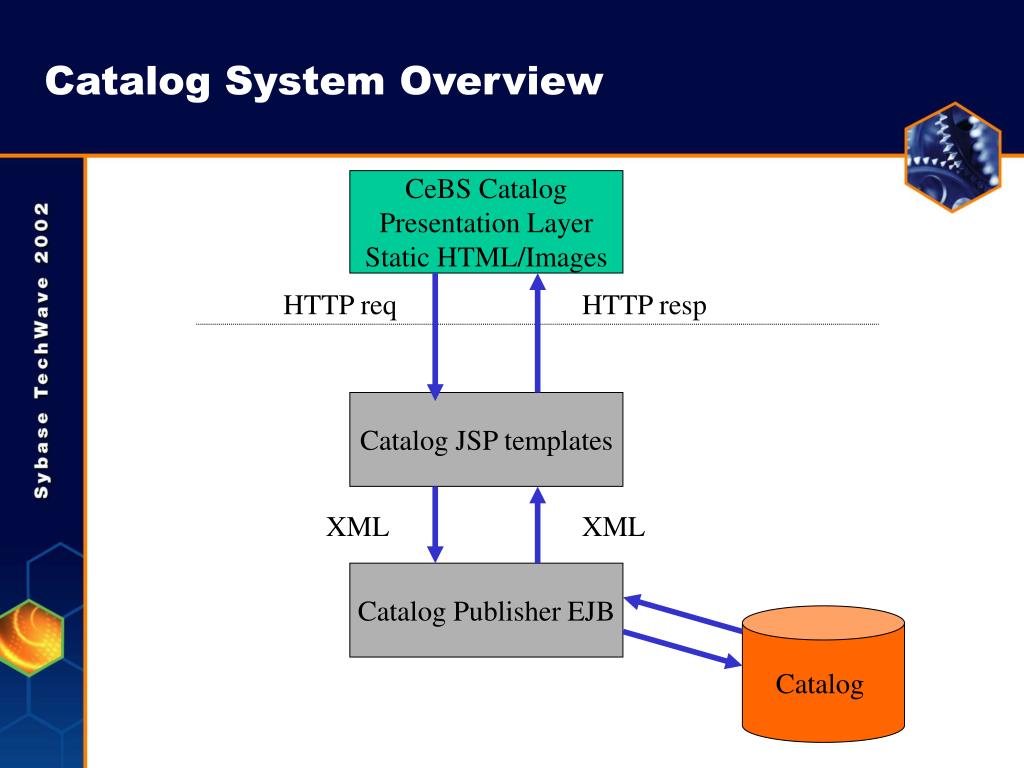

  11. Catalog System Overview CeBS Catalog Presentation Layer Static HTML/Images HTTP req HTTP resp Catalog JSP templates XML XML Catalog Publisher EJB Catalog

  12. Catalog Publisher • Provides catalog-publishing environment • Governs the overall look and feel of catalog • Implemented through • CatalogPublisher session EJB • Using CeBS BL framework • Stateless • Obtain data from Catalog Database • Read-only operations

  13. Catalog Publisher • A set of databeans • Obtain data from CatalogPublisher EJB • Retains data for presentation • A set of JSP templates • Accessing data from catalog databeans using tag library • Catalog Home page / Category page • Product page / Promotion page • etc.

  14. Catalog Publisher • Provide out-of-box implementation • Everything is ready to go after ETL • Dynamically publish the catalog content • Data changed in Catalog Database reflected directly without shutting down server

  15. Basic Structure - Category • Category • Logical grouping of products • Category JSP displays: name, description, child categories or products, and thumbnail • Description: short, long, html style • Features: for parametric search only (not displayed) • e.g. DSL, Frame Relay, Private Line • e.g. Residential Products, Small Business Products

  16. Basic Structure - Product • Product • Items can be purchased/add-to-cart • Product State (Marketable, Internal) • Product JSP displays: name, description, attributes, up-sale, cross-sale, and thumbnail • Description: short, long, html format • Attributes: name-value pairs • e.g. Basic DSL Internet Service, Domestic Private Line Service, Frame Relay Bundle Package

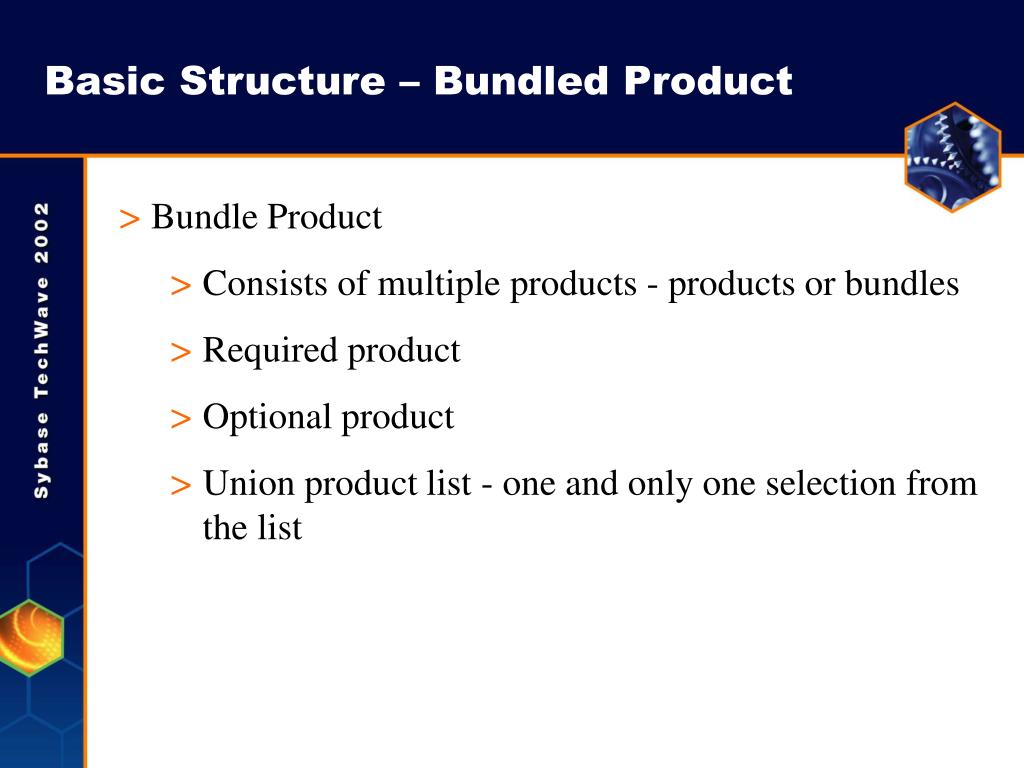

  17. Basic Structure – Bundled Product • Bundle Product • Consists of multiple products - products or bundles • Required product • Optional product • Union product list - one and only one selection from the list

  18. Basic Structure – Bundled Product • e.g. Frame Relay Package • Frame Relay Service (required) • Backup Frame Relay Service (optional) • Frame Relay DLCI (required) (might be internal product state) • Priority DLCI (union) • Standard DLCI (union)

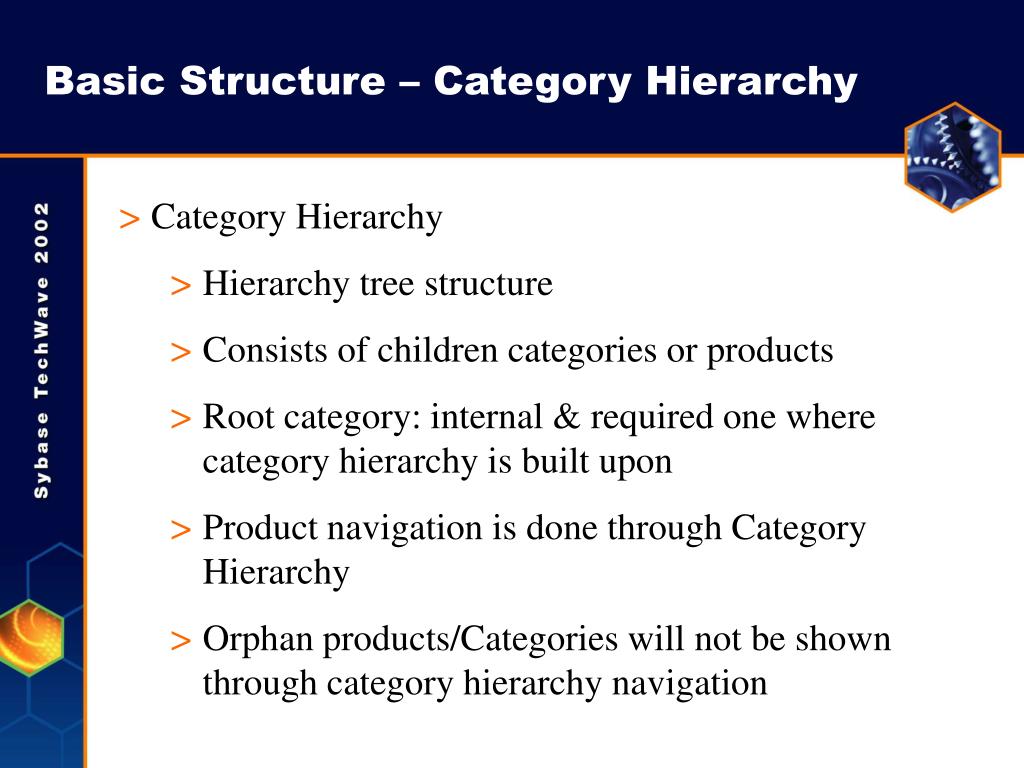

  19. Basic Structure – Category Hierarchy • Category Hierarchy • Hierarchy tree structure • Consists of children categories or products • Root category: internal & required one where category hierarchy is built upon • Product navigation is done through Category Hierarchy • Orphan products/Categories will not be shown through category hierarchy navigation

  20. Long Distance Service Wireless Service Local Service Family Share Plan 250 Family Share Plan 1000 Nokia Phone 100 [R] Nokia Battery [O] Nokia Battery [O] Nokia Phone 200 [R] Residential Plans Business Plans Basic Structure – Category Hierarchy

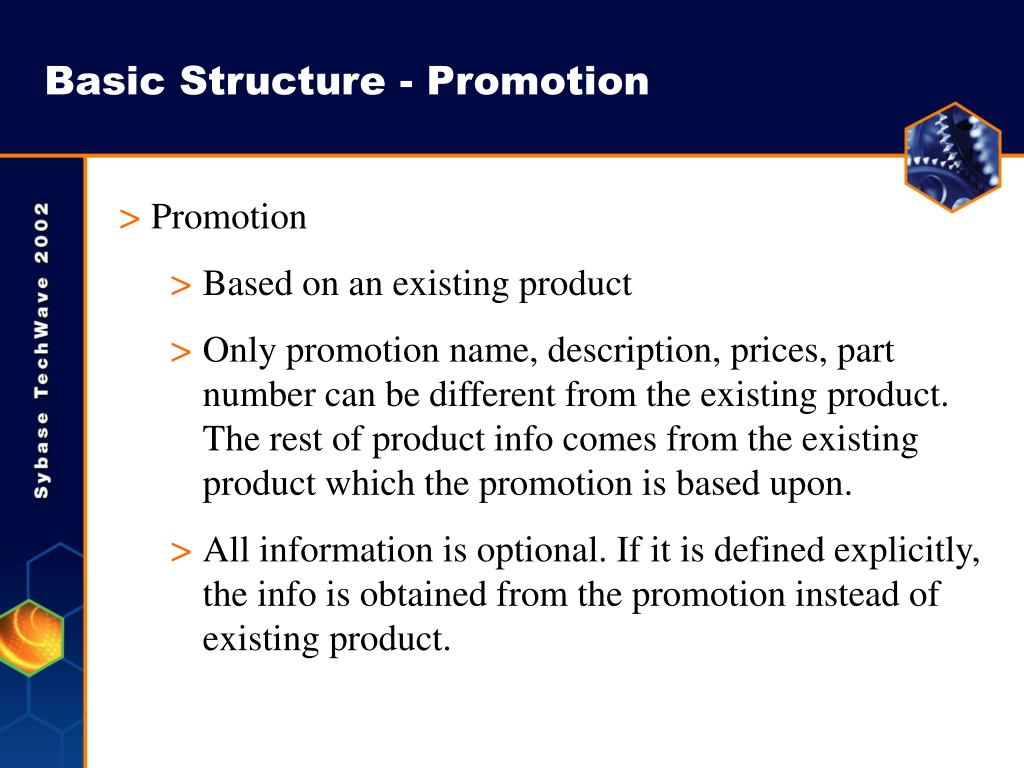

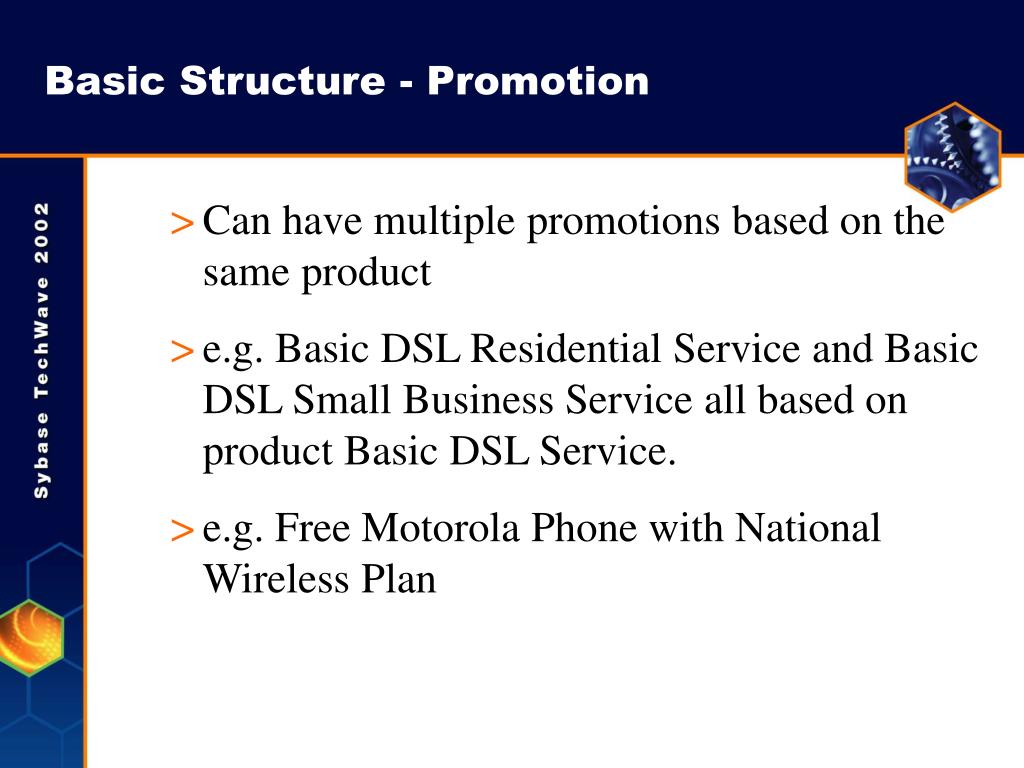

  21. Basic Structure - Promotion • Promotion • Based on an existing product • Only promotion name, description, prices, part number can be different from the existing product. The rest of product info comes from the existing product which the promotion is based upon. • All information is optional. If it is defined explicitly, the info is obtained from the promotion instead of existing product.

  22. Basic Structure - Promotion • Can have multiple promotions based on the same product • e.g. Basic DSL Residential Service and Basic DSL Small Business Service all based on product Basic DSL Service. • e.g. Free Motorola Phone with National Wireless Plan

  23. Basic Structure – Up Sale Product • Up Sale Products • Products which a customer would most likely be interested based the a product he/she is browsing now. • All characteristics are same as product promotion • Tight to a base product

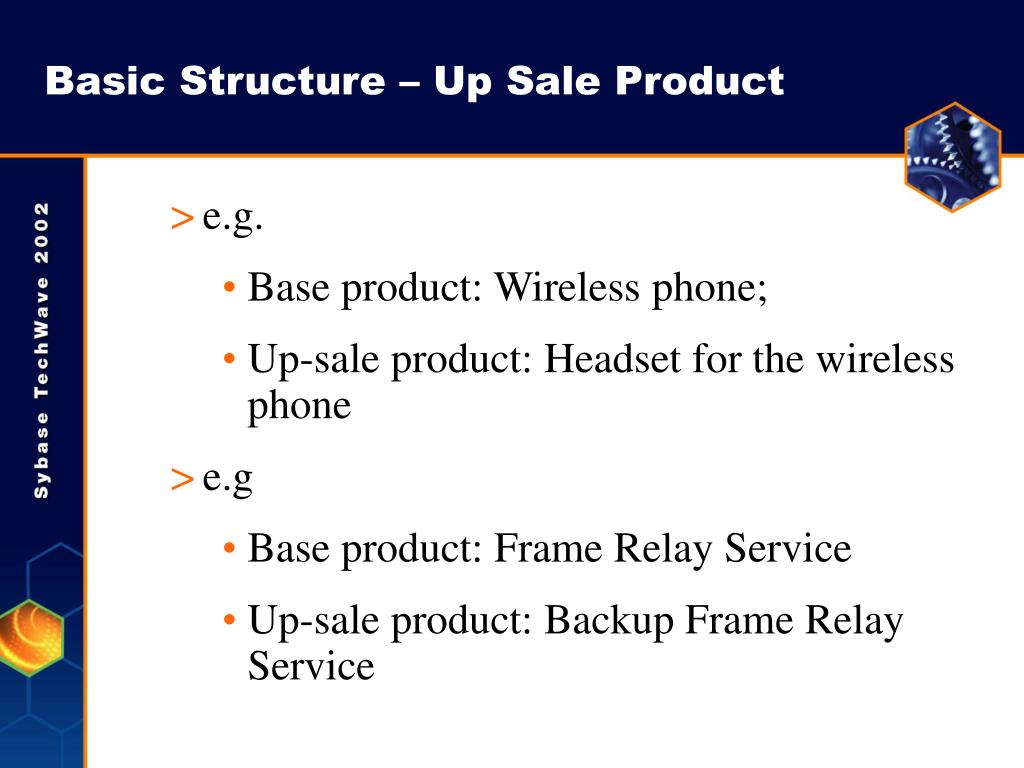

  24. Basic Structure – Up Sale Product • e.g. • Base product: Wireless phone; • Up-sale product: Headset for the wireless phone • e.g • Base product: Frame Relay Service • Up-sale product: Backup Frame Relay Service

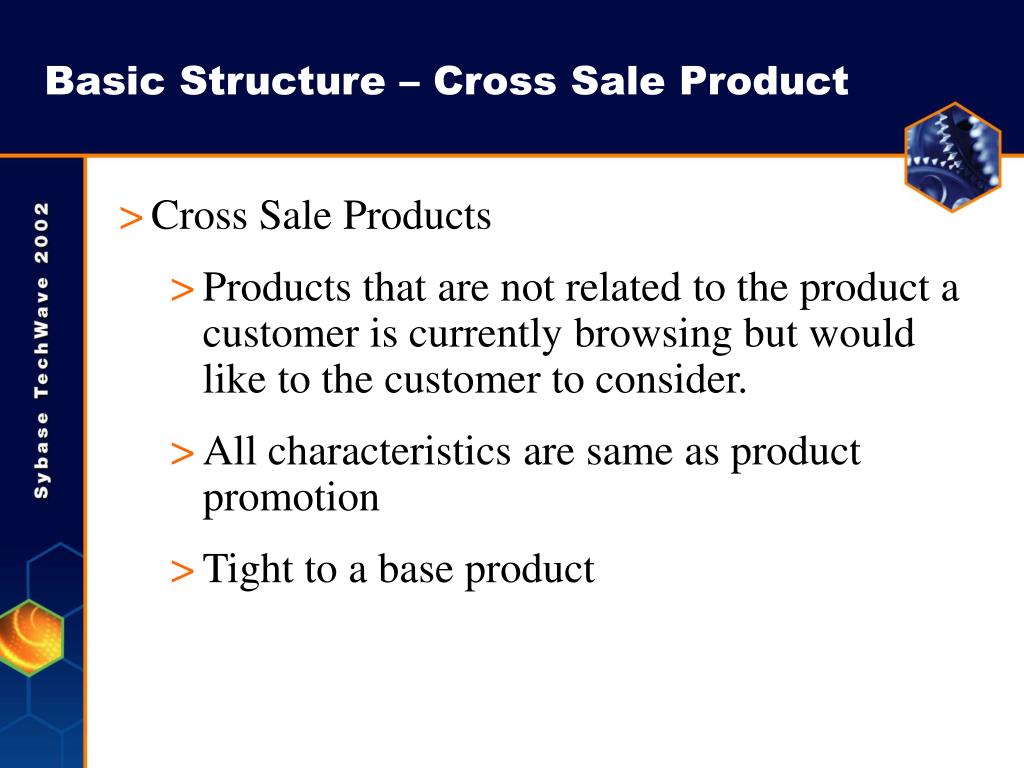

  25. Basic Structure – Cross Sale Product • Cross Sale Products • Products that are not related to the product a customer is currently browsing but would like to the customer to consider. • All characteristics are same as product promotion • Tight to a base product

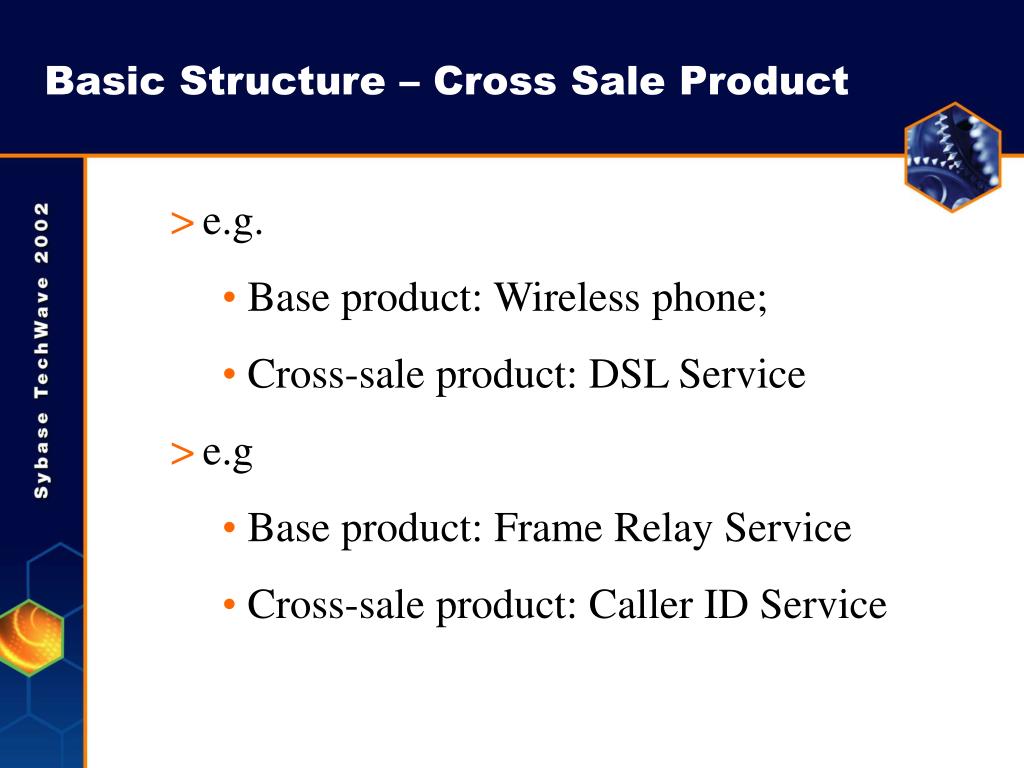

  26. Basic Structure – Cross Sale Product • e.g. • Base product: Wireless phone; • Cross-sale product: DSL Service • e.g • Base product: Frame Relay Service • Cross-sale product: Caller ID Service

  27. Basic Structure - Filter • Category & Product Filtering • Used to selectively filter out a set of categories/products if filter is defined • Based on User’s Organization Type • Default: MNC, SME, Reseller, Residential, Telco-self • Special customized organization types: GWD • For each category/product, a list of organization types allowed to view can be defined. • Non-logged in user is mapped to telco guest

  28. Basic Structure - Filter • e.g. Residential users only see Wireless and DSL categories. • e.g. Multi-national corporation users see DSL, Frame Relay, Private Lines and Wireless categories. • e.g. All users belong to Greenville Water District organization see GWD Frame Relay Package created for GWD only. • Future: filter based on address, NPA/NXX (area code/1st three digits of phone number), etc.

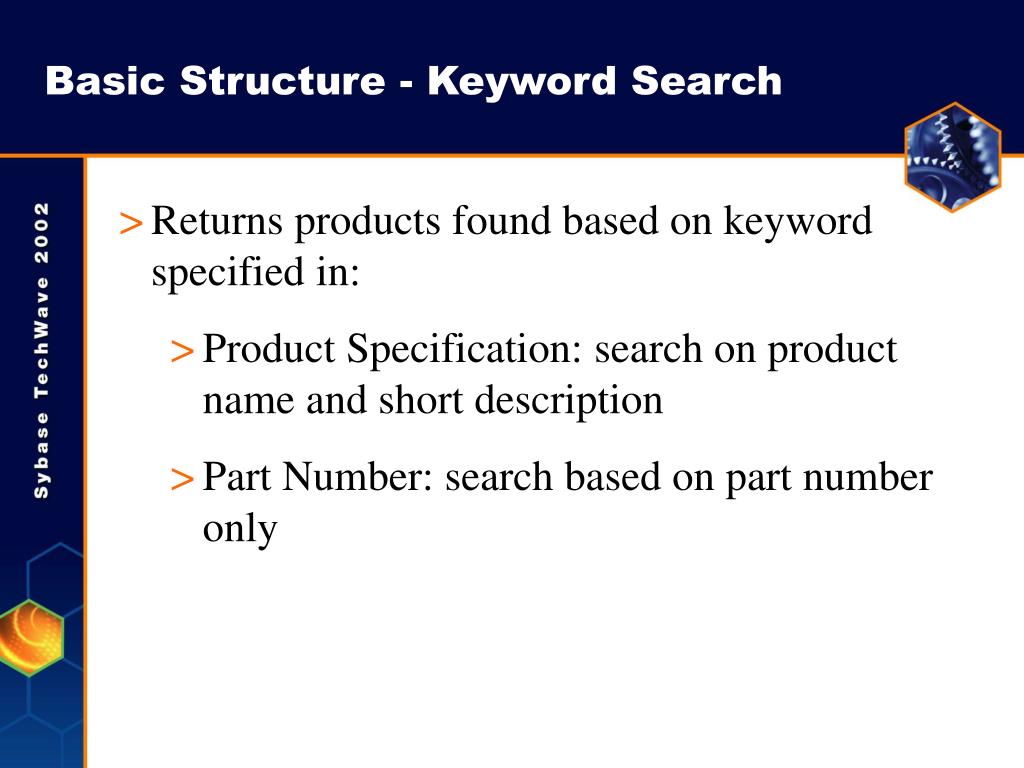

  29. Basic Structure - Keyword Search • Returns products found based on keyword specified in: • Product Specification: search on product name and short description • Part Number: search based on part number only

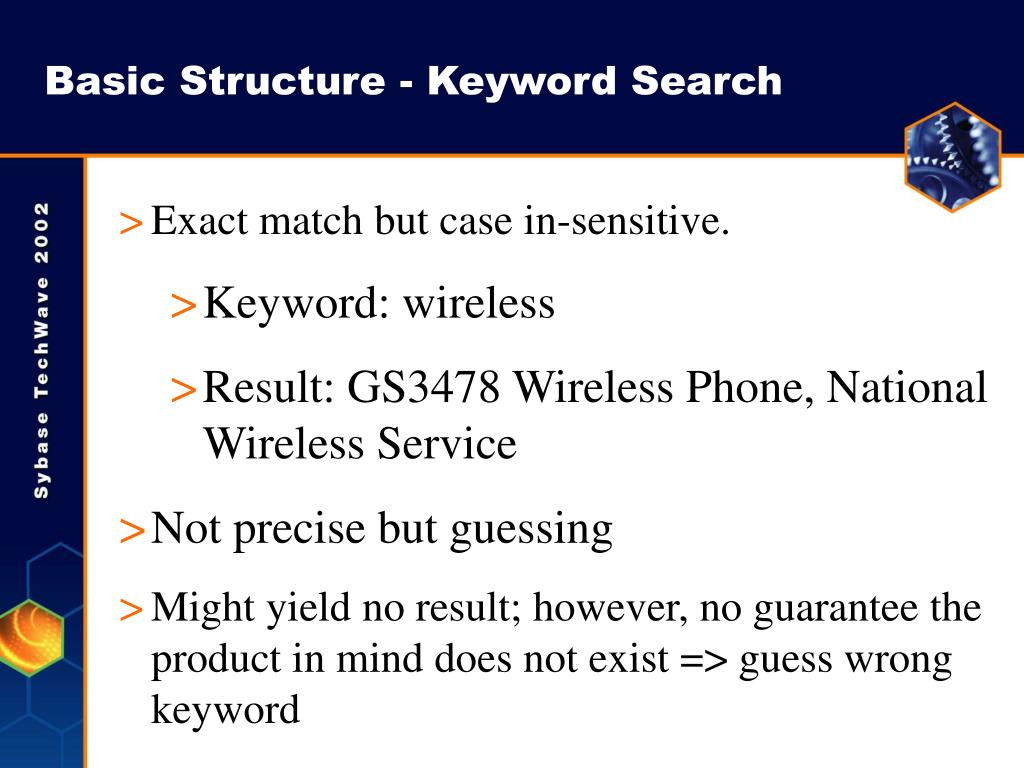

  30. Basic Structure - Keyword Search • Exact match but case in-sensitive. • Keyword: wireless • Result: GS3478 Wireless Phone, National Wireless Service • Not precise but guessing • Might yield no result; however, no guarantee the product in mind does not exist => guess wrong keyword

  31. Basic Structure - Parametric Search • Search based on individual item’s parameters and characteristics • Content is structured hierarchically. • Each category defines a set of features along with their possible values. • Child categories/products identify feature values accordingly.

  32. Basic Structure - Parametric Search • Displays classification tree-like structure along with features and values. • Users navigate based on the features and values selected. • Always yields result eliminates guesswork. • An advance search provided by many catalog vendors.

  33. Basic Structure - Parametric Search • Iterative search by refining search criteria through features and their associated values • Can easily restart the search by resetting search criteria • Useful when there are a large amount of products in a category

  34. Basic Structure - Parametric Search • Category: Wireless Service • Feature: Values • Anytime Minutes 250/400/500 • Night & Weekend Minutes 1000/2000/3000 • Call Waiting Free/Additional Charge • Long Distance Call Free/Additional Charge

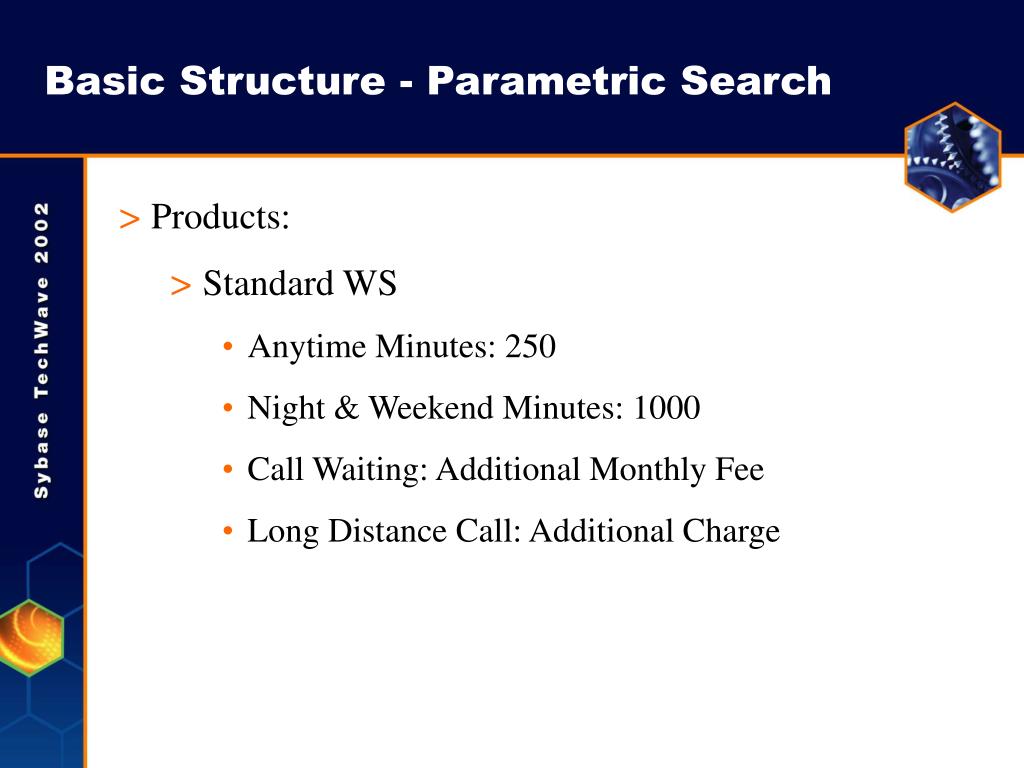

  35. Basic Structure - Parametric Search • Products: • Standard WS • Anytime Minutes: 250 • Night & Weekend Minutes: 1000 • Call Waiting: Additional Monthly Fee • Long Distance Call: Additional Charge

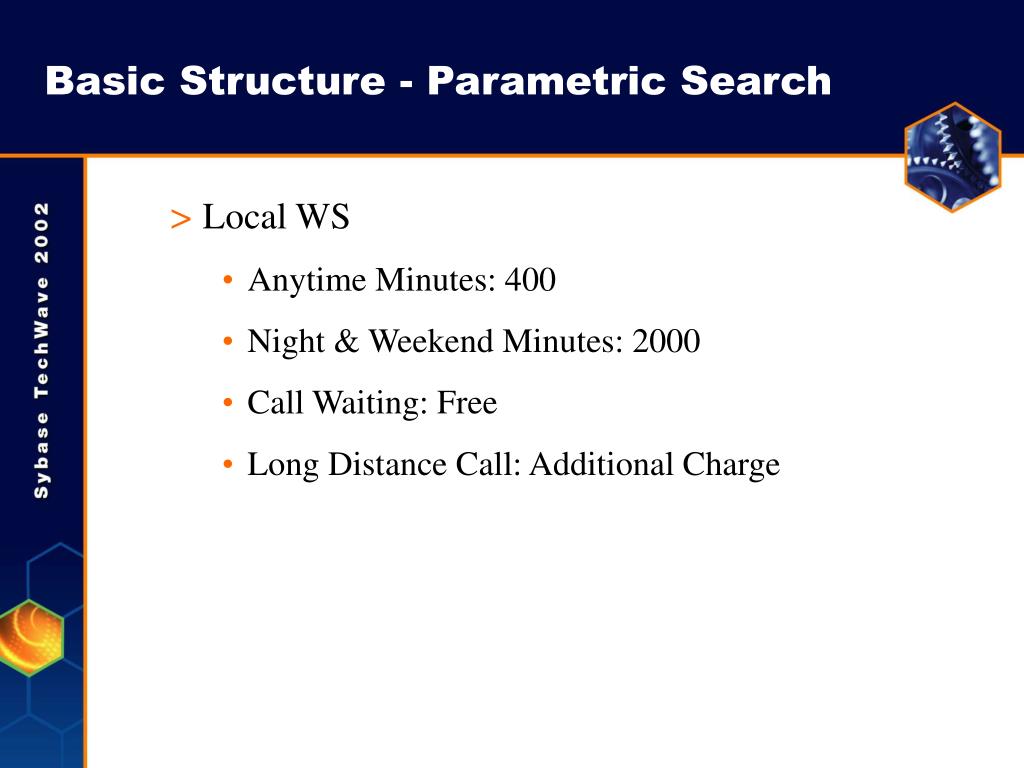

  36. Basic Structure - Parametric Search • Local WS • Anytime Minutes: 400 • Night & Weekend Minutes: 2000 • Call Waiting: Free • Long Distance Call: Additional Charge

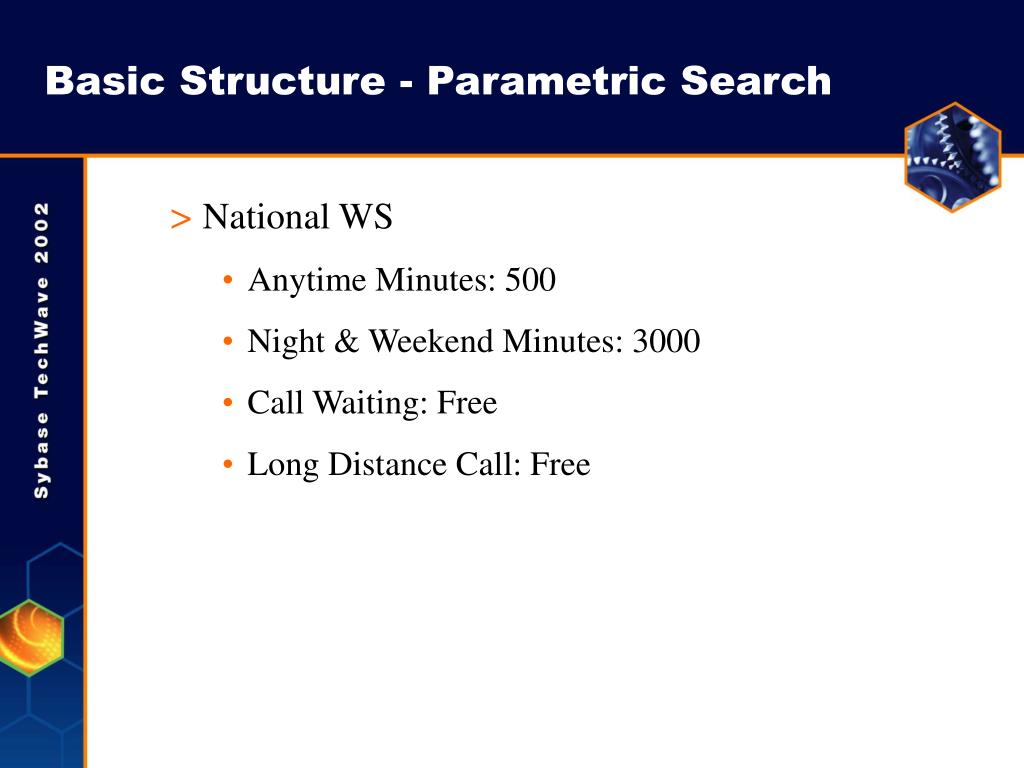

  37. Basic Structure - Parametric Search • National WS • Anytime Minutes: 500 • Night & Weekend Minutes: 3000 • Call Waiting: Free • Long Distance Call: Free

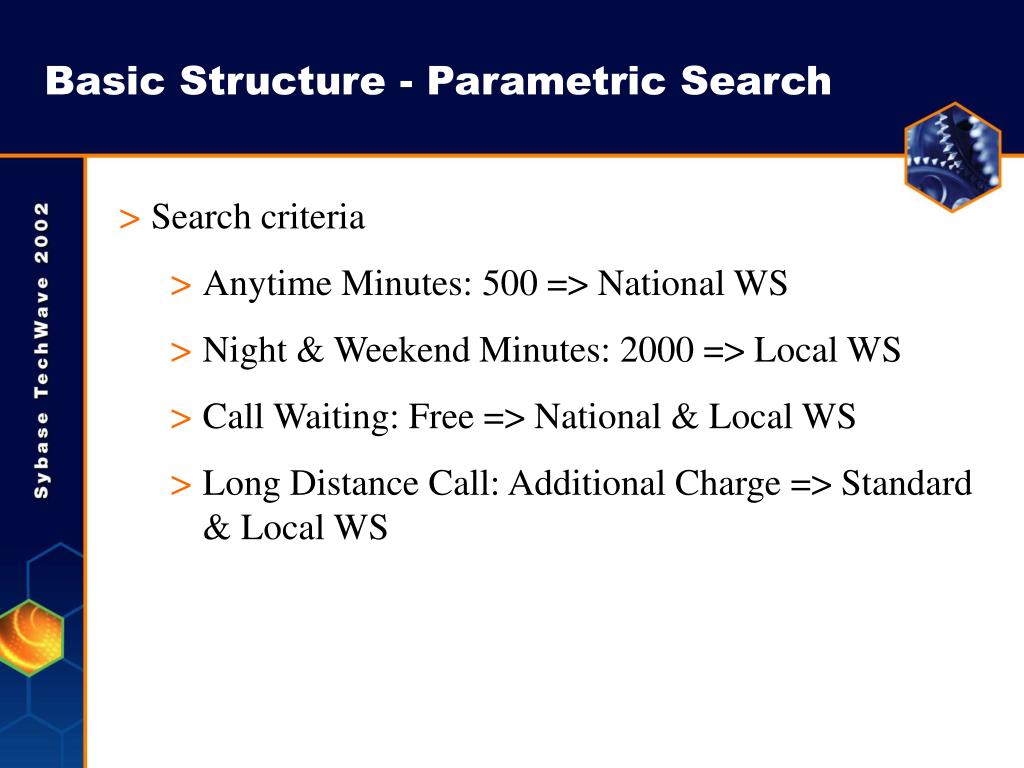

  38. Basic Structure - Parametric Search • Search criteria • Anytime Minutes: 500 => National WS • Night & Weekend Minutes: 2000 => Local WS • Call Waiting: Free => National & Local WS • Long Distance Call: Additional Charge => Standard & Local WS

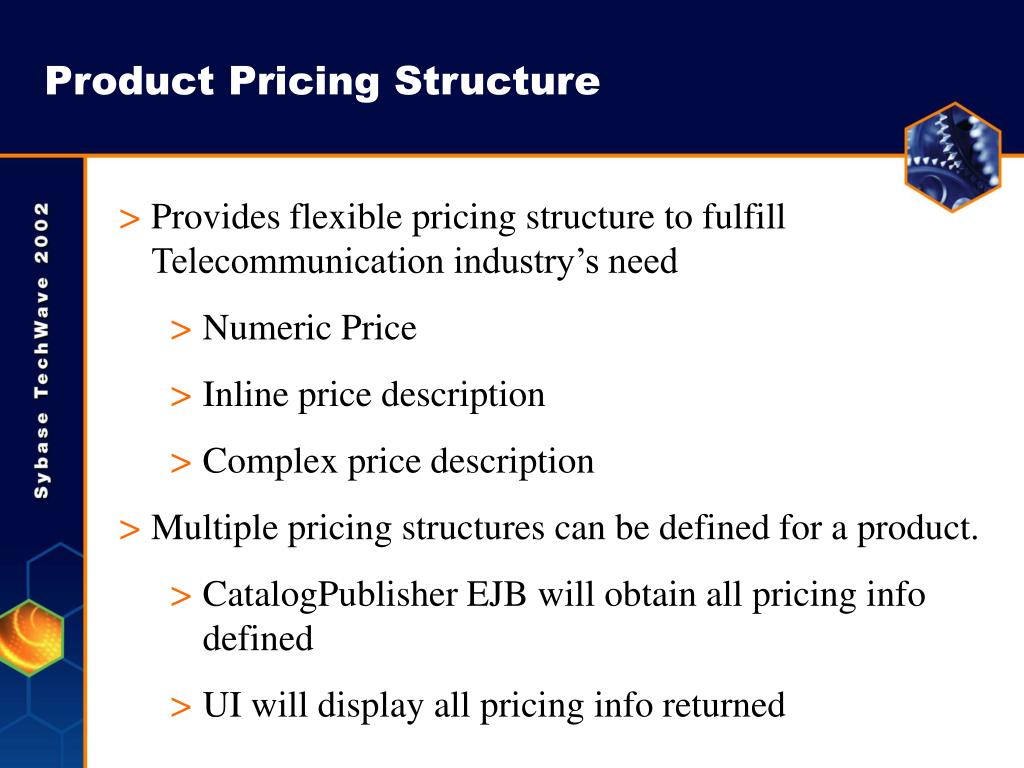

  39. Product Pricing Structure • Provides flexible pricing structure to fulfill Telecommunication industry’s need • Numeric Price • Inline price description • Complex price description • Multiple pricing structures can be defined for a product. • CatalogPublisher EJB will obtain all pricing info defined • UI will display all pricing info returned
