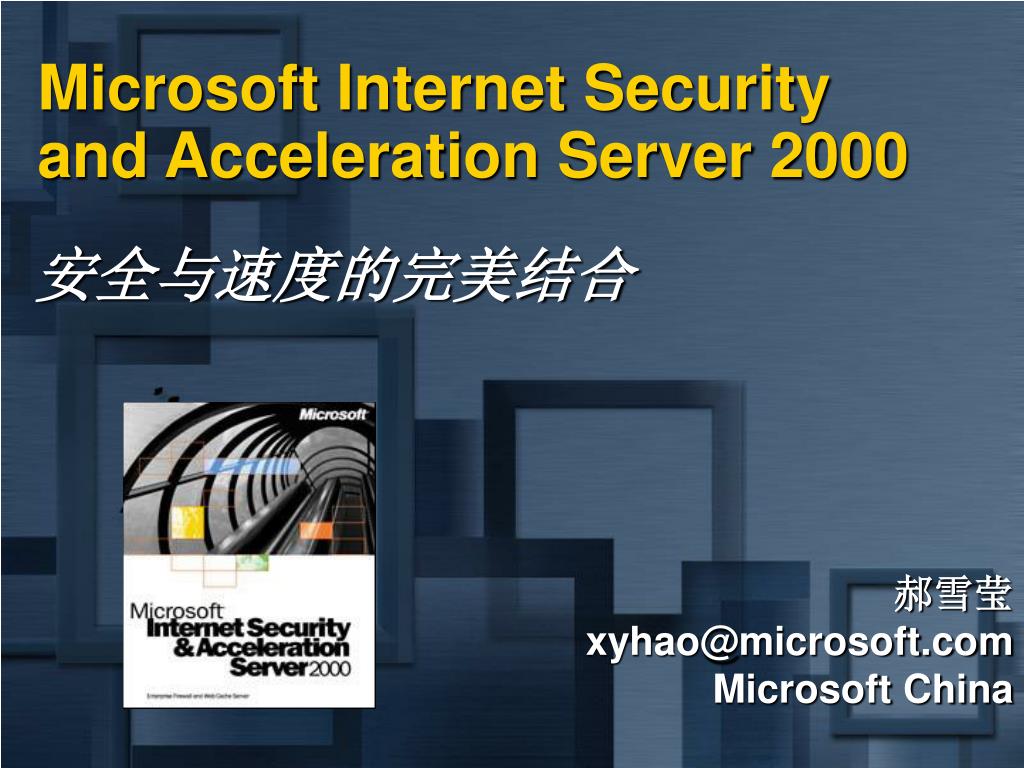

  1. Microsoft Internet Security and Acceleration Server 2000 安全与速度的完美结合 郝雪莹 xyhao@microsoft.com Microsoft China

  2. Agenda • 产品概述 • 布署场景 • 防火墙 • 缓存 • 管理 • 可扩展性

  3. 新的机遇, 新的挑战 机遇 挑战 用网络连接你的客户,合作伙伴与雇员 把网络暴露在所有的黑客,病毒和非法用户面前 在WEB上的电子商务给你的企业带来了新的商机 竞争非常激烈,你的WEB必需提供快速可靠的服务 把有限资源的内部网变成溶合在 Internet的网络 管理这样的网络需要更高的技术

  4. Internet The Connected Business • New Concerns • 保护你的内部网络免受黑客与其它非法入侵者的侵害 • 管理与控制网络访问 • 在加快网络访问速度的同时保护宝贵的带宽资源

  5. 微软公司对于安全的认识 • 安全缺陷和病毒攻击是严重、代价沉重、全行业业范围的问题 • Internet 安全是全世界范围内实现数字化商务运作的最基本的考虑因素 • 作为业界的领导者,微软公司具有保护Internet和客户数据的特殊责任

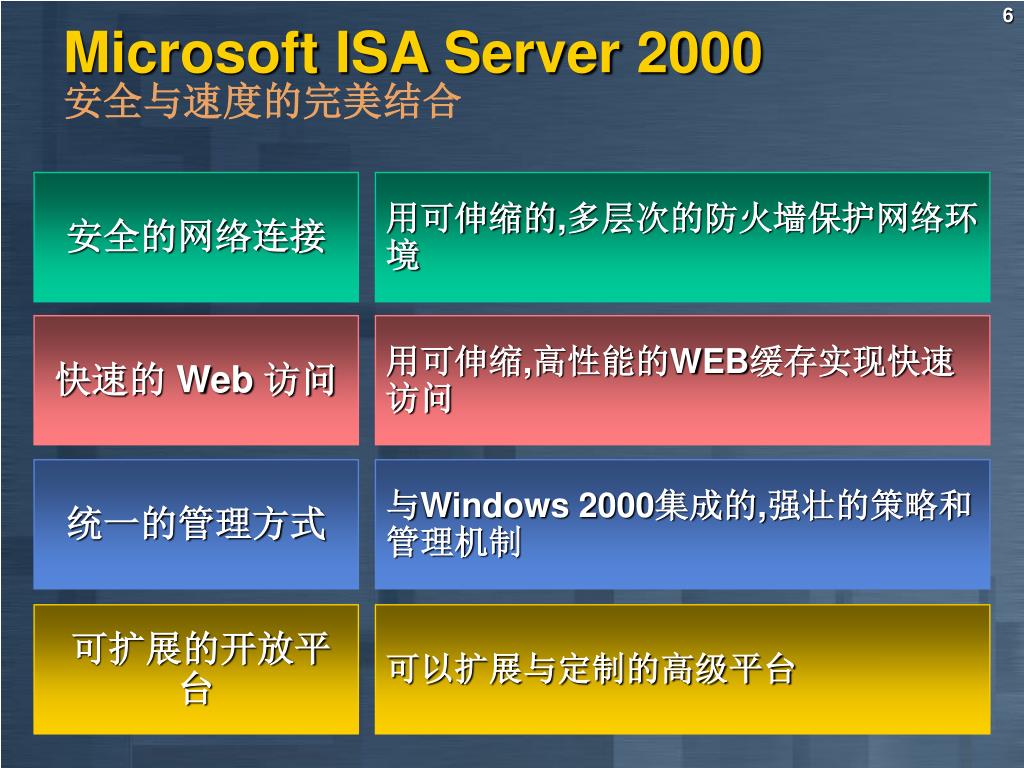

  6. Microsoft ISA Server 2000安全与速度的完美结合 安全的网络连接 用可伸缩的,多层次的防火墙保护网络环境 快速的 Web 访问 用可伸缩,高性能的WEB缓存实现快速访问 统一的管理方式 与Windows 2000集成的,强壮的策略和管理机制 可扩展的开放平台 可以扩展与定制的高级平台

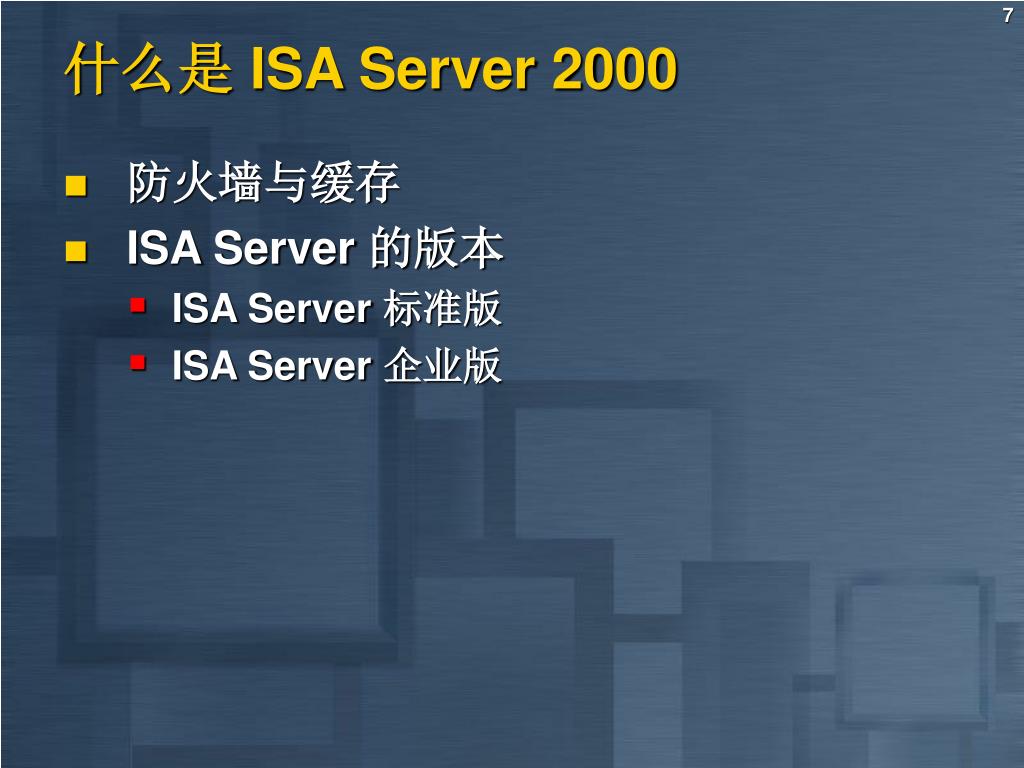

  7. 什么是 ISA Server 2000 • 防火墙与缓存 • ISA Server 的版本 • ISA Server 标准版 • ISA Server 企业版

  8. Microsoft® ISA Server 2000标准版与企业版功能比较表

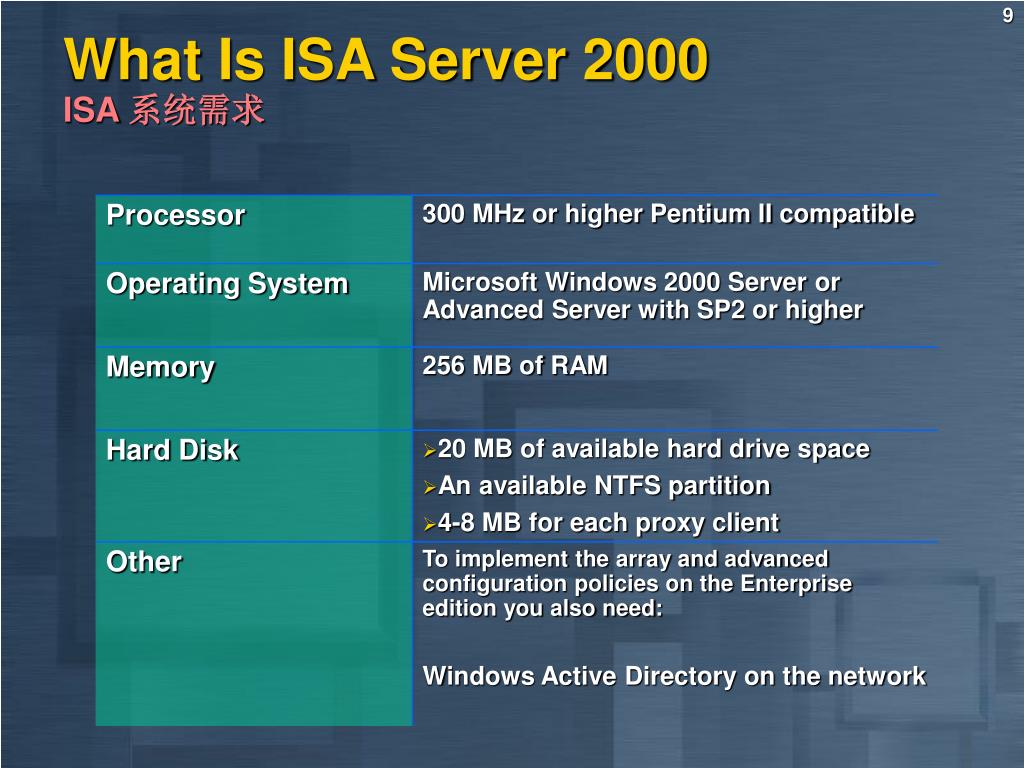

  9. What Is ISA Server 2000 ISA 系统需求

  10. 防火墙 & 缓存 • 两者都应存在于网络的边缘或者说结合点 • 模块化安装 • 统一的管理 • MMC • Logging and Reporting • Monitoring and Alerting • 一致的访问策略 • 低廉的培训维护费用

  11. 与 Windows 2000 紧密集成 • Security • 包过滤 • 网络地址转换 (NAT & SecureNAT) • Authentication • System Hardening • 虚拟专用网 (VPN) • 管理 • MMC • Terminal Services • Event log • Active Directory™ • Array configuration and policy data • NOT required! • 带宽控制 • 透明地支持在其它平台上的客户机与服务器

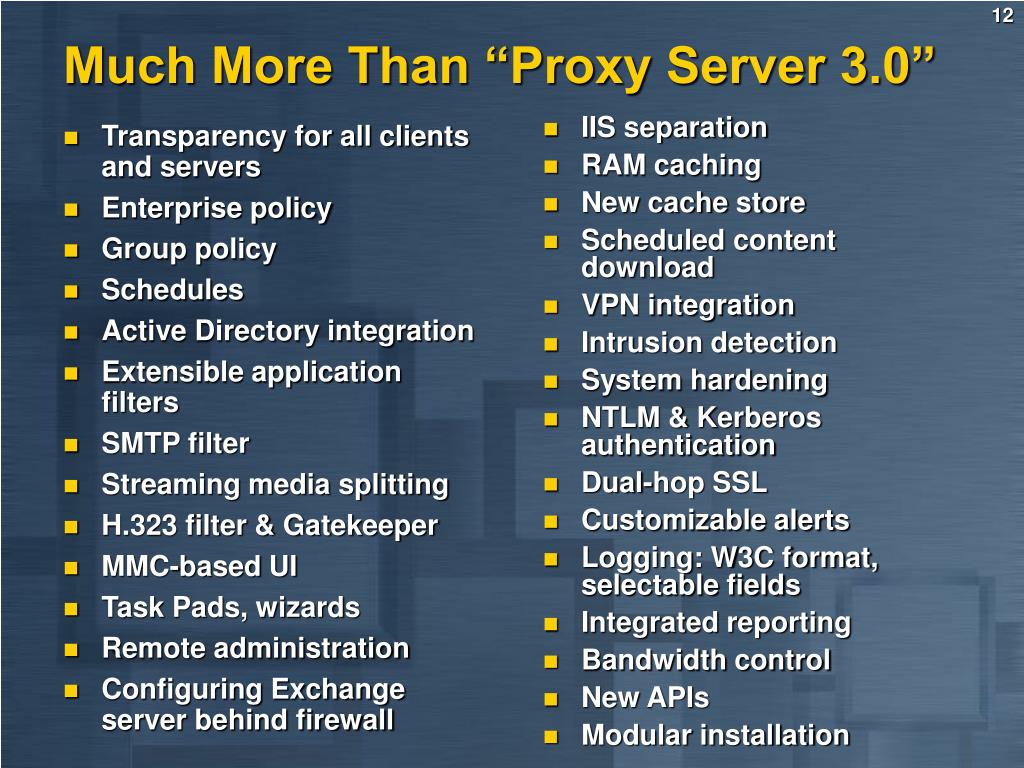

  12. Transparency for all clients and servers Enterprise policy Group policy Schedules Active Directory integration Extensible application filters SMTP filter Streaming media splitting H.323 filter & Gatekeeper MMC-based UI Task Pads, wizards Remote administration Configuring Exchange server behind firewall IIS separation RAM caching New cache store Scheduled content download VPN integration Intrusion detection System hardening NTLM & Kerberos authentication Dual-hop SSL Customizable alerts Logging: W3C format, selectable fields Integrated reporting Bandwidth control New APIs Modular installation Much More Than “Proxy Server 3.0”

  13. Microsoft Internet Security & Acceleration Server 2000 Deployment Scenarios

  14. Small Organization Internet ISA Server

  15. Large Enterprise Internet ISA Server 防火墙 & 缓存,共同管理

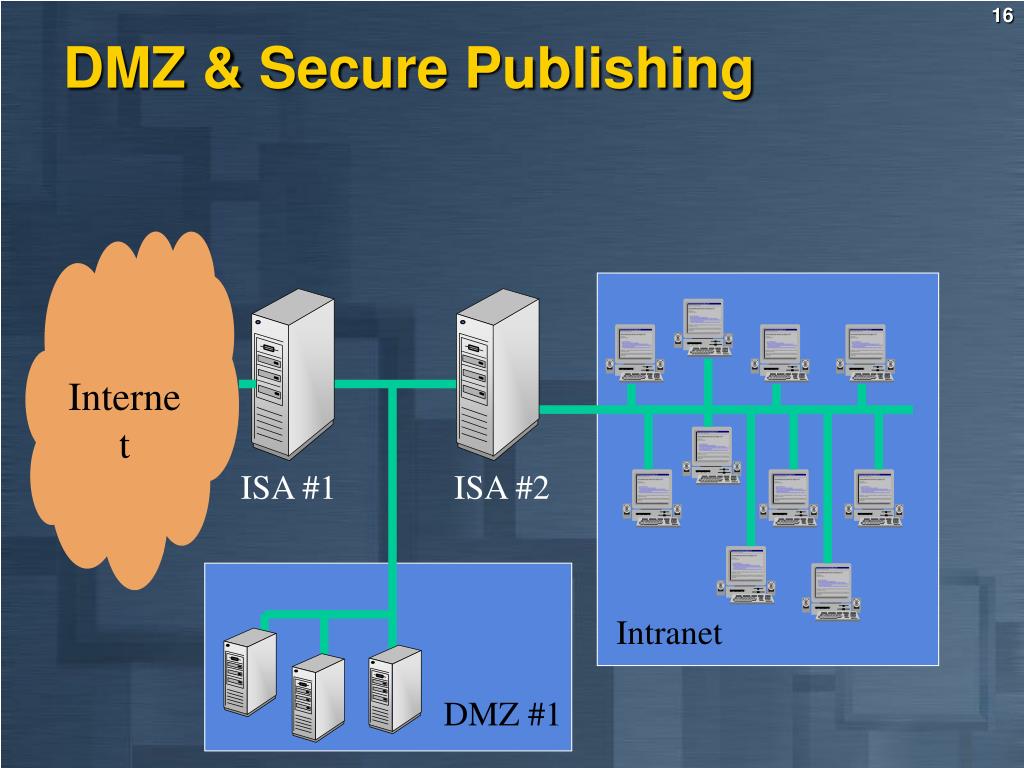

  16. DMZ & Secure Publishing Internet ISA #1 ISA #2 Intranet DMZ #1

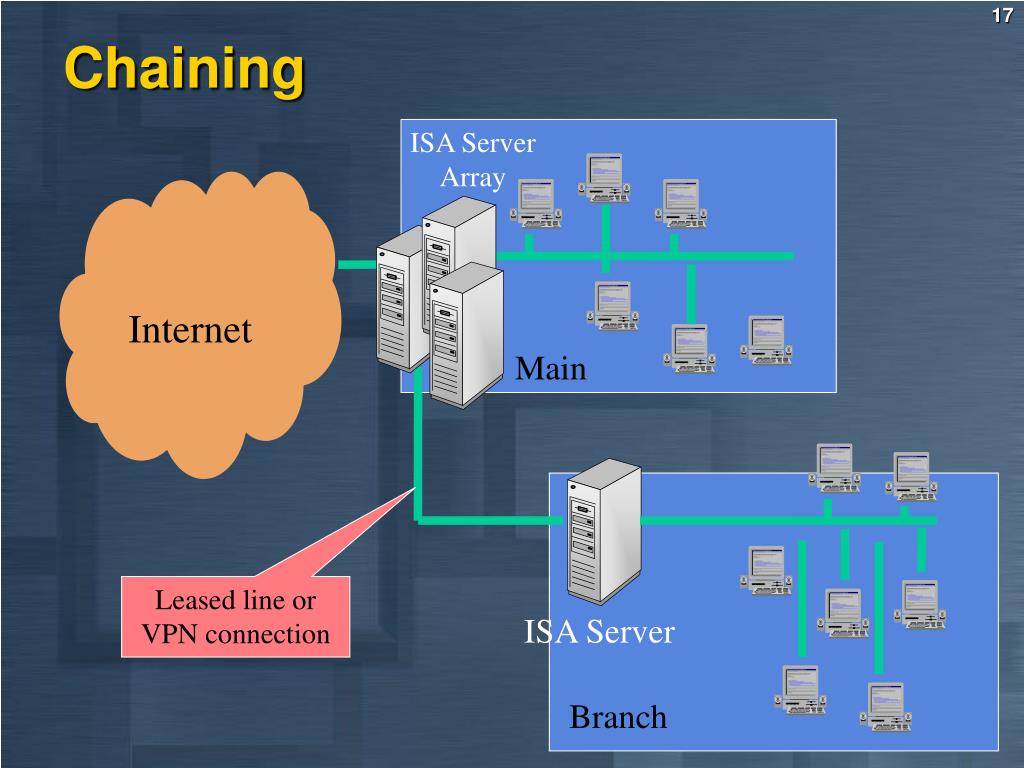

  17. Chaining ISA Server Array Internet Main Leased line or VPN connection ISA Server Branch

  18. Firewall 用可伸缩,多层次防火墙保护网络环境

  19. 为什么要使用防火墙? • 保护自己不受黑客,病毒与非法用户的攻击 • 控制向外的 Internet访问 • 保护 web servers and email servers • 更加安全的数据访问 保护关键的数据与信息 - 并且 - 管理信息访问

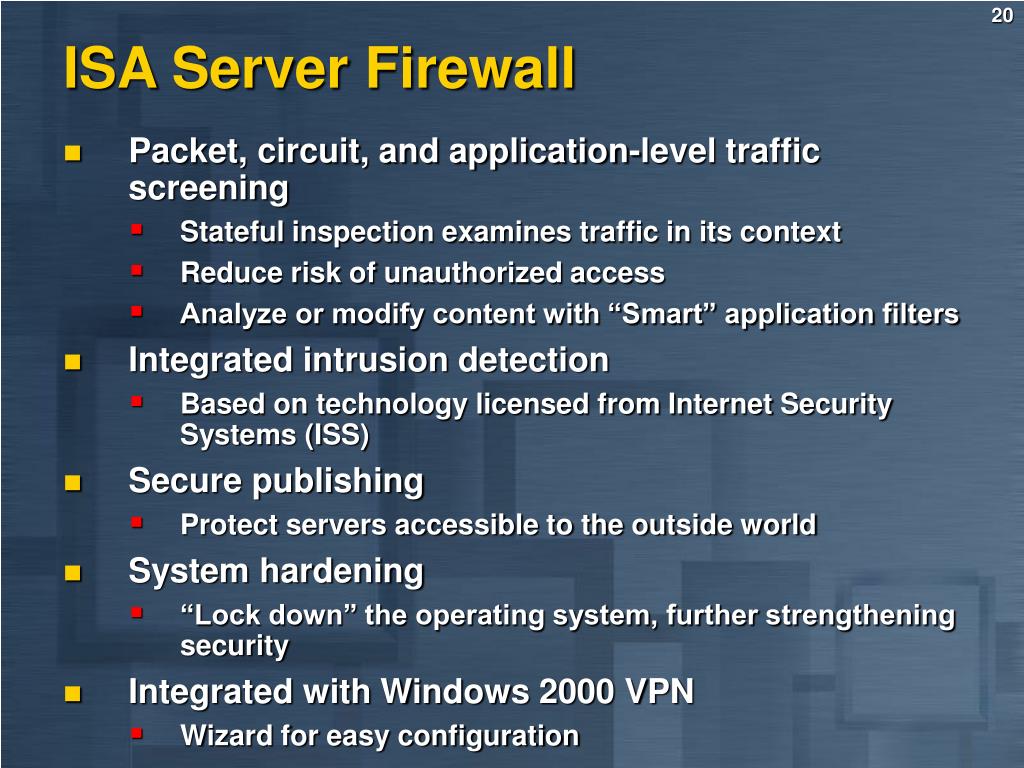

  20. ISA Server Firewall • Packet, circuit, and application-level traffic screening • Stateful inspection examines traffic in its context • Reduce risk of unauthorized access • Analyze or modify content with “Smart” application filters • Integrated intrusion detection • Based on technology licensed from Internet Security Systems (ISS) • Secure publishing • Protect servers accessible to the outside world • System hardening • “Lock down” the operating system, further strengthening security • Integrated with Windows 2000 VPN • Wizard for easy configuration

  21. 多层次的防火墙 • Bottom up – protection at every level • Packet level • Static filters • Dynamic filters • Intrusion detection • Circuit (protocol) level • Session based filtering • Connection association • Application level • Intelligent payload inspection Applicationlevel Circuitlevel Packetlevel

  22. Smart Application Filters • Protocol aware filters • Analyze the traffic • Block, redirect, modify • Intelligent filtering out-of-the-box: • HTTP: Web request caching • SMTP: Traffic filtering • Streaming media: Stream splitting • FTP: Read only restriction • H.323: NetMeeting® through the firewall

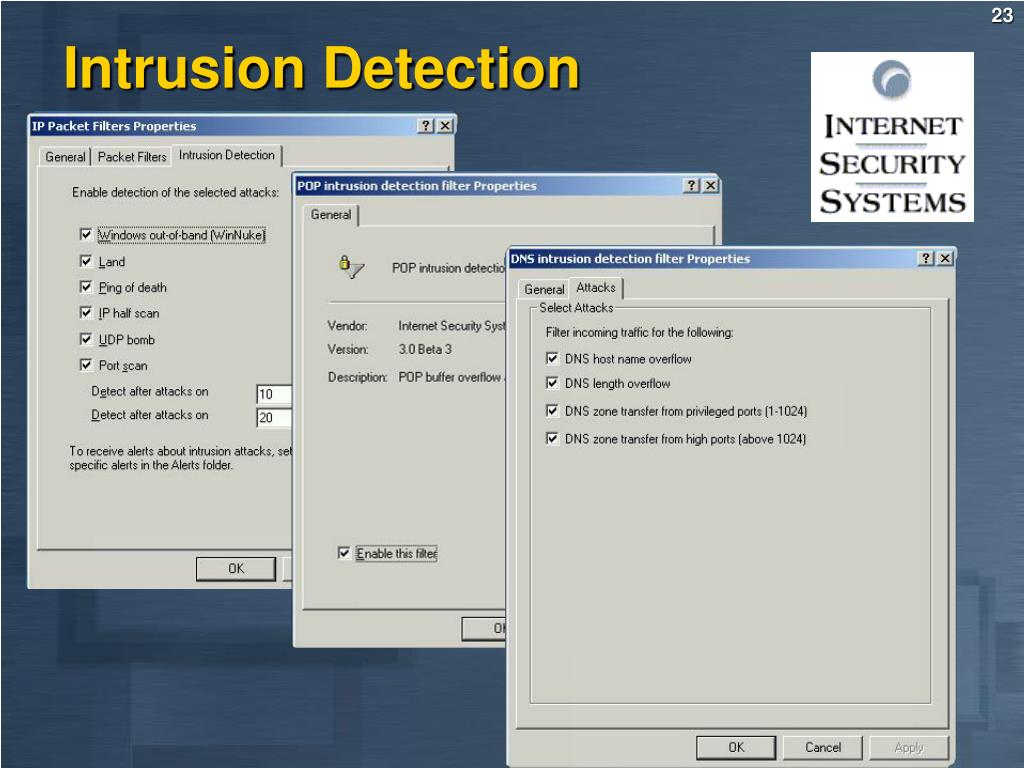

  23. Intrusion Detection

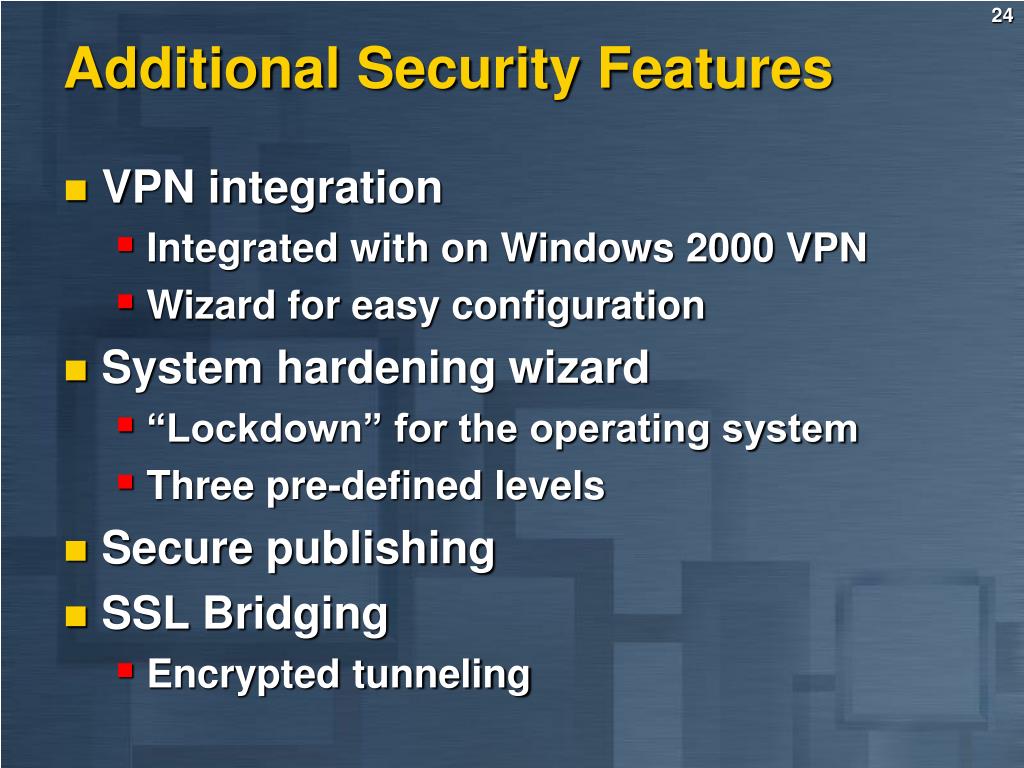

  24. Additional Security Features • VPN integration • Integrated with on Windows 2000 VPN • Wizard for easy configuration • System hardening wizard • “Lockdown” for the operating system • Three pre-defined levels • Secure publishing • SSL Bridging • Encrypted tunneling

  25. ISA Server – Microsoft’s FirewallISA Server 特性 • 多层次的防火墙 • 集中或分布式管理 • Publishing • ICSA certified

  26. ISA Server – Microsoft’s FirewallHow A Firewall Protects • A firewall filters network traffic that enters or leaves a protected network. • Decisions: • IP 地址,协议与端口号 • 建立连接 • IP包的有效负载 • 应用过滤 • Authentication • Logging and Alerting

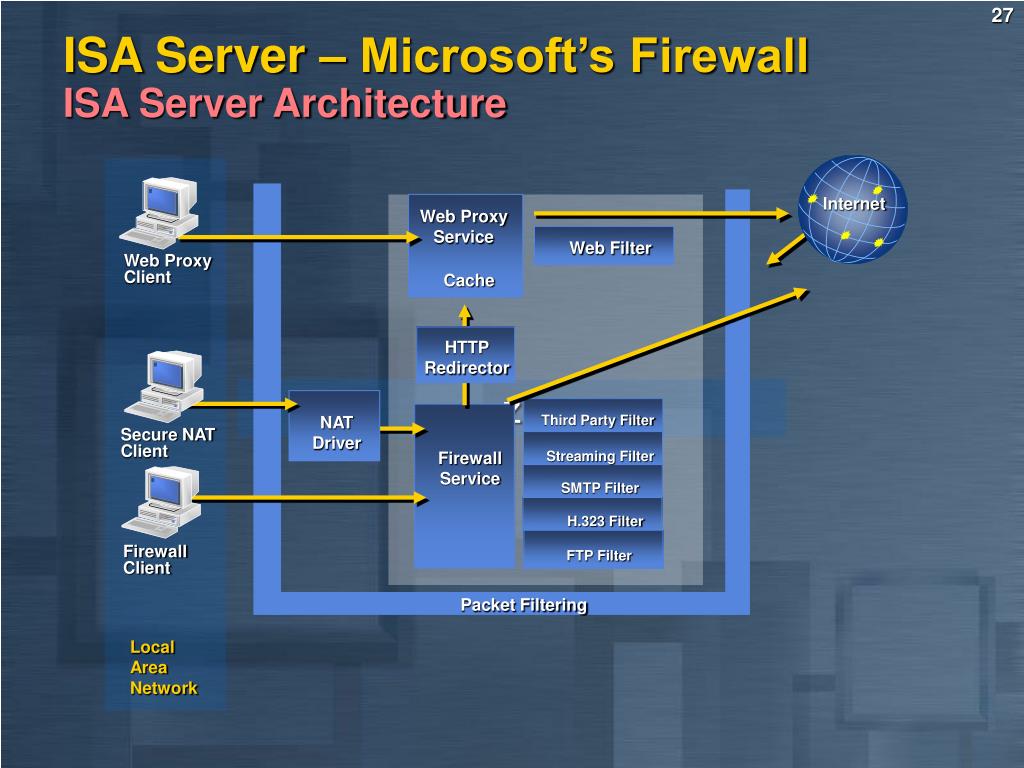

  27. Internet Web Proxy Service Web Filter Web ProxyClient Cache HTTPRedirector z Third Party Filter NATDriver Secure NATClient Streaming Filter FirewallService SMTP Filter H.323 Filter FirewallClient FTP Filter Packet Filtering LocalAreaNetwork ISA Server – Microsoft’s FirewallISA Server Architecture

  28. Policy Firewall Service Application Filter Session Log Socket Layer SecureNAT User Mode User Mode Kernel Mode TCP/IP Stack SecureNAT driver Routing NAT driver PF Log PFxD Reassembly PFD InternalInterface ExternalInterface NDIS ISA Server – Microsoft’s FirewallOutgoing FW Traffic Flow

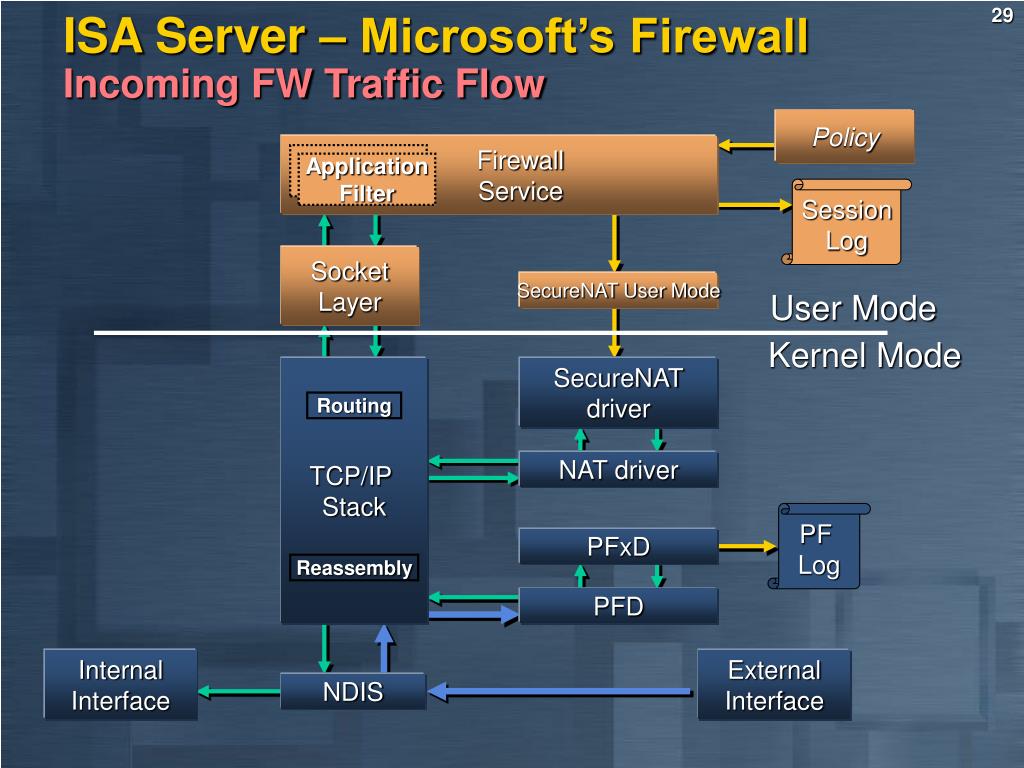

  29. Policy Firewall Service Application Filter Session Log Socket Layer SecureNAT User Mode User Mode Kernel Mode TCP/IP Stack SecureNAT driver Routing NAT driver PF Log PFxD Reassembly PFD InternalInterface ExternalInterface NDIS ISA Server – Microsoft’s FirewallIncoming FW Traffic Flow

  30. ISA Server – Microsoft’s FirewallISA Server 缺省情况 • No incoming or outgoing traffic unless specifically allowed • 除了以下情况: • ISA Server 可以执行 DNS lookups • Pinging from ISA Server

  31. ISA Server – Microsoft’s Firewall为 Outgoing Requests制定规则 • Protocol Rules • 谁可以使用什么样的协议在什么时间访问什么? • Default: No access • Site and Content Rules • 谁可以在什么时间访问什么站点和内容? • Default: All access • 对互联网访问时这两个规则都是必要的

  32. ISA Server – Microsoft’s Firewall为Incoming Requests制定规则 • Server Publishing Rules • Redirect traffic for an external address / port to an internal address • Web Publishing Rules • Redirect Web requests only • Can redirect to multiple internal Web sites • Can choose port for redirection • Can perform SSL bridging

  33. ISA Server – Microsoft’s FirewallFirewall Planning • Assess needs for outgoing traffic • “Deny all” or “Allow all” • Research user requirements • Design required rules and policy elements • Plan for authentication (if required) • Assess needs for incoming traffic • Inventory resources that need to be accessed from the Internet. • Design the required rules and policy elements

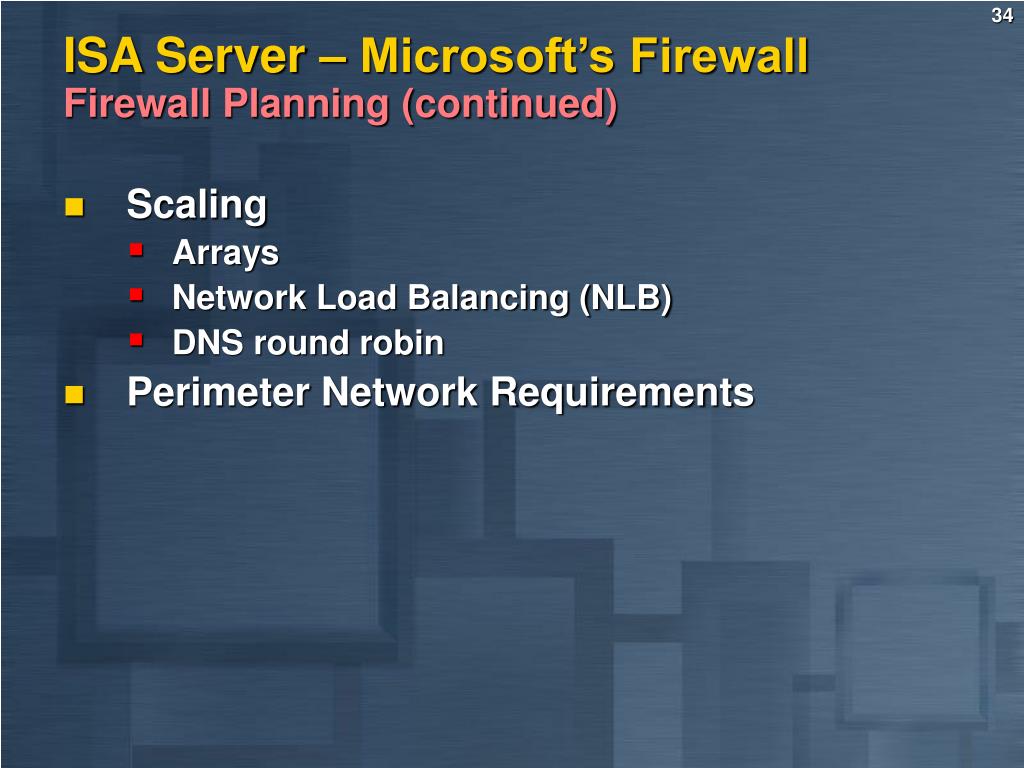

  34. ISA Server – Microsoft’s FirewallFirewall Planning (continued) • Scaling • Arrays • Network Load Balancing (NLB) • DNS round robin • Perimeter Network Requirements

  35. Internet Firewall Internal Network Firewall Design No External Access Required

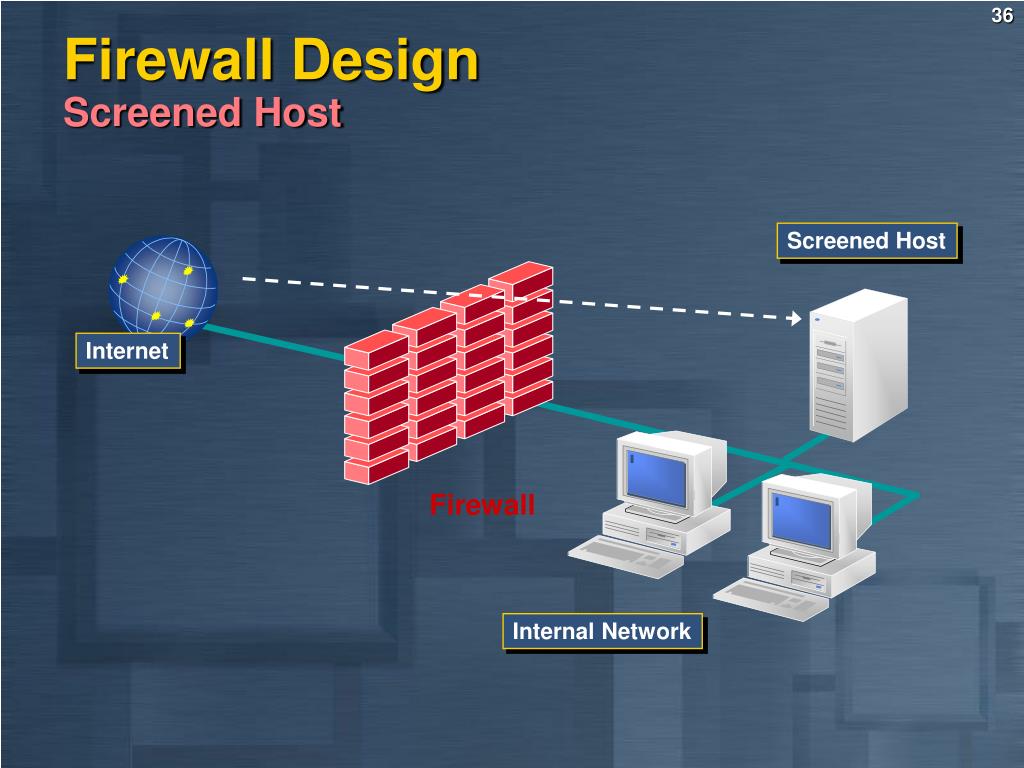

  36. Firewall Design Screened Host Screened Host Internet Firewall Internal Network

  37. Firewall Design Three-Homed PerimeterNetwork Design Perimeter Network Internet Firewall Internal Network

  38. Web Server PerimeterNetwork Internet Firewall InternalNetwork Firewall Firewall Design Back-to-Back PerimeterNetwork Design

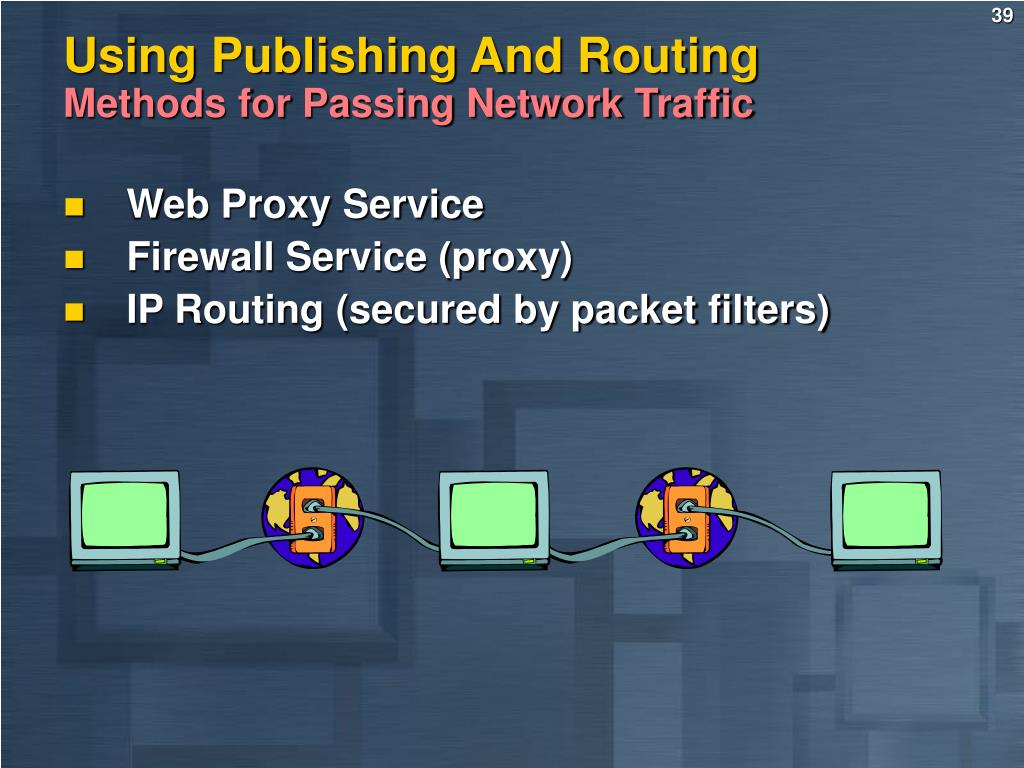

  39. Using Publishing And RoutingMethods for Passing Network Traffic • Web Proxy Service • Firewall Service (proxy) • IP Routing (secured by packet filters)

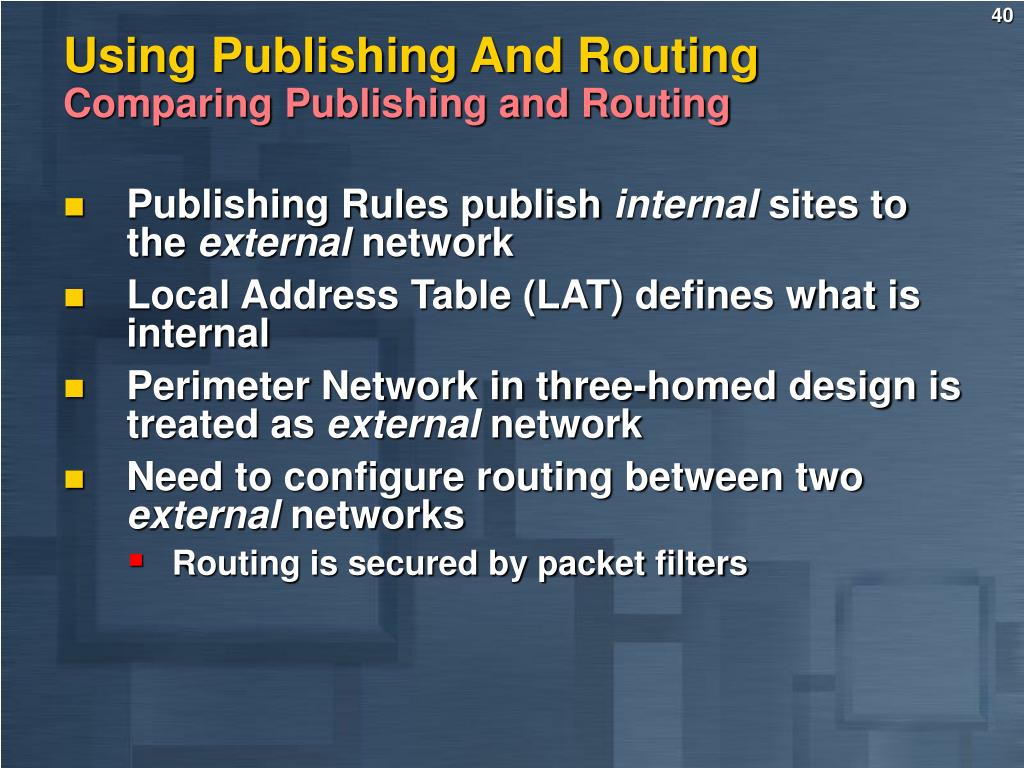

  40. Using Publishing And RoutingComparing Publishing and Routing • Publishing Rules publish internal sites to the external network • Local Address Table (LAT) defines what is internal • Perimeter Network in three-homed design is treated as external network • Need to configure routing between two external networks • Routing is secured by packet filters

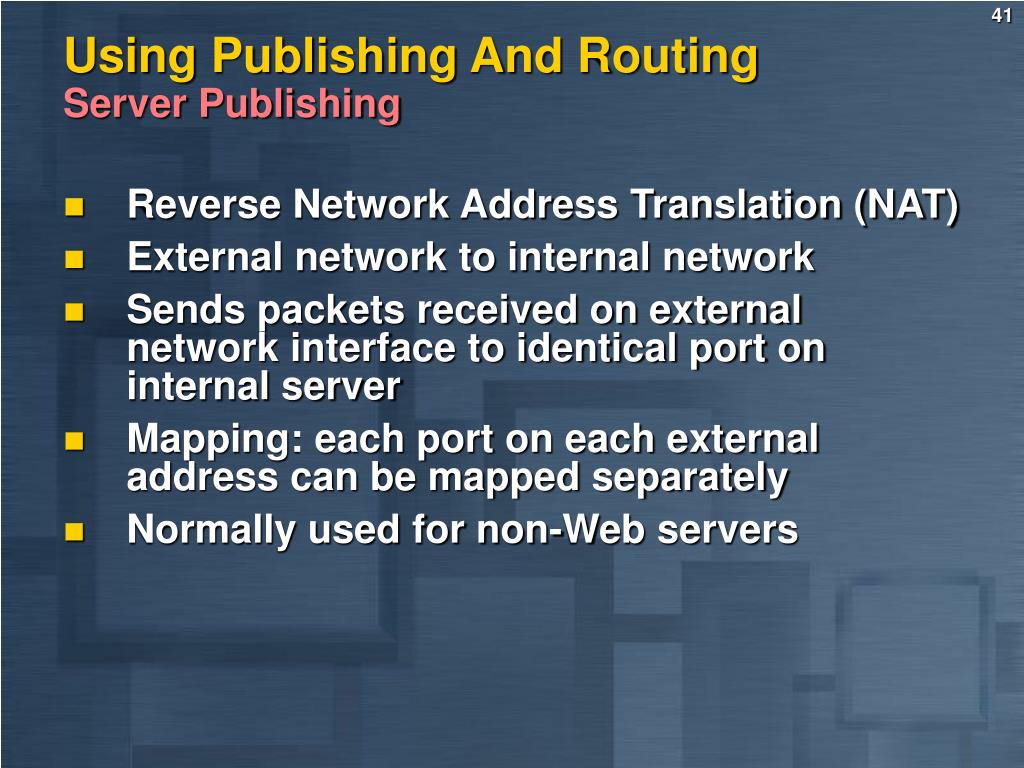

  41. Using Publishing And RoutingServer Publishing • Reverse Network Address Translation (NAT) • External network to internal network • Sends packets received on external network interface to identical port on internal server • Mapping: each port on each external address can be mapped separately • Normally used for non-Web servers

  42. /isaserver/ / www.microsoft.com/isaserver/ Internal Network www.microsoft.com/ Internet isa.internal.microsoft.com ISA Server www.internal.microsoft.com Using Publishing And RoutingWeb Publishing • Redirects requests for URLs received on external interface • Can redirect to multiple Web sites • Can redirect to internal or external sites

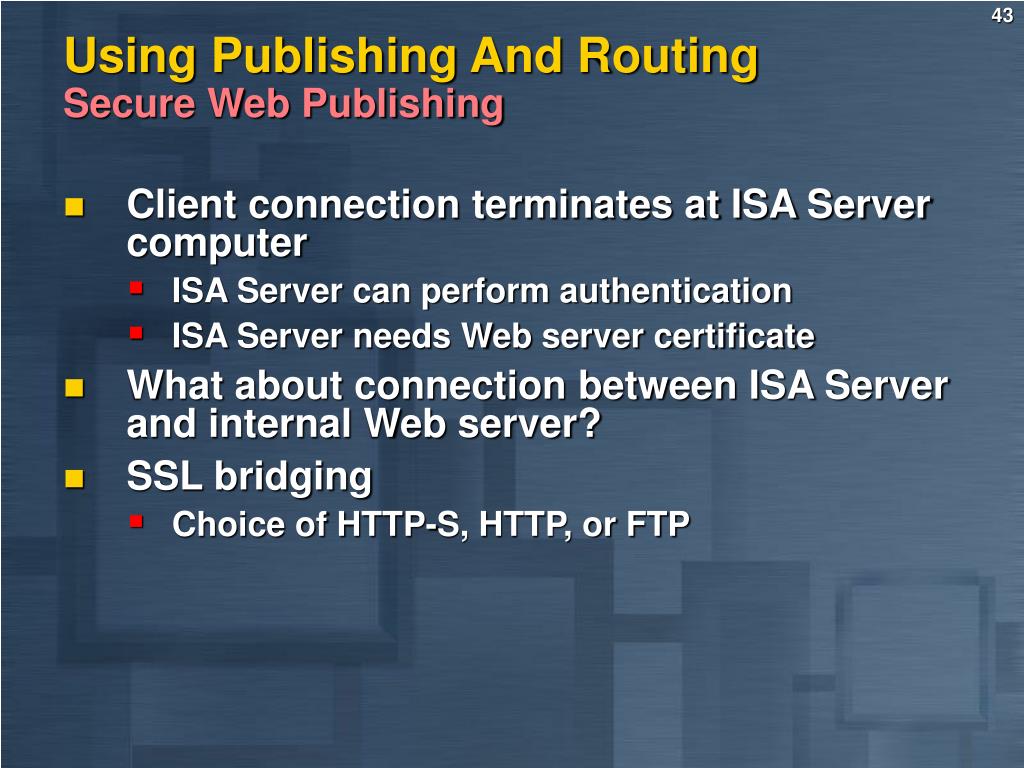

  43. Using Publishing And RoutingSecure Web Publishing • Client connection terminates at ISA Server computer • ISA Server can perform authentication • ISA Server needs Web server certificate • What about connection between ISA Server and internal Web server? • SSL bridging • Choice of HTTP-S, HTTP, or FTP

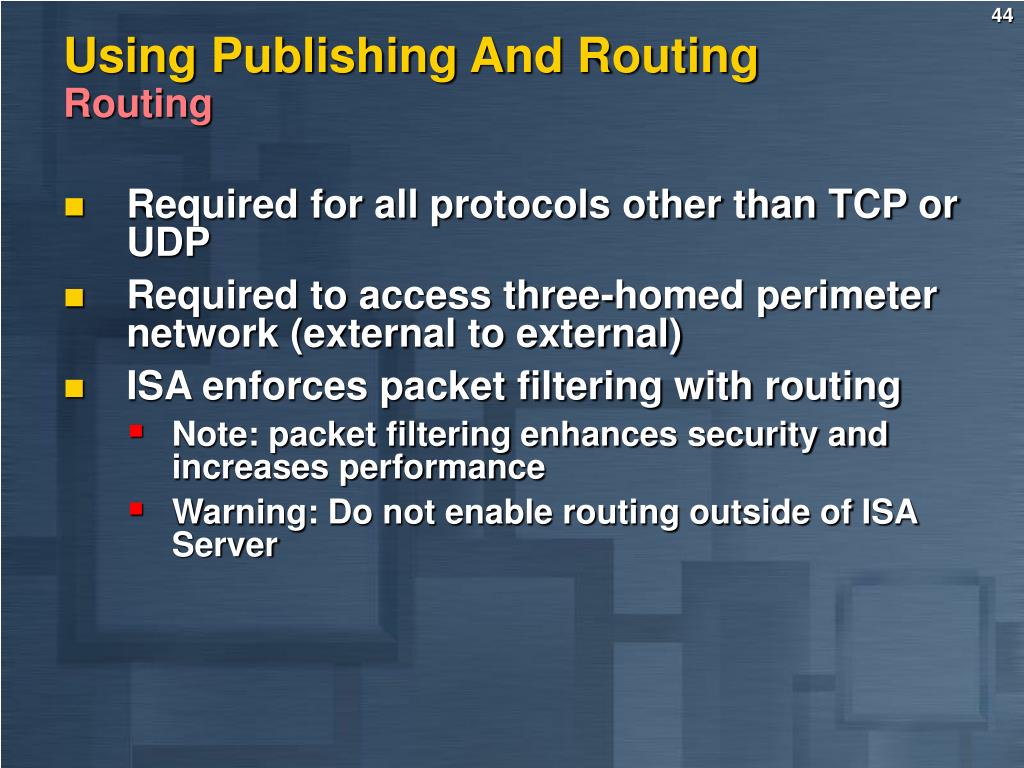

  44. Using Publishing And RoutingRouting • Required for all protocols other than TCP or UDP • Required to access three-homed perimeter network (external to external) • ISA enforces packet filtering with routing • Note: packet filtering enhances security and increases performance • Warning: Do not enable routing outside of ISA Server

  45. Demonstration 1Server Publishing And Web PublishingCreating a Server Publishing Rule Creating a WebPublishing Rule

  46. ISA Server ConfigurationOutgoing Traffic • Protocol Rules and Site and Content Rules • Packet filters • Protocols other than UDP or TCP • Applications or services running on ISA Server computer • Packet filters can override rules

  47. ISA Server ConfigurationScreened Host • Configure Server Publishing Rules • Configure Web Publishing Rules

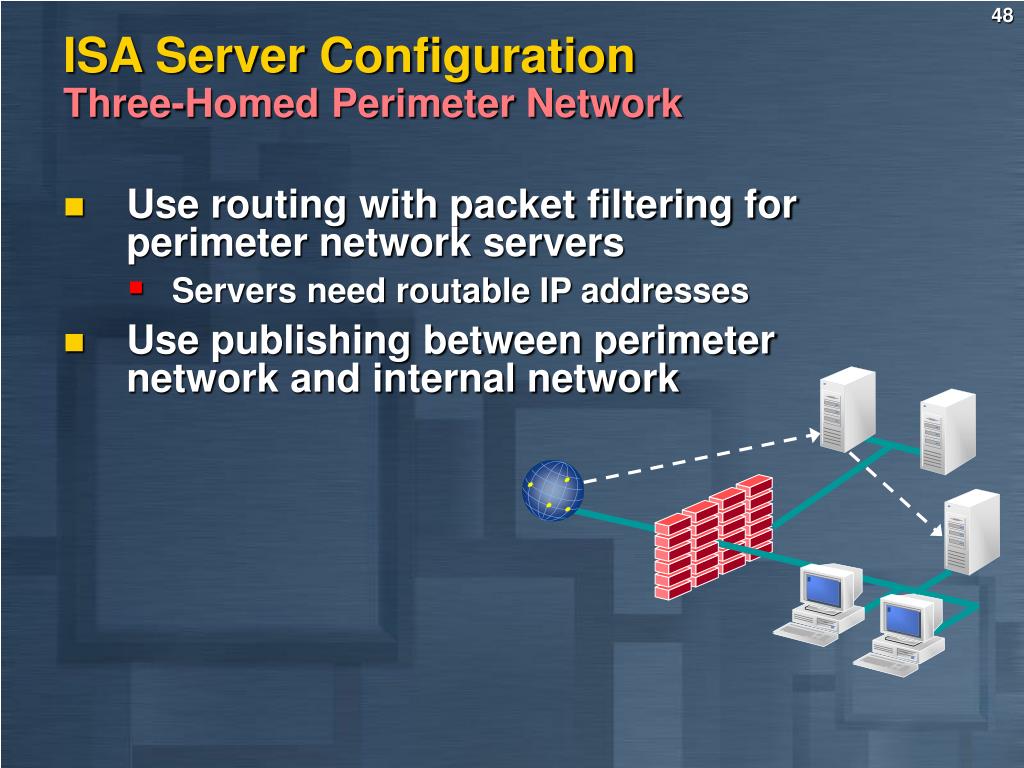

  48. ISA Server ConfigurationThree-Homed Perimeter Network • Use routing with packet filtering for perimeter network servers • Servers need routable IP addresses • Use publishing between perimeternetwork and internal network

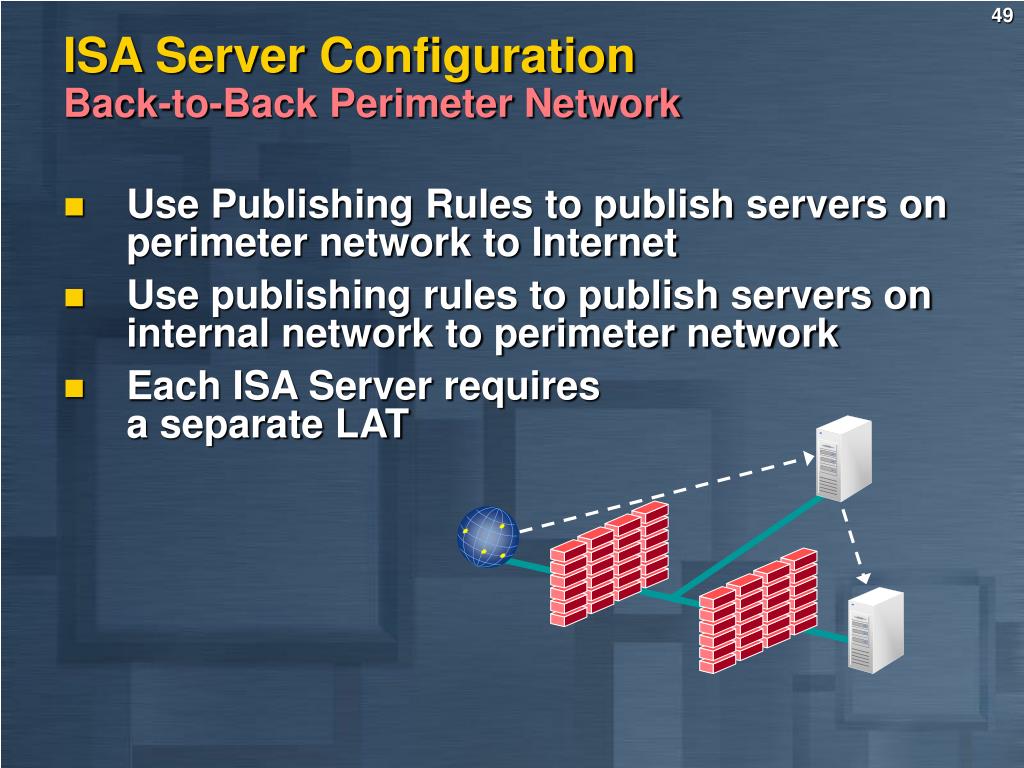

  49. ISA Server ConfigurationBack-to-Back Perimeter Network • Use Publishing Rules to publish servers on perimeter network to Internet • Use publishing rules to publish servers on internal network to perimeter network • Each ISA Server requires a separate LAT

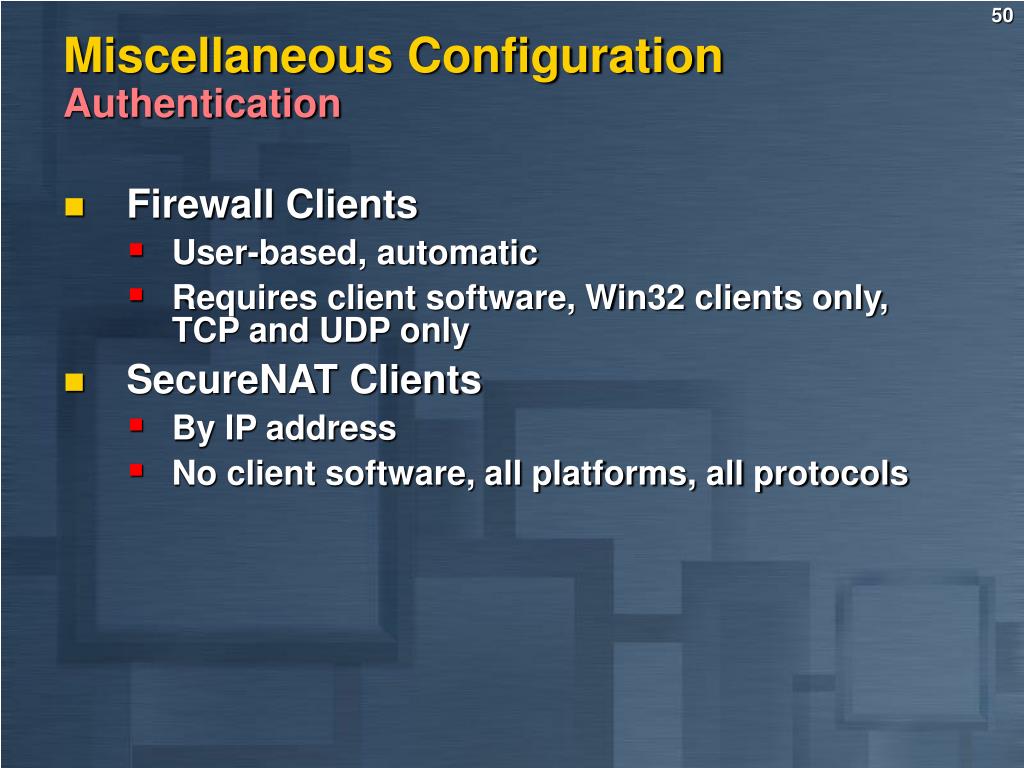

  50. Miscellaneous ConfigurationAuthentication • Firewall Clients • User-based, automatic • Requires client software, Win32 clients only, TCP and UDP only • SecureNAT Clients • By IP address • No client software, all platforms, all protocols
