  1. P R I N C I P L E S O F MACROECONOMICS T E N T H E D I T I O N CASE FAIR OSTER Prepared by: Fernando Quijano & Shelly Tefft

  2. 13 Aggregate Supply and the Equilibrium Price Level CHAPTER OUTLINE The Aggregate Supply Curve The Aggregate Supply Curve: A Warning Aggregate Supply in the Short Run Shifts of the Short-Run Aggregate Supply Curve The Equilibrium Price Level The Long-Run Aggregate Supply Curve Potential GDP Monetary and Fiscal Policy Effects Long-Run Aggregate Supply and Policy Effects Causes of Inflation Demand-Pull Inflation Cost-Push, or Supply-Side, Inflation Expectations and Inflation Money and Inflation Sustained Inflation as a Purely Monetary Phenomenon The Behavior of the Fed Targeting the Interest Rate The Fed’s Response to the State of the Economy Fed Behavior Since 1970 Interest Rates Near Zero Inflation Targeting Looking Ahead

  3. The Aggregate Supply Curve aggregate supplyThe total supply of all goods and services in an economy. The Aggregate Supply Curve: A Warning aggregate supply (AS) curveA graph that shows the relationship between the aggregate quantity of output supplied by all firms in an economy and the overall price level. The aggregate supply curve is not a market supply curve, and it is not the simple sum of all the individual supply curves in the economy. Because many firms in the economy set prices as well as output, we can say an “aggregate supply curve” is really a “price/output response” curve—a curve that traces out the price decisions and output decisions of all firms in the economy under a given set of circumstances.

  4. The Aggregate Supply Curve Aggregate Supply in the Short Run  FIGURE 13.1The Short-Run Aggregate Supply Curve In the short run, the aggregate supply curve (the price/output response curve) has a positive slope. At low levels of aggregate output, the curve is fairly flat. As the economy approaches capacity, the curve becomes nearly vertical. At capacity, Y*, the curve is vertical.

  5. The Aggregate Supply Curve Aggregate Supply in the Short Run Why an Upward Slope? Wages are a large fraction of total costs and wage changes lag behind price changes. This gives us an upward sloping short-run AS curve. Why the Particular Shape? At some level the overall economy is using all its capital and all the labor that wants to work at the market wage. At this level (Y*), the AS curve is vertical. At low levels of output, the AS curve is flatter. Small price increases may be associated with relatively large output responses. We may observe relatively “sticky” wages upward at this point on the AS curve.

  6. The Aggregate Supply Curve cost shock, or supply shockA change in costs that shifts the short-run aggregate supply (AS) curve. Shifts of the Short-Run Aggregate Supply Curve  FIGURE 13.2Shifts of the Short-Run Aggregate Supply Curve

  7. The Equilibrium Price Level equilibrium price levelThe price level at which the aggregate demand and aggregate supply curves intersect.  FIGURE 13.3The Equilibrium Price Level At each point along the AD curve, both the money market and the goods market are in equilibrium. Each point on the AS curve represents the price/ output decisions of all the firms in the economy. P0 and Y0 correspond to equilibrium in the goods market and the money market and to a set of price/output decisions on the part of all the firms in the economy.

  8. The Long-Run Aggregate Supply Curve  FIGURE 13.4The Long-Run Aggregate Supply Curve When the AD curve shifts from AD0 to AD1, the equilibrium price level initially rises from P0to P1 and output rises from Y0 to Y1. Wages respond in the longer run, shifting the AS curve from AS0 to AS1. If wages fully adjust, output will be back at Y0. Y0 is sometimes called potential GDP.

  9. E C O N O M I C S I N P R A C T I C E The Simple “Keynesian” Aggregate Supply Curve The simple “Keynesian” view of the aggregate supply curve holds that at any given moment, the economy has a clearly defined capacity, or maximum, output. With planned aggregate expenditure of AE1 and aggregate demand of AD1, equilibrium output is Y1. A shift of planned aggregate expenditure to AE2, corresponding to a shift of the AD curve to AD2, causes output to rise but the price level to remain at P1. If planned aggregate expenditure and aggregate demand exceed YF, however, there is an inflationary gap and the price level rises to P3. Despite insights the kinked aggregate supply curve provides, most economists find it unlikely that the whole economy suddenly runs into a capacity “wall” at a specific level of output. As output expands, some firms and industries will hit capacity before others.

  10. The Long-Run Aggregate Supply Curve Potential GDP potential output, or potential GDPThe level of aggregate output that can be sustained in the long run without inflation. Short-Run Equilibrium Below Potential Output Although different economists have different opinions on how to determine whether an economy is operating at or above potential output, there is general agreement that there is a maximum level of output (below the vertical portion of the short-run aggregate supply curve) that can be sustained without inflation.

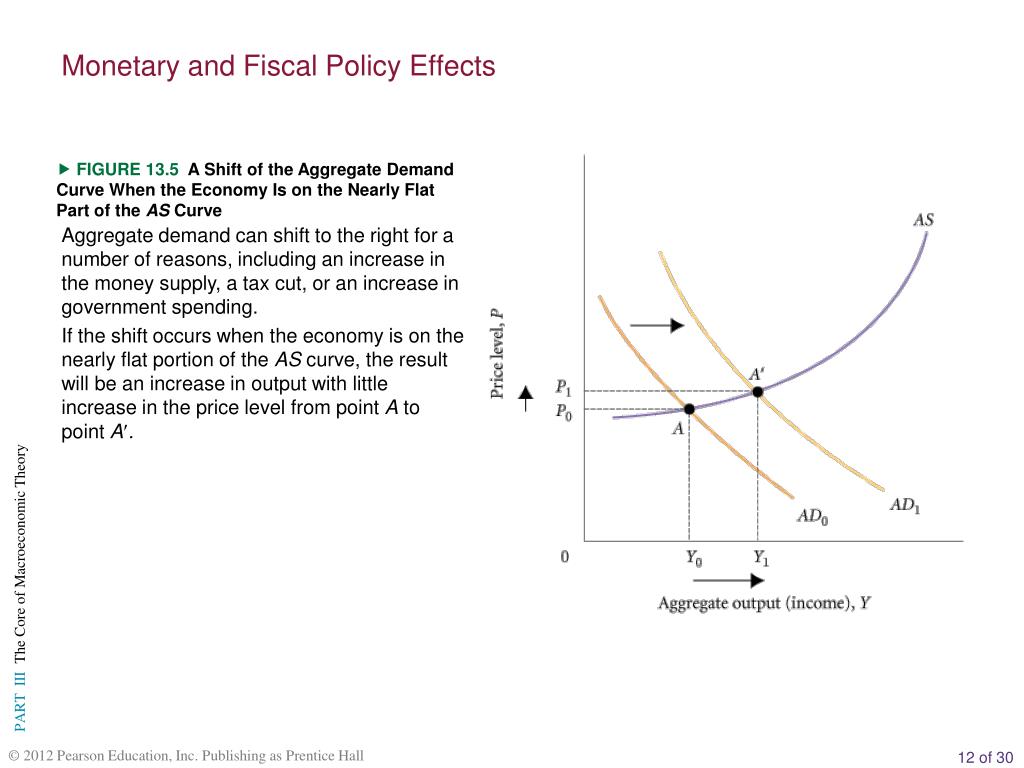

  11. Monetary and Fiscal Policy Effects  FIGURE 13.5A Shift of the Aggregate Demand Curve When the Economy Is on the Nearly Flat Part of the AS Curve Aggregate demand can shift to the right for a number of reasons, including an increase in the money supply, a tax cut, or an increase in government spending. If the shift occurs when the economy is on the nearly flat portion of the AS curve, the result will be an increase in output with little increase in the price level from point A to point A.

  12. Monetary and Fiscal Policy Effects  FIGURE 13.6A Shift of the Aggregate Demand Curve When the Economy Is Operating At or Near Maximum Capacity If a shift of aggregate demand occurs while the economy is operating near full capacity, the result will be an increase in the price level with little increase in output from point B to point B.

  13. Monetary and Fiscal Policy Effects Long-Run Aggregate Supply and Policy Effects It is important to realize that if the AS curve is vertical in the long run, neither monetary policy nor fiscal policy has any effect on aggregate output in the long run. The longer the lag time between wages and output prices, the greater the potential impact of monetary and fiscal policy on aggregate output. Some argue that wages do not fall during slack periods and that the economy can get “stuck” at an equilibrium below potential output. In this case, monetary and fiscal policy would be necessary to restore full employment.

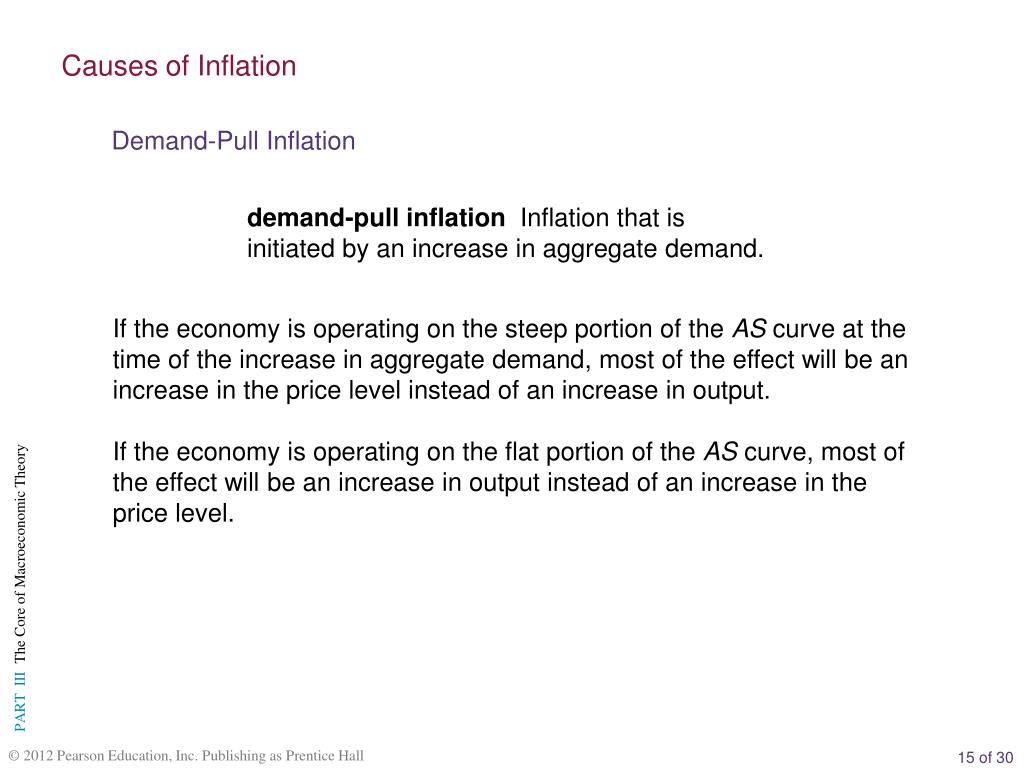

  14. Causes of Inflation Demand-Pull Inflation demand-pull inflationInflation that is initiated by an increase in aggregate demand. If the economy is operating on the steep portion of the AS curve at the time of the increase in aggregate demand, most of the effect will be an increase in the price level instead of an increase in output. If the economy is operating on the flat portion of the AS curve, most of the effect will be an increase in output instead of an increase in the price level.

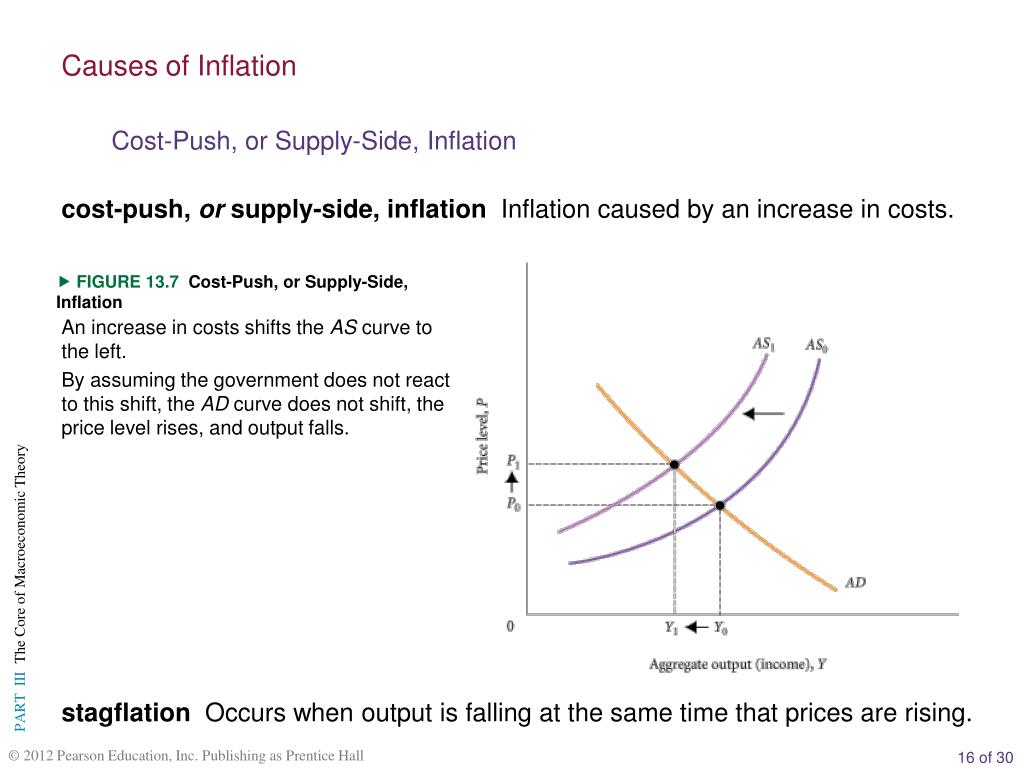

  15. Causes of Inflation Cost-Push, or Supply-Side, Inflation cost-push, or supply-side, inflationInflation caused by an increase in costs.  FIGURE 13.7Cost-Push, or Supply-Side, Inflation An increase in costs shifts the AS curve to the left. By assuming the government does not react to this shift, the AD curve does not shift, the price level rises, and output falls. stagflationOccurs when output is falling at the same time that prices are rising.

  16. Causes of Inflation Cost-Push, or Supply-Side, Inflation  FIGURE 13.8Cost Shocks Are Bad News for Policy Makers A cost shock with no change in monetary or fiscal policy would shift the aggregate supply curve from AS0 to AS1, lower output from Y0 to Y1, and raise the price level from P0 to P1. Monetary or fiscal policy could be changed enough to have the AD curve shift from AD0 to AD1. This policy would raise aggregate output Y again, but it would raise the price level further, to P2.

  17. Causes of Inflation Expectations and Inflation When firms are making their price/output decisions, their expectations of future prices may affect their current decisions. If a firm expects that its competitors will raise their prices, it may raise its own price. The firm’s profit-maximizing optimum price is presumably not too far from the average of its competitors’ prices. Expectations can lead to an inertia that makes it difficult to stop an inflationary spiral. If prices have been rising and if people’s expectations are adaptive, firms may continue raising prices even if demand is slowing or contracting. Given the importance of expectations in inflation, central banks aim to keep them low.

  18. E C O N O M I C S I N P R A C T I C E Inflationary Expectations in China Expectations that prices will rise can be self-fulfilling as firms raise prices in expectation that all other prices will rise. This same phenomenon is discussed in the context of China. It is also interesting to note that many people believed the official statistics on inflation understated their own experience. Inflation Perceptions Run High in China The Wall Street Journal

  19. Causes of Inflation Money and Inflation  FIGURE 13.9Sustained Inflation from an Initial Increase in G and Fed Accommodation An increase in G with the money supply constant shifts the AD curve from AD0 to AD1. Although not shown in the figure, this leads to an increase in the interest rate and crowding out of planned investment. If the Fed tries to keep the interest rate unchanged by increasing the money supply, the AD curve will shift farther and farther to the right. The result is a sustained inflation, perhaps even hyperinflation.

  20. Causes of Inflation Sustained Inflation as a Purely Monetary Phenomenon Virtually all economists agree that an increase in the price level can be caused by anything that causes the AD curve to shift to the right or the AS curve to shift to the left. It is also generally agreed that for a sustained inflation to occur, the Fed must accommodate it. In this sense, a sustained inflation can be thought of as a purely monetary phenomenon.

  21. The Behavior of the Fed  FIGURE 13.10Fed Behavior

  22. The Behavior of the Fed Targeting the Interest Rate The actual variable of interest to the Fed is not the money supply, but the interest rate. In practice, it is the interest rate that directly affects economic activity, for example, by affecting firms’ decisions about investing. Targeting the interest rate thus gives the Fed more control over the key variable that matters to the economy.

  23. The Behavior of the Fed The Fed’s Response to the State of the Economy  FIGURE 13.11The Fed’s Response to Low Output/Low Inflation During periods of low output/low inflation, the economy is on the relatively flat portion of the AS curve. In this case, the Fed is likely to lower the interest rate (and thus expand the money supply). This will shift the AD curve to the right, from AD0 to AD1, and lead to an increase in output with very little increase in the price level.

  24. The Behavior of the Fed The Fed’s Response to the State of the Economy  FIGURE 13.12The Fed’s Response to High Output/High Inflation During periods of high output/high inflation, the economy is on the relatively steep portion of the AS curve. In this case, the Fed is likely to increase the interest rate (and thus contract the money supply). This will shift the AD curve to the left, from AD0 to AD1, and lead to a decrease in the price level with very little decrease in output.

  25. E C O N O M I C S I N P R A C T I C E Markets Watch the Fed One measure of how important interest rates are to the health of the economy is the attention paid to Fed actions by the private sector, including prominently the major investment banks. All of the major investment banks employ economists to help them forecast what the Fed will do. These economists have been especially active in the recent period as there has been more uncertainty about whether the Fed might begin to tighten (raise interest rates) as the U.S. economy recovers. J.P. Morgan Pushes Back Rate Hike Forecast to Late 2011 The Wall Street Journal

  26. The Behavior of the Fed Fed Behavior Since 1970  FIGURE 13.13Output, Inflation, and the Interest Rate 1970 I–2010 I The Fed generally had high interest rates in the two inflationary periods and low interest rates from the mid 1980s on. It aggressively lowered interest rates in the 1990 III–1991 I, 2001 I–2001 III, and 2008 I–2009 II recessions. Output is the percentage deviation of real GDP from its trend. Inflation is the 4-quarter average of the percentage change in the GDP deflator. The interest rate is the 3-month Treasury bill rate.

  27. The Behavior of the Fed Interest Rates Near Zero The Fed lowered the short-term interest rate to near zero beginning in 2008 IV. Since interest rates cannot go below zero, the ability of the Fed to stimulate the economy when interest rates are zero is severely limited. Its main way of stimulating the economy is to lower interest rates, which stimulates plant and equipment investment as well as consumption of durable goods and housing investment. This option is not available when interest rates are near zero. In this case, stimulus must come primarily from fiscal policy.

  28. The Behavior of the Fed Inflation Targeting inflation targetingWhen a monetary authority chooses its interest rate values with the aim of keeping the inflation rate within some specified band over some specified horizon. Looking Ahead In this chapter, we introduced the aggregate supply curve. By using the aggregate supply and aggregate demand curves, we can determine the equilibrium price level in the economy and understand some causes of inflation. We have still said little about employment, unemployment, and the functioning of the labor market in the macroeconomy. The next chapter will link everything we have done so far to this third major market arena—the labor market—and to the problem of unemployment.

  29. R E V I E W T E R M S A N D C O N C E P T S aggregate supply aggregate supply (AS) curve cost-push, or supply-side, inflation cost shock, or supply shock demand-pull inflation equilibrium price level inflation targeting potential output, or potential GDP stagflation
