  1. Periodic Table of the Elements Written by: Bill Byles - bylesb@internet4classrooms.com

  2. Select an element ( ) = Internet link

  3. Name: Hydrogen Symbol: H Atomic Number: 1 Atomic Mass: 1.00794 amu Melting Point: -259.14 °C (14.009985 °K, -434.45203 °F) Boiling Point: -252.87 °C (20.280005 °K, -423.166 °F)

  4. Name: Helium Symbol: He Atomic Number: 2 Atomic Mass: 4.002602 amu Melting Point: -272.0 °C (1.15 °K, -457.6 °F) Boiling Point: -268.6 °C (4.549994 °K, -451.48 °F)

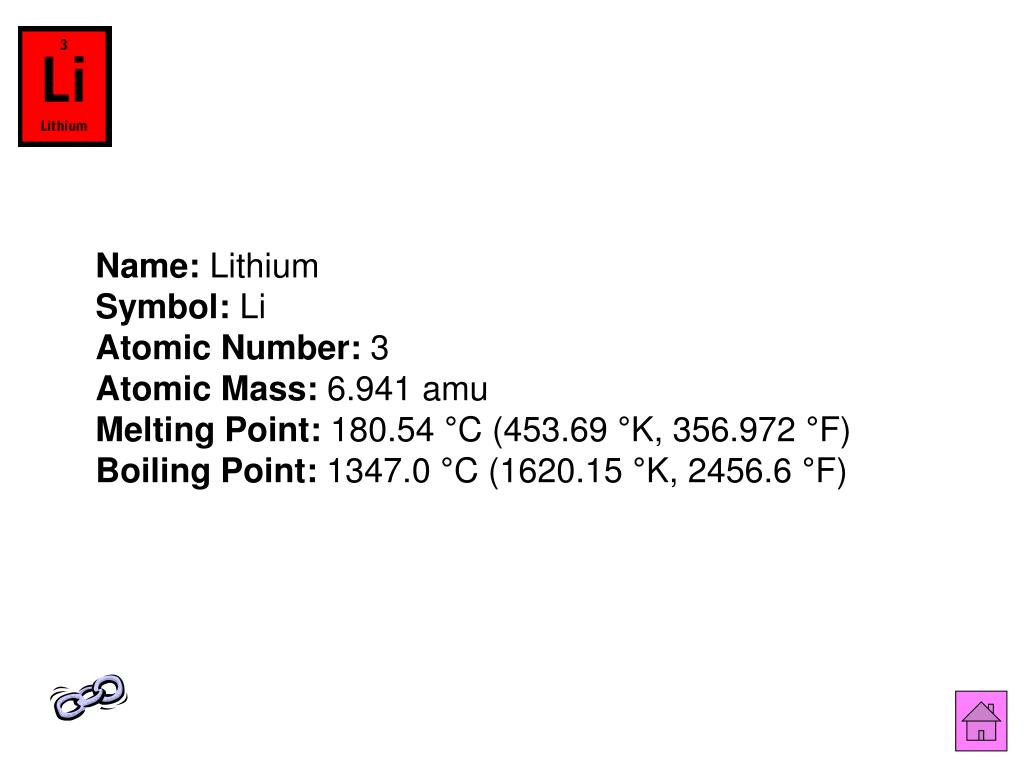

  5. Name: Lithium Symbol: Li Atomic Number: 3 Atomic Mass: 6.941 amu Melting Point: 180.54 °C (453.69 °K, 356.972 °F) Boiling Point: 1347.0 °C (1620.15 °K, 2456.6 °F)

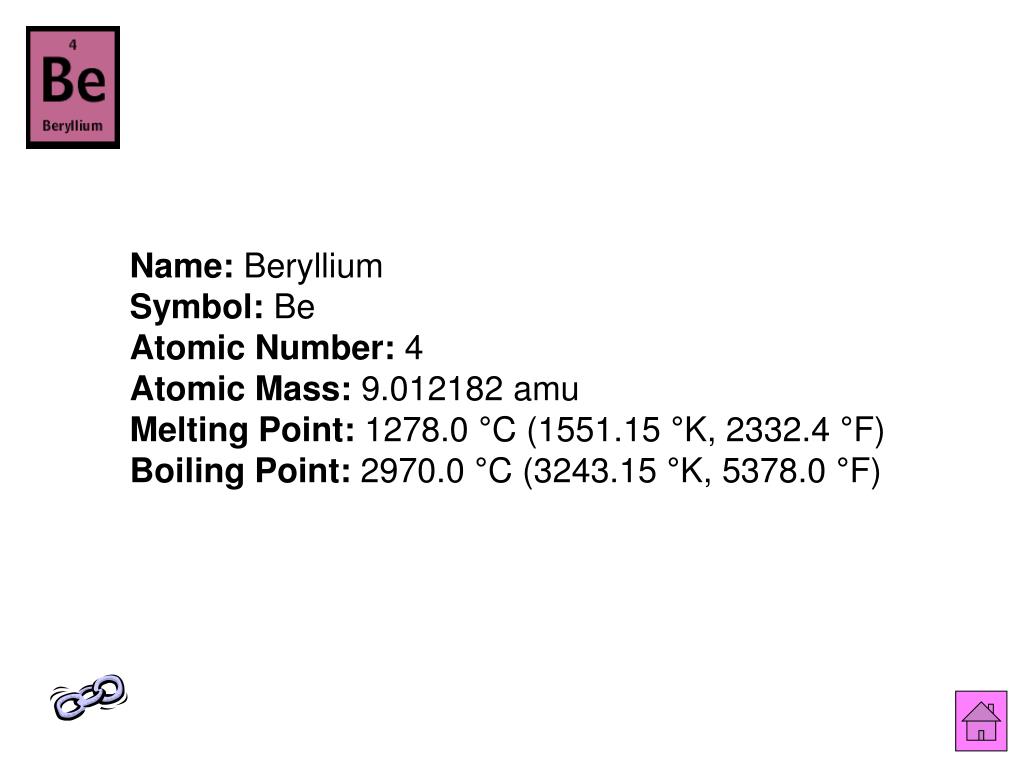

  6. Name: Beryllium Symbol: Be Atomic Number: 4 Atomic Mass: 9.012182 amu Melting Point: 1278.0 °C (1551.15 °K, 2332.4 °F) Boiling Point: 2970.0 °C (3243.15 °K, 5378.0 °F)

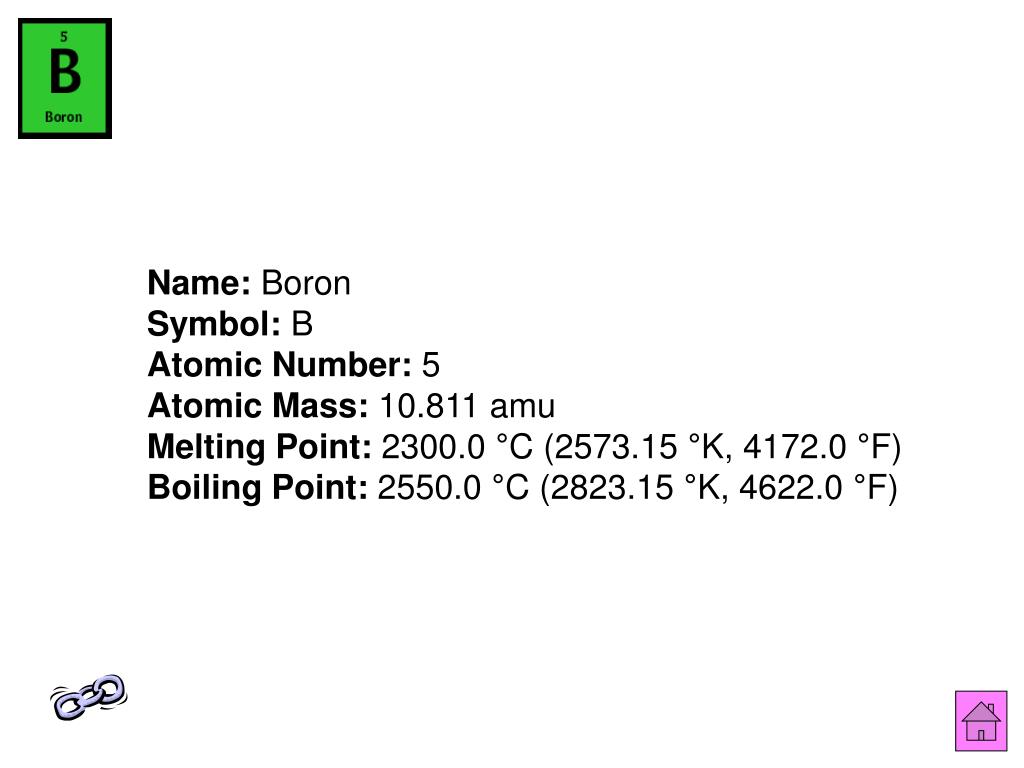

  7. Name: Boron Symbol: B Atomic Number: 5 Atomic Mass: 10.811 amu Melting Point: 2300.0 °C (2573.15 °K, 4172.0 °F) Boiling Point: 2550.0 °C (2823.15 °K, 4622.0 °F)

  8. Name: Carbon Symbol: C Atomic Number: 6 Atomic Mass: 12.0107 amu Melting Point: 3500.0 °C (3773.15 °K, 6332.0 °F) Boiling Point: 4827.0 °C (5100.15 °K, 8720.6 °F)

  9. Name: Nitrogen Symbol: N Atomic Number: 7 Atomic Mass: 14.00674 amu Melting Point: -209.9 °C (63.250008 °K, -345.81998 °F) Boiling Point: -195.8 °C (77.35 °K, -320.44 °F)

  10. Name: Oxygen Symbol: O Atomic Number: 8 Atomic Mass: 15.9994 amu Melting Point: -218.4 °C (54.750008 °K, -361.12 °F) Boiling Point: -183.0 °C (90.15 °K, -297.4 °F)

  11. Name: Fluorine Symbol: F Atomic Number: 9 Atomic Mass: 18.998404 amu Melting Point: -219.62 °C (53.530006 °K, -363.31598 °F) Boiling Point: -188.14 °C (85.01 °K, -306.652 °F)

  12. Name: Neon Symbol: Ne Atomic Number: 10 Atomic Mass: 20.1797 amu Melting Point: -248.6 °C (24.549994 °K, -415.48 °F) Boiling Point: -246.1 °C (27.049994 °K, -410.98 °F)

  13. Name: Sodium Symbol: Na Atomic Number: 11 Atomic Mass: 22.98977 amu Melting Point: 97.8 °C (370.95 °K, 208.04001 °F) Boiling Point: 552.9 °C (826.05005 °K, 1027.2201 °F)

  14. Name: Magnesium Symbol: Mg Atomic Number: 12 Atomic Mass: 24.305 amu Melting Point: 650.0 °C (923.15 °K, 1202.0 °F) Boiling Point: 1107.0 °C (1380.15 °K, 2024.6 °F)

  15. Name: Aluminum Symbol: Al Atomic Number: 13 Atomic Mass: 26.981539 amu Melting Point: 660.37 °C (933.52 °K, 1220.666 °F) Boiling Point: 2467.0 °C (2740.15 °K, 4472.6 °F)

  16. Name: Silicon Symbol: Si Atomic Number: 14 Atomic Mass: 28.0855 amu Melting Point: 1410.0 °C (1683.15 °K, 2570.0 °F) Boiling Point: 2355.0 °C (2628.15 °K, 4271.0 °F)

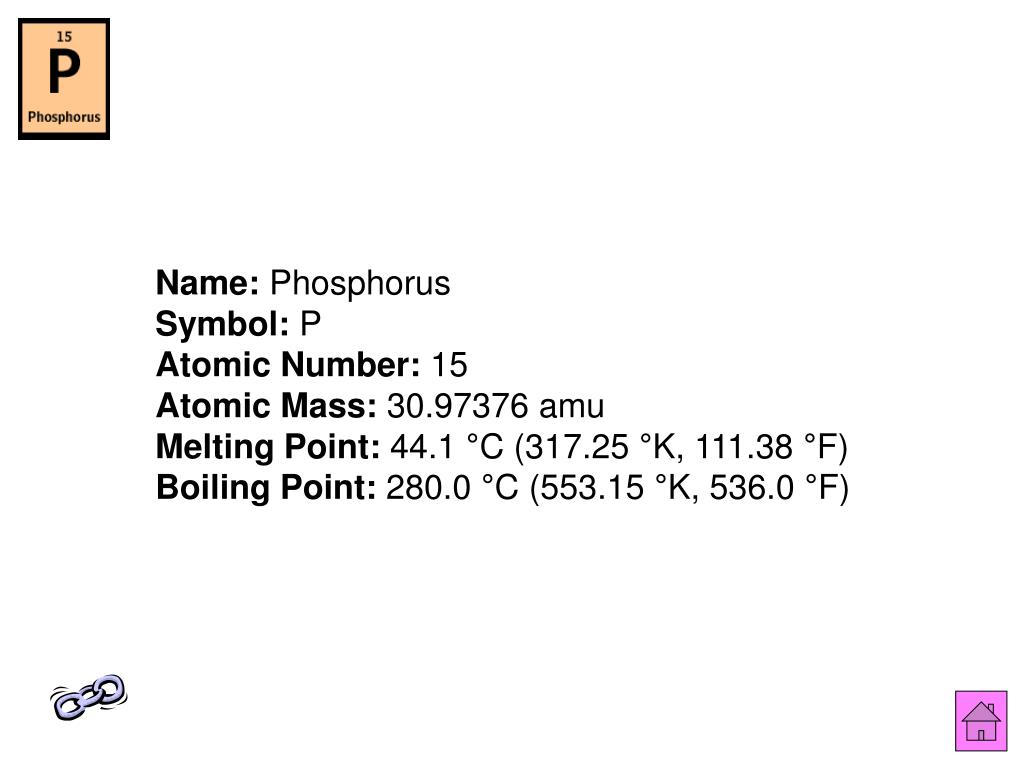

  17. Name: Phosphorus Symbol: P Atomic Number: 15 Atomic Mass: 30.97376 amu Melting Point: 44.1 °C (317.25 °K, 111.38 °F) Boiling Point: 280.0 °C (553.15 °K, 536.0 °F)

  18. Name: Sulfur Symbol: S Atomic Number: 16 Atomic Mass: 32.066 amu Melting Point: 112.8 °C (385.95 °K, 235.04001 °F) Boiling Point: 444.6 °C (717.75 °K, 832.28 °F)

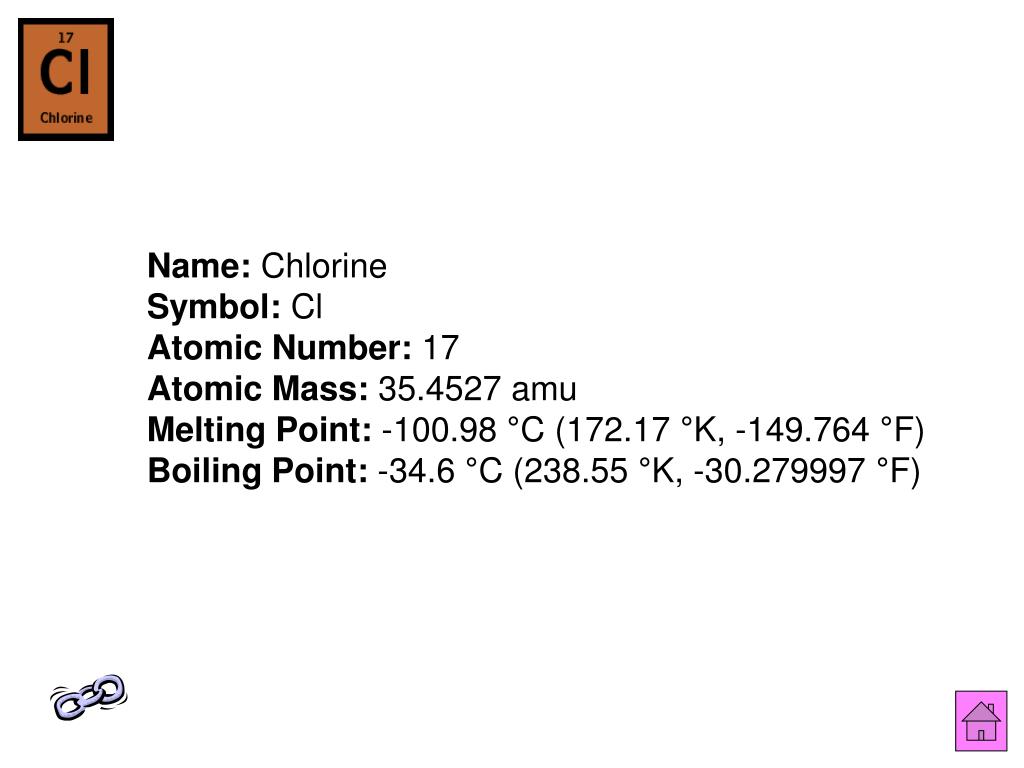

  19. Name: Chlorine Symbol: Cl Atomic Number: 17 Atomic Mass: 35.4527 amu Melting Point: -100.98 °C (172.17 °K, -149.764 °F) Boiling Point: -34.6 °C (238.55 °K, -30.279997 °F)

  20. Name: Argon Symbol: Ar Atomic Number: 18 Atomic Mass: 39.948 amu Melting Point: -189.3 °C (83.85 °K, -308.74 °F) Boiling Point: -186.0 °C (87.15 °K, -302.8 °F)

  21. Name: Potassium Symbol: K Atomic Number: 19 Atomic Mass: 39.0983 amu Melting Point: 63.65 °C (336.8 °K, 146.57 °F) Boiling Point: 774.0 °C (1047.15 °K, 1425.2 °F)

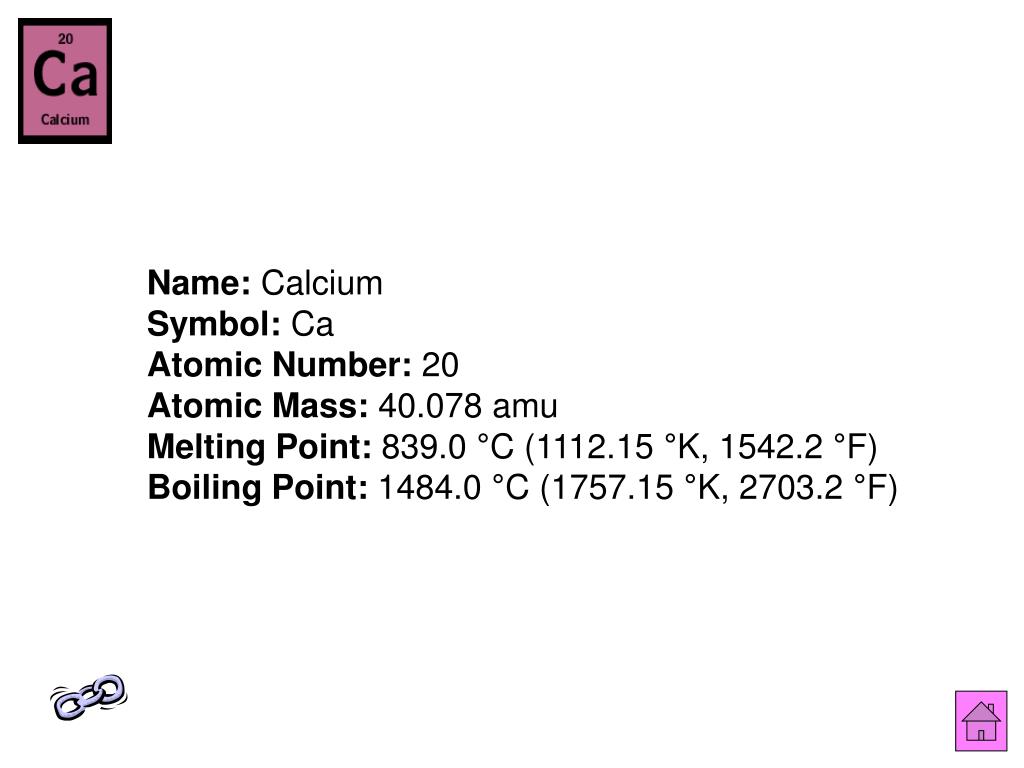

  22. Name: Calcium Symbol: Ca Atomic Number: 20 Atomic Mass: 40.078 amu Melting Point: 839.0 °C (1112.15 °K, 1542.2 °F) Boiling Point: 1484.0 °C (1757.15 °K, 2703.2 °F)

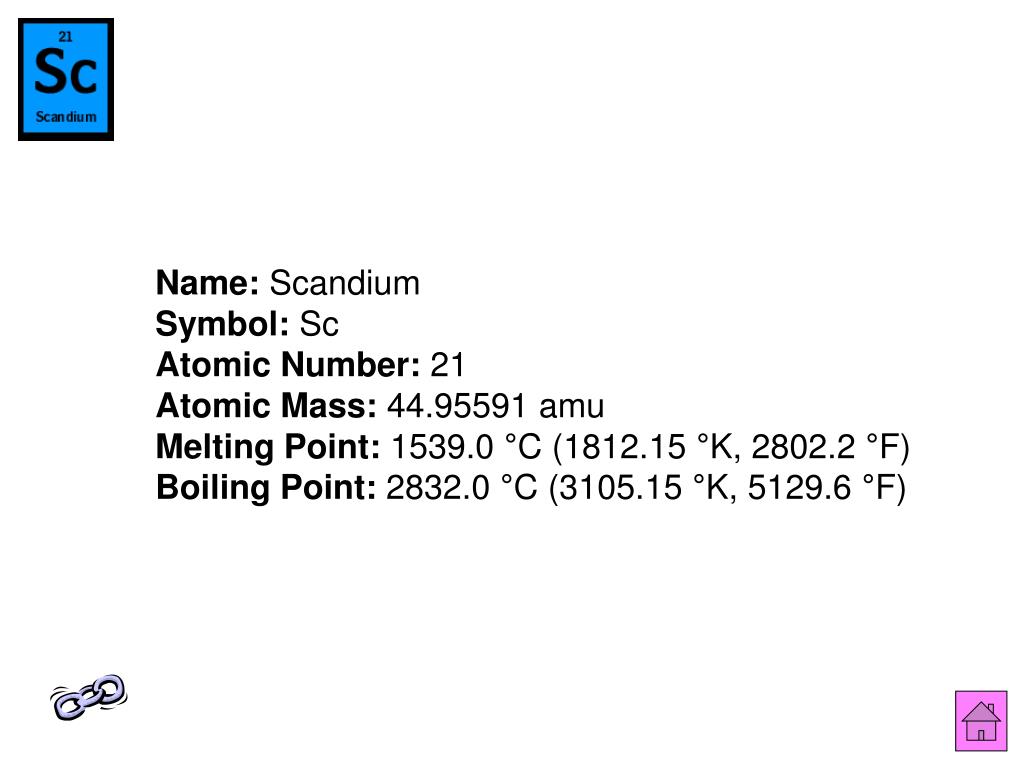

  23. Name: Scandium Symbol: Sc Atomic Number: 21 Atomic Mass: 44.95591 amu Melting Point: 1539.0 °C (1812.15 °K, 2802.2 °F) Boiling Point: 2832.0 °C (3105.15 °K, 5129.6 °F)

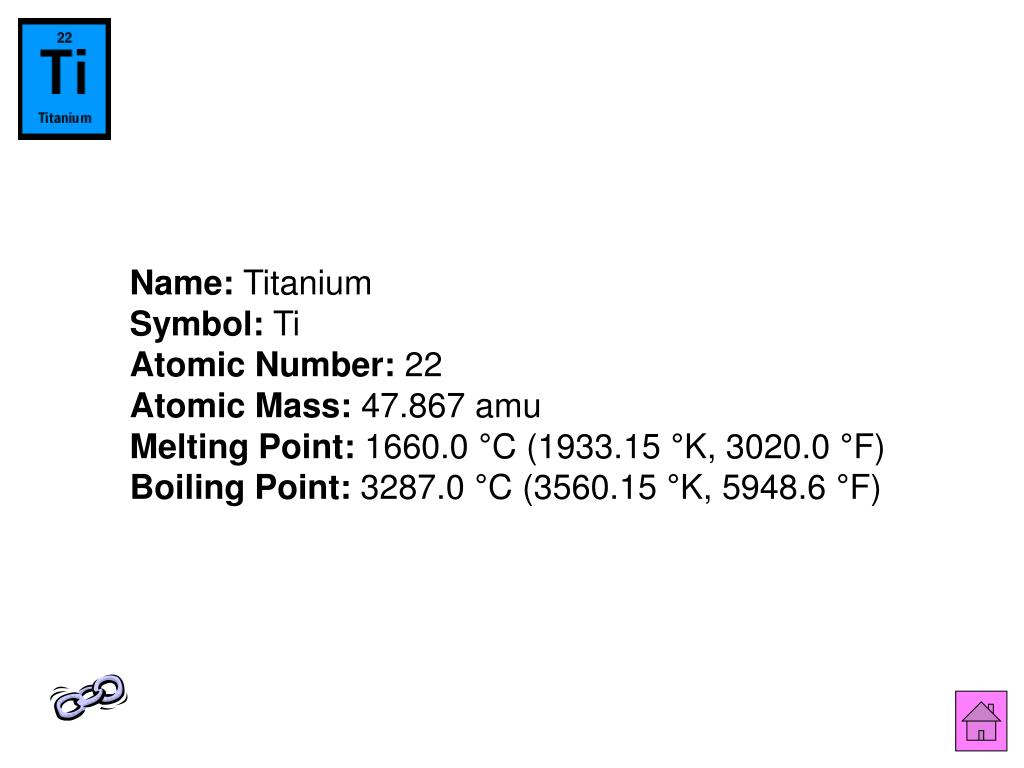

  24. Name: Titanium Symbol: Ti Atomic Number: 22 Atomic Mass: 47.867 amu Melting Point: 1660.0 °C (1933.15 °K, 3020.0 °F) Boiling Point: 3287.0 °C (3560.15 °K, 5948.6 °F)

  25. Name: Vanadium Symbol: V Atomic Number: 23 Atomic Mass: 50.9415 amu Melting Point: 1890.0 °C (2163.15 °K, 3434.0 °F) Boiling Point: 3380.0 °C (3653.15 °K, 6116.0 °F)

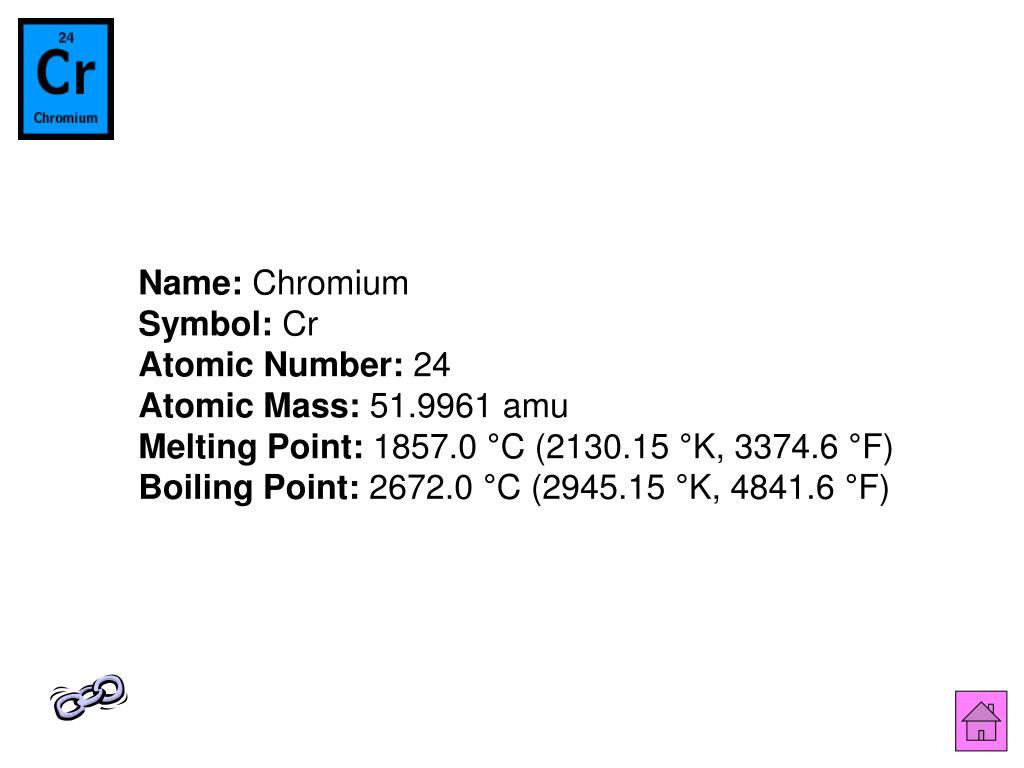

  26. Name: Chromium Symbol: Cr Atomic Number: 24 Atomic Mass: 51.9961 amu Melting Point: 1857.0 °C (2130.15 °K, 3374.6 °F) Boiling Point: 2672.0 °C (2945.15 °K, 4841.6 °F)

  27. Name: Manganese Symbol: Mn Atomic Number: 25 Atomic Mass: 54.93805 amu Melting Point: 1245.0 °C (1518.15 °K, 2273.0 °F) Boiling Point: 1962.0 °C (2235.15 °K, 3563.6 °F)

  28. Name: Iron Symbol: Fe Atomic Number: 26 Atomic Mass: 55.845 amu Melting Point: 1535.0 °C (1808.15 °K, 2795.0 °F) Boiling Point: 2750.0 °C (3023.15 °K, 4982.0 °F)

  29. Name: Cobalt Symbol: Co Atomic Number: 27 Atomic Mass: 58.9332 amu Melting Point: 1495.0 °C (1768.15 °K, 2723.0 °F) Boiling Point: 2870.0 °C (3143.15 °K, 5198.0 °F)

  30. Name: Nickel Symbol: Ni Atomic Number: 28 Atomic Mass: 58.6934 amu Melting Point: 1453.0 °C (1726.15 °K, 2647.4 °F) Boiling Point: 2732.0 °C (3005.15 °K, 4949.6 °F)

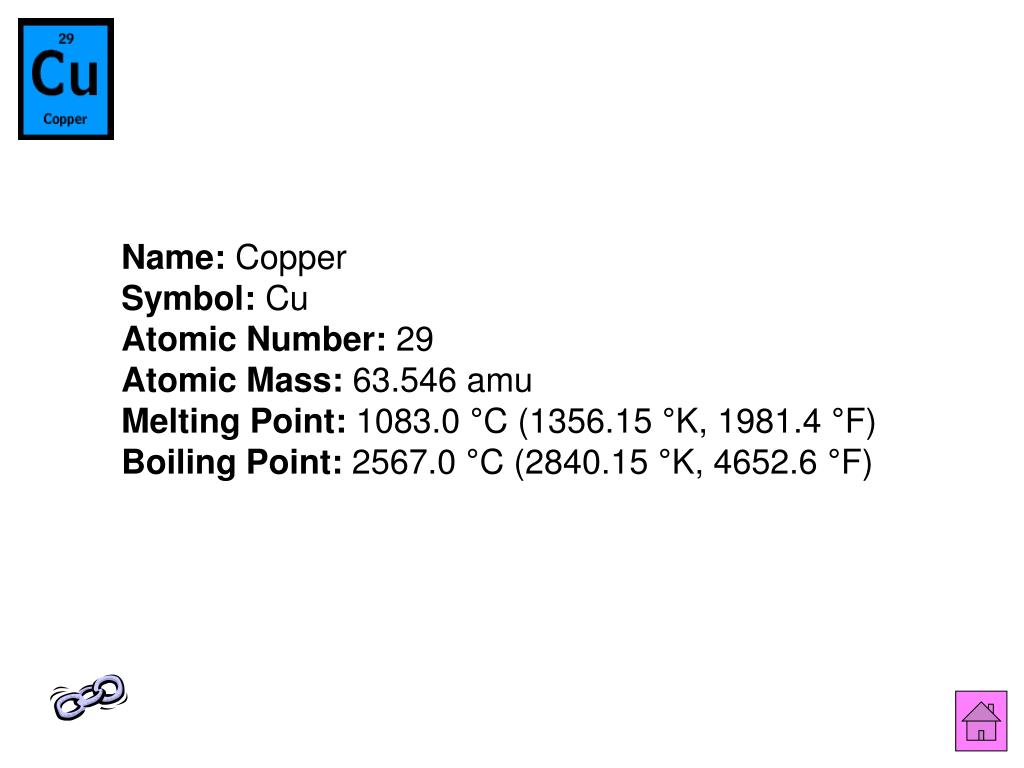

  31. Name: Copper Symbol: Cu Atomic Number: 29 Atomic Mass: 63.546 amu Melting Point: 1083.0 °C (1356.15 °K, 1981.4 °F) Boiling Point: 2567.0 °C (2840.15 °K, 4652.6 °F)

  32. Name: Zinc Symbol: Zn Atomic Number: 30 Atomic Mass: 65.39 amu Melting Point: 419.58 °C (692.73 °K, 787.24396 °F) Boiling Point: 907.0 °C (1180.15 °K, 1664.6 °F)

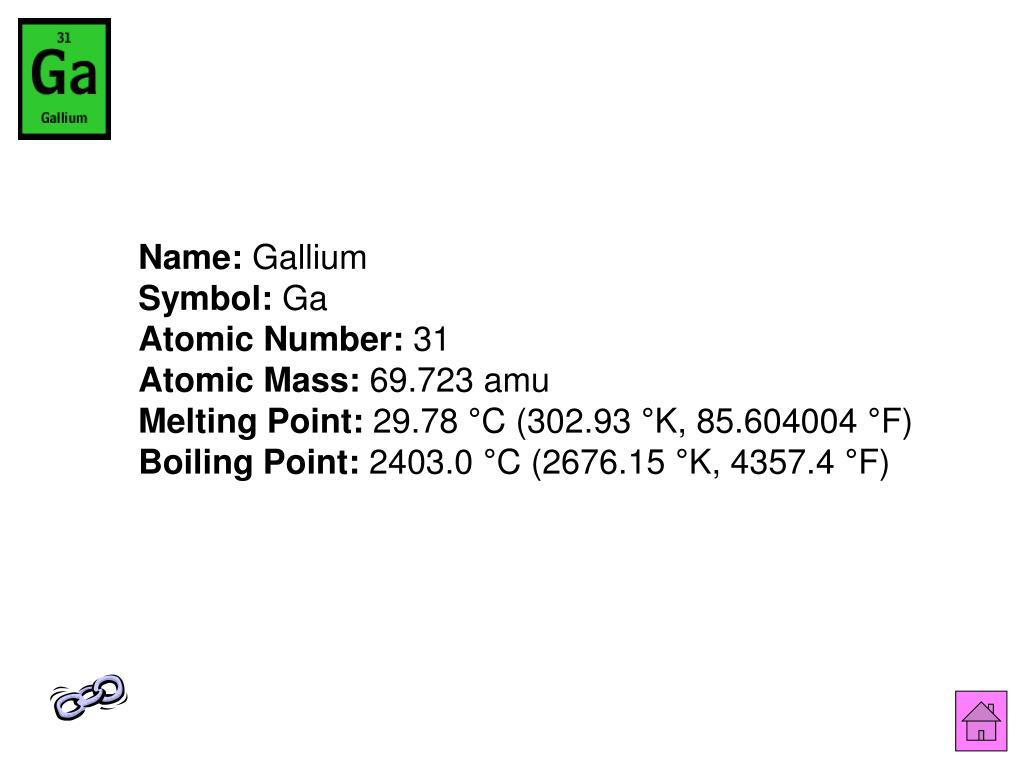

  33. Name: Gallium Symbol: Ga Atomic Number: 31 Atomic Mass: 69.723 amu Melting Point: 29.78 °C (302.93 °K, 85.604004 °F) Boiling Point: 2403.0 °C (2676.15 °K, 4357.4 °F)

  34. Name: Germanium Symbol: Ge Atomic Number: 32 Atomic Mass: 72.61 amu Melting Point: 937.4 °C (1210.55 °K, 1719.3201 °F) Boiling Point: 2830.0 °C (3103.15 °K, 5126.0 °F)

  35. Name: Arsenic Symbol: As Atomic Number: 33 Atomic Mass: 74.9216 amu Melting Point: 817.0 °C (1090.15 °K, 1502.6 °F) Boiling Point: 613.0 °C (886.15 °K, 1135.4 °F)

  36. Name: Selenium Symbol: Se Atomic Number: 34 Atomic Mass: 78.96 amu Melting Point: 217.0 °C (490.15 °K, 422.6 °F) Boiling Point: 684.9 °C (958.05005 °K, 1264.8201 °F)

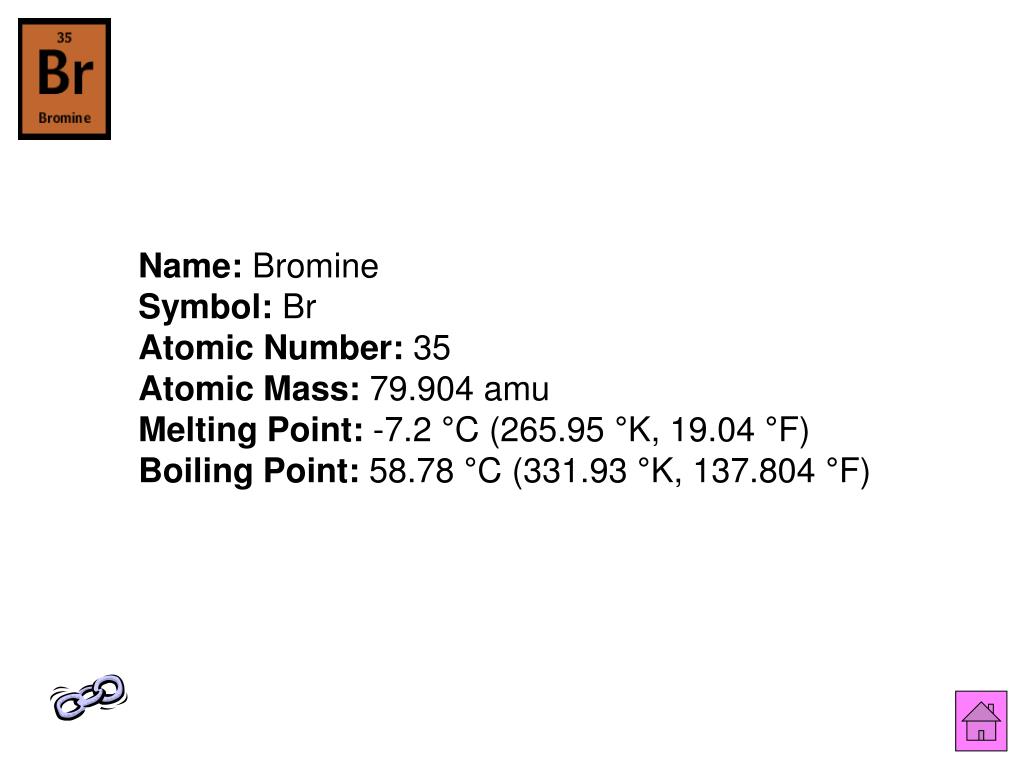

  37. Name: Bromine Symbol: Br Atomic Number: 35 Atomic Mass: 79.904 amu Melting Point: -7.2 °C (265.95 °K, 19.04 °F) Boiling Point: 58.78 °C (331.93 °K, 137.804 °F)

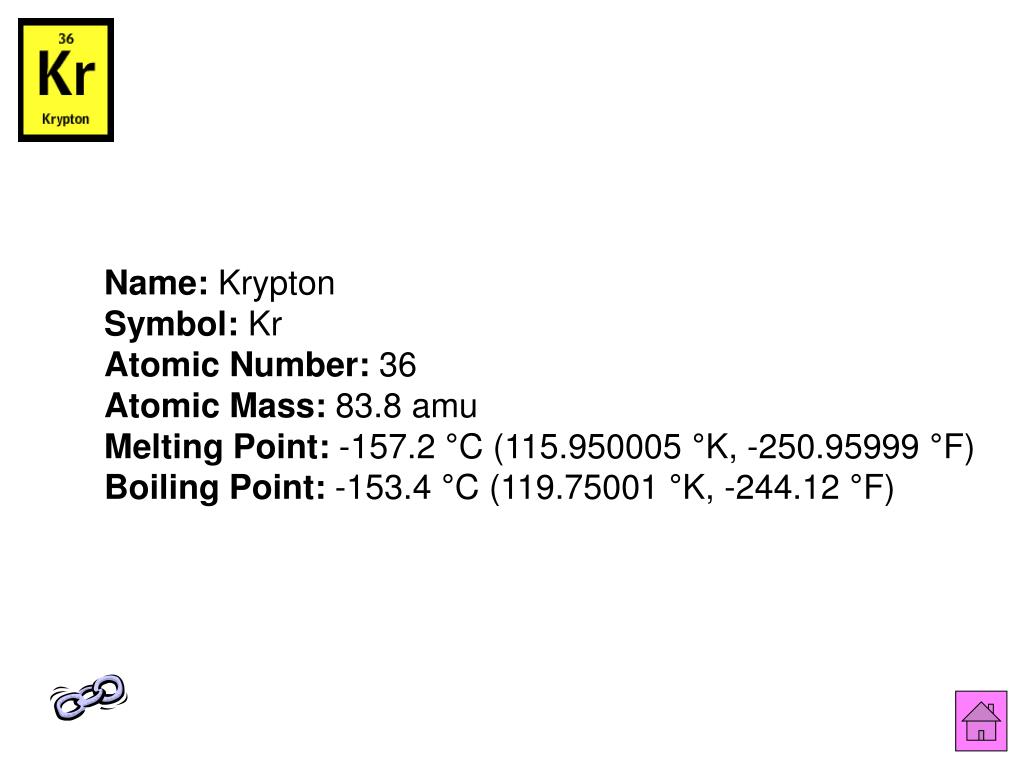

  38. Name: Krypton Symbol: Kr Atomic Number: 36 Atomic Mass: 83.8 amu Melting Point: -157.2 °C (115.950005 °K, -250.95999 °F) Boiling Point: -153.4 °C (119.75001 °K, -244.12 °F)

  39. Name: Rubidium Symbol: Rb Atomic Number: 37 Atomic Mass: 85.4678 amu Melting Point: 38.89 °C (312.04 °K, 102.002 °F) Boiling Point: 688.0 °C (961.15 °K, 1270.4 °F)

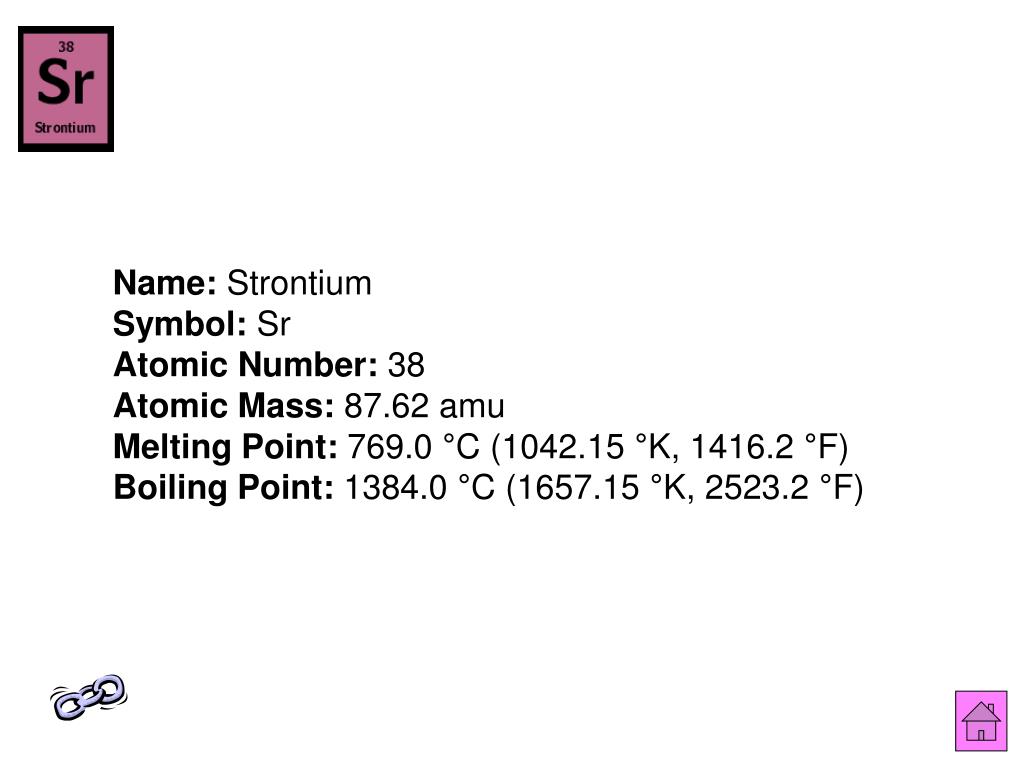

  40. Name: Strontium Symbol: Sr Atomic Number: 38 Atomic Mass: 87.62 amu Melting Point: 769.0 °C (1042.15 °K, 1416.2 °F) Boiling Point: 1384.0 °C (1657.15 °K, 2523.2 °F)

  41. Name: Yttrium Symbol: Y Atomic Number: 39 Atomic Mass: 88.90585 amu Melting Point: 1523.0 °C (1796.15 °K, 2773.4 °F) Boiling Point: 3337.0 °C (3610.15 °K, 6038.6 °F)

  42. Name: Zirconium Symbol: Zr Atomic Number: 40 Atomic Mass: 91.224 amu Melting Point: 1852.0 °C (2125.15 °K, 3365.6 °F) Boiling Point: 4377.0 °C (4650.15 °K, 7910.6 °F)

  43. Name: Niobium Symbol: Nb Atomic Number: 41 Atomic Mass: 92.90638 amu Melting Point: 2468.0 °C (2741.15 °K, 4474.4 °F) Boiling Point: 4927.0 °C (5200.15 °K, 8900.6 °F)

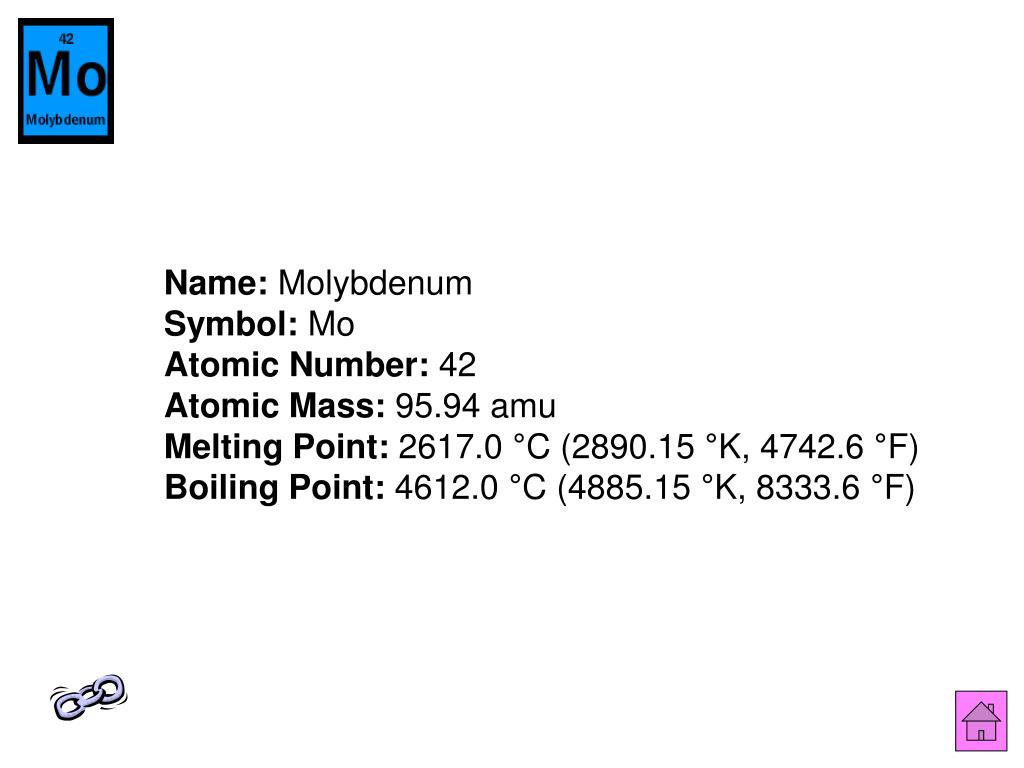

  44. Name: Molybdenum Symbol: Mo Atomic Number: 42 Atomic Mass: 95.94 amu Melting Point: 2617.0 °C (2890.15 °K, 4742.6 °F) Boiling Point: 4612.0 °C (4885.15 °K, 8333.6 °F)

  45. Name: Technetium Symbol: Tc Atomic Number: 43 Atomic Mass: (98.0) amu Melting Point: 2200.0 °C (2473.15 °K, 3992.0 °F) Boiling Point: 4877.0 °C (5150.15 °K, 8810.6 °F)

  46. Name: Ruthenium Symbol: Ru Atomic Number: 44 Atomic Mass: 101.07 amu Melting Point: 2250.0 °C (2523.15 °K, 4082.0 °F) Boiling Point: 3900.0 °C (4173.15 °K, 7052.0 °F)

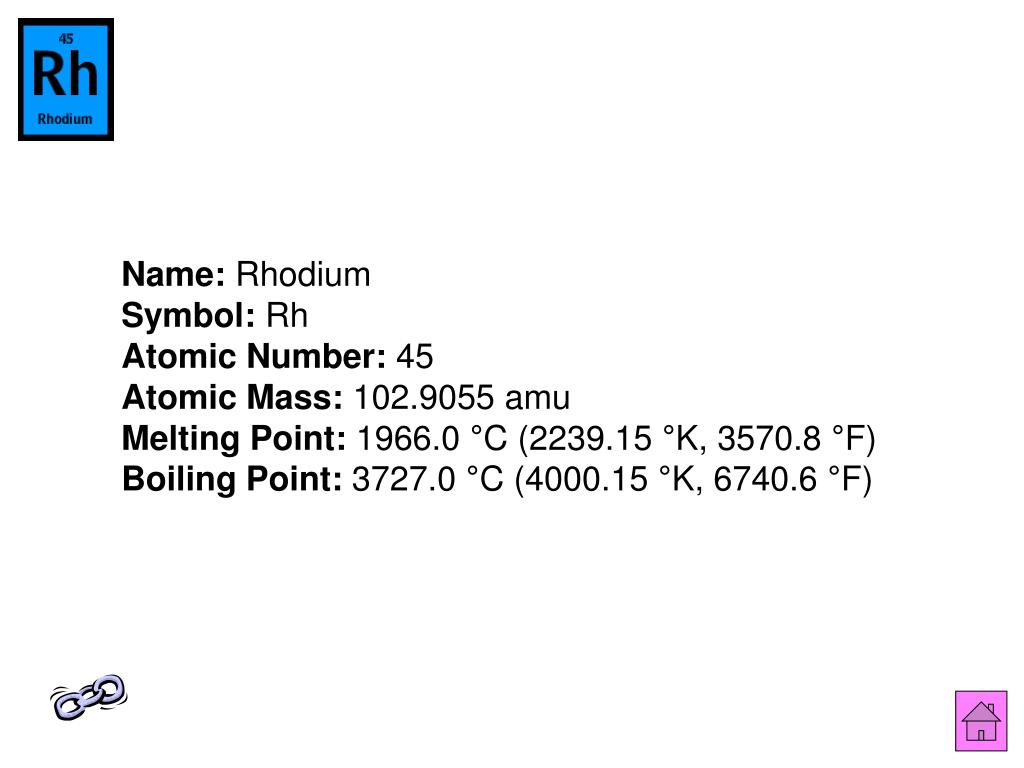

  47. Name: Rhodium Symbol: Rh Atomic Number: 45 Atomic Mass: 102.9055 amu Melting Point: 1966.0 °C (2239.15 °K, 3570.8 °F) Boiling Point: 3727.0 °C (4000.15 °K, 6740.6 °F)

  48. Name: Palladium Symbol: Pd Atomic Number: 46 Atomic Mass: 106.42 amu Melting Point: 1552.0 °C (1825.15 °K, 2825.6 °F) Boiling Point: 2927.0 °C (3200.15 °K, 5300.6 °F)

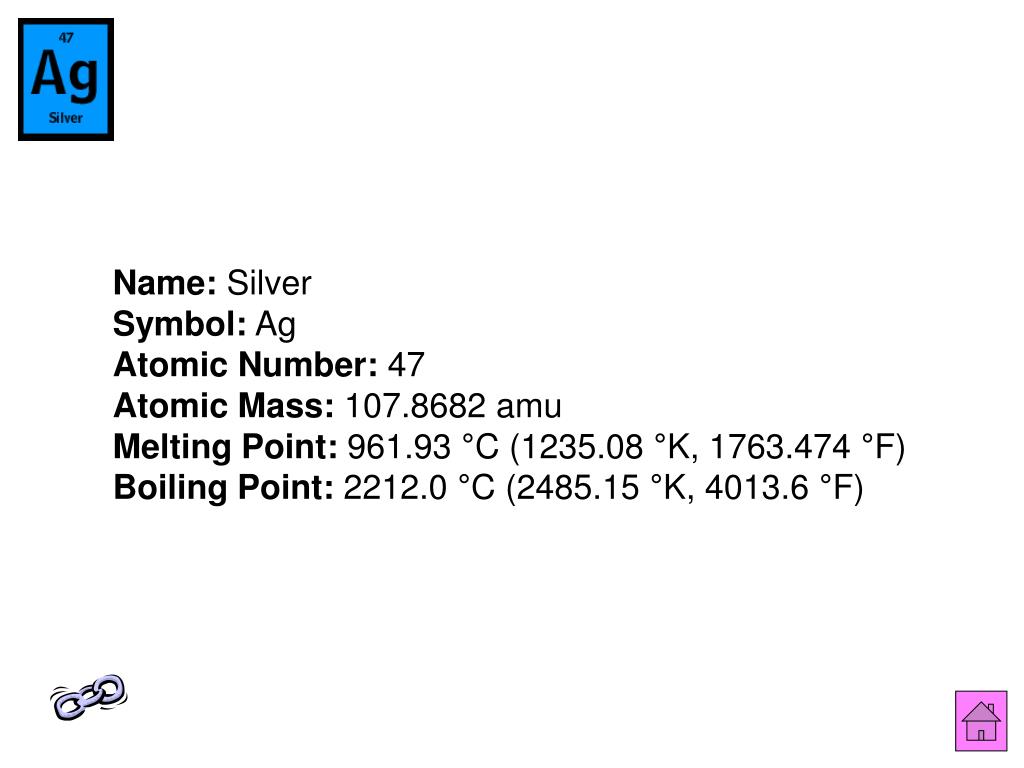

  49. Name: Silver Symbol: Ag Atomic Number: 47 Atomic Mass: 107.8682 amu Melting Point: 961.93 °C (1235.08 °K, 1763.474 °F) Boiling Point: 2212.0 °C (2485.15 °K, 4013.6 °F)

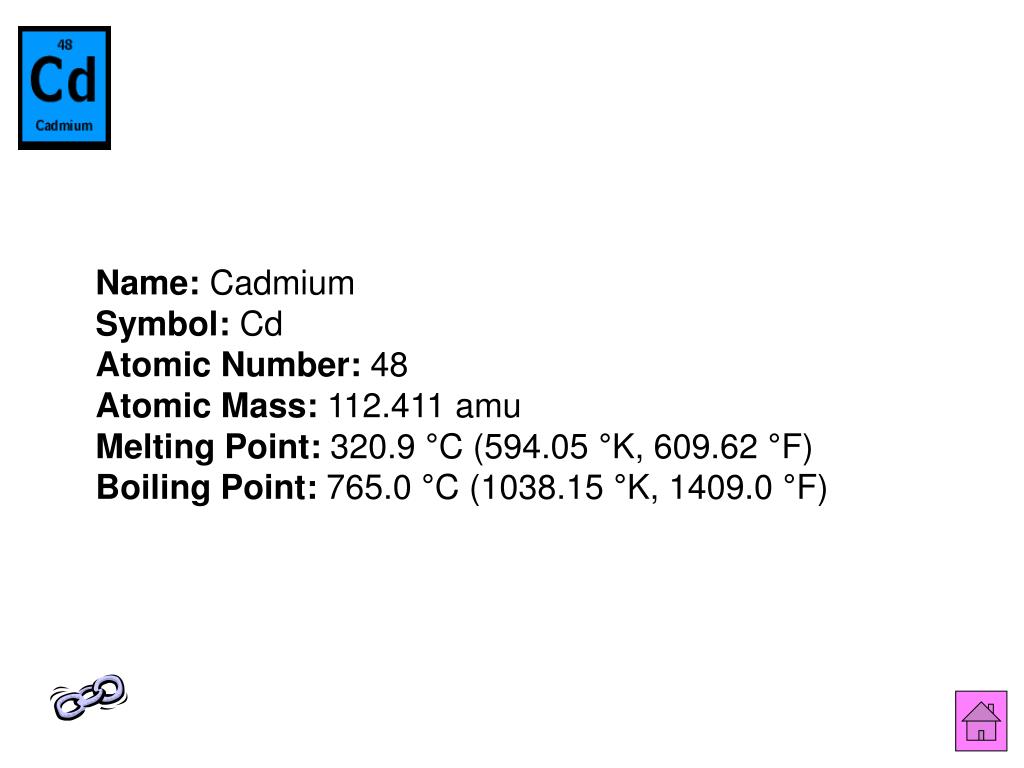

  50. Name: Cadmium Symbol: Cd Atomic Number: 48 Atomic Mass: 112.411 amu Melting Point: 320.9 °C (594.05 °K, 609.62 °F) Boiling Point: 765.0 °C (1038.15 °K, 1409.0 °F)
