  1. IMS IP Multimedia Subsystem Interactive Gaming Application for the IMS Platform ALLANMUSHABE MSc Elec Eng

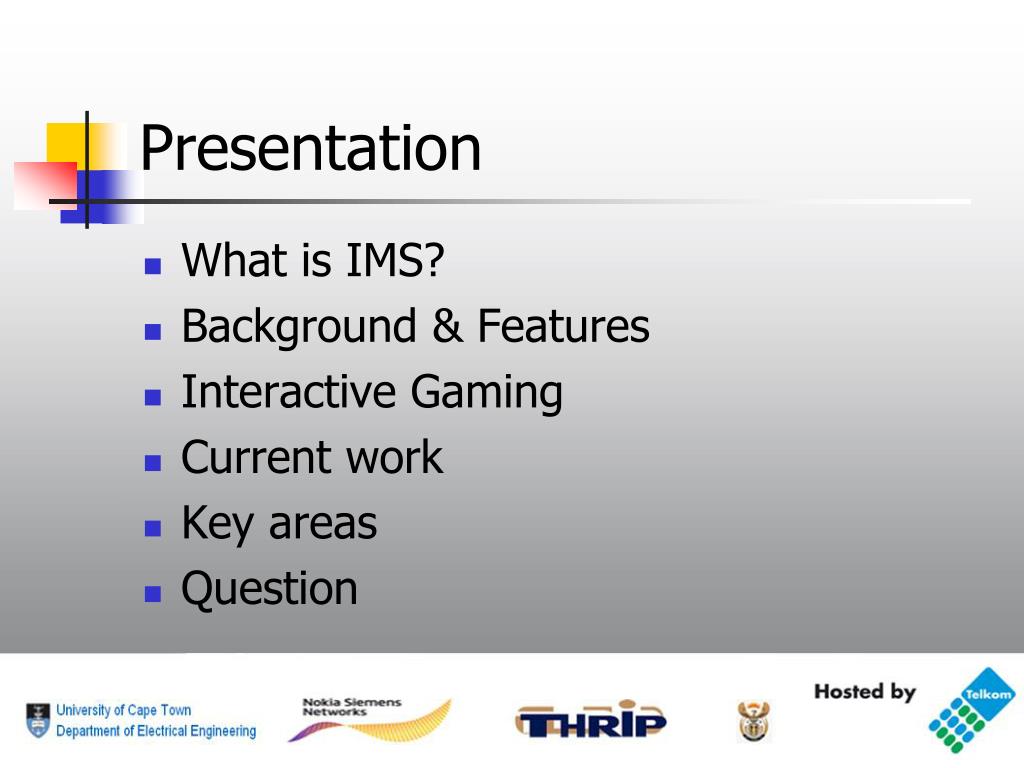

  2. Presentation • What is IMS? • Background & Features • Interactive Gaming • Current work • Key areas • Question MSc Elec Eng

  3. What is IMS? • IMS is a global standard service platform for NGN communication • It integrates current services in an effort to create an all IP based network • Also designed to enhance current services • Its design was based on the SIP protocol MSc Elec Eng

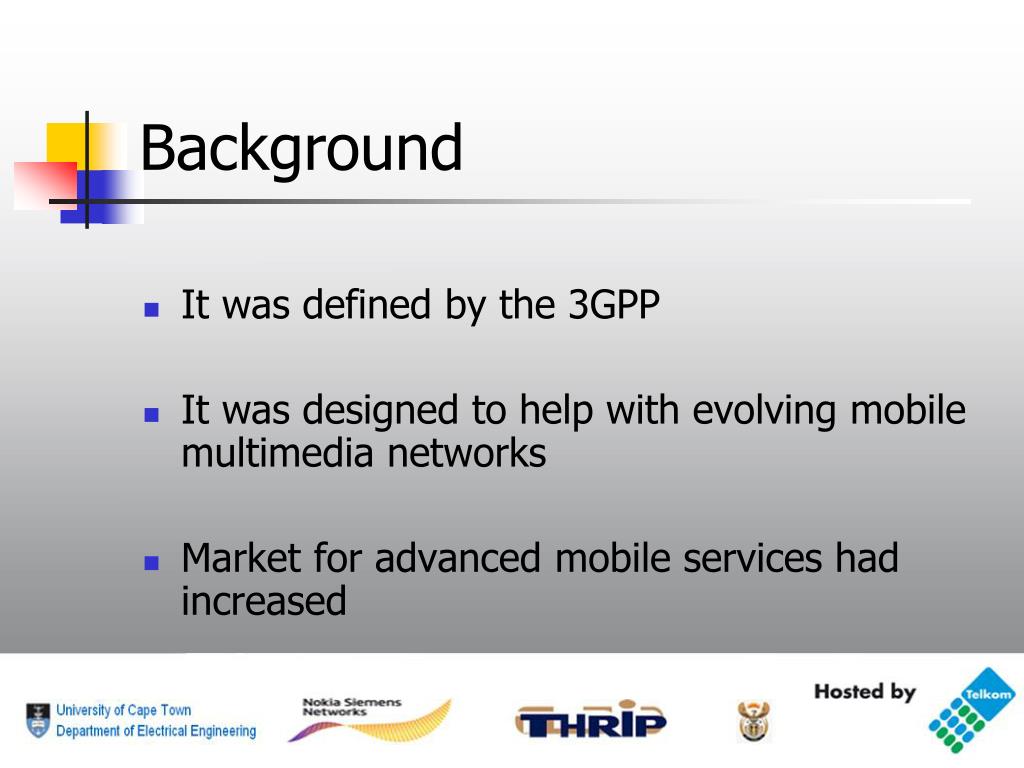

  4. Background • It was defined by the 3GPP • It was designed to help with evolving mobile multimedia networks • Market for advanced mobile services had increased MSc Elec Eng

  5. Features of IMS capability • Presence • Push 2 Talk • Video Conferencing • Voice Messaging • Instant Messaging • Multi-player gaming • Other multimedia services MSc Elec Eng

  6. MSc Elec Eng

  7. Interactive Gaming • Over the last decade there has been a visible increase in online gaming • Currently 62% of gamers play online [1] • At the moment ISPs make up the majority of the revenues from the games[1] MSc Elec Eng

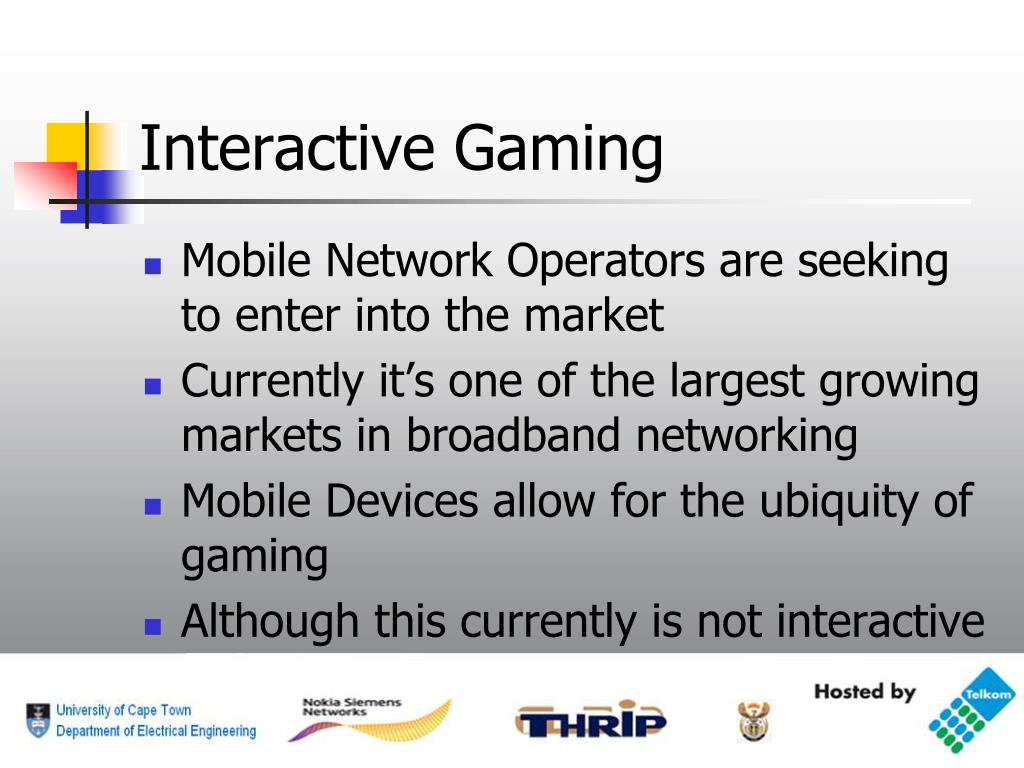

  8. Interactive Gaming • Mobile Network Operators are seeking to enter into the market • Currently it’s one of the largest growing markets in broadband networking • Mobile Devices allow for the ubiquity of gaming • Although this currently is not interactive MSc Elec Eng

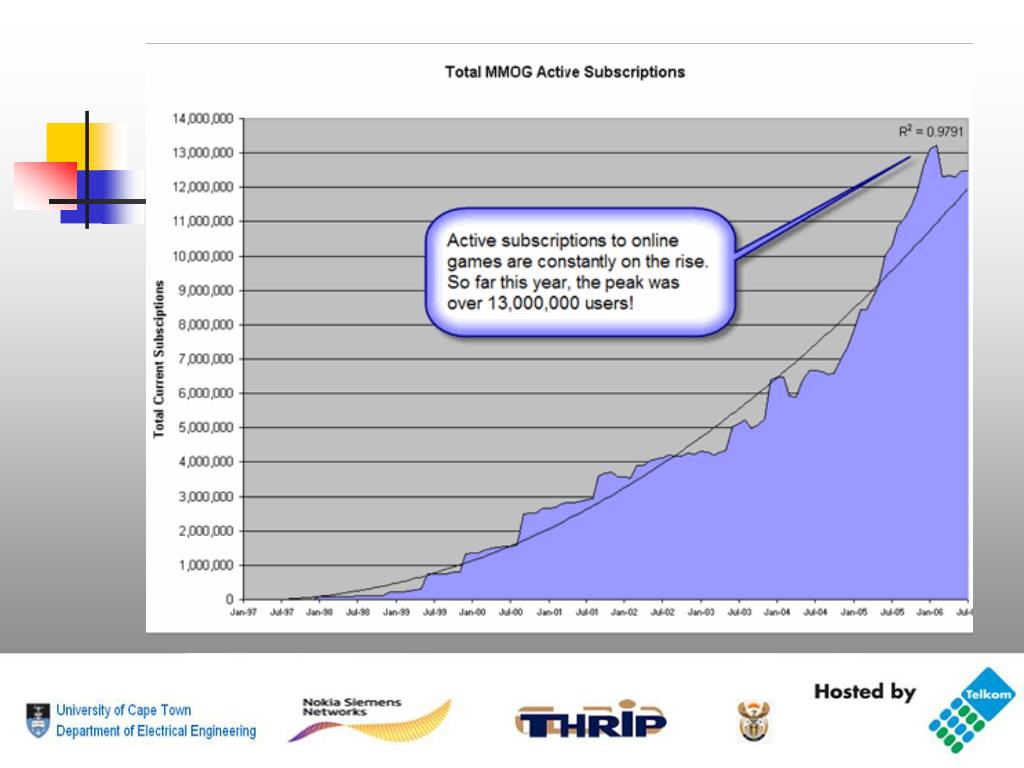

  9. MSc Elec Eng

  10. Online Requirements • Network • Communication Range • Speed • Network Coverage • Latency • Bandwidth • Client • Processing Power • Graphics • Memory • Ergonomics MSc Elec Eng

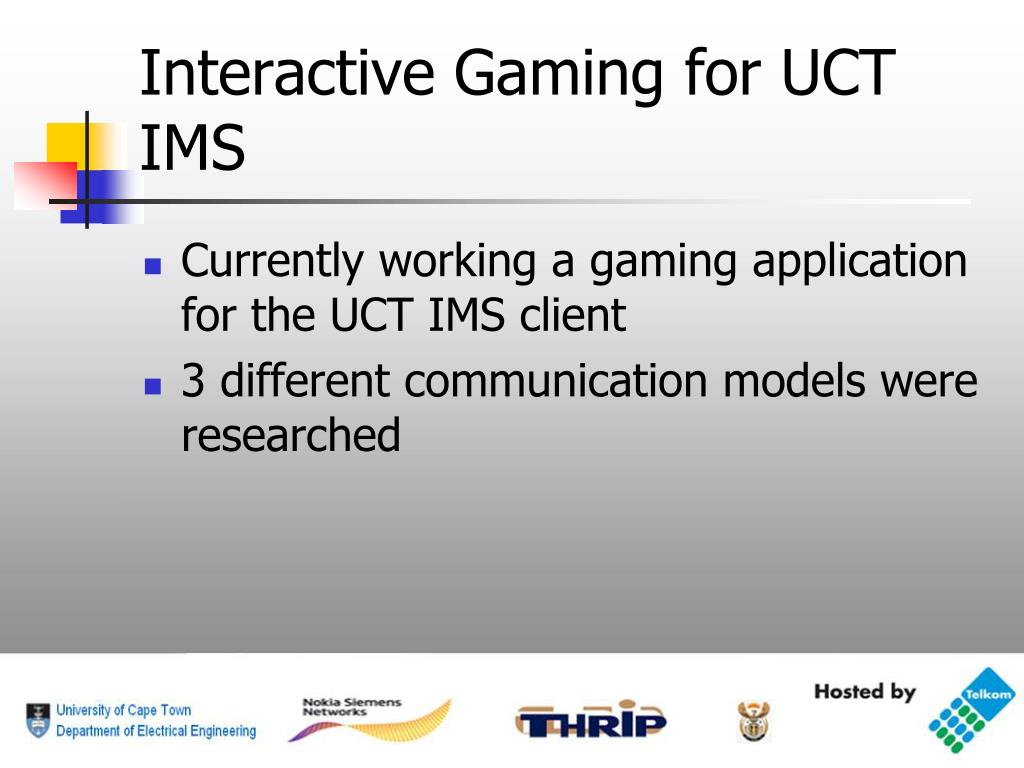

  11. Interactive Gaming for UCT IMS • Currently working a gaming application for the UCT IMS client • 3 different communication models were researched MSc Elec Eng

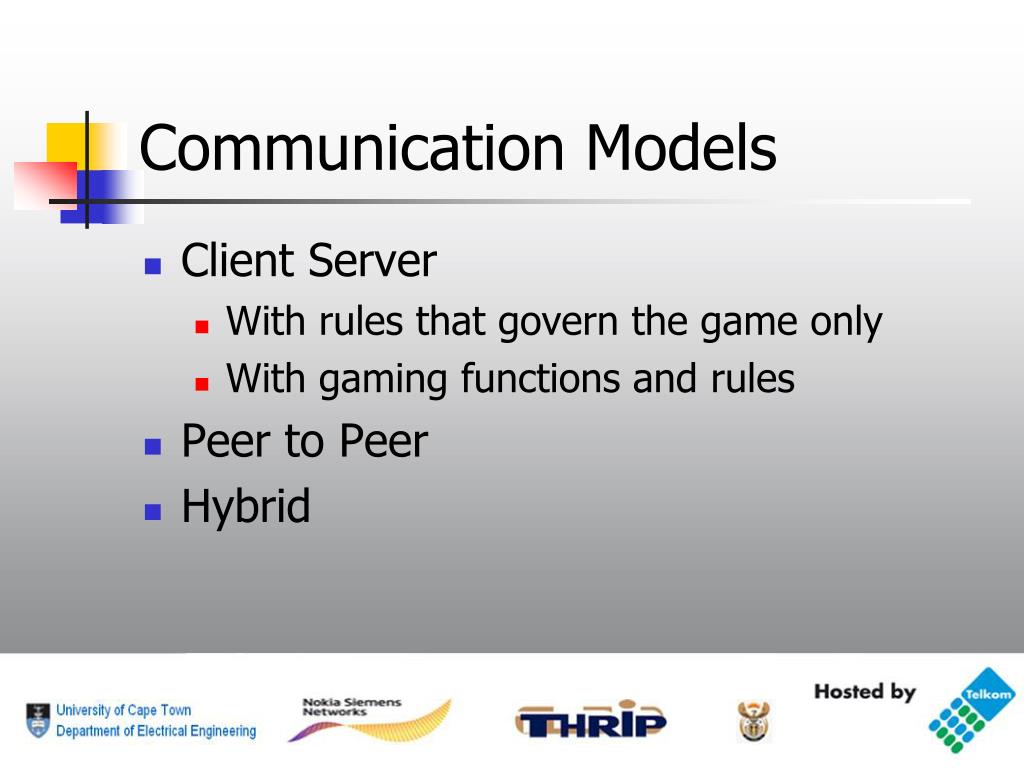

  12. Communication Models • Client Server • With rules that govern the game only • With gaming functions and rules • Peer to Peer • Hybrid MSc Elec Eng

  13. Client Server • With Rules Only • Resource Friendly • Easier to Implement • Less User Practical • More Complex Gaming • With Game & Rules • Non resource friendly • Harder to implement • More User Practical • Less Complex Games MSc Elec Eng

  14. Peer to Peer • Generally not user practical • Ease of implementation, Resource use and User Practicality dependant on the game complexity MSc Elec Eng

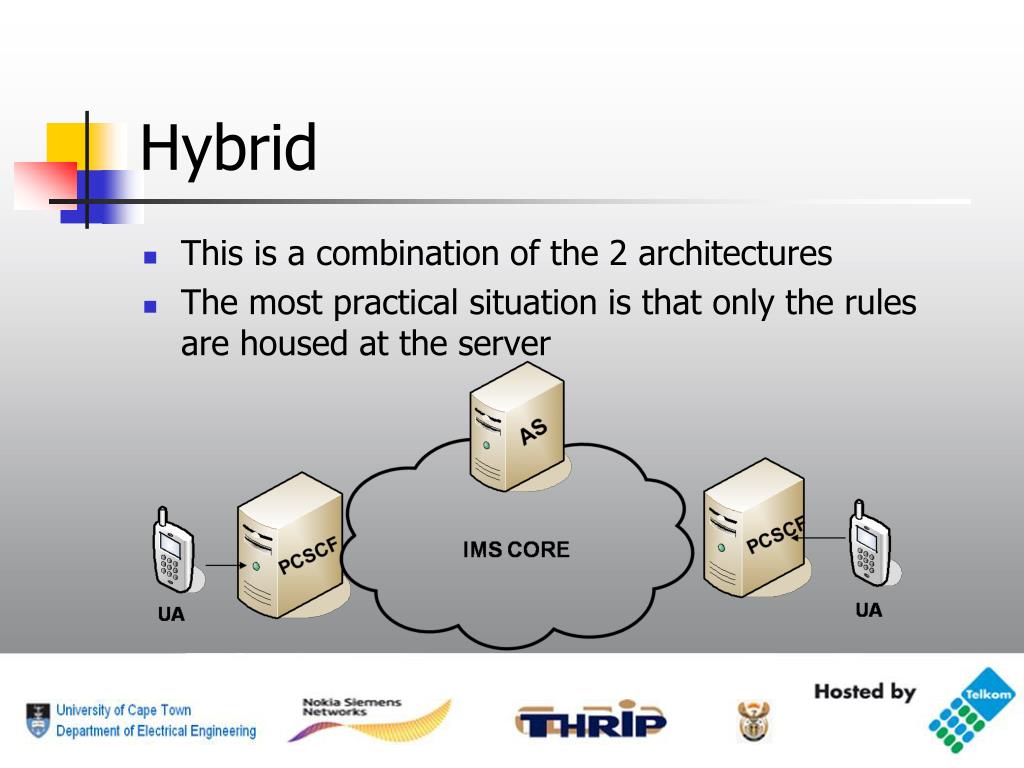

  15. Hybrid • This is a combination of the 2 architectures • The most practical situation is that only the rules are housed at the server MSc Elec Eng

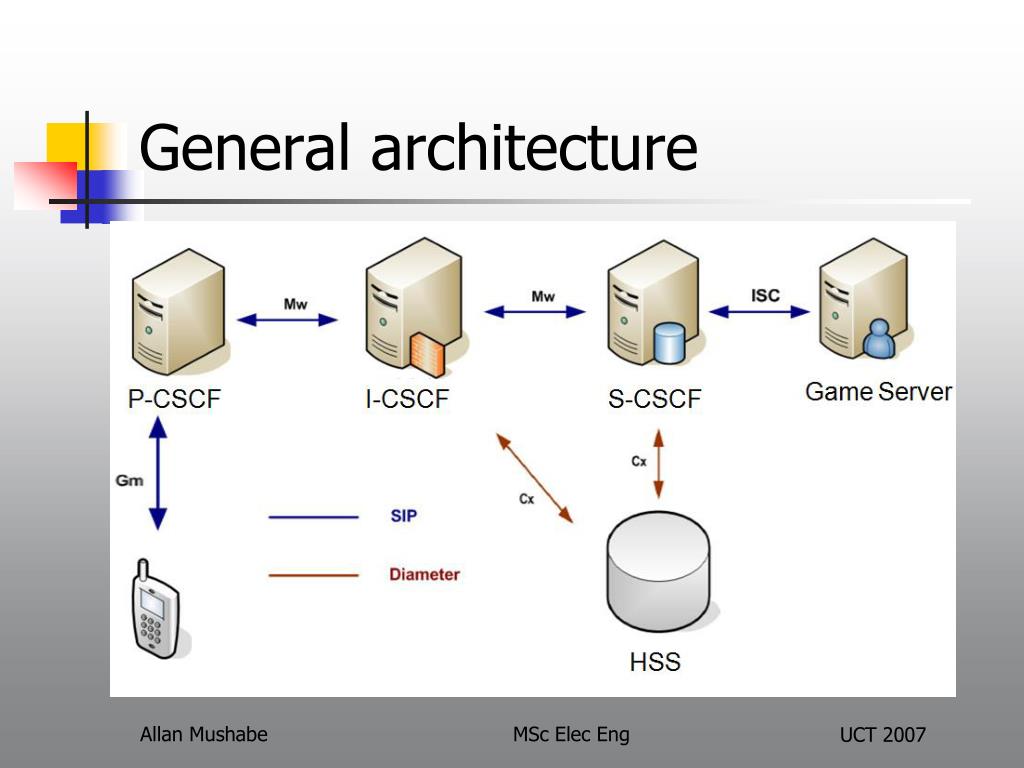

  16. General architecture MSc Elec Eng

  17. Game Server P-CSCF S-CSCF UA SUBSCRIBE SUBSCRIBE SUBSCRIBE 200 ok 200 ok 200 ok SUBSCRIPTION DIALOG ESTABLISHED NOTIFY NOTIFY NOTIFY 200 ok 200 ok 200 ok NOTIFY NOTIFY NOTIFY 200 ok 200 ok 200 ok RESULT PUBLISH PUBLISH PUBLISH 200 ok 200 ok 200 ok BYE BYE BYE 200 ok 200 ok 200 ok MSc Elec Eng SUBSCRIPTION DIALOG CLOSED

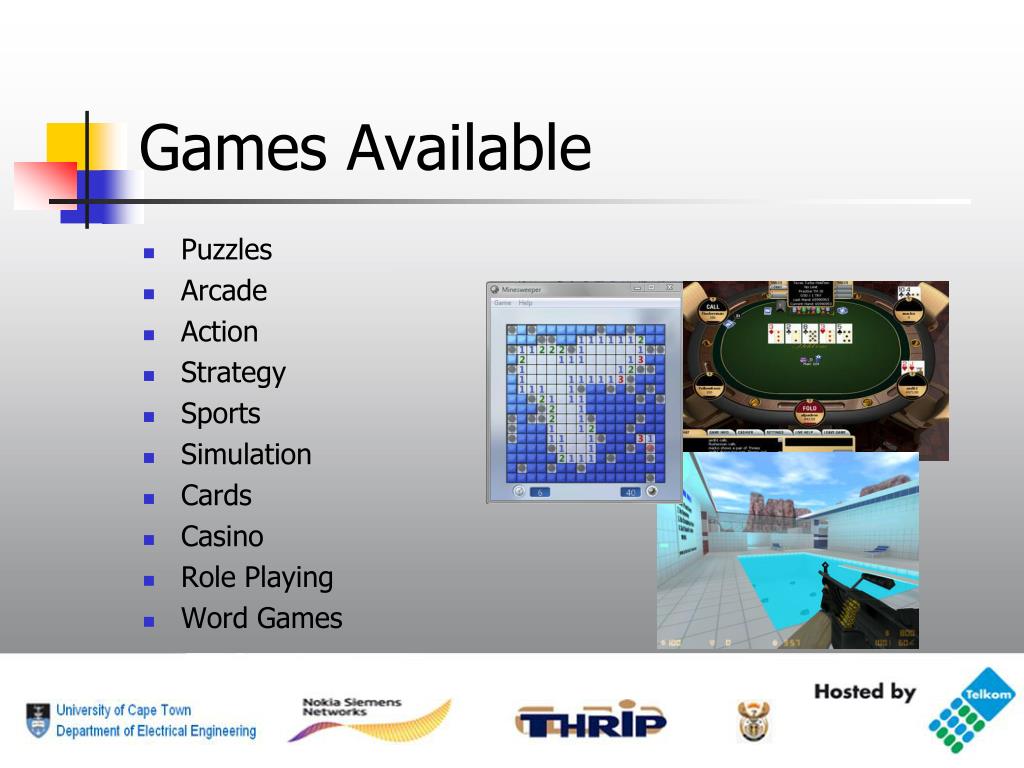

  18. Games Available • Puzzles • Arcade • Action • Strategy • Sports • Simulation • Cards • Casino • Role Playing • Word Games MSc Elec Eng

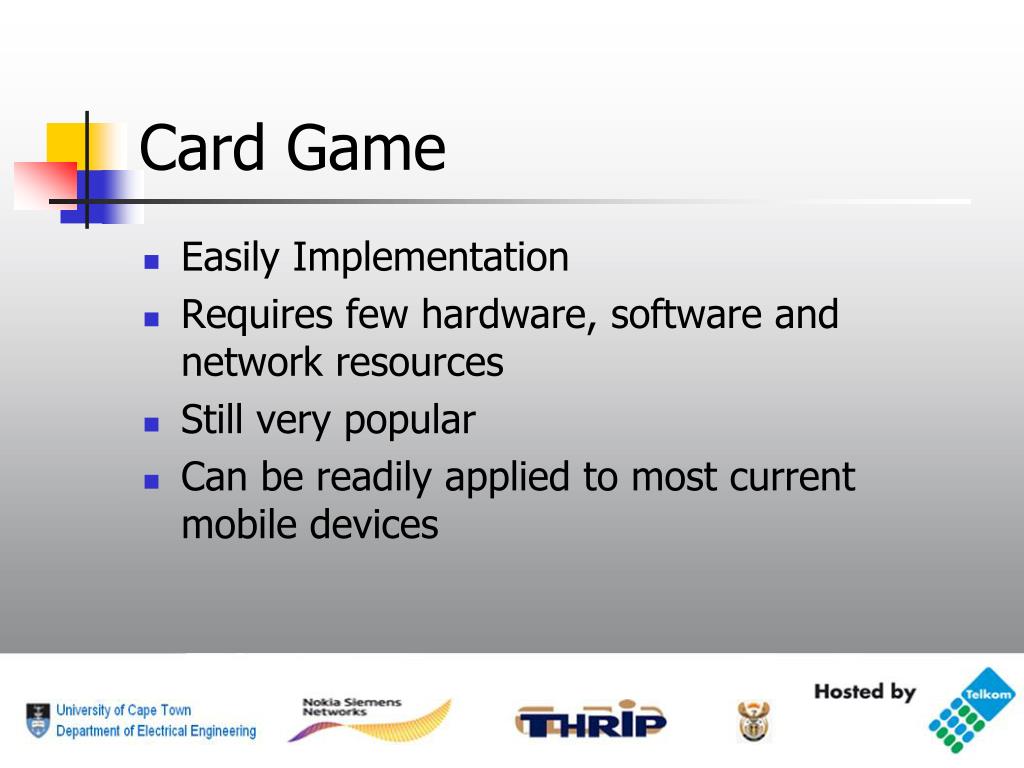

  19. Card Game • Easily Implementation • Requires few hardware, software and network resources • Still very popular • Can be readily applied to most current mobile devices MSc Elec Eng

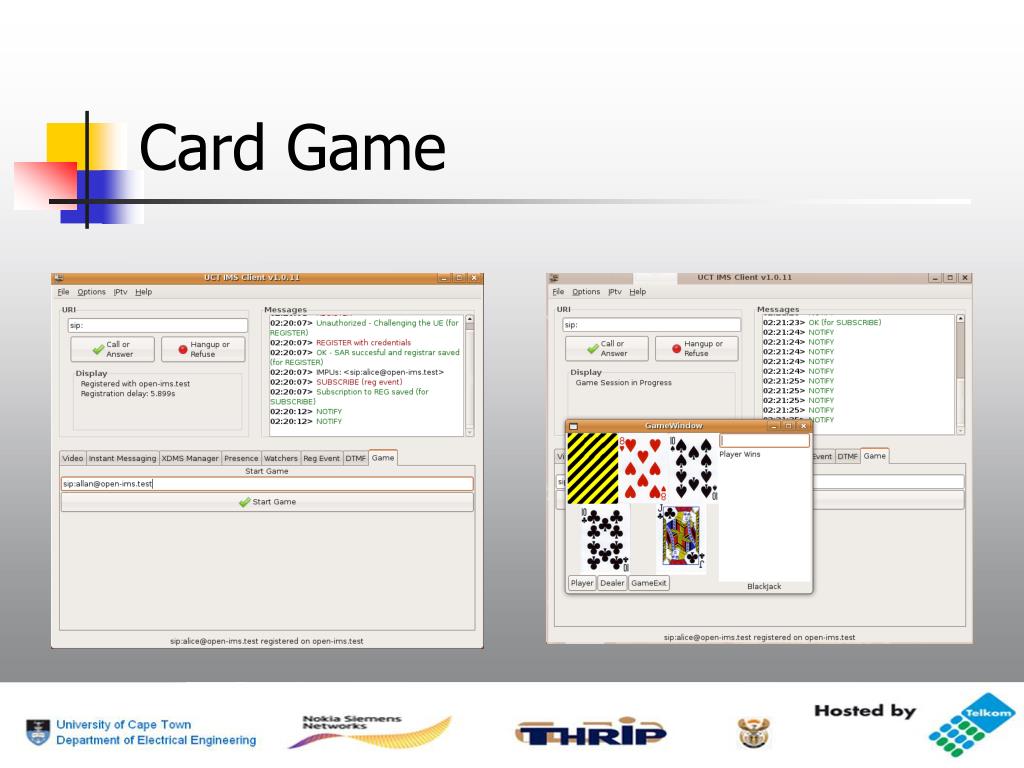

  20. Card Game MSc Elec Eng

  21. Game SUBSCRIBE MSc Elec Eng

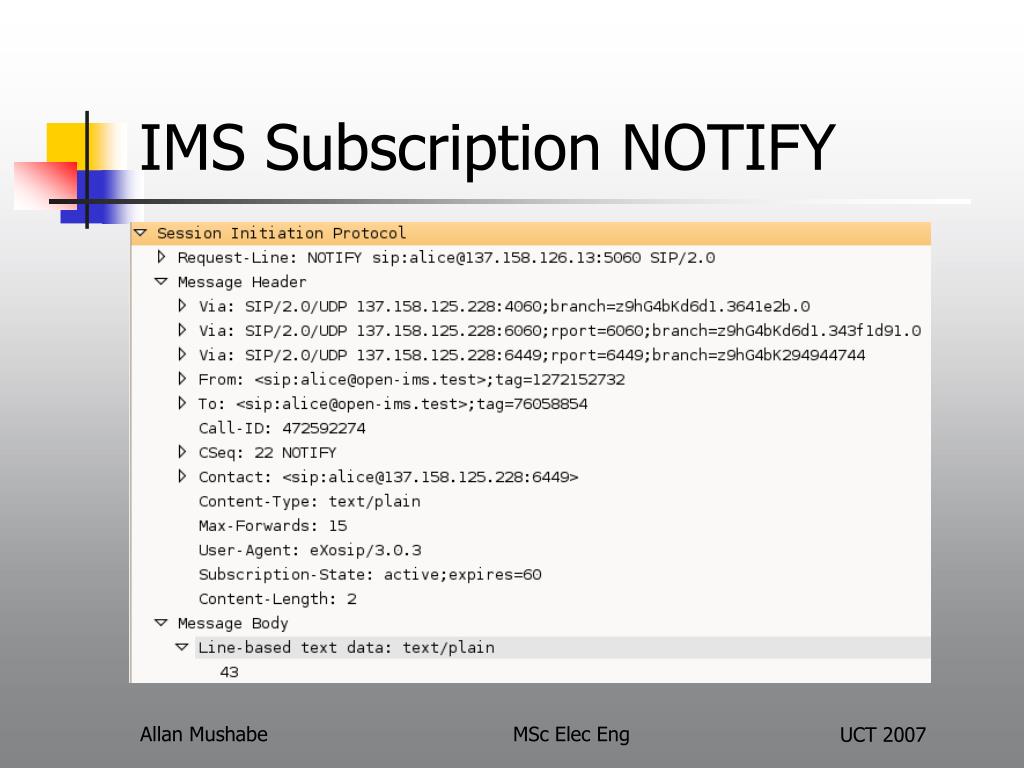

  22. IMS Subscription NOTIFY MSc Elec Eng

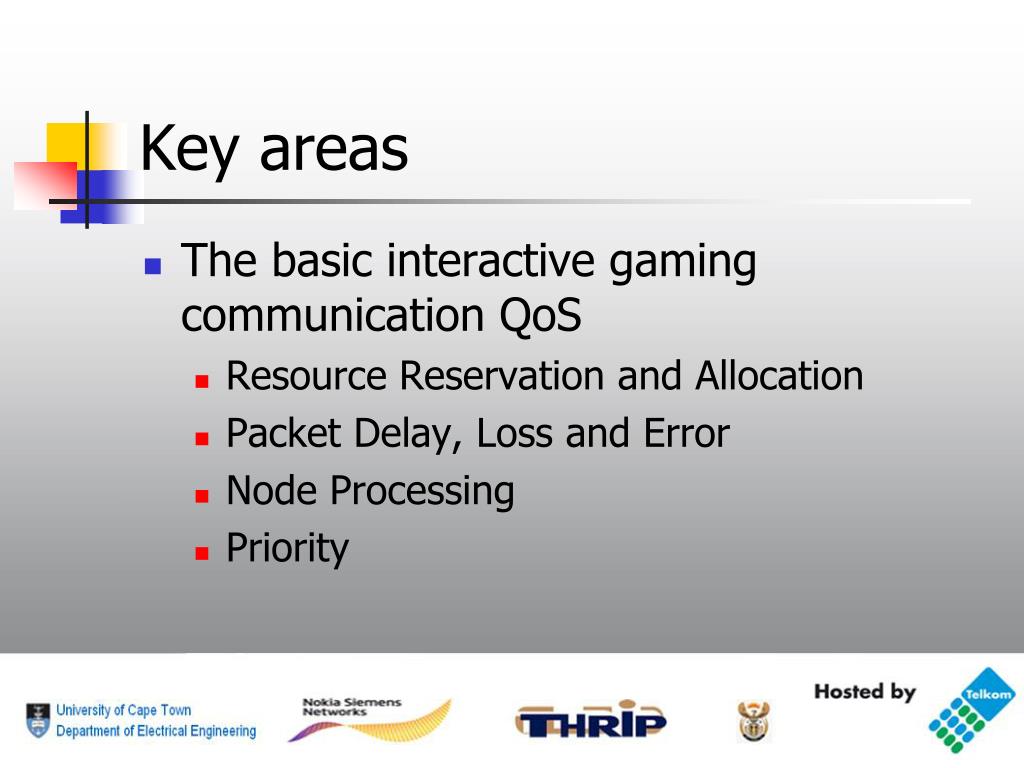

  23. Key areas • The basic interactive gaming communication QoS • Resource Reservation and Allocation • Packet Delay, Loss and Error • Node Processing • Priority MSc Elec Eng

  24. ? Questions MSc Elec Eng

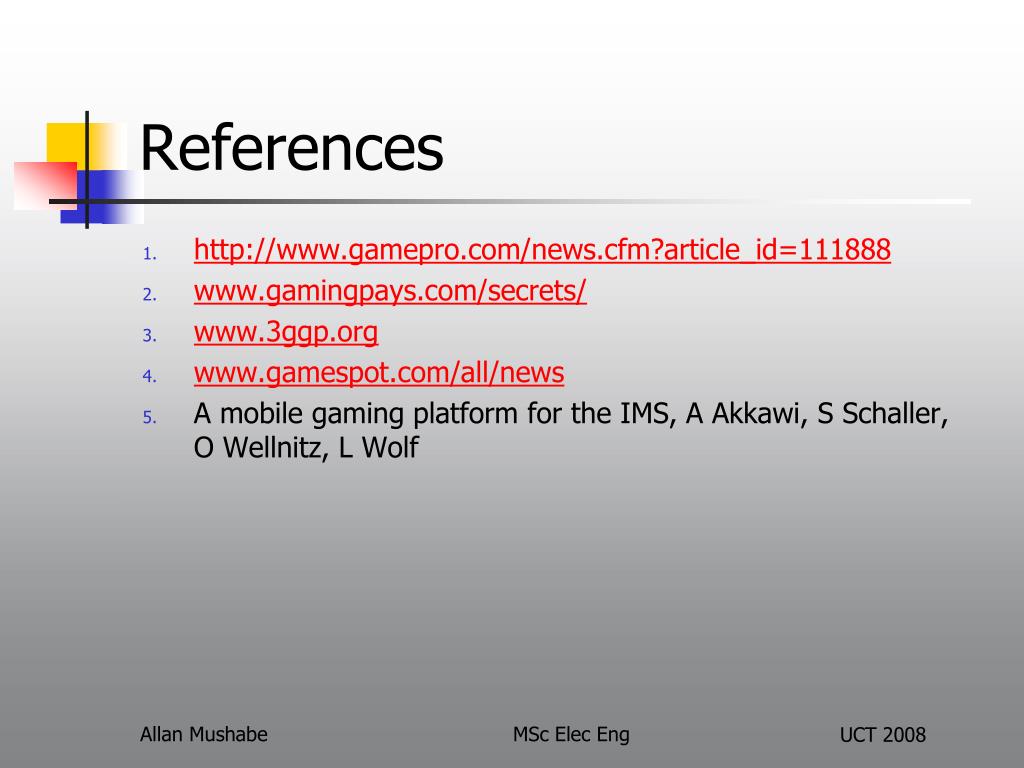

  25. References • http://www.gamepro.com/news.cfm?article_id=111888 • www.gamingpays.com/secrets/ • www.3ggp.org • www.gamespot.com/all/news • A mobile gaming platform for the IMS, A Akkawi, S Schaller, O Wellnitz, L Wolf MSc Elec Eng

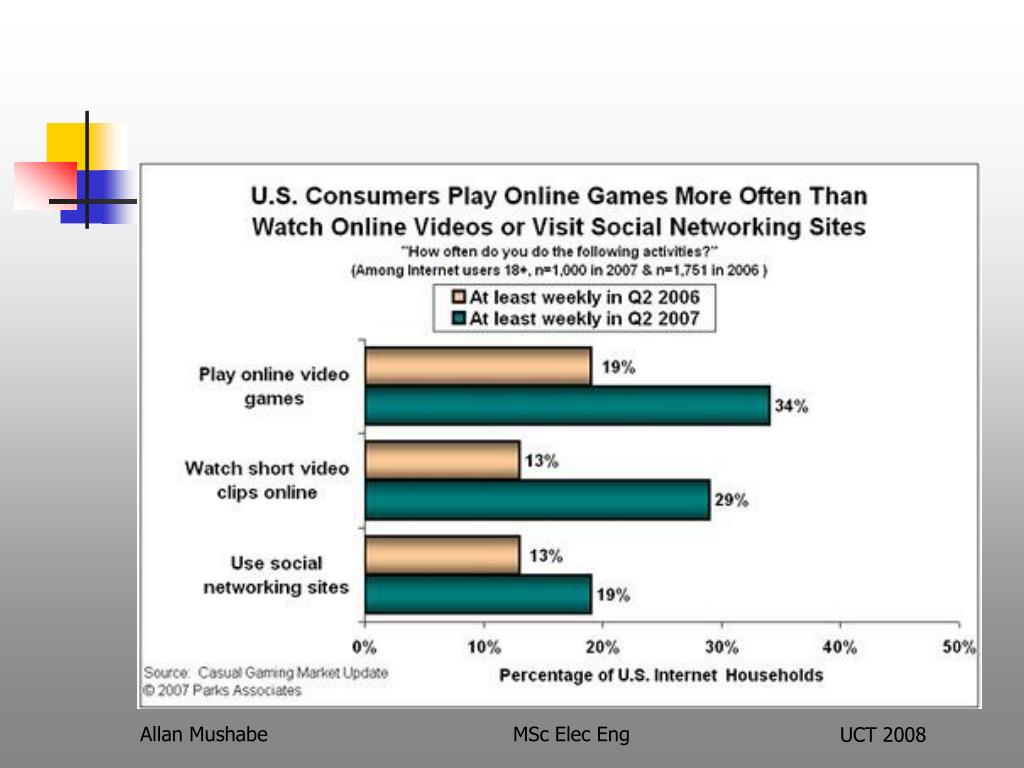

  26. MSc Elec Eng

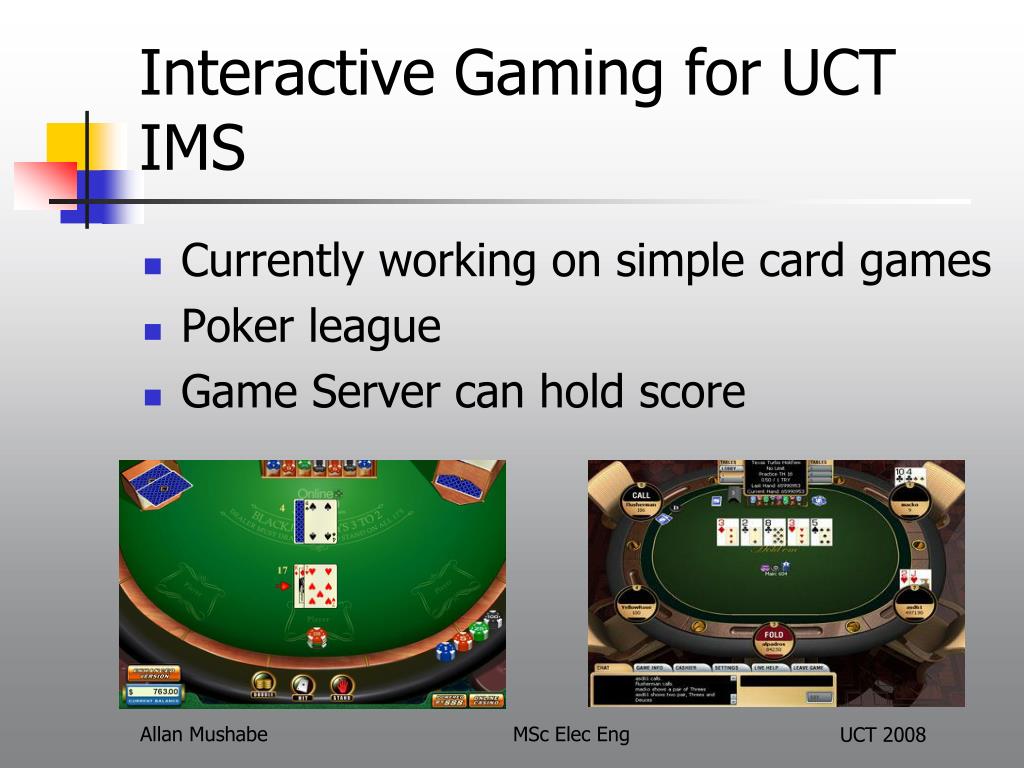

  27. Interactive Gaming for UCT IMS • Currently working on simple card games • Poker league • Game Server can hold score MSc Elec Eng
