  1. Enterprise Networksunder Stress

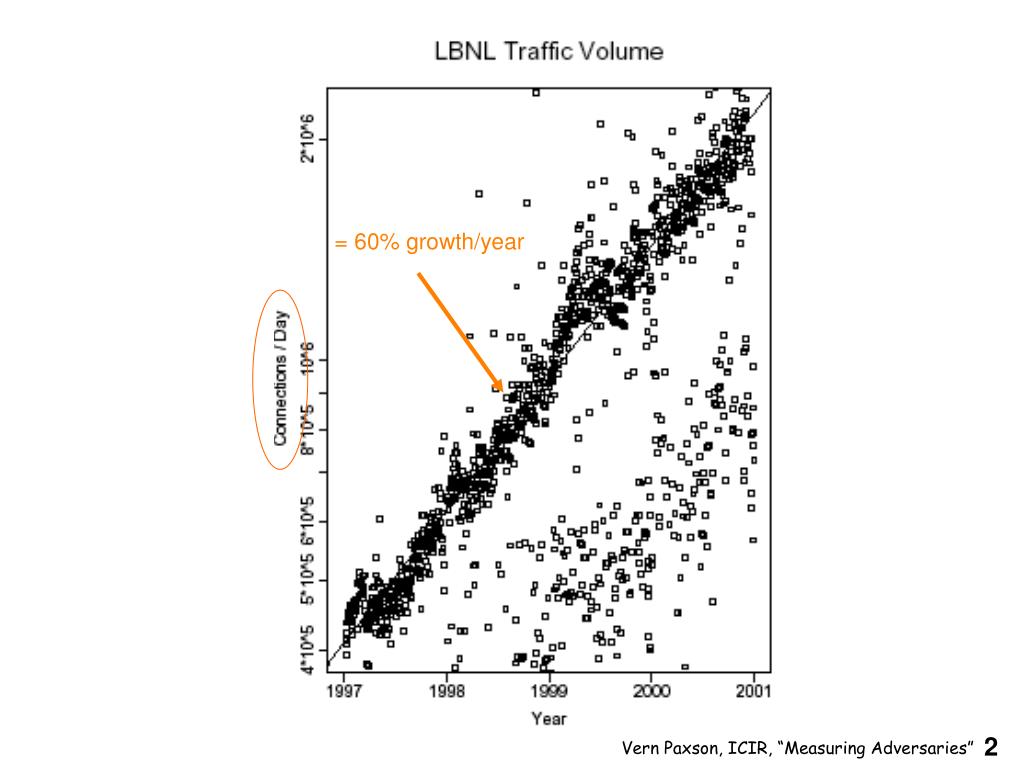

  2. = 60% growth/year Vern Paxson, ICIR, “Measuring Adversaries”

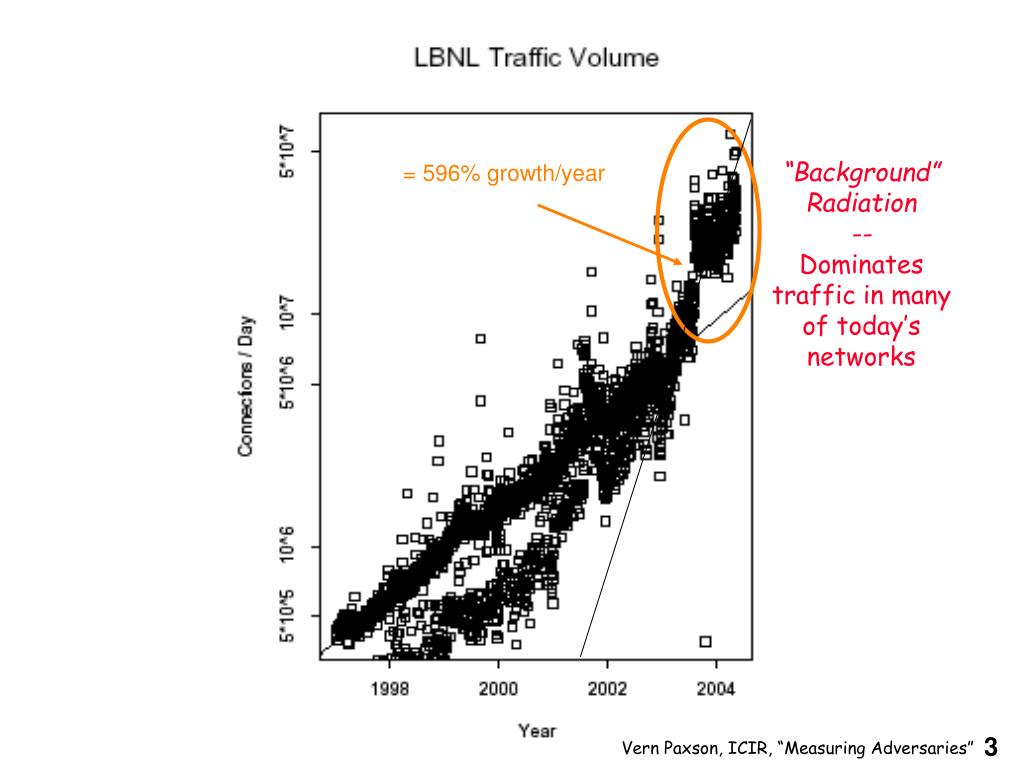

  3. “Background” Radiation --Dominates traffic in many of today’snetworks = 596% growth/year Vern Paxson, ICIR, “Measuring Adversaries”

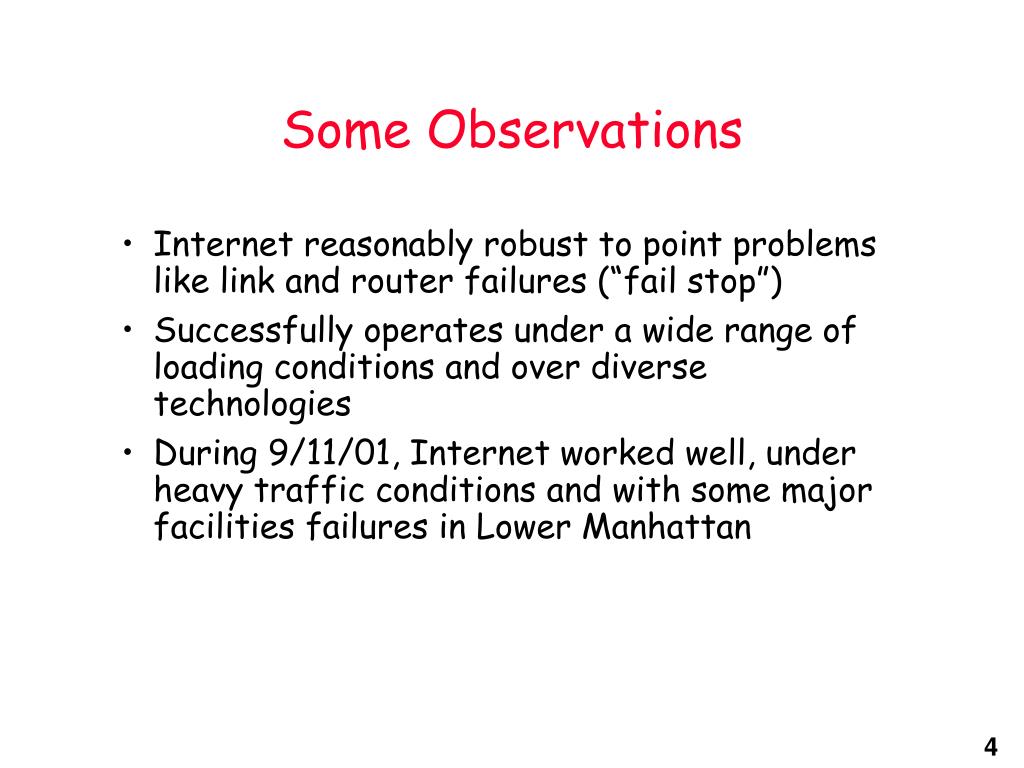

  4. Some Observations • Internet reasonably robust to point problems like link and router failures (“fail stop”) • Successfully operates under a wide range of loading conditions and over diverse technologies • During 9/11/01, Internet worked well, under heavy traffic conditions and with some major facilities failures in Lower Manhattan

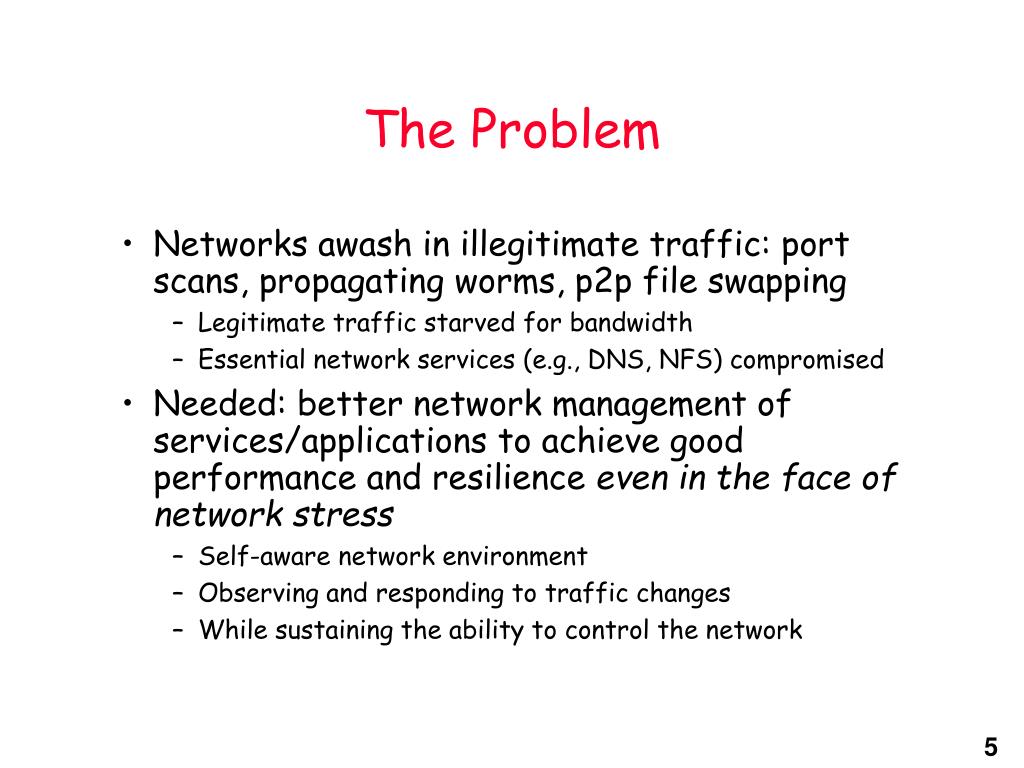

  5. The Problem • Networks awash in illegitimate traffic: port scans, propagating worms, p2p file swapping • Legitimate traffic starved for bandwidth • Essential network services (e.g., DNS, NFS) compromised • Needed: better network management of services/applications to achieve good performance and resilience even in the face of network stress • Self-aware network environment • Observing and responding to traffic changes • While sustaining the ability to control the network

  6. From the Frontlines • Berkeley Campus Network • Unanticipated traffic surges render the network unmanageable (and may cause routers to fail) • Denial of service attacks, latest worm, or the newest file sharing protocol largely indistinguishable • In-band control channel is starved, making it difficult to manage and recover the network • Berkeley EECS Department Network (12/04) • Suspected denial-of-service attack against DNS • Poorly implemented/configured spam appliance adds to DNS overload • Traffic surges render it impossible to access Web or mount file systems • Network problems contribute to brittleness of distributed systems

  7. Why and HowNetworks Fail • Complex phenomenology of failure • Traffic surges break enterprise networks • “Unexpected” traffic as deadly as high net utilization • Cisco Express Forwarding: random IP addresses --> flood route cache --> force traffic thru slow path --> high CPU utilization --> dropped router table updates • Route Summarization: powerful misconfigured peer overwhelms weaker peer with too many router table entries • SNMP DoS attack: overwhelm SNMP ports on routers • DNS attack: response-response loops in DNS queries generate traffic overload

  8. Traffic Shaping Load Balancing TechnologyTrends • Integration of servers, storage, switching, and routing • Blade Servers, Stateful Routers, Inspection-and-Action Boxes (iBoxes) • Packet flow manipulations at L4-L7 • Inspection/segregation/accounting of traffic • Packet marking/annotating • Building blocks for network protection • Pervasive observation and statistics collection • Analysis, model extraction, statistical correlation and causality testing • Actions for load balancing and traffic shaping

  9. Scenario: Traffic Surge Inhibiting Network Services Internet Edge II • DNS Server swamped by excessive request traffic • Observe: DNS time outs, Web access traffic slowed, but also higher than normal mail delivery latency implying busy server edge (correlation between Mail Server and DNS Server utilization?) • Root Cause: High DNS request rates generated by Spam Appliance triggered by mail surge R Primary & Secondary DNS Servers Distribution Tier S S E Mail Server E R R S IA IS E Spam Appliance Server Edge Access Edge E S

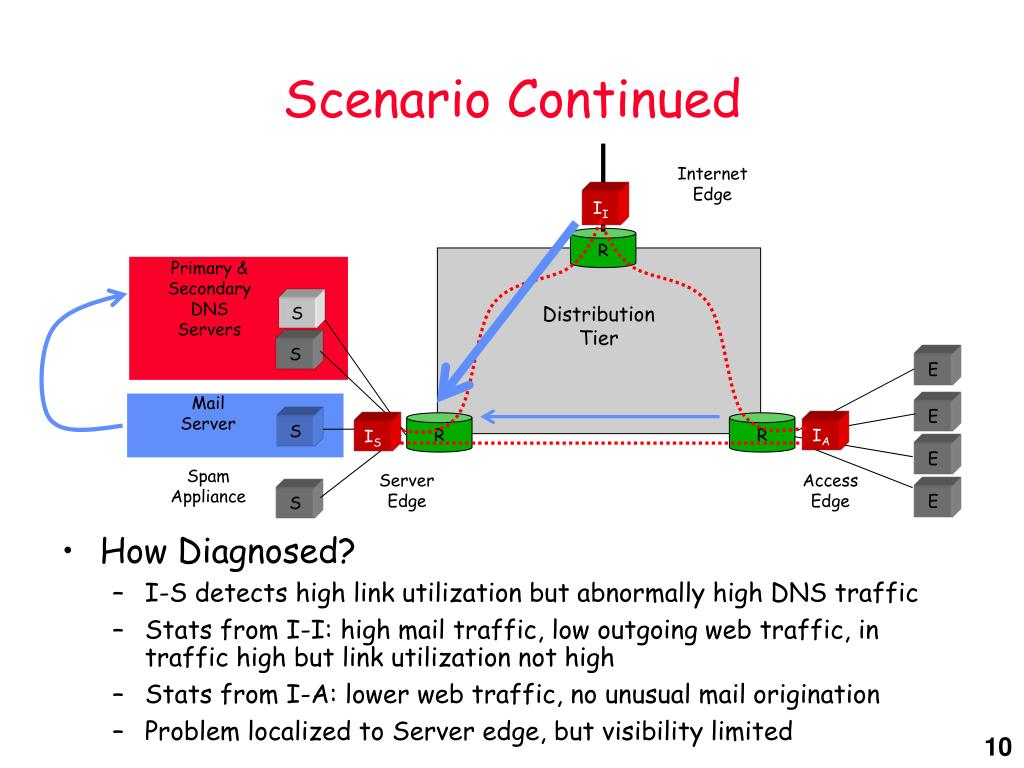

  10. Scenario Continued Internet Edge II • How Diagnosed? • I-S detects high link utilization but abnormally high DNS traffic • Stats from I-I: high mail traffic, low outgoing web traffic, in traffic high but link utilization not high • Stats from I-A: lower web traffic, no unusual mail origination • Problem localized to Server edge, but visibility limited R Primary & Secondary DNS Servers Distribution Tier S S E Mail Server E R R S IA IS E Spam Appliance Server Edge Access Edge E S

  11. Scenario Continued Internet Edge II • Possible Action Responses • Experiment: Redirect local DNS requests to Secondary DNS server: if these complete, can infer the server is the problem, not the network • Throttle: Due to MS-DNS correlation, block/slow email traffic at Server Edge: should expect reduced DNS server utilization R Primary & Secondary DNS Servers Distribution Tier S S E Mail Server E R R S IA IS E Spam Appliance Server Edge Access Edge E S

  12. Internet Edge Access Edge PC MS Spam Filter FS DNS Server Edge Scenario Distribution Tier

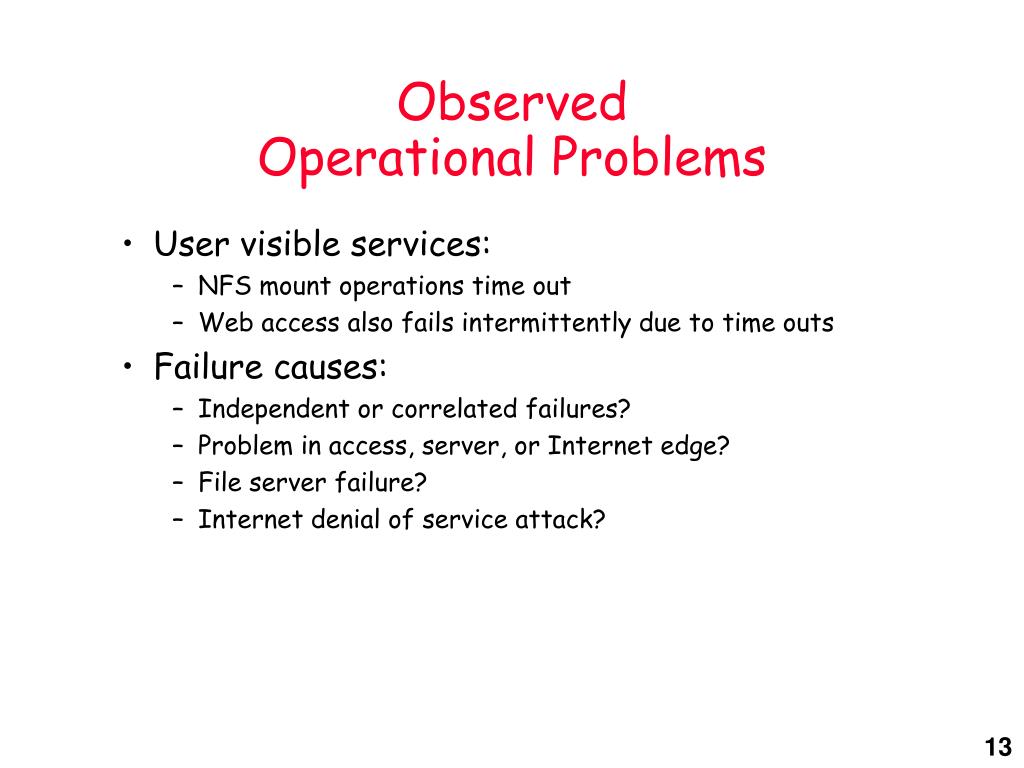

  13. ObservedOperational Problems • User visible services: • NFS mount operations time out • Web access also fails intermittently due to time outs • Failure causes: • Independent or correlated failures? • Problem in access, server, or Internet edge? • File server failure? • Internet denial of service attack?

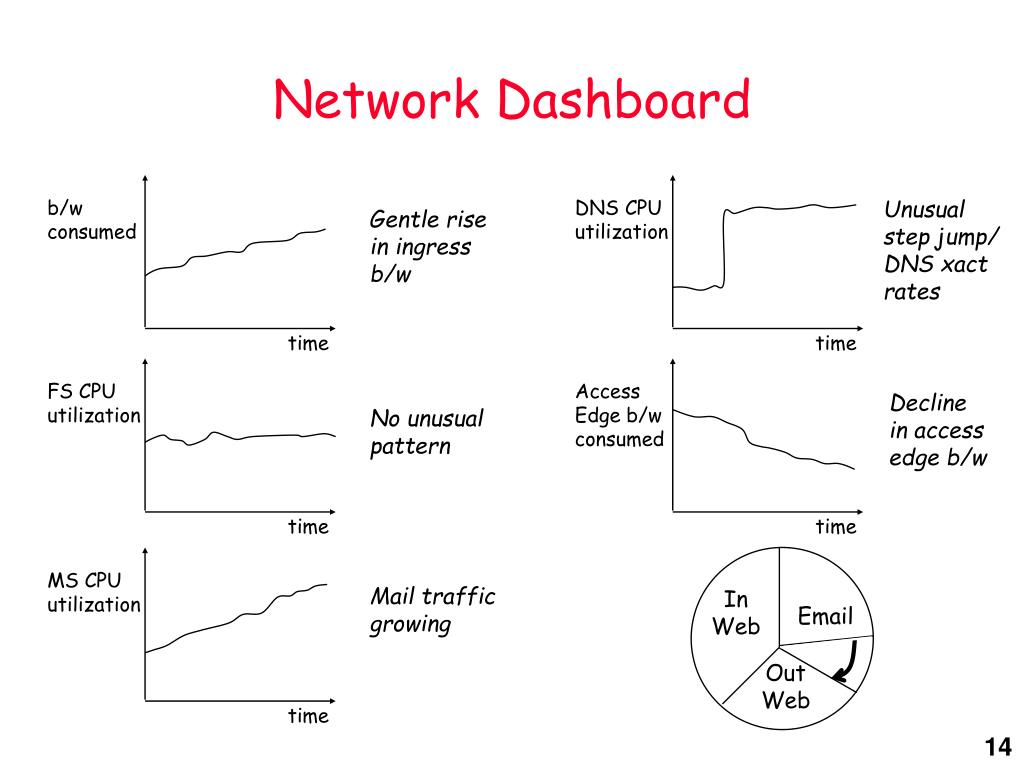

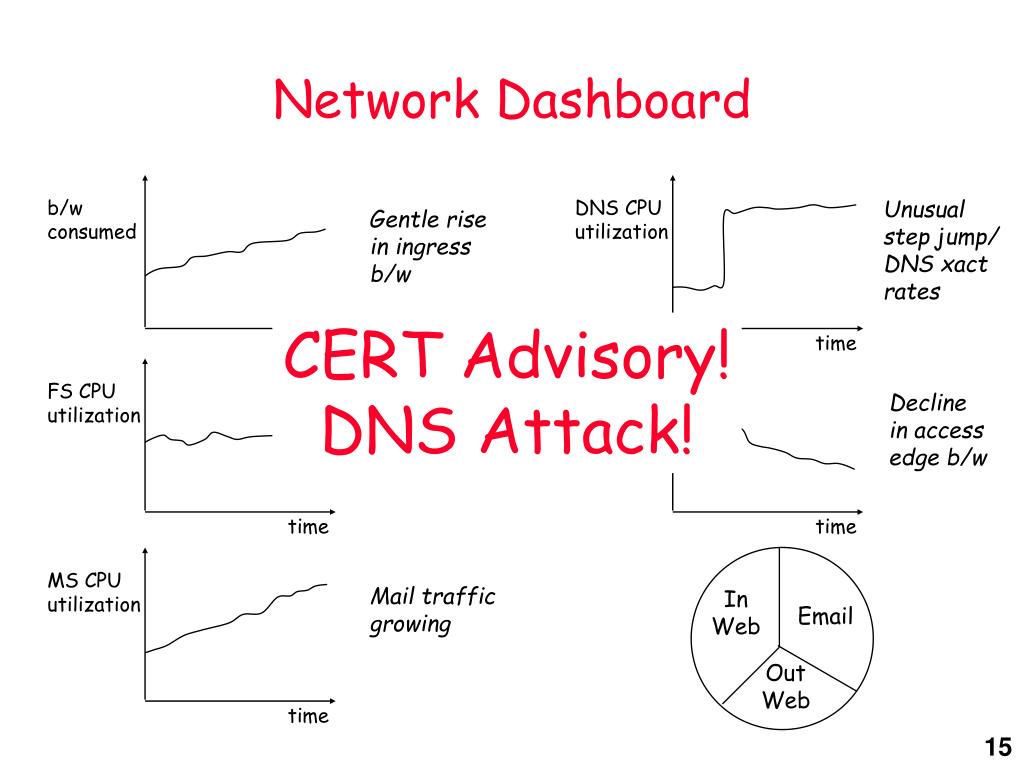

  14. Unusualstep jump/DNS xactrates Gentle rise in ingressb/w b/w consumed FS CPUutilization MS CPUutilization DNS CPUutilization AccessEdge b/wconsumed time time time time time Declinein accessedge b/w No unusualpattern Mail trafficgrowing In Web Email Out Web Network Dashboard

  15. AccessEdge b/wconsumed b/w consumed FS CPUutilization MS CPUutilization DNS CPUutilization time time time time time In Web Email Out Web Network Dashboard Unusualstep jump/DNS xactrates Gentle rise in ingressb/w CERT Advisory! DNS Attack! Declinein accessedge b/w No unusualpattern Mail trafficgrowing

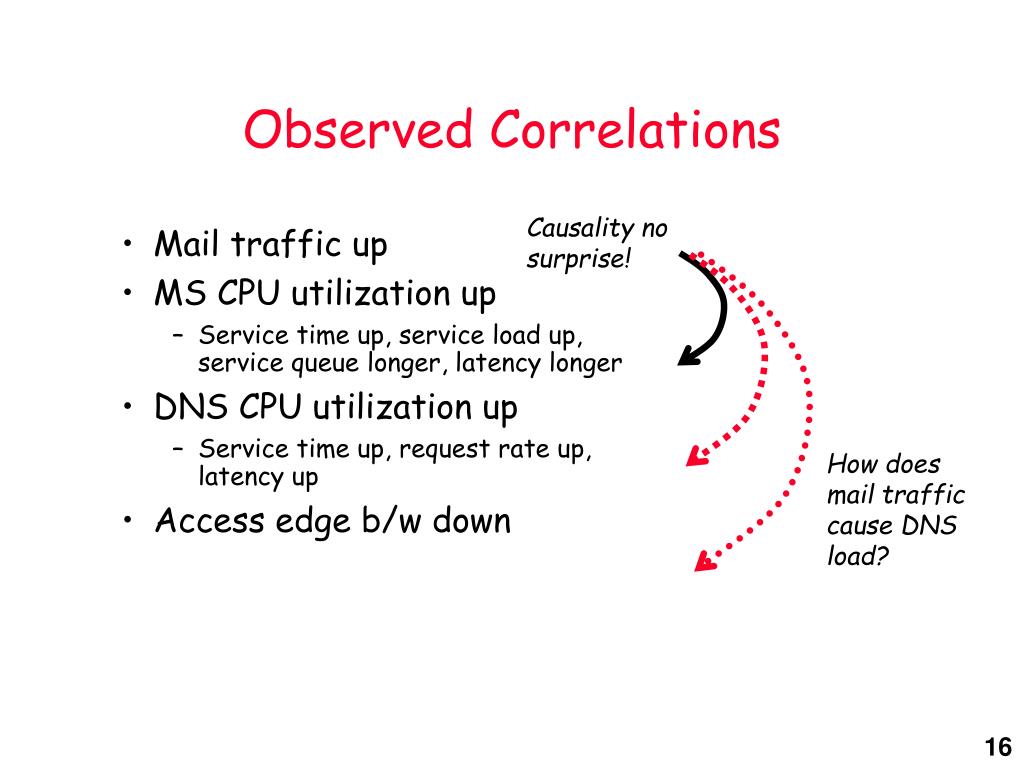

  16. Causality no surprise! How doesmail trafficcause DNSload? Observed Correlations • Mail traffic up • MS CPU utilization up • Service time up, service load up, service queue longer, latency longer • DNS CPU utilization up • Service time up, request rate up,latency up • Access edge b/w down

  17. In Web Mail trafficlimited Email MS CPUutilization DNS CPUutilization AccessEdge b/wconsumed Out Web time time time DNS down Accessedge b/wreturns Run ExperimentShape Mail Traffic • Root cause: • Spam appliance --> DNS lookups to verify sender domains; • Spam attack hammers internal DNS, degrading other services: NFS, Web

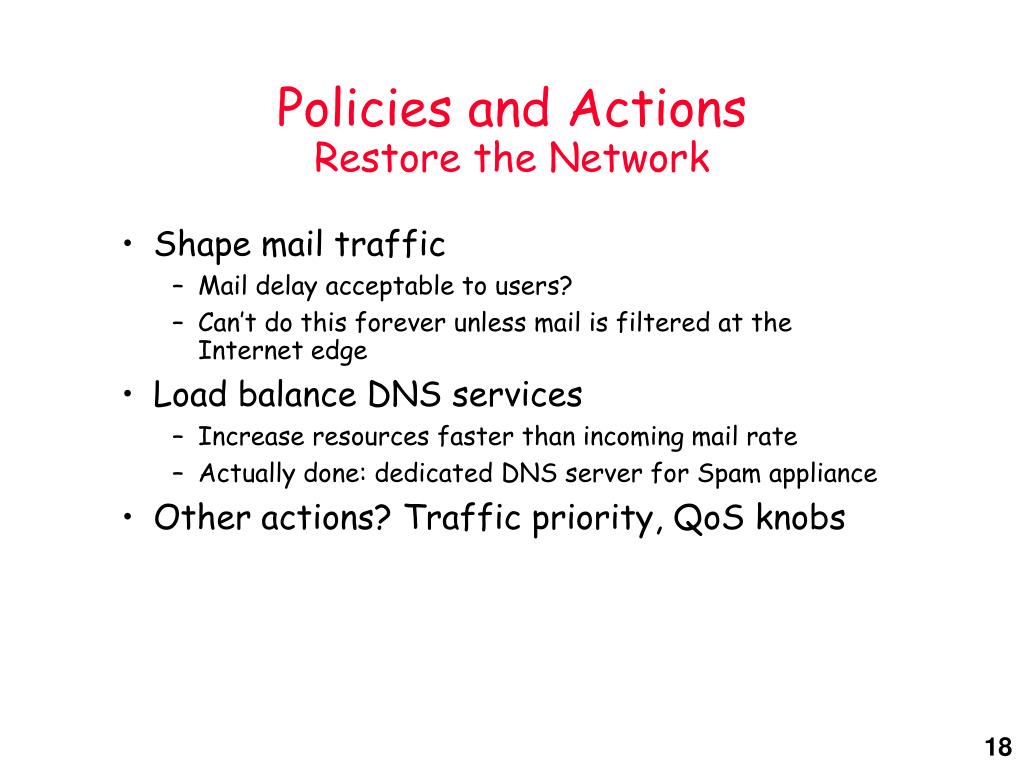

  18. Policies and ActionsRestore the Network • Shape mail traffic • Mail delay acceptable to users? • Can’t do this forever unless mail is filtered at the Internet edge • Load balance DNS services • Increase resources faster than incoming mail rate • Actually done: dedicated DNS server for Spam appliance • Other actions? Traffic priority, QoS knobs

  19. Analysis • Root causes difficult to diagnose • Transitive and hidden causes • Key is pervasive observation • iBoxes provide the needed infrastructure • Observations to identify correlations • Perform active experiments to “suggest” causality

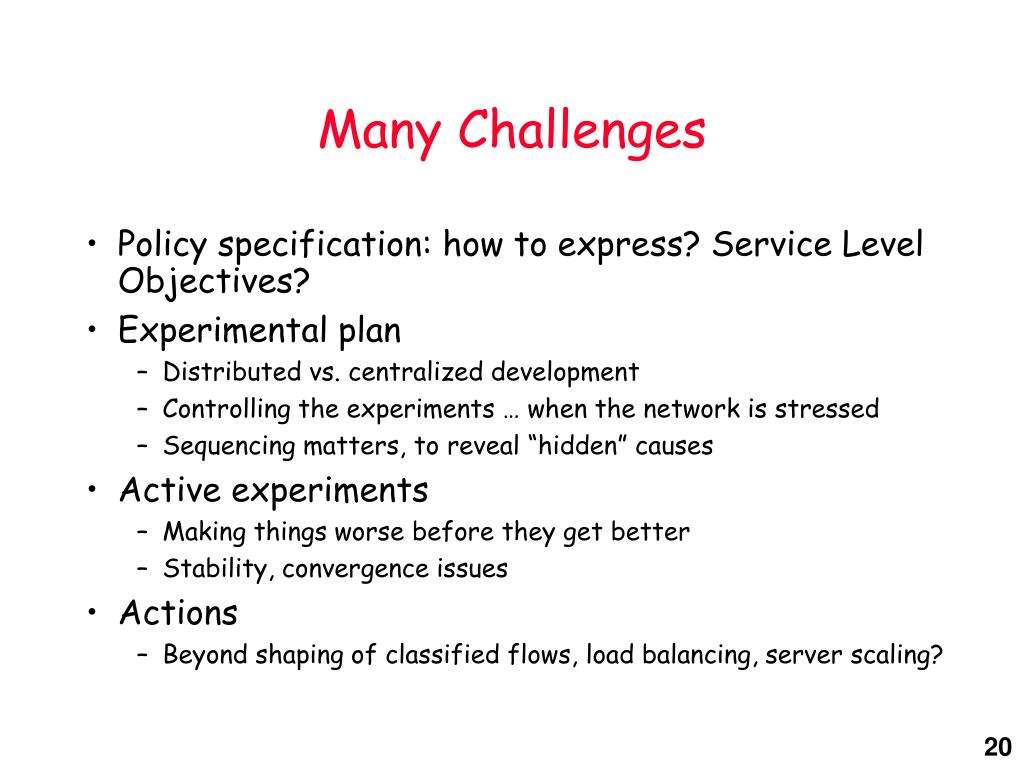

  20. Many Challenges • Policy specification: how to express? Service Level Objectives? • Experimental plan • Distributed vs. centralized development • Controlling the experiments … when the network is stressed • Sequencing matters, to reveal “hidden” causes • Active experiments • Making things worse before they get better • Stability, convergence issues • Actions • Beyond shaping of classified flows, load balancing, server scaling?

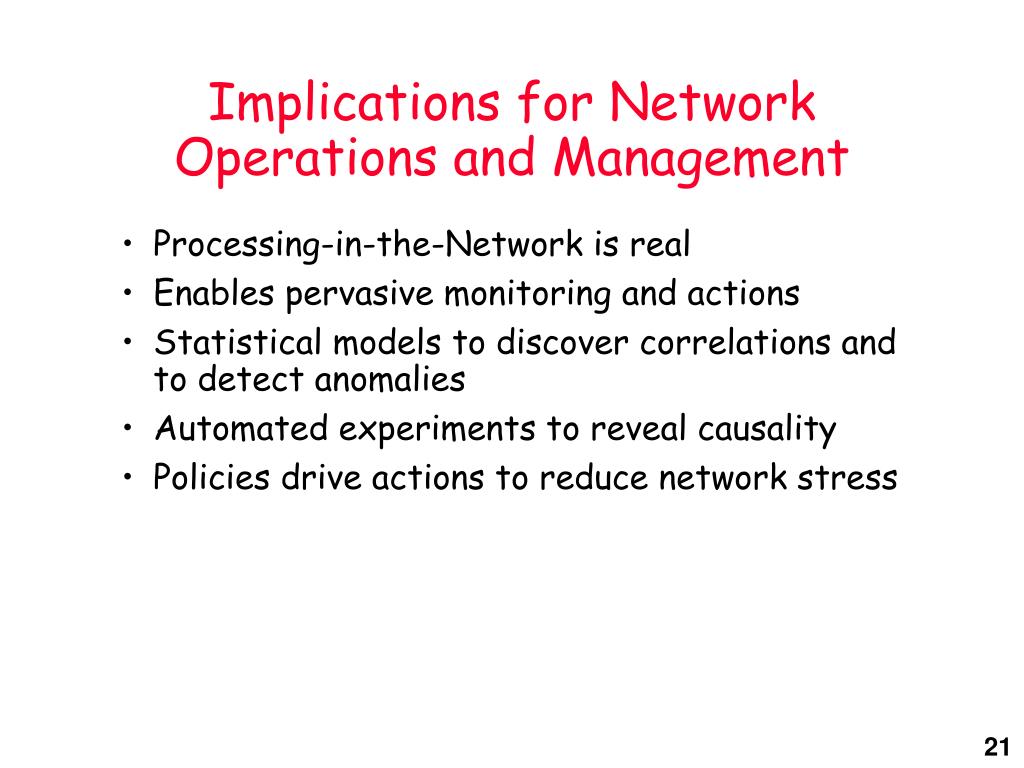

  21. Implications for Network Operations and Management • Processing-in-the-Network is real • Enables pervasive monitoring and actions • Statistical models to discover correlations and to detect anomalies • Automated experiments to reveal causality • Policies drive actions to reduce network stress

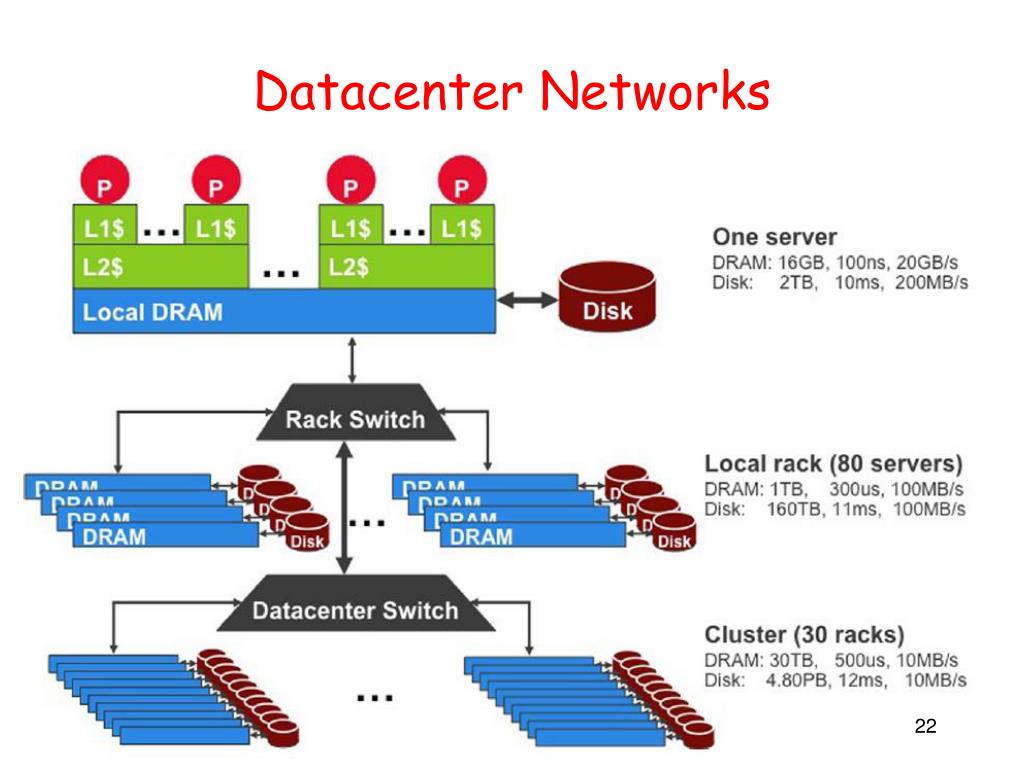

  22. Datacenter Networks

  23. Networks Under Stress
