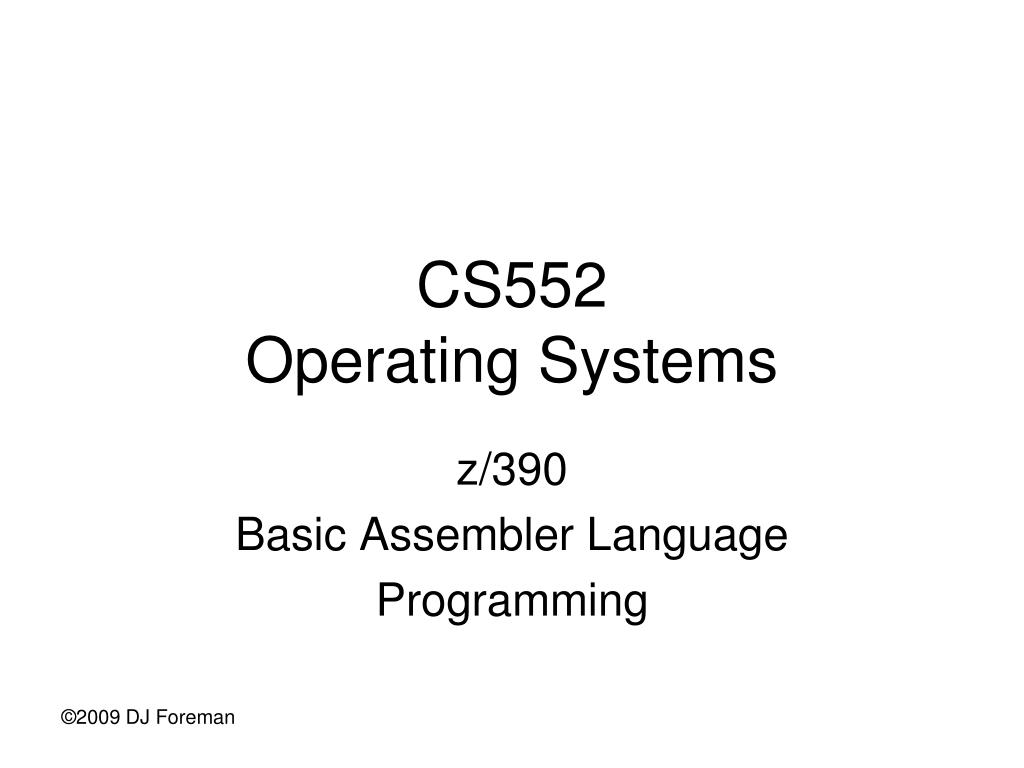

  1. CS552Operating Systems z/390 Basic Assembler Language Programming

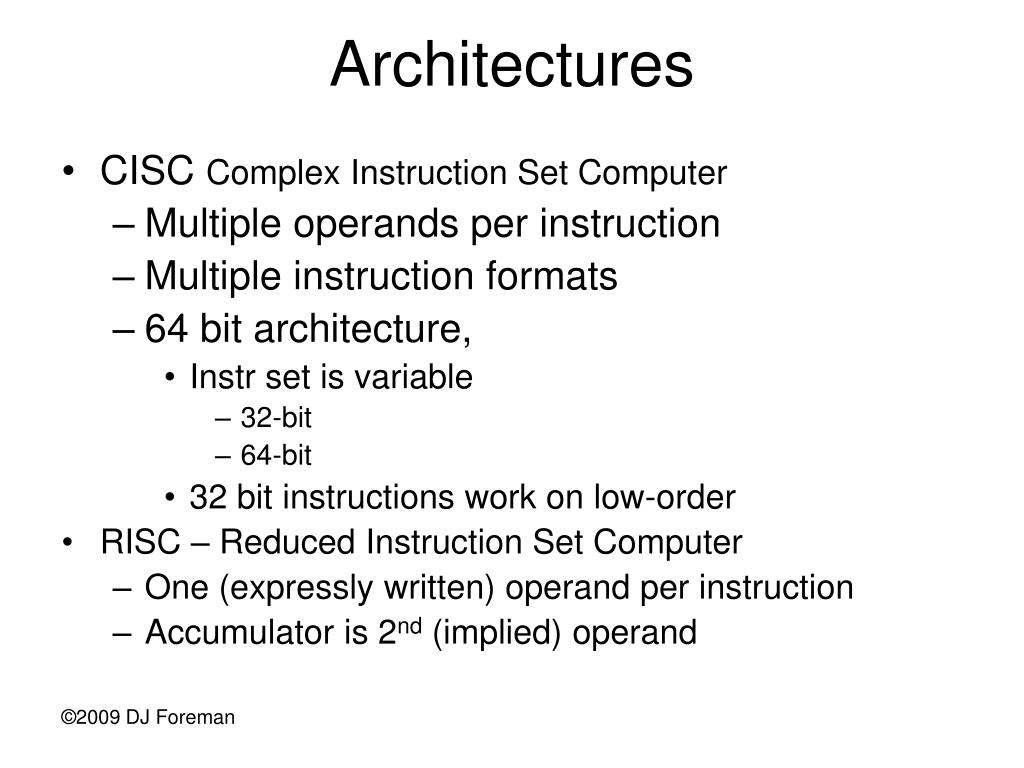

  2. Architectures • CISC Complex Instruction Set Computer • Multiple operands per instruction • Multiple instruction formats • 64 bit architecture, • Instr set is variable • 32-bit • 64-bit • 32 bit instructions work on low-order • RISC – Reduced Instruction Set Computer • One (expressly written) operand per instruction • Accumulator is 2nd (implied) operand

  3. Example 1: C=A+B; • CISC (mainframe) LOAD 5,A ADD 5,B ST 5,C • RISC (PC) LOAD A ADD B ST C RISC becomes MUCH more complicated if A, B & C are subscripted. CISC is easier, because CISC instructions can have subscript in an “index” register.

  4. Example 2: A=B;A & B are strings 1<=length<=256 • MVC A(250),B Set -> A[0] Set -> B[0] Load index with max length of A Load *A Store *B Increment pointers Repeat 249 times Loop until max index

  5. Elements of a machine -1 • Registers • Numbered hardware location (NOT memory) • Used for • Addressing (like a pointer in C) • Arithmetic (just a simple accumulator) • Number of registers varies with architecture • Size varies: 32, 64 or 128 bits • ALL registers may be accumulators • Stack • A set of registers accessed in LIFO order

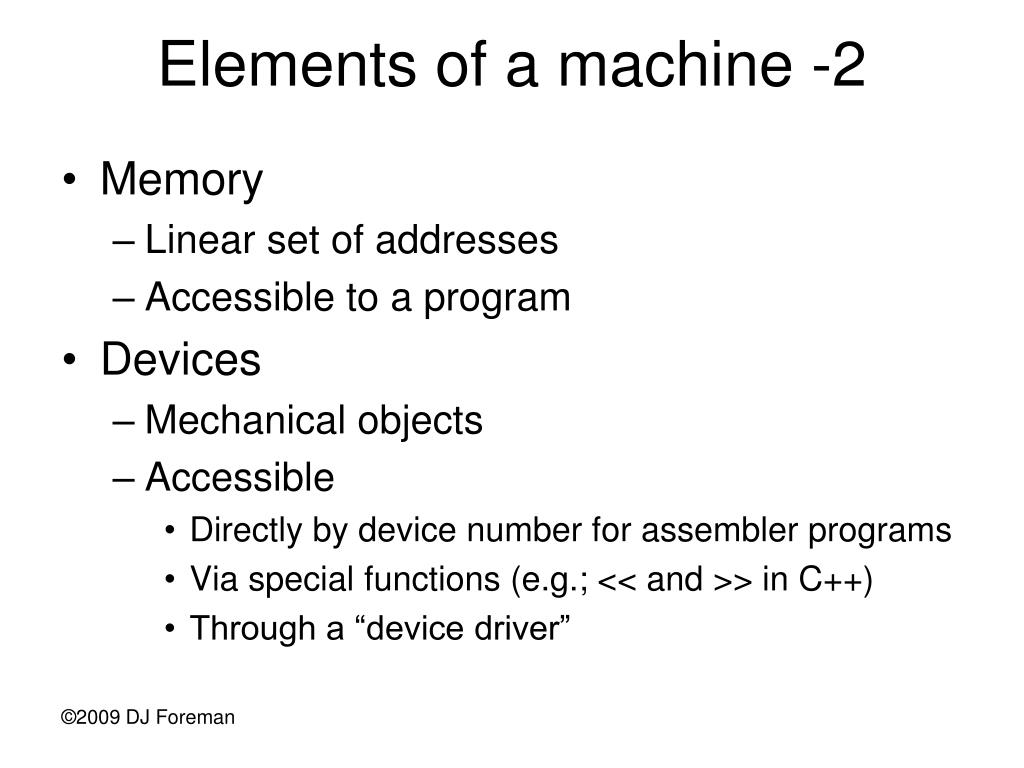

  6. Elements of a machine -2 • Memory • Linear set of addresses • Accessible to a program • Devices • Mechanical objects • Accessible • Directly by device number for assembler programs • Via special functions (e.g.; << and >> in C++) • Through a “device driver”

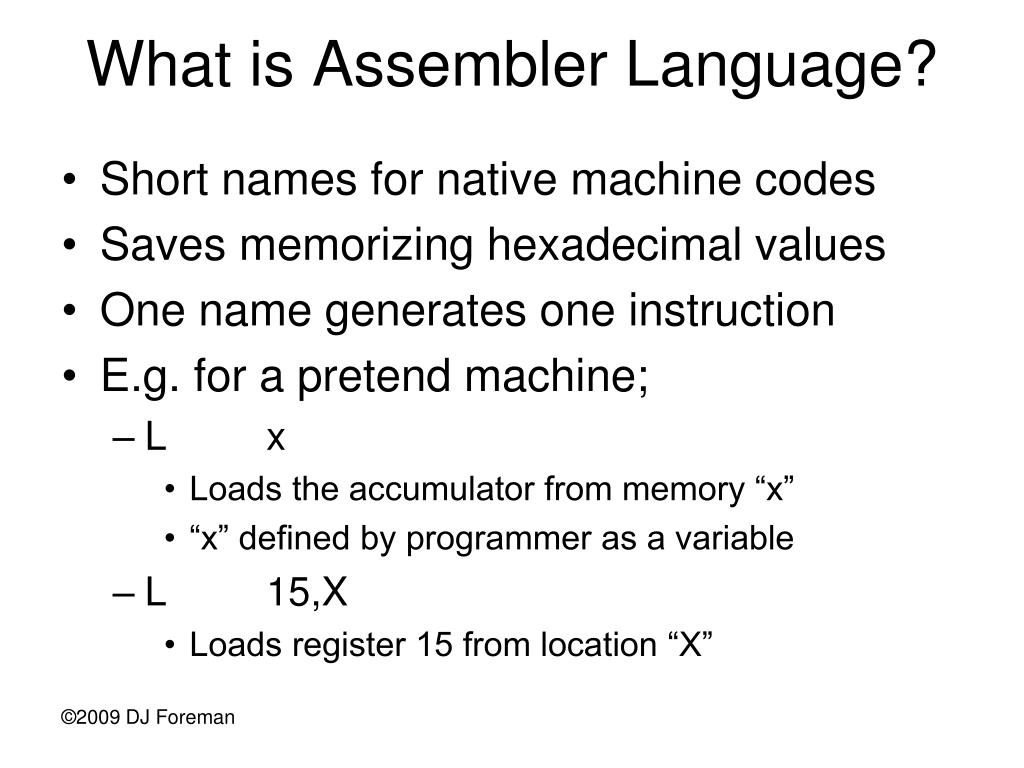

  7. What is Assembler Language? • Short names for native machine codes • Saves memorizing hexadecimal values • One name generates one instruction • E.g. for a pretend machine; • L x • Loads the accumulator from memory “x” • “x” defined by programmer as a variable • L 15,X • Loads register 15 from location “X”

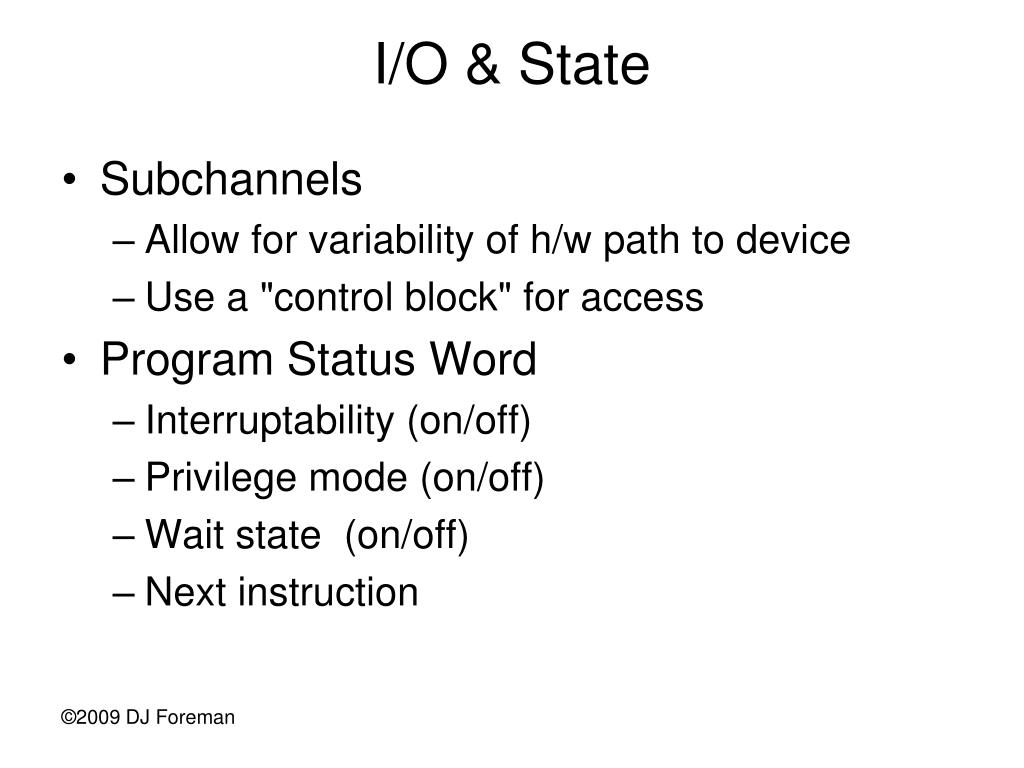

  8. I/O & State • Subchannels • Allow for variability of h/w path to device • Use a "control block" for access • Program Status Word • Interruptability (on/off) • Privilege mode (on/off) • Wait state (on/off) • Next instruction

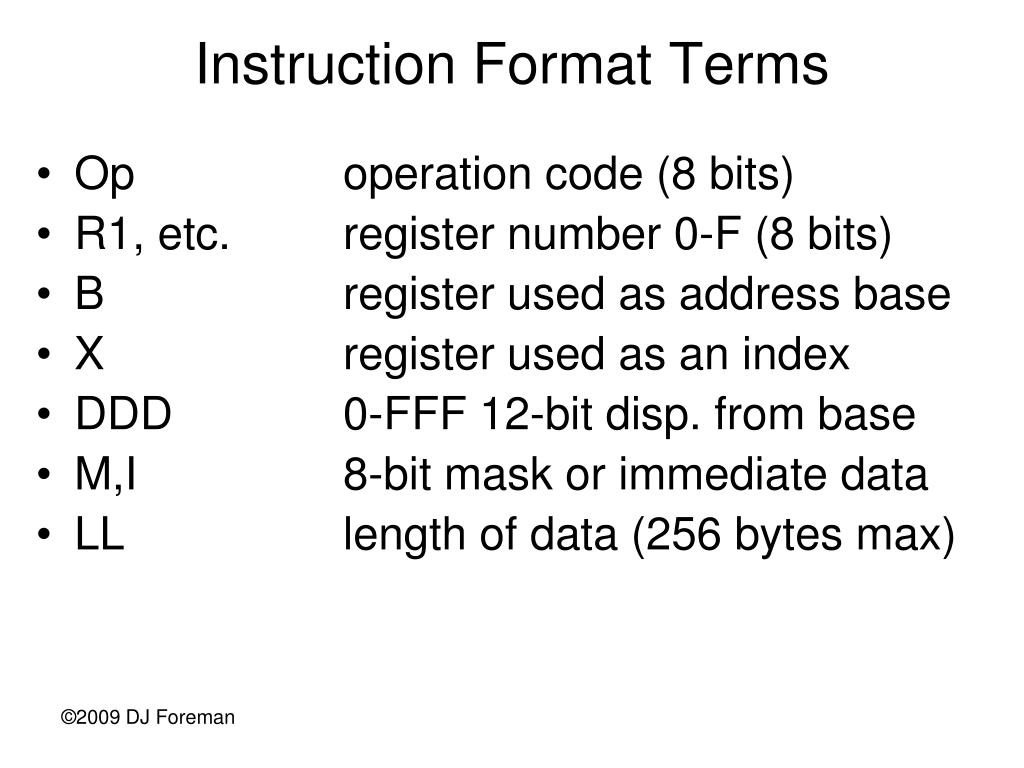

  9. Instruction Format Terms • Op operation code (8 bits) • R1, etc. register number 0-F (8 bits) • B register used as address base • X register used as an index • DDD 0-FFF 12-bit disp. from base • M,I 8-bit mask or immediate data • LL length of data (256 bytes max)

  10. z/390 Instruction Architecture Most-used formats

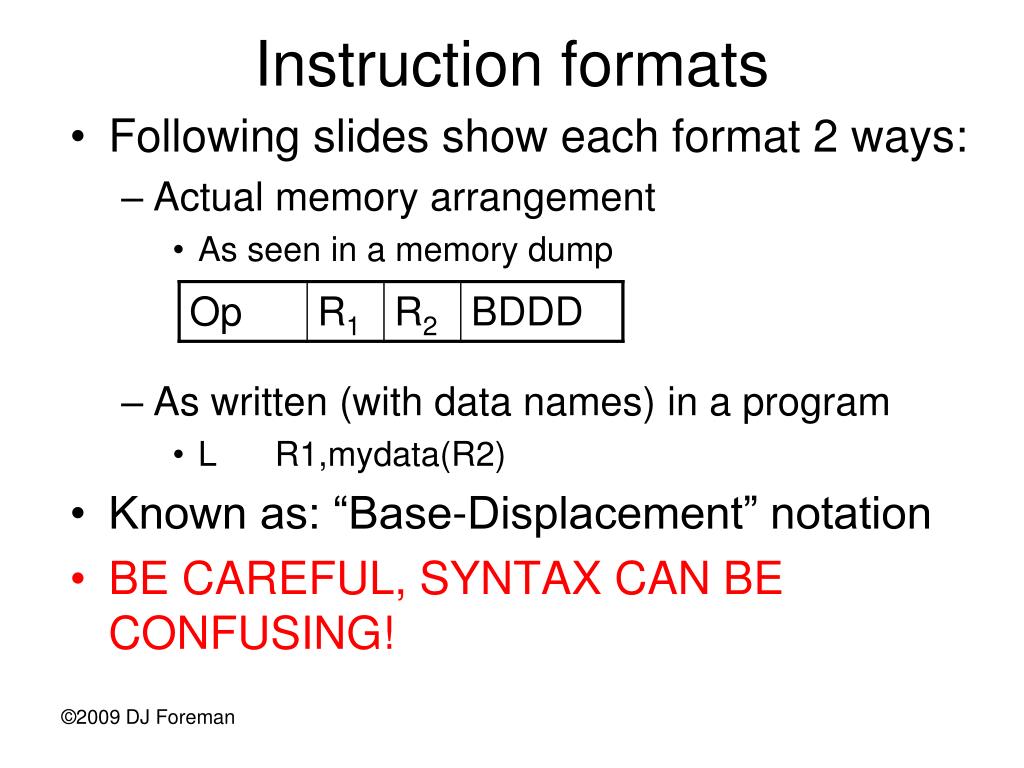

  11. Instruction formats • Following slides show each format 2 ways: • Actual memory arrangement • As seen in a memory dump • As written (with data names) in a program • L R1,mydata(R2) • Known as: “Base-Displacement” notation • BE CAREFUL, SYNTAX CAN BE CONFUSING!

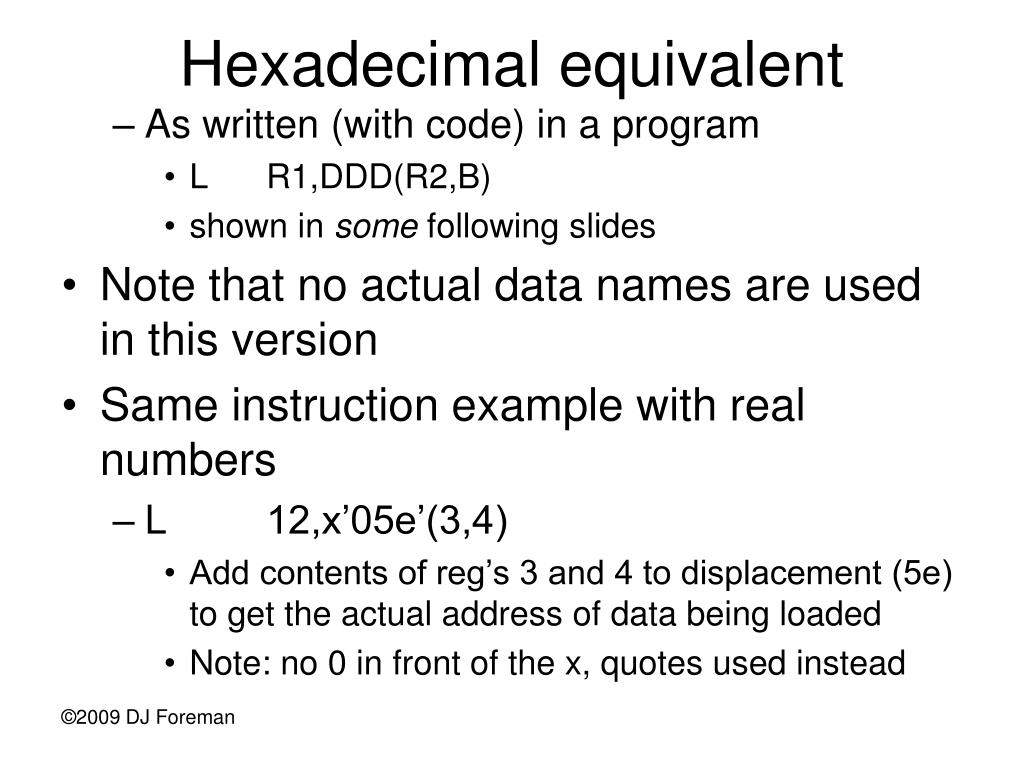

  12. Hexadecimal equivalent • As written (with code) in a program • L R1,DDD(R2,B) • shown in some following slides • Note that no actual data names are used in this version • Same instruction example with real numbers • L 12,x’05e’(3,4) • Add contents of reg’s 3 and 4 to displacement (5e) to get the actual address of data being loaded • Note: no 0 in front of the x, quotes used instead

  13. Notation tricks • The assembler program (the “compiler”) allows “substitutions” for numbers via an “EQU” instruction (really a “directive”) • Examples: • R5 EQU 5 • XYZ EQU X’5E’ • DJ EQU 4095 (max value) • Allows writing • L R5,XYZ(3,4) vs. L 5,X’4E’(3,4) • Just easier to write, no advantage in code

  14. Base Register Specification • USING Tells assembler which register to use for names • Register to use as Base • Generates NO code (takes no space in memory) • Example: BALR 12,0 puts addr of "go“ into R12 USING *,12 go MVC Data1(5),Data2 Data1 DC C'target location' Data2 DC C'Source' • Data1 is 6 bytes from "go" • The * means: "starting here" and the MVC is 6 bytes long • Could have said: USING go,12 • If Reg 12 has address of "go", then data1 is 6 bytes from Reg 12 • YOU must put the correct memory address into the Base Reg • DROP terminates use of a register for name addressability

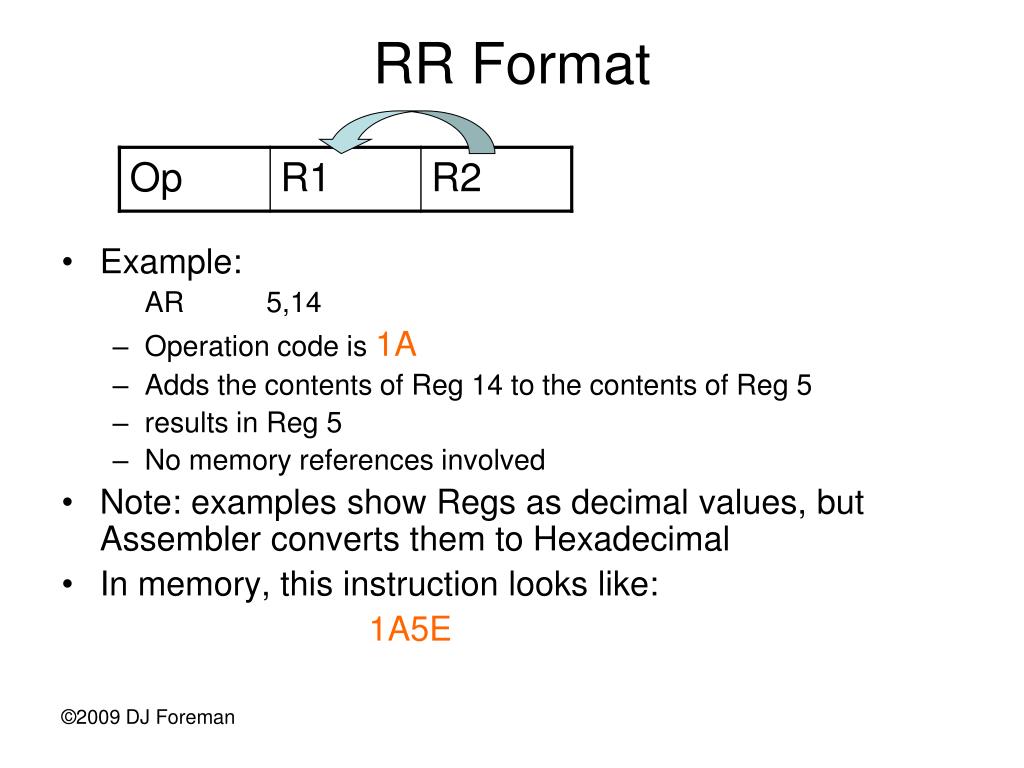

  15. RR Format • Example: AR 5,14 • Operation code is 1A • Adds the contents of Reg 14 to the contents of Reg 5 • results in Reg 5 • No memory references involved • Note: examples show Regs as decimal values, but Assembler converts them to Hexadecimal • In memory, this instruction looks like: 1A5E

  16. Memory address is: content of X + content of B + value DDD Example: L Load – Operation code X'58' L R,DDD(B,X) L 4,mydata(12) Result replaces value in R If "mydata" is at offset X'23' from Reg 5, which holds X'0E00', then, in memory, this will look like: 584C5023 Mydata becomes a "starting point, and the content of Reg 12 is added to it as an "index" - nice for table accesses RX Format + Arrows reverse for store operations

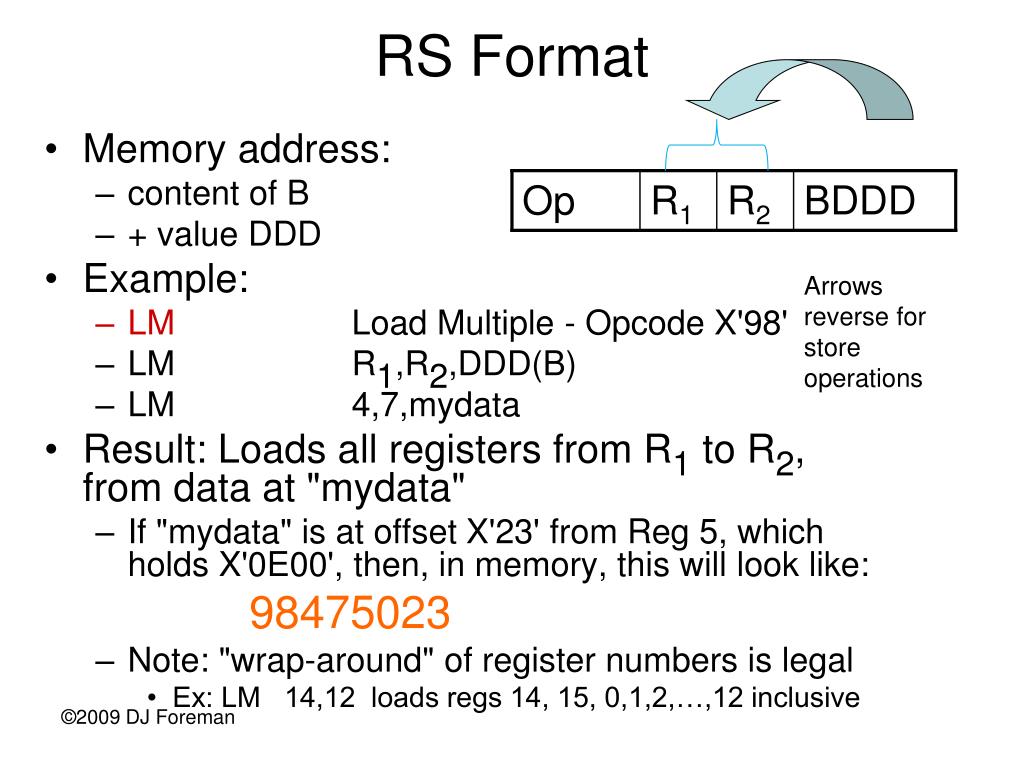

  17. Memory address: content of B + value DDD Example: LM Load Multiple - Opcode X'98' LM R1,R2,DDD(B) LM 4,7,mydata Result: Loads all registers from R1 to R2, from data at "mydata" If "mydata" is at offset X'23' from Reg 5, which holds X'0E00', then, in memory, this will look like: 98475023 Note: "wrap-around" of register numbers is legal Ex: LM 14,12 loads regs 14, 15, 0,1,2,…,12 inclusive RS Format Arrows reverse for store operations

  18. SI Format • Performs "Op" using the instruction content itself (Imm) as data. That is, no additional memory reference is done.) • Example: • N And Immediate - Opcode X'94' • N DDD(B),I • N mydata,X'0A' If "mydata" is at offset X'23' from Reg 5, which holds X'0E00', then, in memory, this will look like: 940A5023 Note: when writing the instruction, the memory ref comes 1st, FOLLOWED BY the Imm data!

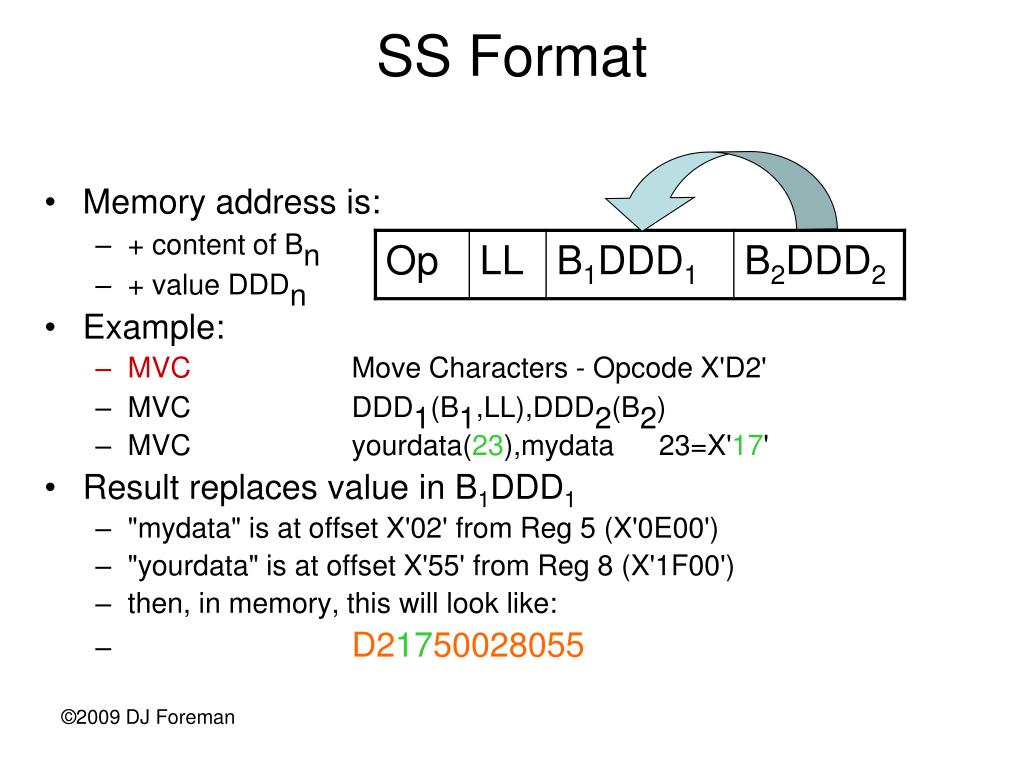

  19. Memory address is: + content of Bn + value DDDn Example: MVC Move Characters - Opcode X'D2' MVC DDD1(B1,LL),DDD2(B2) MVC yourdata(23),mydata 23=X'17' Result replaces value in B1DDD1 "mydata" is at offset X'02' from Reg 5 (X'0E00') "yourdata" is at offset X'55' from Reg 8 (X'1F00') then, in memory, this will look like: D21750028055 SS Format

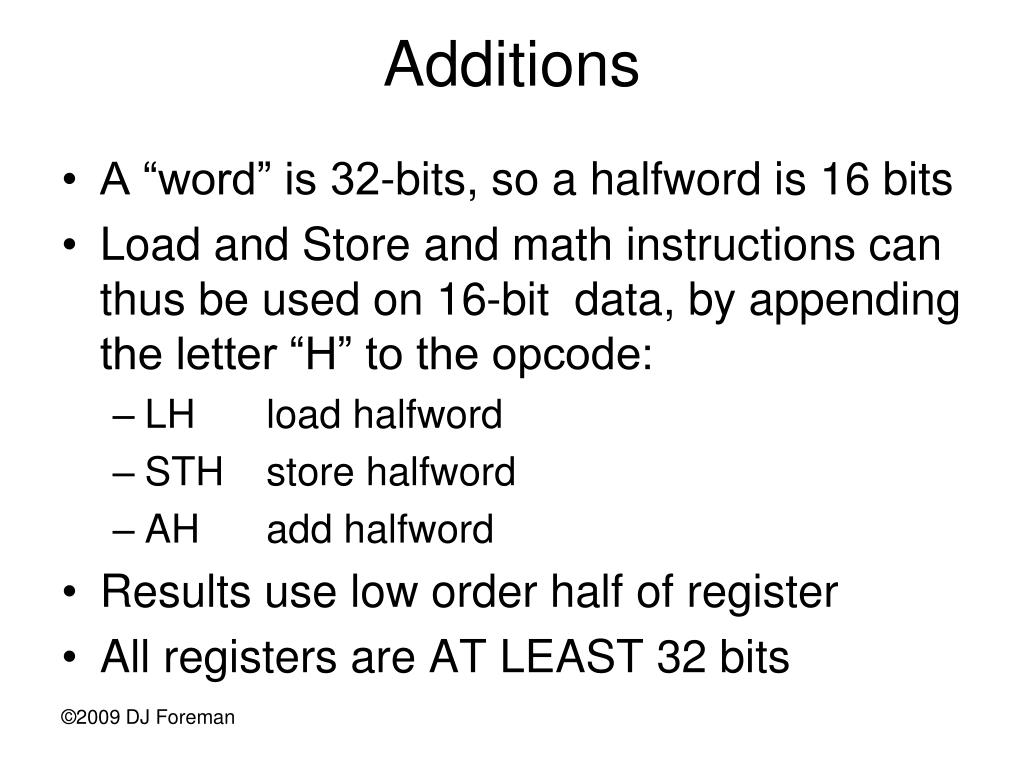

  20. Additions • A “word” is 32-bits, so a halfword is 16 bits • Load and Store and math instructions can thus be used on 16-bit data, by appending the letter “H” to the opcode: • LH load halfword • STH store halfword • AH add halfword • Results use low order half of register • All registers are AT LEAST 32 bits

  21. Writing a Program Assembler directives

  22. Module Definitions • CSECT - externally known module • Named or unnamed • Linkable object • Could be a compilation result • Contains program code or data • DSECT - externally known "dummy" module • Used to define offsets • Like a "C" 'struct‘, requires a pointer • Both ended by another C/DSECT or END

  23. Storage Specification • DC Define Constant • Hex, character, decimal formats • Contains the actual "constants" • Constants are NOT protected • DS Define Storage • Allows for "reserving" an area • No pre-defined value, NOT zeroed out!!!

  24. Storage Specification 2 • Op [m] {attrib1} [Ln] 'value1 ‘ note: quote signs • Op [m] {attrib2} [Ln] (value2) note: parentheses • m is a repetition factor (0 is valid) • n is a length (per element) • Attrib values • Attrib1 X, C, H, F, D ,B • Attrib2 A, S • Value1 is any hex, integer or character data • Value2 is an address constant • Examples DS 0CL5 uses no memory (so no quotes) DC 3XL3'25' 000025000025000025 DC A(mydata) 4-byte, aligned, address DC S(mydata) converts to base/disp notation

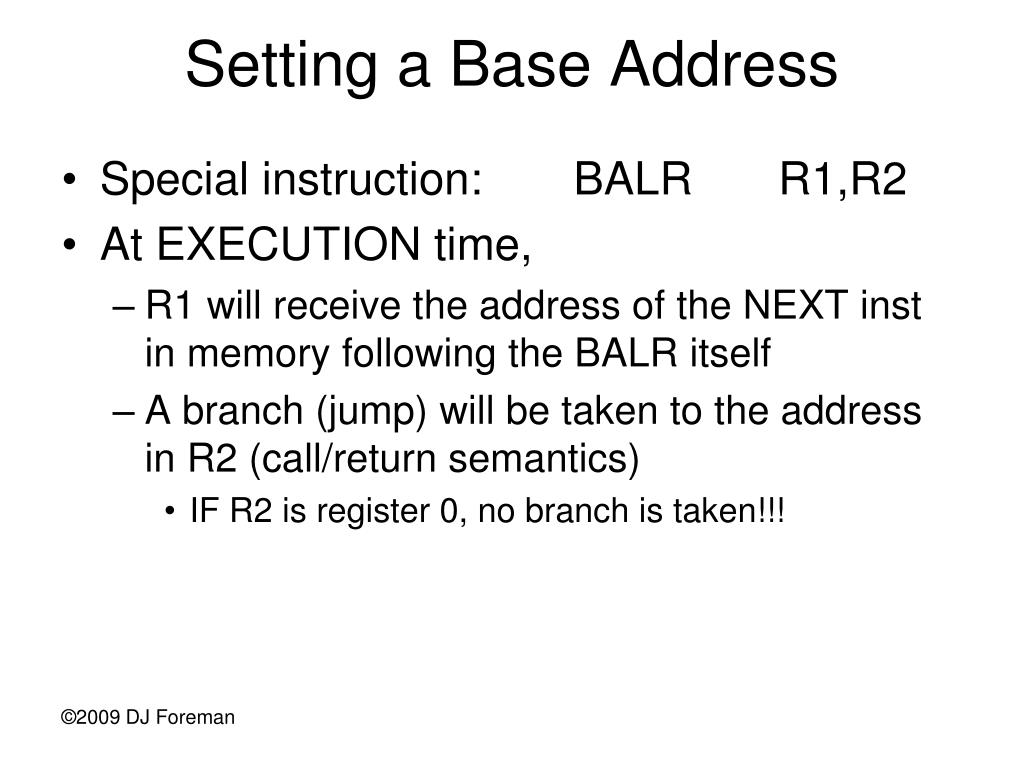

  25. Setting a Base Address • Special instruction: BALR R1,R2 • At EXECUTION time, • R1 will receive the address of the NEXT inst in memory following the BALR itself • A branch (jump) will be taken to the address in R2 (call/return semantics) • IF R2 is register 0, no branch is taken!!!

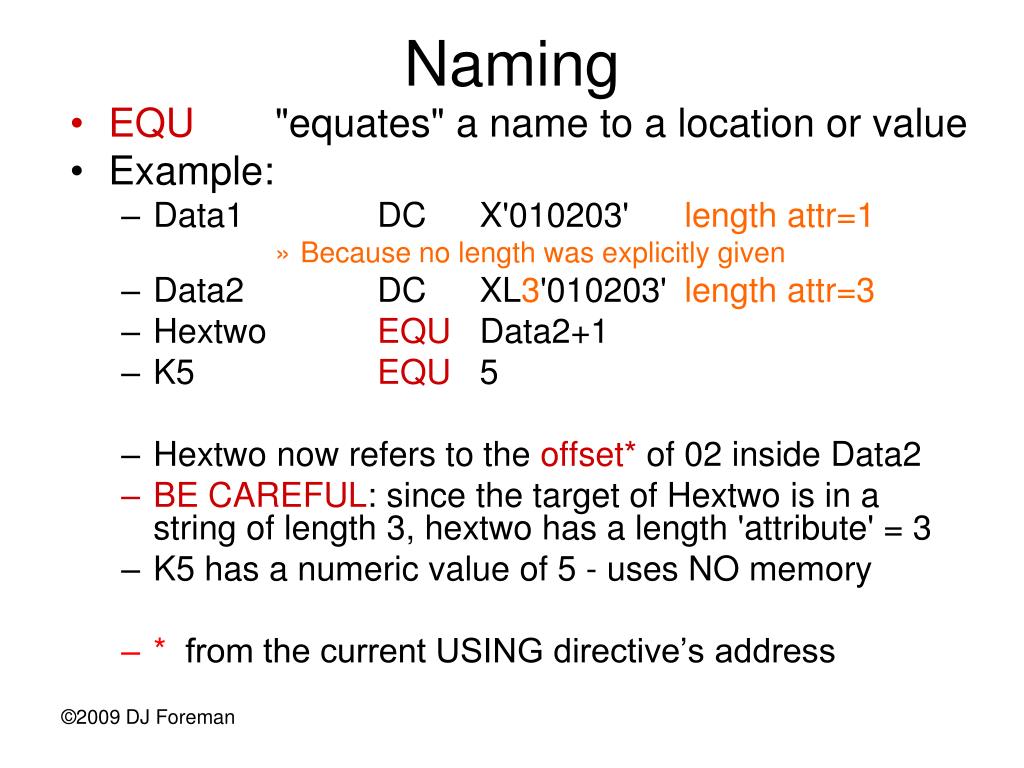

  26. Naming • EQU "equates" a name to a location or value • Example: • Data1 DC X'010203' length attr=1 • Because no length was explicitly given • Data2 DC XL3'010203' length attr=3 • Hextwo EQU Data2+1 • K5 EQU 5 • Hextwo now refers to the offset* of 02 inside Data2 • BE CAREFUL: since the target of Hextwo is in a string of length 3, hextwo has a length 'attribute' = 3 • K5 has a numeric value of 5 - uses NO memory • * from the current USING directive’s address

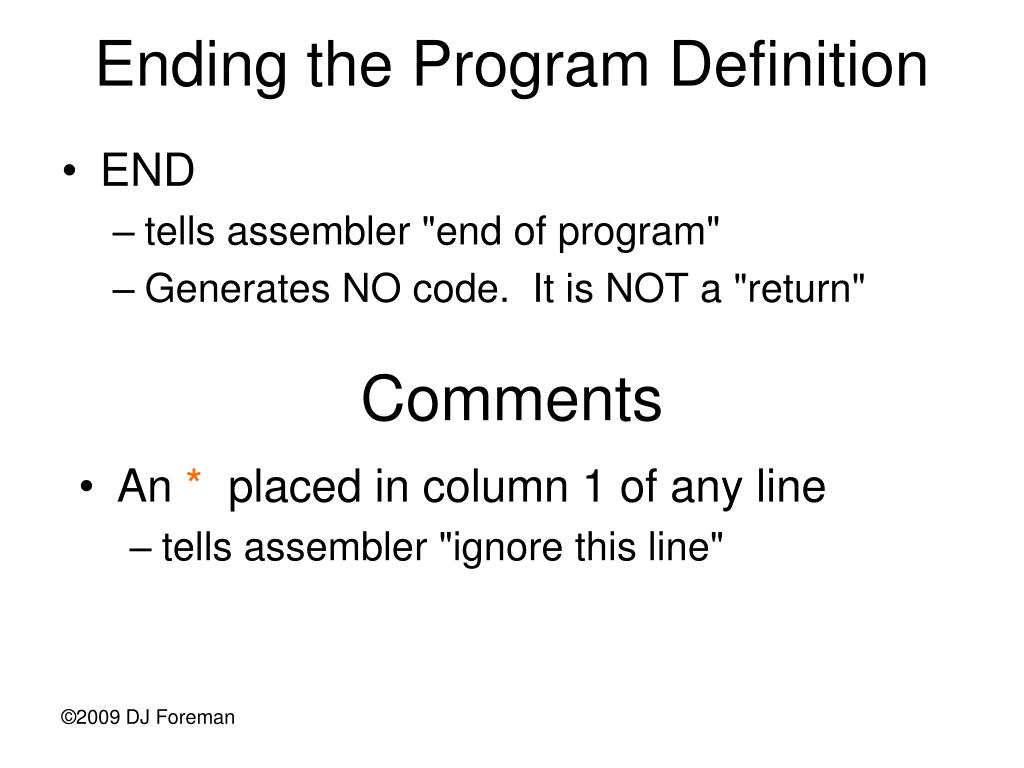

  27. Ending the Program Definition • END • tells assembler "end of program" • Generates NO code. It is NOT a "return" Comments • An * placed in column 1 of any line • tells assembler "ignore this line"

  28. z/390 I/O

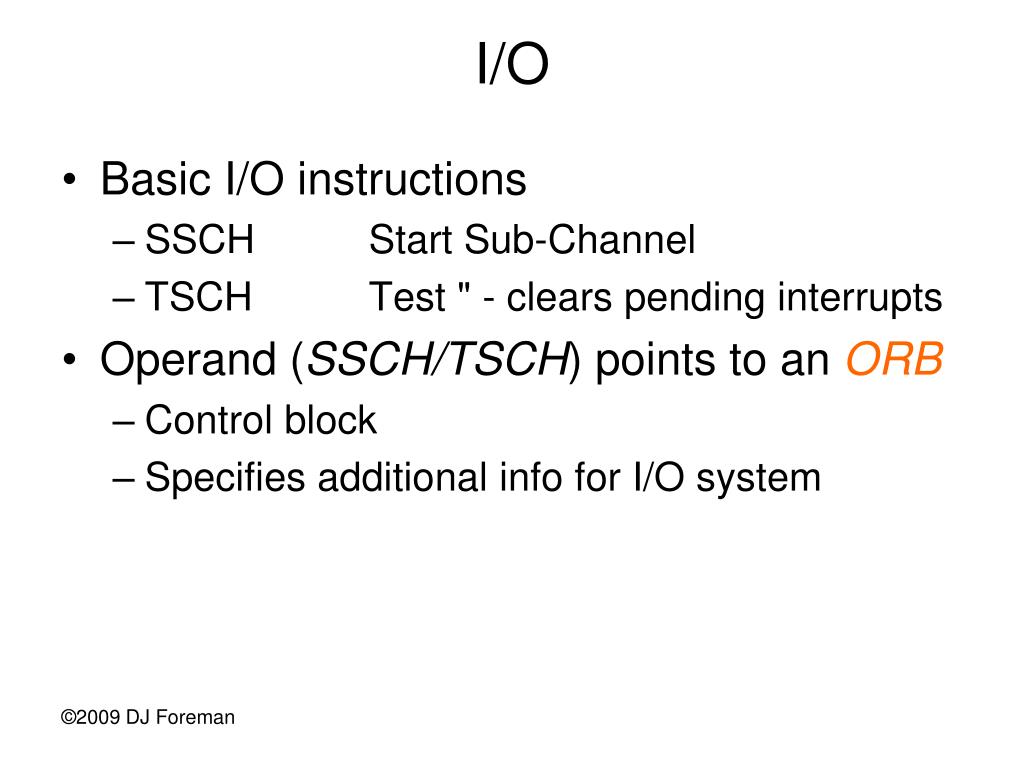

  29. I/O • Basic I/O instructions • SSCH Start Sub-Channel • TSCH Test " - clears pending interrupts • Operand (SSCH/TSCH) points to an ORB • Control block • Specifies additional info for I/O system

  30. ORB layout

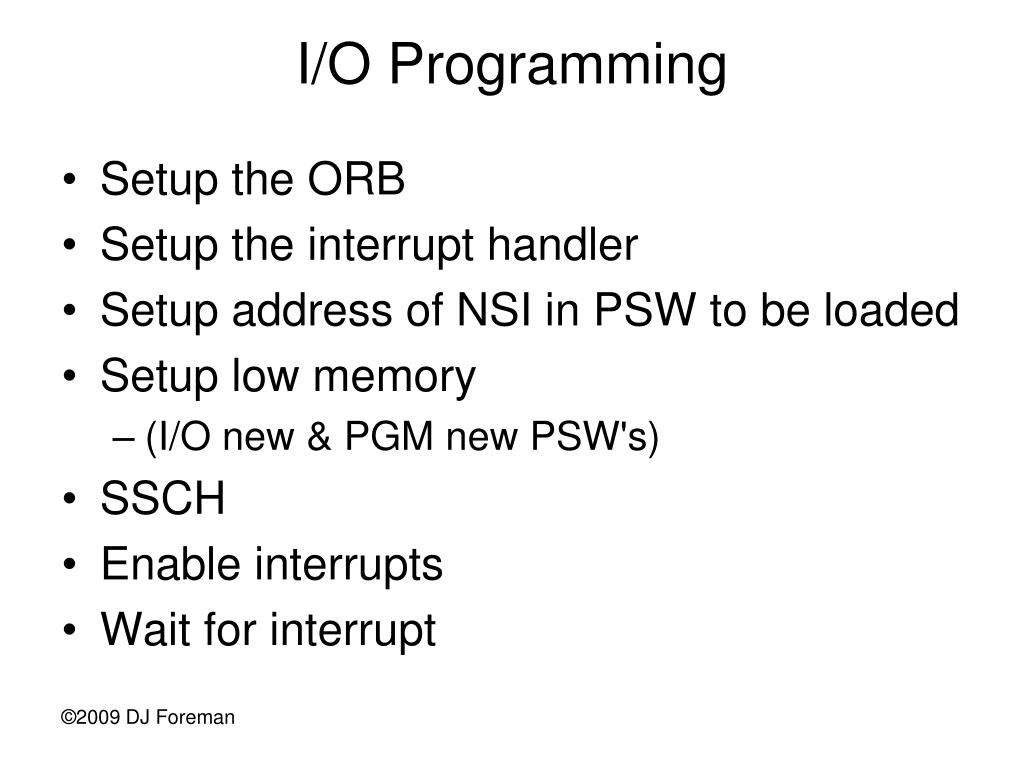

  31. I/O Programming • Setup the ORB • Setup the interrupt handler • Setup address of NSI in PSW to be loaded • Setup low memory • (I/O new & PGM new PSW's) • SSCH • Enable interrupts • Wait for interrupt

  32. General Programming ConceptsandSome IBM Specifics

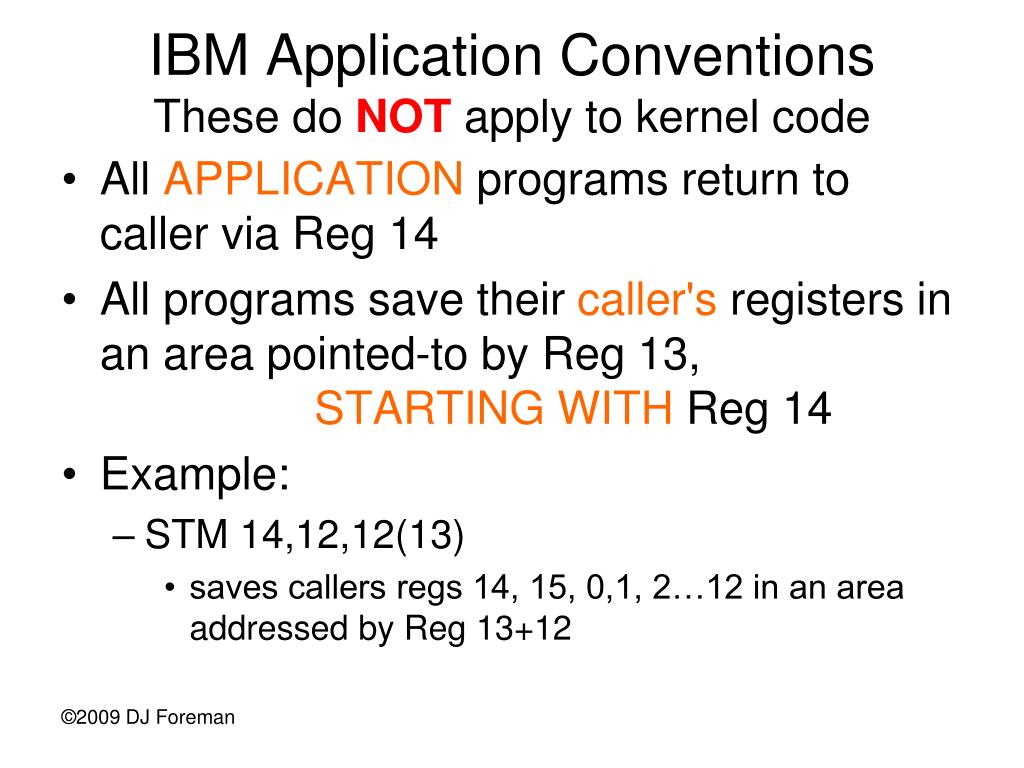

  33. IBM Application ConventionsThese do NOT apply to kernel code • All APPLICATION programs return to caller via Reg 14 • All programs save their caller's registers in an area pointed-to by Reg 13, STARTING WITH Reg 14 • Example: • STM 14,12,12(13) • saves callers regs 14, 15, 0,1, 2…12 in an area addressed by Reg 13+12

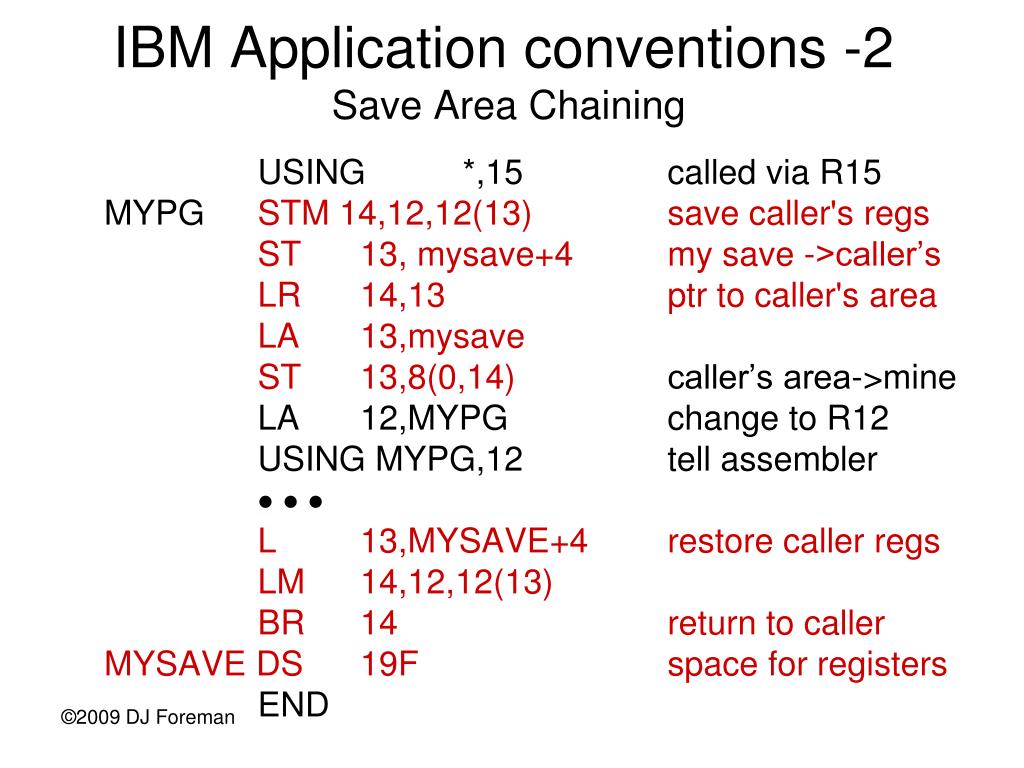

  34. IBM Application conventions -2 Save Area Chaining USING *,15 called via R15 MYPG STM 14,12,12(13) save caller's regs ST 13, mysave+4 my save ->caller’s LR 14,13 ptr to caller's area LA 13,mysave ST 13,8(0,14) caller’s area->mine LA 12,MYPG change to R12 USING MYPG,12 tell assembler    L 13,MYSAVE+4 restore caller regs LM 14,12,12(13) BR 14 return to caller MYSAVE DS 19F space for registers END

  35. Macros • Expand into actual inline code • Save writing and remembering • Allows for variable substitution • Allows for different expansion, based on arguments • NOT a function call, • NOT a text substitution (as it is in C) • It can generate DIFFERENT instructions oneach usage in a program

  36. Example MACRO &LBL SETCTL &LBL STCTL C6,C6,SCRATCH MVI SCRATCH+4,X'FF' LCTL C6,C6,SCRATCH MEND So XYZ SETCTL Generates: XYZ STCTL C6,C6,SCRATCH MVI SCRATCH,X’FF LCTL C6,C6,SCRATCH Note: “SCRATCH” is 8 bytes

  37. Kernel Programs

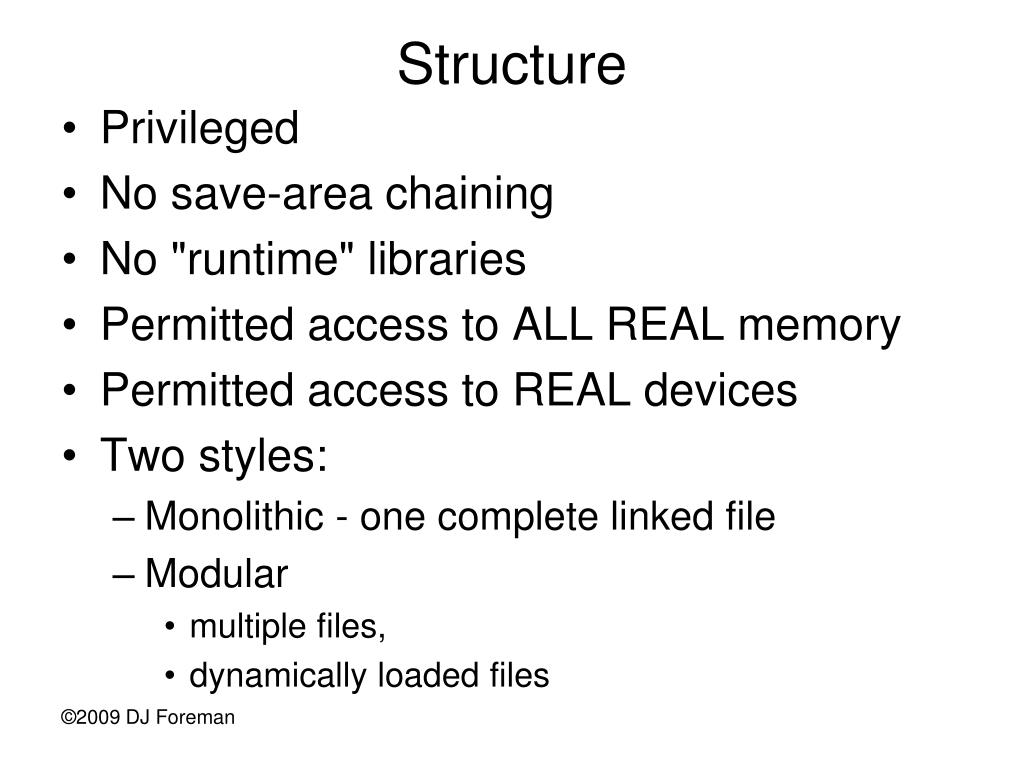

  38. Structure • Privileged • No save-area chaining • No "runtime" libraries • Permitted access to ALL REAL memory • Permitted access to REAL devices • Two styles: • Monolithic - one complete linked file • Modular • multiple files, • dynamically loaded files

  39. Context Management

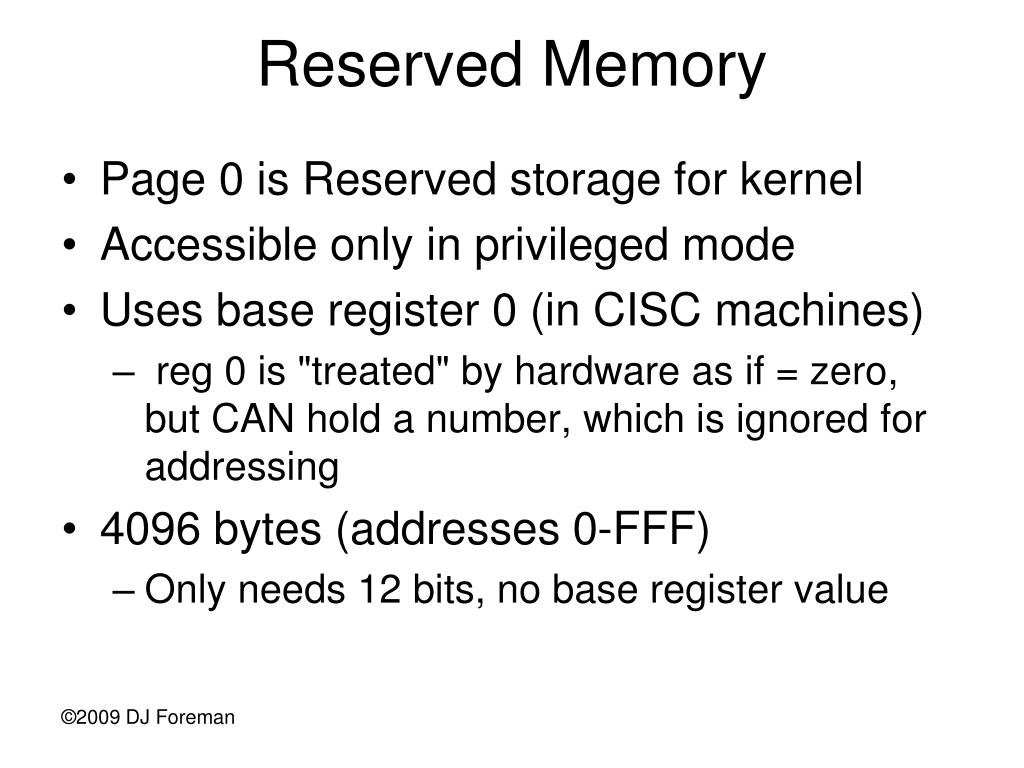

  40. Reserved Memory • Page 0 is Reserved storage for kernel • Accessible only in privileged mode • Uses base register 0 (in CISC machines) • reg 0 is "treated" by hardware as if = zero, but CAN hold a number, which is ignored for addressing • 4096 bytes (addresses 0-FFF) • Only needs 12 bits, no base register value

  41. Boot Sequence • ROM forces an I/O read: • 24 bytes from Cyl 0, Hd 0, Rec 0 • Into loc 0, with chaining to loc 8 • These 24 bytes contain • PSW 0 state vector w/Addr of 1st byte of pgm • CCW1 Read more data • CCW2 And more data • CCW Chaining continues at loc 8 • At end of data, PSW is loaded • Execution begins

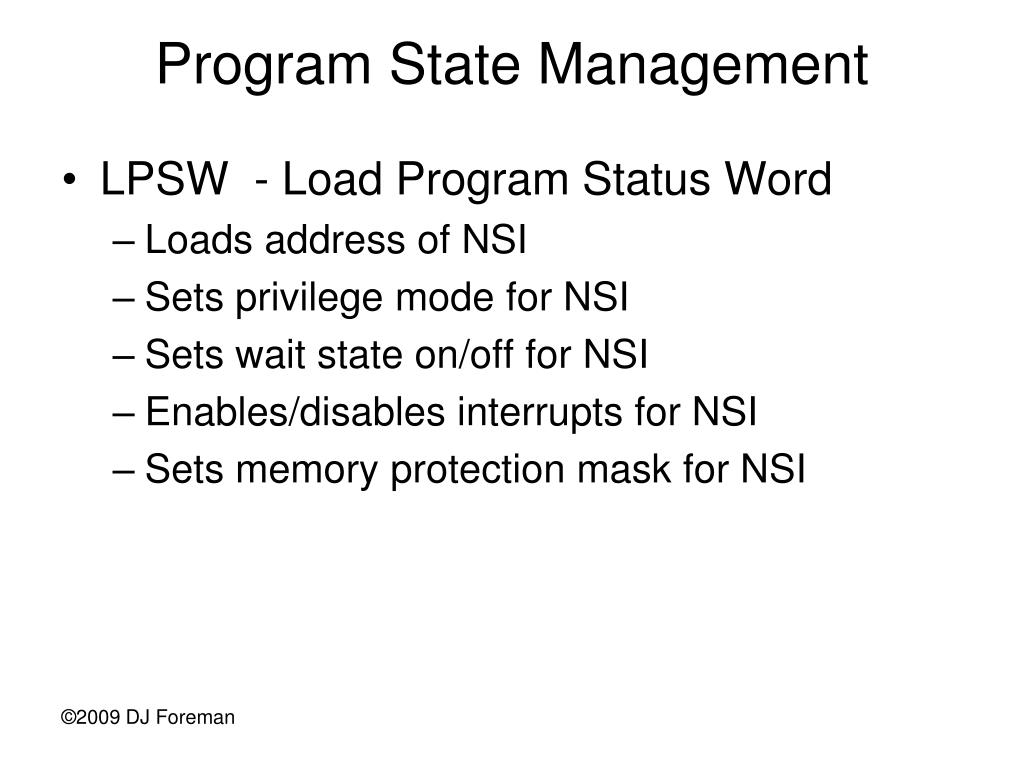

  42. Program State Management • LPSW - Load Program Status Word • Loads address of NSI • Sets privilege mode for NSI • Sets wait state on/off for NSI • Enables/disables interrupts for NSI • Sets memory protection mask for NSI

  43. VM Simulation • Boot minidisk formatted as a CMS disk • Not a free-standing drive • Temp disk is usable • O/S module created in CMS • O/S file copied to boot disk • Stand-Alone Program Loader (SAPL) installed on boot using SAPIPL • When drive is booted, SAPL loads the O/S • O/S may then use any volumes (but must either create a file system or use CMS file system

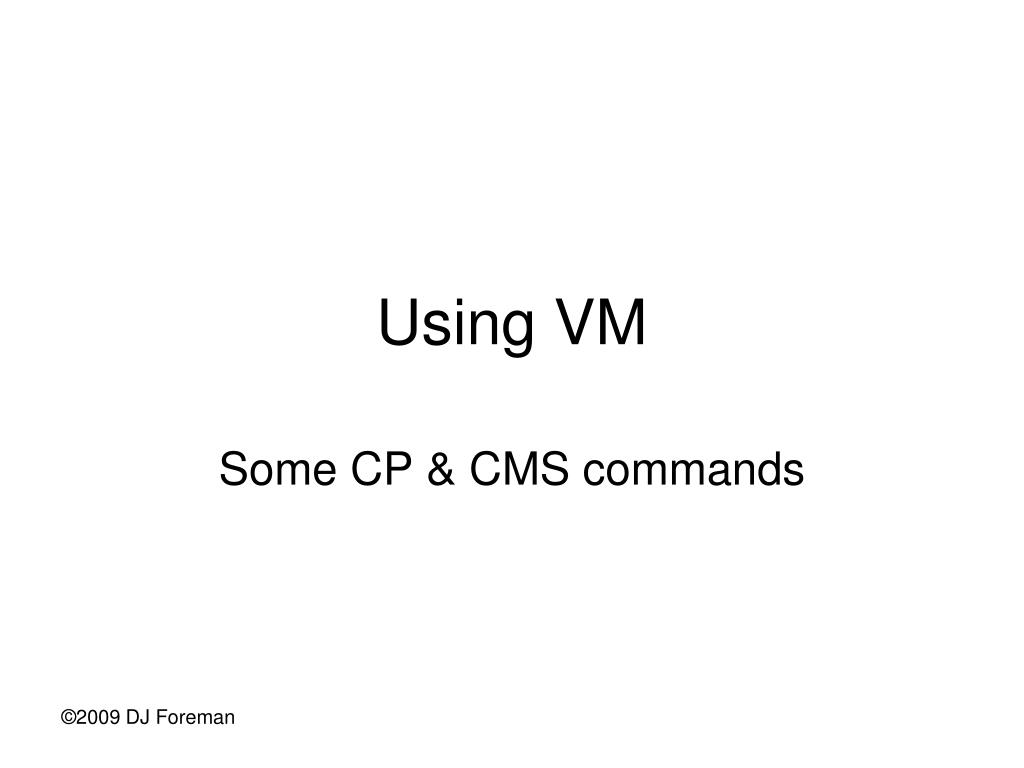

  44. Using VM Some CP & CMS commands

  45. What is VM? • A virtual environment • Minidisks • Virtual devices (some are true simulations) • Spool management (prt, con) • Real-system resource mgr • Privilege-mode emulator for virtual machines • Allows a user to • Invoke ALL real hw instructions in a program • Boot an O/S - existing or roll-your-own

  46. What is VM? - 2 • Two components • CP the Control Program or Hypervisor • Does all real I/O, paging, scheduling • Manages virtual devices (disks, consoles, etc) • CMS the "shell" that comes with VM • File system • Program management • No multi-threading • No multi-programming • Extensive s/w development & file mgmt commands

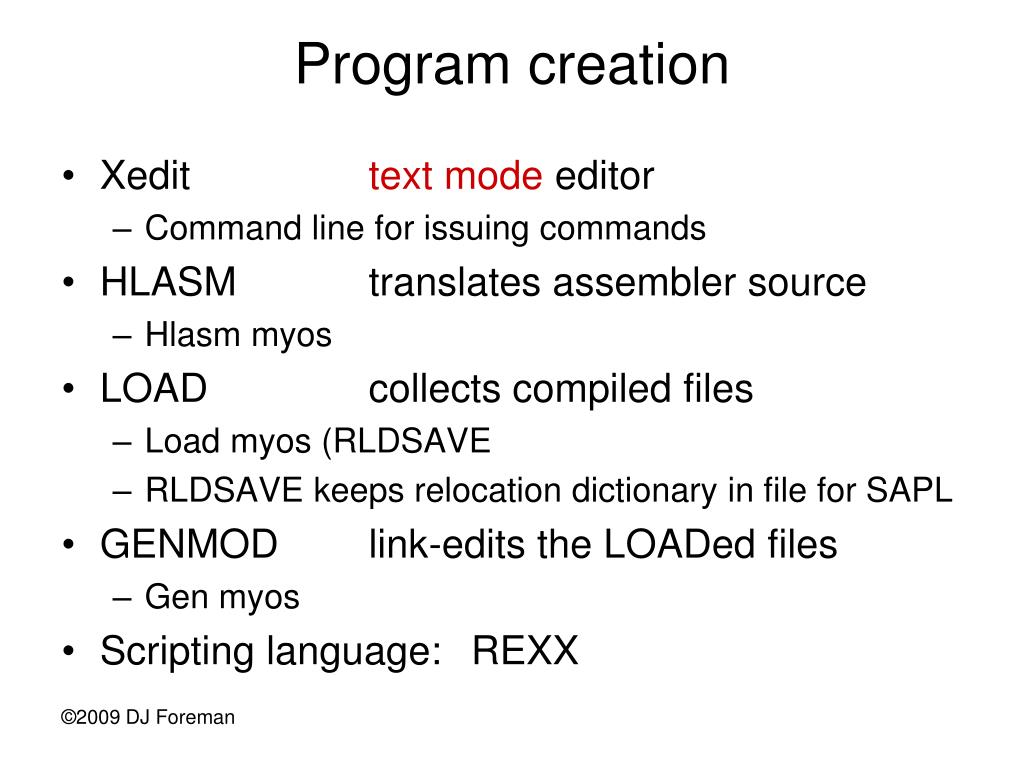

  47. Program creation • Xedit text mode editor • Command line for issuing commands • HLASM translates assembler source • Hlasm myos • LOAD collects compiled files • Load myos (RLDSAVE • RLDSAVE keeps relocation dictionary in file for SAPL • GENMOD link-edits the LOADed files • Gen myos • Scripting language: REXX

  48. Booting your own system • Define T3390 as vaddr cyl n • Format vaddr modeletter • Format vaddr modeletter n-1 (recomp • Salipl vaddr (origin xxxx mod myos • #CP IPL vaddr • Need the #CP to avoid terminal type problems • Returning to the CMS shell • #CP IPL CMS • Modeletter: • A-Z, same as a PC • Defines path for files AND writeability of drive
