  1. Chicago AHR Expo 2003

  2. From the 96 th floor of Hancock Tower

  3. Glass Elevators

  4. My speaking partner Dave Branson

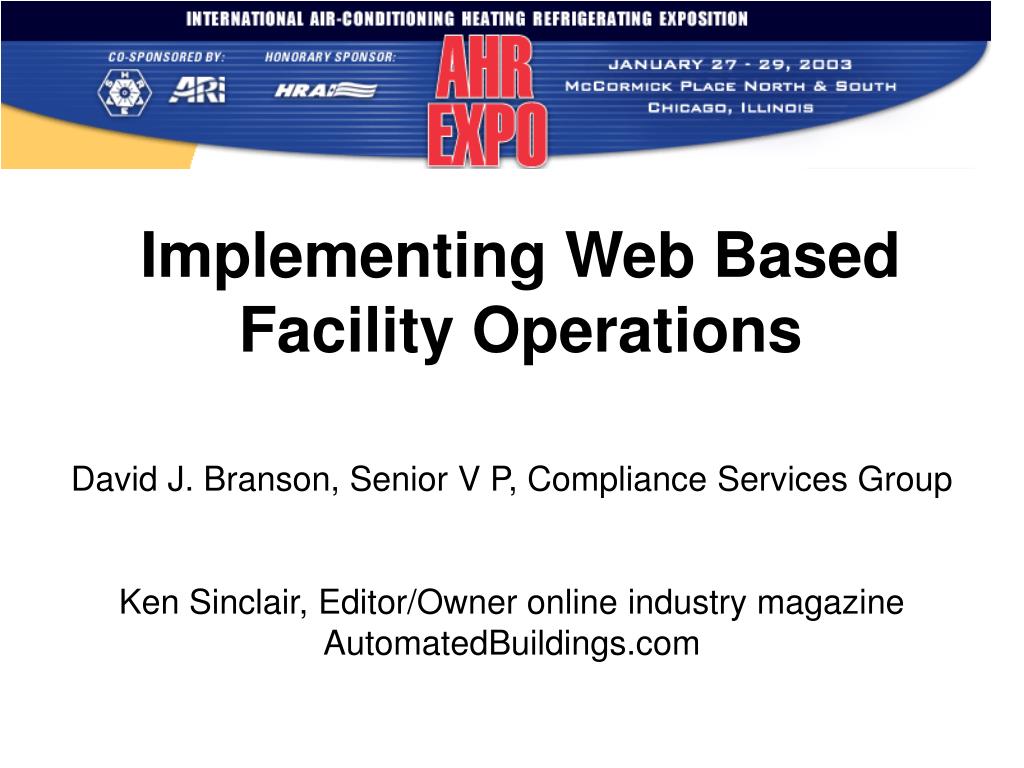

  5. Implementing Web Based Facility Operations David J. Branson, Senior V P, Compliance Services Group Ken Sinclair, Editor/Owner online industry magazineAutomatedBuildings.com

  6. Supplement August Issue of Engineered Systems

  7. A follow up “Controlling Convergence”Supplement in April Issue EngineeredSystems

  8. Doing more with less manpower by usingweb-based anywhere information to amplify your existing building operational resources.

  9. Buildings With Their Own Internet Identity and Address

  10. Where should we locate our Web-Based Facilities Operation "WBFO"?

  11. Documenting the Design VarianceBuildings are seldom operated as they were originally designed.

  12. We must develop the “magic” to take our automation interfaces to the next level in an elegant convergence model.

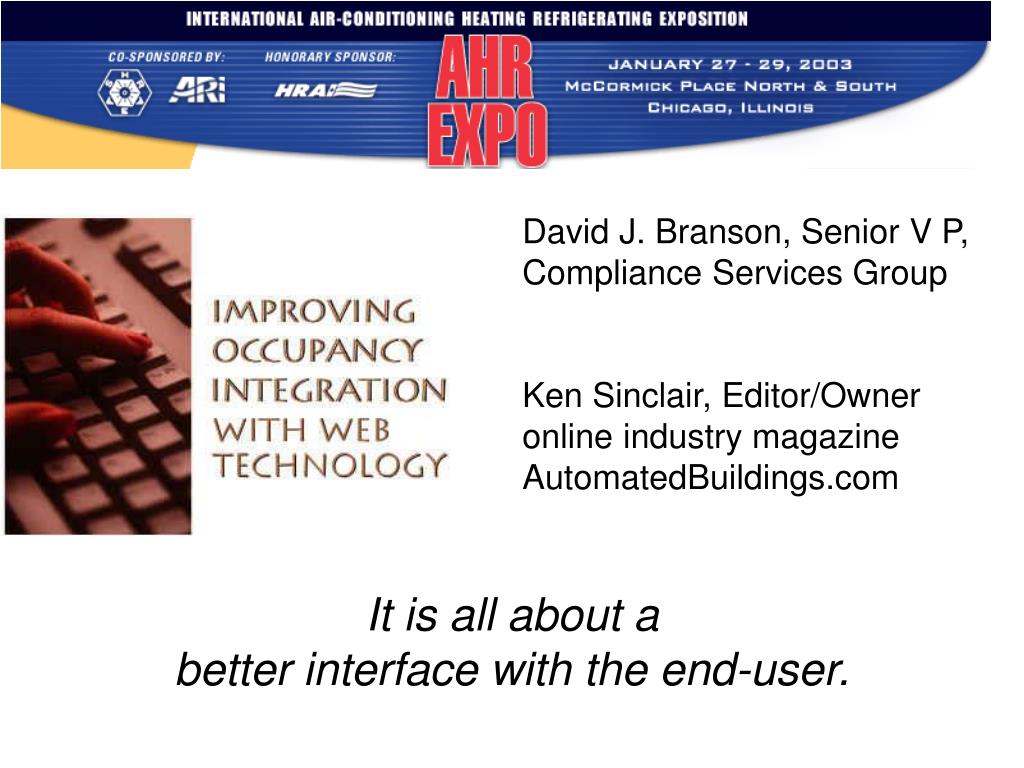

  13. It is all about abetter interface with the end-user. David J. Branson, Senior V P, Compliance Services Group Ken Sinclair, Editor/Owner online industry magazineAutomatedBuildings.com

  14. Thomas Hartman, P.E.Contributing Editor, Friend and Mentor I predict a very strong movement to "occupant integrated" HVAC controls within the next decade. My prediction is that by the second decade of this century, most class "A" office spaces will be required to offer individual control of thermal and lighting levels. This integration will most likely be Internet based.

  15. Occupants are connected to wide area networks, including the Internet, and yet almost none of them can connect to their local comfort system to request changes in thermal or lighting levels in the space they occupy.

  16. From a worker performance perspective it is extremely wasteful that we arenot aggressively pursuing suchindividual comfortcontrol connections.

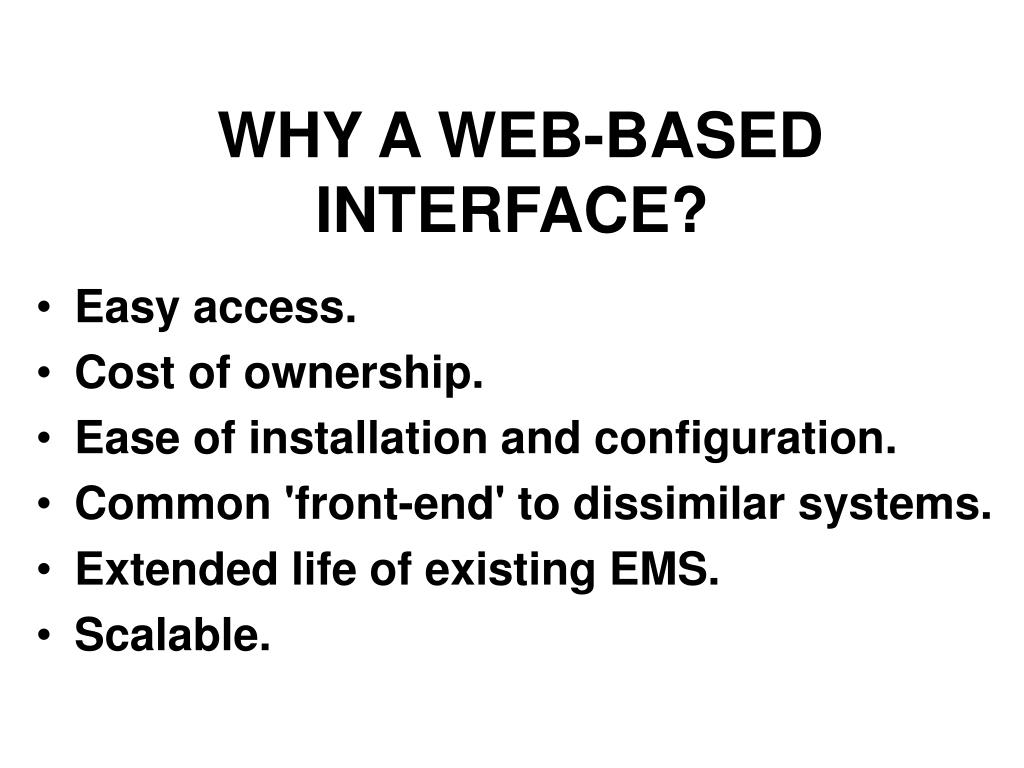

  17. WHY A WEB-BASED INTERFACE?  • Easy access. • Cost of ownership. • Ease of installation and configuration. • Common 'front-end' to dissimilar systems. • Extended life of existing EMS. • Scalable.

  18. We are not talking about viewing our old systems through a Web browser; we are talking about total product, design, control, and mechanical/electrical equipment integration.

  19. SuperOperators

  20. "The Birth of the Super-Operator" and creating their support network.

  21. Have you seen the new CABA Technology Roadmap for Intelligent Buildings?

  22. If we do not change, changes will come from outside our industry. The real danger for our industry is if we do not grow rapidly enough to provide this value added service there is a host of "ISIT's" (Information Systems and Information Technology) types who will.

  23. An Update: Proprietary PerspectivesOn Interoperability David J. Branson, PE, Senior Vice President Compliance Services Group, Inc. Ken Sinclair, Editor/Owner online industry magazine AutomatedBuildings.com

  24. Topics Covered • Maintaining Proprietary Components • Legacy Gateways • Levels of Interoperability • Self Configuring Controls • Distributed Systems

  25. 3 Control 4 Eventing 5 Presentation 2 Description 1 Discovery 0 Addressing A Self Configuring Architecture 0 control point and device get addresses 1 control point finds interesting device 2 control point learns about device capabilities 3 control point invokes actions on device 4 control point listens to state changes of device 5 control point controls device and/or views device status using HTML UI

  26. Anatomy: A Self Configured Device Networking stack Discovery server Description server Presentation server Control & eventing services Discovery Control & Eventing Presentation Description HTTPMU HTTP UDP TCP IP

  27. Nurturing the Necessary Network  David J. Branson, PE, Sr. Vice President Compliance Services Group, Inc. Ken Sinclair, Editor/Owner online industry magazine AutomatedBuildings.com

  28. Avoiding Network Clutter • Standardized protocols • Use managed network hardware • Know the domain of use • Derived vs collected data

  29. The OSI Model Layer 7: The application layer...is where communication partners are identified Layer 6: The presentation layer...is usually part of an operating system Layer 5: The session layer...sets up, coordinates, and terminates Layer 4: The transport layer...manages the end-to-end control Layer 3: The network layer...routing of the data Layer 2: The data-link layer...synchronization for the physical level Layer 1: The physical layer...conveys the bit stream
