Batch Transfer peristaltic Hose Pump

Batch Transfer (peristaltic) Hose Pump is high flow rates fluids transfer unit, driven by the AC motor and the frequency converter control speed. Its maximum<br>Flow rate is 1.5 to 9 L/min and offers 2.5 L oil consumption. Its operation is simple, reliable and pressure of transmission is high, suitable for massive <br>viscosity and high lift materials. It is used to pump clean/sterile or aggressive fluids without exposing those fluids to contamination from exposed pump components.

kibmer
Download Presentation

Batch Transfer peristaltic Hose Pump

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

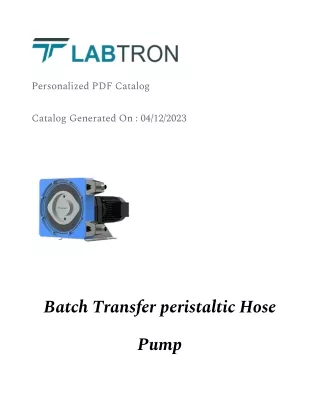

  1. Personalized PDF Catalog Catalog Generated On : 04/12/2023 Batch Transfer peristaltic Hose Pump

  2. https://www.labtron.info/ info@labtron.info | Description : Batch Transfer (peristaltic) Hose Pump is high flow rates fluids transfer unit, driven by the AC motor and the frequency converter control speed. Its maximum Flow rate is 1.5 to 9 L/min and offers 2.5 L oil consumption. Its operation is simple, reliable and pressure of transmission is high, suitable for massive viscosity and high li? materials. It is used to pump clean/sterile or aggressive fluids without exposing those fluids to contamination from exposed pump components.

  3. Specifications : Flow rate max 1.5 to 9 L/min Max Li? 120 meters Max output 10Bar（1Mpa） pressure Oil 2.5 L consumption Liquid Up to 80°C temperature

  4. CSM, F-NBR, NR, Hose material NBR, EPDM ½ inch Flange（ID Input/output 31.8mm） Power 0.75 kW Features : Reached up to 9.5 meters height self-priming High viscosity transporting and shear sensitive fluids

  5. Flow stability provide accurate and repeatable ±1% measurement volume accuracy Liquid temperature up to 80°C Equipped with abrasive slurry, corrosive acid and gas fluids The pressure of transmission is high,

  6. suitable for massive viscosity and high li? materials Applications : Batch Transfer (peristaltic) Hose Pump is used to pump clean/sterile or aggressive fluids without exposing those fluids to contamination from exposed pump components also used in aggressive

  7. chemicals, agriculture, high solids slurries and other materials.

  8. www.labtron.info Labtron Equipment Ltd. Quatro House, Lyon Way, Camberley, Surrey GU16 7ER United Kingdom

  9. Email: info@labtron.info | Website: https://www.labtron.info/ | Phone: +44 2080 043 608
