  1. MIB Browser Watch your Network on the move

  2. Product Overview SNMP MIB Browser for iOS enables the user to browse/view the MIB data of SNMP enabled network devices like desktops, routers, switches, etc., on the move. This tool enables the user to load any standard MIB and fetch values from the configured devices (agents running in those devices) at any instant and shows the MIB data in an intuitive user interface. SNMP MIB Browser can communicate to the network devices across Internet (via mobile access like GPRS, 3G) or across intranet via Wi-Fi. And supports all the versions of SNMP (v1, v2c) to fetch the data from the agent and can be safely used even over the Internet to fetch data. It allows user to load any number of MIBs and list in a tree view structure in the loaded MIBs. On clicking on any sub OIDs will gives SNMP Operations like GET,GETNEXT,GETBULK,SNMPWALK,SET based on Access, by clicking on parent table OIDs will gives Table view and all these Operations had with 1sec polling shows them in an intuitive user interface. This tool is able to fetch MIB data from one network device at a time and allows to configure/change the device (agent parameters) user is interested in, at any time, also provides options to persist the configurations.

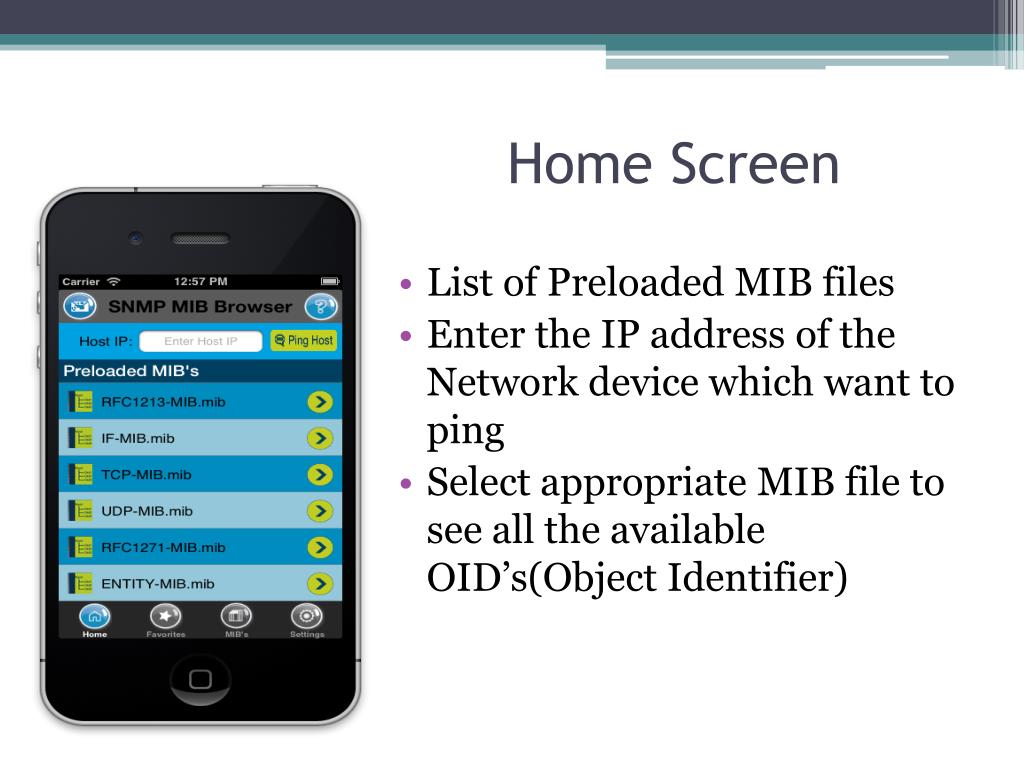

  3. Home Screen • List of Preloaded MIB files • Enter the IP address of the Network device which want to ping • Select appropriate MIB file to see all the available OID’s(Object Identifier)

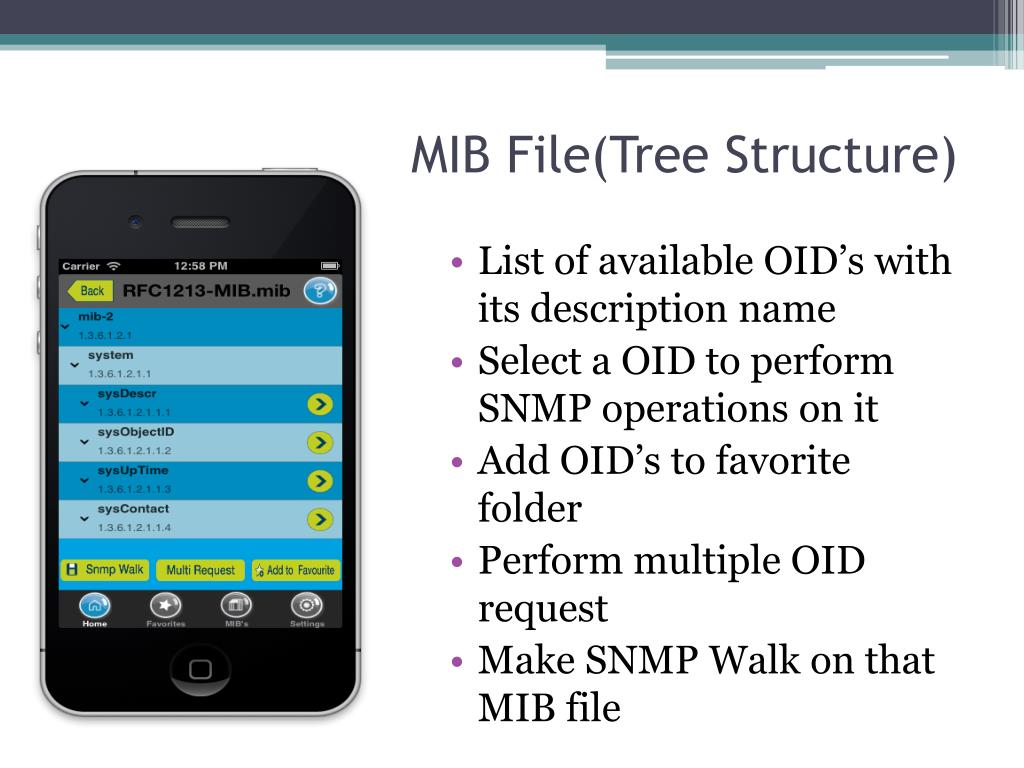

  4. MIB File(Tree Structure) • List of available OID’s with its description name • Select a OID to perform SNMP operations on it • Add OID’s to favorite folder • Perform multiple OID request • Make SNMP Walk on that MIB file

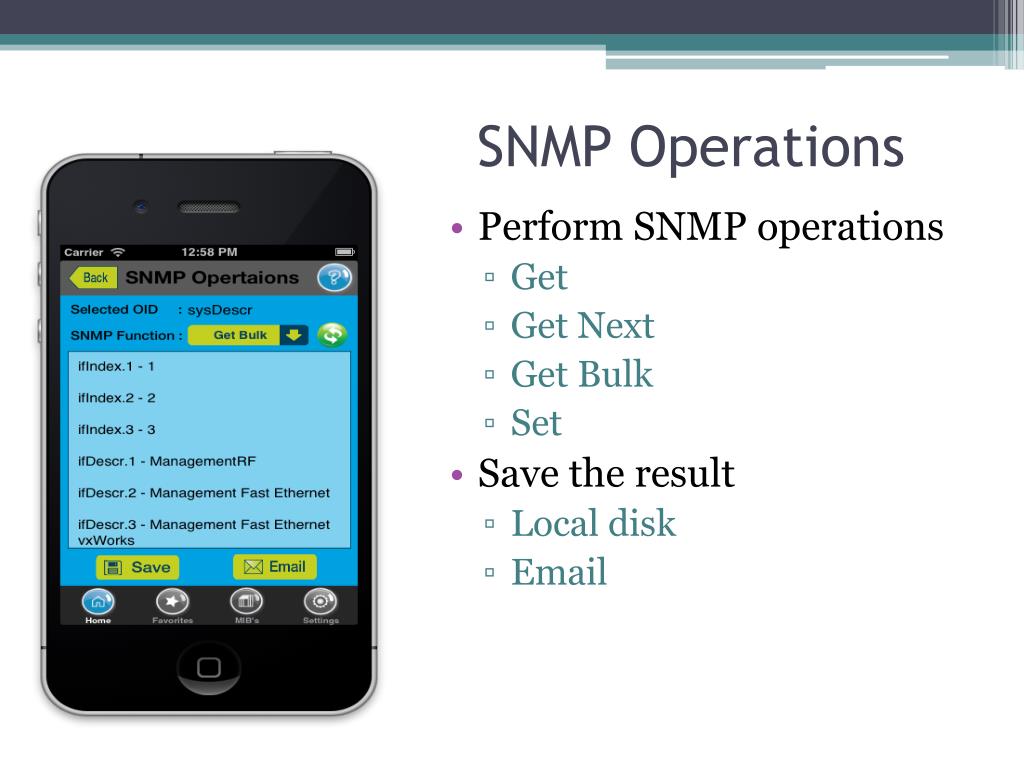

  5. SNMP Operations • Perform SNMP operations • Get • Get Next • Get Bulk • Set • Save the result • Local disk • Email

  6. SNMP Walk • Displays the result of SNMP Walk on the particular MIB file • Save the result • Local Disk • Email • Get the list of Previously saved results

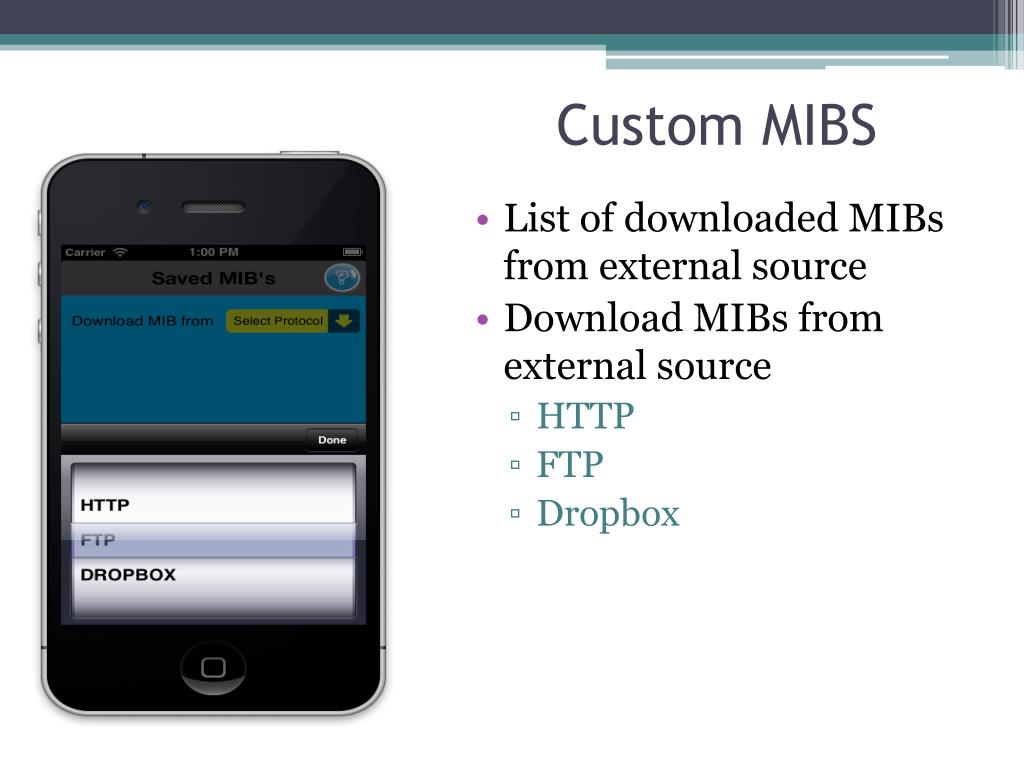

  7. Custom MIBS • List of downloaded MIBs from external source • Download MIBs from external source • HTTP • FTP • Dropbox

  8. Favourites • List of added OIDs into favourite folders • OIDs are listed under respective MIB files • Request for SNMP operation from the OIDs added here • Automatic re-polling to network device between particular time period

  9. Settings • Set • Host IP • Read/Write Community • Version • Time-out • Enable Favourite/ Multiple-request • Auto-Polling timer

  10. Thank You CONTACT US: Mail id:-dwarak@benchsoft.in Mobile No:- (+91) 44-43015432 Note: Screen showed are sample screens and may vary in functionality & aesthetics in the actual product
