  1. EH-HMI New A-Type Generation

  2. A-Type HMIs: Enhancement and Differences • 64K colors in TFT displays for better image realism • Video input option for models with TFT display • Internal 32 MB user memory • Optional SSFDC flash card • 256 colors on STN displays • 8 gray shades on monochrome displays • Backlight dimming function for TFT displays • 200 MHz 4131 MIPS CPU delivers higher performance

  3. Internal 32 MB User Memory • Internal 32 MB user memory • A-Type HMIs will be delivered without SSFDC Flash Card • Optional use of SSFDC Flash Card is possible

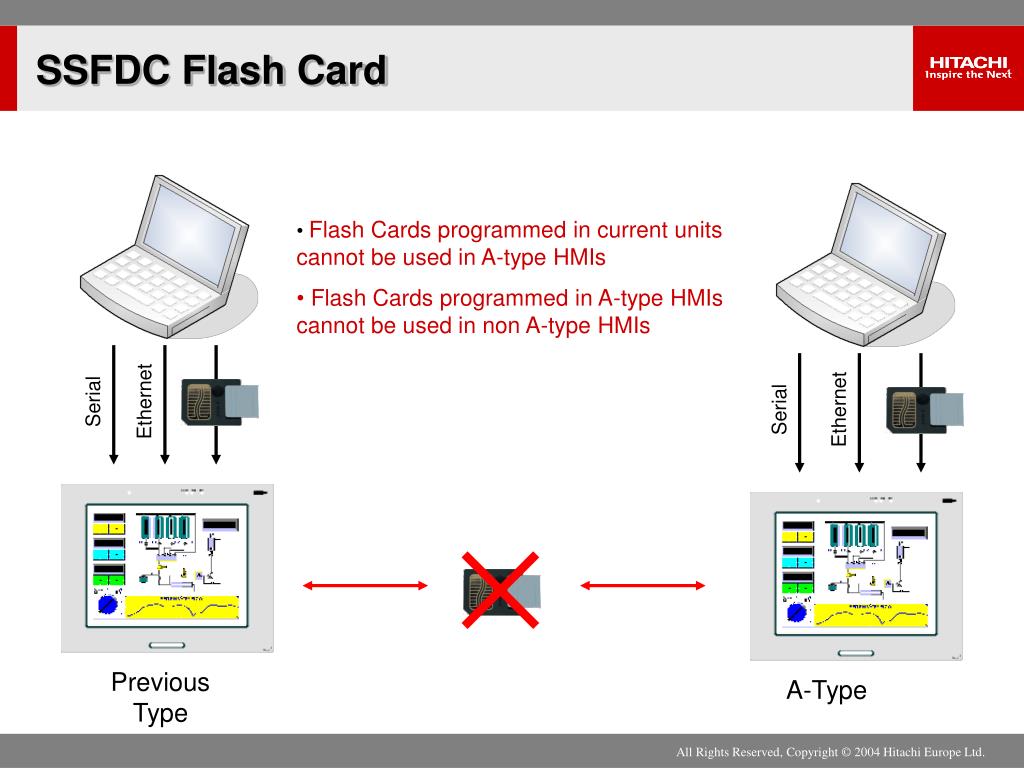

  4. Serial Ethernet Serial Ethernet Previous Type A-Type SSFDC Flash Card • Flash Cards programmed in current units cannot be used in A-type HMIs • Flash Cards programmed in A-type HMIs cannot be used in non A-type HMIs

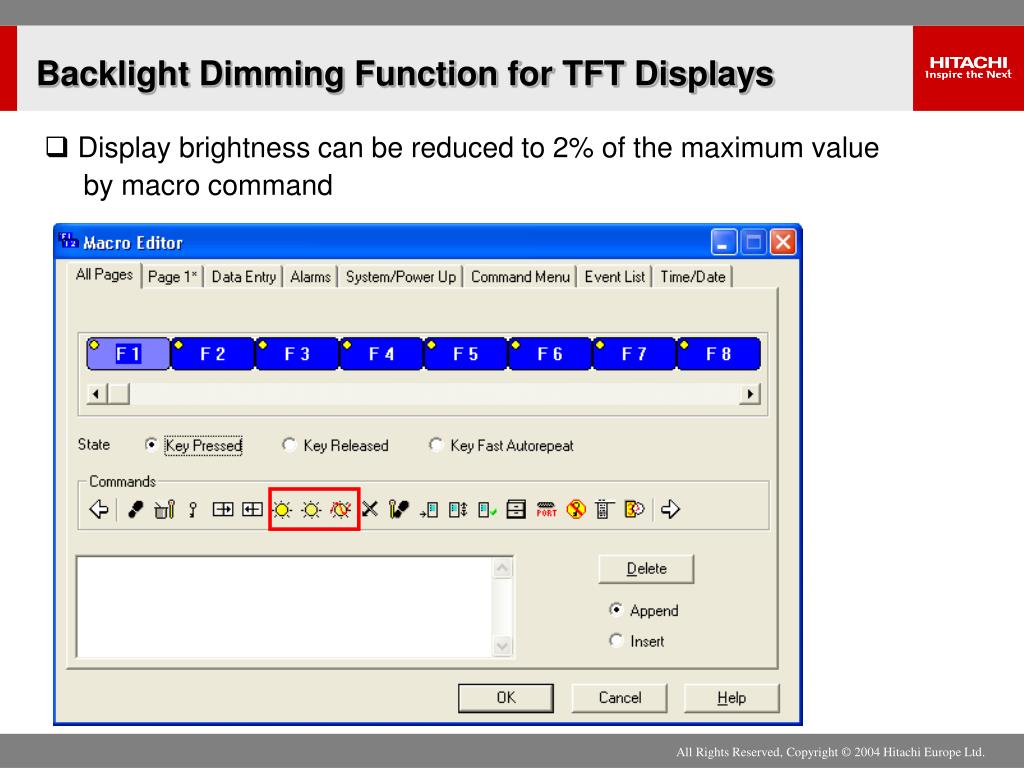

  5. Backlight Dimming Function for TFT Displays • Display brightness can be reduced to 2% of the maximum value by macro command

  6. 6.05 EH-VIEW 6.05 • The new A-Type HMIs will be included from version 6.05

  7. A-Type Product Range EH-TP30 EH-TP45 EH-TP60 EH-TP70 This HMIs will be replaced with the equivalent A-Type 7.5“ TFT Display NEW! EH-TP28 EH-TP30A EH-TP45A EH-TP60A EH-TP70A
