  1. MP Electronics, Basic Concept • Two modules: • Probe module • Surface module • The surface module is replaced by the Interface Module and COTS components • Detailed data processing is performed by the surface module (GSE) • Controller inside probe module performs measurement and heater control tasks • Power supply and communication via the tether • Power provided by standard laboratory power supply • Standard interface for communication: USB MBS 2006

  2. MP Electronics Module (1) • Dedicated electronics department inside the probe • Cylindrical tube with top and bottom cover • Three braces at 120° position provide the fixation of the PCB's • Braces are used to fix the electronics compartment inside the probe • Fixed connector at top cover provides the interface to the tether • Pig-tails (TBC) located at the bottom cover provide the interface to the heaters and sensors MBS 2006

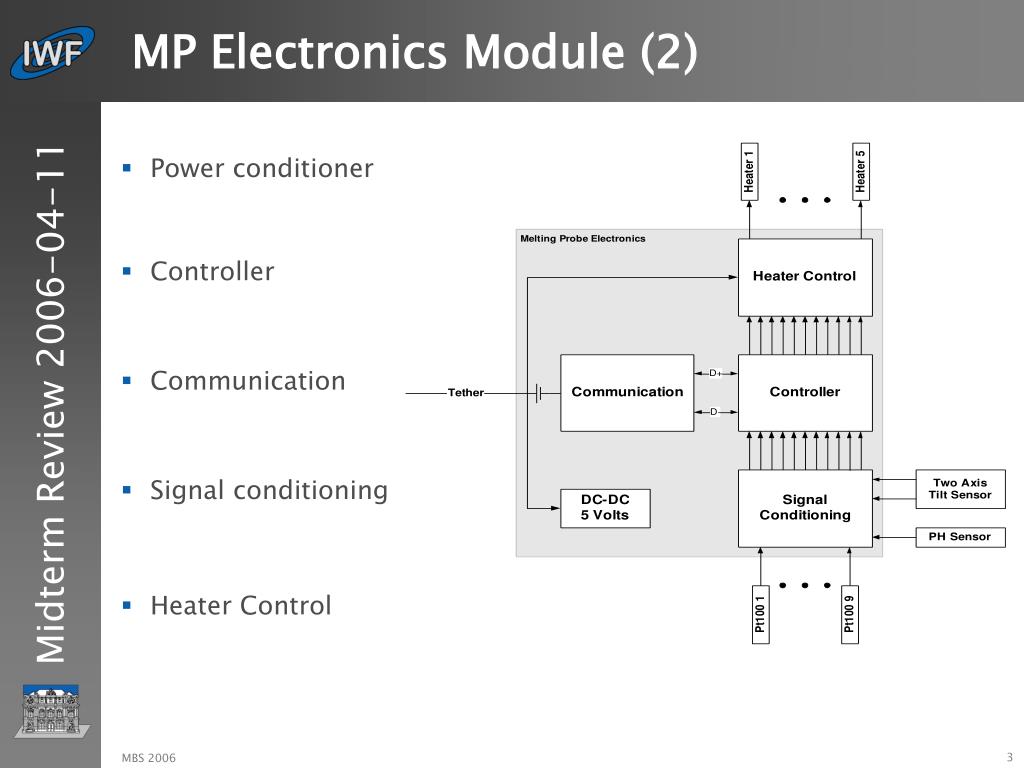

  3. MP Electronics Module (2) • Power conditioner • Controller • Communication • Signal conditioning • Heater Control MBS 2006

  4. MP Electronics Module (3) • Circuit diagrams not fully completed • Electronics will be spread to 5...6 PCB's (55mm diameter) • Connection to tether and external heaters and sensors via MDM connector • PCB interconnection via spring contacts and gold plated pads MBS 2006

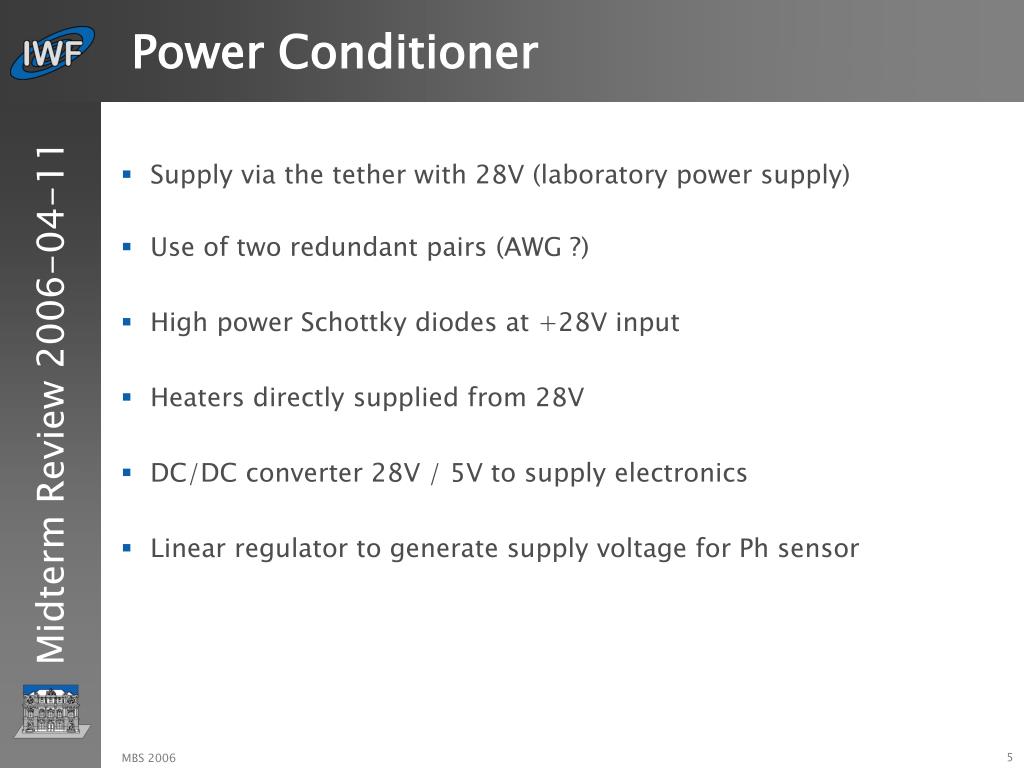

  5. Power Conditioner • Supply via the tether with 28V (laboratory power supply) • Use of two redundant pairs (AWG ?) • High power Schottky diodes at +28V input • Heaters directly supplied from 28V • DC/DC converter 28V / 5V to supply electronics • Linear regulator to generate supply voltage for Ph sensor MBS 2006

  6. Controller • Prototype is based on PIC18F4550 • Frequency: up to 40MHz, inbuilt 8MHz clock • Program memory: 32KByte • Data memory: 16kByte • ADC: 10 bit, 13 channels, 5V range • On-chip USB interface • 44-pin TQFP plastic package • Operational temperature range: -40°C...+85°C • Storage temperature range: -65°C...+150°C • Wide supply voltage range MBS 2006

  7. Communication • The communication channel uses the same signal lines as the power supply • Binary frequency shift key modulation for signal transmission will be used • Use of two carrier frequencies to support full-duplex mode • The communication will be based on the USB protocol • Frequencies not yet selected • Detailed design not yet finished MBS 2006

  8. Heater Control • Large variation of impedance due to environmental condition • Individual current limiter for each heating segment • Power management to minimize EMC radiation and losses • Heating segments switched sequentially • Concept for power sharing in low power mode under investigation • Control loop activated every 10ms (TBC) • Dedicated bang-bang controller with adjustable nominal temperature for each segment • Highest priority is given to front segment, while rear segment has lowest priority • Electronics calculates duty-cycle for each heater segment MBS 2006

  9. Temperature Measurement • Measurement shall support a temperature range between -200°C and +100°C • Five Pt100 are dedicated to the heater segments, four additional sensors are available for individual measurements • Pt100's are supplied with constant current of 1mA • Four wire interface is important since impedance of Pt100 varies from approx. 20Ω to 140Ω • Common GND line to save connector pins (three wire interface) • Resolution approx. 0.5°C/digit MBS 2006

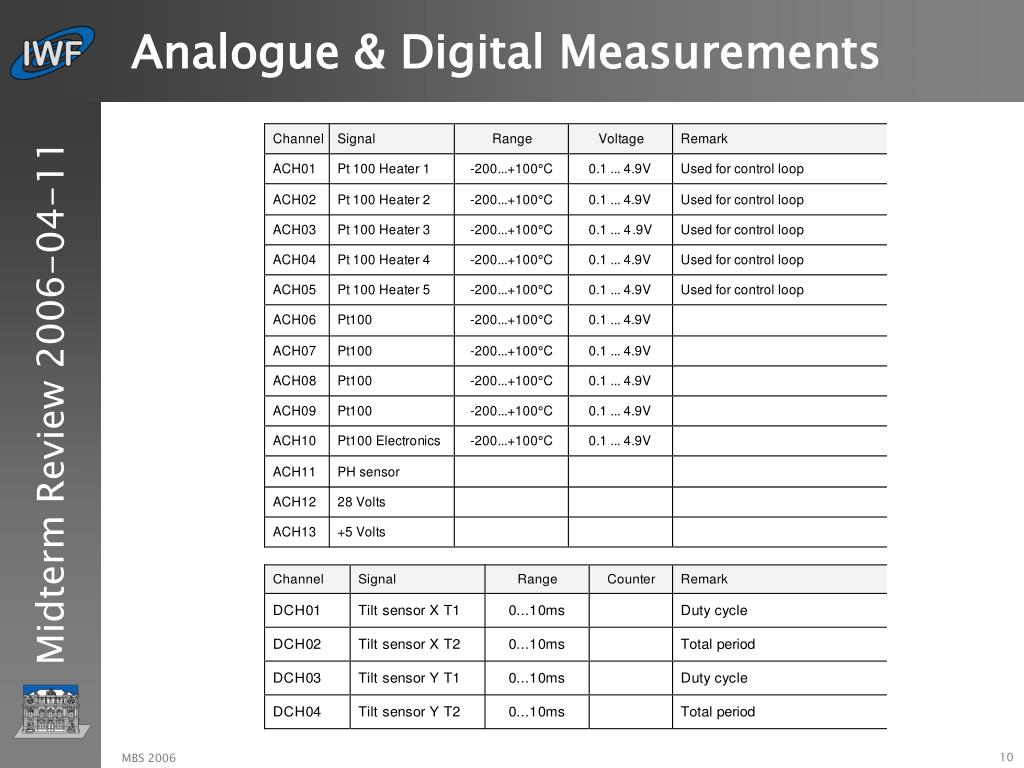

  10. Analogue & Digital Measurements MBS 2006

  11. Communication Protocol • Data are sent only on request • A response is send for each command, either simple ACK/NACK or data-set • Commands: • Set the nominal value for the control loop • Requests the temperature values • Requests all measurement values • Requests the nominal temperatures for the control loops • Request duty cycle MBS 2006

  12. Data-Set • Acknowledge / Not acknowledgeNACK will include simple failure code • Temperature dataThe temperature value for all five heater segments • All measurement dataA complete of measured data, temperatures, tilt angles and Ph value • Nominal temperature valuesRead-back of the reference values for the heater control loops • Duty cycleActive time of a heater during 1sec time periodResolution 1% (TBC) MBS 2006

  13. Software Design • Design based on Ward-Mellor method • Implementation with the MPE Lab IDE • Coding in C based on the Microchip C18 compiler • USB driver provided by Microchip • Measurement of analogue signals (Pt100 & Ph) by use of inbuilt ADC • Measurement of digital signals (tilt sensor) by use of capture/compare registers MBS 2006

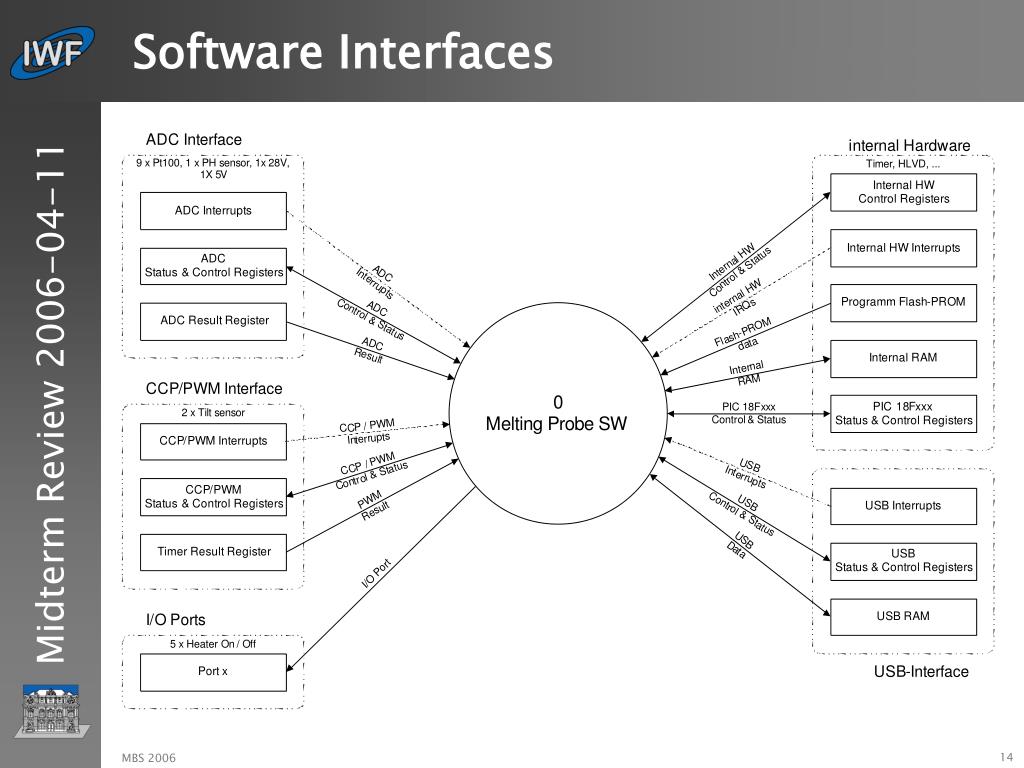

  14. Software Interfaces MBS 2006

  15. Software, Decomposition Level 0 MBS 2006
