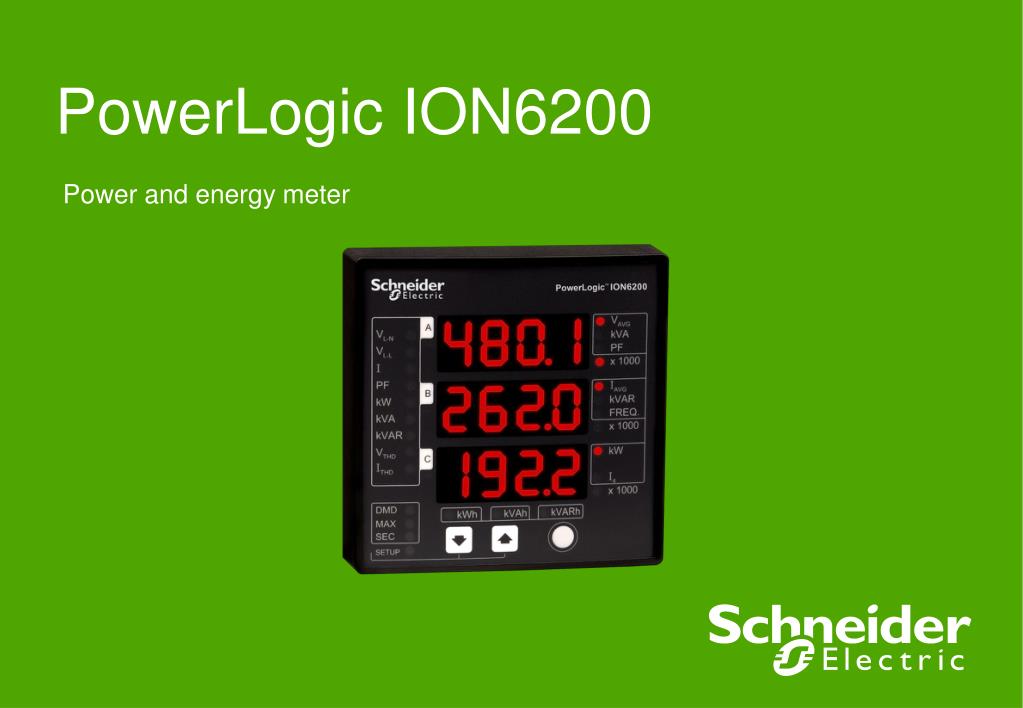

  1. PowerLogic ION6200 Power and energy meter

  2. Overview • Outstanding quality, versatility, and functionality • Low-cost • Ultra-compact design • Easy to read LED display • Simple to use; easy to wire and mount • Four-quadrant power, demand, energy, power factor, and frequency measurements • Variety of flexible configurations • Excellent upgrade path lets you save money

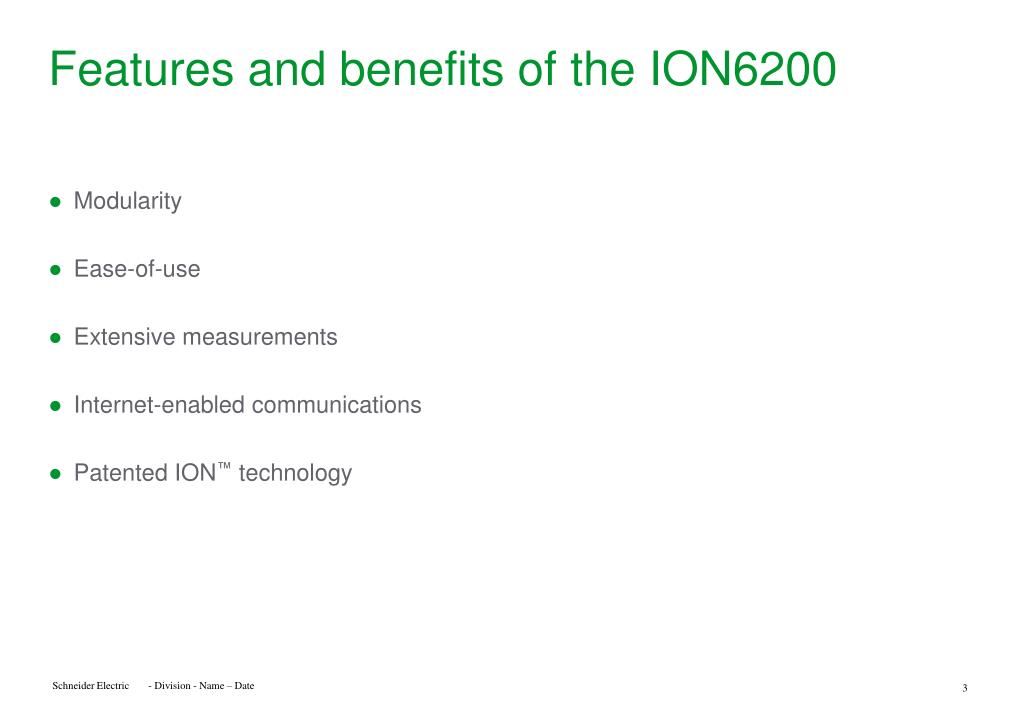

  3. Features and benefits of the ION6200 • Modularity • Ease-of-use • Extensive measurements • Internet-enabled communications • Patented ION™ technology

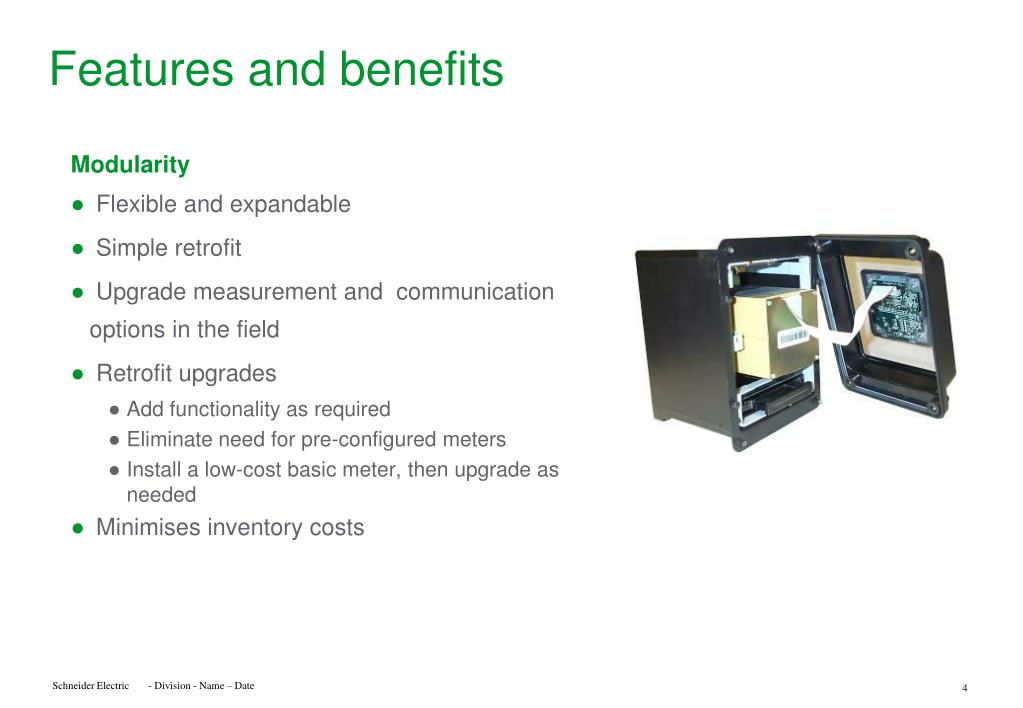

  4. Features and benefits Modularity • Flexible and expandable • Simple retrofit • Upgrade measurement and communication options in the field • Retrofit upgrades • Add functionality as required • Eliminate need for pre-configured meters • Install a low-cost basic meter, then upgrade as needed • Minimises inventory costs

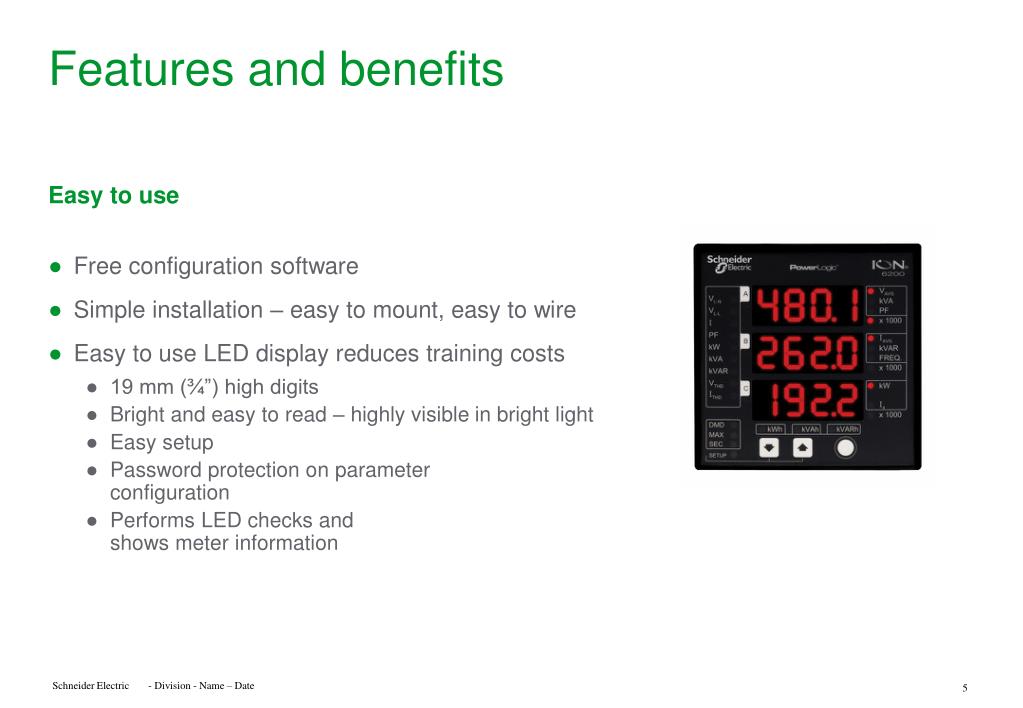

  5. Features and benefits Easy to use • Free configuration software • Simple installation – easy to mount, easy to wire • Easy to use LED display reduces training costs • 19 mm (¾”) high digits • Bright and easy to read – highly visible in bright light • Easy setup • Password protection on parameter configuration • Performs LED checks and shows meter information

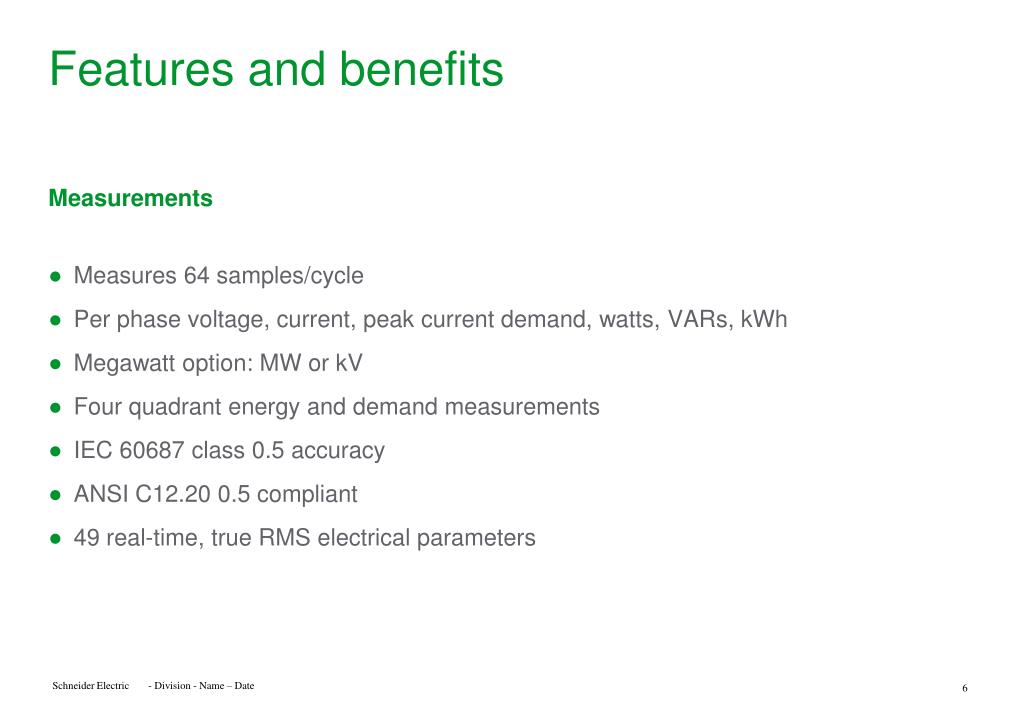

  6. Features and benefits Measurements • Measures 64 samples/cycle • Per phase voltage, current, peak current demand, watts, VARs, kWh • Megawatt option: MW or kV • Four quadrant energy and demand measurements • IEC 60687 class 0.5 accuracy • ANSI C12.20 0.5 compliant • 49 real-time, true RMS electrical parameters

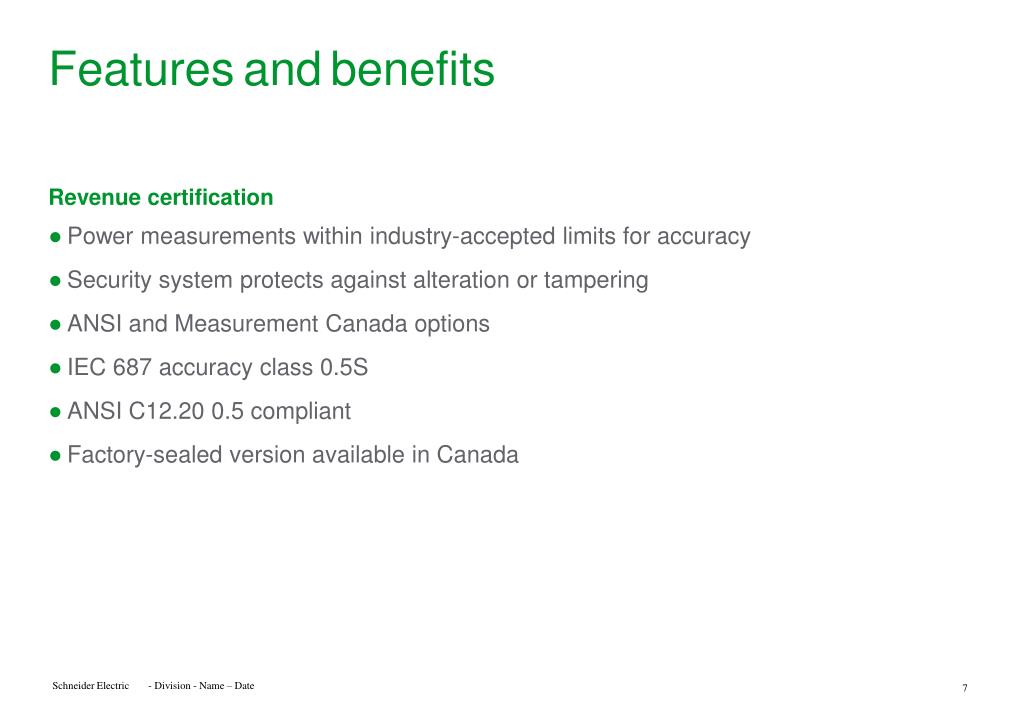

  7. Featuresandbenefits Revenue certification • Power measurements within industry-accepted limits for accuracy • Security system protects against alteration or tampering • ANSI and Measurement Canada options • IEC 687 accuracy class 0.5S • ANSI C12.20 0.5 compliant • Factory-sealed version available in Canada

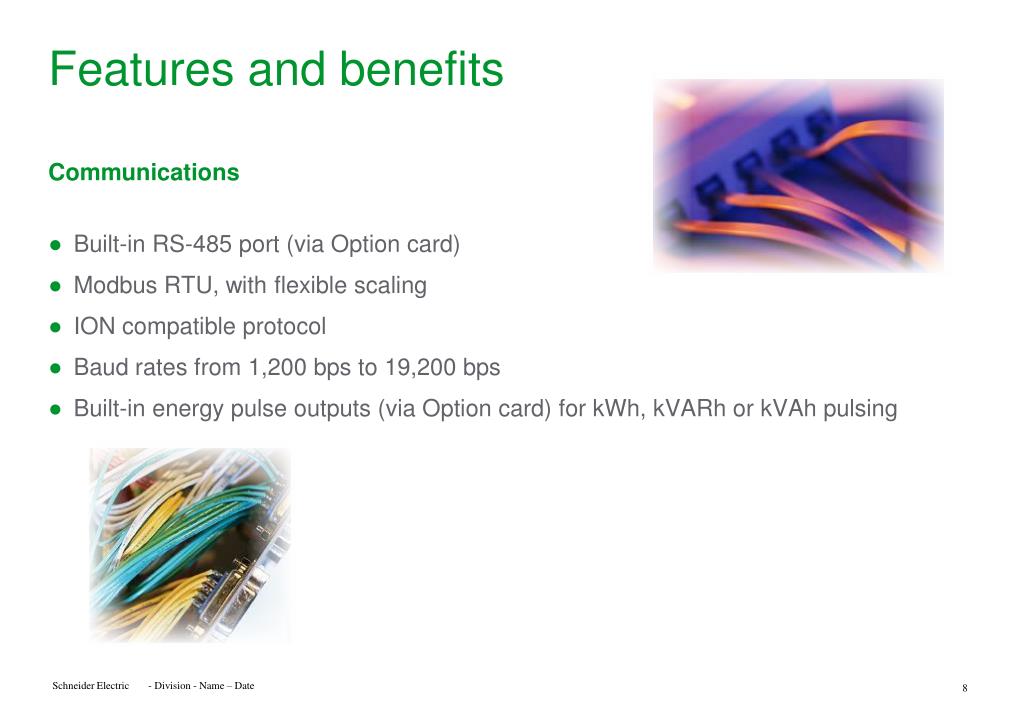

  8. Features and benefits Communications • Built-in RS-485 port (via Option card) • Modbus RTU, with flexible scaling • ION compatible protocol • Baud rates from 1,200 bps to 19,200 bps • Built-in energy pulse outputs (via Option card) for kWh, kVARh or kVAh pulsing

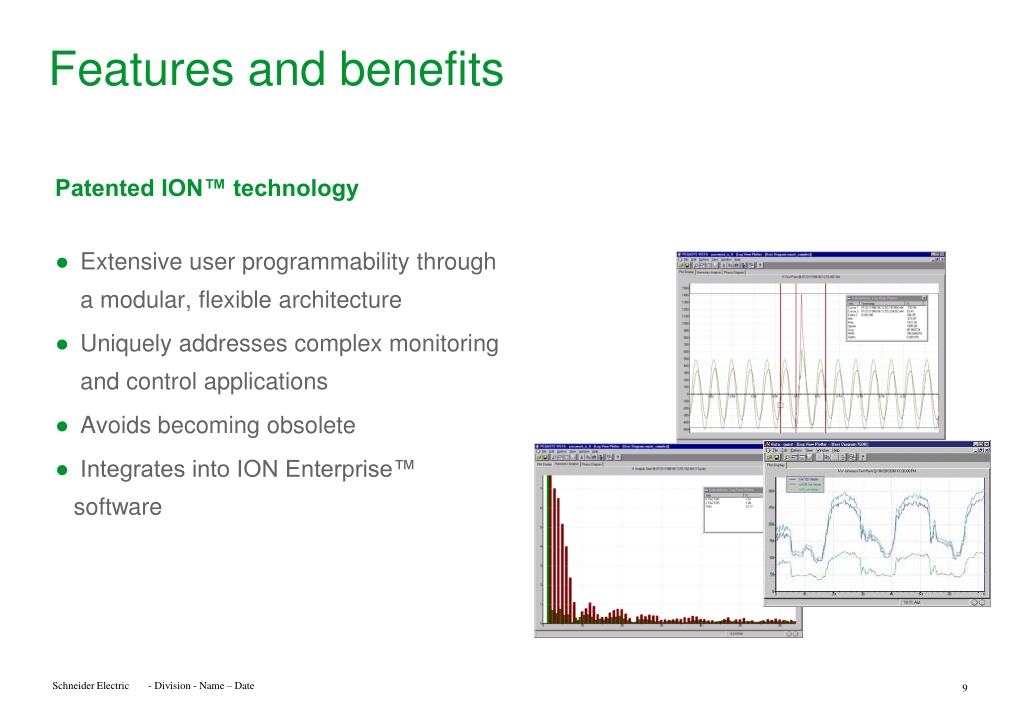

  9. Features and benefits Patented ION™ technology • Extensive user programmability through a modular, flexible architecture • Uniquely addresses complex monitoring and control applications • Avoids becoming obsolete • Integrates into ION Enterprise™ software

  10. Applications of the ION6200 • Use for tenant metering and sub-metering • Perform stand-alone metering • Assist in cost allocation • Monitor substations

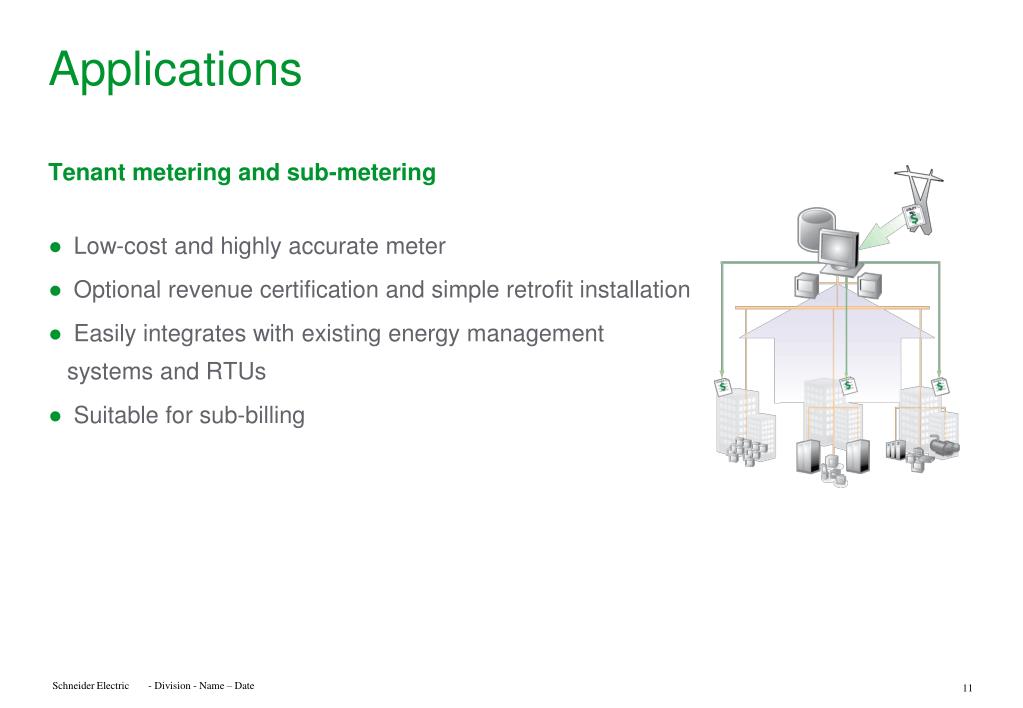

  11. Applications Tenant metering and sub-metering • Low-cost and highly accurate meter • Optional revenue certification and simple retrofit installation • Easily integrates with existing energy management systems and RTUs • Suitable for sub-billing

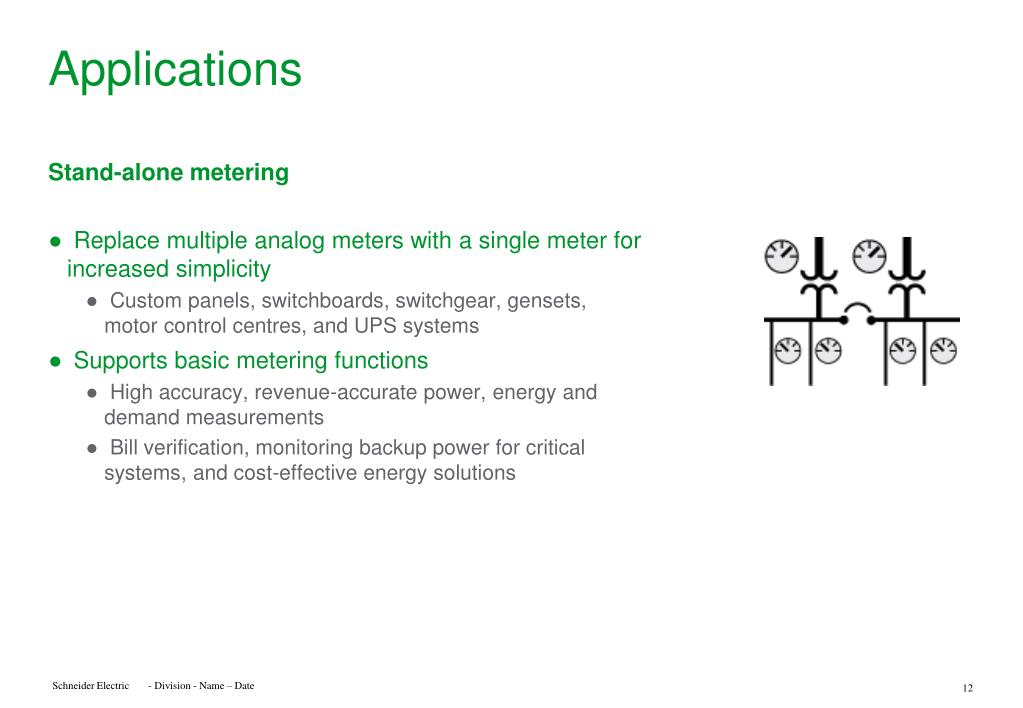

  12. Applications Stand-alone metering • Replace multiple analog meters with a single meter for increased simplicity • Custom panels, switchboards, switchgear, gensets, motor control centres, and UPS systems • Supports basic metering functions • High accuracy, revenue-accurate power, energy and demand measurements • Bill verification, monitoring backup power for critical systems, and cost-effective energy solutions

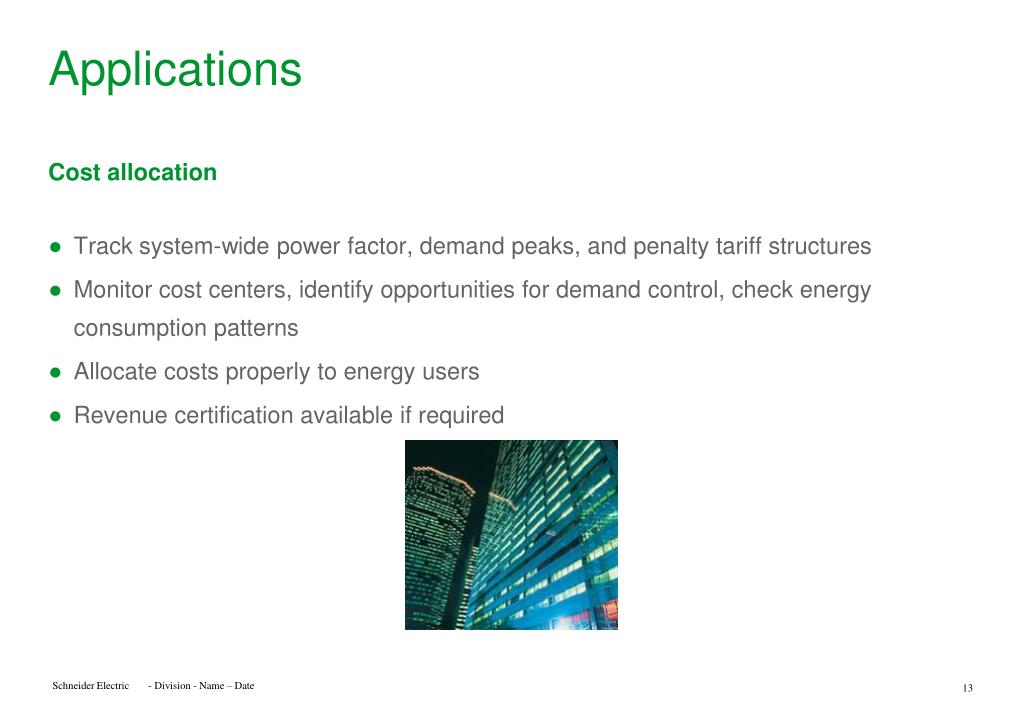

  13. Applications Cost allocation • Track system-wide power factor, demand peaks, and penalty tariff structures • Monitor cost centers, identify opportunities for demand control, check energy consumption patterns • Allocate costs properly to energy users • Revenue certification available if required

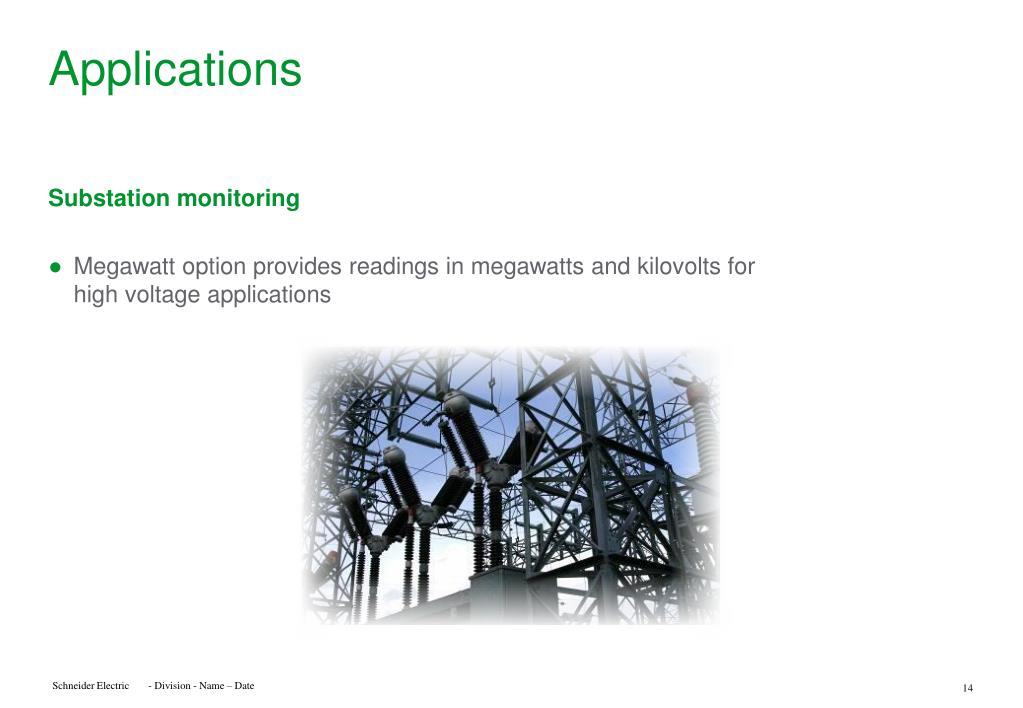

  14. Applications Substation monitoring • Megawatt option provides readings in megawatts and kilovolts for high voltage applications

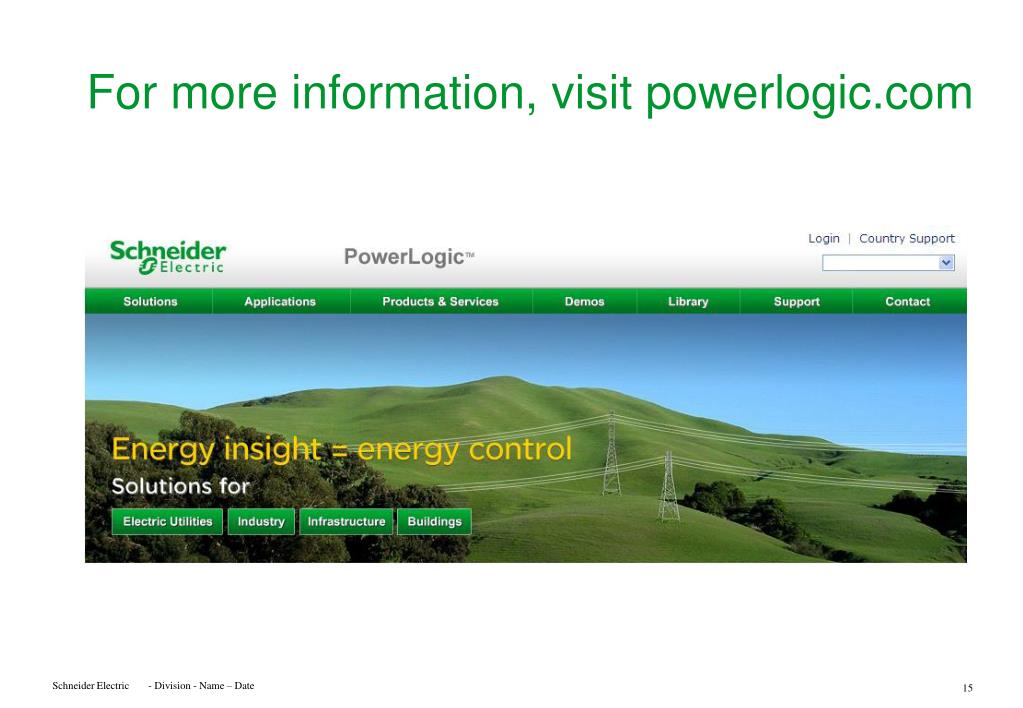

  15. For more information, visit powerlogic.com
