  1. Profiler

  2. Contents 1 WebService 2 IconNMR Configuration 3 PrepGilsonST Configuration 4 SampleTrack Configuration 5 SampleTrack Order Setup Using a Super Method 6 SampleTrack Order Setup manually 7 PrepGilsonST 8 IconNMR BestNMR

  3. Configuration Transfer Line Web Service DB Table Resources: Transfer Line Gilson1 Configuration

  4. Configuration

  5. IconNMR Configuration – SampleTrack Options • SampleTrack Options: • WebService URL • IconNMR Software Name • Gilson Resource Name

  6. IconNMR Configuration – Master Switches • Master Switches: • “Metabolic Profiler“ is set as the default Automation Mode • BEST-NMR is enabled • “Metabolic Profiler“ is selected as BEST-NMR automation mode.

  7. Configuration

  8. PrepGilsonST Configuration Settings • Edit Settings: • WebService URL • Name of this Application • Gilson Instrument Name

  9. Configuration

  10. SampleTrack Configuration

  11. SampleTrack Configuration

  12. SampleTrack Configuration

  13. SampleTrack Configuration

  14. SampleTrack Order Setup Select Metabolic Profiler in the left tree view. Click the new order button to start the Metabolic Profiler wizard.

  15. SampleTrack Order Setup Supermethod

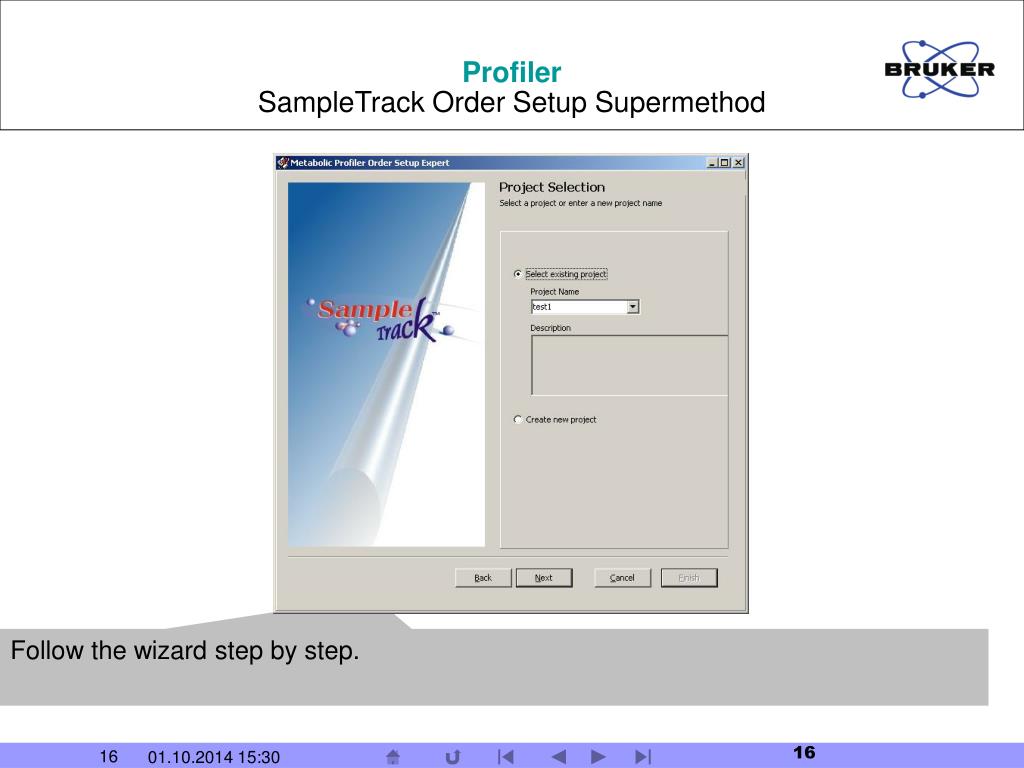

  16. SampleTrack Order Setup Supermethod Follow the wizard step by step.

  17. SampleTrack Order Setup Supermethod Follow the wizard step by step.

  18. SampleTrack Order Setup Supermethod Follow the wizard step by step.

  19. SampleTrack Order Setup Supermethod Using a ‘Supermethod‘ shortens the setup time. To enter all method steps manually, click here and follow the steps. SampleTrack manual Order Setup

  20. SampleTrack Order Setup Supermethod The order details are summarized.

  21. SampleTrack Order Setup Supermethod Click ‘Finish‘ to end the order setup or start further orders.

  22. SampleTrack Order Setup Supermethod Sample order ‘mysampleID0001‘ is set automatically to verified and is ready for preparation with the Gilson System.

  23. SampleTrack Order Setup Supermethod PepGilsonST reads the open order from the Web Service Interface and starts the preparation

  24. SampleTrack Order Setup Manually

  25. SampleTrack Order Setup without a Supermethod

  26. SampleTrack Order Setup without a Supermethod

  27. SampleTrack Order Setup without a Supermethod

  28. SampleTrack Order Setup without a Supermethod

  29. SampleTrack Order Setup without a Supermethod

  30. SampleTrack Order Setup without a Supermethod

  31. SampleTrack Order Setup without a Supermethod

  32. SampleTrack Order Setup without a Supermethod

  33. PrepGilsonST Start Start PrepGilsonST program with a double click. Select “Profiler preparation“. Click OK.

  34. PrepGilsonST Status • The program shows the status of the system: • connected with Gilson and running • connected with Gilson and finished • disconnected

  35. The NMR experiment is being prepared.

  36. The first preparation is finished and the second preparation (MS) is running.

  37. Both preparations are finished.
