  1. Morphing with Integrierte Optimierung mit ANSA, LS-OPT und META – Infotag 01.03.2012

  2. Morphing with ANSA General • Reshape any type of FE mesh without the need to return to the CAD model for modifications • Introduce parametric shape modifications for optimization purpose • Morphing modifications on both FE and Geometry models • Two main methods: • Using Morphing Boxes • Direct Morphing Integrierte Optimierung mit ANSA, LS-OPT und META – Infotag 01.03.2012

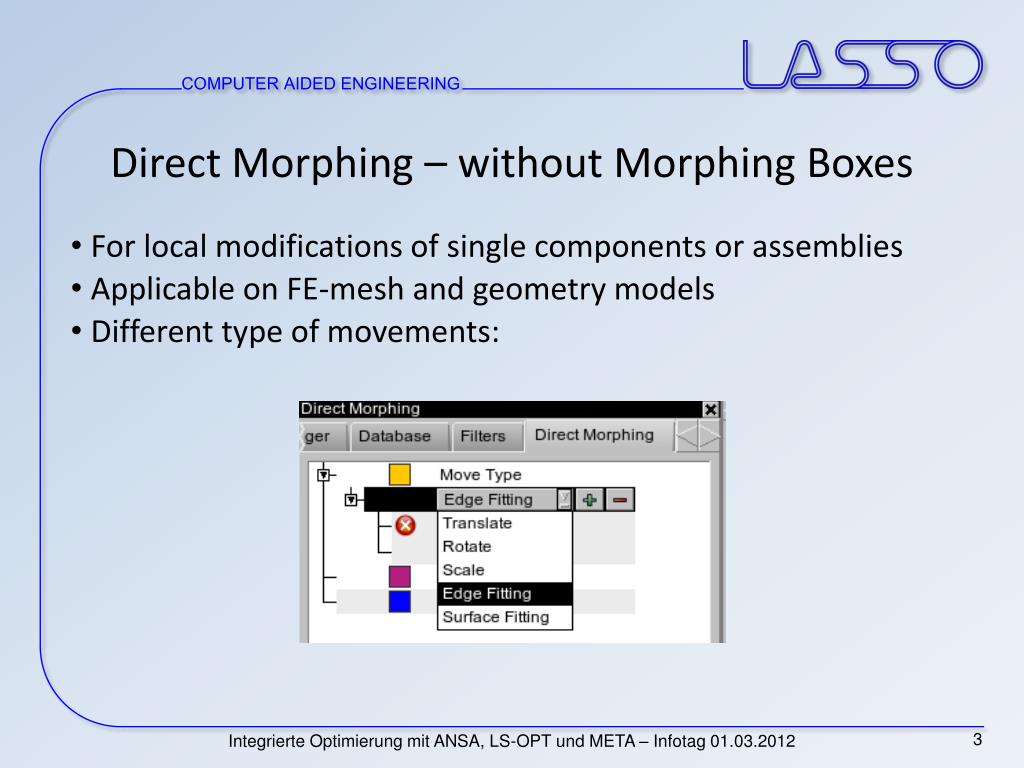

  3. Direct Morphing – without Morphing Boxes • For local modifications of single components or assemblies • Applicable on FE-mesh and geometry models • Different type of movements: Integrierte Optimierung mit ANSA, LS-OPT und META – Infotag 01.03.2012

  4. Direct Morphing – without Morphing Boxes • Snapping to single or multiple target curves • Morphing of FE-mesh or geometry • Origin • Target • Boundary • Morphing • Reconstruct Integrierte Optimierung mit ANSA, LS-OPT und META – Infotag 01.03.2012

  5. Direct Morphing – without Morphing Boxes • Snapping to single or multiple target curves • Morphing of FE-mesh or geometry • Origin, Target, Boundary • Morphing Integrierte Optimierung mit ANSA, LS-OPT und META – Infotag 01.03.2012

  6. Direct Morphing – without Morphing Boxes Fitting surfaces – e.g. fit existing FE-mesh to new CAD-geometry • Original FE-surface • Target CAD-surface • Morphing Integrierte Optimierung mit ANSA, LS-OPT und META – Infotag 01.03.2012

  7. Direct Morphing – without Morphing Boxes Fitting Cross-Sections (applicable on FE-mesh and geometry) • Original Cross-Section • Target Cross-Section • Morphing Integrierte Optimierung mit ANSA, LS-OPT und META – Infotag 01.03.2012

  8. Direct Morphing Local Depressions • On arbitrary shell mesh • Different types of cross sections Integrierte Optimierung mit ANSA, LS-OPT und META – Infotag 01.03.2012

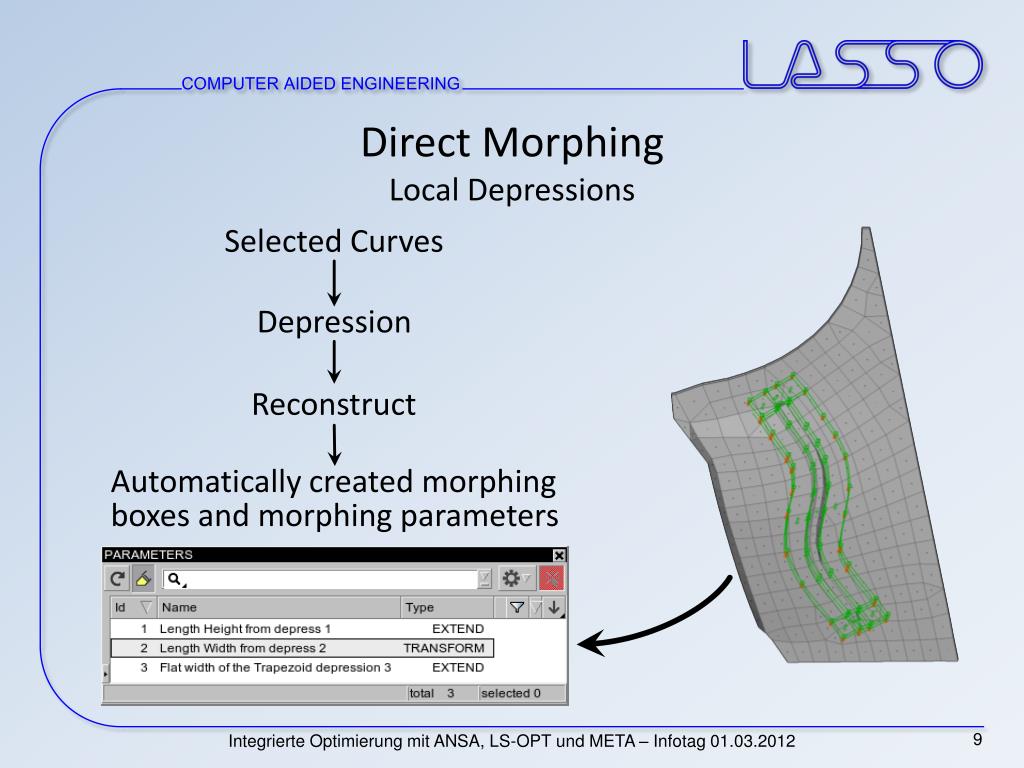

  9. Direct Morphing Local Depressions Selected Curves Depression Reconstruct Automatically created morphing boxes and morphing parameters Integrierte Optimierung mit ANSA, LS-OPT und META – Infotag 01.03.2012

  10. Box Morphing Entities (elements, connections, geometry) loaded to boxes → Moving of control points reshapes the entities Integrierte Optimierung mit ANSA, LS-OPT und META – Infotag 01.03.2012

  11. Box Morphing Types of Boxes Hexahedral, Cylindrical and 2D Boxes Topological connection of different types Integrierte Optimierung mit ANSA, LS-OPT und META – Infotag 01.03.2012

  12. Box Morphing Approach 1 • Multiple boxes which follow the shape of the structure • Moving / sliding of control points reshapes the model • Rough modification of model shape Integrierte Optimierung mit ANSA, LS-OPT und META – Infotag 01.03.2012

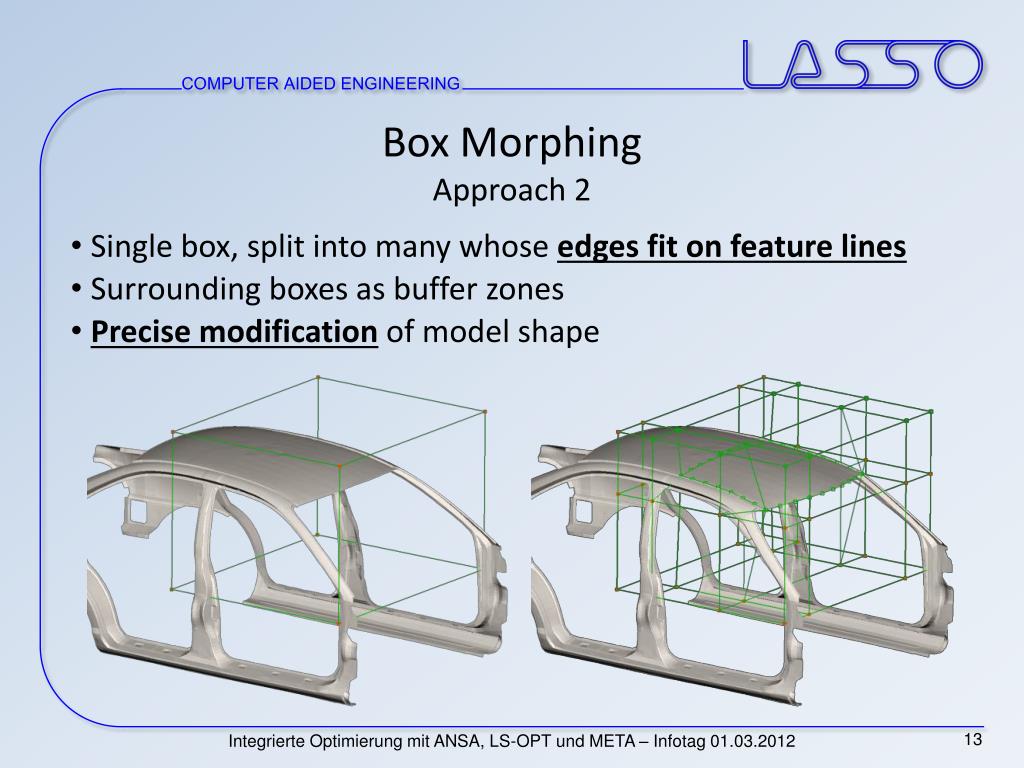

  13. Box Morphing Approach 2 • Single box, split into many whose edges fit on feature lines • Surrounding boxes as buffer zones • Precise modification of model shape Integrierte Optimierung mit ANSA, LS-OPT und META – Infotag 01.03.2012

  14. Box Morphing Approach 3 • Box in Box • Separate groups of boxes handle different features • Local and global modifications localmodification global modification Integrierte Optimierung mit ANSA, LS-OPT und META – Infotag 01.03.2012

  15. Box Morphing Creation of Boxes • Along coordinate system / Min. Volume • Multiple Boxes (Hexa-block, O-ring) • Sweep / Glide • Adapt • Cylindrical • Points • Curves • Offset • Link • ... Integrierte Optimierung mit ANSA, LS-OPT und META – Infotag 01.03.2012

  16. Box Morphing Modification of Boxes • Split / Join • Concentric split • Move • Slide / Extend • Fit (edges, surfaces) • Radius • Angle • Tangency • ... Translate Rotate Integrierte Optimierung mit ANSA, LS-OPT und META – Infotag 01.03.2012

  17. Box Morphing Linked Morphing Boxes • Taking advantage of model symmetry • Link according symmetry-/mirror plane, rotation axis or translation vector Integrierte Optimierung mit ANSA, LS-OPT und META – Infotag 01.03.2012

  18. Morph History States • Keep history of morphing actions • Can be stored automatically after morphing actions or manually at any time • Continuous morphing between history states Integrierte Optimierung mit ANSA, LS-OPT und META – Infotag 01.03.2012

  19. Additional Constraints – Nested Elements • Applicable for Direct and Box Morphing • Act as un-deformable shapes (rigid bodies) during Morphing • Dependent rigid movements WithNested Elements WithoutNested Elements Integrierte Optimierung mit ANSA, LS-OPT und META – Infotag 01.03.2012

  20. Morphing Parameter • Couples morphing tool with optimization software • Applicable for almost all interactive morphing modifications • Extend • Angle • Offset • Transform • Radius • Edge Fit • Direct • Deformation • User Tangent • DFM • … Integrierte Optimierung mit ANSA, LS-OPT und META – Infotag 01.03.2012

  21. Morphing Parameter Deformation Parameter • Records any morphing action (Direct or Box Morphing) • Retrieve undeformed shape as well as interpolations or extrapolations between undeformed and deformed shape Initial shape – startrecording Edge Fit Deformation Parameter Move Free Deformedshape – stoprecording Integrierte Optimierung mit ANSA, LS-OPT und META – Infotag 01.03.2012

  22. Morphing with Vectors • Morph according previous morphing actions: • Deformation Parameter • History States • DESVAR of Nastran SOL 200 • Text file • E.g. morph geometry according optimized FE-model or morph similar models in same manner Integrierte Optimierung mit ANSA, LS-OPT und META – Infotag 01.03.2012

  23. Functionalities assisting Morphing 3D Points and Curves • Act as initial or target positions • Suitable for Direct and Box Morphing • Obtained from FE mesh or CAD geometry Integrierte Optimierung mit ANSA, LS-OPT und META – Infotag 01.03.2012

  24. Functionalities assisting Morphing Part Manager • Useful for Box Morphing (esp. complex configurations) • To organize morph contents Integrierte Optimierung mit ANSA, LS-OPT und META – Infotag 01.03.2012

  25. Functionalities assisting Morphing Reconstruct / Smooth morphed mesh • Suitable for Direct and Box Morphing • Improve mesh after morphing with large deformations Integrierte Optimierung mit ANSA, LS-OPT und META – Infotag 01.03.2012

  26. Functionalities assisting Morphing Visualize Morphing Deviations • Suitable for Direct and Box Morphing • Measurement Tool • Fringe Plot of deformed shape Integrierte Optimierung mit ANSA, LS-OPT und META – Infotag 01.03.2012

  27. Integrierte Optimierung mit ANSA, LS-OPT und META – Infotag 01.03.2012
