  1. System Architecture of Networked Sensor Platforms

  2. Introduction Wireless sensor networks (WSN) consists of group of sensor nodes to perform distributed sensing task using wireless medium. Characteristics- low-cost, low-power, lightweight - densely deployed - prone to failures - two ways of deployment: randomly, pre-determined or engineered Objectives-Monitor activities- Gather and fuse information - Communicate with global data processing unit

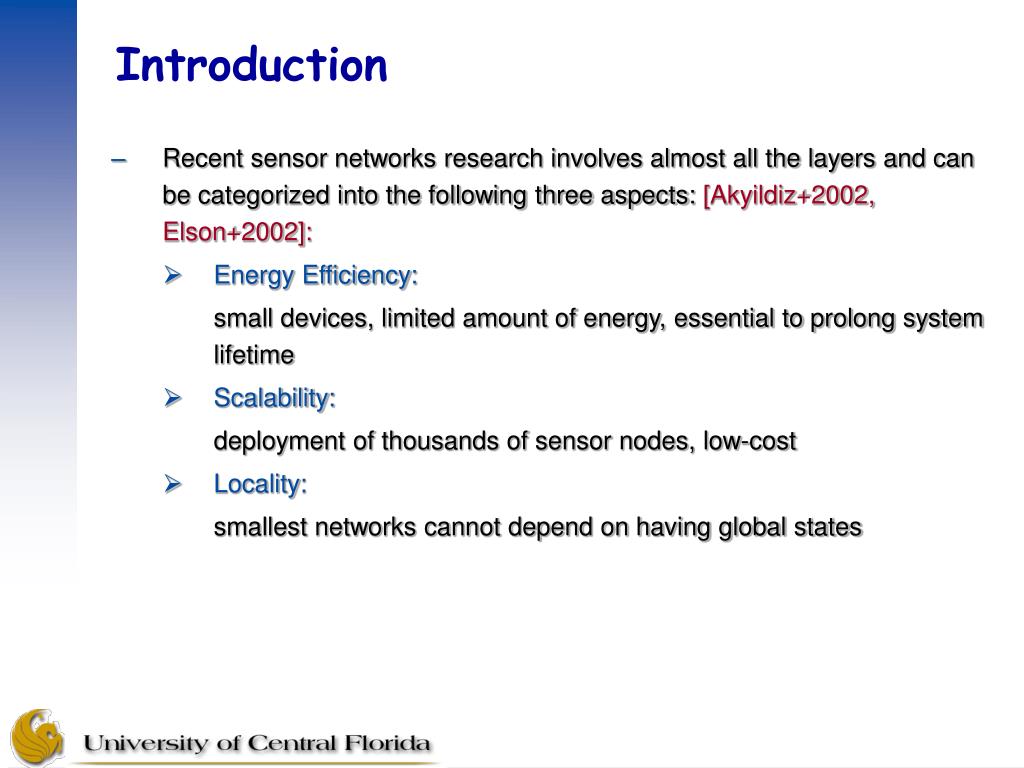

  3. Introduction • Recent sensor networks research involves almost all the layers and can be categorized into the following three aspects: [Akyildiz+2002, Elson+2002]: • Energy Efficiency: small devices, limited amount of energy, essential to prolong system lifetime • Scalability: deployment of thousands of sensor nodes, low-cost • Locality: smallest networks cannot depend on having global states

  4. Why Sensor Platforms? • Traditional mechanisms of exploring the network (analysis and simulation) are not satisfied for exploring such a large-scale, dynamic and resource-constrained networks due to their difficulties to modeling every aspect of the system as a whole • For example, energy consumption model of the hardware platforms, including sensing, computation and communication, is not fully considered and overly-simplified assumptions have been made • Application-specific property of WSN makes the existing research mechanisms even harder to obtain meaningful results • Therefore, the demand to build a platform is increasing; e.g., Berkeley’s motes and MANTIS

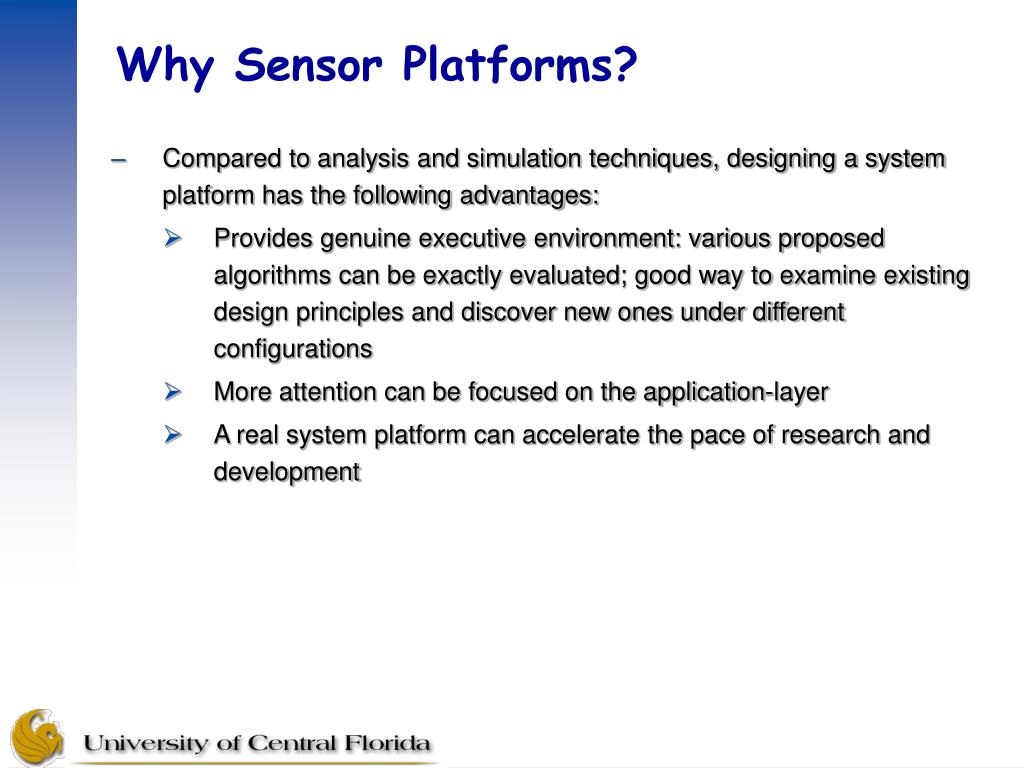

  5. Why Sensor Platforms? • Compared to analysis and simulation techniques, designing a system platform has the following advantages: • Provides genuine executive environment: various proposed algorithms can be exactly evaluated; good way to examine existing design principles and discover new ones under different configurations • More attention can be focused on the application-layer • A real system platform can accelerate the pace of research and development

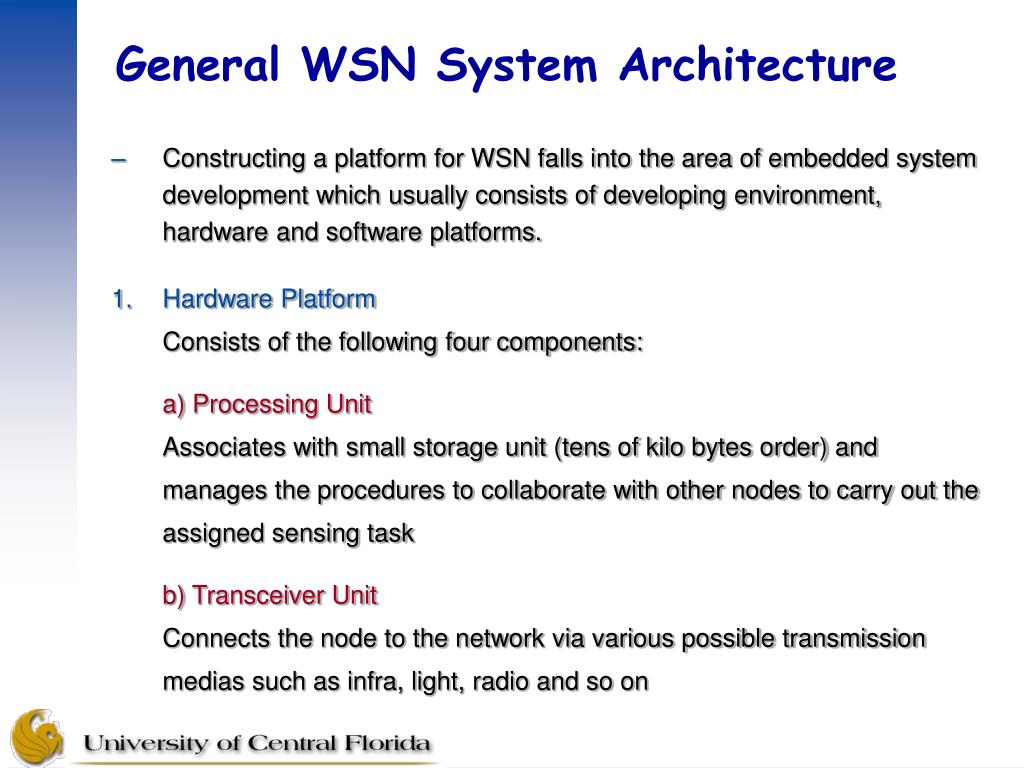

  6. General WSN System Architecture • Constructing a platform for WSN falls into the area of embedded system development which usually consists of developing environment, hardware and software platforms. • Hardware Platform Consists of the following four components: a) Processing Unit Associates with small storage unit (tens of kilo bytes order) and manages the procedures to collaborate with other nodes to carry out the assigned sensing task b) Transceiver Unit Connects the node to the network via various possible transmission medias such as infra, light, radio and so on

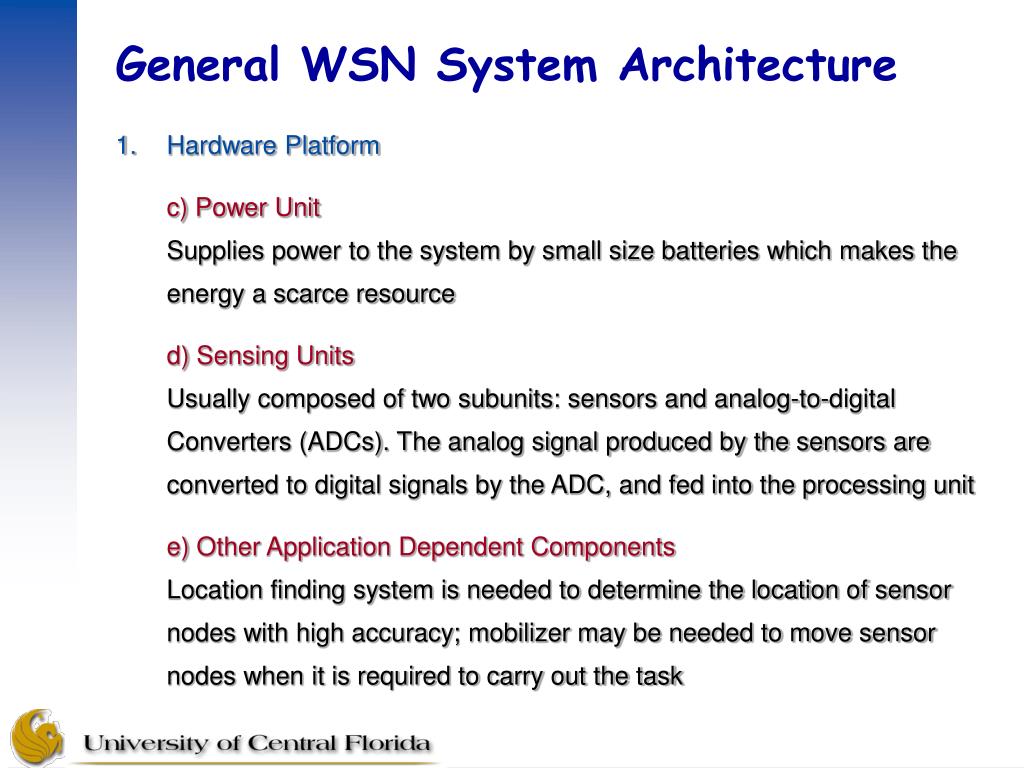

  7. General WSN System Architecture • Hardware Platform c) Power Unit Supplies power to the system by small size batteries which makes the energy a scarce resource d) Sensing Units Usually composed of two subunits: sensors and analog-to-digital Converters (ADCs). The analog signal produced by the sensors are converted to digital signals by the ADC, and fed into the processing unit e) Other Application Dependent Components Location finding system is needed to determine the location of sensor nodes with high accuracy; mobilizer may be needed to move sensor nodes when it is required to carry out the task

  8. General WSN System Architecture • Hardware Platform Figure 1: The components of a sensor node[Akyildiz+2002]

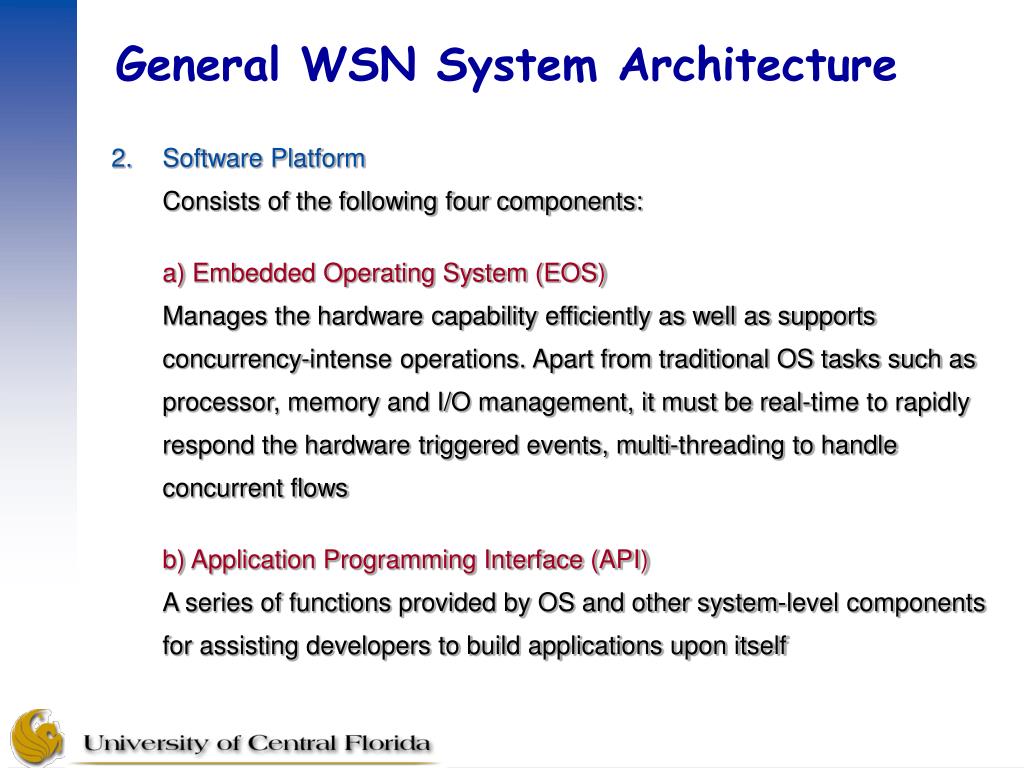

  9. General WSN System Architecture • Software Platform Consists of the following four components: a) Embedded Operating System (EOS) Manages the hardware capability efficiently as well as supports concurrency-intense operations. Apart from traditional OS tasks such as processor, memory and I/O management, it must be real-time to rapidly respond the hardware triggered events, multi-threading to handle concurrent flows b) Application Programming Interface (API) A series of functions provided by OS and other system-level components for assisting developers to build applications upon itself

  10. General WSN System Architecture • Software Platform c) Device Drivers A series of routines that determine how the upper layer entities communicate with the peripheral devices d) Hardware Abstract Layer (HAL) Intermediate layer between the hardware and the OS. Provides uniform interfaces to the upper layer while its implementation is highly dependent on the lower layer hardware. With the use of HAL, the OS and applications easily transplant from one hardware platform to another

  11. General WSN System Architecture • Software Platform Figure 2: The software platform for WSN

  12. General WSN System Architecture • System Development Environment Provides various of tools for every stage of software development over the specific hardware platform a) Cross-Platform Development Generally, an embedded system unlike PC and does not have the ability of self-development. The final binary code run on that system, termed as target system, will be generated on the PC, termed as host system, by cross-platform compilers and linkers, and download the resulted image via the communication port onto the target system

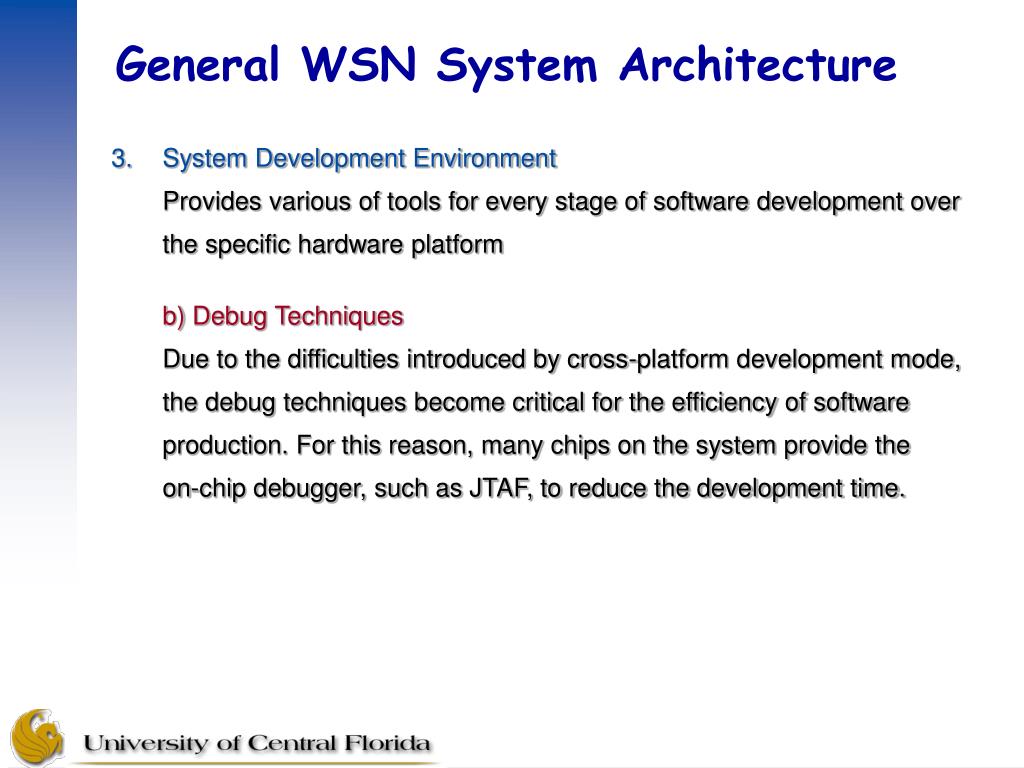

  13. General WSN System Architecture • System Development Environment Provides various of tools for every stage of software development over the specific hardware platform b) Debug Techniques Due to the difficulties introduced by cross-platform development mode, the debug techniques become critical for the efficiency of software production. For this reason, many chips on the system provide the on-chip debugger, such as JTAF, to reduce the development time.

  14. Berkeley Motes [Hill+ 2000] • Motes are tiny, self-contained, battery powered computers with radio links, which enable them to communicate and exchange data with one another, and to self-organize into ad hoc networks • Motes form the building blocks of wireless sensor networks • TinyOS [TinyOS], component-based runtime environment, is designed to provide support for these motes which require concurrency intensive operations while constrained by minimal hardware resources Figure 3: Berkeley Mote

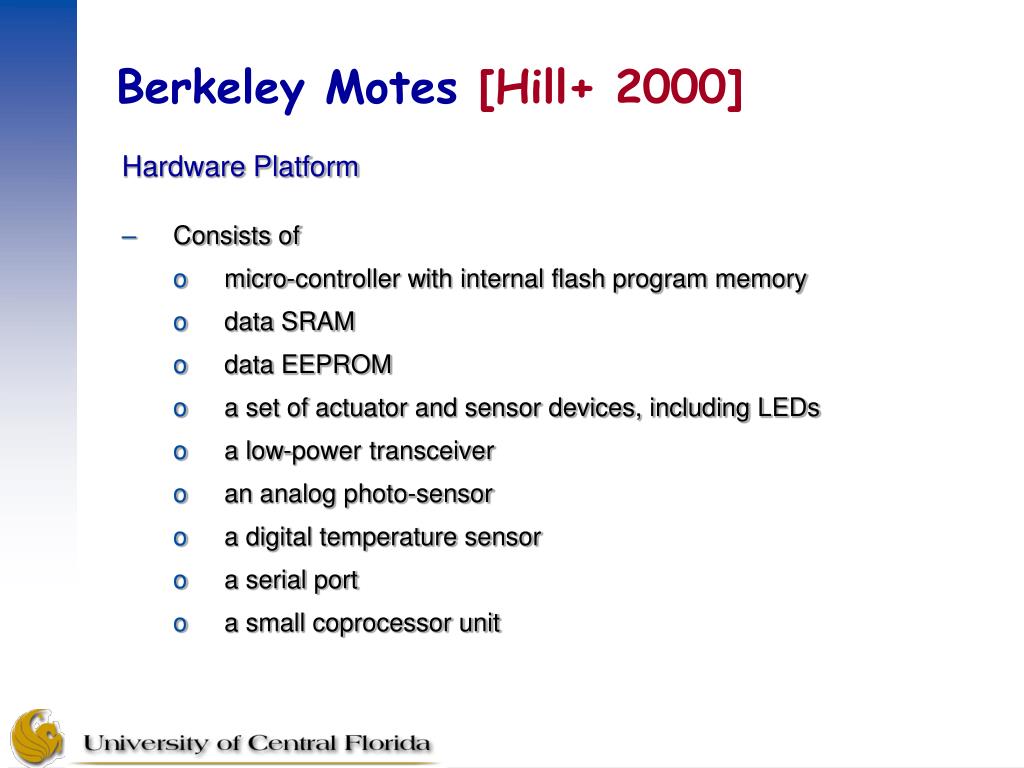

  15. Berkeley Motes [Hill+ 2000] • Hardware Platform • Consists of • micro-controller with internal flash program memory • data SRAM • data EEPROM • a set of actuator and sensor devices, including LEDs • a low-power transceiver • an analog photo-sensor • a digital temperature sensor • a serial port • a small coprocessor unit

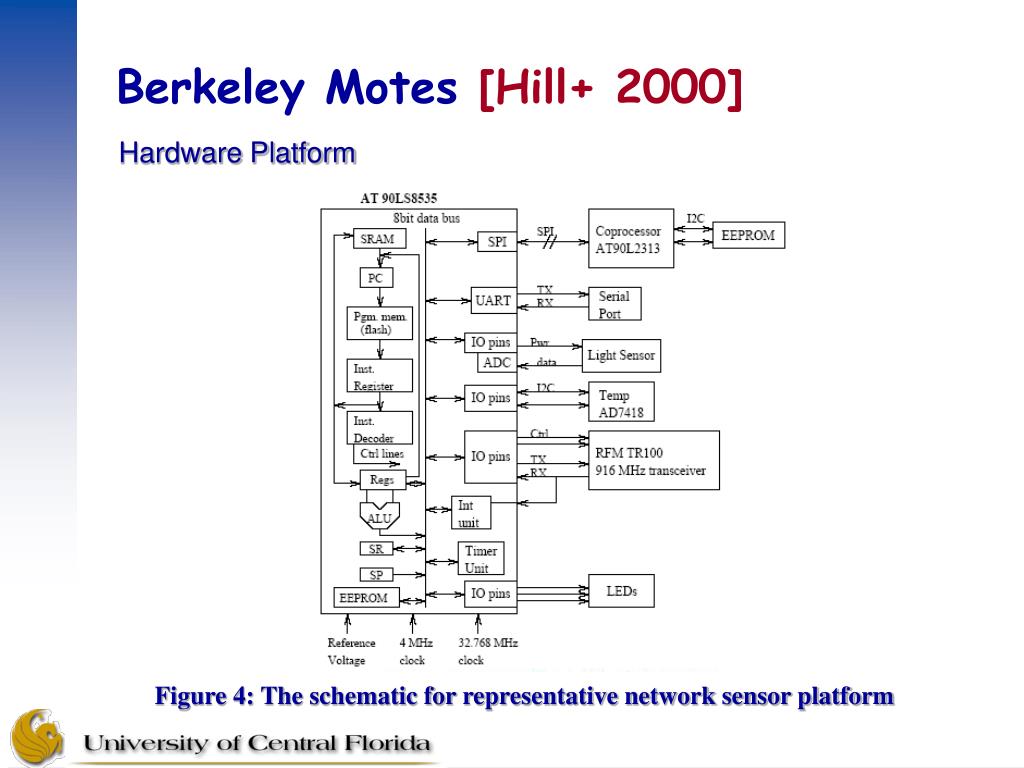

  16. Berkeley Motes [Hill+ 2000] • Hardware Platform Figure 4: The schematic for representative network sensor platform

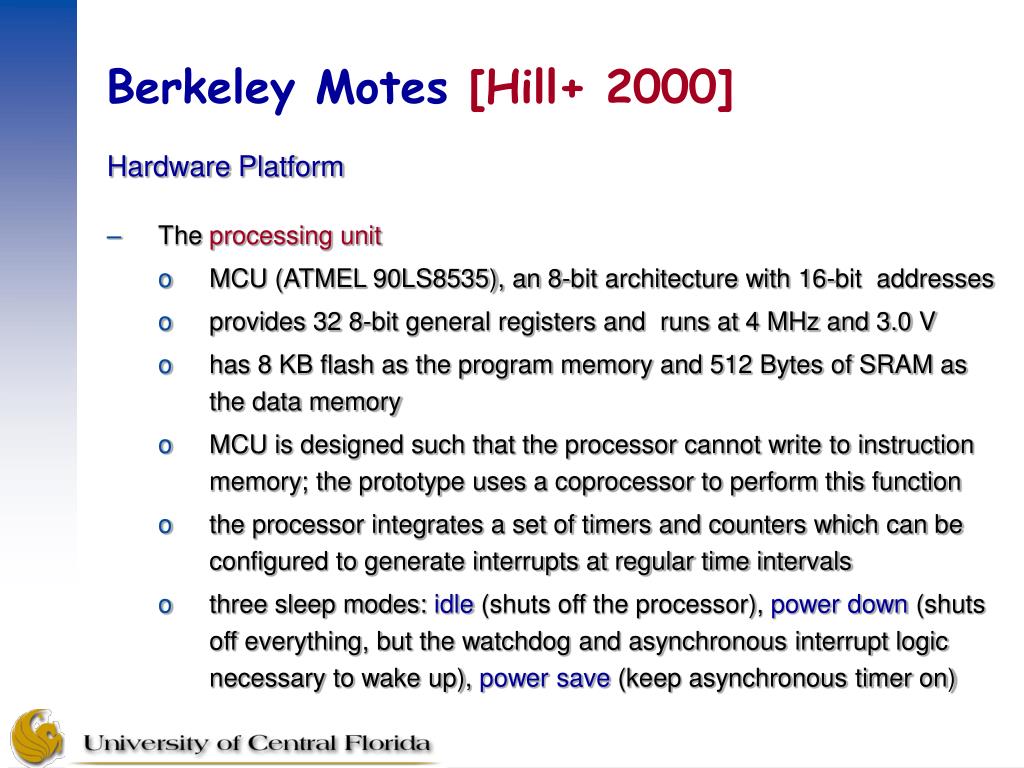

  17. Berkeley Motes [Hill+ 2000] • Hardware Platform • The processing unit • MCU (ATMEL 90LS8535), an 8-bit architecture with 16-bit addresses • provides 32 8-bit general registers and runs at 4 MHz and 3.0 V • has 8 KB flash as the program memory and 512 Bytes of SRAM as the data memory • MCU is designed such that the processor cannot write to instruction memory; the prototype uses a coprocessor to perform this function • the processor integrates a set of timers and counters which can be configured to generate interrupts at regular time intervals • three sleep modes: idle (shuts off the processor), power down (shuts off everything, but the watchdog and asynchronous interrupt logic necessary to wake up), power save (keep asynchronous timer on)

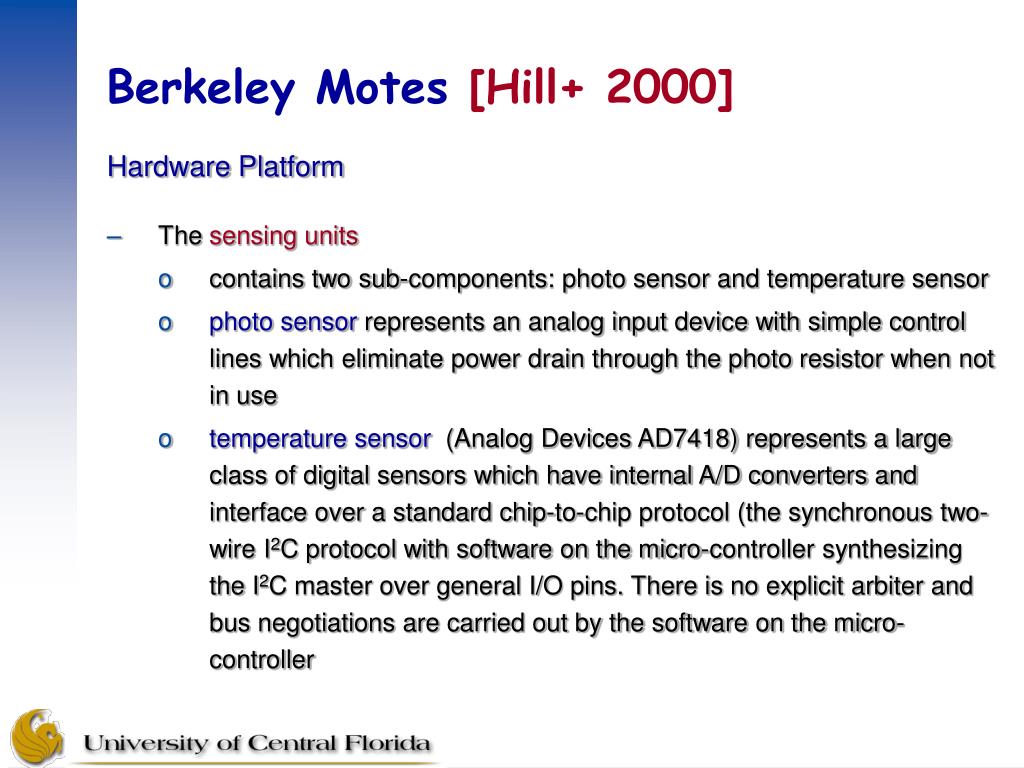

  18. Berkeley Motes [Hill+ 2000] • Hardware Platform • The sensing units • contains two sub-components: photo sensor and temperature sensor • photo sensor represents an analog input device with simple control lines which eliminate power drain through the photo resistor when not in use • temperature sensor (Analog Devices AD7418) represents a large class of digital sensors which have internal A/D converters and interface over a standard chip-to-chip protocol (the synchronous two-wire I2C protocol with software on the micro-controller synthesizing the I2C master over general I/O pins. There is no explicit arbiter and bus negotiations are carried out by the software on the micro-controller

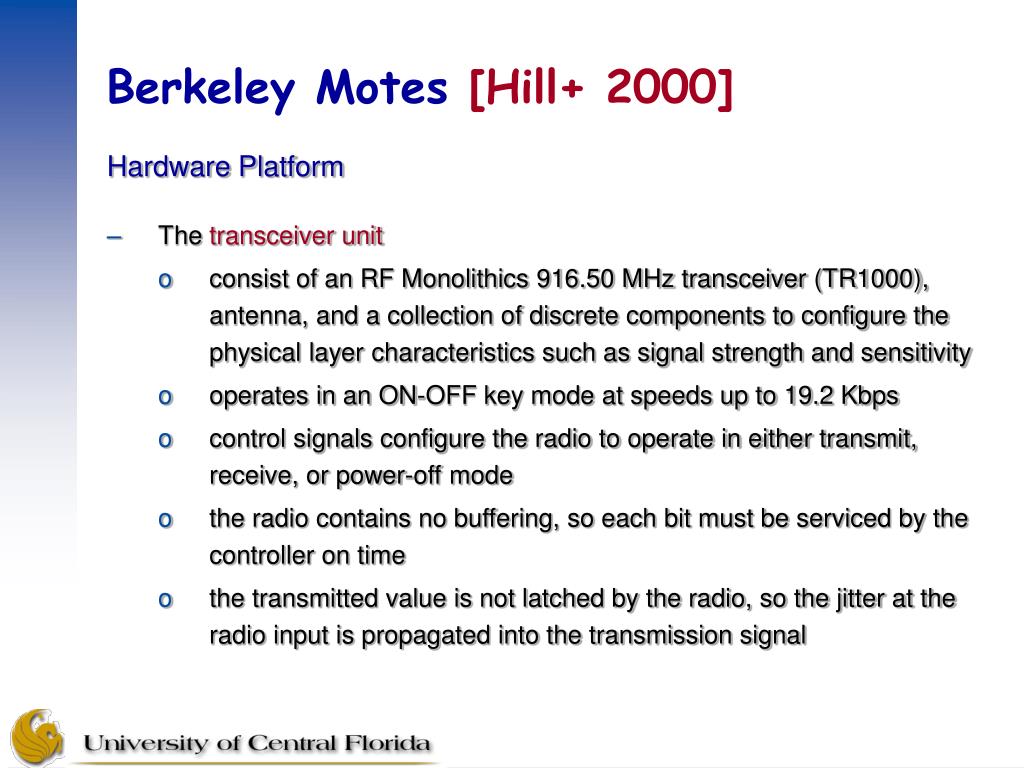

  19. Berkeley Motes [Hill+ 2000] • Hardware Platform • The transceiver unit • consist of an RF Monolithics 916.50 MHz transceiver (TR1000), antenna, and a collection of discrete components to configure the physical layer characteristics such as signal strength and sensitivity • operates in an ON-OFF key mode at speeds up to 19.2 Kbps • control signals configure the radio to operate in either transmit, receive, or power-off mode • the radio contains no buffering, so each bit must be serviced by the controller on time • the transmitted value is not latched by the radio, so the jitter at the radio input is propagated into the transmission signal

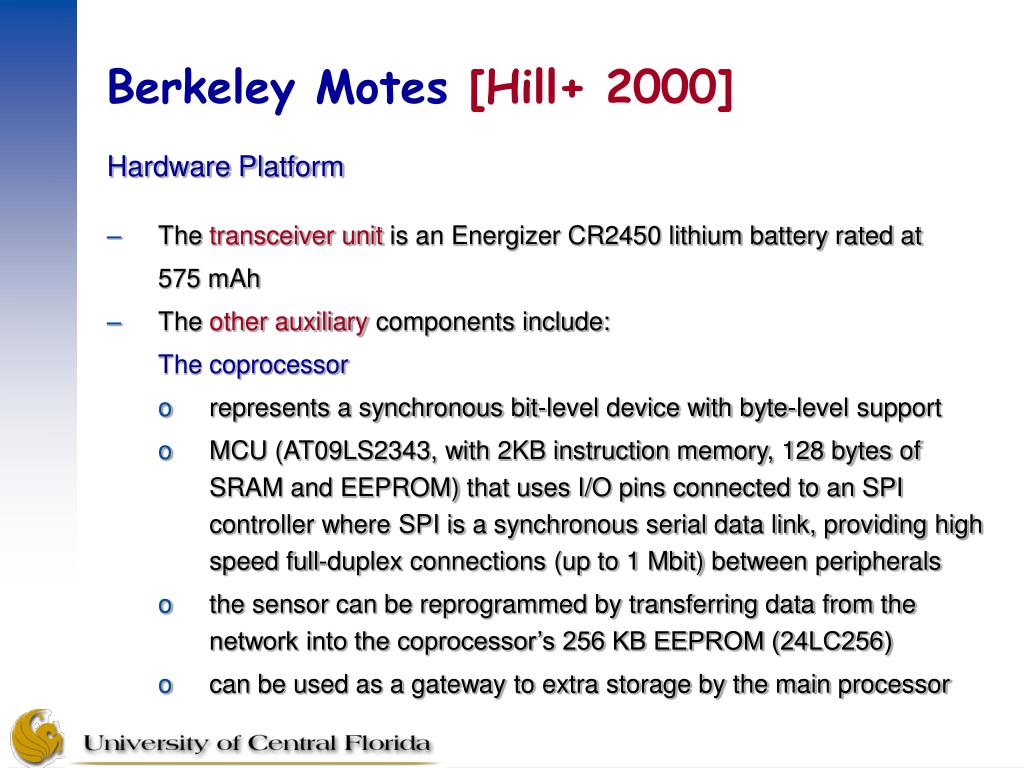

  20. Berkeley Motes [Hill+ 2000] • Hardware Platform • The transceiver unit is an Energizer CR2450 lithium battery rated at • 575 mAh • The other auxiliary components include: • The coprocessor • represents a synchronous bit-level device with byte-level support • MCU (AT09LS2343, with 2KB instruction memory, 128 bytes of SRAM and EEPROM) that uses I/O pins connected to an SPI controller where SPI is a synchronous serial data link, providing high speed full-duplex connections (up to 1 Mbit) between peripherals • the sensor can be reprogrammed by transferring data from the network into the coprocessor’s 256 KB EEPROM (24LC256) • can be used as a gateway to extra storage by the main processor

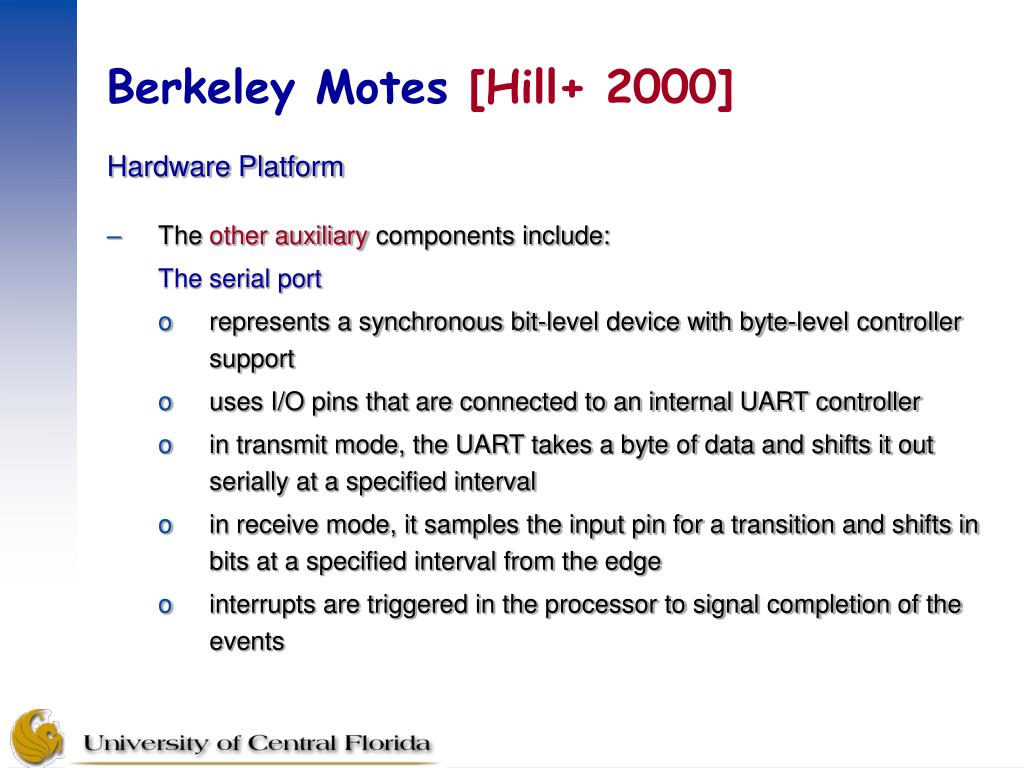

  21. Berkeley Motes [Hill+ 2000] • Hardware Platform • The other auxiliary components include: • The serial port • represents a synchronous bit-level device with byte-level controller support • uses I/O pins that are connected to an internal UART controller • in transmit mode, the UART takes a byte of data and shifts it out serially at a specified interval • in receive mode, it samples the input pin for a transition and shifts in bits at a specified interval from the edge • interrupts are triggered in the processor to signal completion of the events

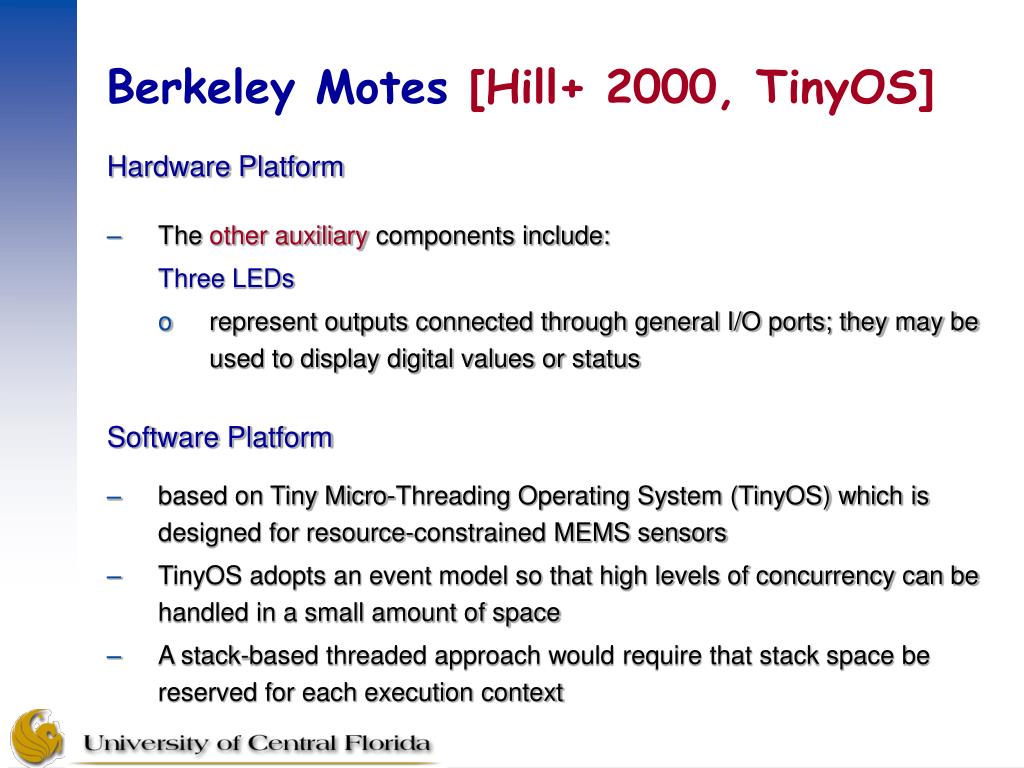

  22. Berkeley Motes [Hill+ 2000, TinyOS] • Hardware Platform • The other auxiliary components include: • Three LEDs • represent outputs connected through general I/O ports; they may be used to display digital values or status • Software Platform • based on Tiny Micro-Threading Operating System (TinyOS) which is designed for resource-constrained MEMS sensors • TinyOS adopts an event model so that high levels of concurrency can be handled in a small amount of space • A stack-based threaded approach would require that stack space be reserved for each execution context

  23. Berkeley Motes [Hill+ 2000, TinyOS] • Software Platform • A complete system configuration consists of a tiny scheduler and a graph of components • A component has four interrelated parts: a set of • a set of command handlers • a set of event handlers • an encapsulated fixed-size frame • Bundle of simple tasks • tasks, commands and event handlers execute in the context of the frame and operate on its state • each component declares the commands it uses and the events it signals • these declarations are used to compose the modular components in a per-application configuration

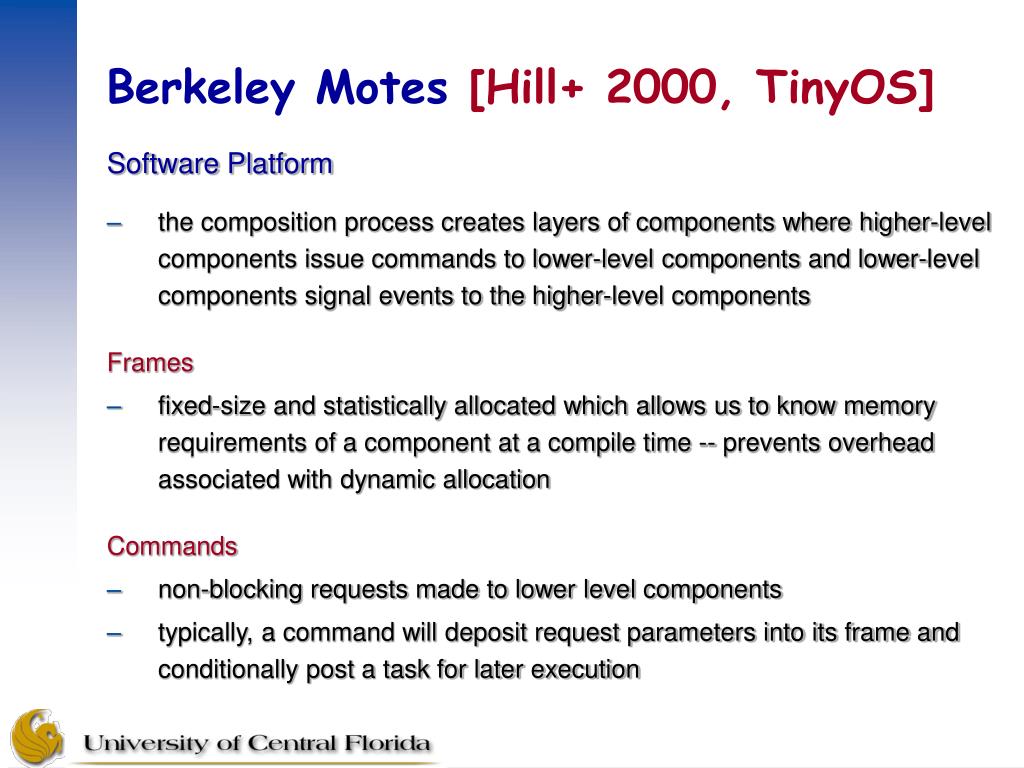

  24. Berkeley Motes [Hill+ 2000, TinyOS] • Software Platform • the composition process creates layers of components where higher-level components issue commands to lower-level components and lower-level components signal events to the higher-level components • Frames • fixed-size and statistically allocated which allows us to know memory requirements of a component at a compile time -- prevents overhead associated with dynamic allocation • Commands • non-blocking requests made to lower level components • typically, a command will deposit request parameters into its frame and conditionally post a task for later execution

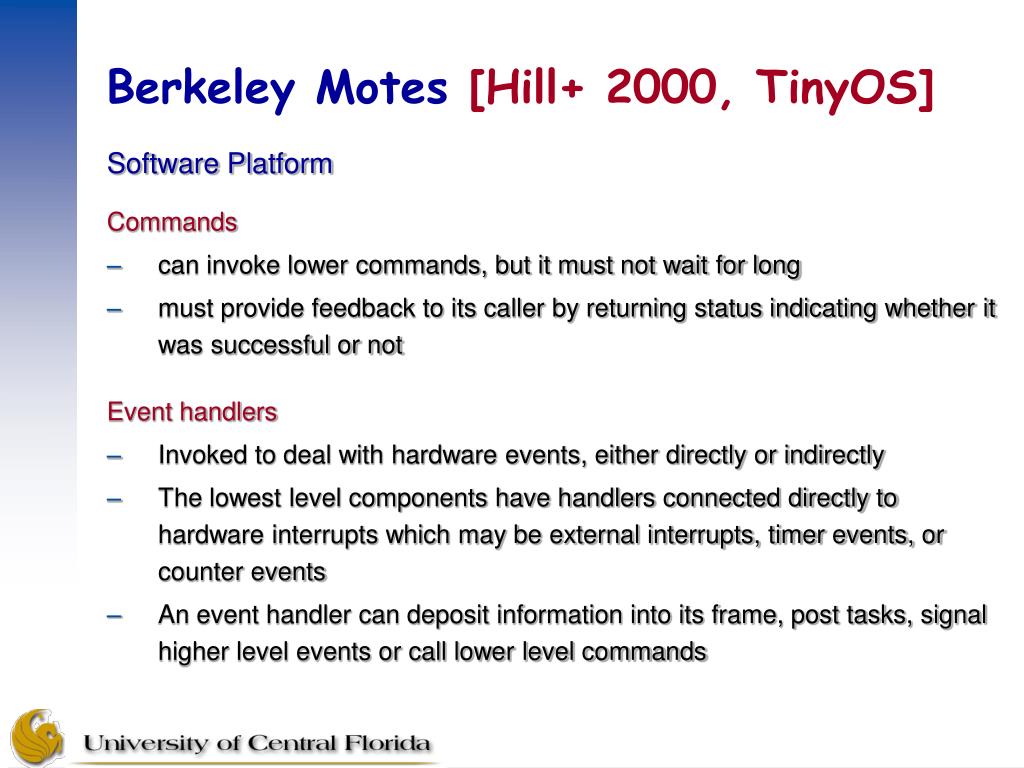

  25. Berkeley Motes [Hill+ 2000, TinyOS] • Software Platform • Commands • can invoke lower commands, but it must not wait for long • must provide feedback to its caller by returning status indicating whether it was successful or not • Event handlers • Invoked to deal with hardware events, either directly or indirectly • The lowest level components have handlers connected directly to hardware interrupts which may be external interrupts, timer events, or counter events • An event handler can deposit information into its frame, post tasks, signal higher level events or call lower level commands

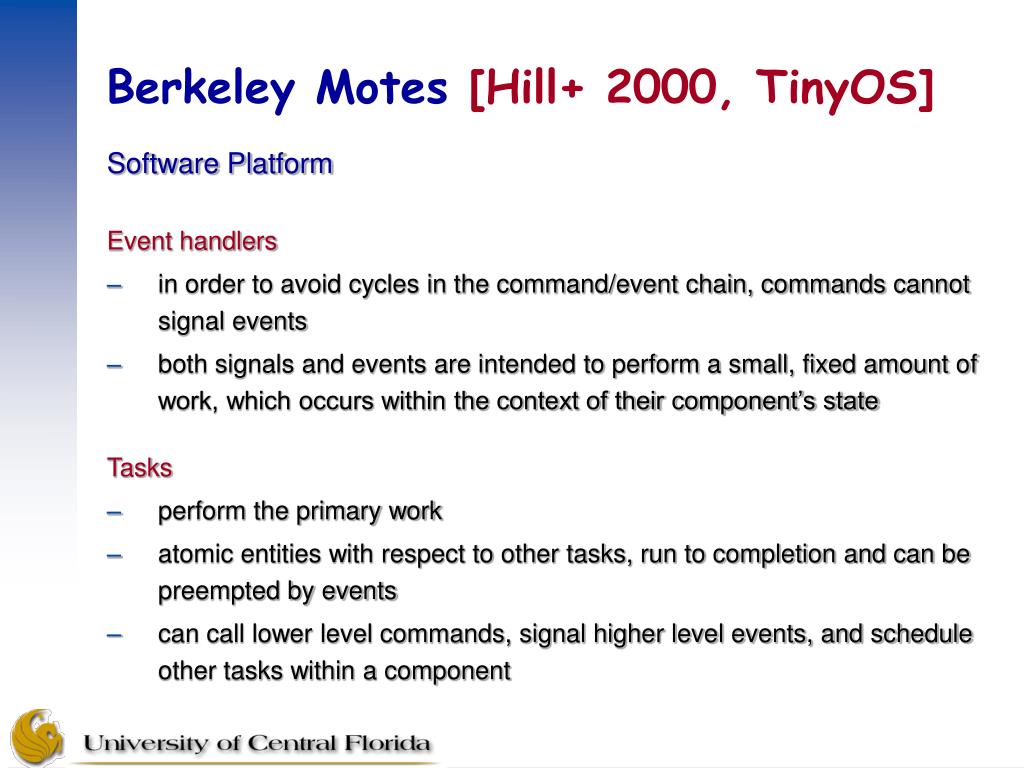

  26. Berkeley Motes [Hill+ 2000, TinyOS] • Software Platform • Event handlers • in order to avoid cycles in the command/event chain, commands cannot signal events • both signals and events are intended to perform a small, fixed amount of work, which occurs within the context of their component’s state • Tasks • perform the primary work • atomic entities with respect to other tasks, run to completion and can be preempted by events • can call lower level commands, signal higher level events, and schedule other tasks within a component

  27. Berkeley Motes [Hill+ 2000, TinyOS] • Software Platform • Tasks • run-to-completion semantics make it possible to allocate a single stack that is assigned to the currently executing task which is essential in memory constrained systems • allows to simulate concurrency within each component, since tasks execute asynchronously with respect to the events • must never block or spin wait, otherwise, they will prevent progress in other components • Task scheduler • Utilizes a bounded size scheduling data structure to schedule various tasks base on FIFO, priority-based or deadline-based policy which is dependent on the requirements of the application

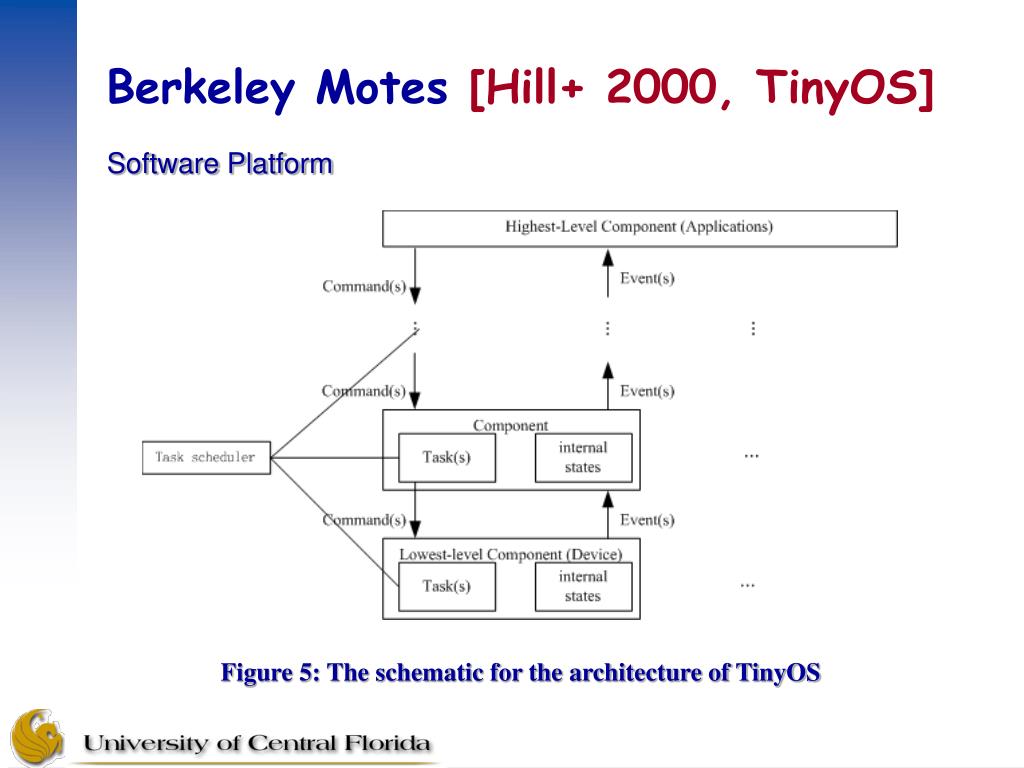

  28. Berkeley Motes [Hill+ 2000, TinyOS] Software Platform Figure 5: The schematic for the architecture of TinyOS

  29. MANTIS [Abrach+ 2003] • MANTIS (MultimodAl system for NeTworks of In-situ wireless Sensors) provides a new multi-threaded embedded operating system integrated with a general-purpose single-board hardware platform to enable flexible and rapid prototyping of wireless sensor networks • the key design goals of MANTIS are • ease of use, i.e., a small learning curve that encourages novice programmers to rapidly prototype sensor applications • flexibility such that expert researchers can continue to adapt and extend the hardware/software system to suit the needs of advanced research

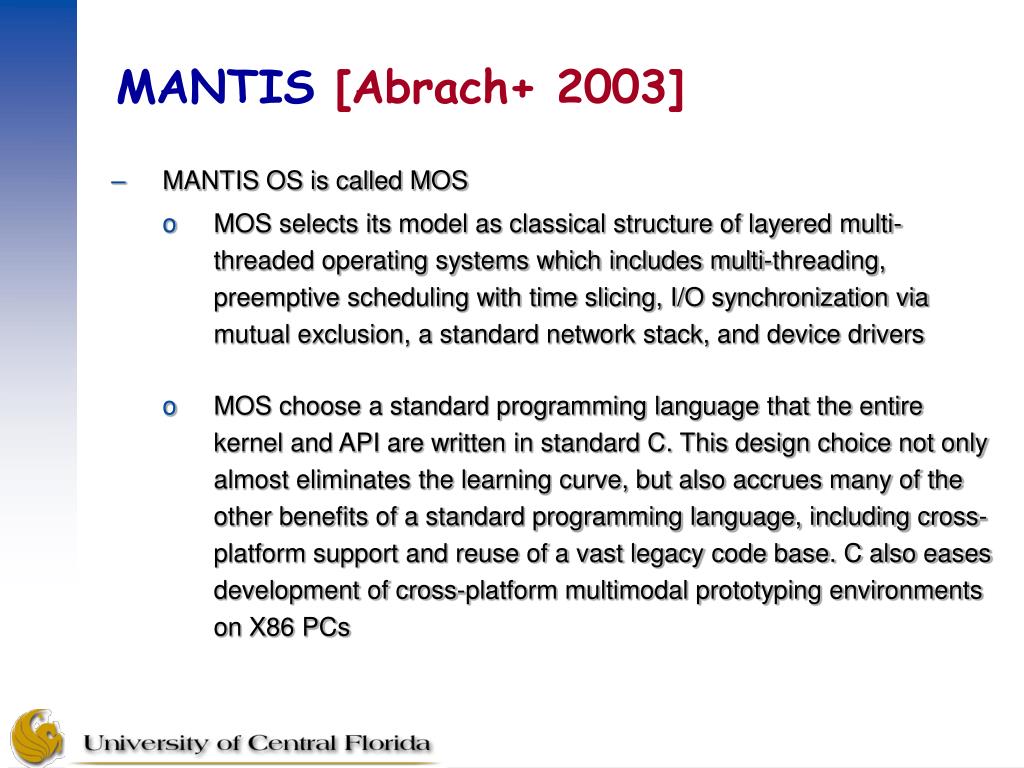

  30. MANTIS [Abrach+ 2003] • MANTIS OS is called MOS • MOS selects its model as classical structure of layered multi-threaded operating systems which includes multi-threading, preemptive scheduling with time slicing, I/O synchronization via mutual exclusion, a standard network stack, and device drivers • MOS choose a standard programming language that the entire kernel and API are written in standard C. This design choice not only almost eliminates the learning curve, but also accrues many of the other benefits of a standard programming language, including cross-platform support and reuse of a vast legacy code base. C also eases development of cross-platform multimodal prototyping environments on X86 PCs

  31. MANTIS [Abrach+ 2003] • Hardware Platform • MANTIS hardware nymph’s design was inspired by the Berkeley MICA an MICA2 Mote architecture • MANTIS Nymph is a single-board design, incorporating the micro-controller, analog sensor ports, RF communication, EEPROM, and serial ports on one dual-layer 3.5 x 5.5 cm printed circuit board • the Nymph is centered around the AMTEL ATmega128(L) MCU, including interfaces for two UARTs, an SPI bus, an I2C bus, and eight analog-to-digital converter channels. It provides additional 64KB EEPROM external to MCU in addition to 4KB EEPROM included in MCU • the unit is powered either by batteries or an AC adapter, and a set of three on-board LEDs are included to aid in the debugging process. It is designed to hold a 24mm diameter lithium ion coin cell battery (CR2477), but any battery in the range of 1.8V to 3.6V can be connected

  32. MANTIS [Abrach+ 2003] • Hardware Platform • in order to facilitate rapid prototyping in research environment, the Nymph has solderless plug connections for both analog and digital sensors, which eliminates the external sensor board for many applications • each connector provides lines for ground, power and sensor signal, allowing basic sensors such as photo sensors or complex devices such as infrared an ultra sounds receivers to be connected easily • the Chipcon CC1000 radio was chosen to handle wireless communication. It supports four carrier frequency bands (315, 433, 868, and 915 MHz) and allows for frequency hopping which is useful for multi-channel communication. It is one of the lowest power commercial radios and allows MOS to optimize the radio to further reduce the power consumption

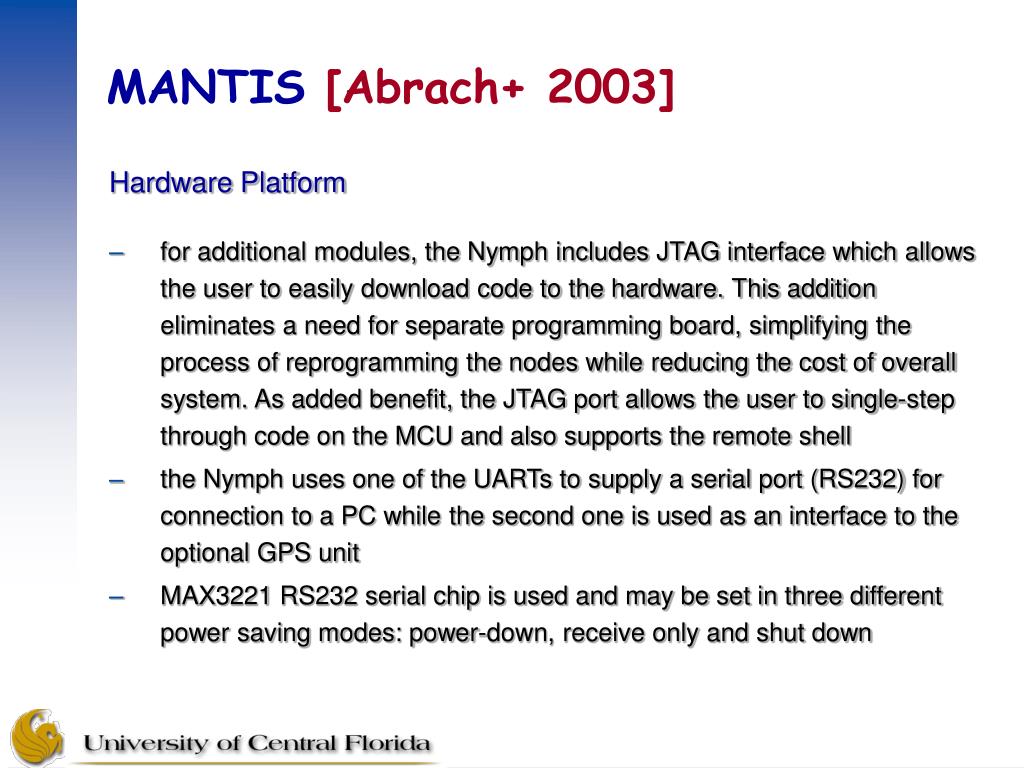

  33. MANTIS [Abrach+ 2003] • Hardware Platform • for additional modules, the Nymph includes JTAG interface which allows the user to easily download code to the hardware. This addition eliminates a need for separate programming board, simplifying the process of reprogramming the nodes while reducing the cost of overall system. As added benefit, the JTAG port allows the user to single-step through code on the MCU and also supports the remote shell • the Nymph uses one of the UARTs to supply a serial port (RS232) for connection to a PC while the second one is used as an interface to the optional GPS unit • MAX3221 RS232 serial chip is used and may be set in three different power saving modes: power-down, receive only and shut down

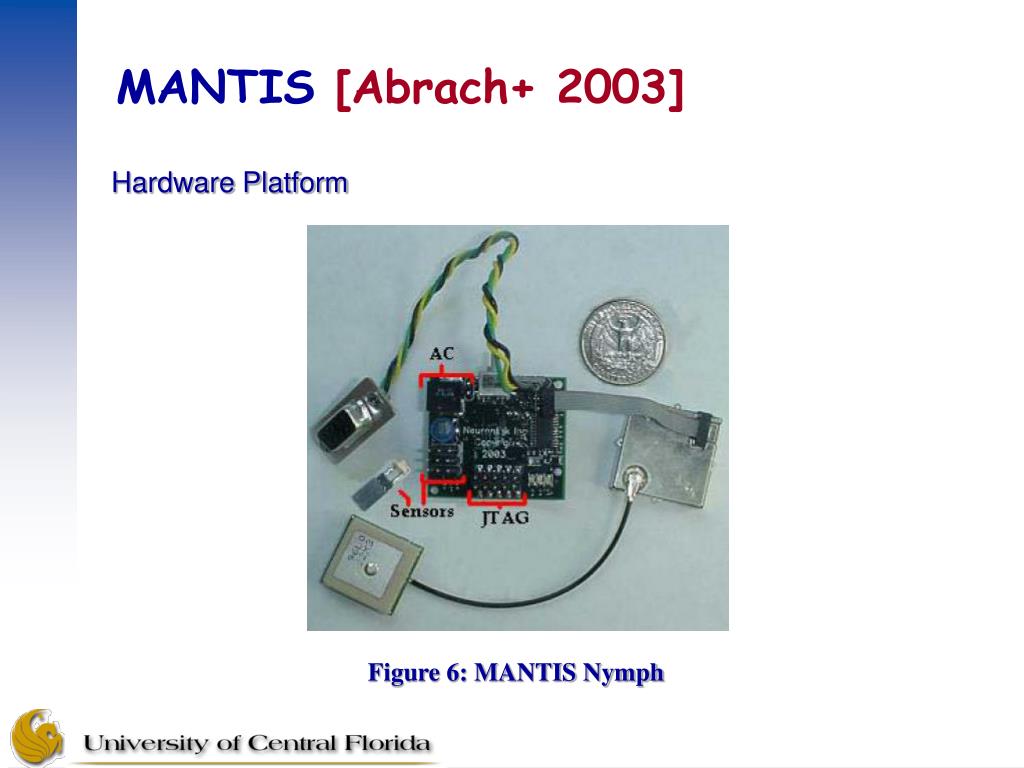

  34. MANTIS [Abrach+ 2003] • Hardware Platform Figure 6: MANTIS Nymph

  35. MANTIS [Abrach+ 2003] • Software Platform • MANTIS OS (MOS) adheres to classical layered multi-threaded design • top application and API layers show a simple C API which promotes the ease of use, cross-platform portability, and reuse of a large installed code base • in lower layers of MOS, it adapts the classical OS structures to achieve small memory footprint • System APIs • MANTIS provides comprehensive System APIs for I/O and system interaction • the choice of C language API simplifies cross-platform support and the development of a multimodal prototyping environment

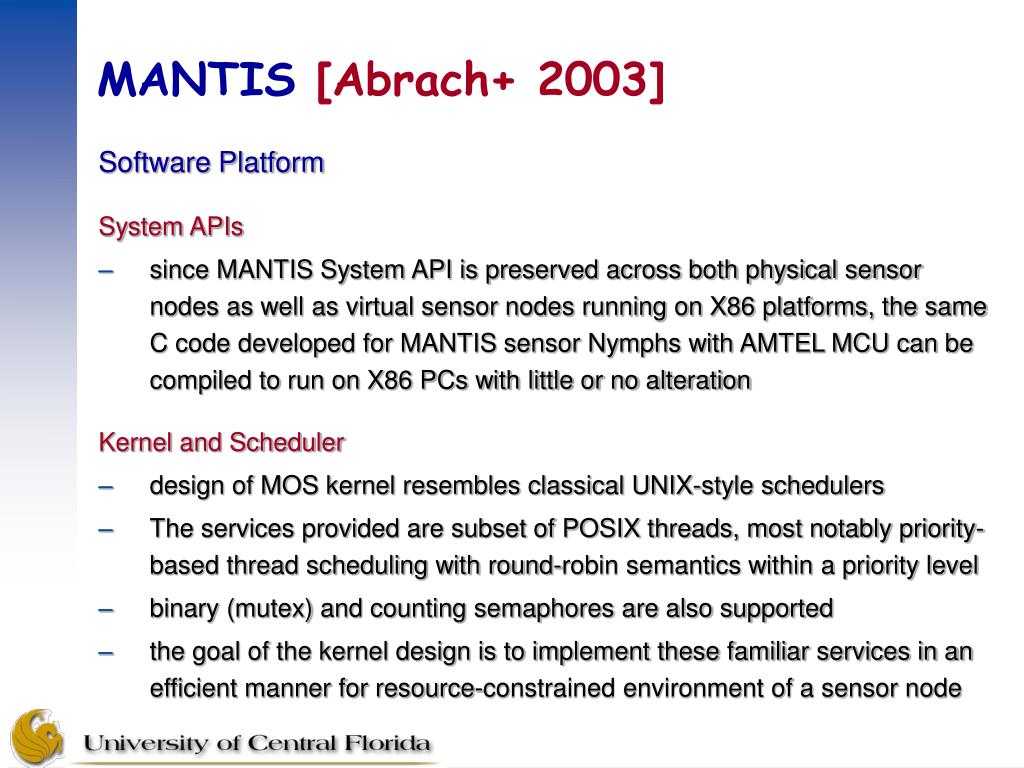

  36. MANTIS [Abrach+ 2003] • Software Platform • System APIs • since MANTIS System API is preserved across both physical sensor nodes as well as virtual sensor nodes running on X86 platforms, the same C code developed for MANTIS sensor Nymphs with AMTEL MCU can be compiled to run on X86 PCs with little or no alteration • Kernel and Scheduler • design of MOS kernel resembles classical UNIX-style schedulers • The services provided are subset of POSIX threads, most notably priority-based thread scheduling with round-robin semantics within a priority level • binary (mutex) and counting semaphores are also supported • the goal of the kernel design is to implement these familiar services in an efficient manner for resource-constrained environment of a sensor node

  37. MANTIS [Abrach+ 2003] • Software Platform • Network Stack • focused on efficient use of limited memory, flexibility, and convenience • implemented as one or more user-level threads • different layers can be implemented in different threads, or all layers in the stack can be implemented in one thread • the tradeoff is between performance and flexibility • designed to minimize memory buffer allocation through layers • the data body for a packet is common through all layers within a thread • the headers for a packet is variably-sized and are pre-pended to the single data body • designed in a modular manner with standard APIs between each layers, thereby allowing developers easily modify or replace layer modules

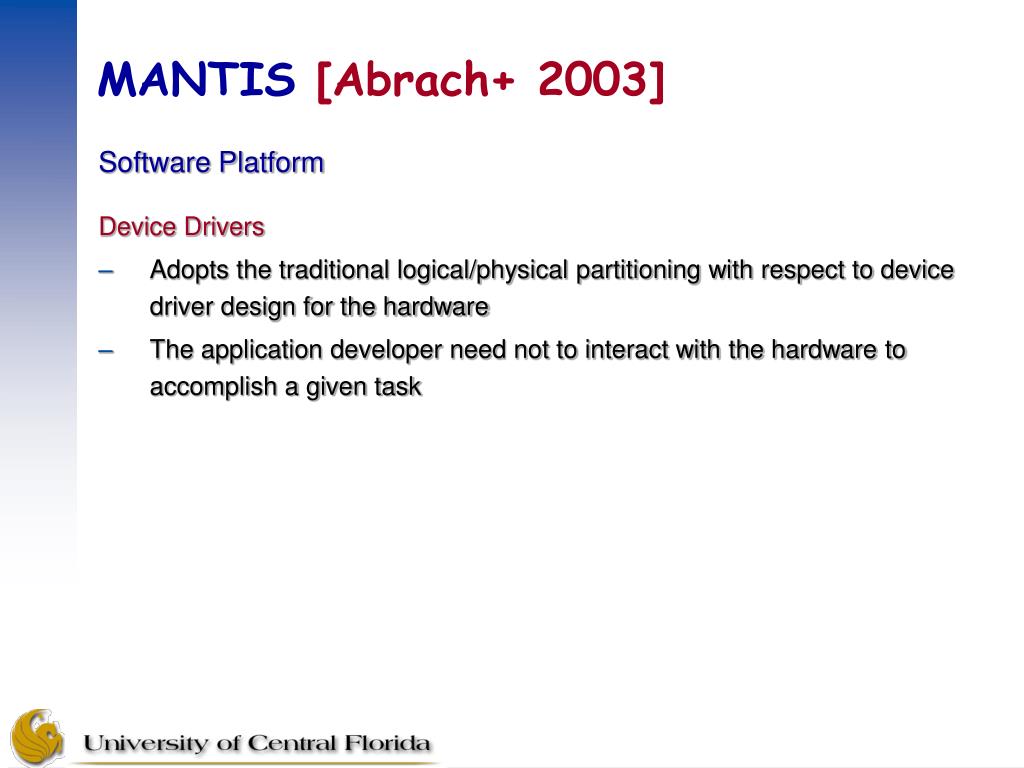

  38. MANTIS [Abrach+ 2003] • Software Platform • Device Drivers • Adopts the traditional logical/physical partitioning with respect to device driver design for the hardware • The application developer need not to interact with the hardware to accomplish a given task

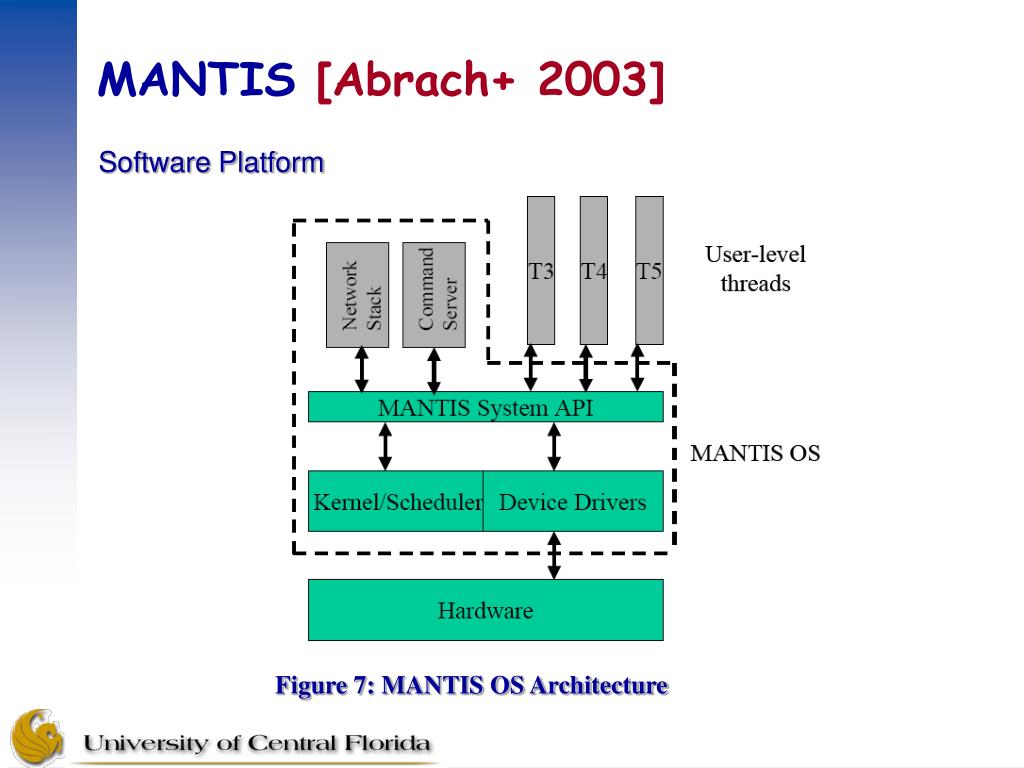

  39. MANTIS [Abrach+ 2003] • Software Platform Figure 7: MANTIS OS Architecture

  40. MANTIS [Abrach+ 2003] • System Development • application developers need to be able to prototype and test applications prior to distribution and physical deployment in the field • during deployment, in-situ sensor nodes need to be capable of being both dynamically reprogrammed and remotely debugged • in order to facilitates these issues, MANTIS identifies and implements three key advanced features for expert users of general-purpose sensor systems • multimodal prototyping environment • dynamic reprogramming • remote shell and commander server

  41. MANTIS [Abrach+ 2003] • System Development • Multimodal Prototyping Environment • Provides a framework for prototyping diverse applications across heterogeneous platforms • A key requirement of sensor systems is the need to provide a prototyping environment to test sensor networking applications prior to deployment • Postponing testing of an application until after its deployment across a distributed sensor network can incur severe consequences • MANTIS prototyping environment extends beyond simulation to provide larger framework for development of network management and visualization applications as virtual nodes within a MANTIS network • MANTIS has property of enabling an application developer to test execution of the same C code on both virtual sensor nodes and later on in-situ physical sensor nodes

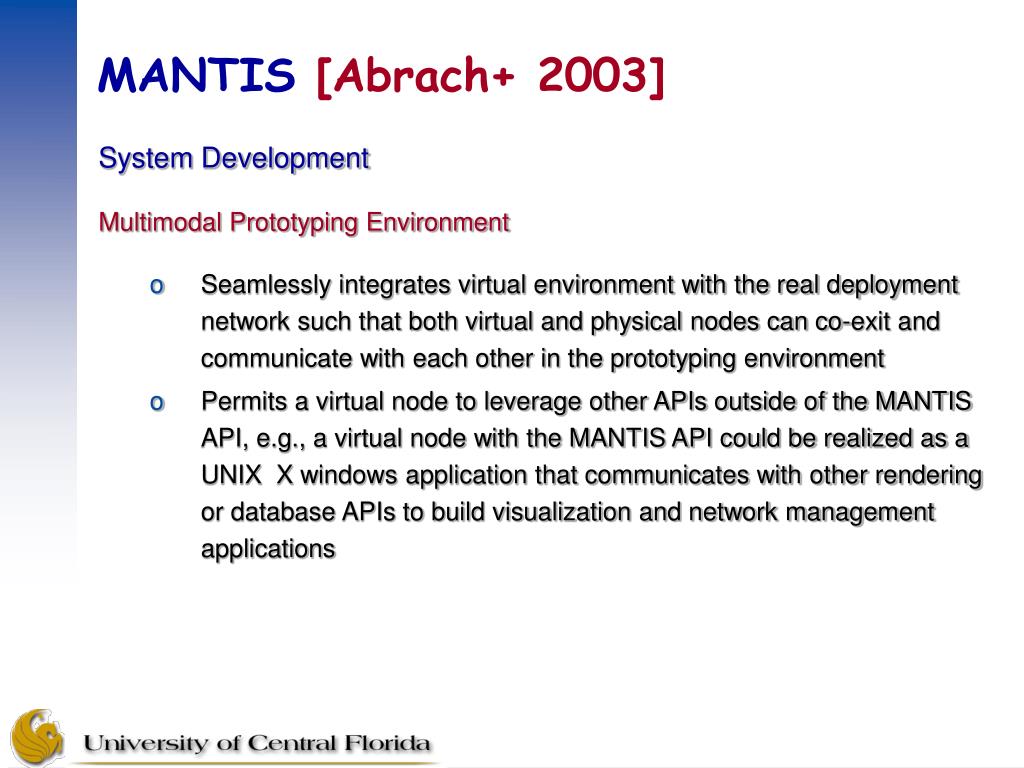

  42. MANTIS [Abrach+ 2003] • System Development • Multimodal Prototyping Environment • Seamlessly integrates virtual environment with the real deployment network such that both virtual and physical nodes can co-exit and communicate with each other in the prototyping environment • Permits a virtual node to leverage other APIs outside of the MANTIS API, e.g., a virtual node with the MANTIS API could be realized as a UNIX X windows application that communicates with other rendering or database APIs to build visualization and network management applications

  43. MANTIS [Abrach+ 2003] • System Development • Multimodal Prototyping Environment Figure 8: Multimodal prototyping integrates both virtual and physical sensor nodes across heterogeneous X86 and AMTEL sensor platforms

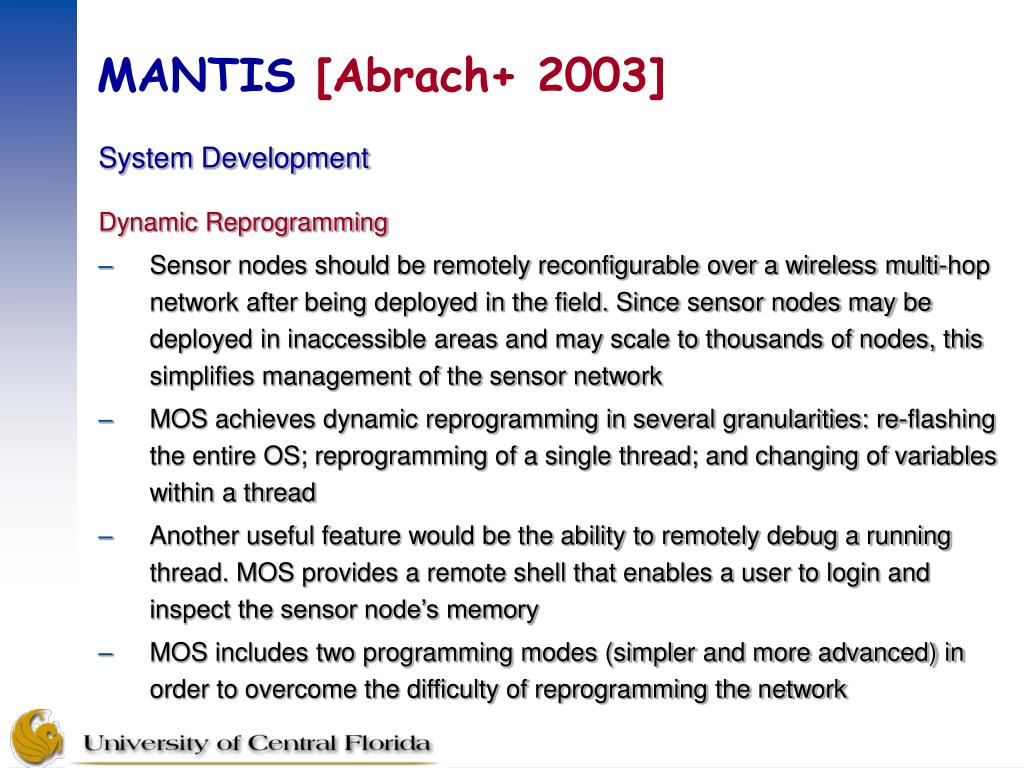

  44. MANTIS [Abrach+ 2003] • System Development • Dynamic Reprogramming • Sensor nodes should be remotely reconfigurable over a wireless multi-hop network after being deployed in the field. Since sensor nodes may be deployed in inaccessible areas and may scale to thousands of nodes, this simplifies management of the sensor network • MOS achieves dynamic reprogramming in several granularities: re-flashing the entire OS; reprogramming of a single thread; and changing of variables within a thread • Another useful feature would be the ability to remotely debug a running thread. MOS provides a remote shell that enables a user to login and inspect the sensor node’s memory • MOS includes two programming modes (simpler and more advanced) in order to overcome the difficulty of reprogramming the network

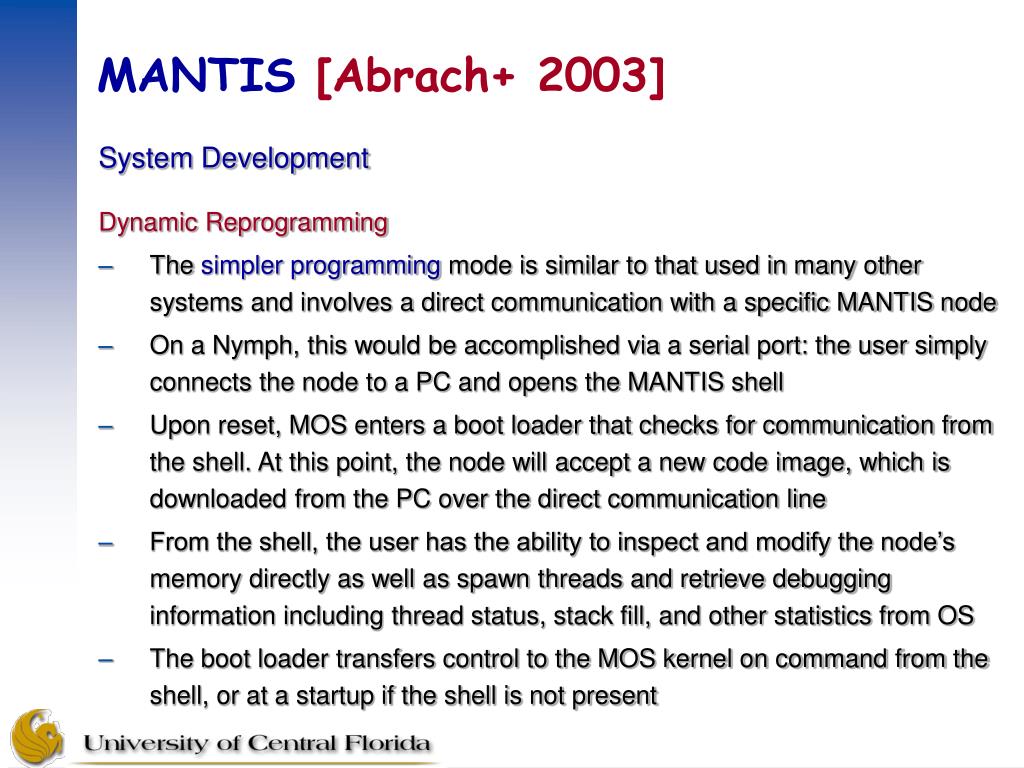

  45. MANTIS [Abrach+ 2003] • System Development • Dynamic Reprogramming • The simpler programming mode is similar to that used in many other systems and involves a direct communication with a specific MANTIS node • On a Nymph, this would be accomplished via a serial port: the user simply connects the node to a PC and opens the MANTIS shell • Upon reset, MOS enters a boot loader that checks for communication from the shell. At this point, the node will accept a new code image, which is downloaded from the PC over the direct communication line • From the shell, the user has the ability to inspect and modify the node’s memory directly as well as spawn threads and retrieve debugging information including thread status, stack fill, and other statistics from OS • The boot loader transfers control to the MOS kernel on command from the shell, or at a startup if the shell is not present

  46. MANTIS [Abrach+ 2003] • System Development • Dynamic Reprogramming • The more advanced programming mode is used when a node is already deployed, and does not require direct access to the node • The spectrum of dynamic reprogramming of in-situ sensor networks ranges from fine grained reprogramming to complete reprogramming • MOS has a provision for reprogramming any portion of the node up to and including the OS itself while the node is deployed in the field • This is accomplished through the MOS dynamic reprogramming interface

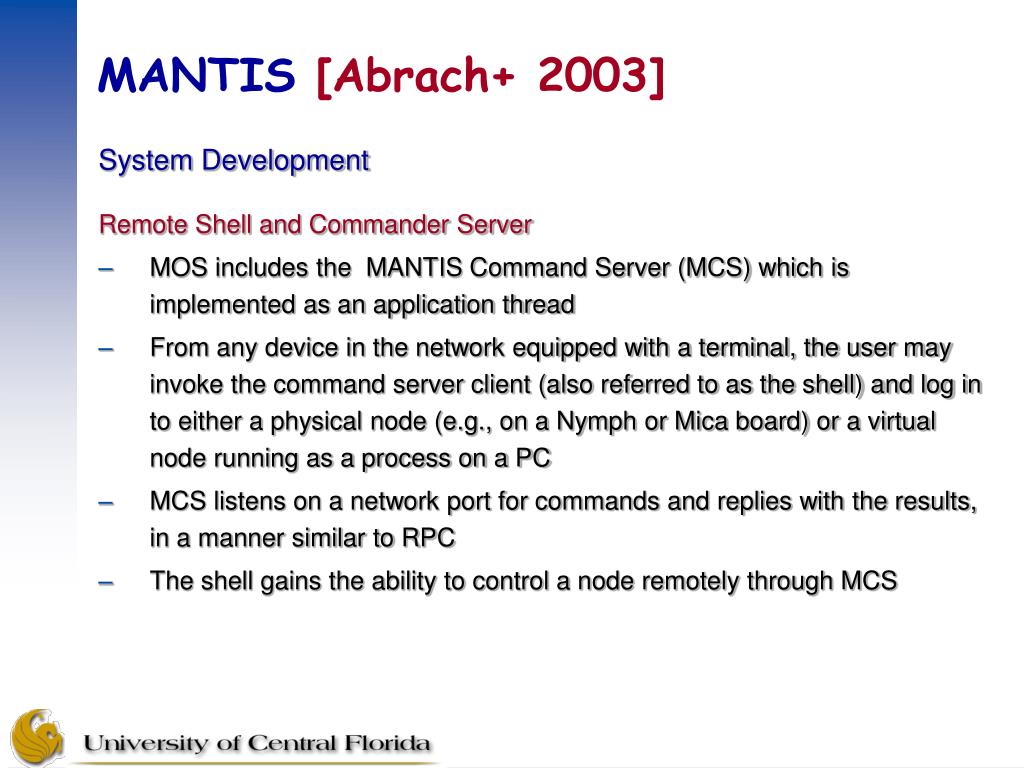

  47. MANTIS [Abrach+ 2003] • System Development • Remote Shell and Commander Server • MOS includes the MANTIS Command Server (MCS) which is implemented as an application thread • From any device in the network equipped with a terminal, the user may invoke the command server client (also referred to as the shell) and log in to either a physical node (e.g., on a Nymph or Mica board) or a virtual node running as a process on a PC • MCS listens on a network port for commands and replies with the results, in a manner similar to RPC • The shell gains the ability to control a node remotely through MCS

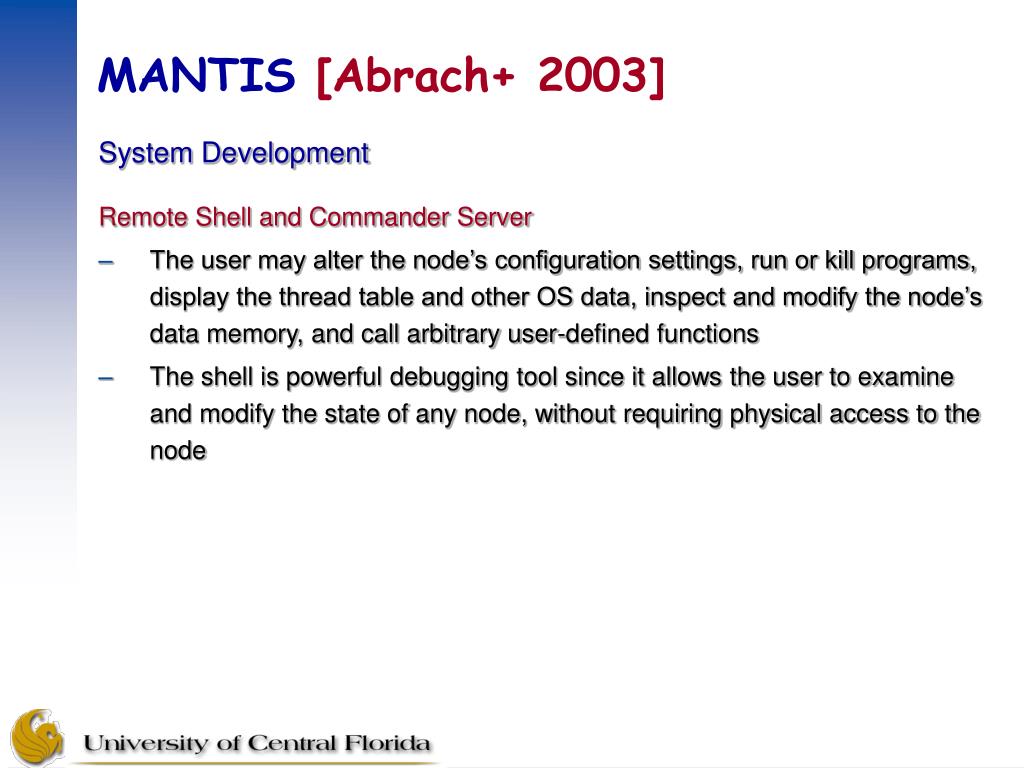

  48. MANTIS [Abrach+ 2003] • System Development • Remote Shell and Commander Server • The user may alter the node’s configuration settings, run or kill programs, display the thread table and other OS data, inspect and modify the node’s data memory, and call arbitrary user-defined functions • The shell is powerful debugging tool since it allows the user to examine and modify the state of any node, without requiring physical access to the node

  49. References [Abrach+ 2003] H. Abrach, S. Bhatti, J. Carlson, H. Dai, J. Rose, A. Sheth, B. Shucker, J, Deng and R. Han, MANTIS: System Support for MultimodAl NeTworks of In-Situ Sensors, 2nd ACM International Workshop on Wireless Sensor Networks and Applications (WSNA 2003), September 2003. [Akyildiz+ 2002] I. F. Akyildiz, W. Su, Y. Sankarasubramaniam, and E. Cayirci, A Survey on Sensor Networks, IEEE Communications Magazine, Vol. 40, No. 8, pp. 102-114, August 2002. [Elson+ 2002] J. Elson and K. Romer, Wireless Sensor Networks: A New Regime for Time Synchronization, First Workshop on Hot Topics in Networks (Hotnets-I), Princeton, USA, October 2002. [Hill+ 2000] J. Hill, R. Szewczyk, A. Woo, S. Hollar, D. Culler, and K. Pister, System Architecture Directions for Networked Sensors, Architectural Support for Programming Languages and Operating Systems (ASPLOS) 2000 [TinyOS] TinyOS: a component-based OS for the networked sensor regime.
