  1. On-Demand HostingAuto-Provisioning Hosting Services at EPA November 2, 2010 Rebecca Astin and David Pritchett

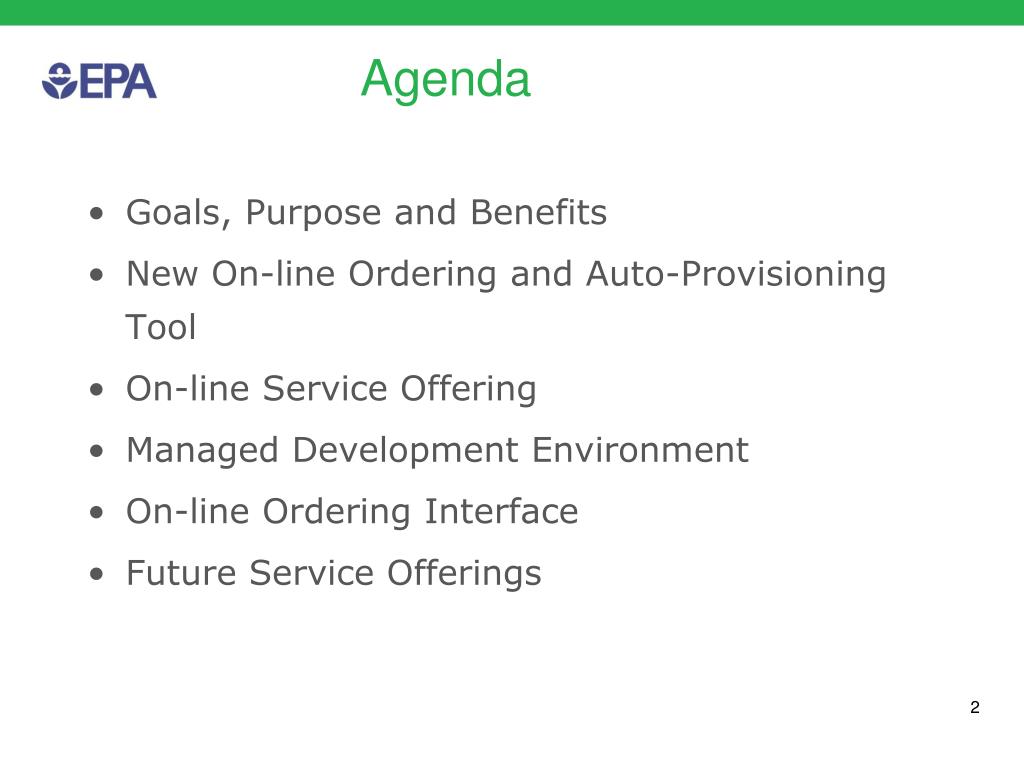

  2. Agenda • Goals, Purpose and Benefits • New On-line Ordering and Auto-Provisioning Tool • On-line Service Offering • Managed Development Environment • On-line Ordering Interface • Future Service Offerings

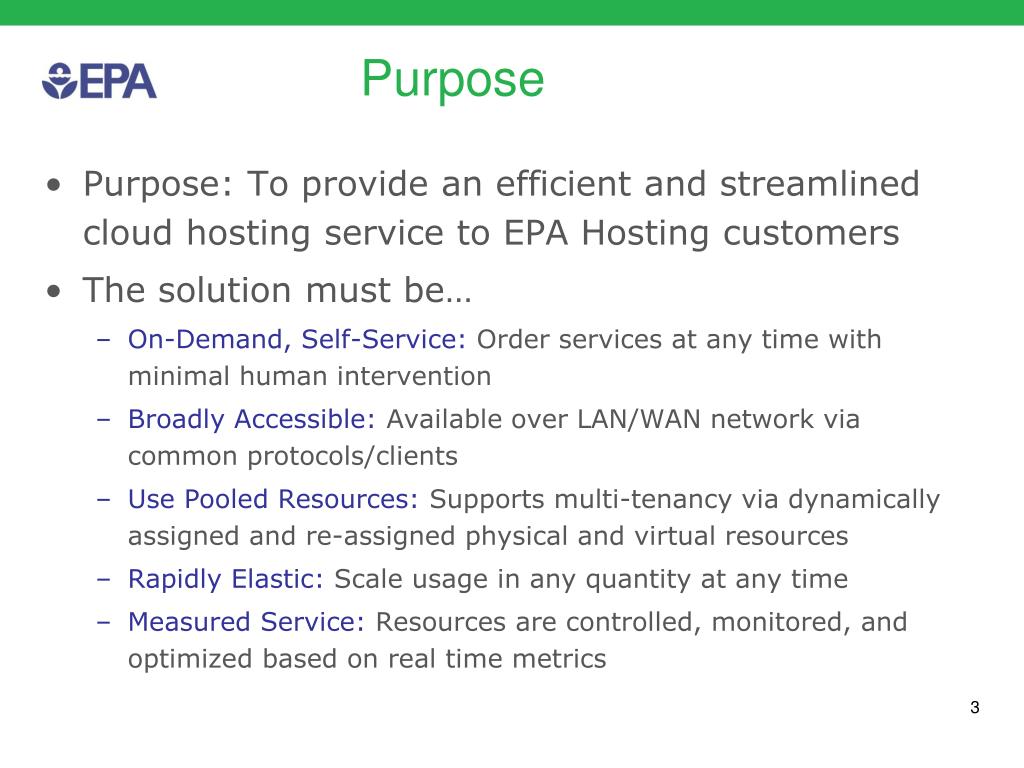

  3. Purpose • Purpose: To provide an efficient and streamlined cloud hosting service to EPA Hosting customers • The solution must be… • On-Demand, Self-Service: Order services at any time with minimal human intervention • Broadly Accessible: Available over LAN/WAN network via common protocols/clients • Use Pooled Resources:Supports multi-tenancy via dynamically assigned and re-assigned physical and virtual resources • Rapidly Elastic:Scale usage in any quantity at any time • Measured Service: Resources are controlled, monitored, and optimized based on real time metrics

  4. Benefits • On-Demand Hosting • Users can request services in as little as three days with division and ISO approval • Servers are available using standard ports and protocols across EPA LAN/WAN and via AAA • Servers are hosted in a virtual cloud environment at NCC • Can request software, processing power, memory, disk space, server restarts, etc. as required (Rapid Elasticity) • Solution is monitored and status/usage is available via web interface • Service is available in Pilot Mode until March 2011

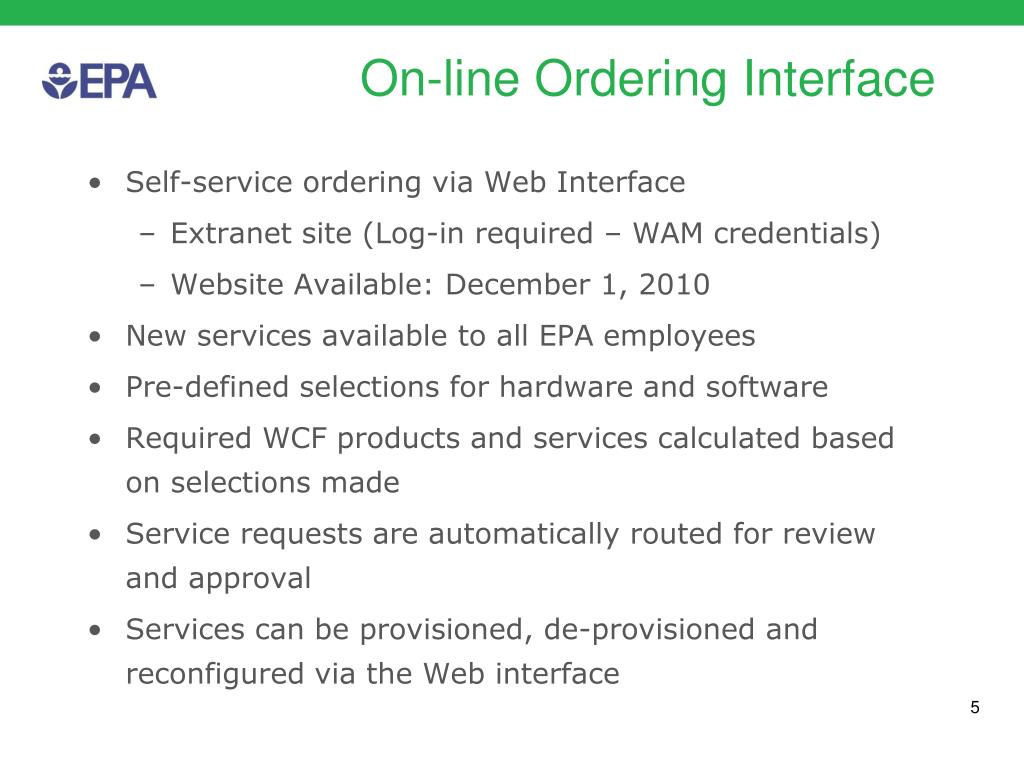

  5. On-line Ordering Interface • Self-service ordering via Web Interface • Extranet site (Log-in required – WAM credentials) • Website Available: December 1, 2010 • New services available to all EPA employees • Pre-defined selections for hardware and software • Required WCF products and services calculated based on selections made • Service requests are automatically routed for review and approval • Services can be provisioned, de-provisioned and reconfigured via the Web interface

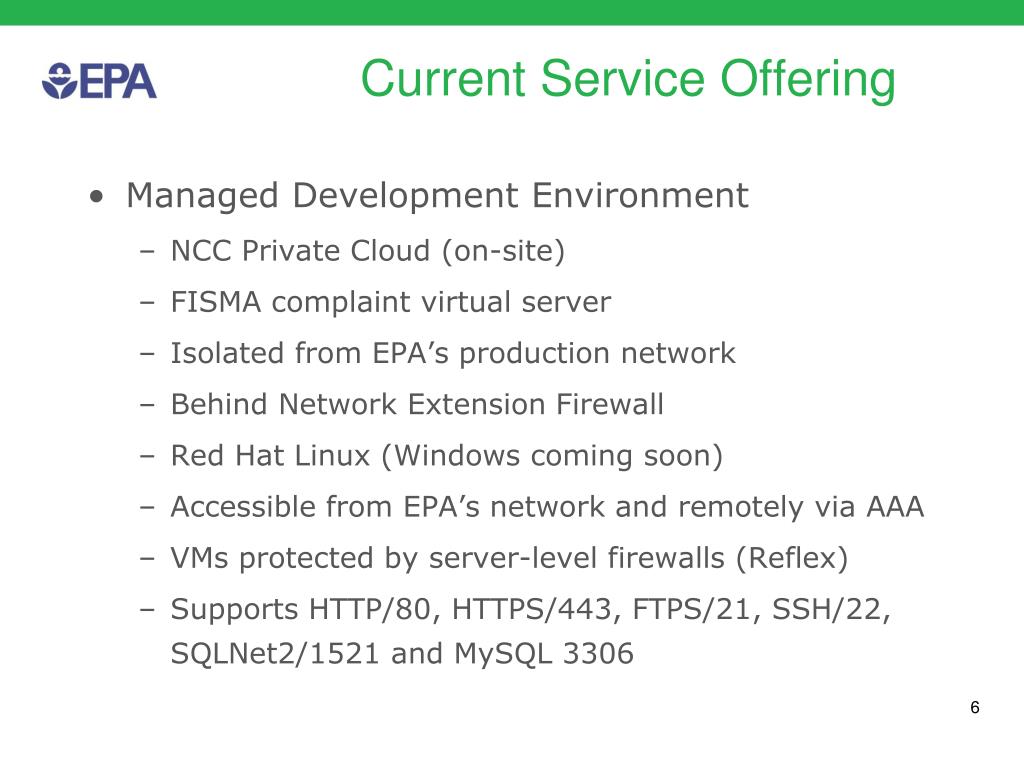

  6. Current Service Offering • Managed Development Environment • NCC Private Cloud (on-site) • FISMA complaint virtual server • Isolated from EPA’s production network • Behind Network Extension Firewall • Red Hat Linux (Windows coming soon) • Accessible from EPA’s network and remotely via AAA • VMs protected by server-level firewalls (Reflex) • Supports HTTP/80, HTTPS/443, FTPS/21, SSH/22, SQLNet2/1521 and MySQL 3306

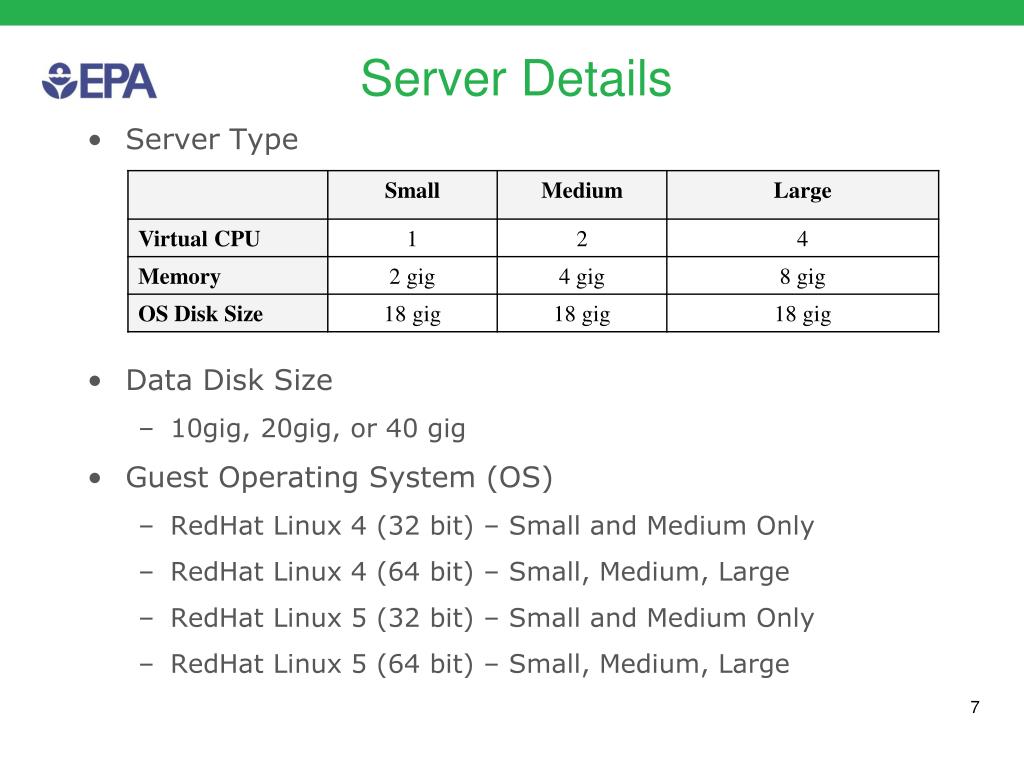

  7. Server Details • Server Type • Data Disk Size • 10gig, 20gig, or 40 gig • Guest Operating System (OS) • RedHat Linux 4 (32 bit) – Small and Medium Only • RedHat Linux 4 (64 bit) – Small, Medium, Large • RedHat Linux 5 (32 bit) – Small and Medium Only • RedHat Linux 5 (64 bit) – Small, Medium, Large

  8. Technical Architecture Network Extension + Virtual Firewalls

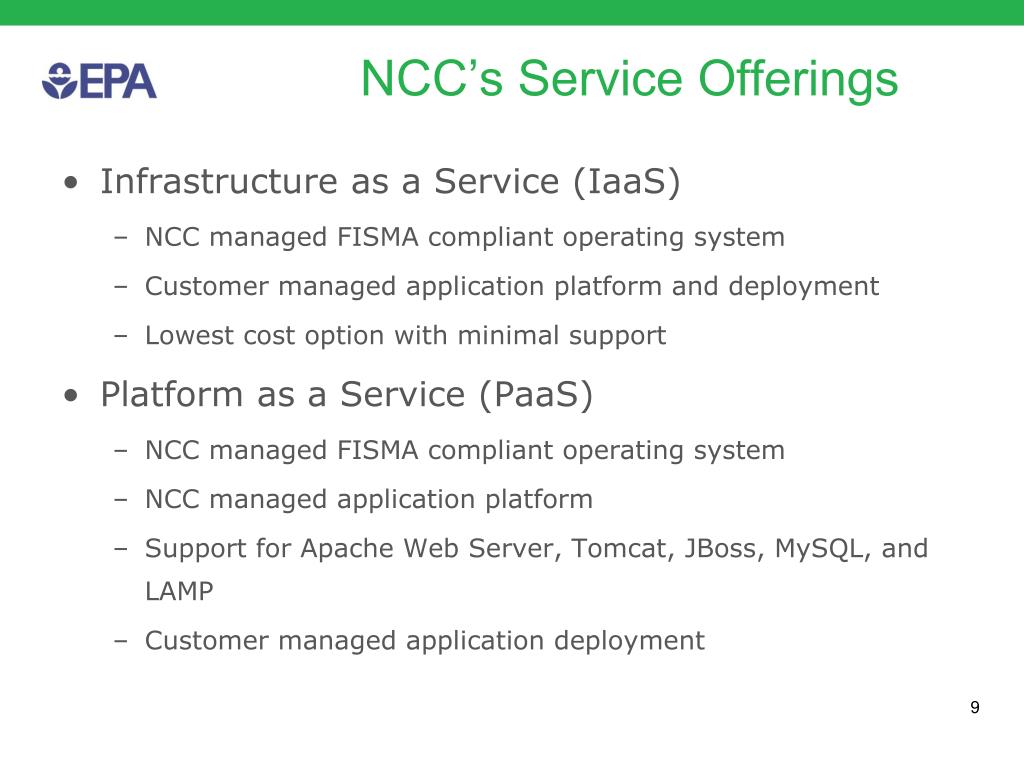

  9. NCC’s Service Offerings • Infrastructure as a Service (IaaS) • NCC managed FISMA compliant operating system • Customer managed application platform and deployment • Lowest cost option with minimal support • Platform as a Service (PaaS) • NCC managed FISMA compliant operating system • NCC managed application platform • Support for Apache Web Server, Tomcat, JBoss, MySQL, and LAMP • Customer managed application deployment

  10. Security • Network Extension Firewall • Separates the development servers from the production servers and isolates problems • Virtual Firewalls (Reflex) • Supports Multi-Tenancy by creating zones around each virtual server and groups of servers • Allows Intranet, Extranet, and Public Access servers to run on the same physical hardware • Manages access for each zone and subzone • Documents communication ports and protocols • Goal: Rules to follow server into production

  11. Private Cloud Services

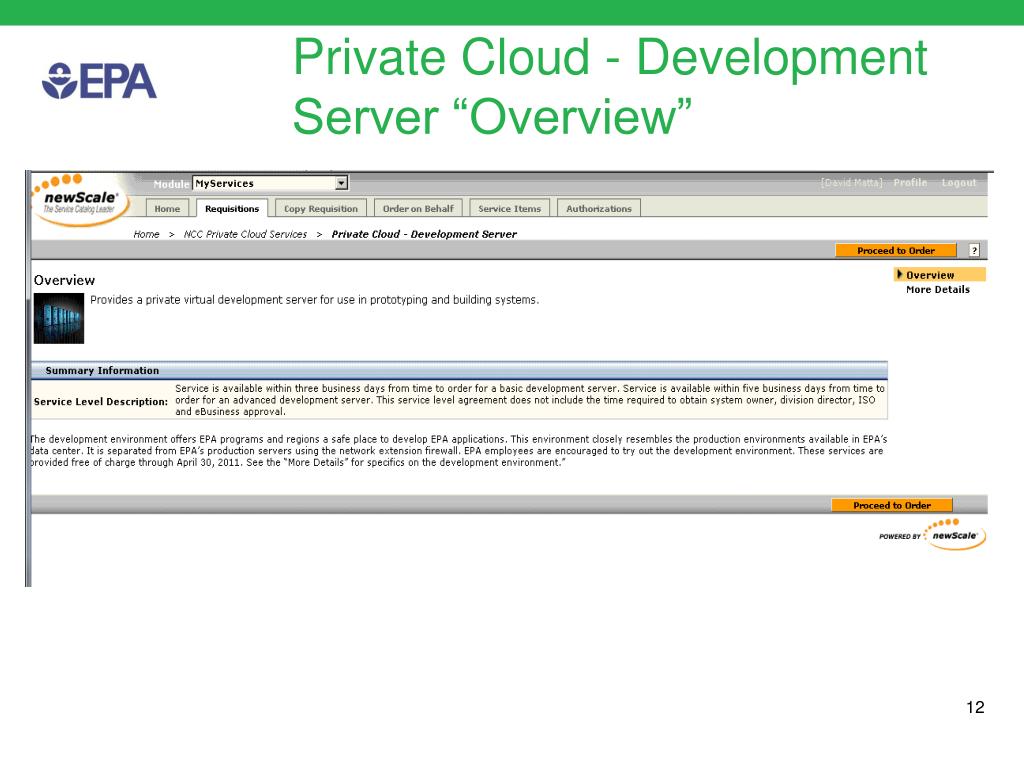

  12. Private Cloud - Development Server “Overview”

  13. Customer Information

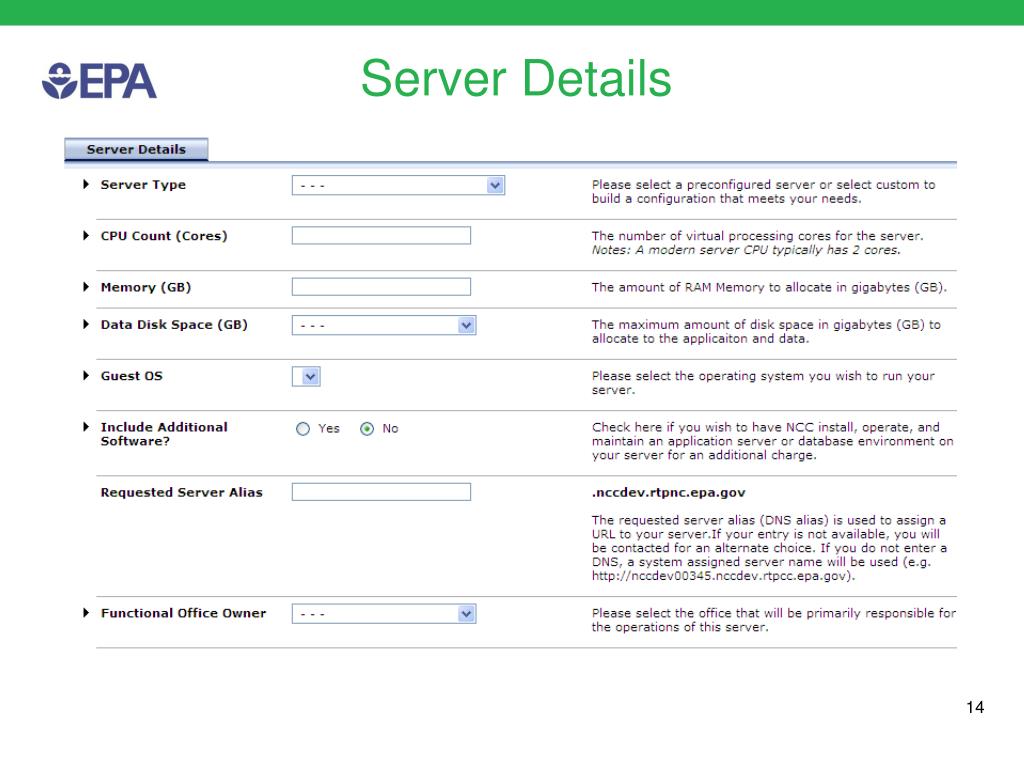

  14. Server Details

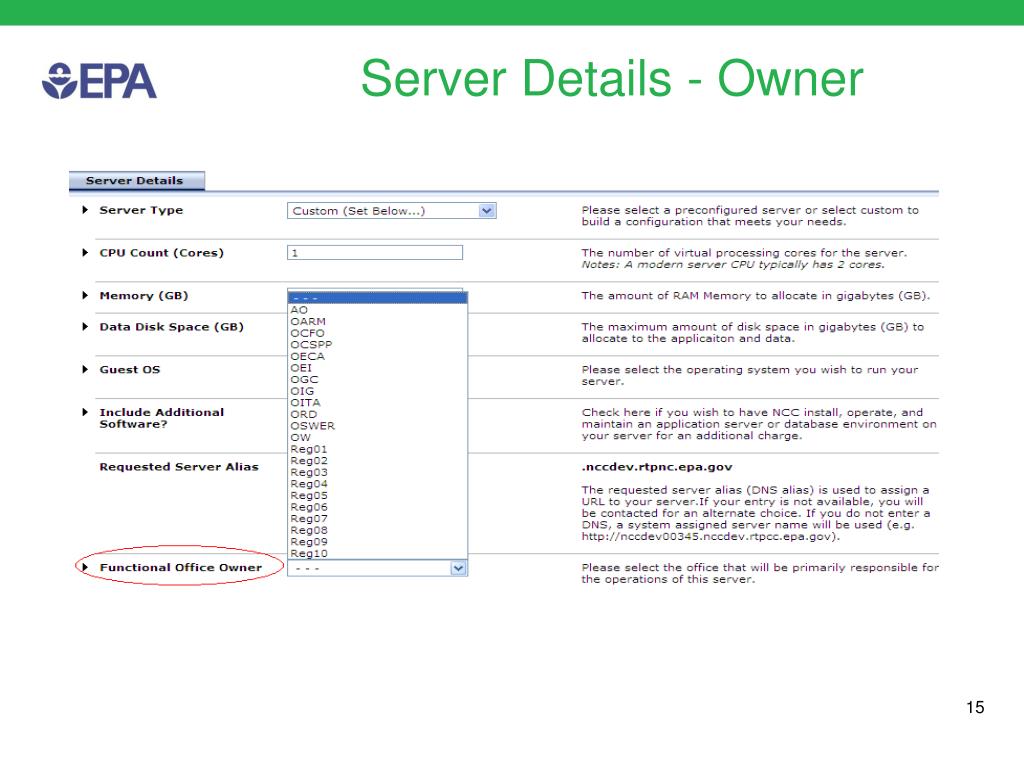

  15. Server Details - Owner

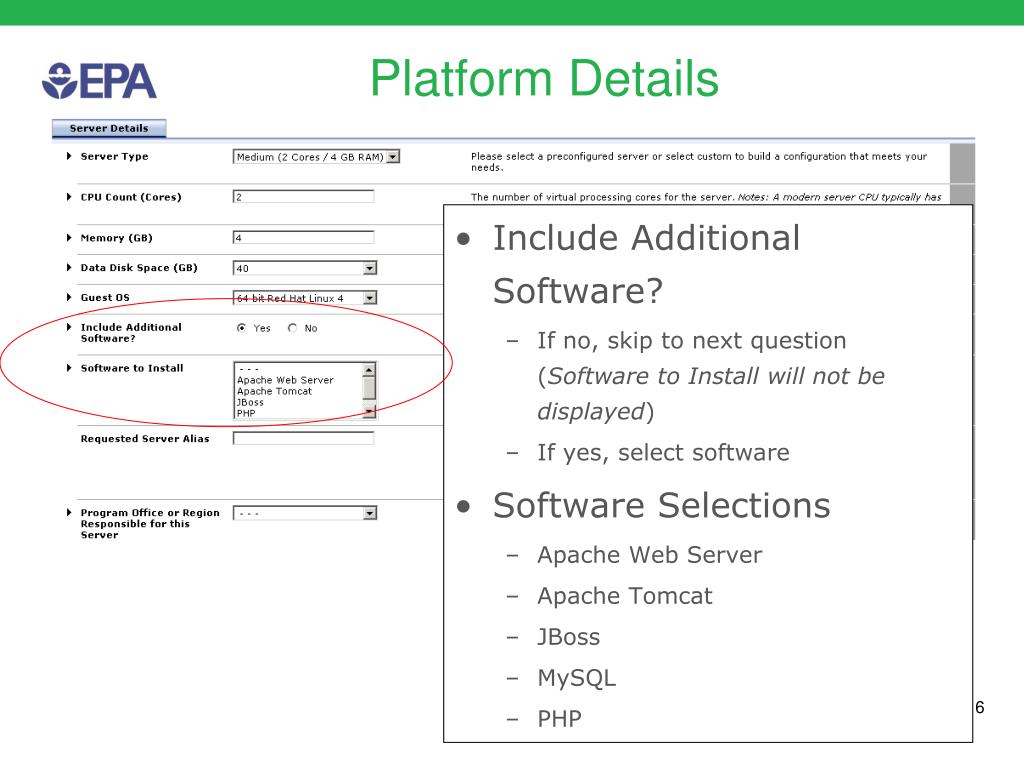

  16. Platform Details • Include Additional Software? • If no, skip to next question (Software to Install will not be displayed) • If yes, select software • Software Selections • Apache Web Server • Apache Tomcat • JBoss • MySQL • PHP Pg 15

  17. Server Details - Alias Default: http://nccdevReq#.rtpnc.epa.govAlias:http://alias.nccdev.rtpnc.epa.gov

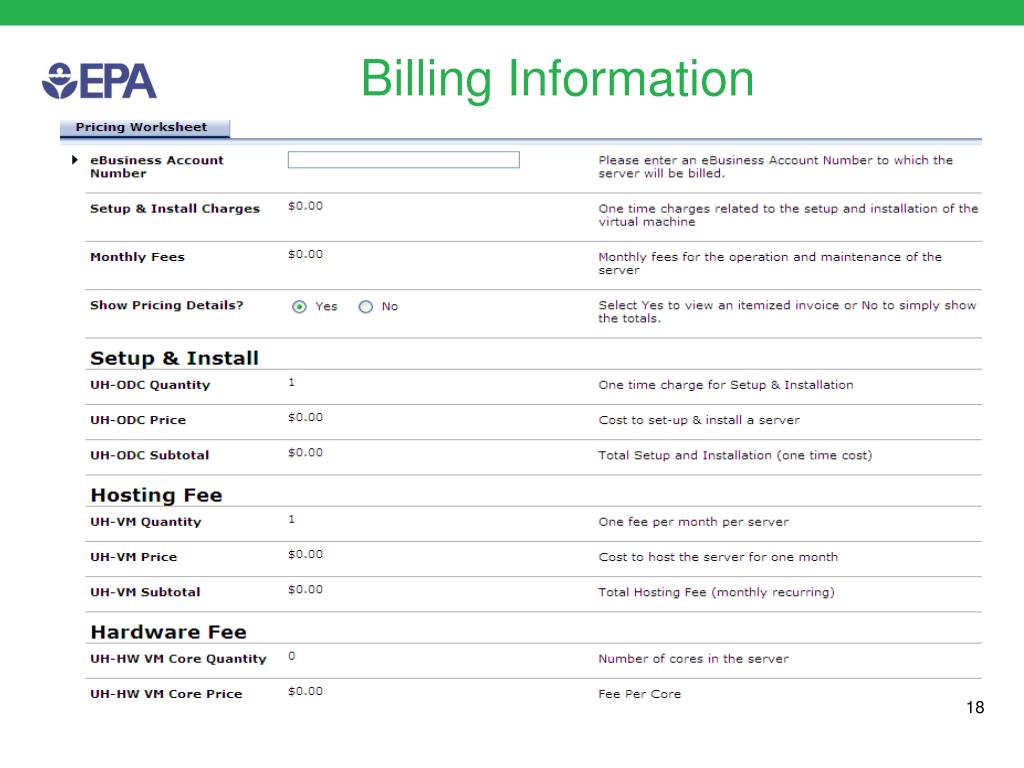

  18. Billing Information

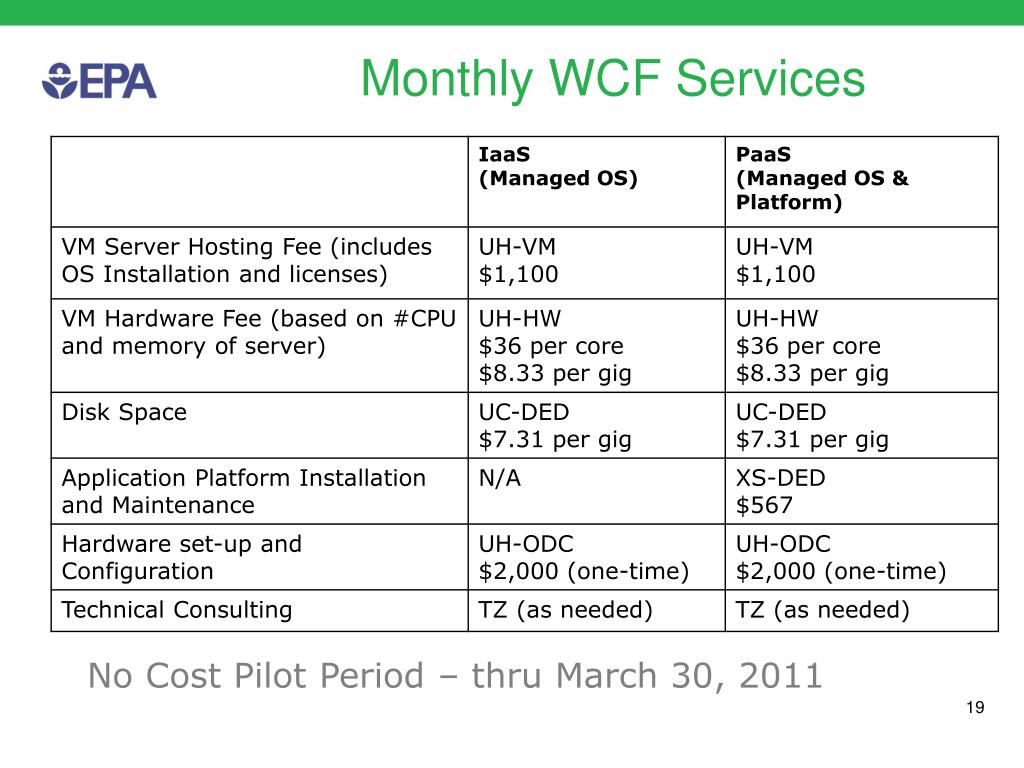

  19. Monthly WCF Services No Cost Pilot Period – thru March 30, 2011

  20. eBusiness Approvals • When an order is placed, an e-mail is sent to the hosting and custom application workload capture team (WLC) • WLC team places an order for each service in eBusiness (same process as an ADC today) • When eBusiness account manager approves the order, WLC team will associate the registration IDs with your order in the On-Demand Hosting request system

  21. Network Communication • Predefined ports and protocols • HTTP-80 • HTTPS-443 • FTP-21 • SQLNet-1521 • MySQL-3306 • SSH-22 • Additional ports and protocols available thru the Firewall Rule Request process • Available via AAA (must select “yes” on order screen)

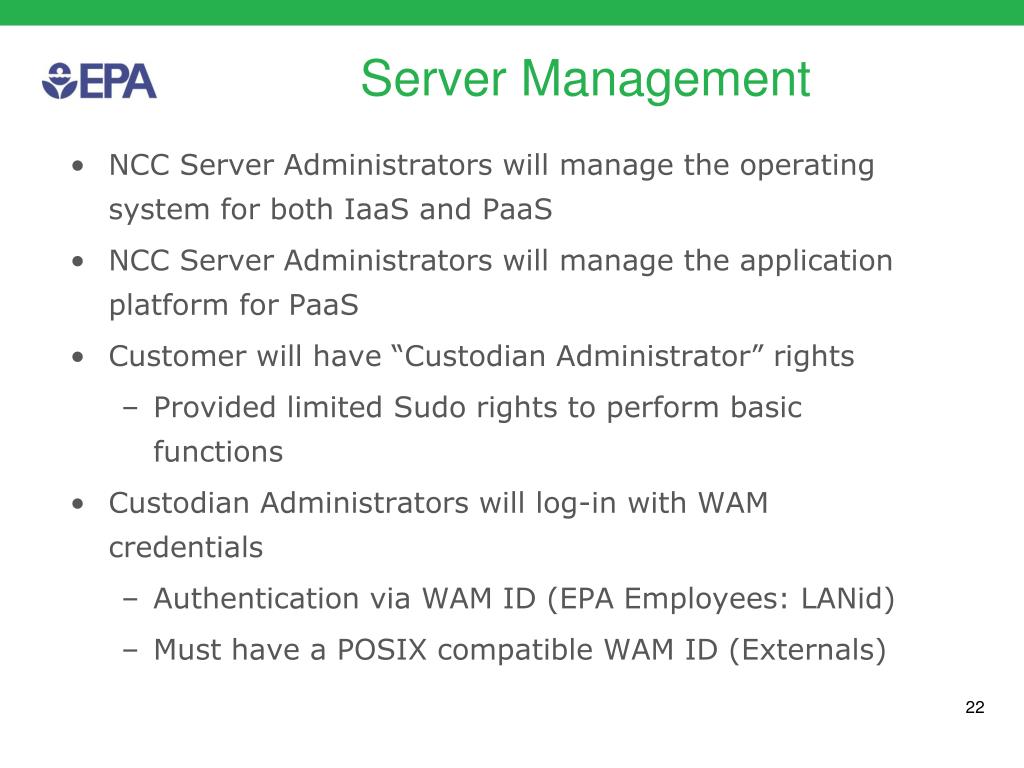

  22. Server Management • NCC Server Administrators will manage the operating system for both IaaS and PaaS • NCC Server Administrators will manage the application platform for PaaS • Customer will have “Custodian Administrator” rights • Provided limited Sudo rights to perform basic functions • Custodian Administrators will log-in with WAM credentials • Authentication via WAM ID (EPA Employees: LANid) • Must have a POSIX compatible WAM ID (Externals)

  23. Service Approval • Orders for service must be approved by the following individuals PRIOR to fulfillment: • Customer Owner (if ordered “On Behalf”) • Customer Division Director • Organization’s Primary ISO • eBusiness Account Manager • Approvals happen in succession and cannot be obtained concurrently • Owner, Division Director and ISO approvers will receive an e-mail with instructions on how to review and approve your request • eBusiness account manager will follow eBusiness procedures for approving WCF orders

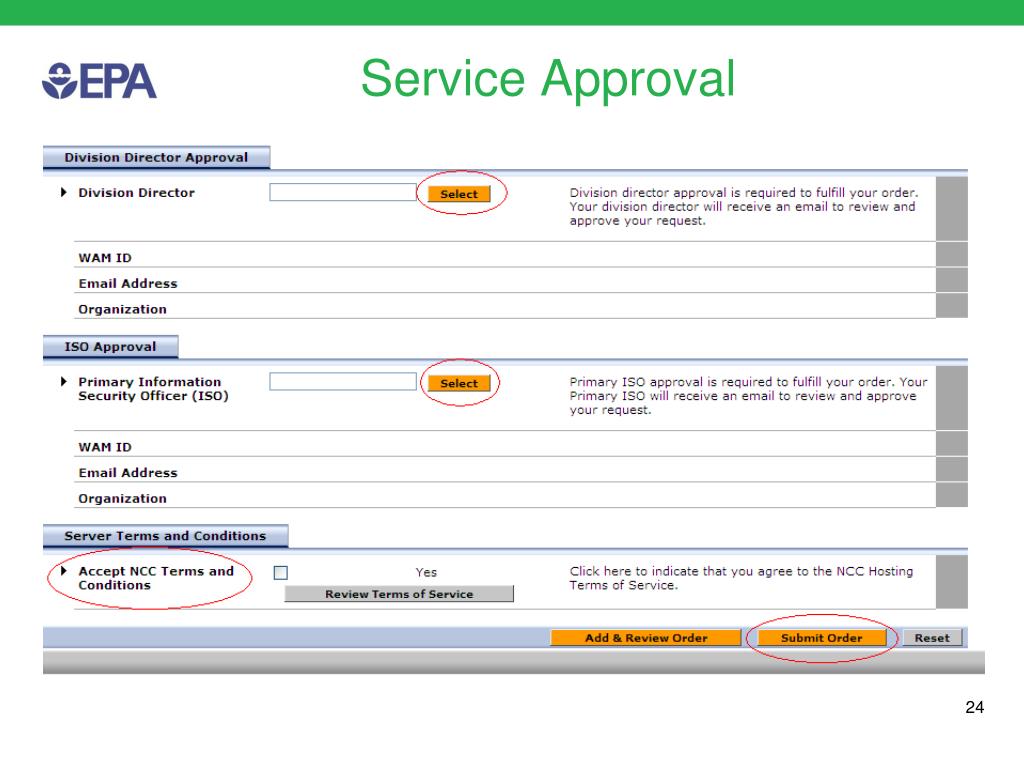

  24. Service Approval

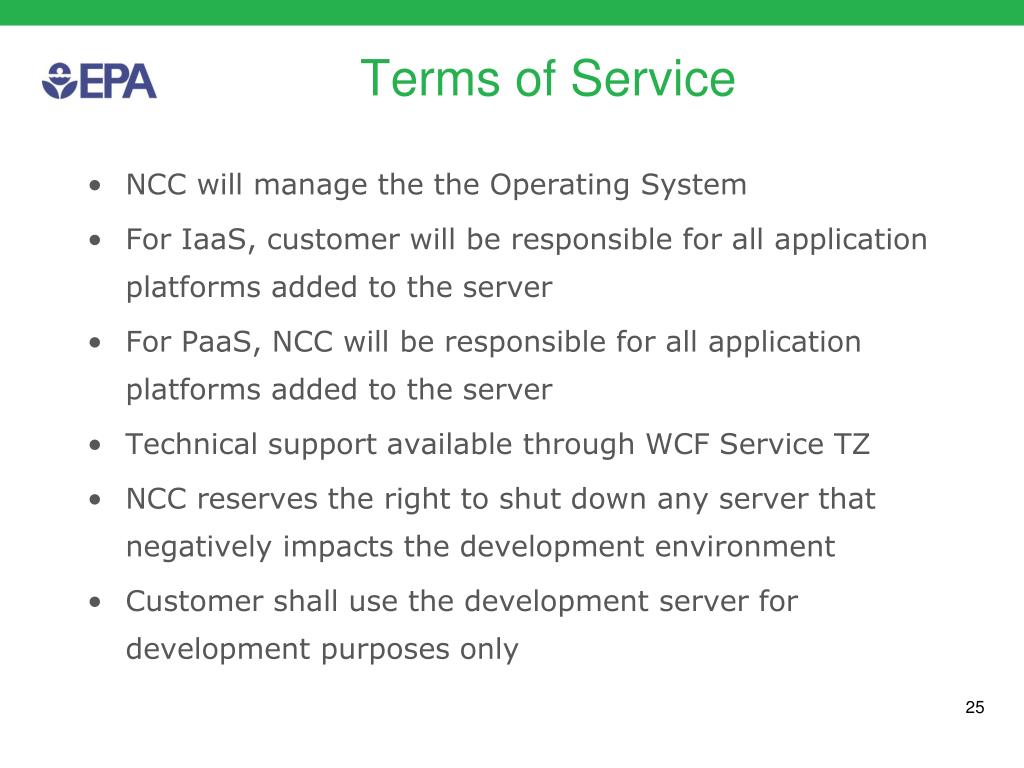

  25. Terms of Service • NCC will manage the the Operating System • For IaaS, customer will be responsible for all application platforms added to the server • For PaaS, NCC will be responsible for all application platforms added to the server • Technical support available through WCF Service TZ • NCC reserves the right to shut down any server that negatively impacts the development environment • Customer shall use the development server for development purposes only

  26. Service Delivery • Begins after ALL approvals are received • Server will be cloned from a base template in VMware • The On-Demand Hosting request system will issue commands to automatically reconfigure the server to specified configuration and to allocate data disk space • NCC Server Administrators will assign IP address and check the server configuration • Software teams will receive installation instructions if NCC is to install and manage application platform • WAM team will add Custodian Administrators to the server group in OID and check for ID compatibility (POSIX) • Server owner and Custodian Administrators will receive log-in instructions

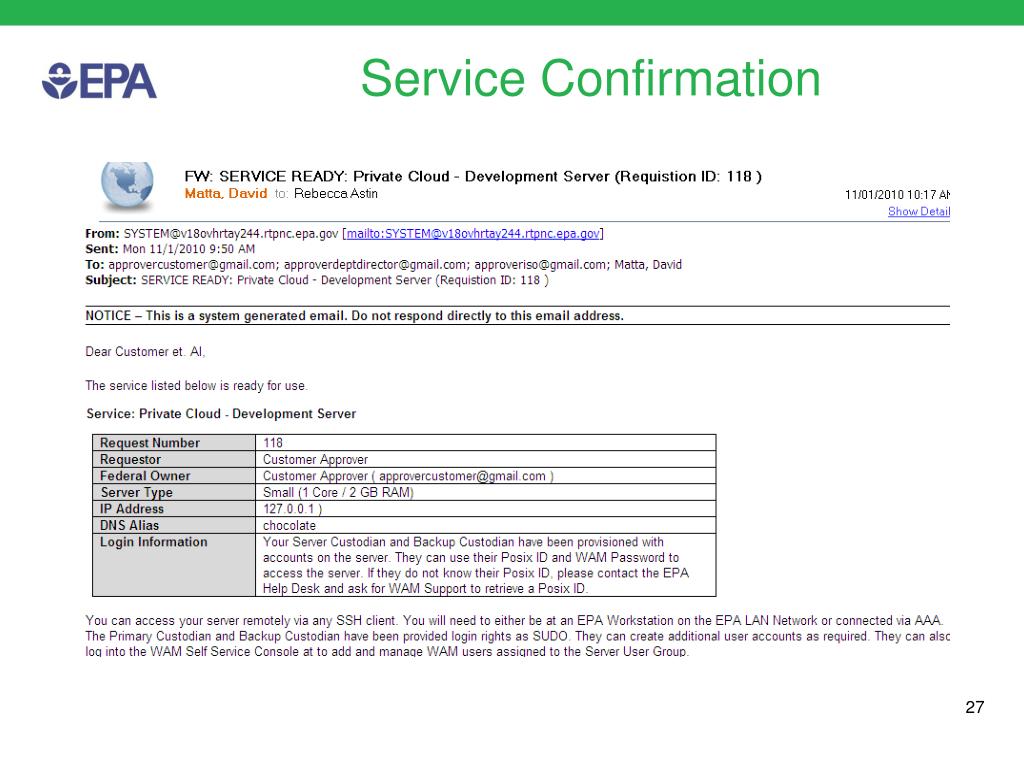

  27. Service Confirmation

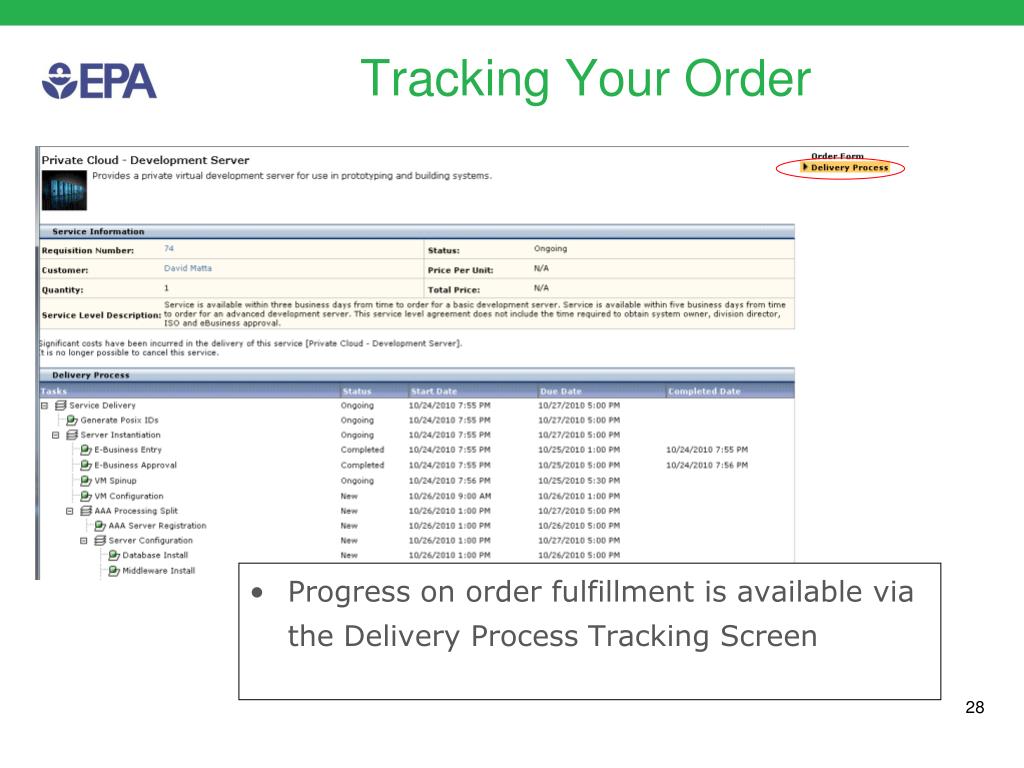

  28. Tracking Your Order • Progress on order fulfillment is available via the Delivery Process Tracking Screen

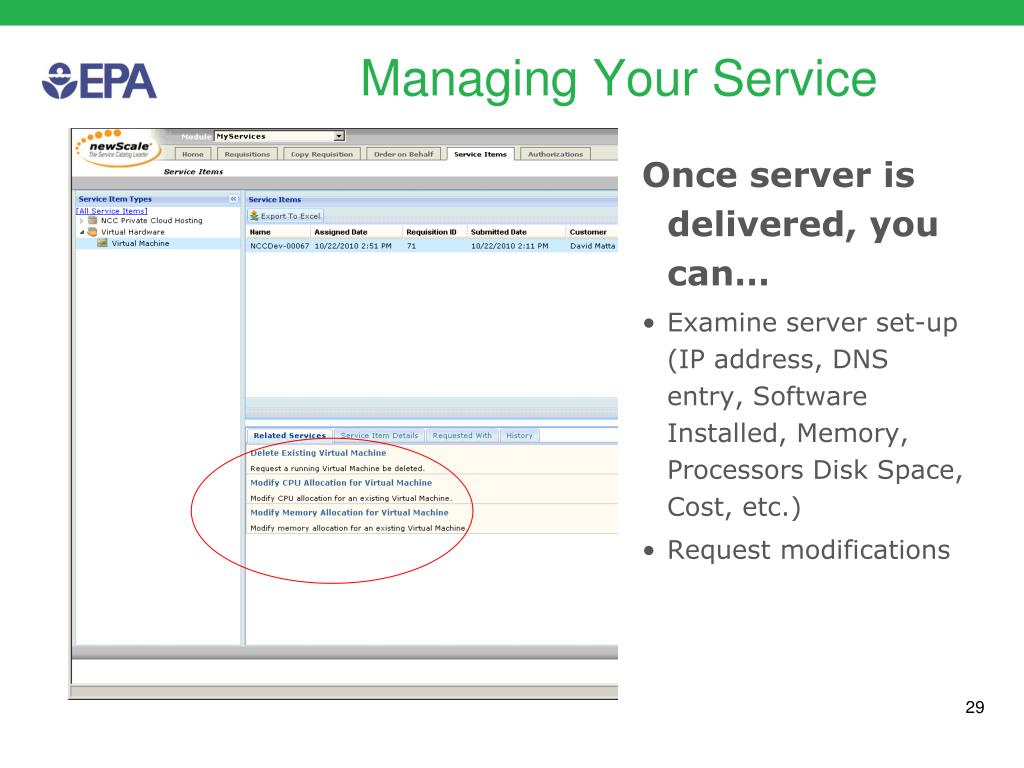

  29. Managing Your Service Once server is delivered, you can… • Examine server set-up (IP address, DNS entry, Software Installed, Memory, Processors Disk Space, Cost, etc.) • Request modifications

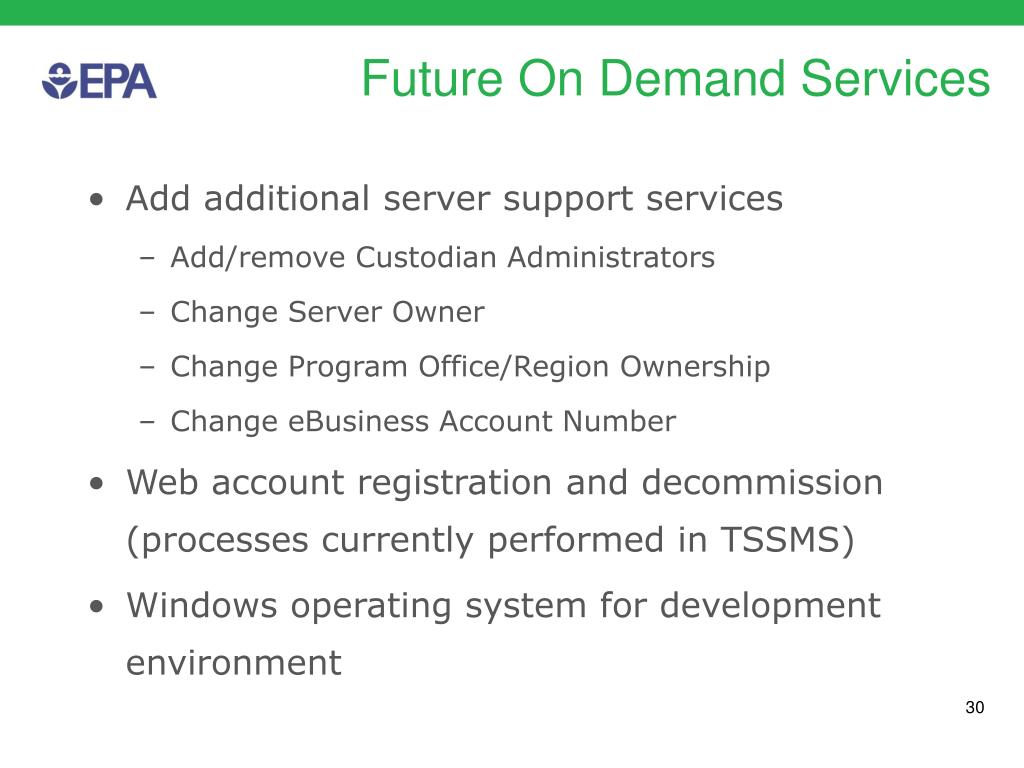

  30. Future On Demand Services • Add additional server support services • Add/remove Custodian Administrators • Change Server Owner • Change Program Office/Region Ownership • Change eBusiness Account Number • Web account registration and decommission (processes currently performed in TSSMS) • Windows operating system for development environment

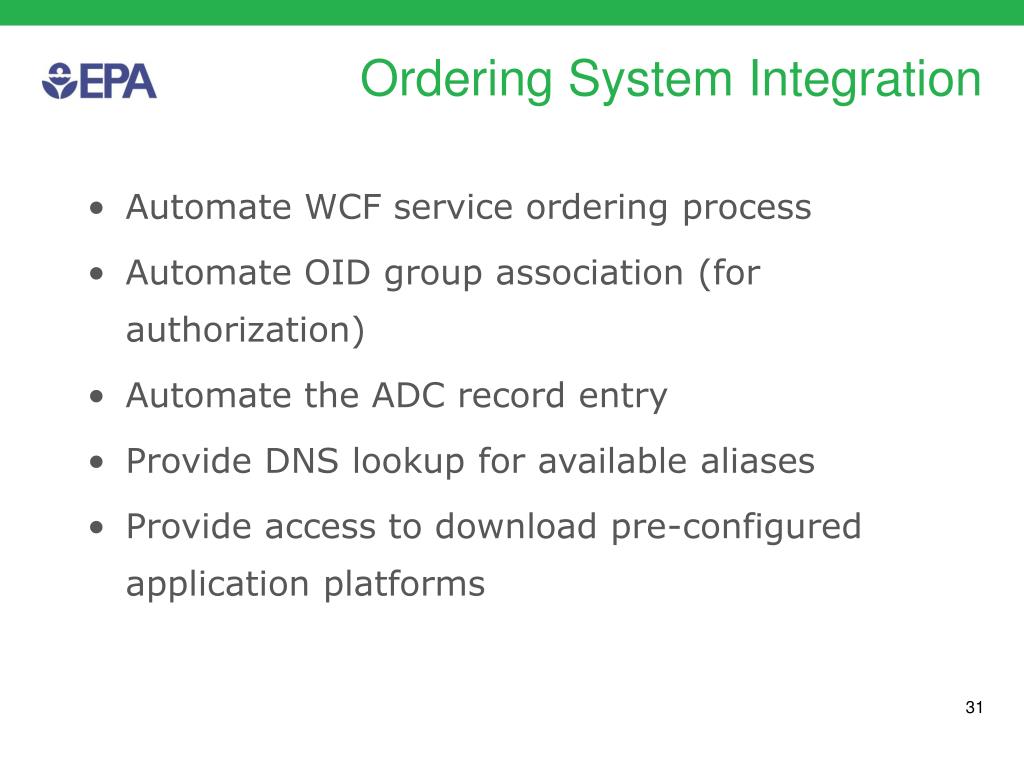

  31. Ordering System Integration • Automate WCF service ordering process • Automate OID group association (for authorization) • Automate the ADC record entry • Provide DNS lookup for available aliases • Provide access to download pre-configured application platforms

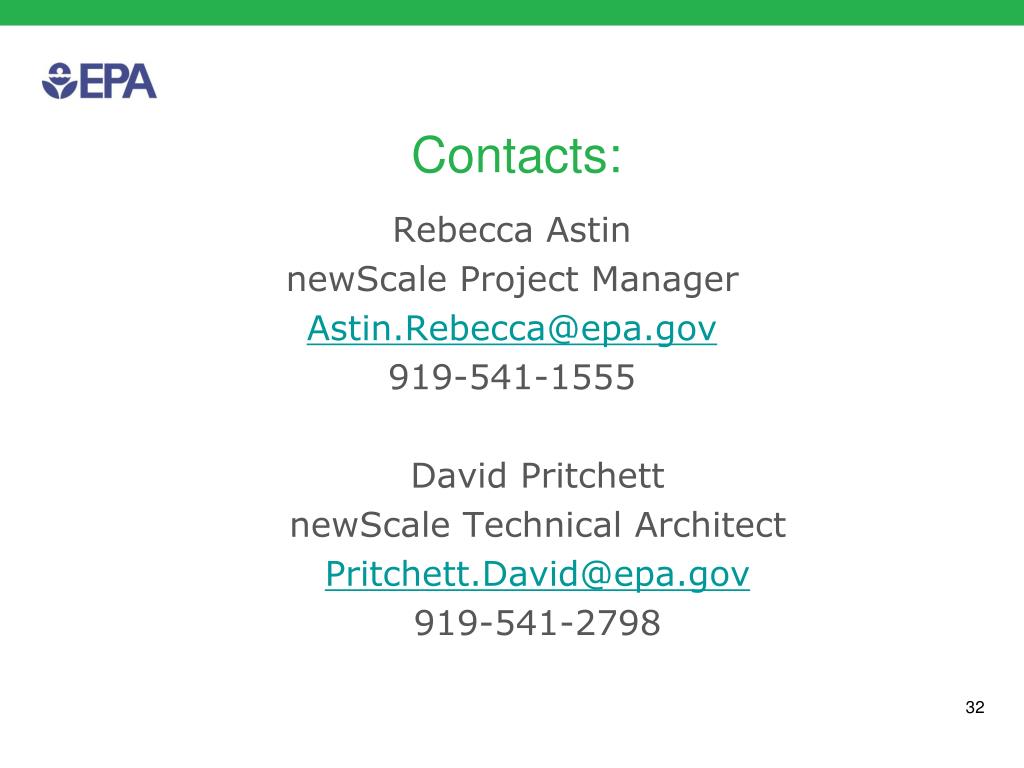

  32. Contacts: Rebecca Astin newScale Project Manager Astin.Rebecca@epa.gov 919-541-1555 David Pritchett newScale Technical Architect Pritchett.David@epa.gov 919-541-2798
