  1. FESA architecture v.1.0 Timing-related aspects 21st November 2003

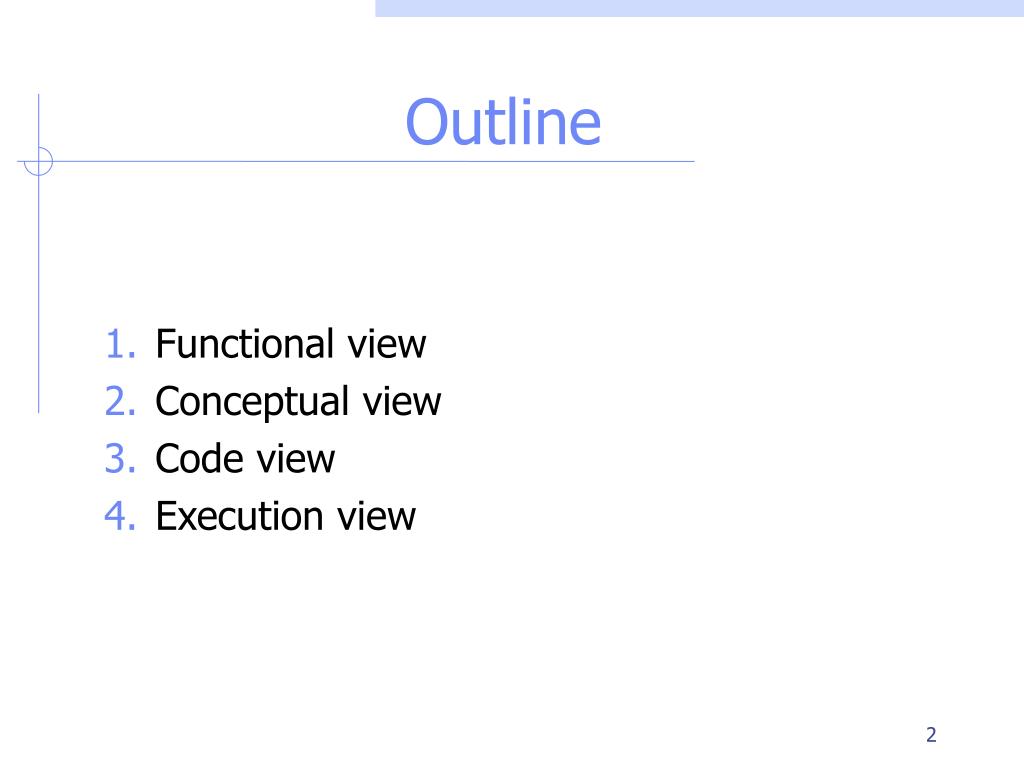

  2. Outline • Functional view • Conceptual view • Code view • Execution view

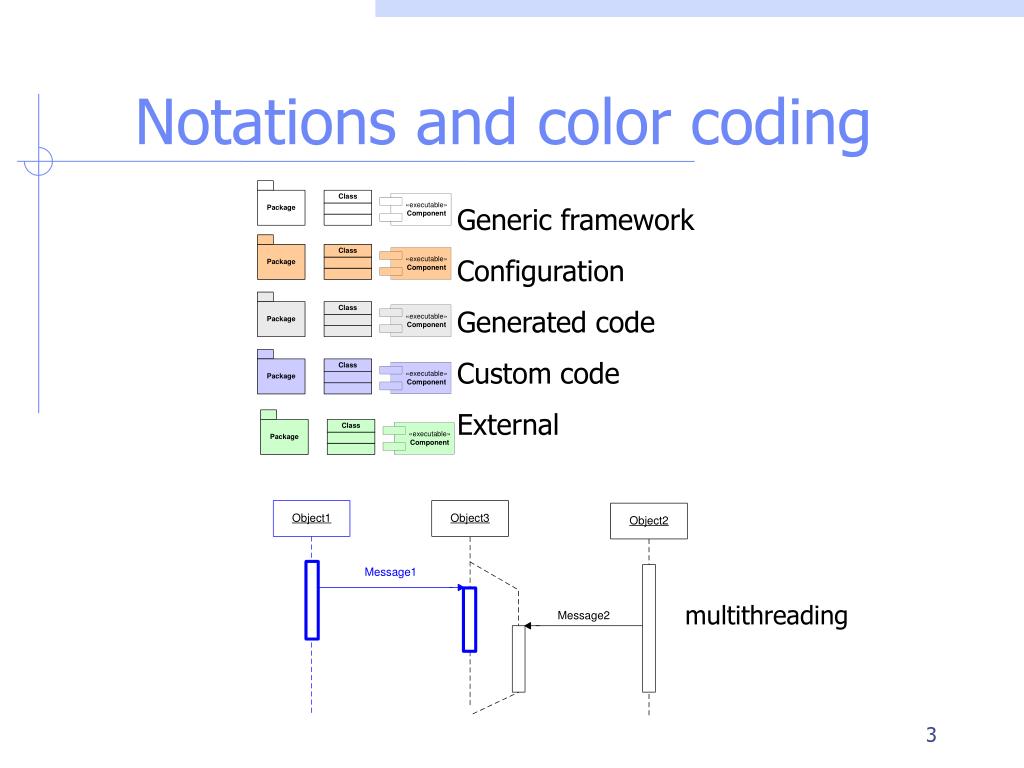

  3. Generic framework Configuration Generated code Custom code External Notations and color coding multithreading

  4. 1. Functional view

  5. PTIM in key events PTIM out local events Event-generation hierarchy

  6. PPM device access Embeds telegram (cycle…)

  7. Support services summary • Synchronization with central timing events • Management of PPM device access • Timing exception handling • Notification of real-time activity over-run. • Protection against occurrence of unknown cycles (discard, access reserved data slot for unknown cycle or switch to emergency mode!)

  8. Timing “contract”

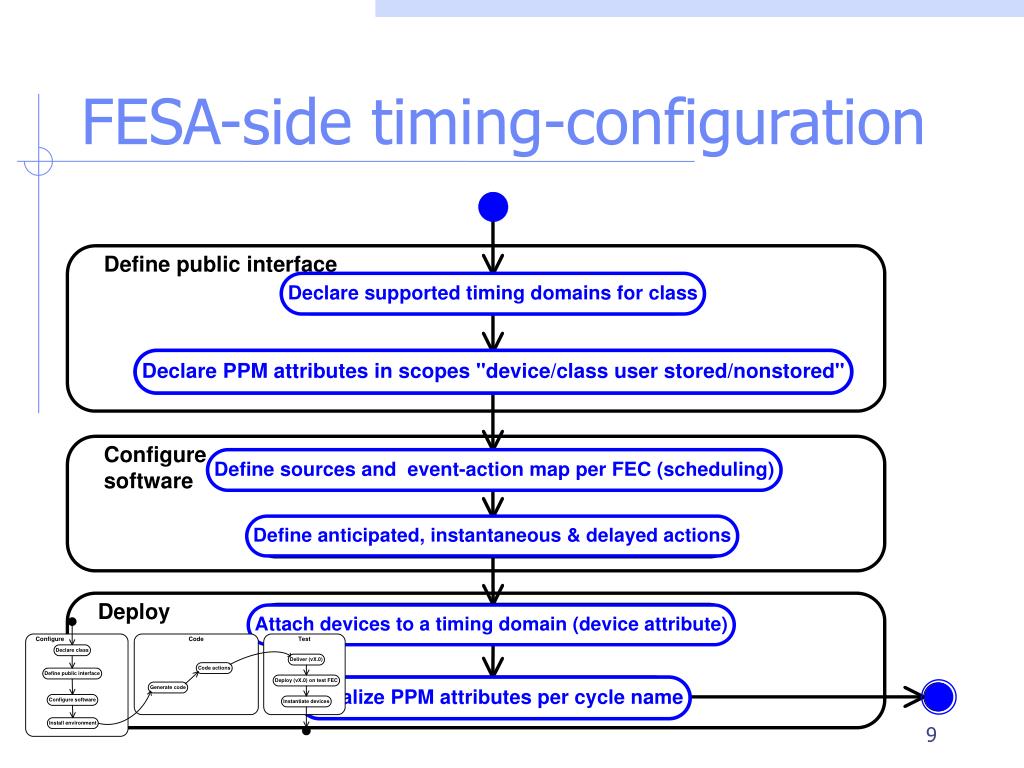

  9. FESA-side timing-configuration

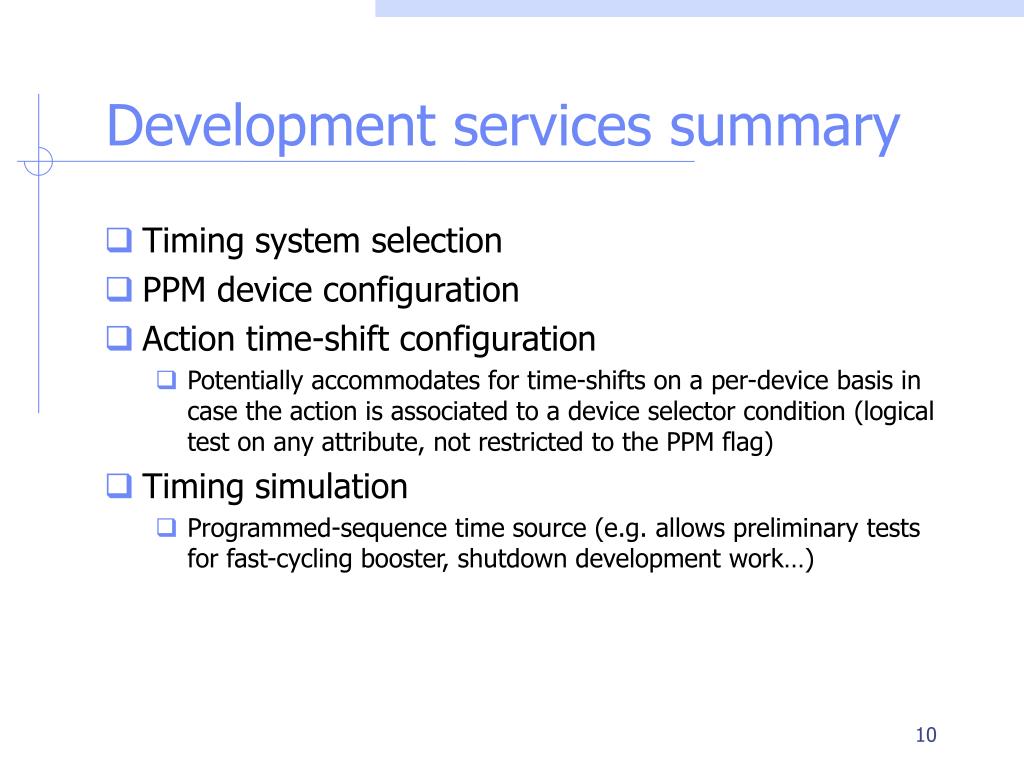

  10. Development services summary • Timing system selection • PPM device configuration • Action time-shift configuration • Potentially accommodates for time-shifts on a per-device basis in case the action is associated to a device selector condition (logical test on any attribute, not restricted to the PPM flag) • Timing simulation • Programmed-sequence time source (e.g. allows preliminary tests for fast-cycling booster, shutdown development work…)

  11. 2. Conceptual view

  12. Timing-events classes

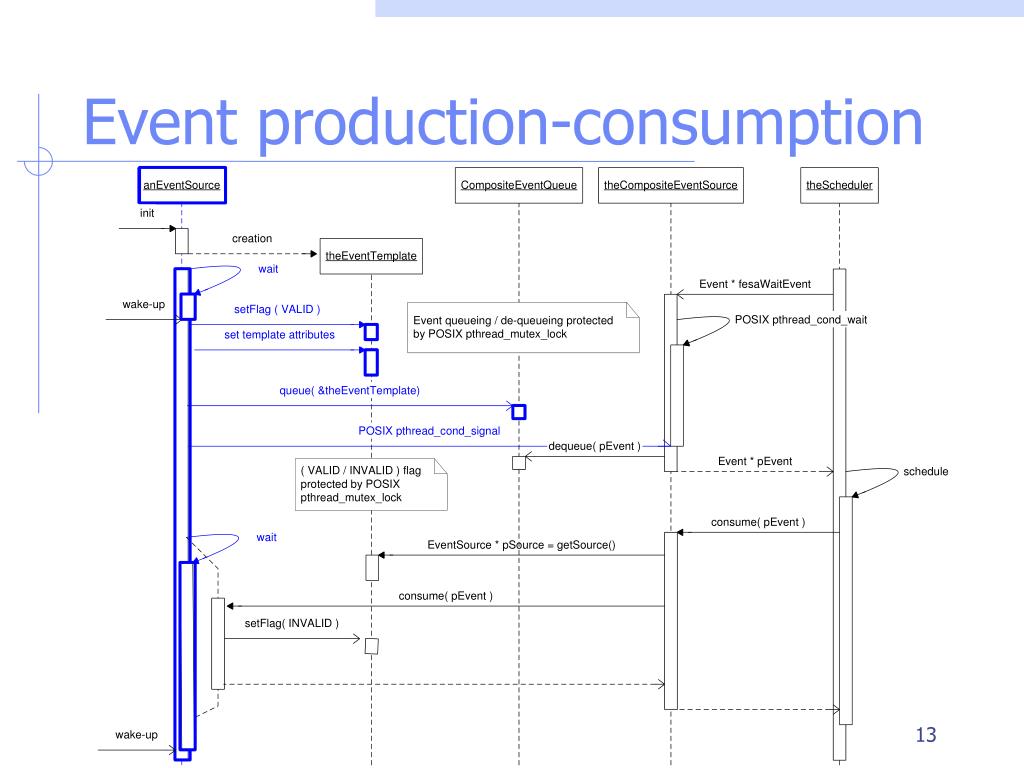

  13. Event production-consumption

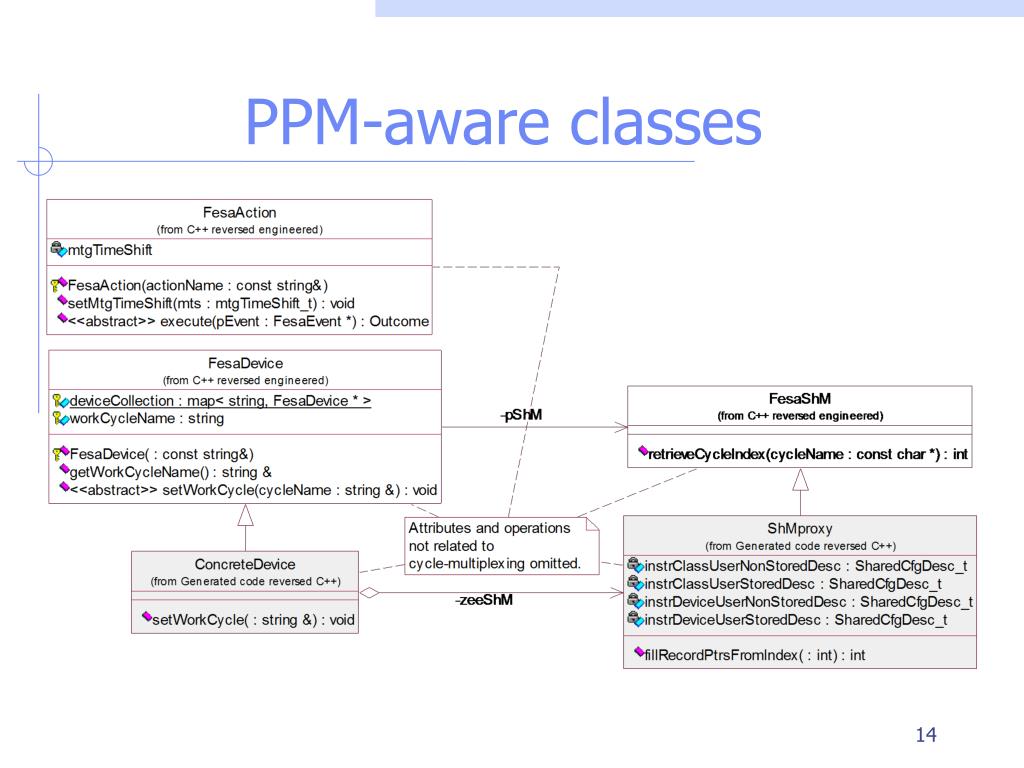

  14. PPM-aware classes

  15. PPM device access pDev->setAmplitude( 7.0 )

  16. 3. Code structure view

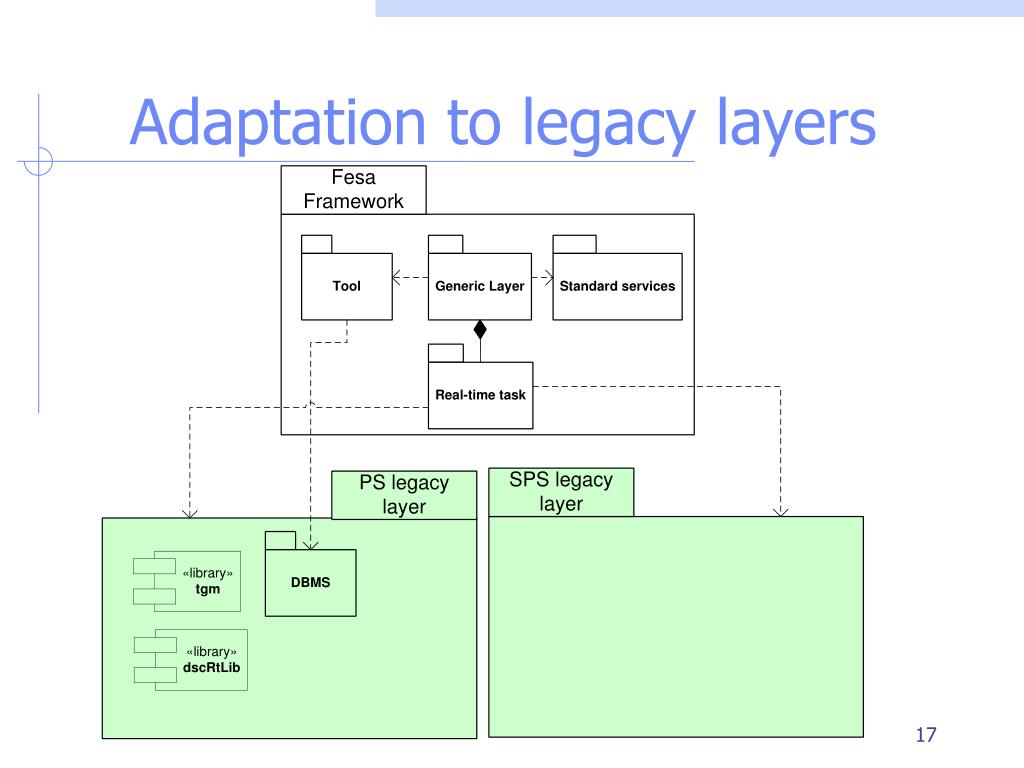

  17. Adaptation to legacy layers

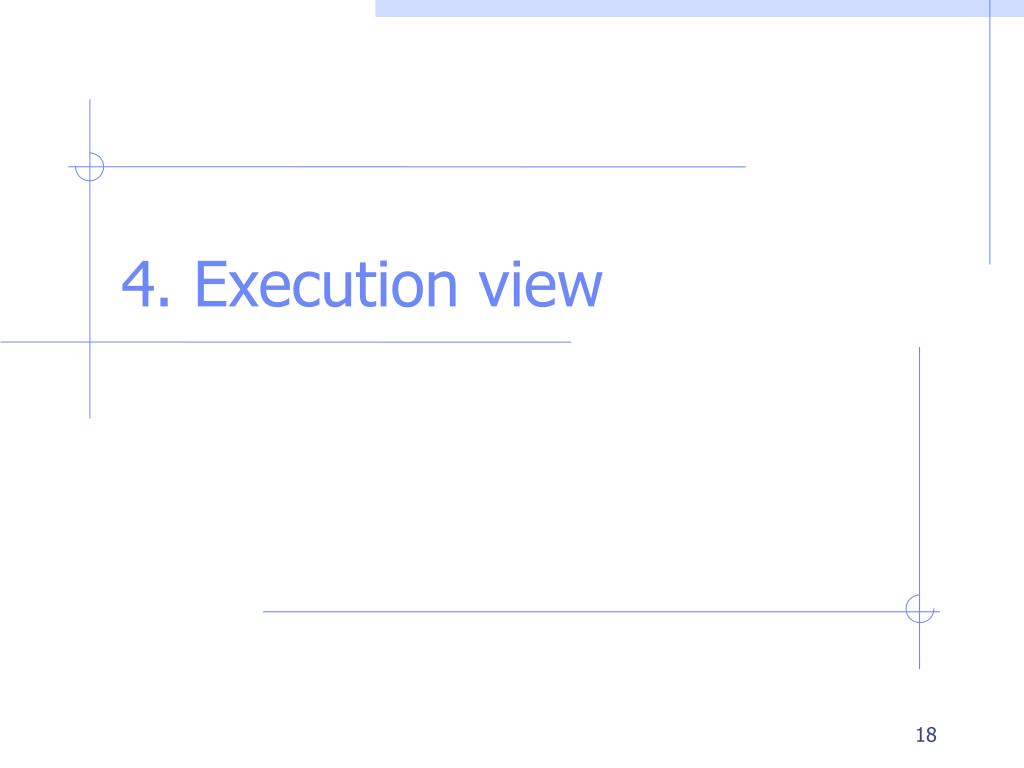

  18. 4. Execution view

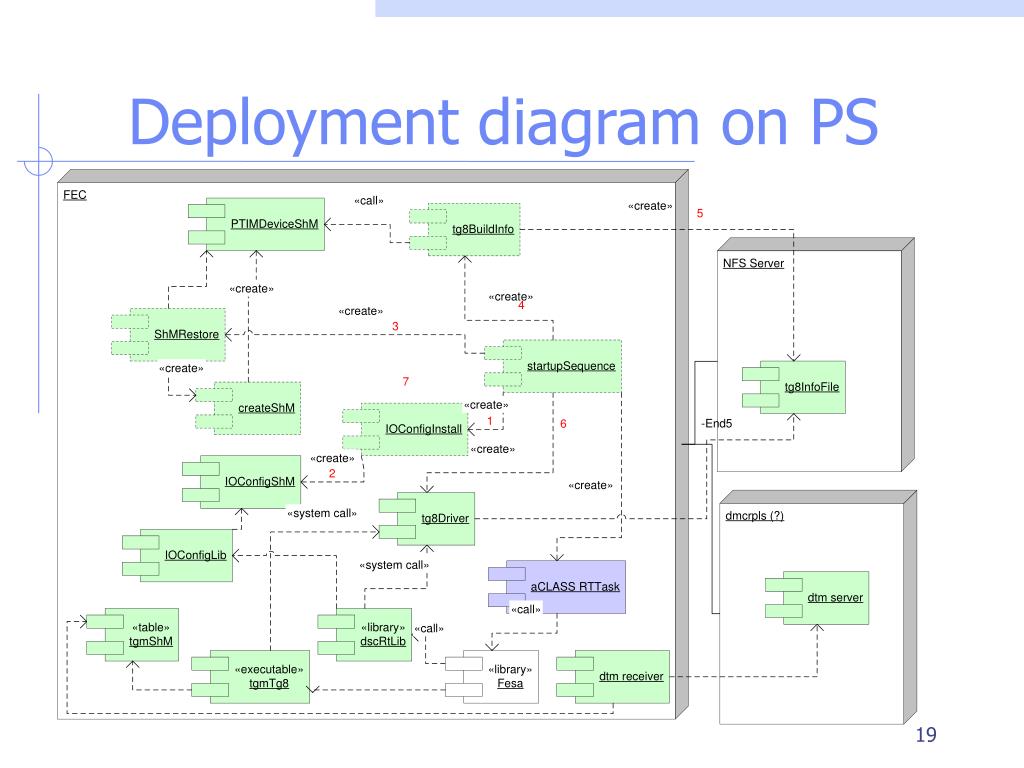

  19. Deployment diagram on PS

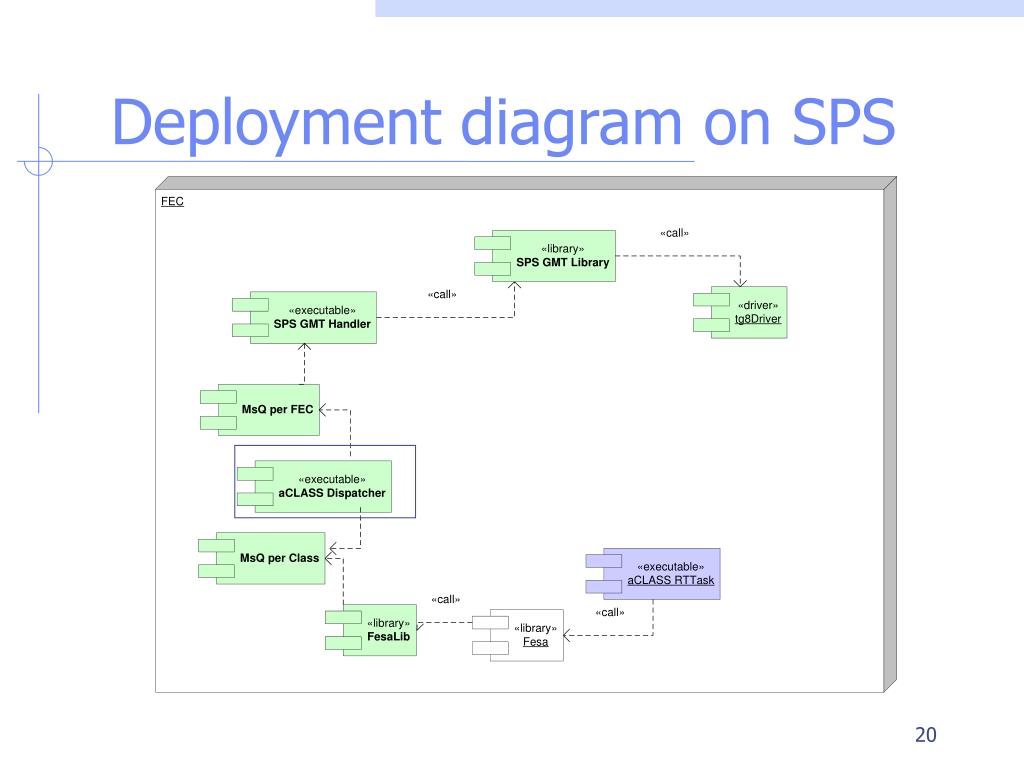

  20. Deployment diagram on SPS

  21. References • TIMING. FESA Interface Specification. Version 1.2. 12 June 2003: https://edms.cern.ch/file/382127/1.1/FesaInterTiming.pdf • Reference site for all timing information: http://ab-div-co-ht.web.cern.ch/ab-div-co-ht/
