  1. 4.7 How Can I Use Equivalent Ratios? Pg. 23 Triangle Similarity and Congruence

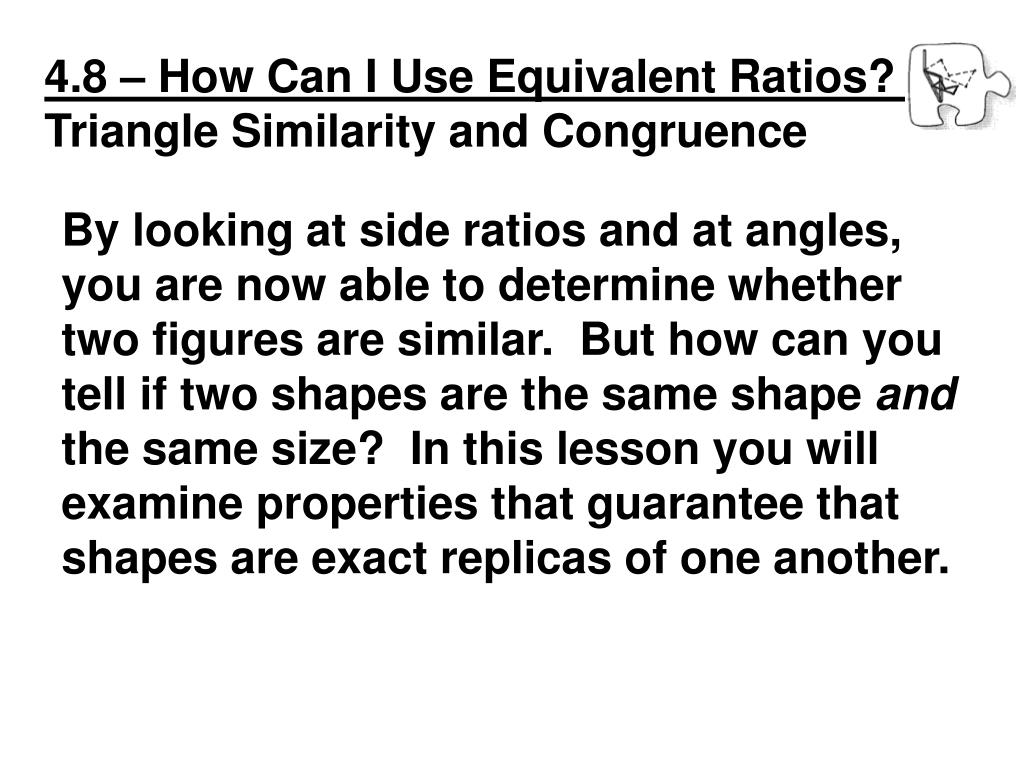

  2. 4.8 – How Can I Use Equivalent Ratios?__ Triangle Similarity and Congruence By looking at side ratios and at angles, you are now able to determine whether two figures are similar. But how can you tell if two shapes are the same shape and the same size? In this lesson you will examine properties that guarantee that shapes are exact replicas of one another.

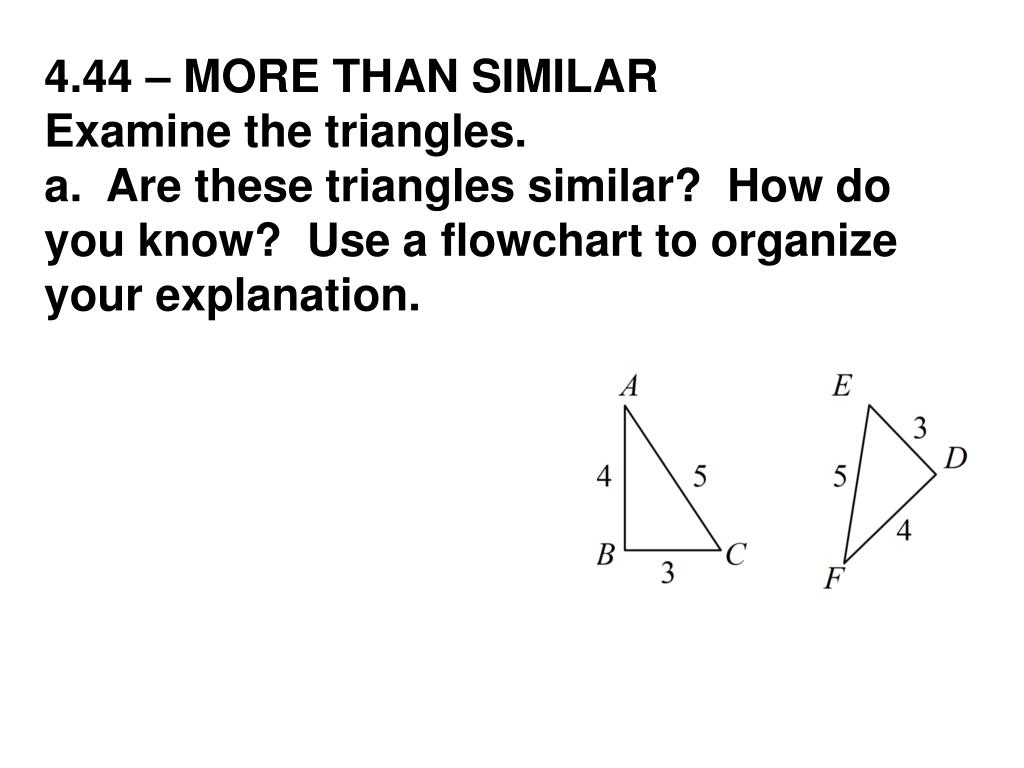

  3. 4.44 – MORE THAN SIMILAR Examine the triangles. a. Are these triangles similar? How do you know? Use a flowchart to organize your explanation.

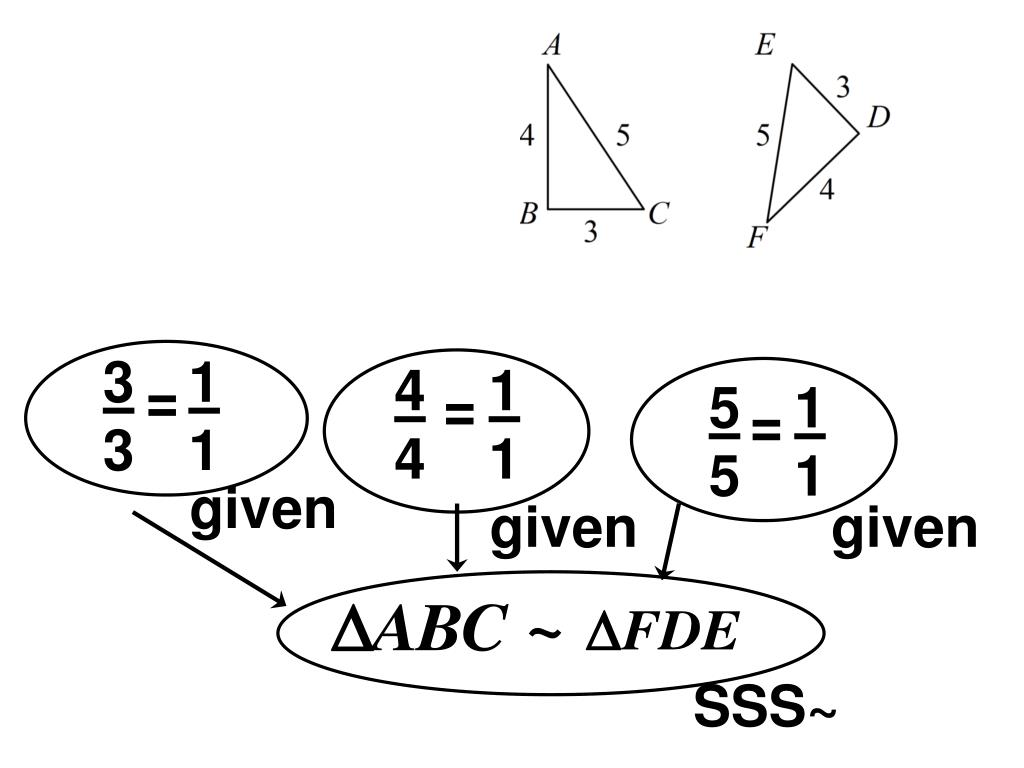

  4. 3 3 1 1 4 4 1 1 = = 5 5 1 1 = given given given SSS~

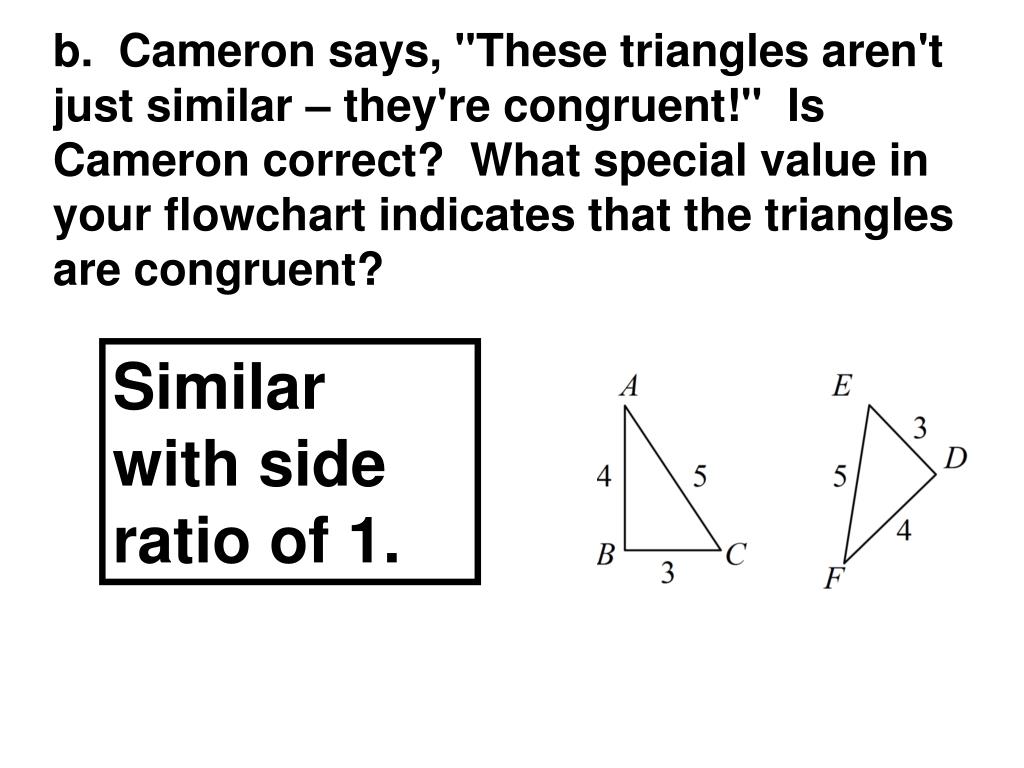

  5. b. Cameron says, "These triangles aren't just similar – they're congruent!" Is Cameron correct? What special value in your flowchart indicates that the triangles are congruent? Similar with side ratio of 1.

  6. c. Write a conjecture (in "If...,then..." form) that explains how you know when two shapes are similar. "If two shapes are ____________ with a side ratio of ________, then the two shapes are _____________." similar 1 congruent

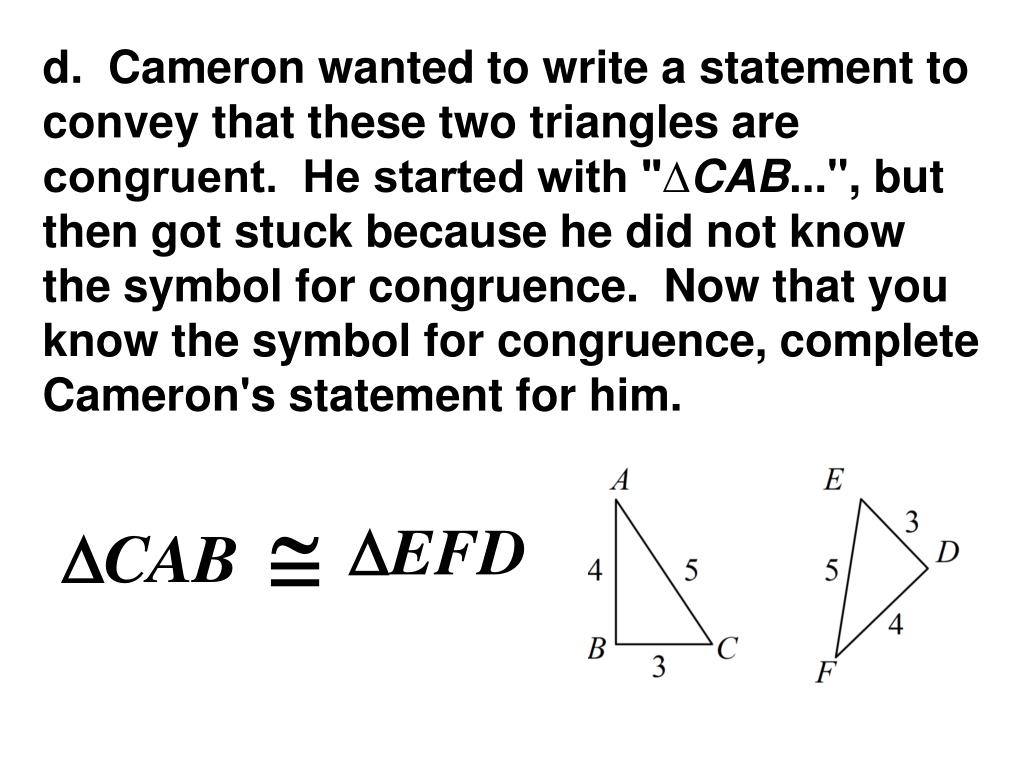

  7. d. Cameron wanted to write a statement to convey that these two triangles are congruent. He started with "∆CAB...", but then got stuck because he did not know the symbol for congruence. Now that you know the symbol for congruence, complete Cameron's statement for him.

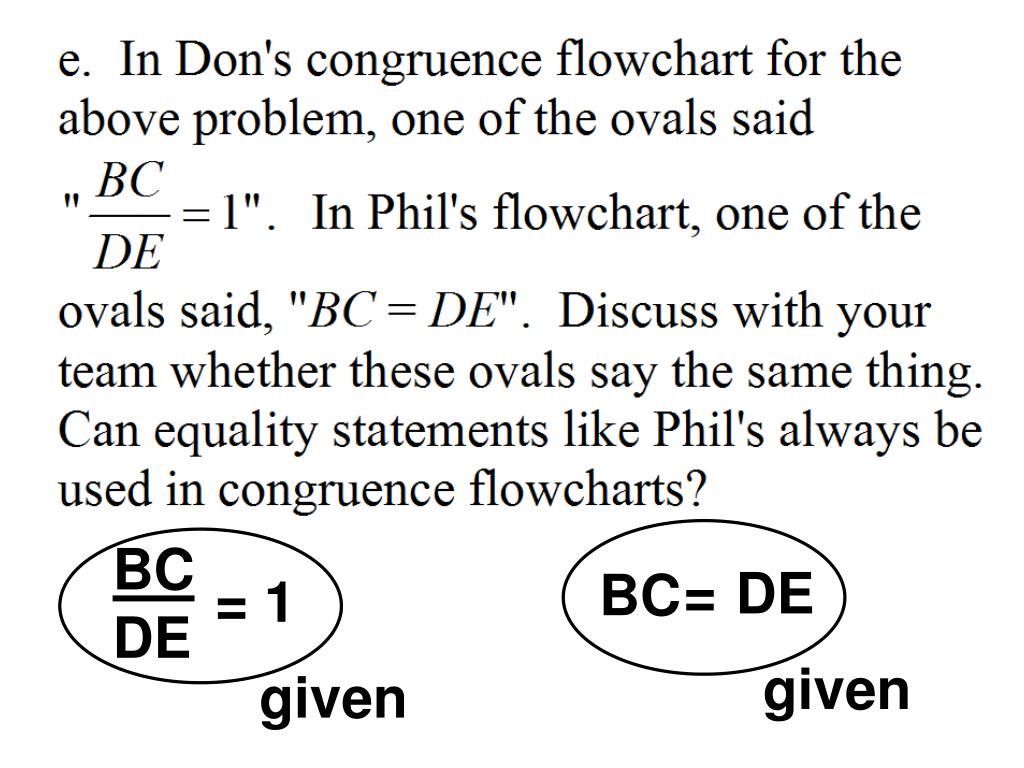

  8. BC DE = DE BC = 1 given given

  9. 4.45 – ANOTHER WAY OF PROOF Stephanie is tired of drawing flowcharts because the bubbles can be messy. She decides to organize her proof in columns instead. Compare your proof in the previous problems with the one below. How do they alike? How are they different?

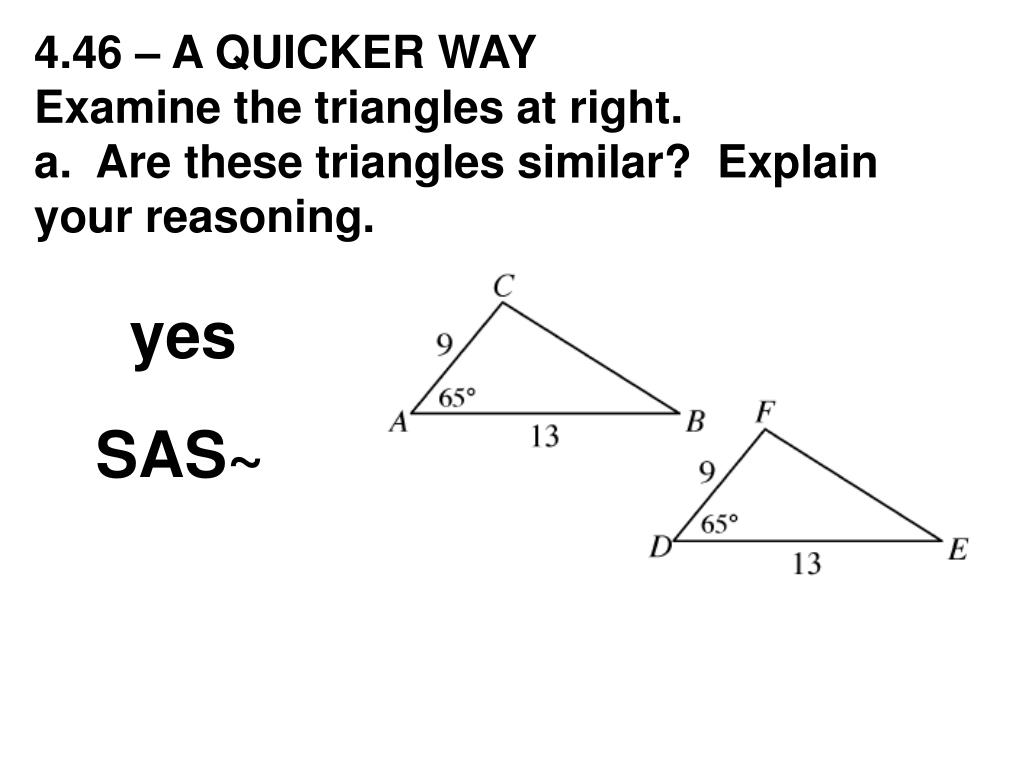

  10. 4.46 – A QUICKER WAY Examine the triangles at right. a. Are these triangles similar? Explain your reasoning. yes SAS~

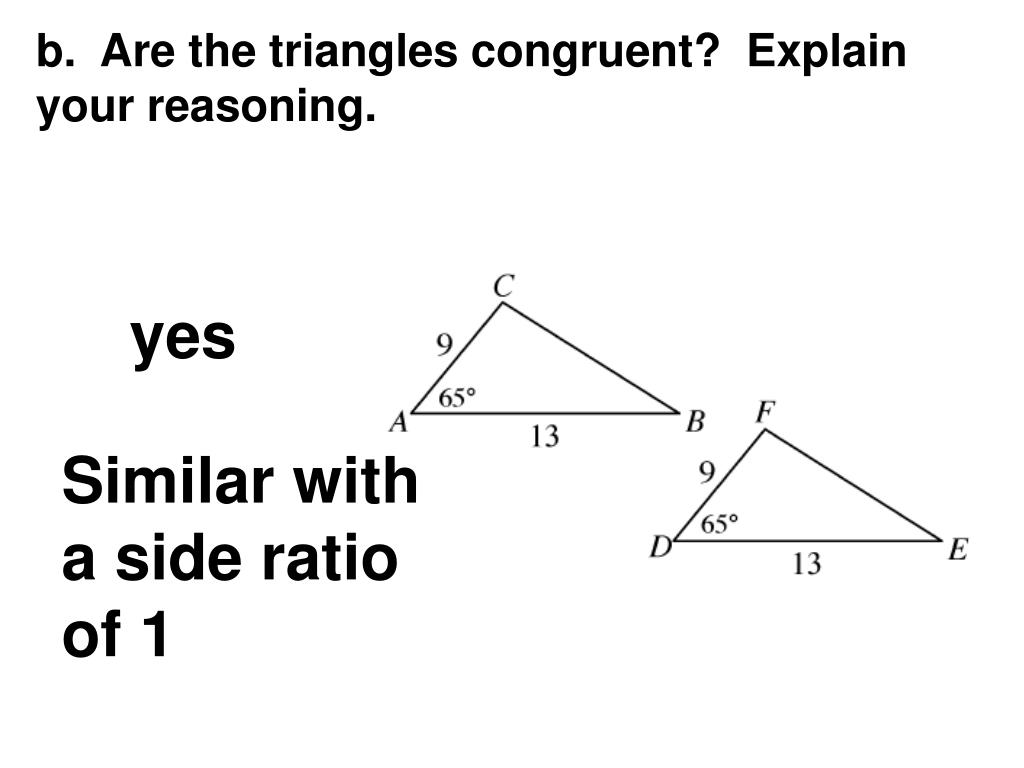

  11. b. Are the triangles congruent? Explain your reasoning. yes Similar with a side ratio of 1

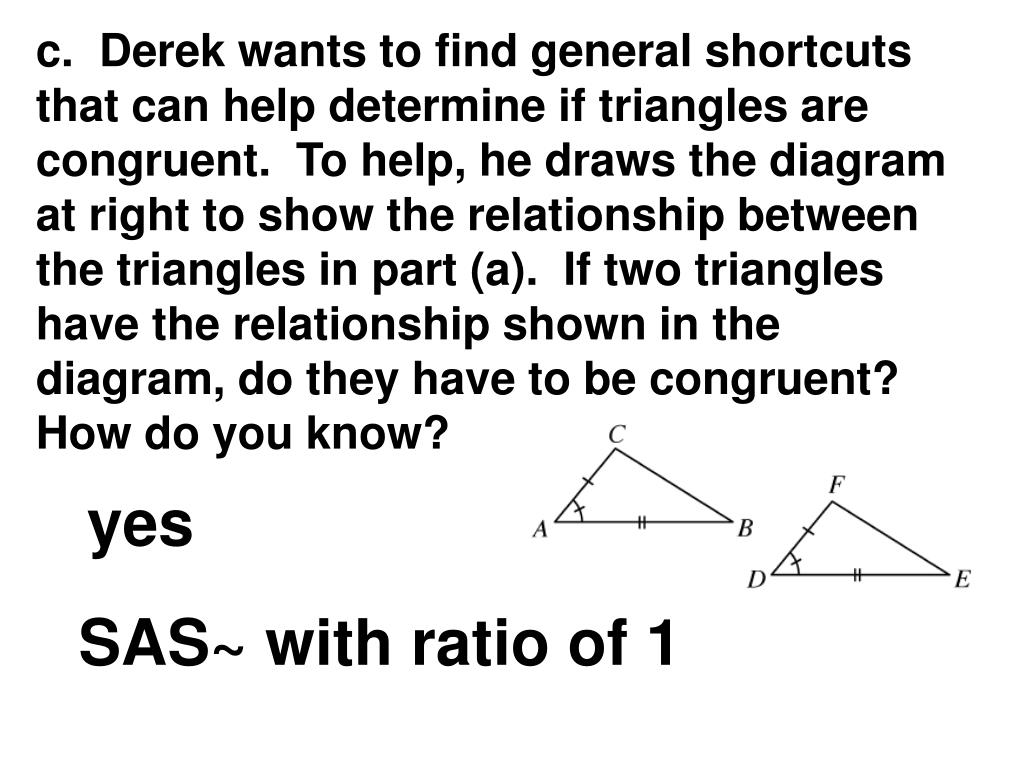

  12. c. Derek wants to find general shortcuts that can help determine if triangles are congruent. To help, he draws the diagram at right to show the relationship between the triangles in part (a). If two triangles have the relationship shown in the diagram, do they have to be congruent? How do you know? yes SAS~ with ratio of 1

  13. d. Complete the conjecture below based on this relationship. What is a good abbreviation for this shortcut? "If two triangles have two pairs of equal ____________ and the angles between them are __________, then the triangles are ______________. sides equal congruent

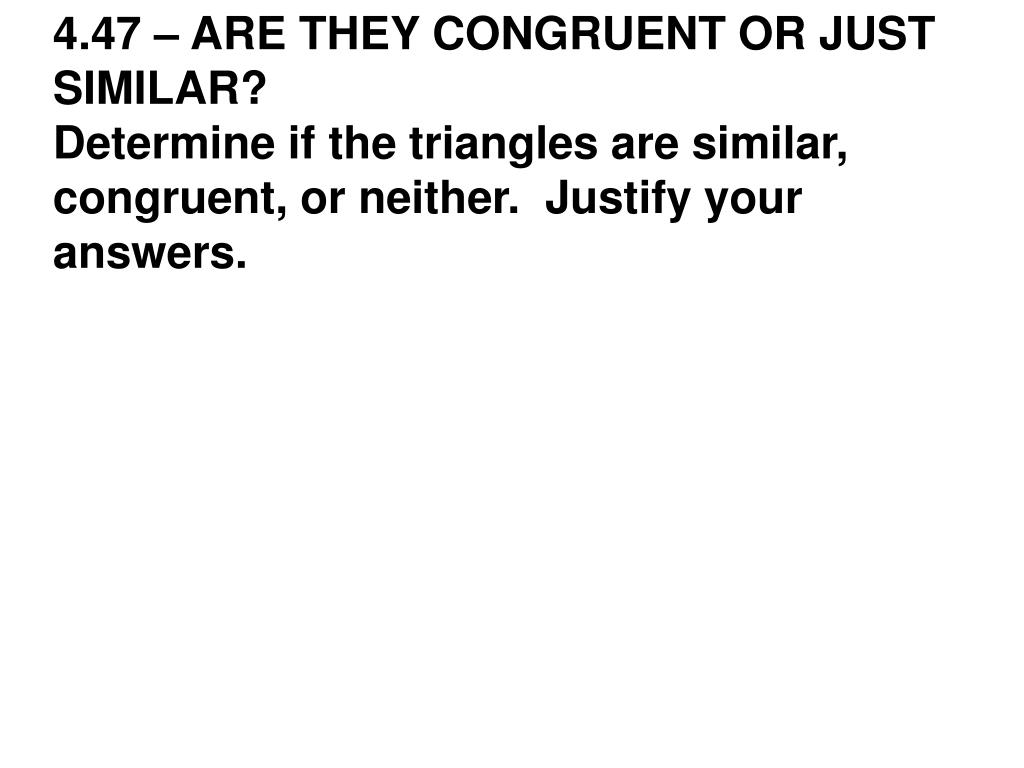

  14. 4.47 – ARE THEY CONGRUENT OR JUST SIMILAR? Determine if the triangles are similar, congruent, or neither. Justify your answers.

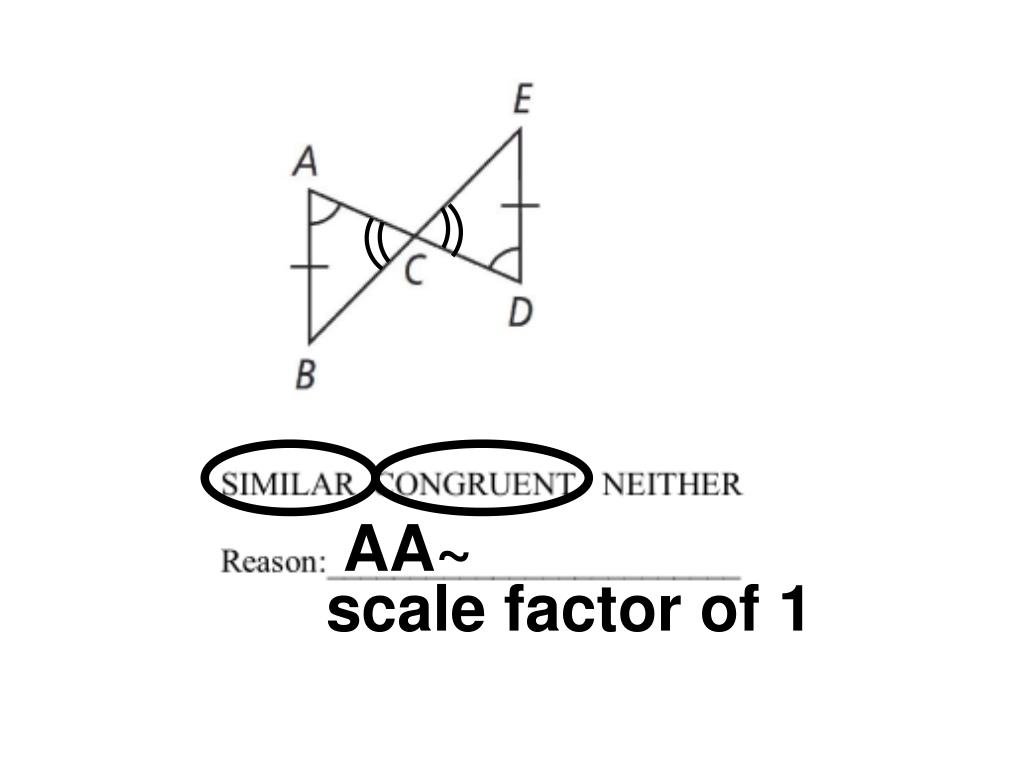

  15. AA~ scale factor of 1

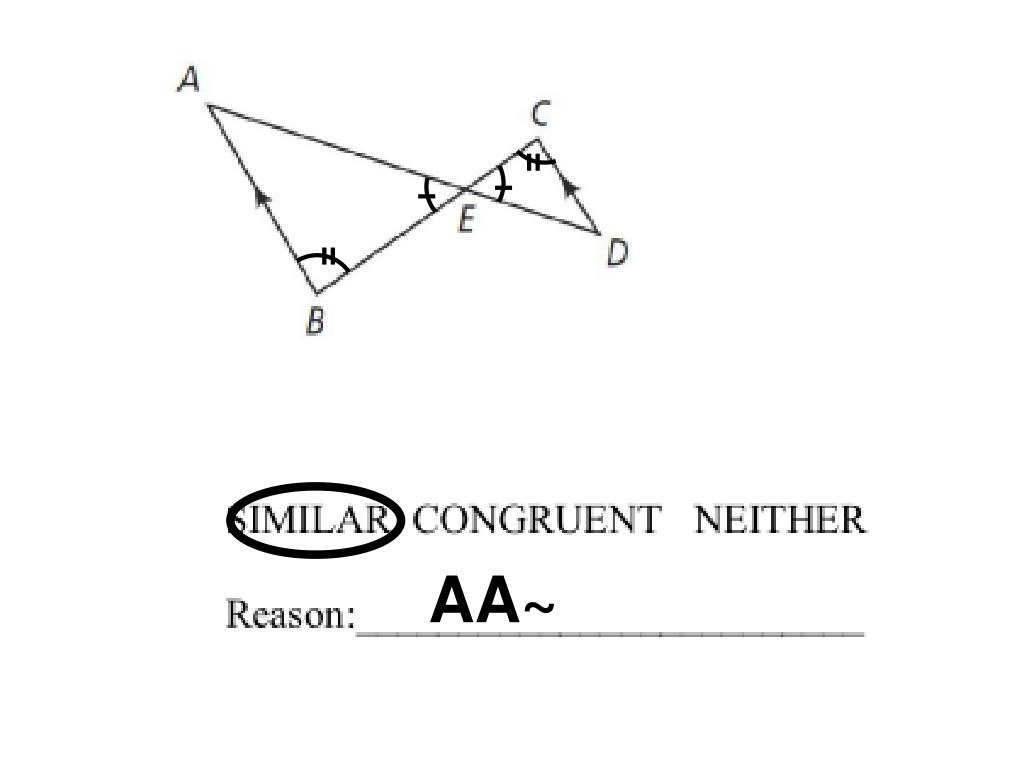

  16. AA~

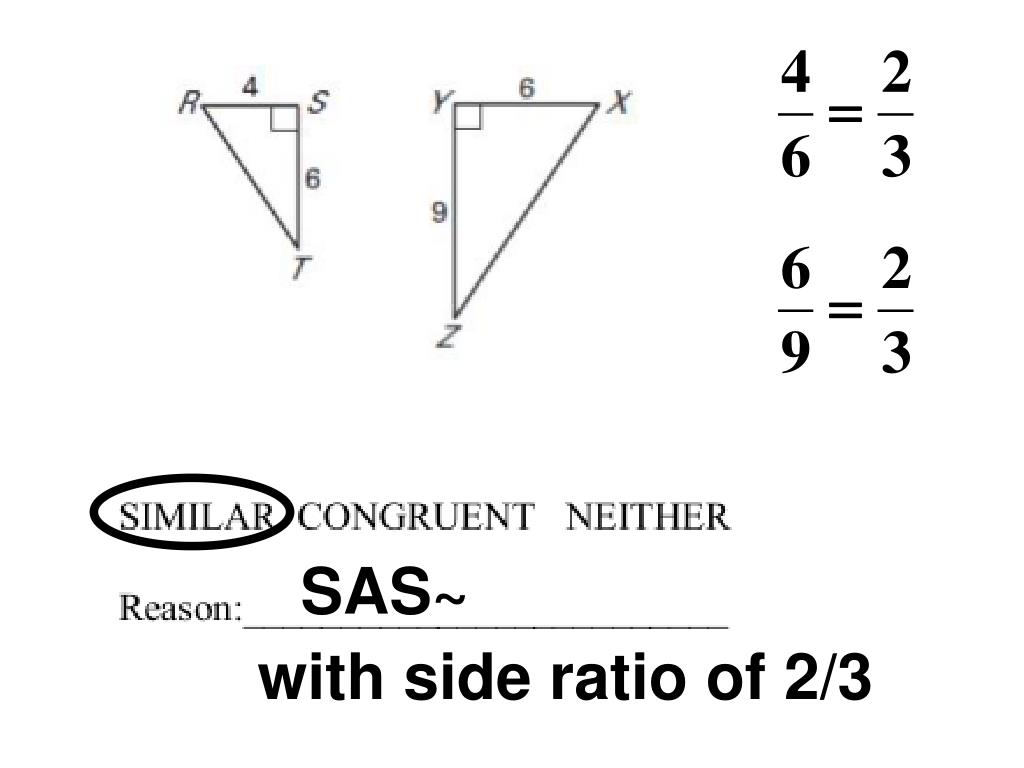

  17. SAS~ with side ratio of 2/3

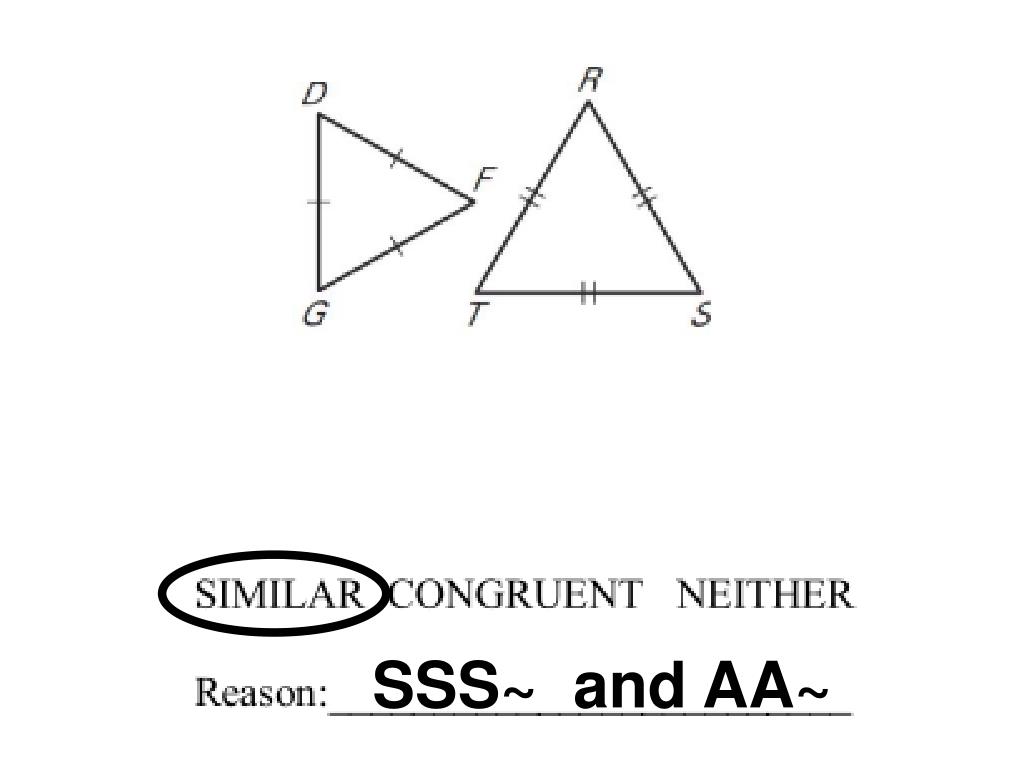

  18. SSS~ and AA~

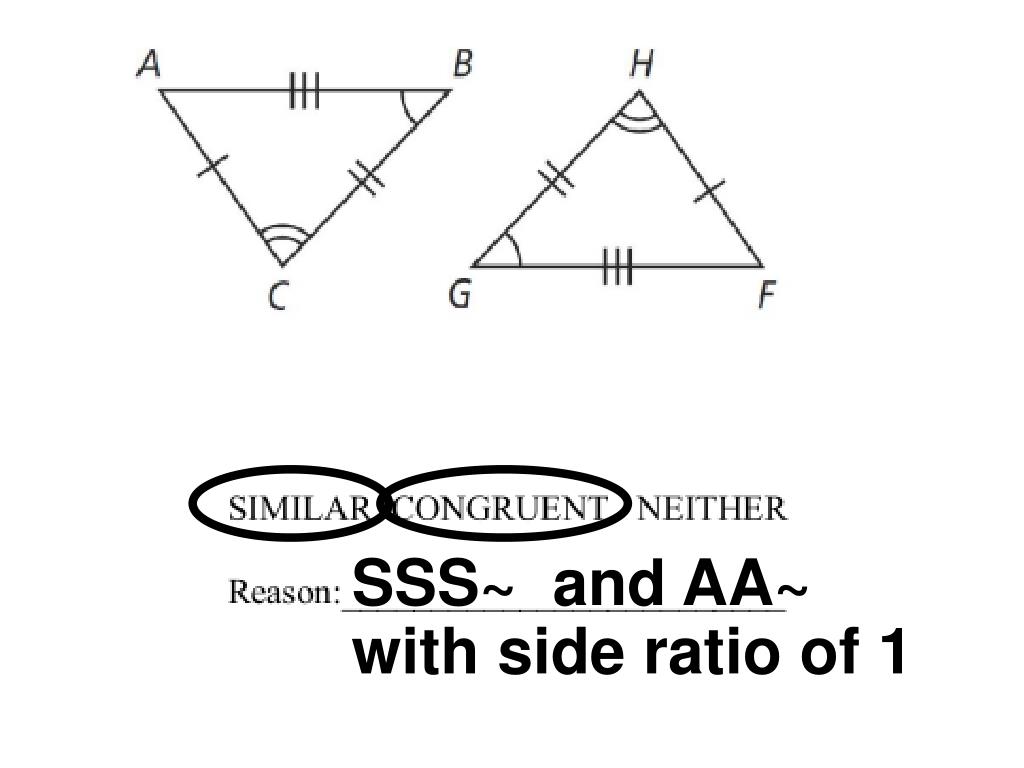

  19. SSS~ and AA~ with side ratio of 1

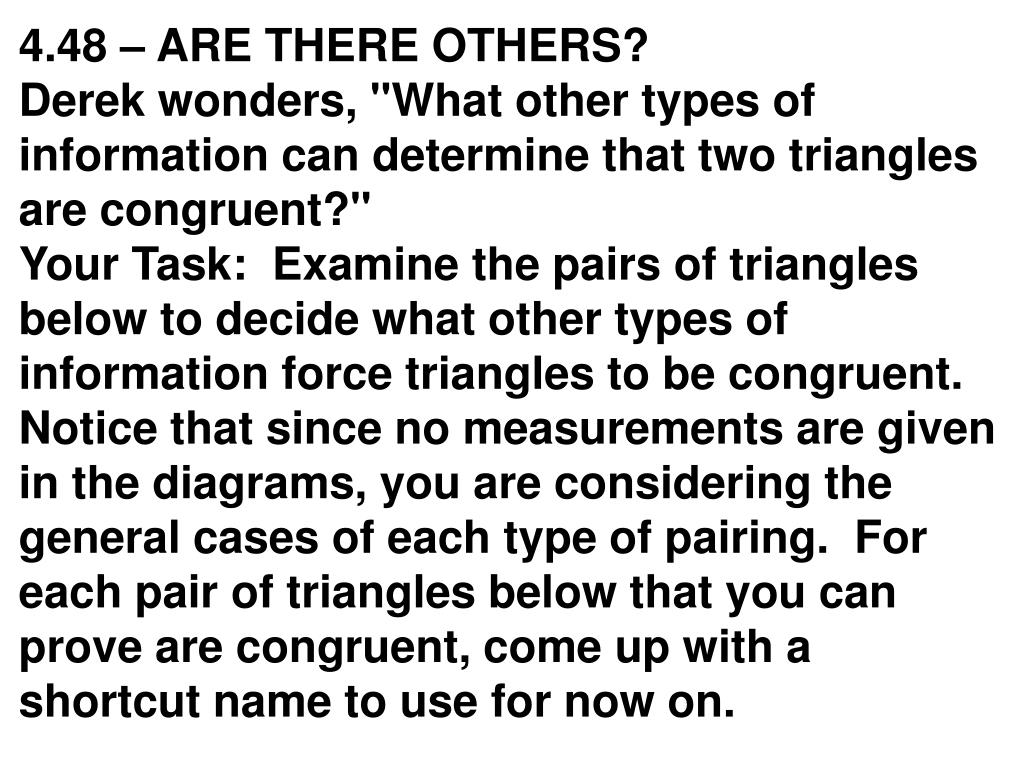

  20. 4.48 – ARE THERE OTHERS? Derek wonders, "What other types of information can determine that two triangles are congruent?" Your Task: Examine the pairs of triangles below to decide what other types of information force triangles to be congruent. Notice that since no measurements are given in the diagrams, you are considering the general cases of each type of pairing. For each pair of triangles below that you can prove are congruent, come up with a shortcut name to use for now on.

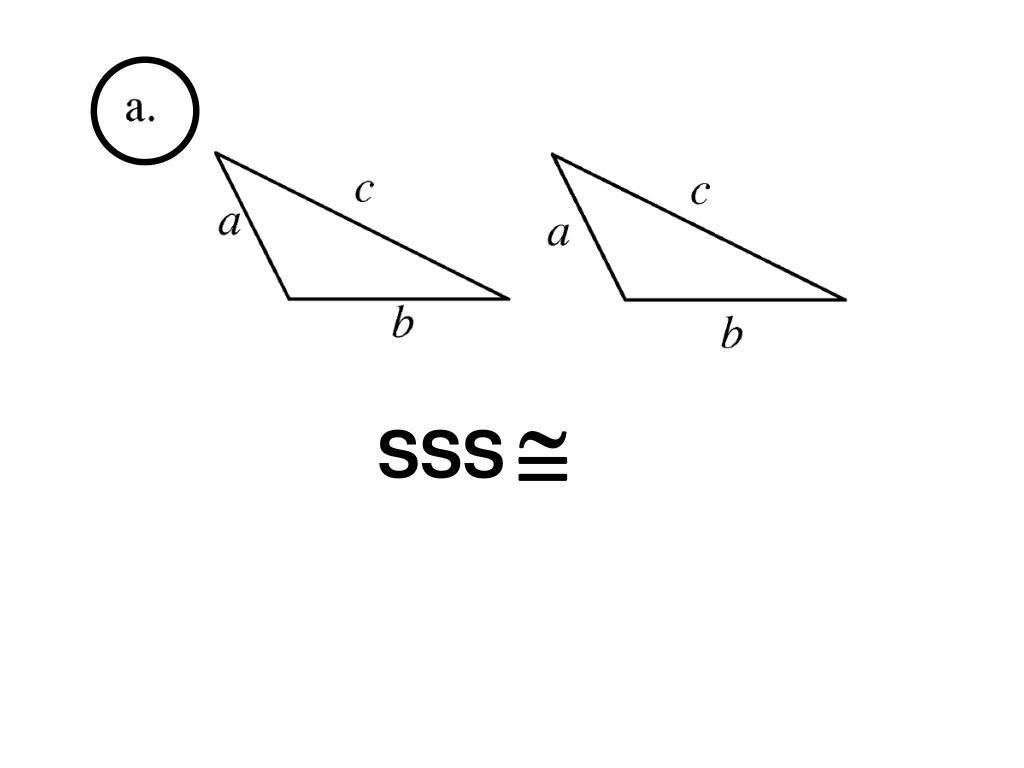

  21. SSS

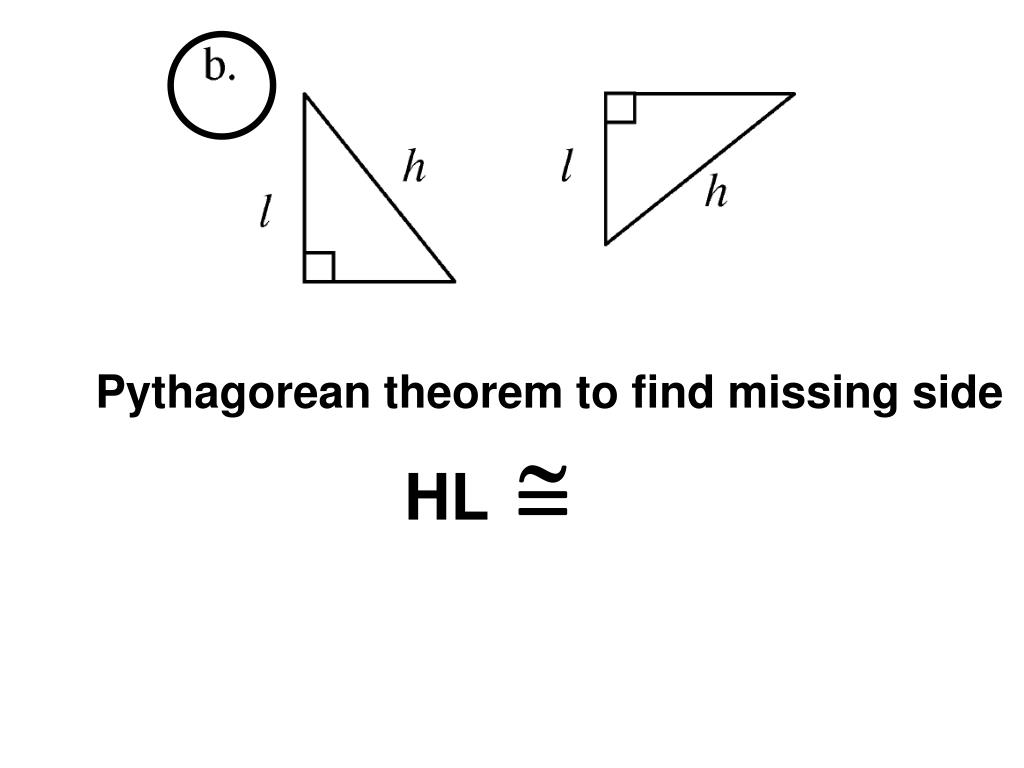

  22. Pythagorean theorem to find missing side HL

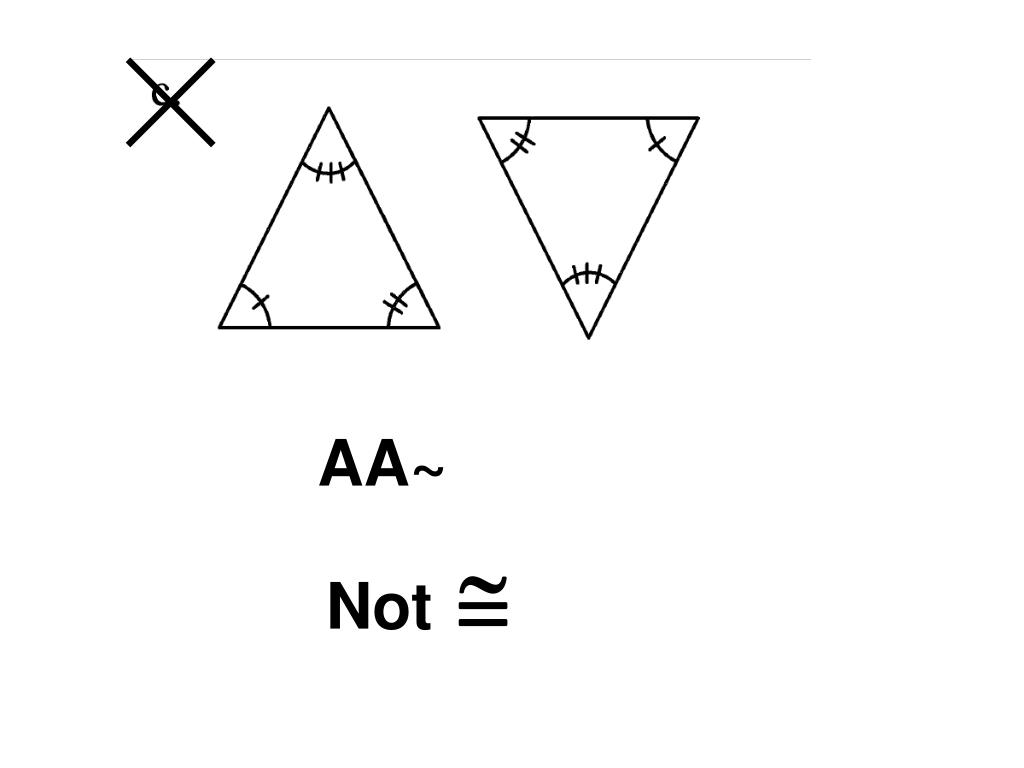

  23. AA~ Not

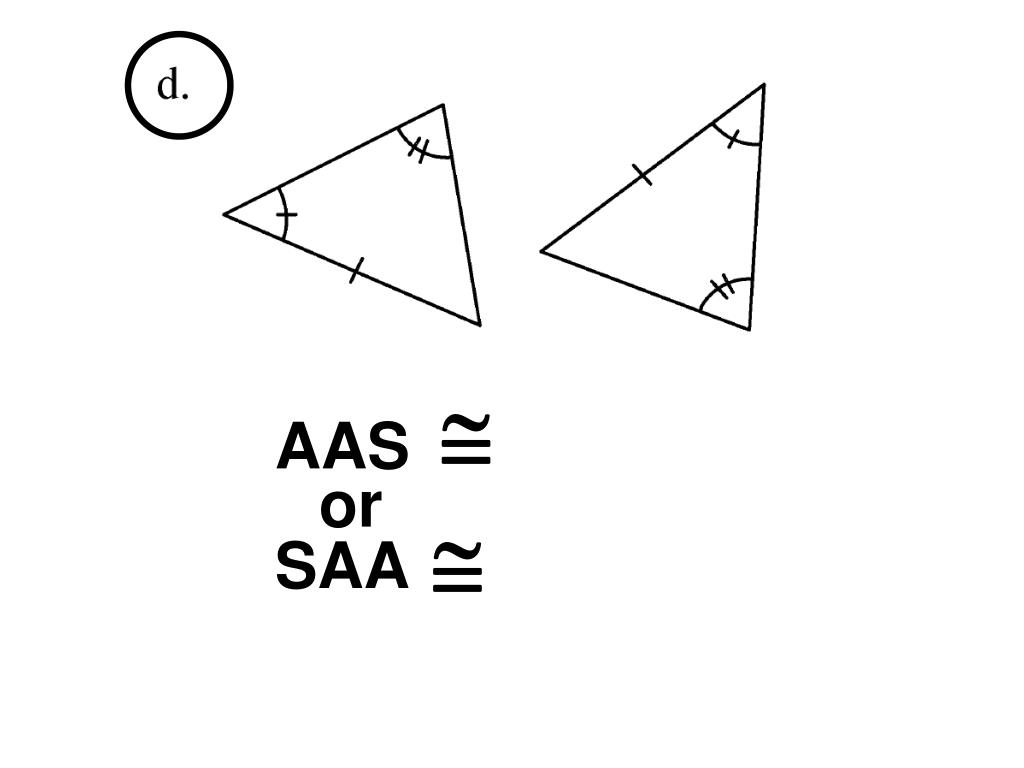

  24. AAS or SAA

  25. ASS SSA There is no SSA or ASS in geometry! http://hotmath.com/util/hm_flash_movie.html?movie=/hotmath_help/gizmos/similarTriangle.swf&title=Proving%20Two%20Triangles%20are%20Similar

  26. ASA

  27. 4.49 – STATE THE CONJECTURE Use your triangle congruence conjectures to state why the following triangles are congruent. SAS

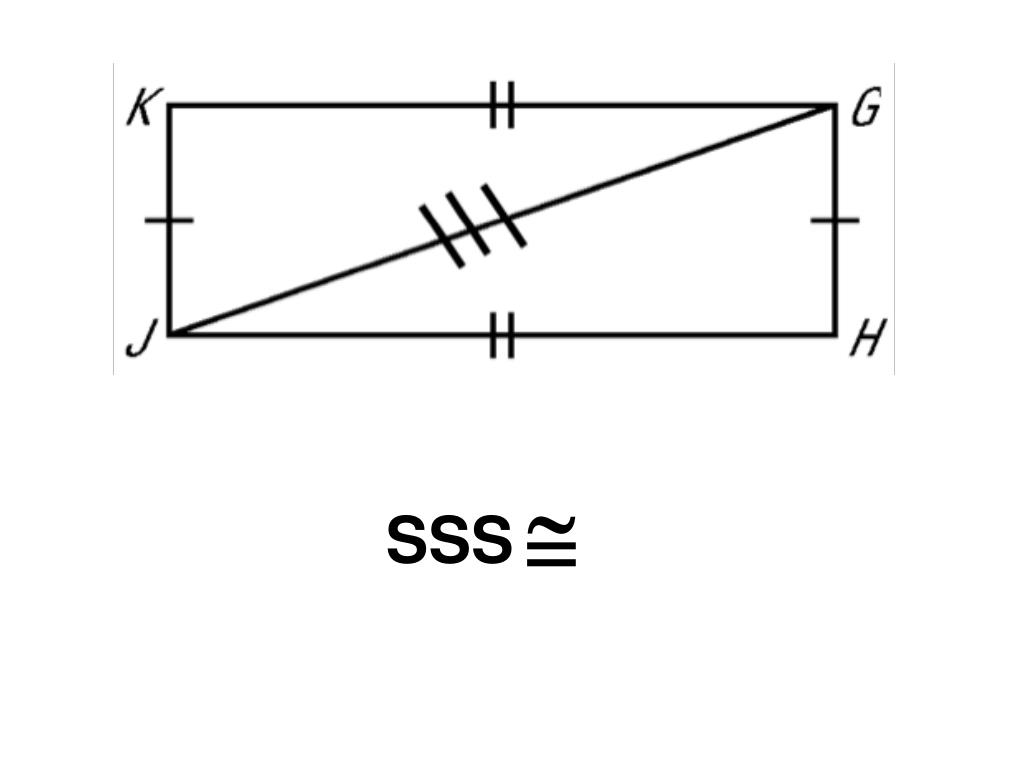

  28. SSS

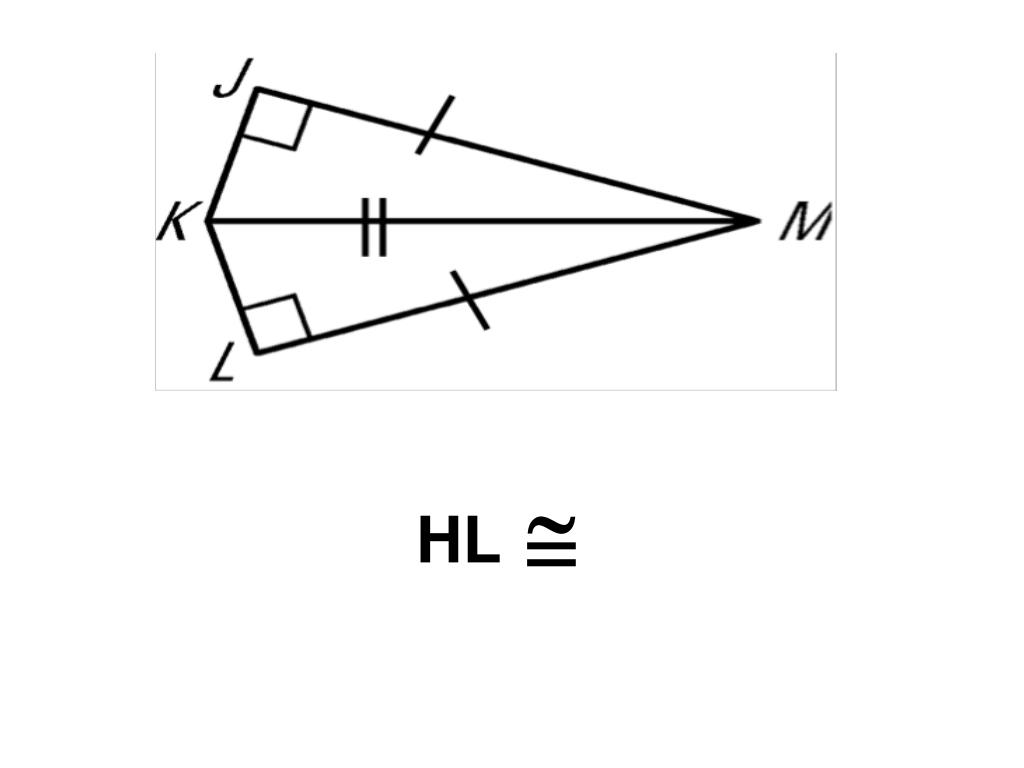

  29. HL

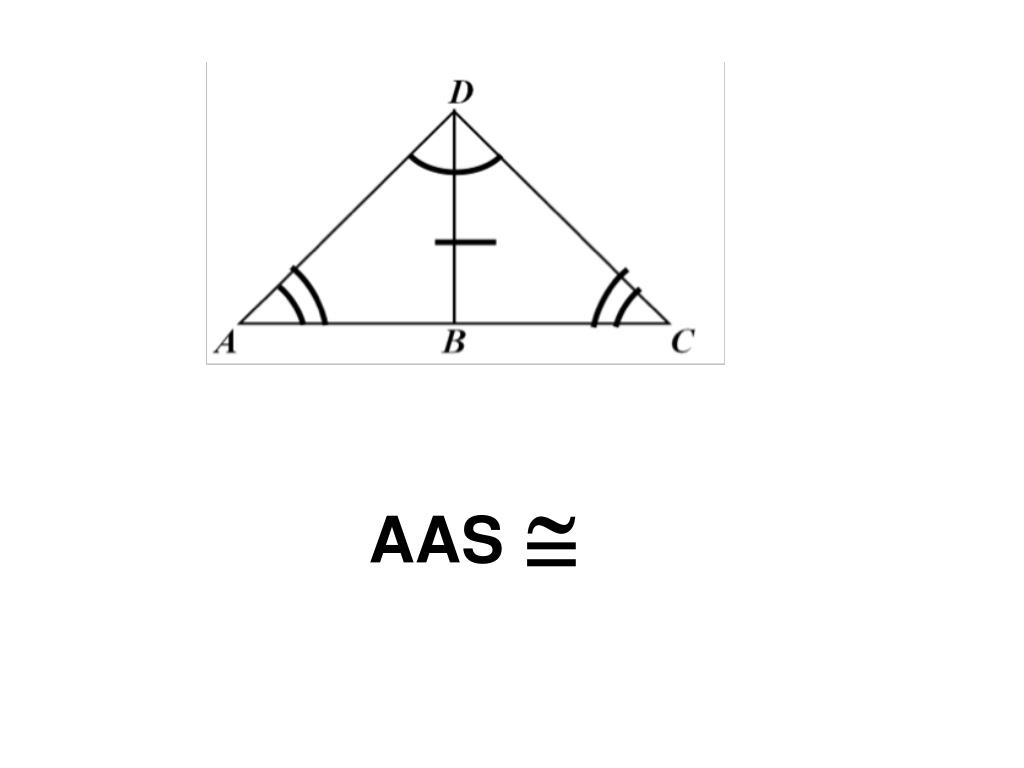

  30. AAS

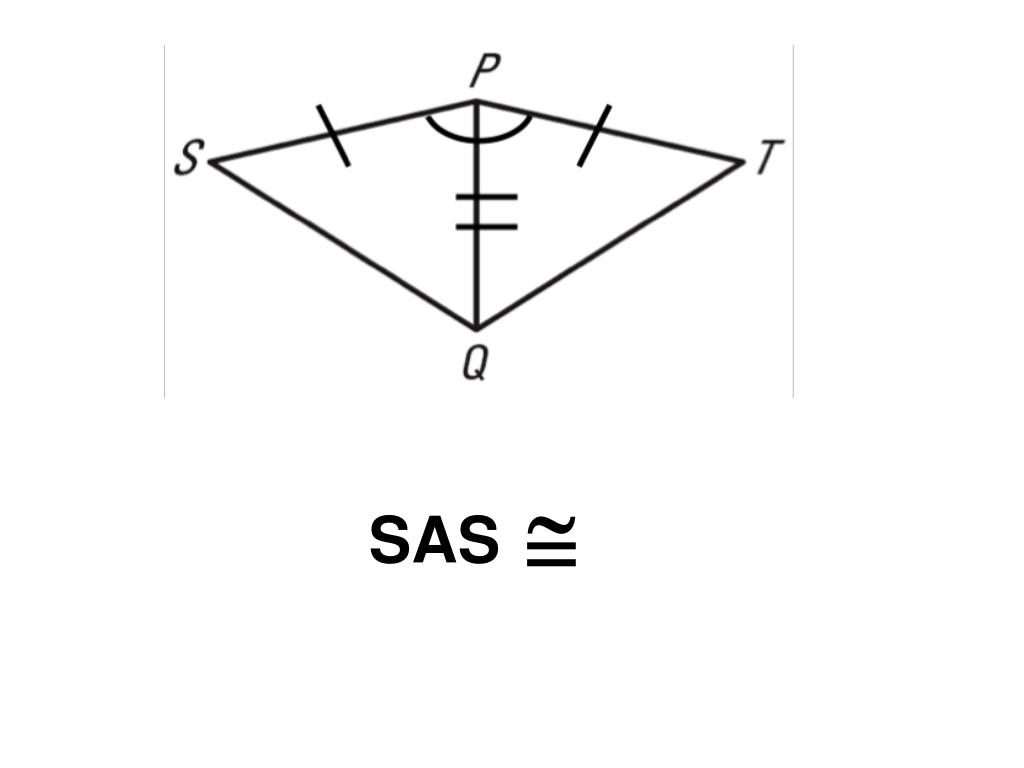

  31. SAS

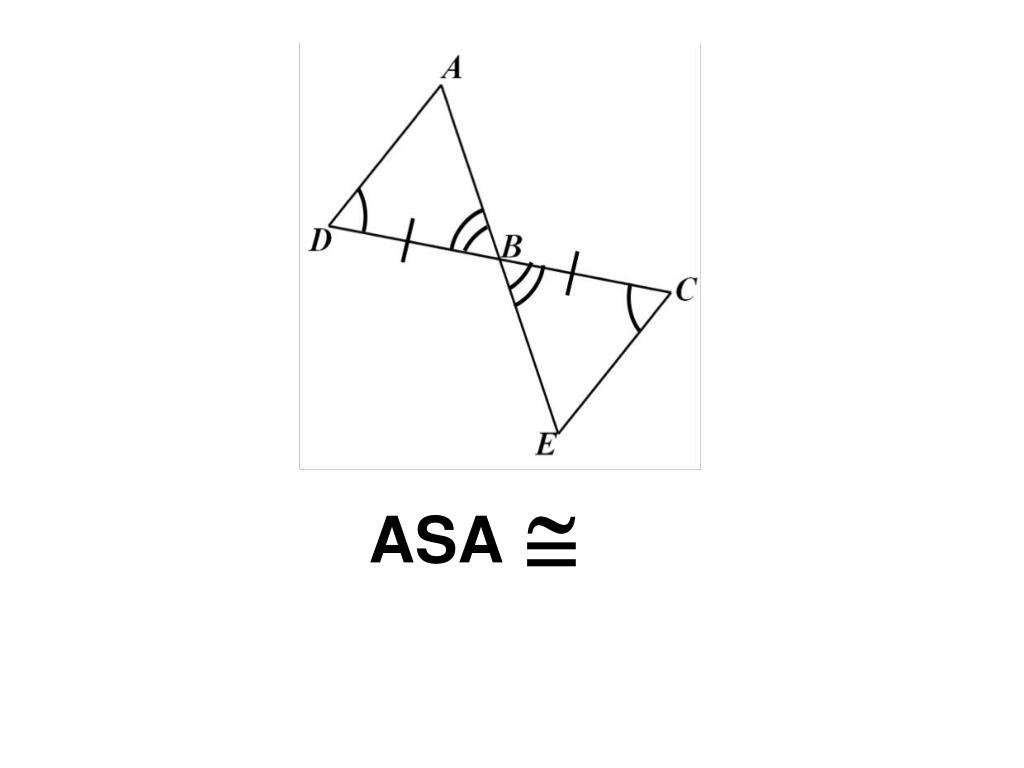

  32. ASA

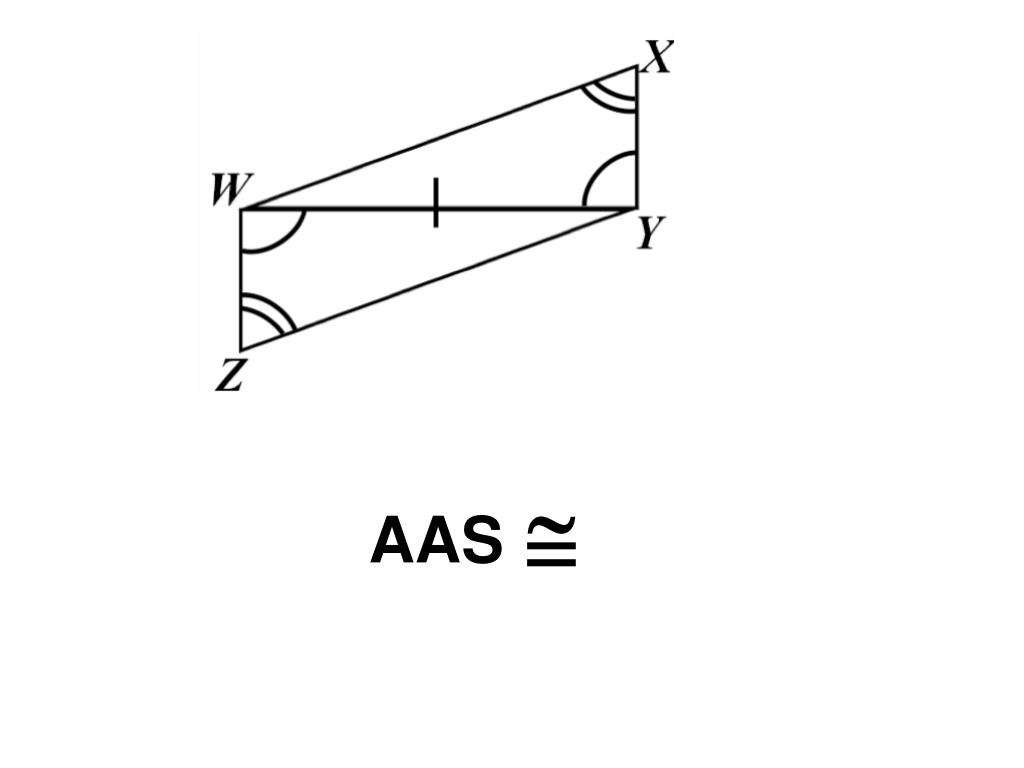

  33. AAS

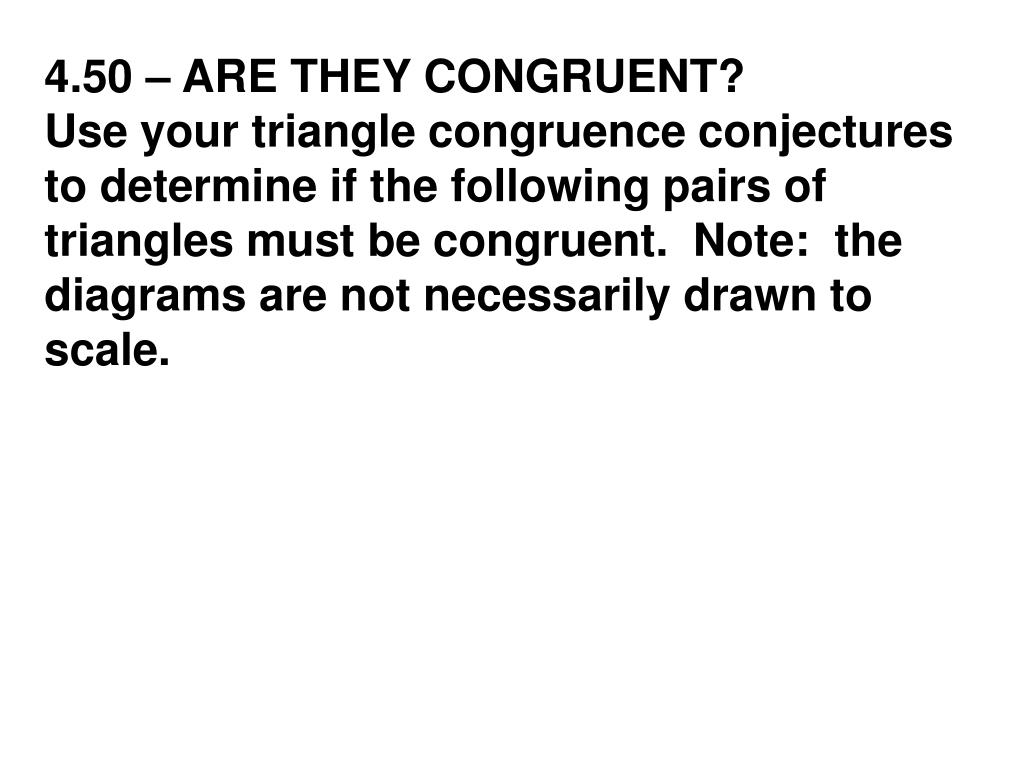

  34. 4.50 – ARE THEY CONGRUENT? Use your triangle congruence conjectures to determine if the following pairs of triangles must be congruent. Note: the diagrams are not necessarily drawn to scale.

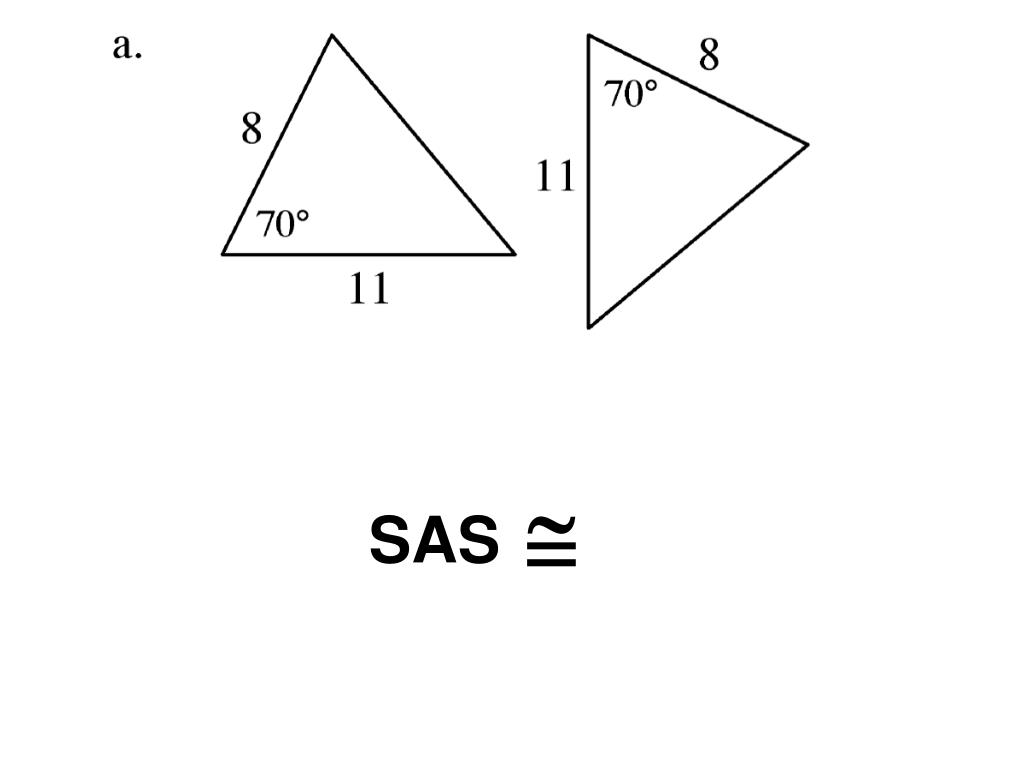

  35. SAS

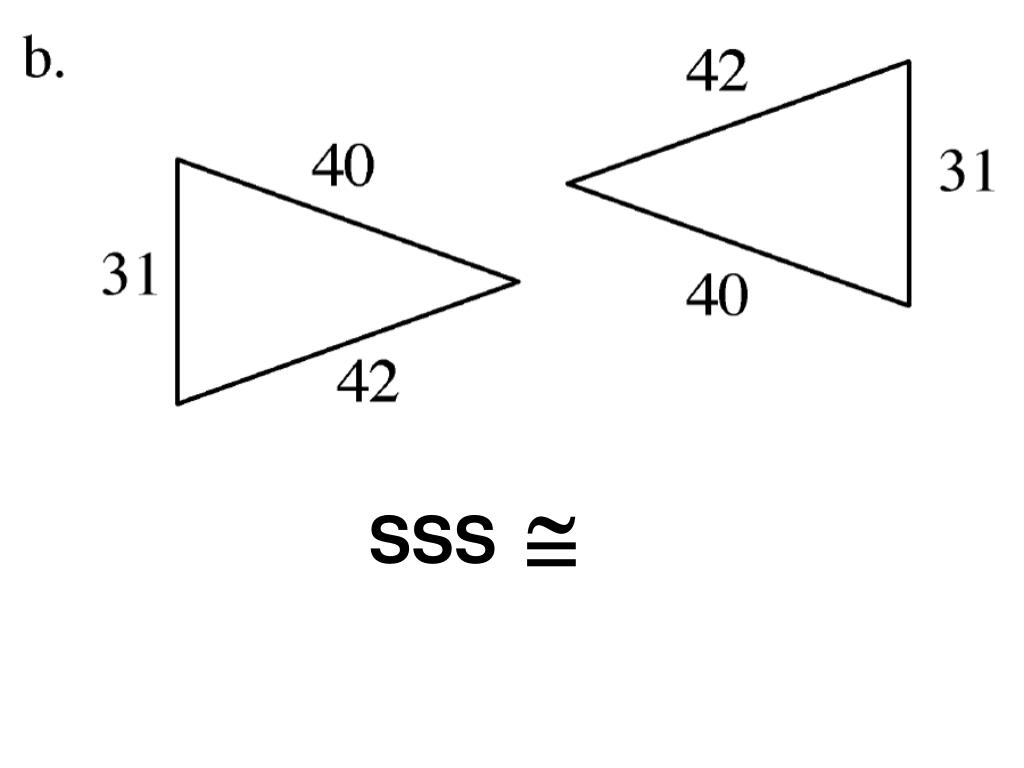

  36. SSS

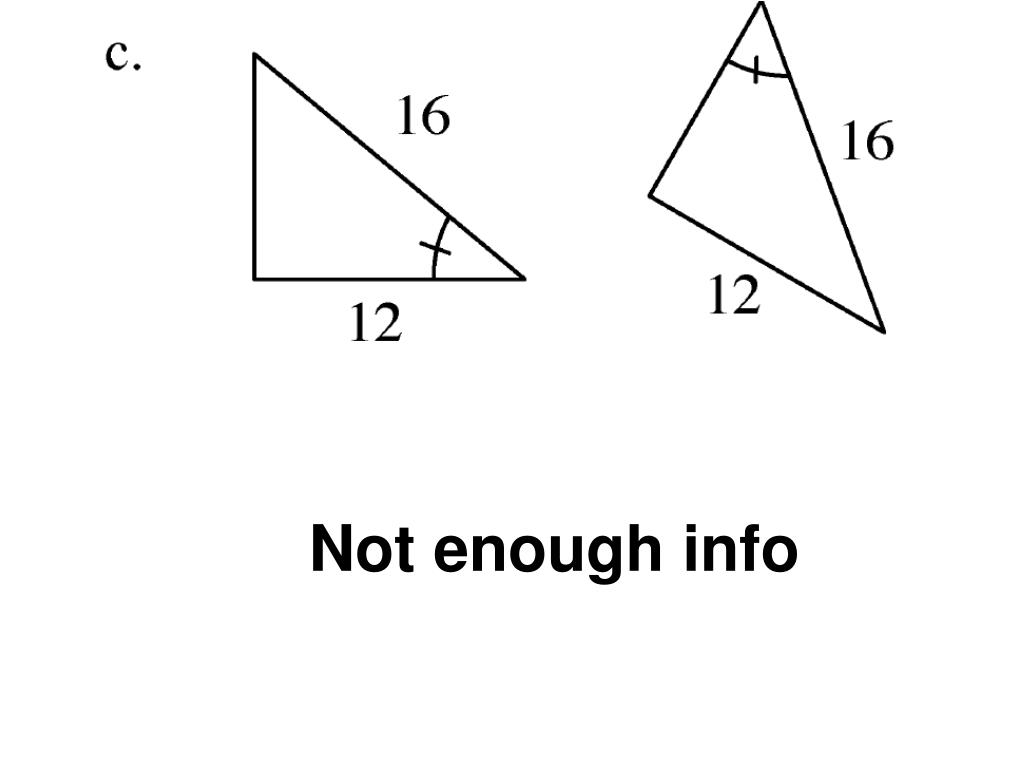

  37. Not enough info

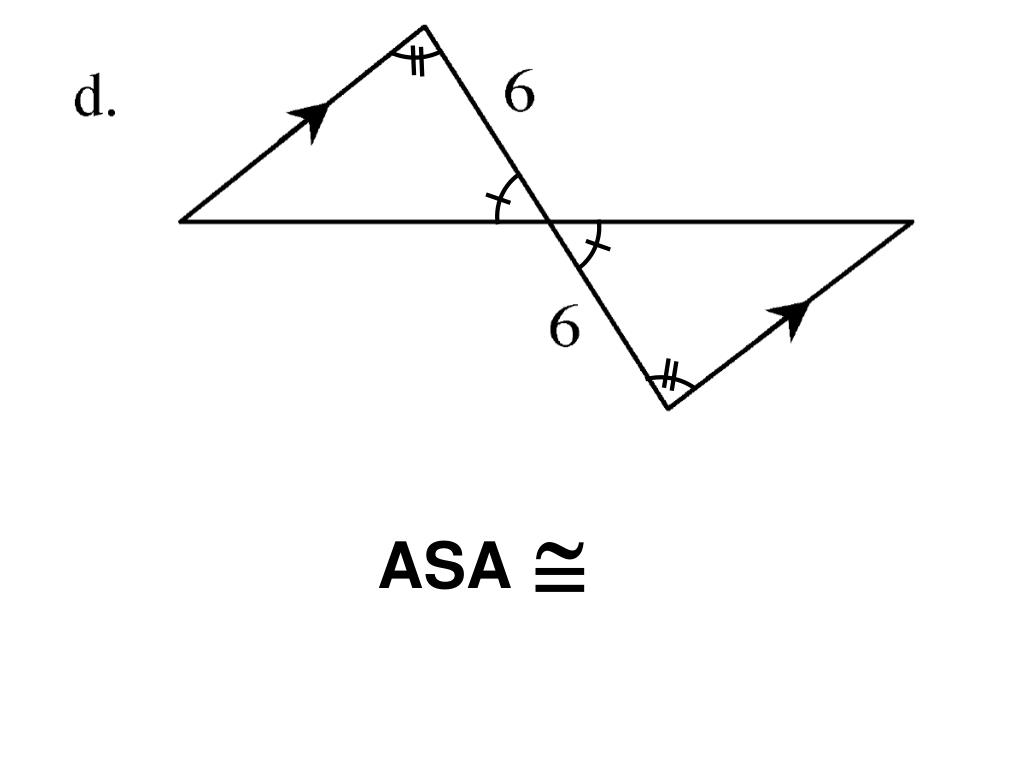

  38. ASA

  39. AAS

  40. SSS

  41. Not congruent

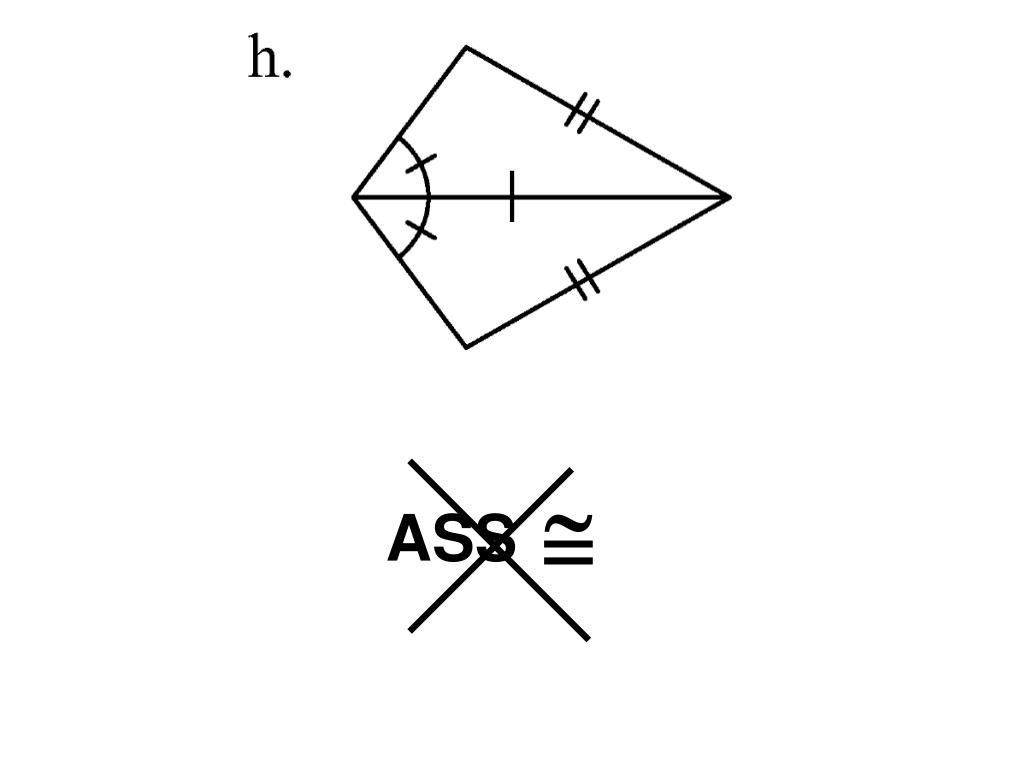

  42. ASS
