  1. Data Management Systems Richard Marciano Reagan W. Moore Wayne Schroeder Arcot Rajasekar Mike Wan San Diego Supercomputer Center moore@sdsc.edu http://irods.sdsc.edu http://www.sdsc.edu/srb/

  2. Key Data Management Standards • Data sharing - data grids • Storage Resource Broker - SRB • Enables each community to use their preferred API • Supports federation between data grids • Integrated Rule Oriented Data System - iRODS • Automates execution of management policies • Data publication - digital libraries • DSpace and Fedora support metadata standards • OAI-PMH • METS • Data preservation - persistent archives • Integrated Rule Oriented Data System - iRODS • RLG/NARA Trusted Repository Assessment criteria • OAIS • ISADG metadata • DFDL data format characterizatioin

  3. Data Standards • What are your plans of supporting these? • International collaboration on the development of iRODS. • Integration with other data management solutions including LOCKSS, IBP/Lstore, DataVerse • Which is in your opinion the area which lacks standardization most (either because of the absence of standardization or because of insufficient standards)? • Need progress in representation information • Need DFDL standard

  4. Data Management Standards • Which (future) standards are seen as important? • Virtual Machine technology • Workflow virtualization • How close is your implementation to the (published) standard(s)? • Most standards provide access methods, but not data management • Port access standards as they become heavily used • Which are the open source extensions to employed standards you had to make and why? • Generic interface for manipulating structured information • Need the ability to query a structured information resource to read and write internal information • Generic interface for characterizing data management policies • Need the ability to virtualize management policies across administrative domains

  5. Grid Infrastructure • Interoperation Challenges • Virtualization of trust • Support for multiple uthentication and authorization mechanisms • Data management virtualization • Characterization of management policies as server-side workflows • Virtualization of workflows • Ability to migrate workflows between client-side and server-side • What do you suggest are the best ways to tackle these problem areas? • Bottom-up interoperability development by the principal software system developers • Roadmap document • Wiki - http://irods.sdsc.edu • What is your funding status in a mid- and long-term perspective? • Sustained funding for the next three years (NSF, NARA)

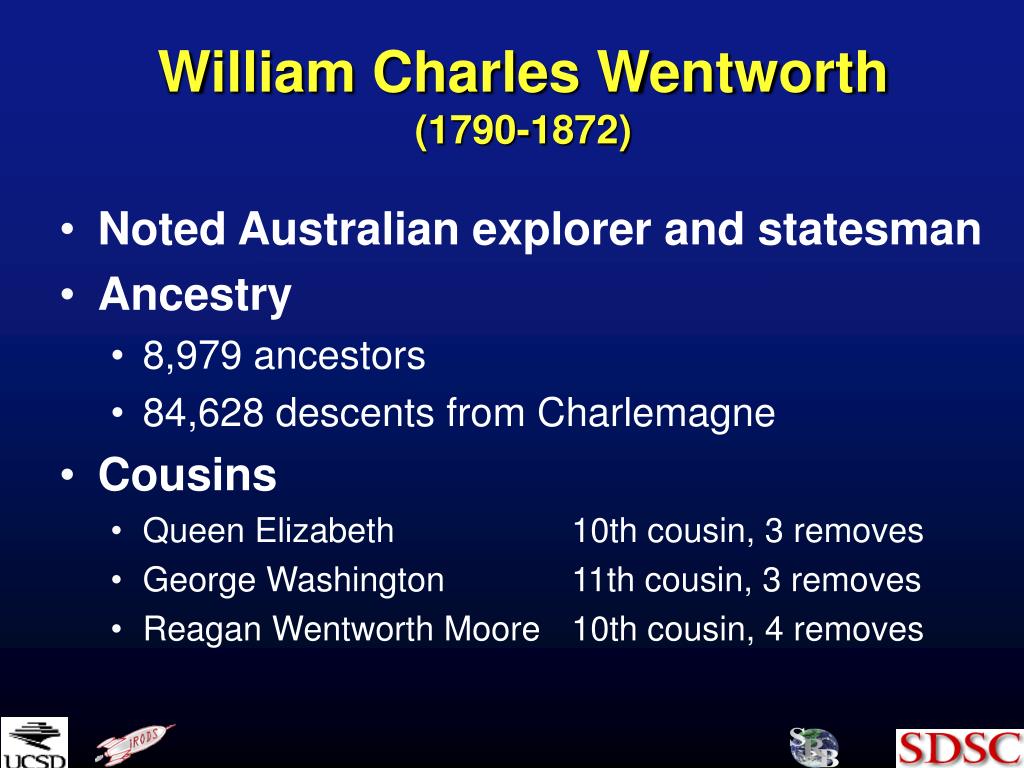

  6. William Charles Wentworth(1790-1872) • Noted Australian explorer and statesman • Ancestry • 8,979 ancestors • 84,628 descents from Charlemagne • Cousins • Queen Elizabeth 10th cousin, 3 removes • George Washington 11th cousin, 3 removes • Reagan Wentworth Moore 10th cousin, 4 removes

  7. Data Grid Evolution • Data grids • Infrastructure independence • Data sharing through data and trust virtualization • SRB - Storage Resource Broker • Rule-based data grids • Automation of management policies Management virtualization • Open source software • iRODS - integrated Rule-Oriented Data System

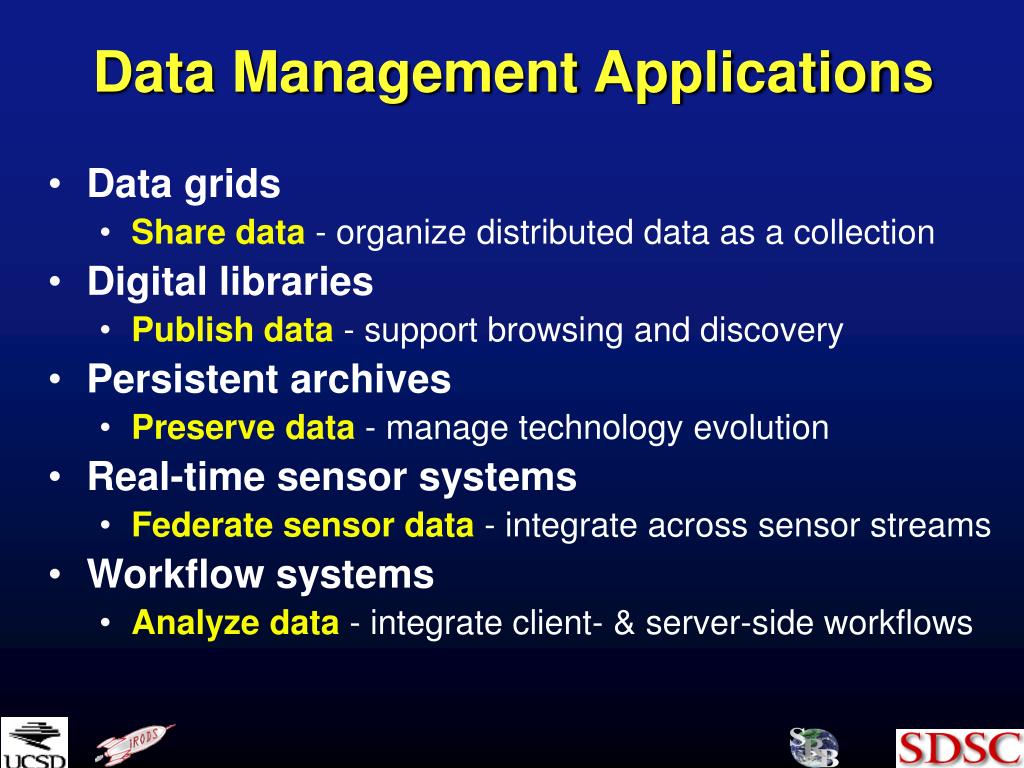

  8. Data Management Applications • Data grids • Share data - organize distributed data as a collection • Digital libraries • Publish data - support browsing and discovery • Persistent archives • Preserve data - manage technology evolution • Real-time sensor systems • Federate sensor data - integrate across sensor streams • Workflow systems • Analyze data - integrate client- & server-side workflows

  9. Generic Infrastructure • Data grids organize distributed data into shared collections • Persistent name spaces for files, users, storage • Collection attributes • Provenance, descriptive, system metadata • Data grids manage heterogeneous storage systems • Standard operations across file systems, tape archives, object ring buffers • Enable technology evolution • At the point in time when new technology is available, both the old and new systems can be integrated

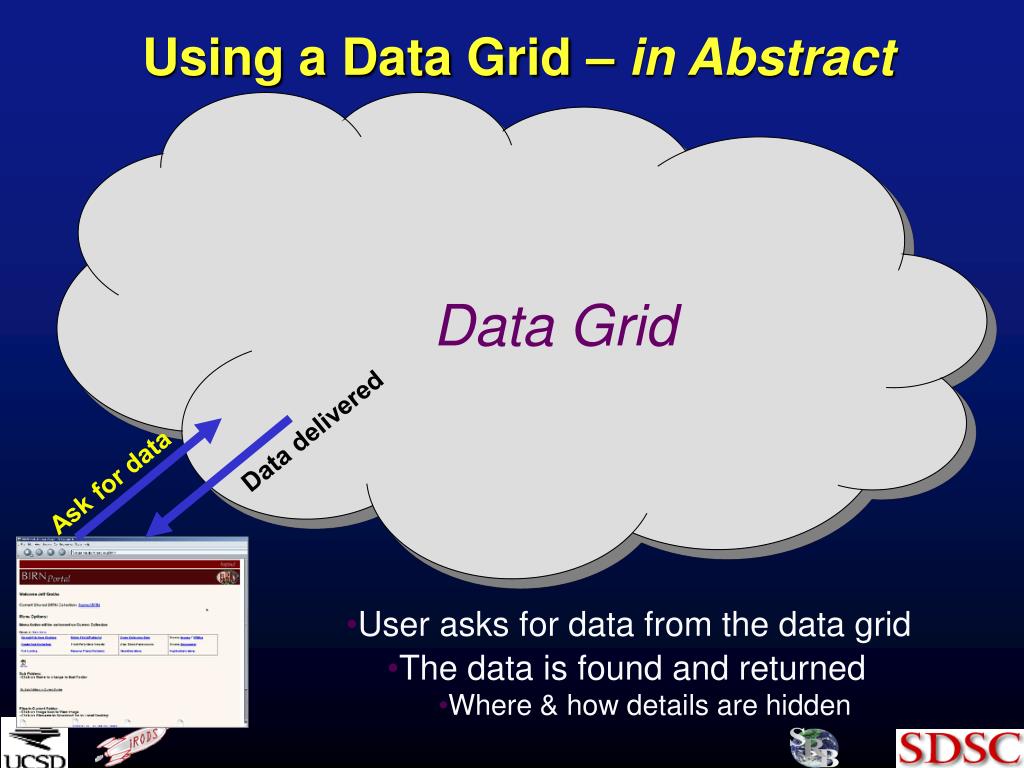

  10. Data delivered Ask for data • The data is found and returned • Where & how details are hidden Using a Data Grid – in Abstract Data Grid • User asks for data from the data grid

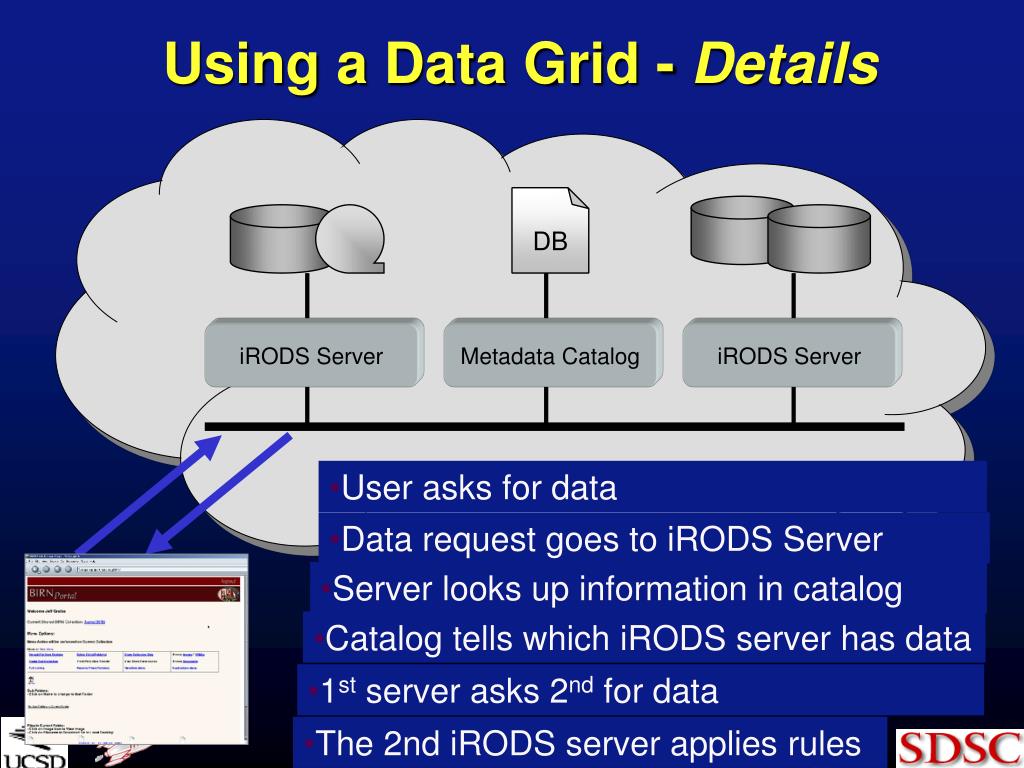

  11. DB iRODS Server Metadata Catalog iRODS Server Using a Data Grid - Details • User asks for data • Data request goes to iRODS Server • Server looks up information in catalog • Catalog tells which iRODS server has data • 1st server asks 2nd for data • The 2nd iRODS server applies rules

  12. Extremely Successful • Storage Resource Broker (SRB) manages 2 PBs of data in internationally shared collections • Data collections for NSF, NARA, NASA, DOE, DOD, NIH, LC, NHPRC, IMLS; APAC, UK e-Science, IN2P3, KEK, … • Astronomy Data grid • Bio-informatics Digital library • Earth Sciences Data grid • Ecology Collection • Education Persistent archive • Engineering Digital library • Environmental science Data grid • High energy physics Data grid • Humanities Data Grid • Medical community Digital library • Oceanography Real time sensor data, persistent archive • Seismology Digital library, real-time sensor data • Goal has been generic infrastructure for distributed data

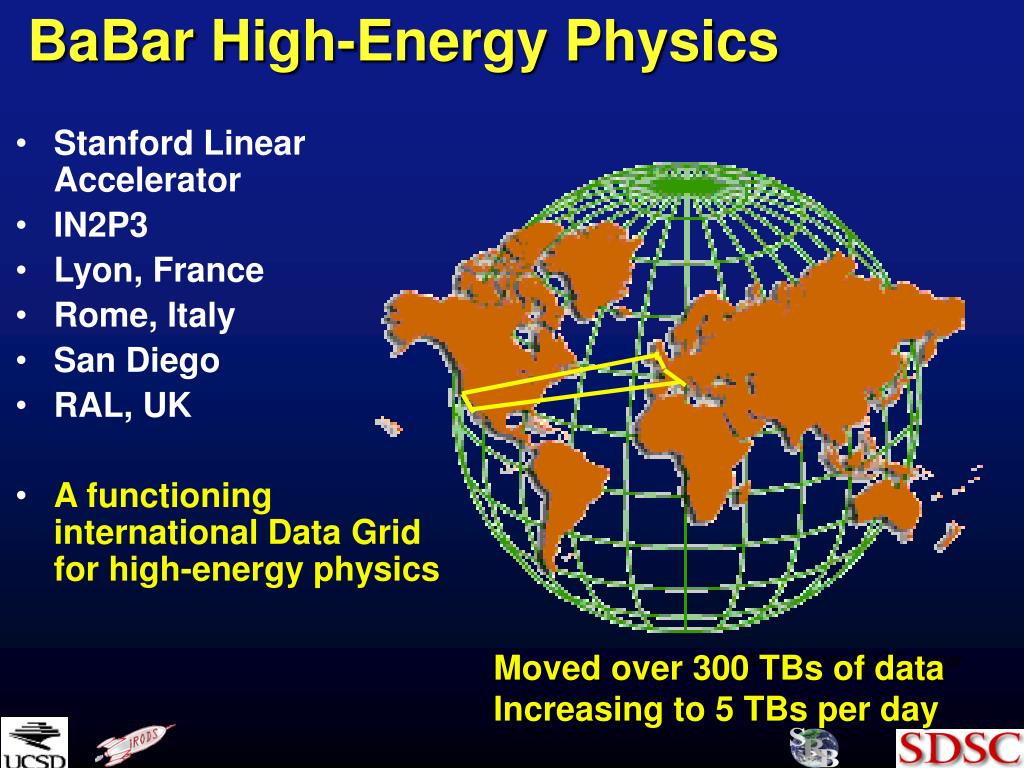

  13. BaBar High-Energy Physics • Stanford Linear Accelerator • IN2P3 • Lyon, France • Rome, Italy • San Diego • RAL, UK • A functioning international Data Grid for high-energy physics Manchester-SDSC mirror Moved over 300 TBs of data Increasing to 5 TBs per day

  14. Requirements Driving Evolution • Observe that as the size of the shared collections grow, the administrative tasks can become onerous. • Data grids provide mechanisms to manage recovery from all errors that occur in the distributed environment • Need to minimize labor support through automation of administrative functions • File ingestion tasks • Verification of desired collection properties • Integrity checks and replica management

  15. Requirements Driving Evolution • Observe that each community has unique management policies • User administration • File retention & deletion • Time-dependent access controls • Data distribution and replication • File update (versions, backups) • Descriptive metadata

  16. Requirements Driving Evolution • Socialization of collections • The creators of the collection have specific properties that they assert the collection will possess • Completeness • Authoritative sources • Authenticity • The users of the collection have their own criteria for the properties they expect • Socialization is the mapping from creator assertions to user expectations

  17. Data Grid Mechanisms • Essential components needed for synergism implemented in SRB • Infrastructure independence • Data and trust virtualization • Components needed for specific management policies and processes implemented in iRODS • Map policies to rules that control all processes • Map processes to standard micro-services

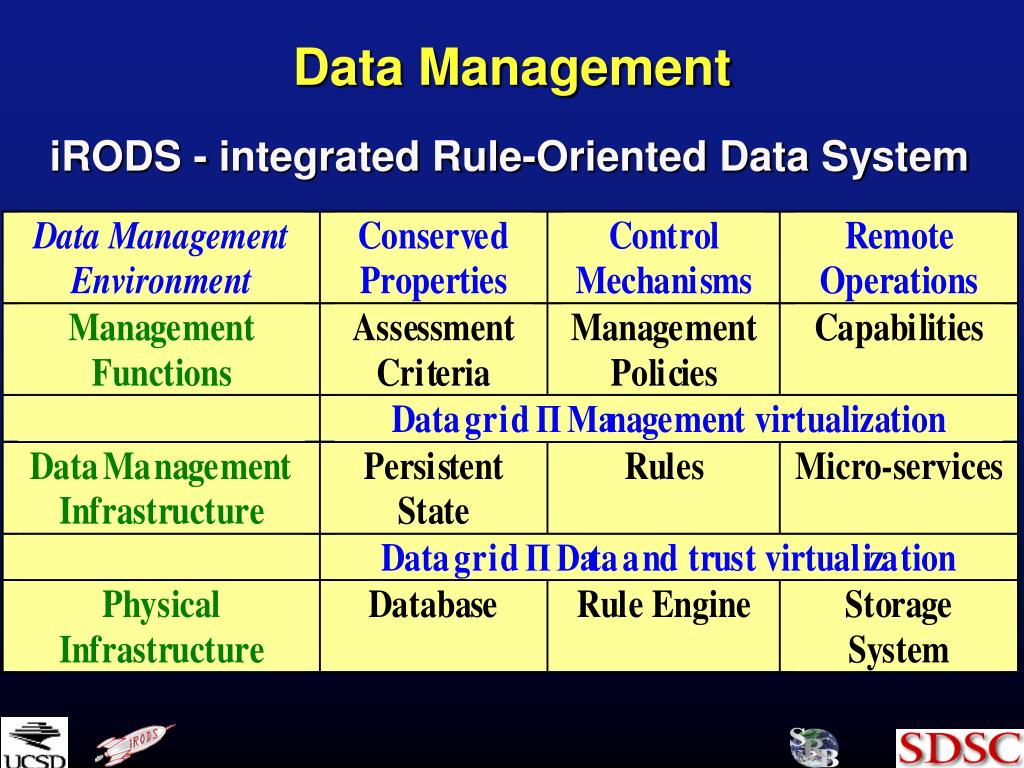

  18. Data Management iRODS - integrated Rule-Oriented Data System

  19. Rules • Rule classes • System enforced rules • Administrator controlled rules • User defined rules • Rule execution • Atomic rules - executed on each operation invoked by a client • Deferred rules - executed at a future time • Periodic rules - executed to validate assessment criteria and enforce desired properties (integrity)

  20. iRODS Rule Syntax • Event | Condition | Action-set | Recovery-set • Event - triggered by operation or queued rule • Condition - composed of tests on any attributes in the persistent state information • Action-set - composed from both micro-services and rules • Recovery-set - used to ensure transaction semantics and consistent state information • Executed by a rule engine installed at each storage location - server side workflows

  21. Micro-Services • Challenge is that storage systems do not provide desired processes • Have “minimal” set of standard operations that are performed at the storage system • Have actions required by clients such as replication, metadata extraction • Create standard micro-services that aggregate storage operations into modules that can be used to implement desired processes.

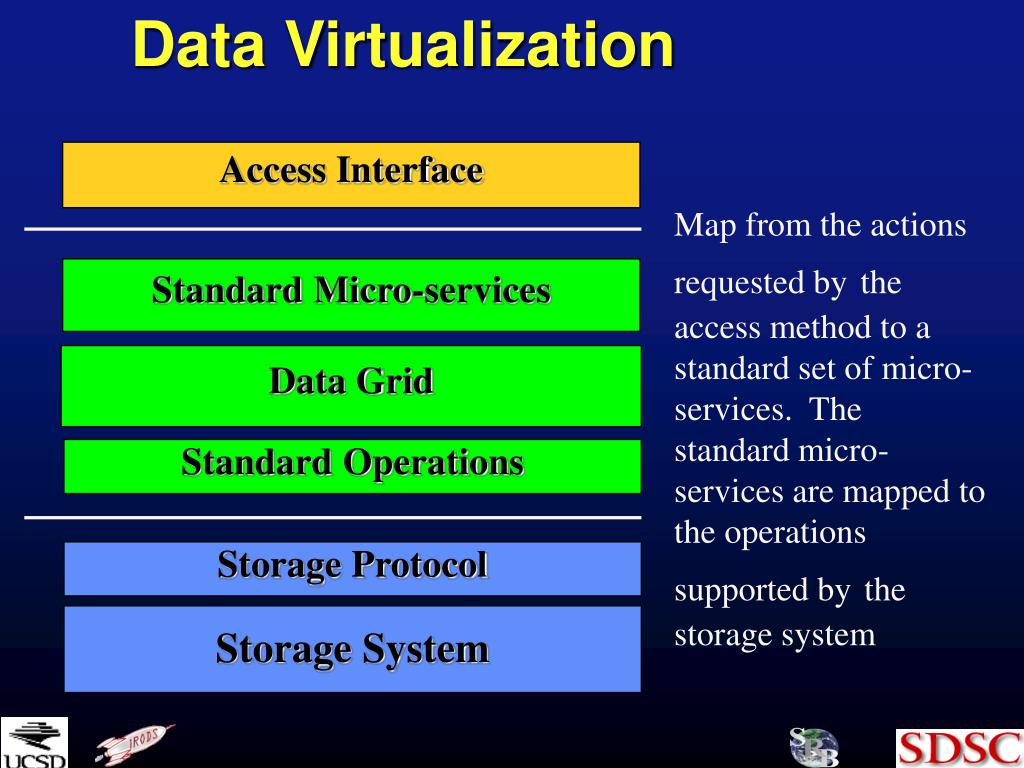

  22. Data Virtualization Access Interface Map from the actions requested bythe access method to a standard set of micro-services. The standard micro-services are mapped to the operations supported bythe storage system Standard Micro-services Data Grid Standard Operations Storage Protocol Storage System

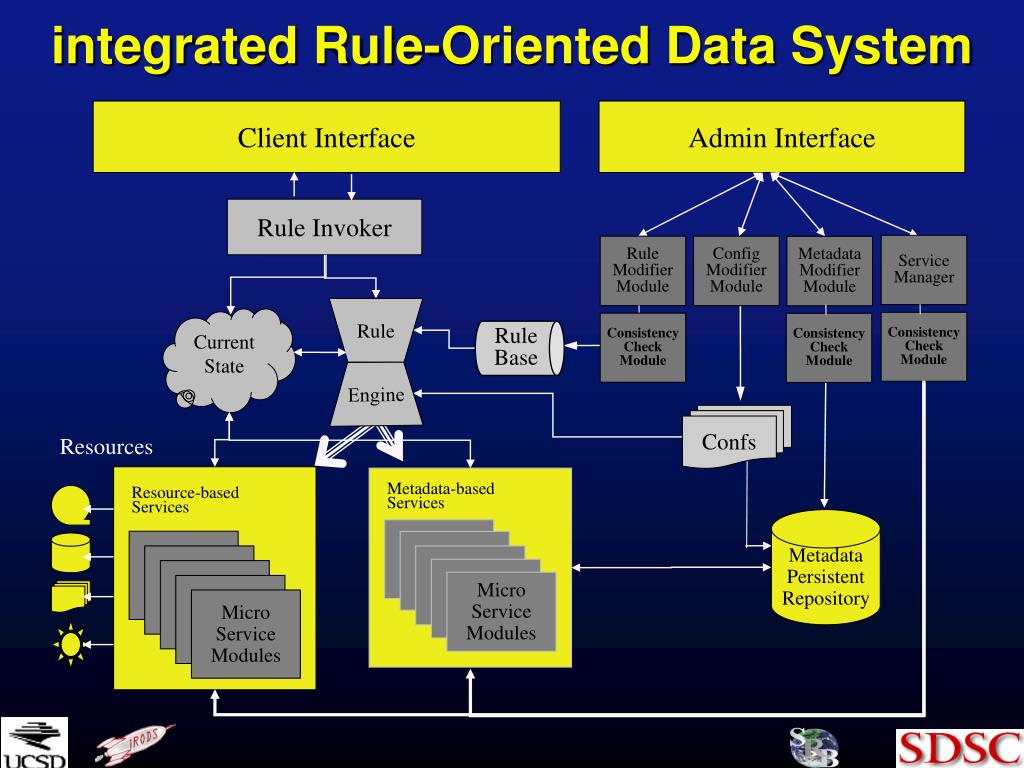

  23. Service Manager Consistency Check Module Rule Engine integrated Rule-Oriented Data System Client Interface Admin Interface Rule Invoker Rule Modifier Module Config Modifier Module Metadata Modifier Module Rule Base Current State Consistency Check Module Consistency Check Module Confs Resources Metadata-based Services Resource-based Services Metadata Persistent Repository Micro Service Modules Micro Service Modules

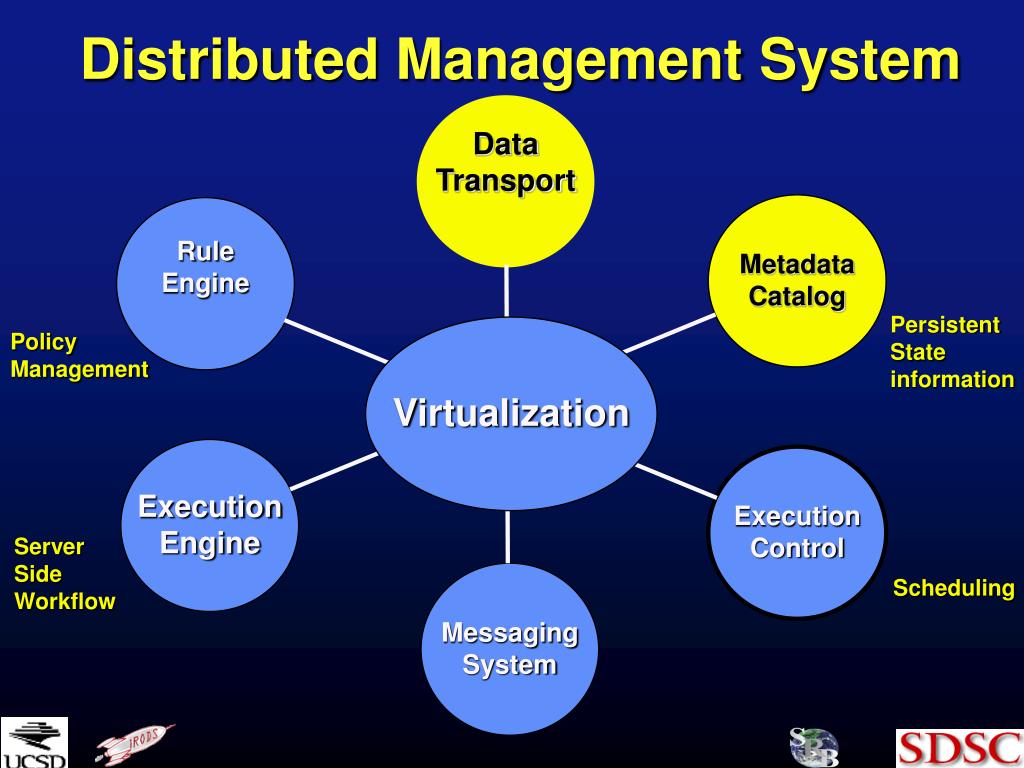

  24. Distributed Management System Data Transport Metadata Catalog Rule Engine Persistent State information Virtualization Policy Management Execution Engine Execution Control Server Side Workflow Messaging System Scheduling

  25. Micro-service Classes • Test • System • Workflow control • Client • iCAT catalog • User level invoked by “irule” • Image manipulation

  26. Digital Preservation • Preservation community is defining the rules need to assert trustworthiness of a digital repository • RLG/NARA - Trustworthy Repositories Audit & Certification: Criteria and Checklist. http://wiki.digitalrepositoryauditandcertification.org/pub/Main/ReferenceInputDocuments/trac.pdf • Defined 105 rules that are being implemented in iRODS

  27. RLG/NARA Assessment • Example TRAC assessment criteria

  28. Classes of Assessment Criteria • Collection properties • List properties of associated name spaces • Verify properties • Compare properties with assertions • Collection operations • Transform file formats • Migrate data • Generate audit trails • Structured information • Parse audit trails to generate compliance reports • Apply templates to extract information • Apply templates to format state information

  29. iRODS Development • NSF - SDCI grant “Adaptive Middleware for Community Shared Collections” • iRODS development, SRB maintenance • NARA - Transcontinental Persistent Archive Prototype • Trusted repository assessment criteria • NSF - Ocean Research Interactive Observatory Network (ORION) • Real-time sensor data stream management • NSF - Temporal Dynamics of Learning Center data grid • Management of Institution Research Board approval

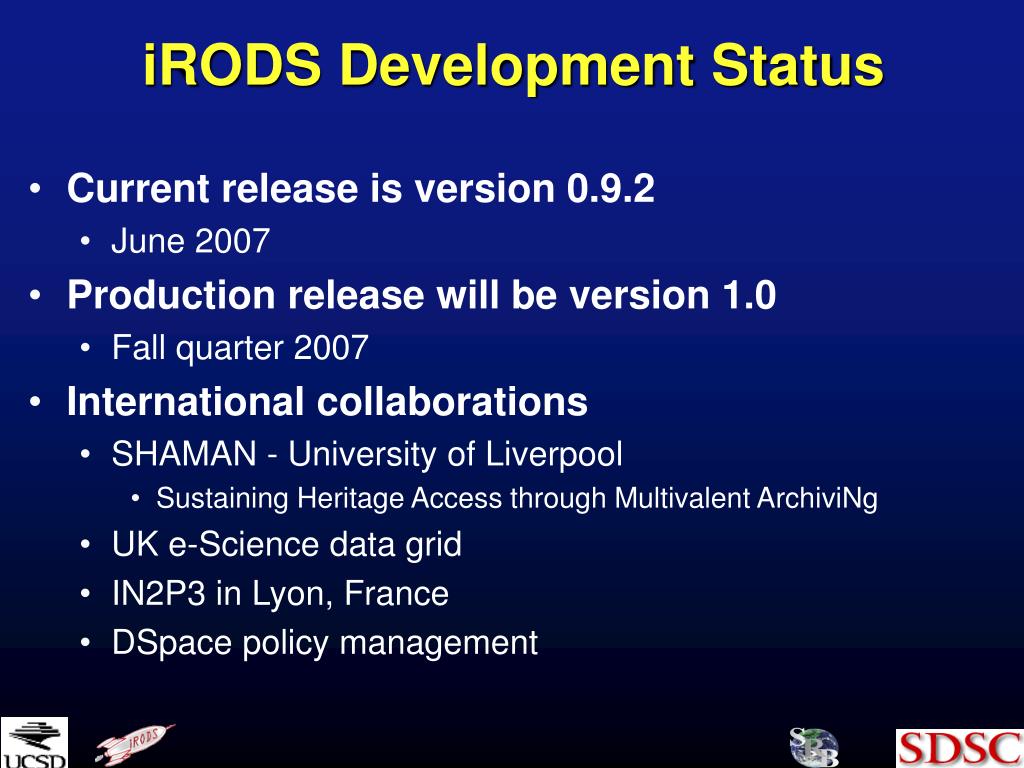

  30. iRODS Development Status • Current release is version 0.9.2 • June 2007 • Production release will be version 1.0 • Fall quarter 2007 • International collaborations • SHAMAN - University of Liverpool • Sustaining Heritage Access through Multivalent ArchiviNg • UK e-Science data grid • IN2P3 in Lyon, France • DSpace policy management

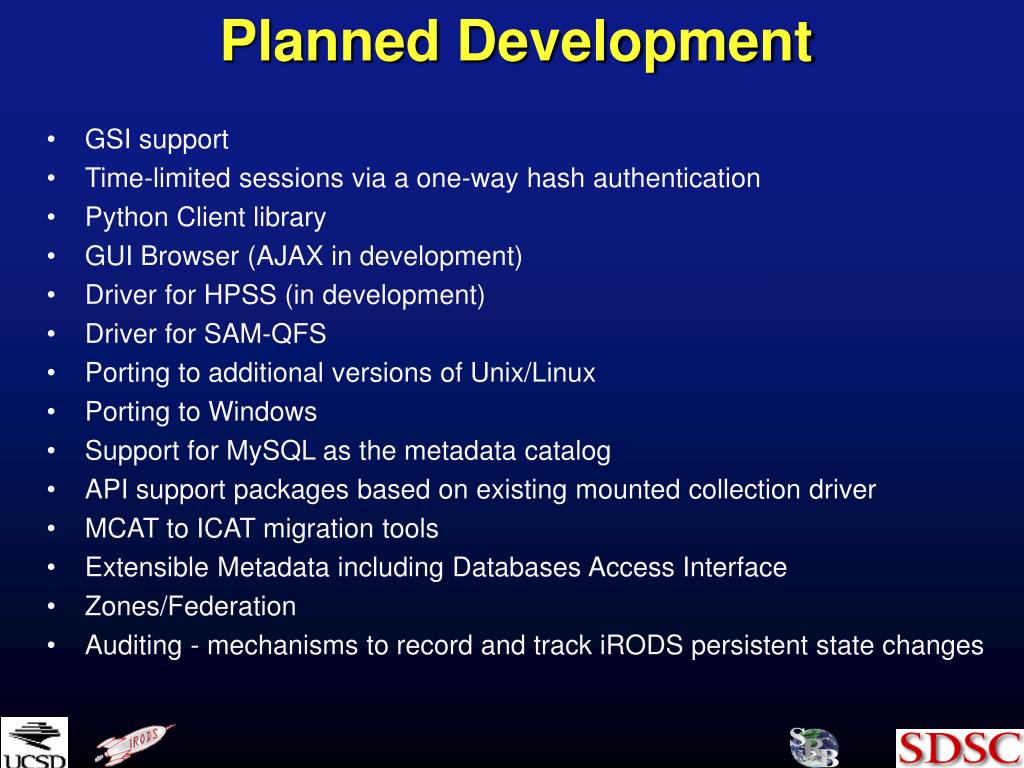

  31. Planned Development • GSI support • Time-limited sessions via a one-way hash authentication • Python Client library • GUI Browser (AJAX in development) • Driver for HPSS (in development) • Driver for SAM-QFS • Porting to additional versions of Unix/Linux • Porting to Windows • Support for MySQL as the metadata catalog • API support packages based on existing mounted collection driver • MCAT to ICAT migration tools • Extensible Metadata including Databases Access Interface • Zones/Federation • Auditing - mechanisms to record and track iRODS persistent state changes

  32. For More Information(iRODS Tutorial on Thursday) Reagan W. Moore San Diego Supercomputer Center moore@sdsc.edu http://www.sdsc.edu/srb/ http://irods.sdsc.edu/
