Efficient Virtual Memory for Big Memory Servers

1. Efficient Virtual Memory for Big Memory Servers U Wisc and HP Labs ISCA’13 Architecture Reading Club Summer'13

2. Key points • Big memory workloads • Memcached, databases, graph analysis • Analysis shows • TLB misses can account for upto 51% of execution time • Rich features of Paged VM is not needed by most applications • Proposal : Direct Segments • Paged VM as usual where needed • Segmentation where possible • For big memory workloads – this eliminates 99% of data TLB misses ! Architecture Reading Club Summer'13

3. Main Memory Mgmt Trends • The amount of physical memory has gone from a few MBs to a few GBs and then to several TBs now • But at the same time the size of the DTLB has remained fairly unchanged • Pent III – 72 Pent IV – 64 Nehalem – 96 IvyBridge – 100 • Also workloads were nicer in the days-gone-by (higher locality) • So higher memory cap + const TLB + misbehaving apps = more TLB misses Architecture Reading Club Summer'13

4. So how bad is it really ? Architecture Reading Club Summer'13

5. Main Features of Paged VM Architecture Reading Club Summer'13

6. Main Memory Allocation Architecture Reading Club Summer'13

7. Paged VM – why is it needed ? • Shared memory regions for Inter-Process-Communication • Code regions protected by per-page R/W • Copy on-write uses per-page R/W for lazy implementation of fork. • Guard pages at the end of thread-stacks. Paging Valuable Paging Not Needed * Dynamically allocated Heap region VA Code Constants Shared Memory Mapped Files Stack Guard Pages Architecture Reading Club Summer'13

8. Direct Segments • Hybrid Paged + Segmented memory (not one on top of the other). Architecture Reading Club Summer'13

9. Address Translation Architecture Reading Club Summer'13

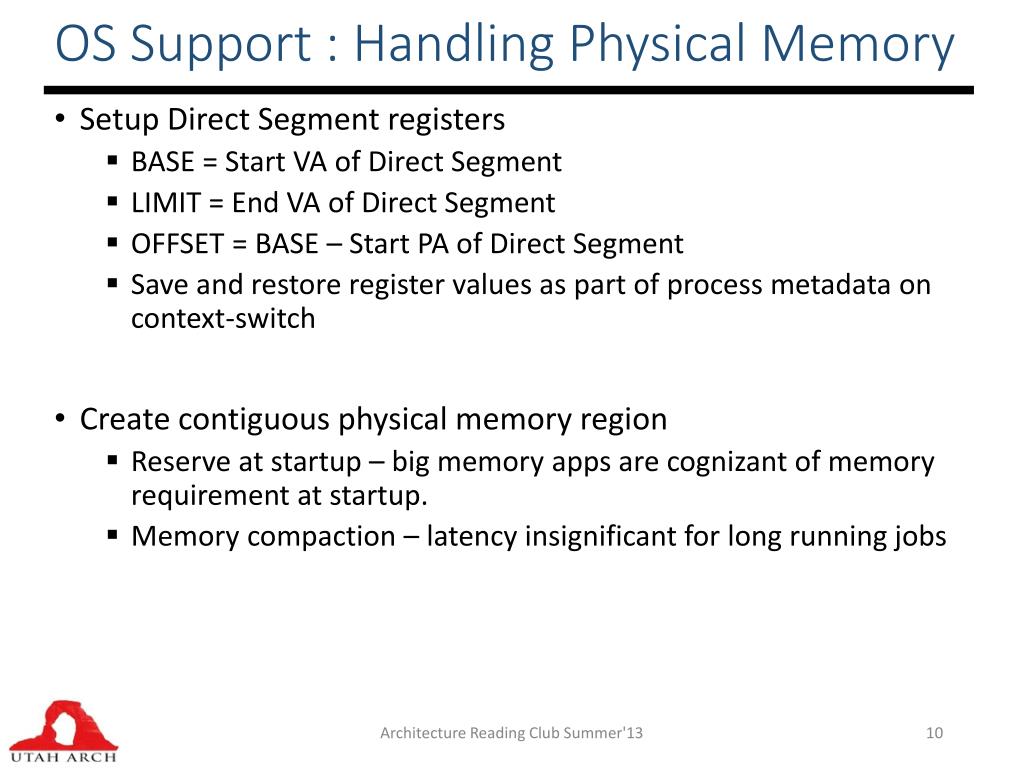

10. OS Support : Handling Physical Memory • Setup Direct Segment registers • BASE = Start VA of Direct Segment • LIMIT = End VA of Direct Segment • OFFSET = BASE – Start PA of Direct Segment • Save and restore register values as part of process metadata on context-switch • Create contiguous physical memory region • Reserve at startup – big memory apps are cognizant of memory requirement at startup. • Memory compaction – latency insignificant for long running jobs Architecture Reading Club Summer'13

11. OS Support : Handling Virtual Memory • Primary regions • Abstraction presented to application • Contiguous Virtual address space backed by Direct Segment • What goes in the primary region • Dynamically allocated R/W memory • Application can indicate what it needs to put in primary region • The size of the primary region is set to a very high value to accommodate the whole of the physical memory if need be • 64-bit VA support 128TB of VM, so pretty much never running out of VA space Architecture Reading Club Summer'13

12. Evaluation • Methodology • Implement Primary Region in the kernel • Find the number of TLB misses that would be served by the non-existent direct segments • x86 uses hardware page-table walker • they trap all TLB misses by duping the system into believing that the PTE residing in memory is invalid • In the handler • They touch the page with the faulting address • Again mark the PTE to invalid Architecture Reading Club Summer'13

13. Results Architecture Reading Club Summer'13

14. Results Architecture Reading Club Summer'13

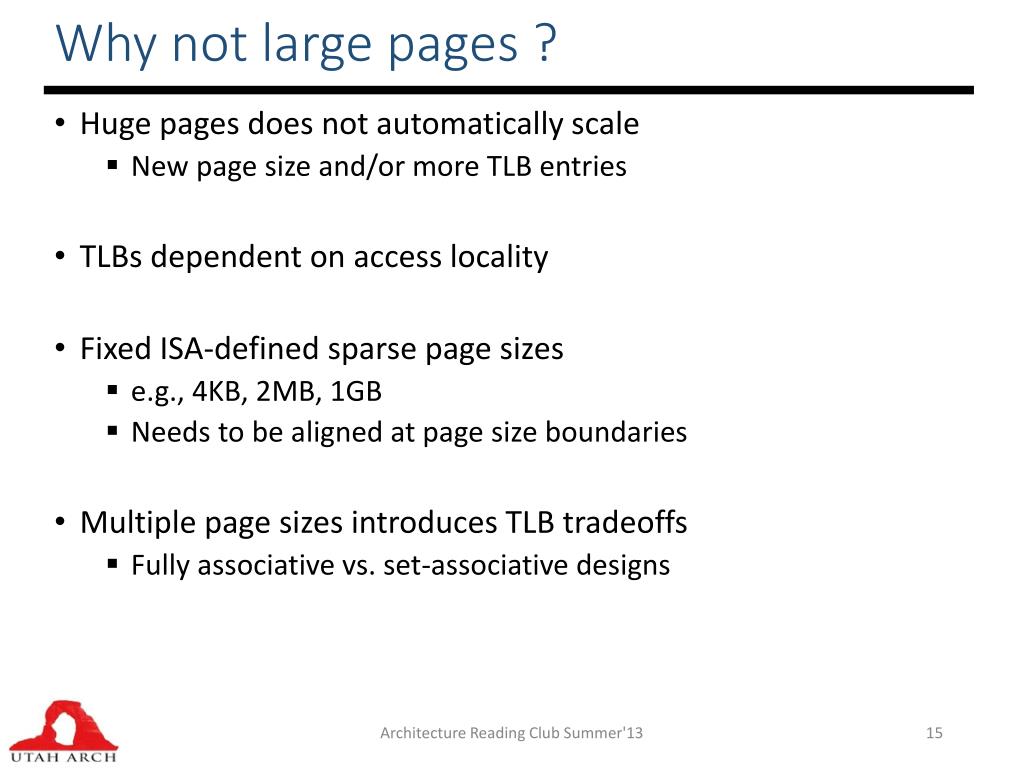

15. Why not large pages ? • Huge pages does not automatically scale • New page size and/or more TLB entries • TLBs dependent on access locality • Fixed ISA-defined sparse page sizes • e.g., 4KB, 2MB, 1GB • Needs to be aligned at page size boundaries • Multiple page sizes introduces TLB tradeoffs • Fully associative vs. set-associative designs Architecture Reading Club Summer'13

16. Virtual Memory Basics Virtual Address Space Core Physical Memory Process 1 Cache TLB (Translation Lookaside Buffer) Process 2 Page Table Architecture Reading Club Spring'13 16
