  1. Final Exam Review IT443 – Network Security Administration

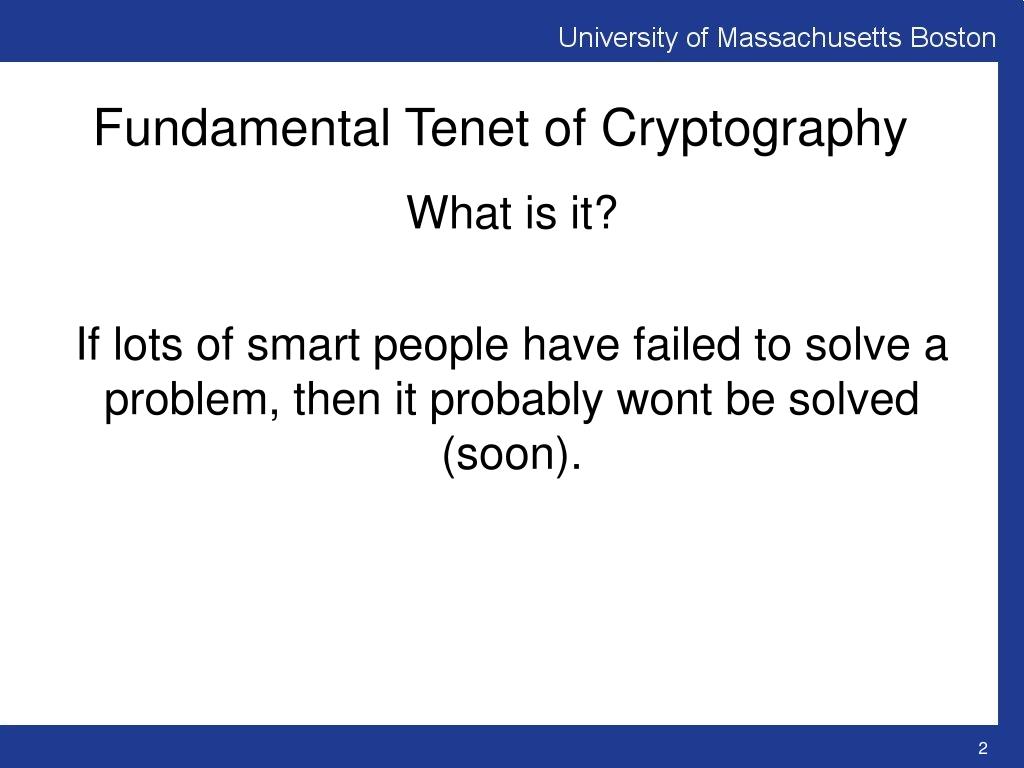

  2. Fundamental Tenet of Cryptography What is it? If lots of smart people have failed to solve a problem, then it probably wont be solved (soon).

  3. Network Basics • Network Layers • Application layer • Transport layer • IP layer • Data link layer • TCP, UDP, IP, SSH, HTTP • IP address, MAC address, TCP address? • Port number

  4. Layer Encapsulation User A User B Get index.html Connection ID Source/Destination Link Address 4

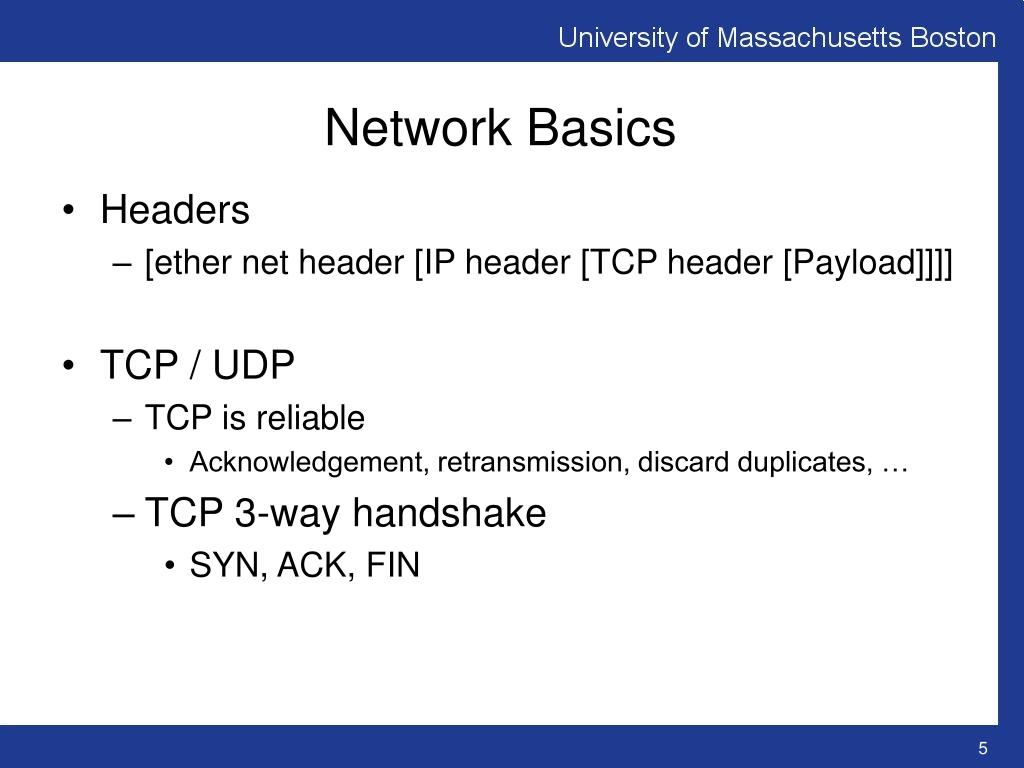

  5. Network Basics • Headers • [ether net header [IP header [TCP header [Payload]]]] • TCP / UDP • TCP is reliable • Acknowledgement, retransmission, discard duplicates, … • TCP 3-way handshake • SYN, ACK, FIN

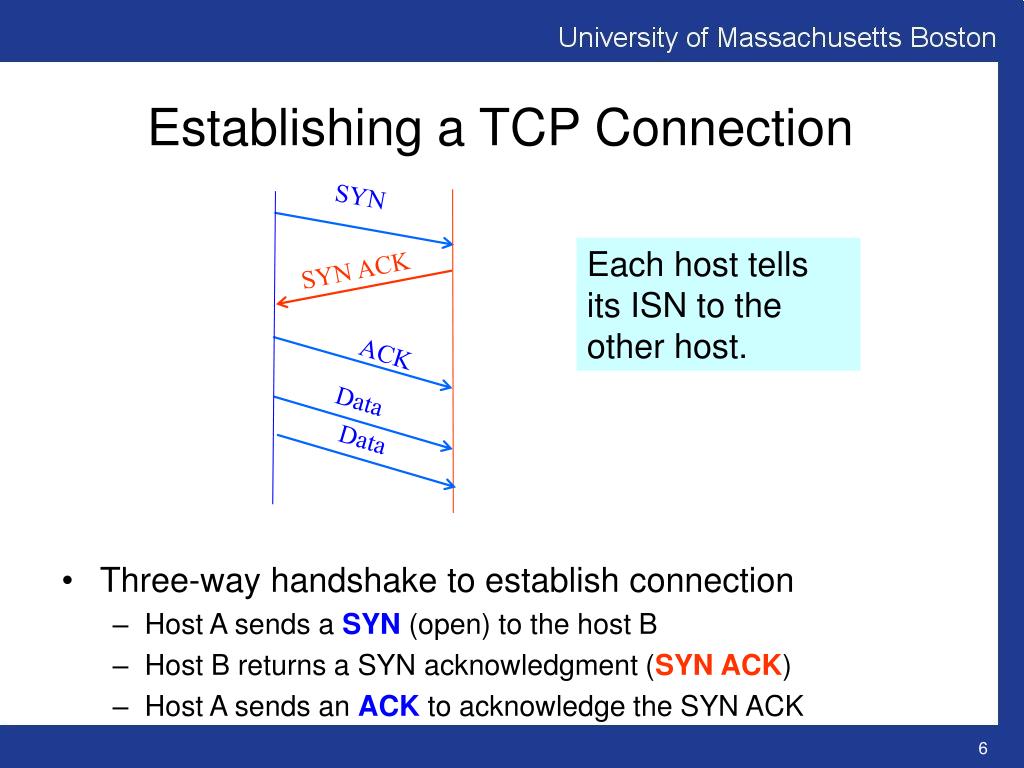

  6. Establishing a TCP Connection SYN • Three-way handshake to establish connection • Host A sends a SYN (open) to the host B • Host B returns a SYN acknowledgment (SYN ACK) • Host A sends anACK to acknowledge the SYN ACK Each host tells its ISN to the other host. SYN ACK ACK Data Data

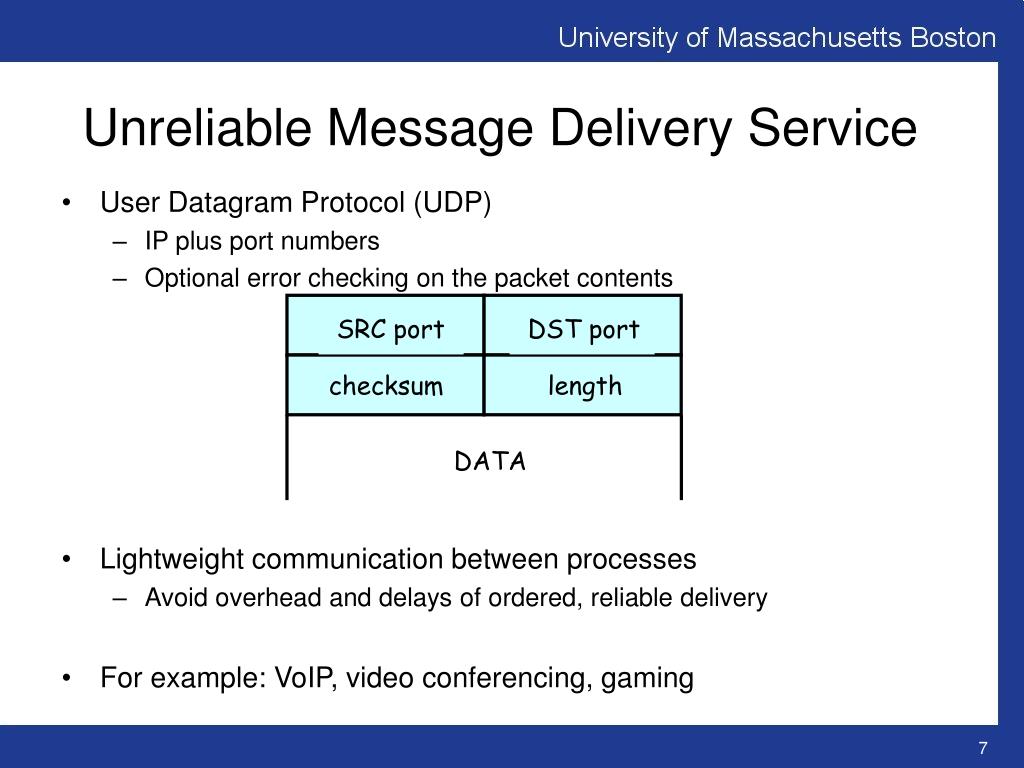

  7. Unreliable Message Delivery Service • User Datagram Protocol (UDP) • IP plus port numbers • Optional error checking on the packet contents • Lightweight communication between processes • Avoid overhead and delays of ordered, reliable delivery • For example: VoIP, video conferencing, gaming SRC port DST port checksum length DATA

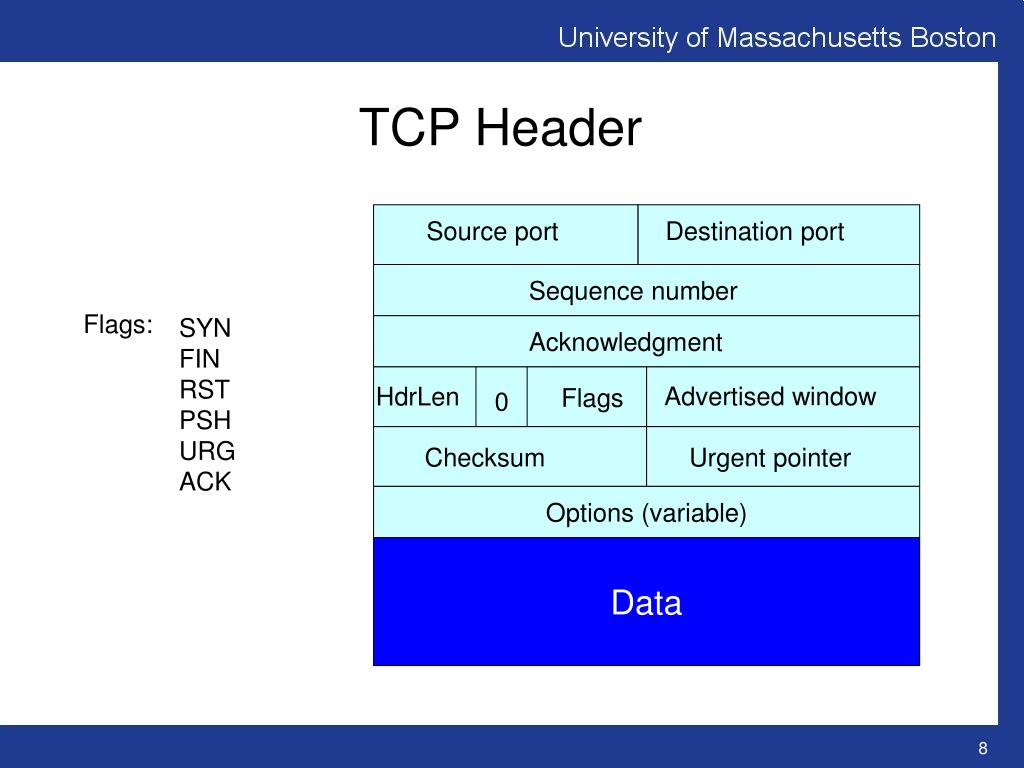

  8. TCP Header Source port Destination port Sequence number Flags: SYN FIN RST PSH URG ACK Acknowledgment Advertised window HdrLen Flags 0 Checksum Urgent pointer Options (variable) Data

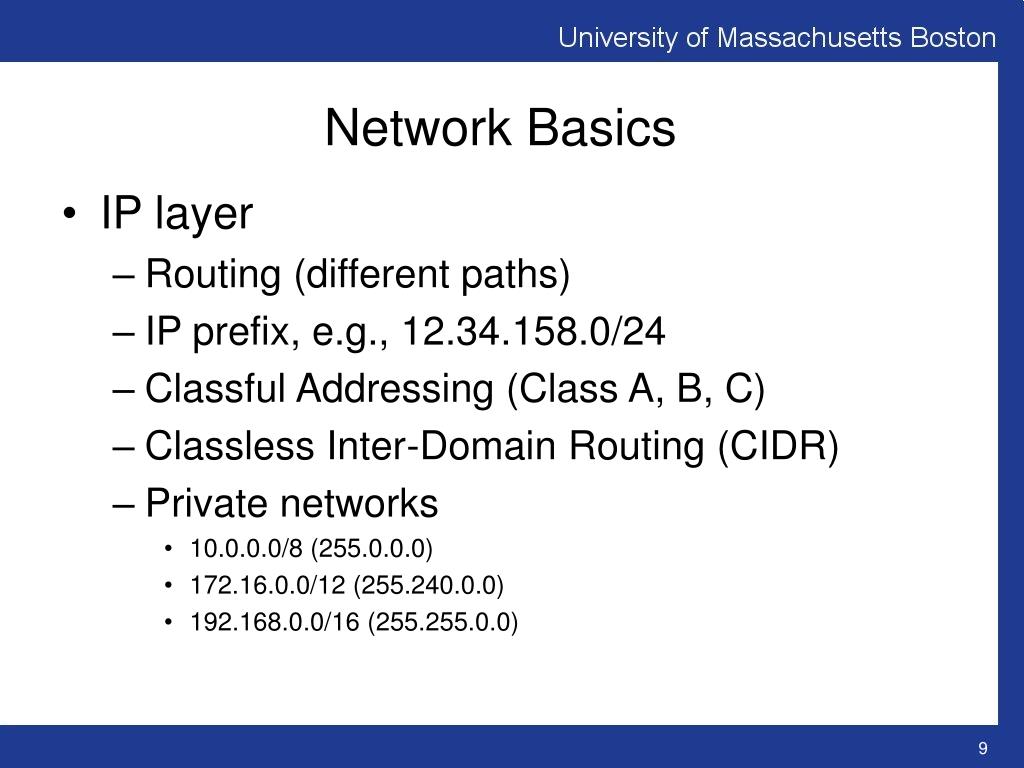

  9. Network Basics • IP layer • Routing (different paths) • IP prefix, e.g., 12.34.158.0/24 • ClassfulAddressing (Class A, B, C) • Classless Inter-Domain Routing (CIDR) • Private networks • 10.0.0.0/8 (255.0.0.0) • 172.16.0.0/12 (255.240.0.0) • 192.168.0.0/16 (255.255.0.0)

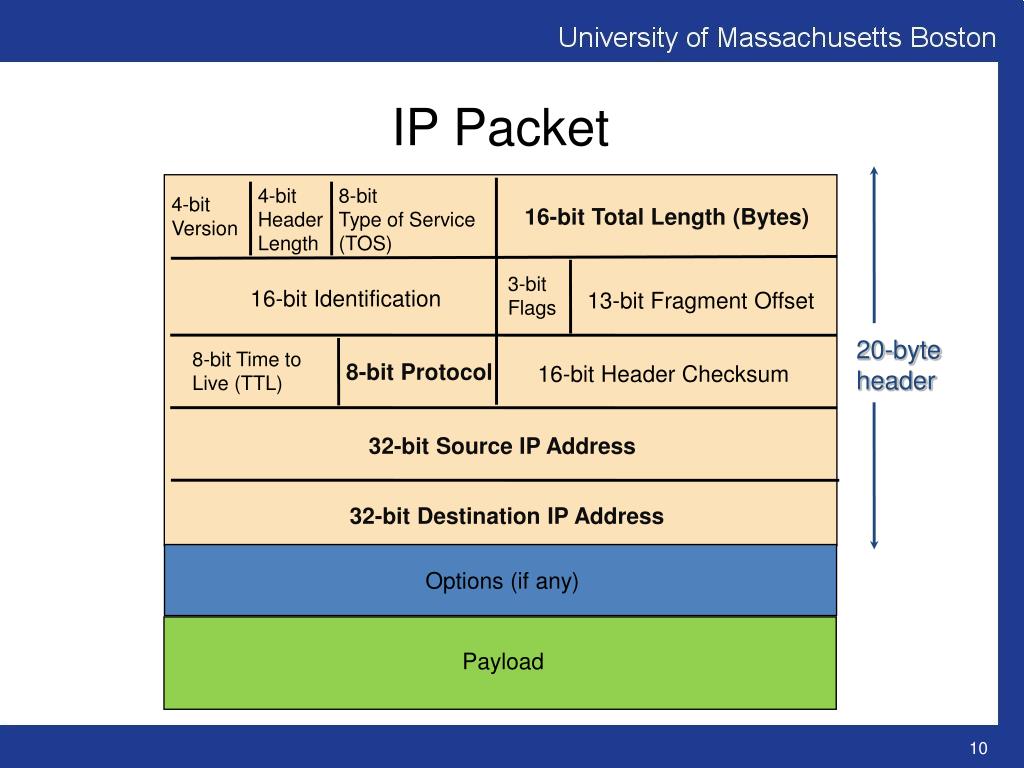

  10. IP Packet 4-bit Header Length 8-bit Type of Service (TOS) 4-bit Version 16-bit Total Length (Bytes) 3-bit Flags 16-bit Identification 13-bit Fragment Offset 20-byte header 8-bit Time to Live (TTL) 8-bit Protocol 16-bit Header Checksum 32-bit Source IP Address 32-bit Destination IP Address Options (if any) Payload

  11. Network Basics • DNS • Hierarchical name space • Local DNS server / caching • dig / dig -x • Data link layer • MAC address • ARP messages / ARP table

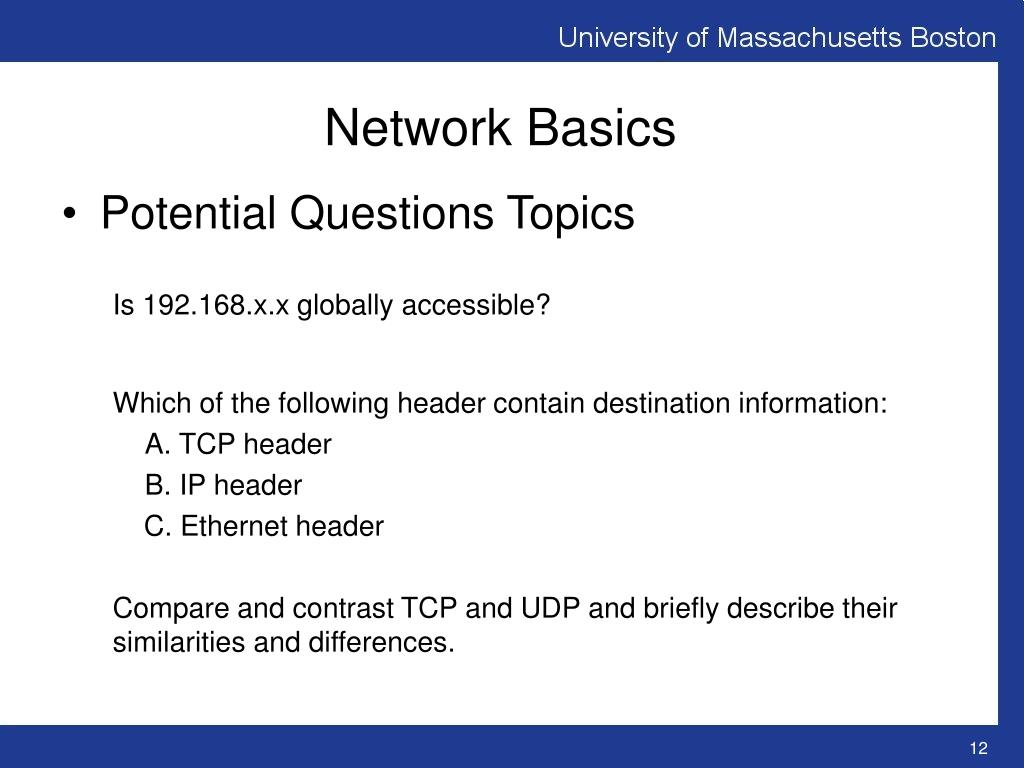

  12. Network Basics • Potential Questions Topics Is 192.168.x.x globally accessible? Which of the following header contain destination information: A. TCP header B. IP header C. Ethernet header Compare and contrast TCP and UDP and briefly describe their similarities and differences.

  13. Recon & Info Gathering • Social Engineering: “the weakest link”, • Physical or automated (e.g., phishing) • Defenses: user awareness • Physical Security • Physical access, theft, dumpster diving • Defenses: locks, policies (access, screen savers, etc.), encrypted file systems, paper shredders http://www.guardian.co.uk/politics/2008/sep/30/terrorism.ebay • Web Searching and Online Recon • Check company website, get contact names, look for comments in html, etc. • Use Search Engines: Google!, Usenet to discover technologies in use, employee names, etc. • Defenses: “Security Through Obscurity”, Policies

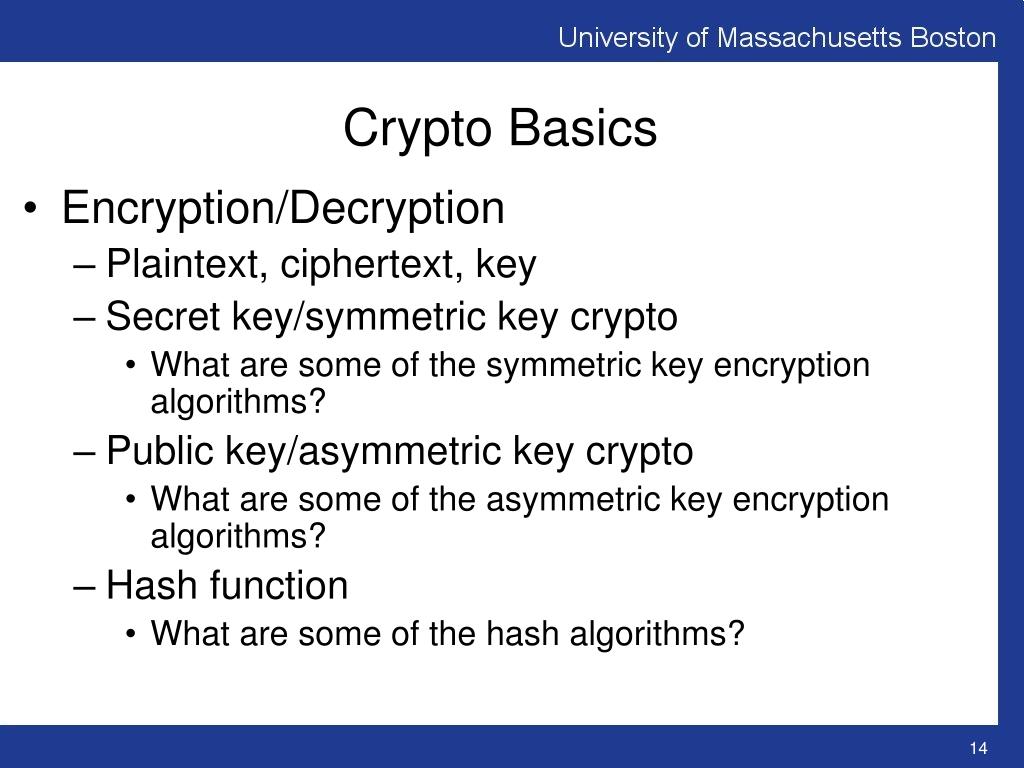

  14. Crypto Basics • Encryption/Decryption • Plaintext, ciphertext, key • Secret key/symmetric key crypto • What are some of the symmetric key encryption algorithms? • Public key/asymmetric key crypto • What are some of the asymmetric key encryption algorithms? • Hash function • What are some of the hash algorithms?

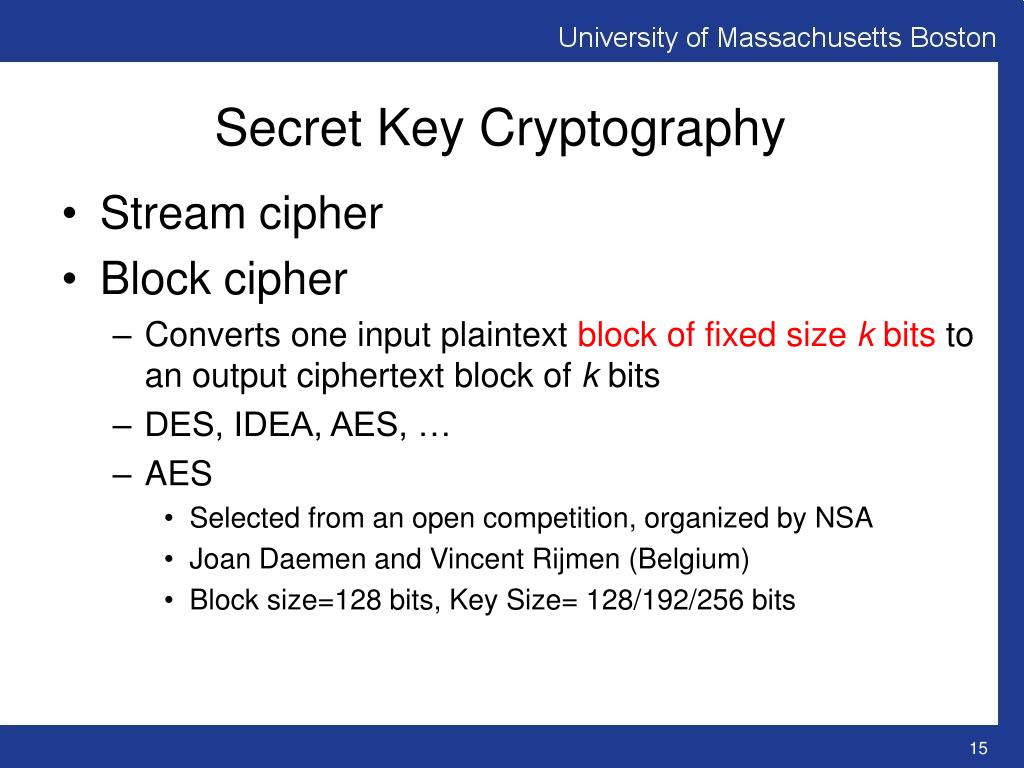

  15. Secret Key Cryptography • Stream cipher • Block cipher • Converts one input plaintext block of fixed size k bits to an output ciphertext block of k bits • DES, IDEA, AES, … • AES • Selected from an open competition, organized by NSA • Joan Daemen and Vincent Rijmen (Belgium) • Block size=128 bits, Key Size= 128/192/256 bits

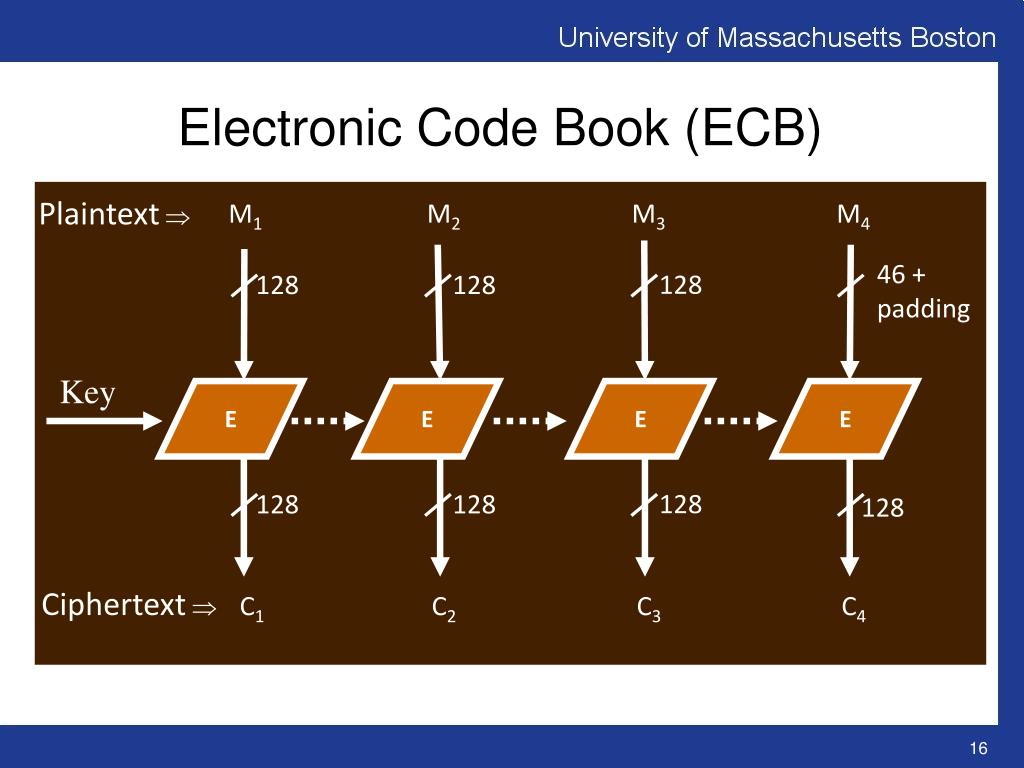

  16. Plaintext M1 M2 M3 M4 46 + padding 128 128 128 Key E E E E 128 128 128 128 Ciphertext C1 C2C3 C4 Electronic Code Book (ECB)

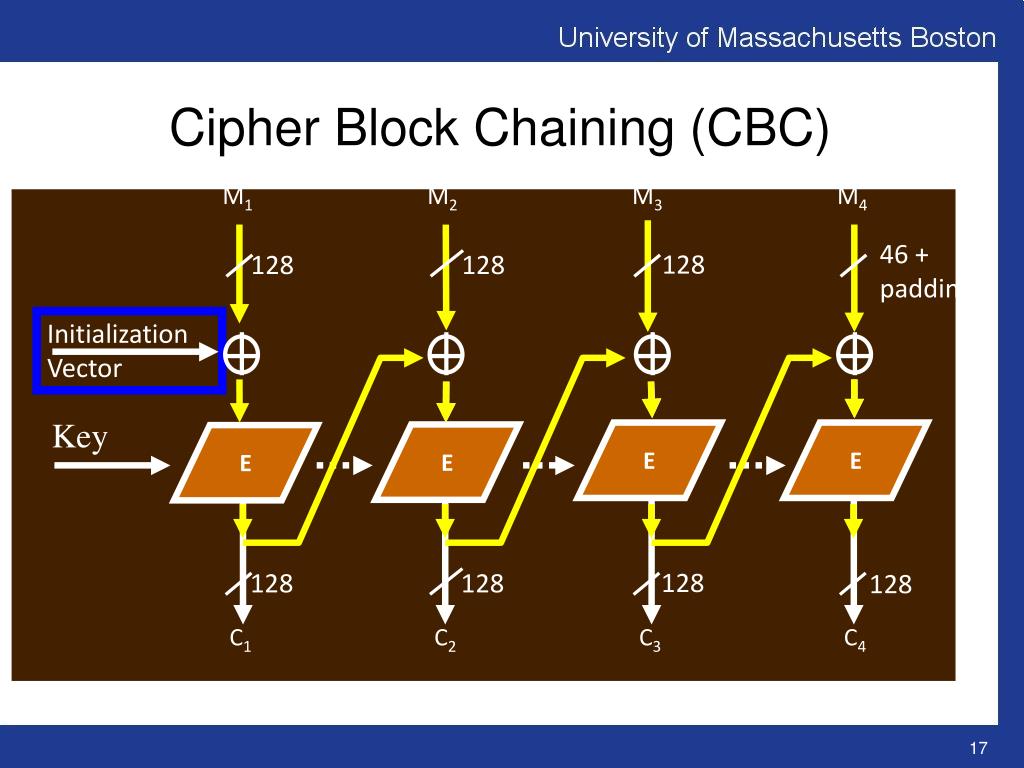

  17. Initialization Vector Key E E E E 128 128 128 128 C1 C2 C3 C4 Cipher Block Chaining (CBC) M1 M2 M3 M4 46 + padding 128 128 128

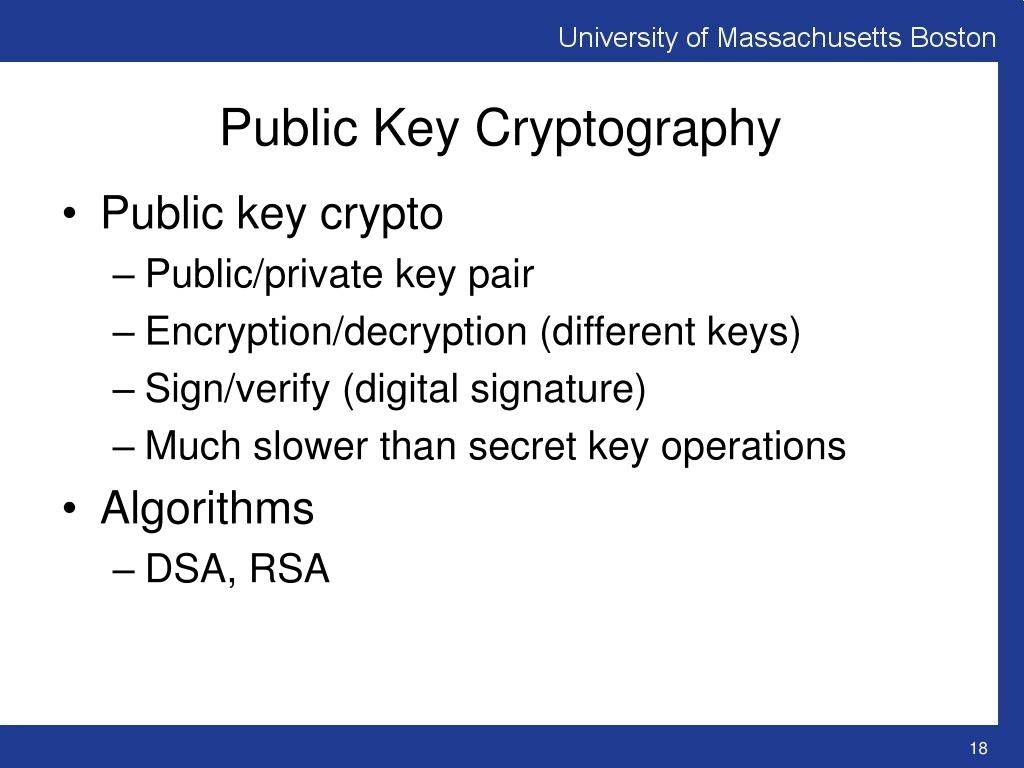

  18. Public Key Cryptography • Public key crypto • Public/private key pair • Encryption/decryption (different keys) • Sign/verify (digital signature) • Much slower than secret key operations • Algorithms • DSA, RSA

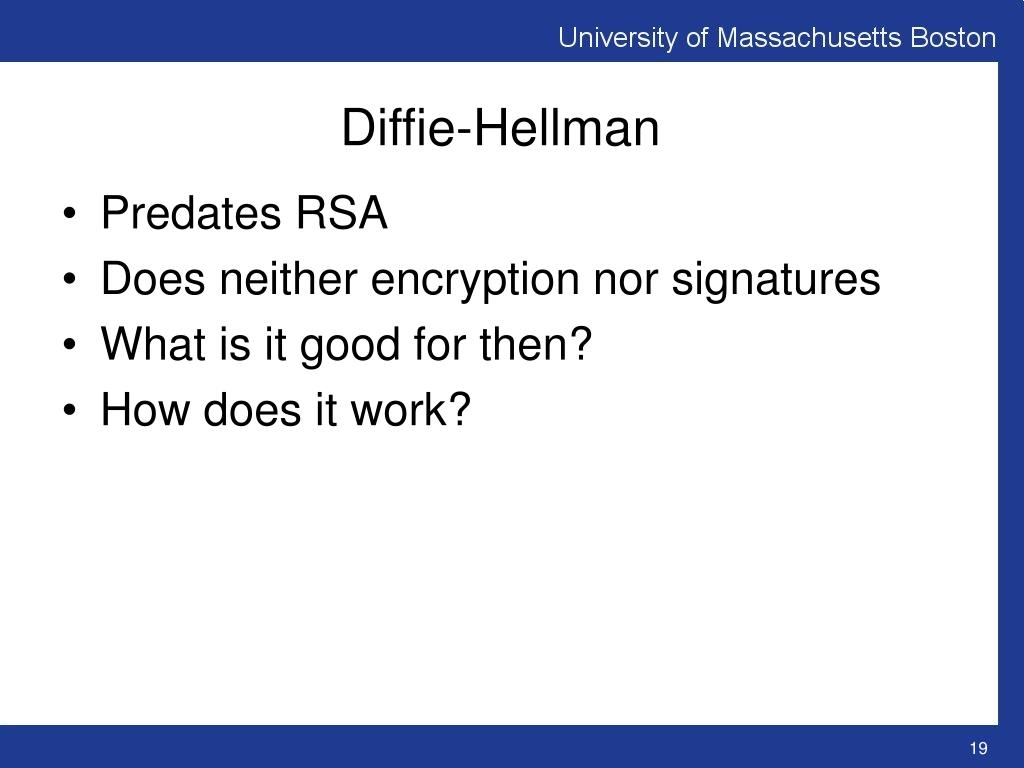

  19. Diffie-Hellman • Predates RSA • Does neither encryption nor signatures • What is it good for then? • How does it work?

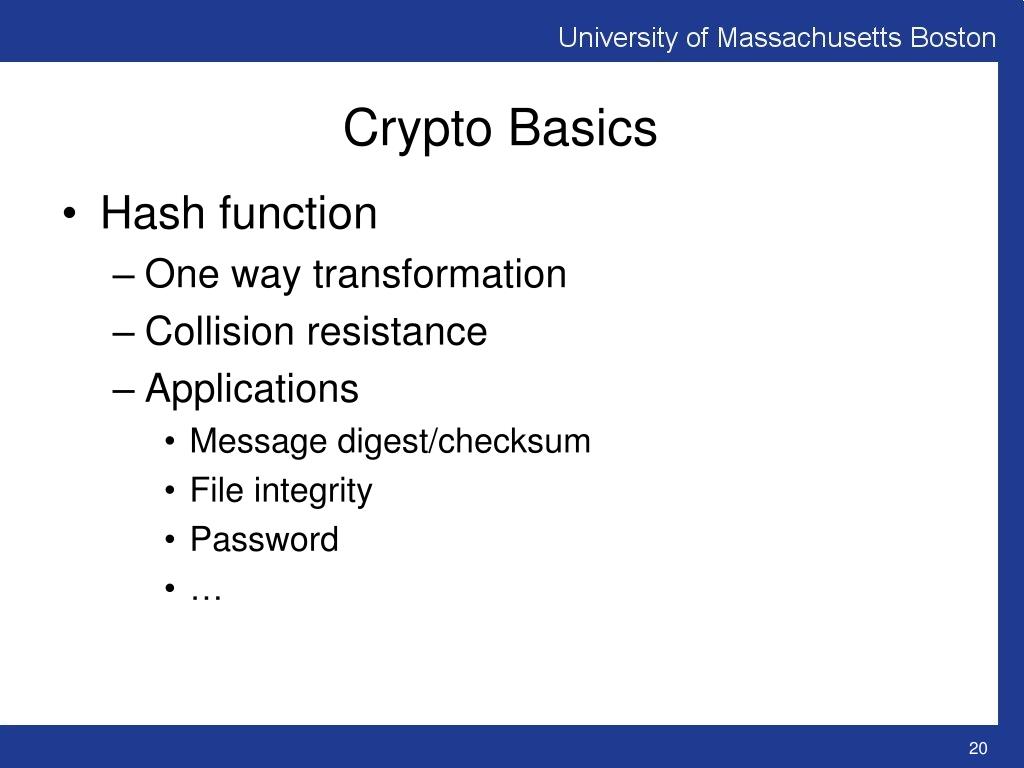

  20. Crypto Basics • Hash function • One way transformation • Collision resistance • Applications • Message digest/checksum • File integrity • Password • …

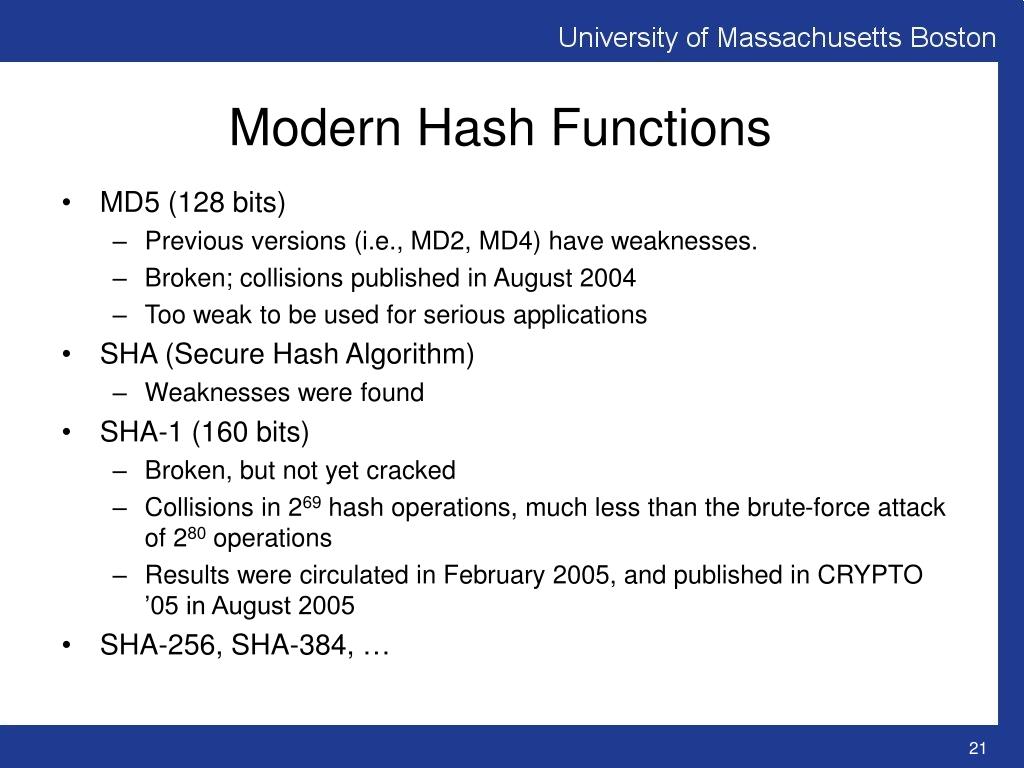

  21. Modern Hash Functions • MD5 (128 bits) • Previous versions (i.e., MD2, MD4) have weaknesses. • Broken; collisions published in August 2004 • Too weak to be used for serious applications • SHA (Secure Hash Algorithm) • Weaknesses were found • SHA-1 (160 bits) • Broken, but not yet cracked • Collisions in 269 hash operations, much less than the brute-force attack of 280 operations • Results were circulated in February 2005, and published in CRYPTO ’05 in August 2005 • SHA-256, SHA-384, …

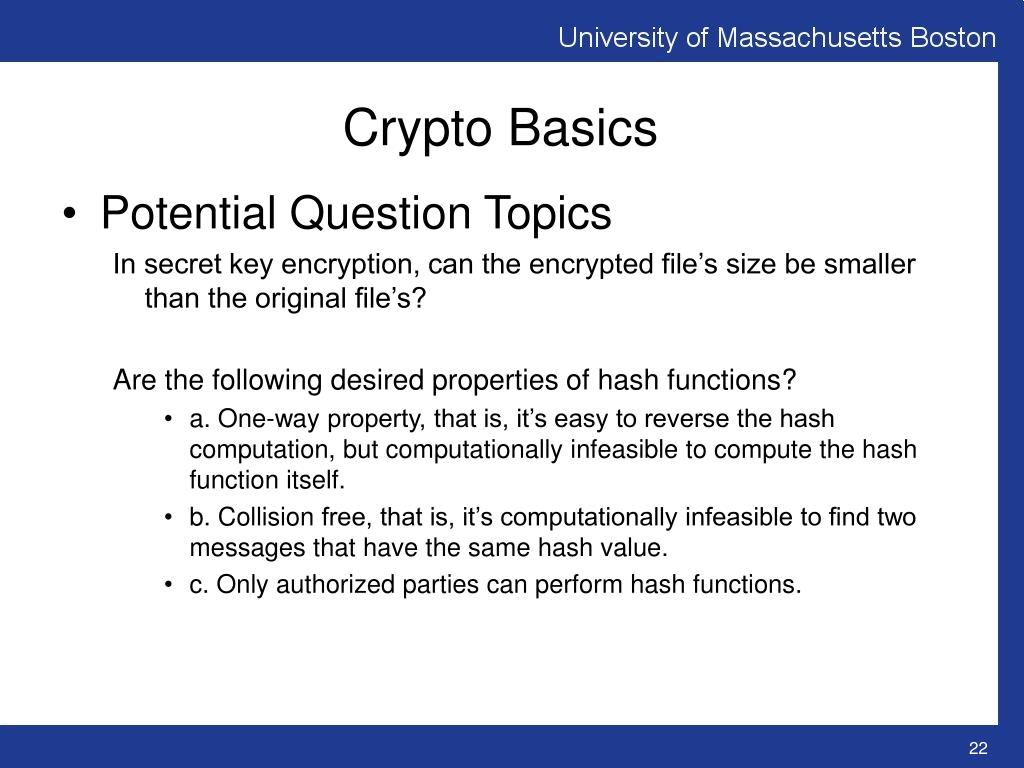

  22. Crypto Basics • Potential Question Topics In secret key encryption, can the encrypted file’s size be smaller than the original file’s? Are the following desired properties of hash functions? • a. One-way property, that is, it’s easy to reverse the hash computation, but computationally infeasible to compute the hash function itself. • b. Collision free, that is, it’s computationally infeasible to find two messages that have the same hash value. • c. Only authorized parties can perform hash functions.

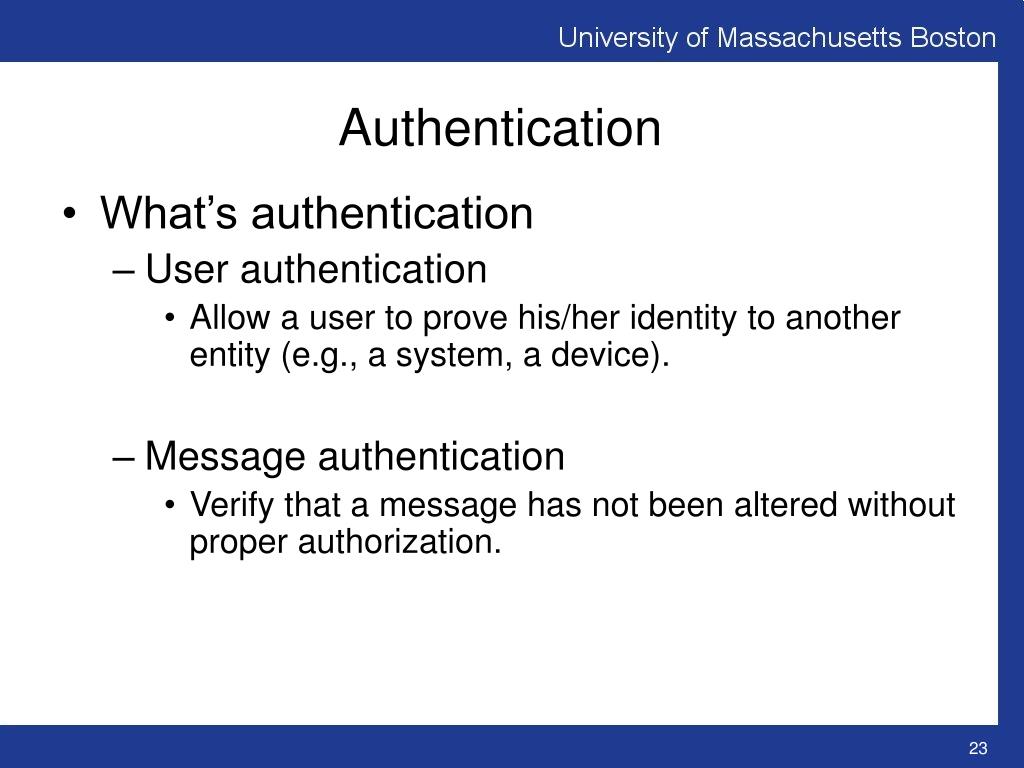

  23. Authentication • What’s authentication • User authentication • Allow a user to prove his/her identity to another entity (e.g., a system, a device). • Message authentication • Verify that a message has not been altered without proper authorization.

  24. Authentication • Threat • Eavesdropping • Password guessing • Server database reading (compromised)

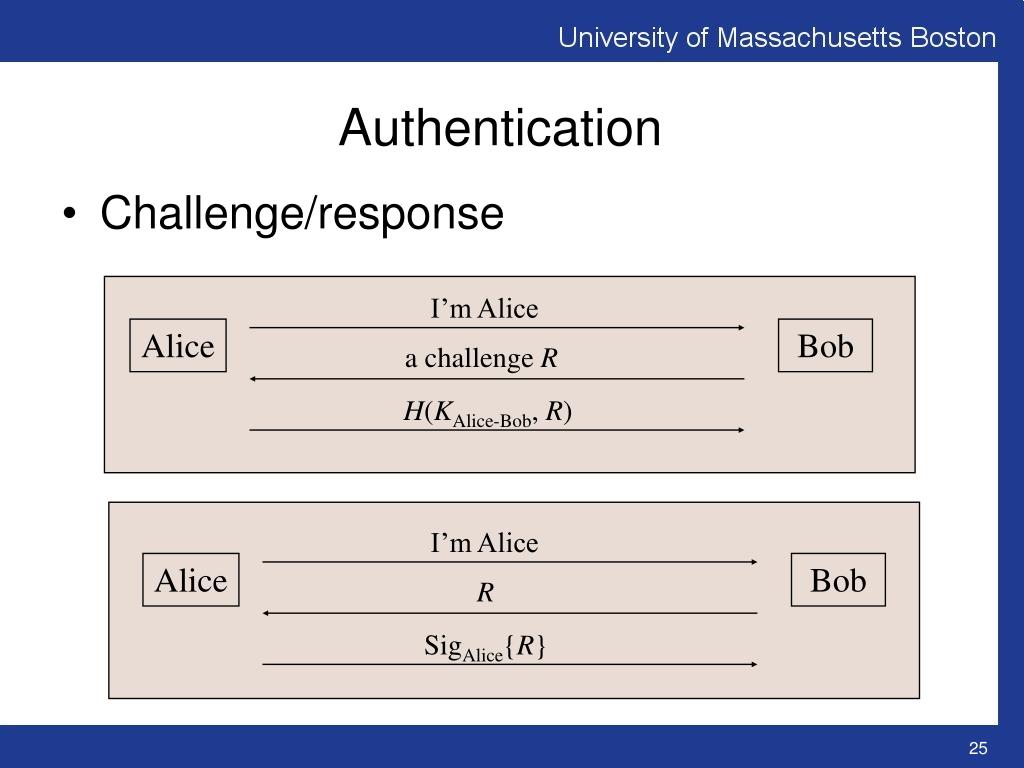

  25. Authentication • Challenge/response I’m Alice Alice Bob a challenge R H(KAlice-Bob, R) I’m Alice Alice Bob R SigAlice{R}

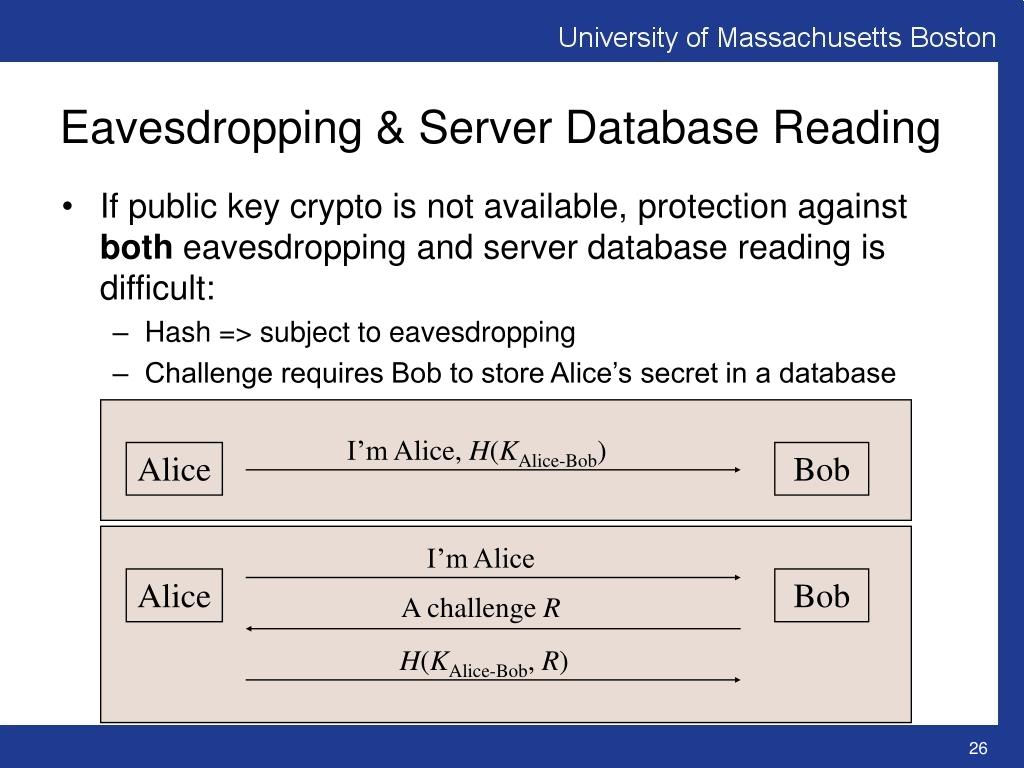

  26. Eavesdropping & Server Database Reading • If public key crypto is not available, protection against both eavesdropping and server database reading is difficult: • Hash => subject to eavesdropping • Challenge requires Bob to store Alice’s secret in a database I’m Alice, H(KAlice-Bob) Alice Bob I’m Alice Alice Bob A challenge R H(KAlice-Bob, R)

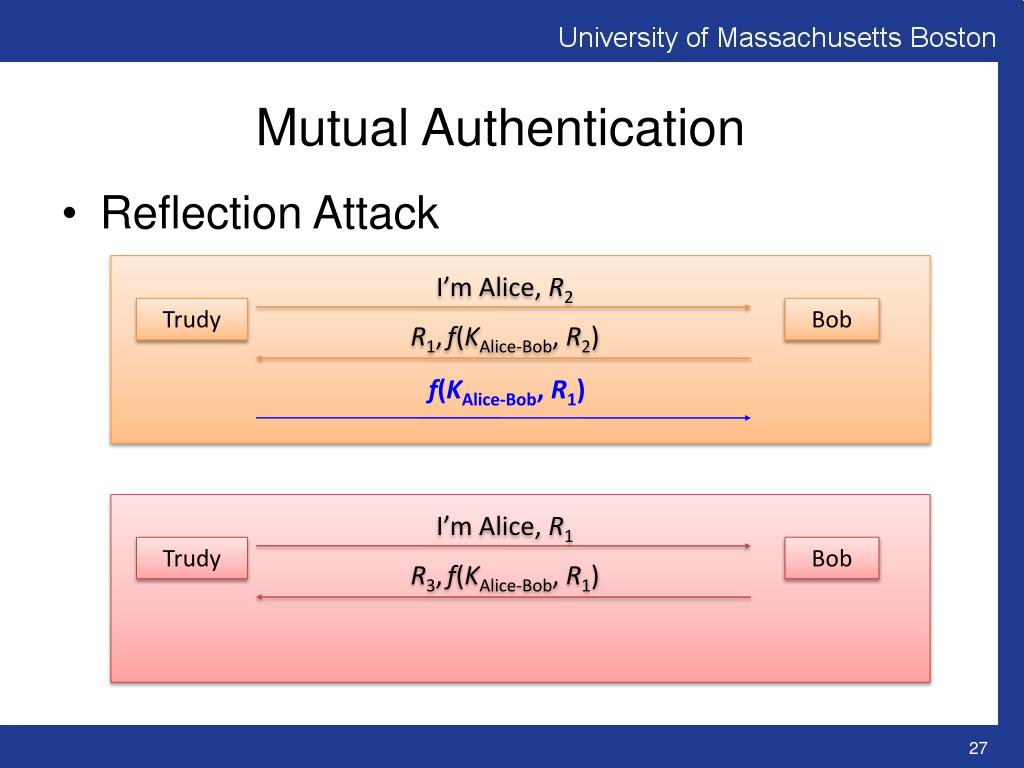

  27. I’m Alice, R2 Trudy Bob R1,f(KAlice-Bob, R2) f(KAlice-Bob, R1) I’m Alice, R1 Trudy Bob R3,f(KAlice-Bob, R1) Mutual Authentication • Reflection Attack

  28. I’m Alice, R2 Alice Bob R1,f(KAlice-Bob, R2) f(KAlice-Bob, R1) Countermeasure I’m Alice Alice Bob R1 f(KAlice-Bob, R1), R2 f(KAlice-Bob, R2) Mutual Authentication • Reflection Attack

  29. Authentication • Key Distribution Center • If node A wants to communicate with node B • A sends a request to the KDC • The KDC securely sends to A: EKA(RAB) and EKB(RAB, A) • Certificate • How do you know the public key of a node? • Certification Authorities (CA) • Everybody needs to know the CA public key • The CA generates certificates: Signed(A, public-key, validity information) [Alice’s public key is 876234]carol [Carol’s public key is 676554]Ted & [Alice’s public key is 876234]carol

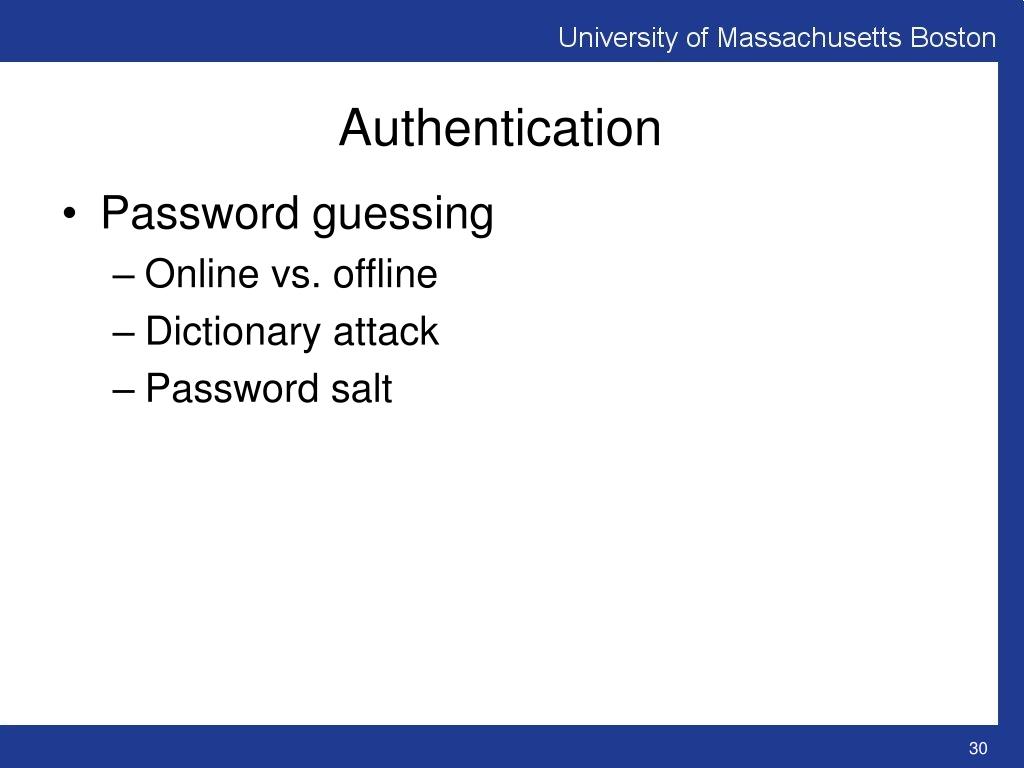

  30. Authentication • Password guessing • Online vs. offline • Dictionary attack • Password salt

  31. Authentication • Potential Question Topics Assume Alice and Bob share a secret KAlice-Bob, what is the security flaw when they use the following protocol for Bob to authenticate Alice? I’m Alice, H(KAlice-Bob) Alice Bob

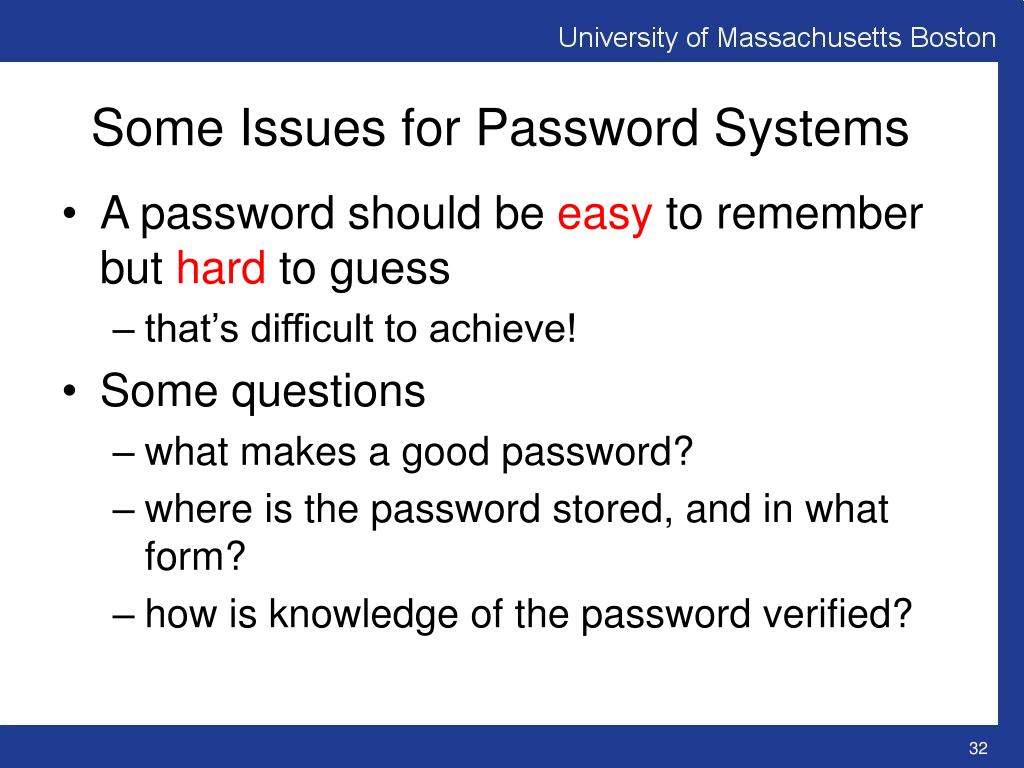

  32. Some Issues for Password Systems • A password should be easy to remember but hard to guess • that’s difficult to achieve! • Some questions • what makes a good password? • where is the password stored, and in what form? • how is knowledge of the password verified?

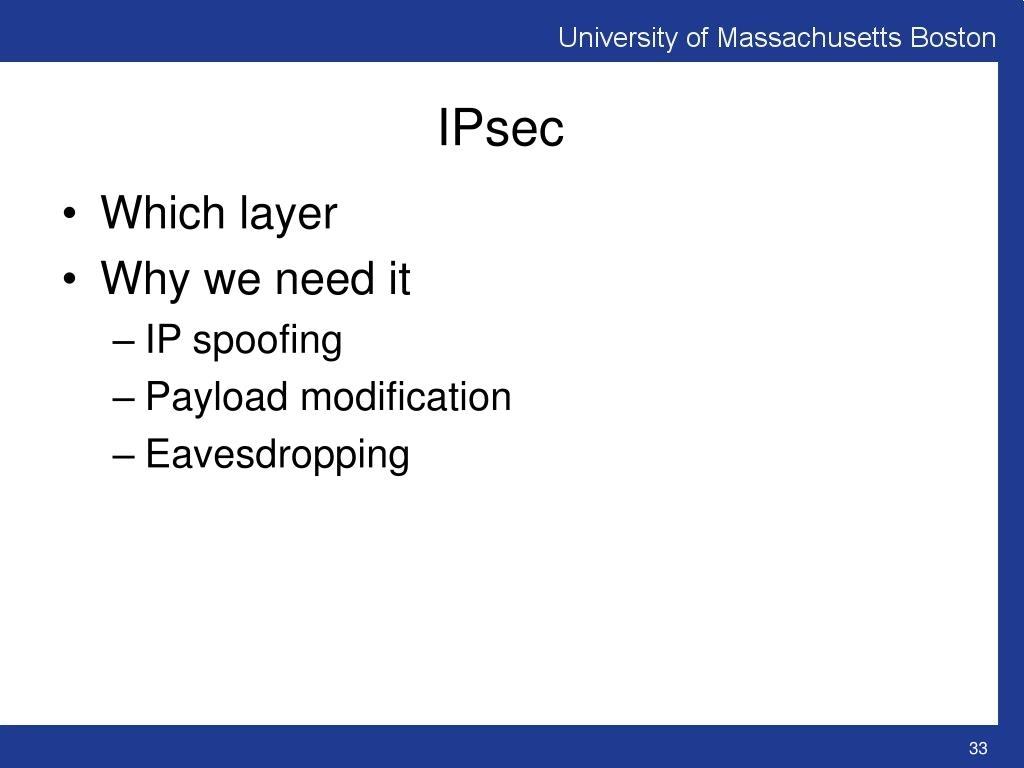

  33. IPsec • Which layer • Why we need it • IP spoofing • Payload modification • Eavesdropping

  34. SSL • Which layer • Why we need it • Think about https • Main processes • Negotiate cipher suites • Authenticate servers • Verify certificates

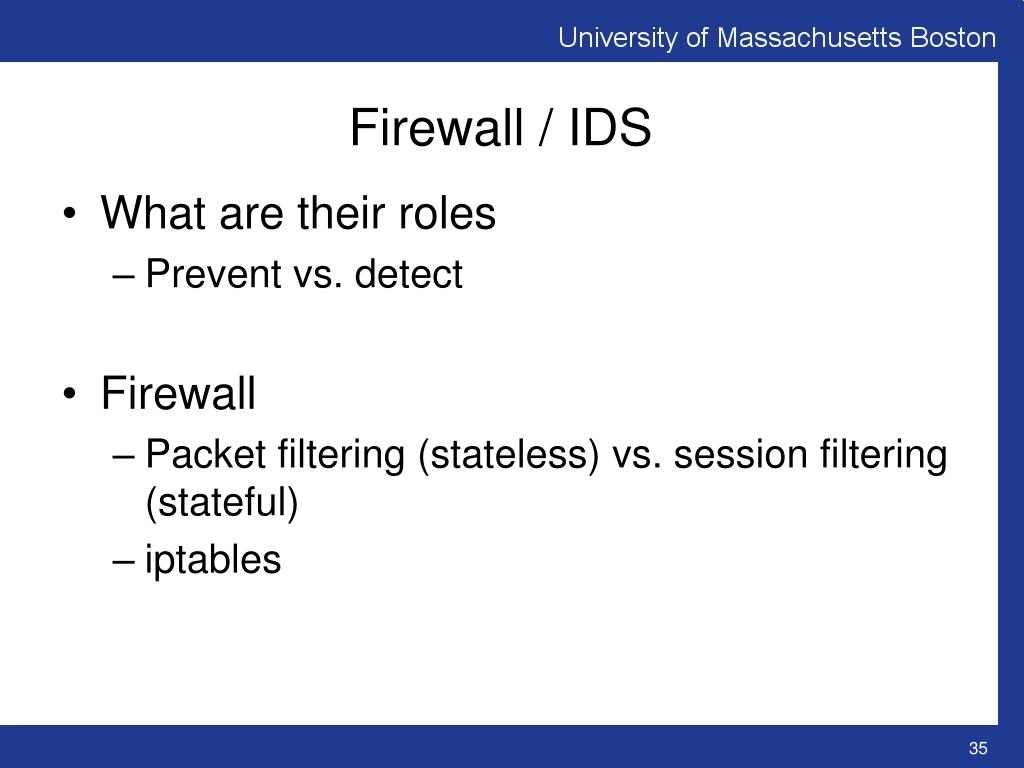

  35. Firewall / IDS • What are their roles • Prevent vs. detect • Firewall • Packet filtering (stateless) vs. session filtering (stateful) • iptables

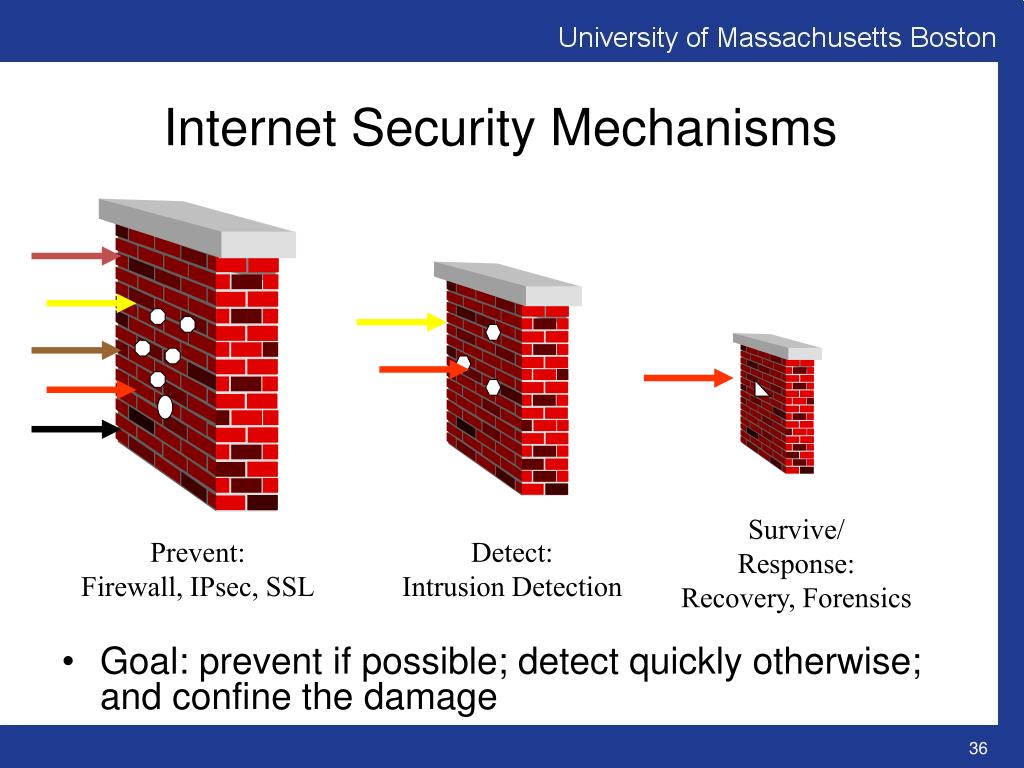

  36. Survive/ Response:Recovery, Forensics Prevent:Firewall, IPsec, SSL Detect:Intrusion Detection Internet Security Mechanisms • Goal: prevent if possible; detect quickly otherwise; and confine the damage

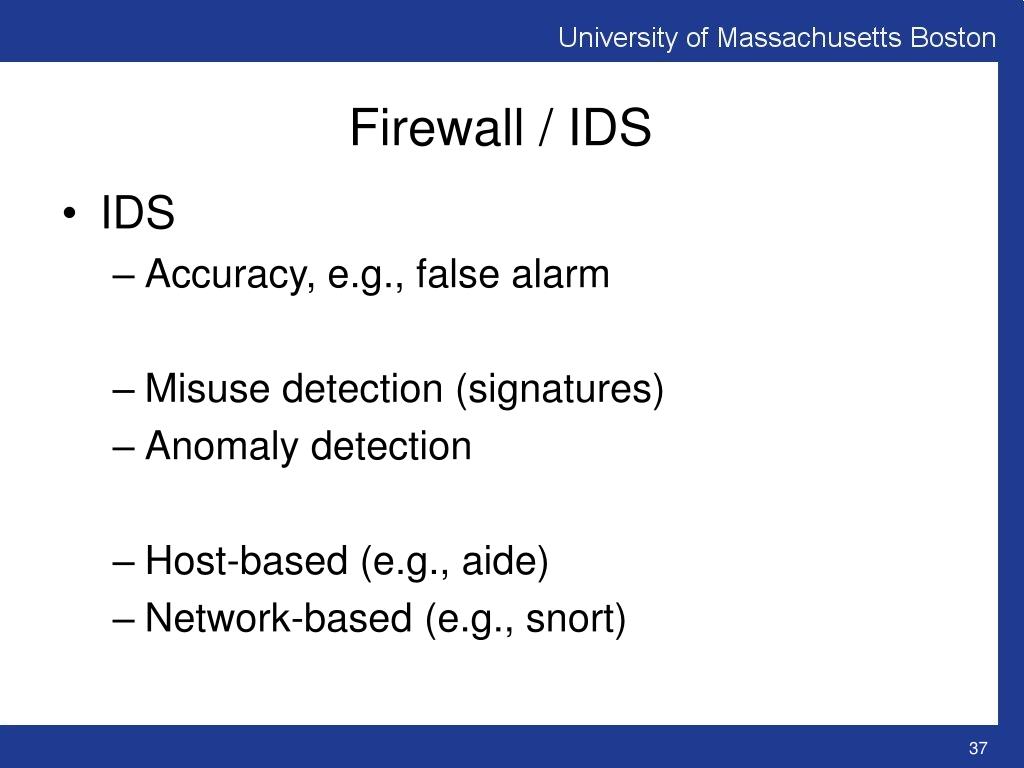

  37. Firewall / IDS • IDS • Accuracy, e.g., false alarm • Misuse detection (signatures) • Anomaly detection • Host-based (e.g., aide) • Network-based (e.g., snort)

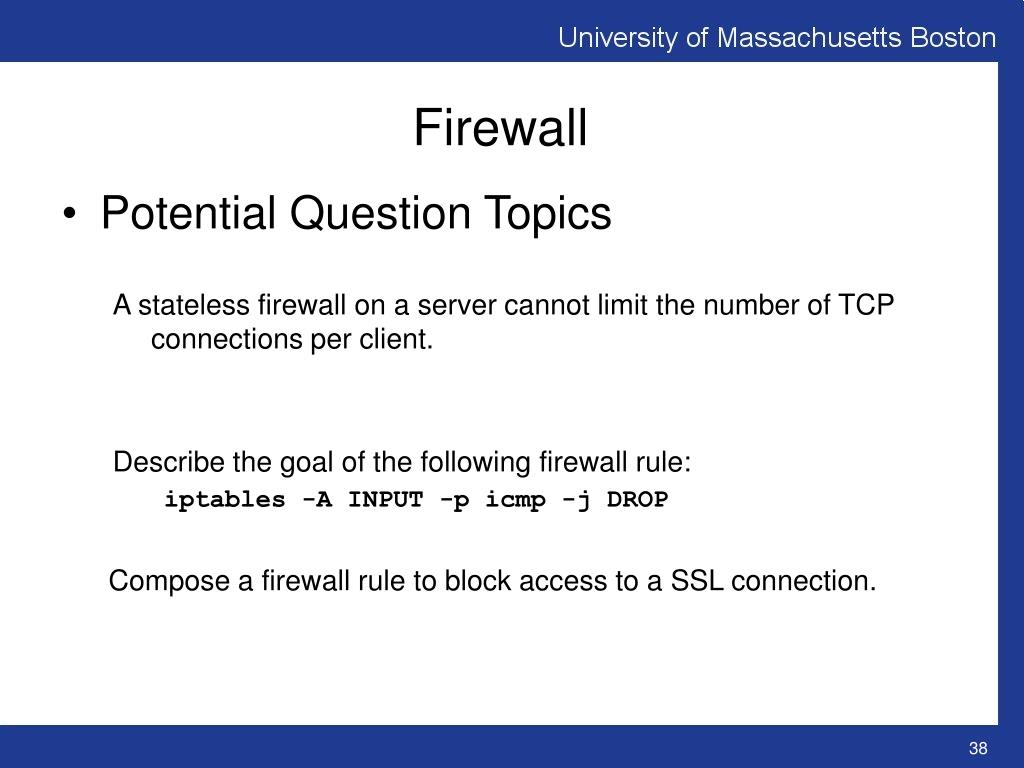

  38. Firewall • Potential Question Topics A stateless firewall on a server cannot limit the number of TCP connections per client. Describe the goal of the following firewall rule: iptables -A INPUT -p icmp -j DROP Compose a firewall rule to block access to a SSL connection.

  39. IDS • Questions • Explain the following snort rule and describe how to trigger the alert: alert tcp $EXTERNAL_NET any -> $HTTP_SERVERS 80 (msg:“Test attack"; content:"test_attack"; … … ) • Compare host-based and network-based IDS, and briefly describe the difference.
