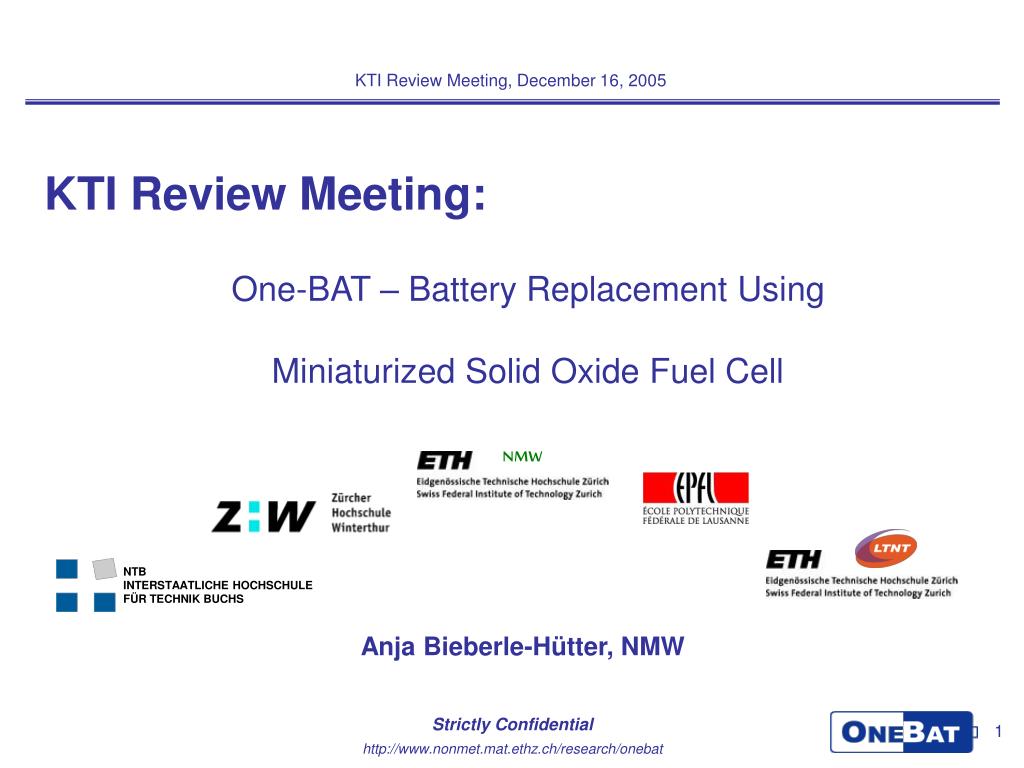

  1. NTB INTERSTAATLICHE HOCHSCHULE FÜR TECHNIK BUCHS NMW KTI Review Meeting, December 16, 2005 KTI Review Meeting: One-BAT – Battery Replacement Using Miniaturized Solid Oxide Fuel Cell Anja Bieberle-Hütter, NMW

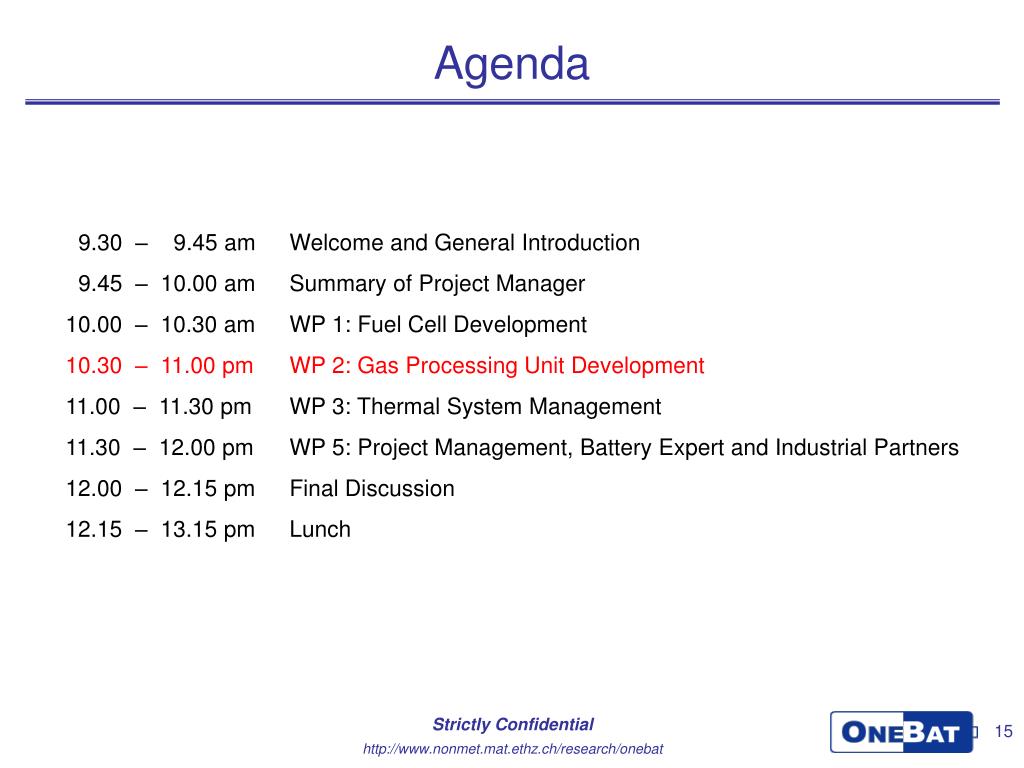

  2. Agenda 9.30 – 9.45 am Welcome and General Introduction 9.45 – 10.00 am Summary of Project Manager 10.00 – 10.30 am WP 1: Fuel Cell Development 10.30 – 11.00 pm WP 2: Gas Processing Unit Development 11.00 – 11.30 pm WP 3: Thermal System Management 11.30 – 12.00 pm WP 5: Project Management, Battery Expert and Industrial Partners 12.00 – 12.15 pm Final Discussion 12.15 – 1.15 pm Lunch General Introduction

  3. Motivation for the Project mobile application stationary application micro-SOFC Sulzer Hexis, CH, 2000 • Scientific interests: • miniaturization and MEMS processing of SOFC materials and its periphery • fundamental aspects of nanocrystalline thin films • investigation of electrode kinetics, reforming and combustion processes • Technical interests: • miniaturization of SOFC systems • alternative to and improvement of state-of-the-art batteries: • very high energy density • immediate charging • long battery life-time • geographical independence General Introduction

  4. Emergence of Micro-Fuel Cells predicted performance state-of-the-art products (Source: Manhattan Scientifics & L. Livermore National Laboratories) General Introduction

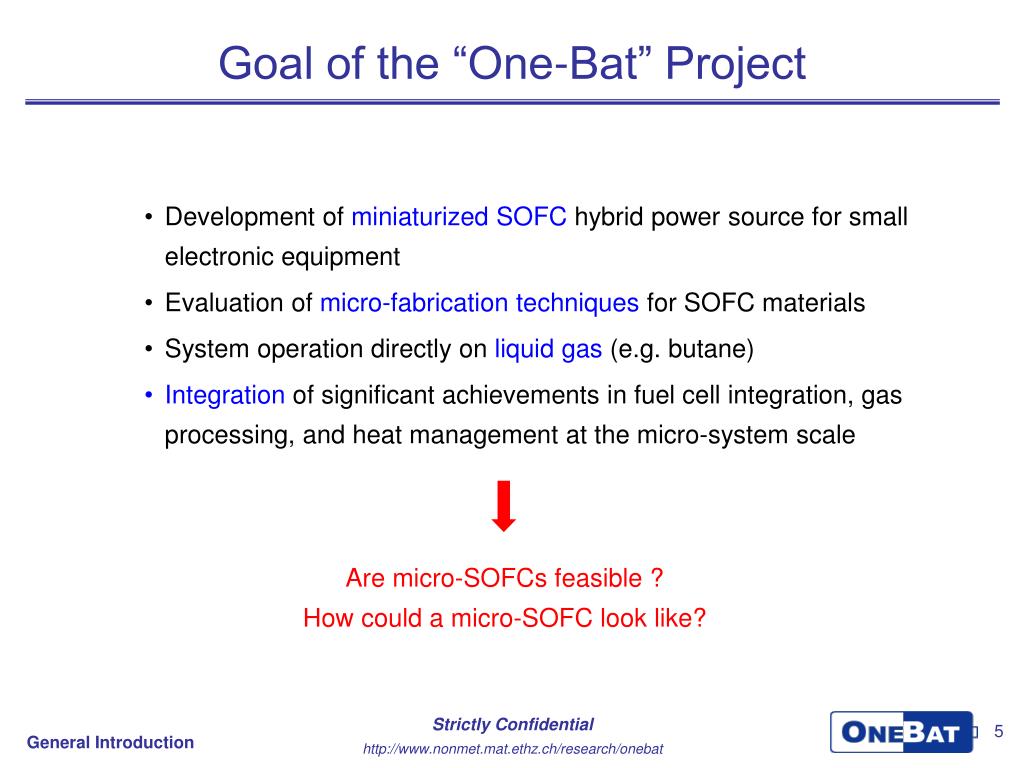

  5. Goal of the “One-Bat” Project • Development of miniaturized SOFC hybrid power source for small electronic equipment • Evaluation of micro-fabrication techniques for SOFC materials • System operation directly on liquid gas (e.g. butane) • Integration of significant achievements in fuel cell integration, gas processing, and heat management at the micro-system scale Are micro-SOFCs feasible ? How could a micro-SOFC look like? General Introduction

  6. Single System Design Fuel e.g. butane AmbientConditions Air Exhaust Gas Heat Exchanger Fuel Reformer Post- Combustor Fuel Cell ~550 °C Hot Module Heat Losses Electric Power Average power 1.1 W (peak power 5 W) Overall volume 30 cm3 Vol. energy density 950 Wh/l Lifetime (speak time) 1000 h Specific Power 350 mW/cm2 Electrical efficiency 30% Produced heat (peak) 2.60 Wth Fuel energy density 11 kWh/kg Peak gas flow 0.29 g/h Air to Fuel ratio 3 λ General Introduction

  7. Structure of the Project Fuel Cell Workpackage 1 Gas Processing Workpackage 2 Workpackage 3 Thermal System Product Development Workpackage 4 not part of 1 year project ProjectManagement Workpackage 5 Summary of Project Manager

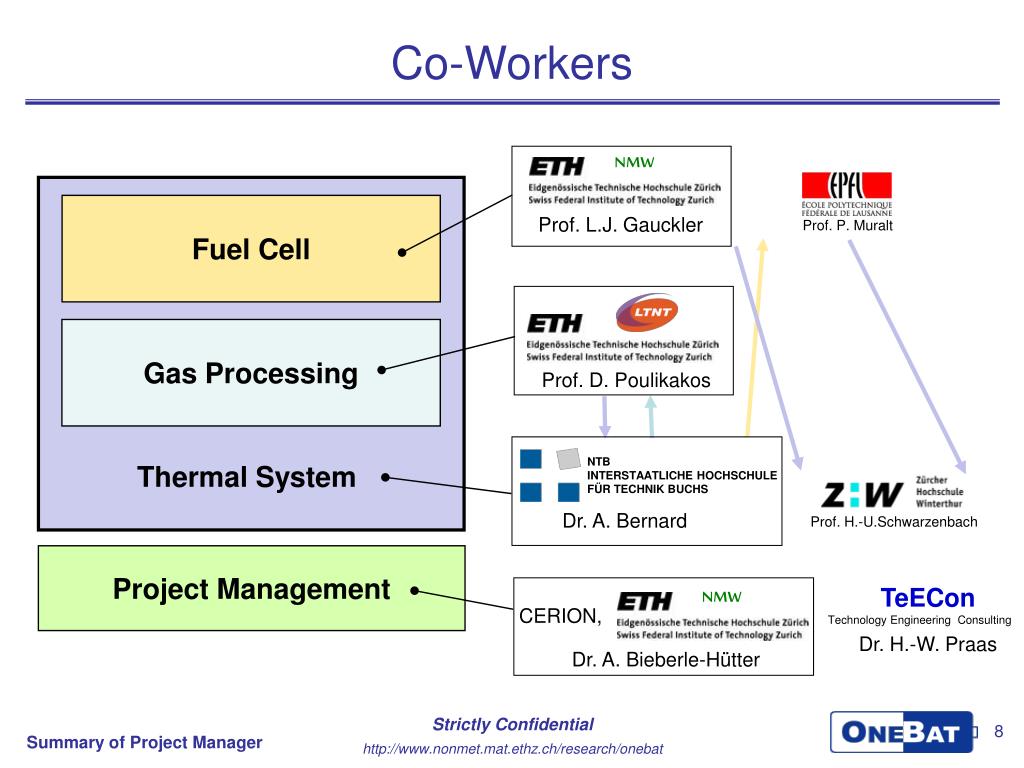

  8. Co-Workers NTB INTERSTAATLICHE HOCHSCHULE FÜR TECHNIK BUCHS Prof. P. Muralt Prof. D. Poulikakos NMW NMW Dr. A. Bernard Prof. H.-U.Schwarzenbach TeECon Technology Engineering Consulting Dr. H.-W. Praas Fuel Cell Prof. L.J. Gauckler Gas Processing Thermal System ProjectManagement CERION, Dr. A. Bieberle-Hütter Summary of Project Manager

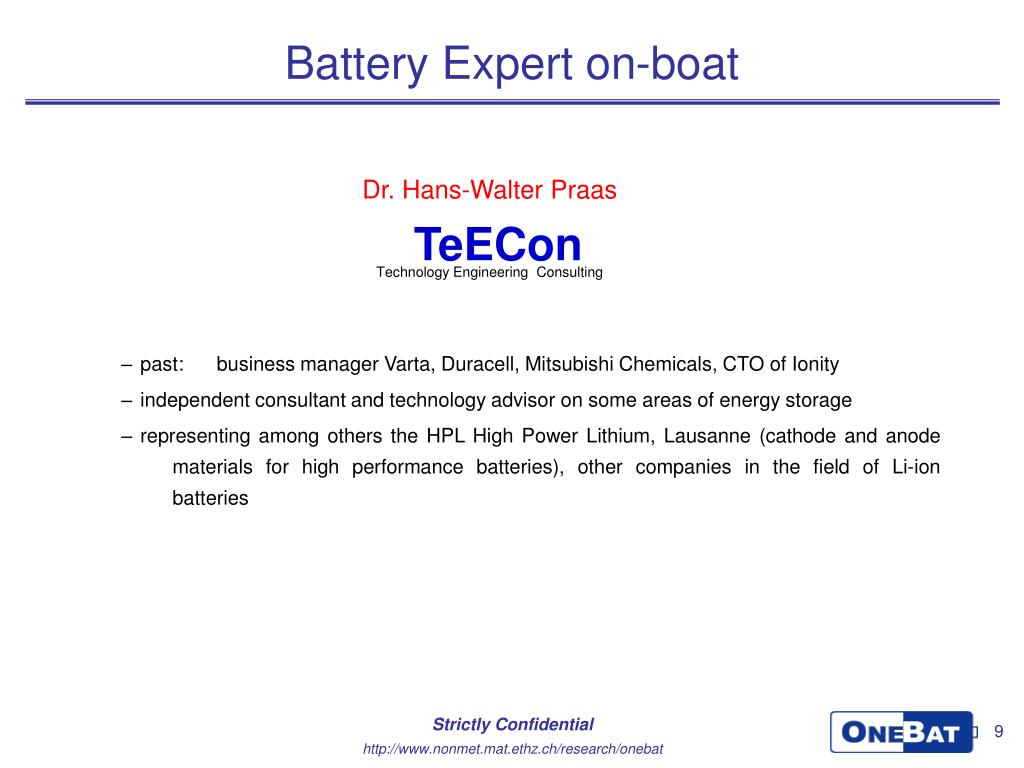

  9. Battery Expert on-boat TeECon Technology Engineering Consulting Dr. Hans-Walter Praas • past: business manager Varta, Duracell, Mitsubishi Chemicals, CTO of Ionity • independent consultant and technology advisor on some areas of energy storage • representing among others the HPL High Power Lithium, Lausanne (cathode and anode materials for high performance batteries), other companies in the field of Li-ion batteries

  10. Year 1 Milestones • performance 200 mW/cm2 @ 550°C • external electrical connections Fuel Cell • butane conversion rate > 90% • post-combustor with gas oxidation > 98% Gas Processing • thermal insulation concept with • Tinside 550°C, Toutside 50°C, <10 cm3 • structures for validation critical points • thermal system demonstrator with • simulated 2 W heat source Thermal System ProjectManagement • battery expert • industrial partner Summary of Project Manager

  11. Main Achievements after 6 Months High butane reforming performance at 600˚C. We can do it! Milestone @ year 1 Butane conversion: Experiments at LTNT TeECon Technology Engineering Consulting first cell with 12 mW/cm2 Fuel Cell Gas Processing Thermal System Thermal insulation concept: 600˚C with 2 W. It could work! ProjectManagement Summary of Project Manager

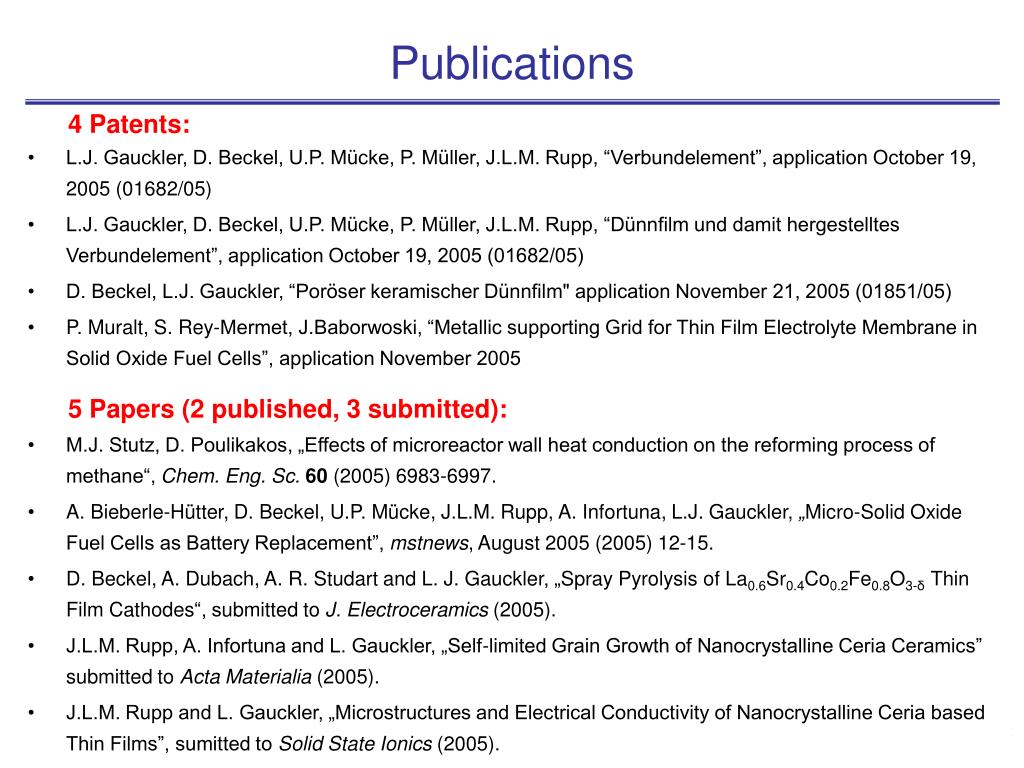

  12. Publications 4 Patents: • L.J. Gauckler, D. Beckel, U.P. Mücke, P. Müller, J.L.M. Rupp, “Verbundelement”, application October 19, 2005 (01682/05) • L.J. Gauckler, D. Beckel, U.P. Mücke, P. Müller, J.L.M. Rupp, “Dünnfilm und damit hergestelltes Verbundelement”, application October 19, 2005 (01682/05) • D. Beckel, L.J. Gauckler, “Poröser keramischer Dünnfilm" application November 21, 2005 (01851/05) • P. Muralt, S. Rey-Mermet, J.Baborwoski, “Metallic supporting Grid for Thin Film Electrolyte Membrane in Solid Oxide Fuel Cells”, application November 2005 • M.J. Stutz, D. Poulikakos, „Effects of microreactor wall heat conduction on the reforming process of methane“, Chem. Eng. Sc.60 (2005) 6983-6997. • A. Bieberle-Hütter, D. Beckel, U.P. Mücke, J.L.M. Rupp, A. Infortuna, L.J. Gauckler, „Micro-Solid Oxide Fuel Cells as Battery Replacement”, mstnews, August 2005 (2005) 12-15. • D. Beckel, A. Dubach, A. R. Studart and L. J. Gauckler, „Spray Pyrolysis of La0.6Sr0.4Co0.2Fe0.8O3-δ Thin Film Cathodes“, submitted to J. Electroceramics (2005). • J.L.M. Rupp, A. Infortuna and L. Gauckler, „Self-limited Grain Growth of Nanocrystalline Ceria Ceramics” submitted to Acta Materialia (2005). • J.L.M. Rupp and L. Gauckler, „Microstructures and Electrical Conductivity of Nanocrystalline Ceria based Thin Films”, sumitted to Solid State Ionics (2005). 5 Papers (2 published, 3 submitted):

  13. General Issues • 3 Meetings: • kick-off meeting (April 14, 2005) • first project meeting (August 11, 2005) • second project meeting (November 17, 2005) • 1 Report: • first controlling report (August 31, 2005) • web page: http://www.nonmet.mat.ethz.ch/research/onebat, password: ktionebat • meeting information: agenda, minutes, presentations • reports • papers • list of co-workers, .... Summary of Project Manager

  14. Agenda 9.30 – 9.45 am Welcome and General Introduction 9.45 – 10.00 am Summary of Project Manager 10.00 – 10.30 am WP 1: Fuel Cell Development 10.30 – 11.00 pm WP 2: Gas Processing Unit Development 11.00 – 11.30 pm WP 3: Thermal System Management 11.30 – 12.00 pm WP 5: Project Management, Battery Expert and Industrial Partners 12.00 – 12.15 pm Final Discussion 12.15 – 13.15 pm Lunch

  15. Agenda 9.30 – 9.45 am Welcome and General Introduction 9.45 – 10.00 am Summary of Project Manager 10.00 – 10.30 am WP 1: Fuel Cell Development 10.30 – 11.00 pm WP 2: Gas Processing Unit Development 11.00 – 11.30 pm WP 3: Thermal System Management 11.30 – 12.00 pm WP 5: Project Management, Battery Expert and Industrial Partners 12.00 – 12.15 pm Final Discussion 12.15 – 13.15 pm Lunch

  16. Agenda 9.30 – 9.45 am Welcome and General Introduction 9.45 – 10.00 am Summary of Project Manager 10.00 – 10.30 am WP 1: Fuel Cell Development 10.30 – 11.00 pm WP 2: Gas Processing Unit Development 11.00 – 11.30 pm WP 3: Thermal System Management 11.30 – 12.00 pm WP 5: Project Management, Battery Expert and Industrial Partners 12.00 – 12.15 pm Final Discussion 12.15 – 13.15 pm Lunch

  17. Agenda 9.30 – 9.45 am Welcome and General Introduction 9.45 – 10.00 am Summary of Project Manager 10.00 – 10.30 am WP 1: Fuel Cell Development 10.30 – 11.00 pm WP 2: Gas Processing Unit Development 11.00 – 11.30 pm WP 3: Thermal System Management 11.30 – 12.00 pm WP 5: Project Management, Battery Expert and Industrial Partners 12.00 – 12.15 pm Final Discussion 12.15 – 13.15 pm Lunch

  18. Agenda 9.30 – 9.45 am Welcome and General Introduction 9.45 – 10.00 am Summary of Project Manager 10.00 – 10.30 am WP 1: Fuel Cell Development 10.30 – 11.00 pm WP 2: Gas Processing Unit Development 11.00 – 11.30 pm WP 3: Thermal System Management 11.30 – 12.00 pm WP 5: Project Management, Battery Expert and Industrial Partners 12.00 – 12.15 pm Final Discussion 12.15 – 13.15 pm Lunch

  19. NTB INTERSTAATLICHE HOCHSCHULE FÜR TECHNIK BUCHS High butane reforming performance at 600˚C. We can do it! Milestone @ year 1 NMW Butane conversion: Experiments at LTNT Thermal insulation concept: 600˚C with 2 W. It could work! TeECon Technology Engineering Consulting first cell with 12 mW/cm2 Strictly Confidential
