Presentation Transcript

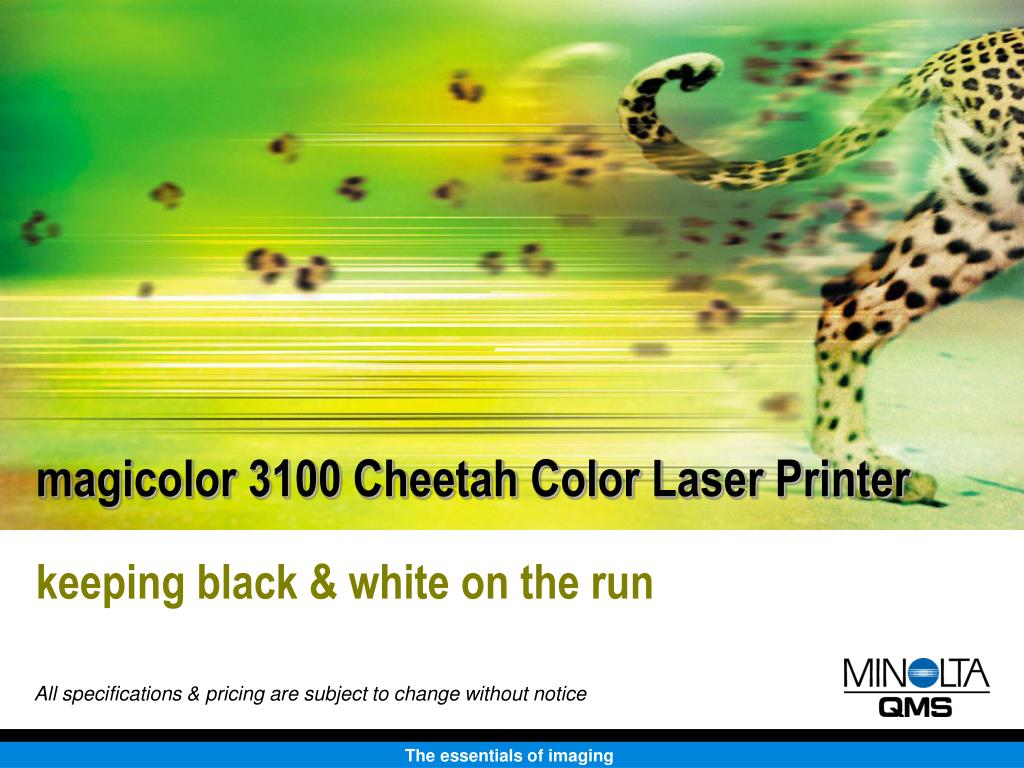

  1. magicolor 3100 Cheetah Color Laser Printer keeping black & white on the run All specifications & pricing are subject to change without notice

  2. magicolor 3100 Cheetah Color Laser Printer At 16 ppm color and b&w, it’s the fastest magicolor laser printer yet!

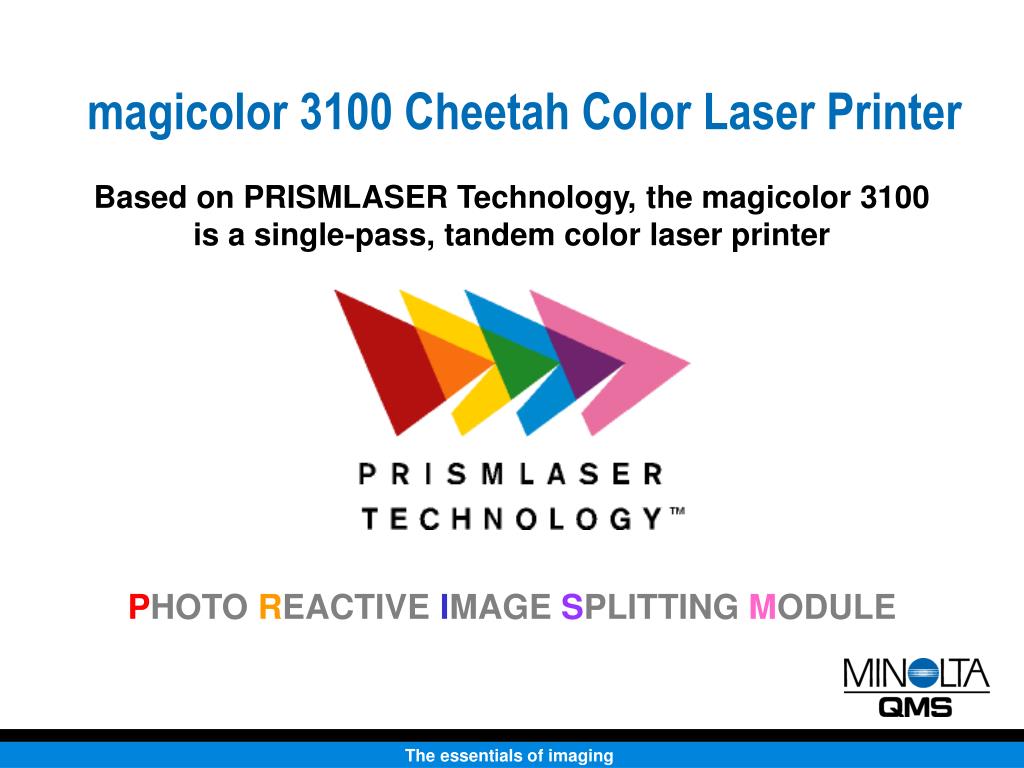

  3. magicolor 3100 Cheetah Color Laser Printer Based on PRISMLASER Technology, the magicolor 3100 is a single-pass, tandem color laser printer PHOTO REACTIVE IMAGE SPLITTING MODULE

  4. magicolor 3100 Cheetah Color Laser Printer PRISMLASER Technology images all four toner colors on a page simultaneously to create full-color output • 2 to 4 times faster than traditional, 4-pass color laser printers • Better registration & print quality than LED printers • Fewer replacement consumables • Better cost of operation & ownership

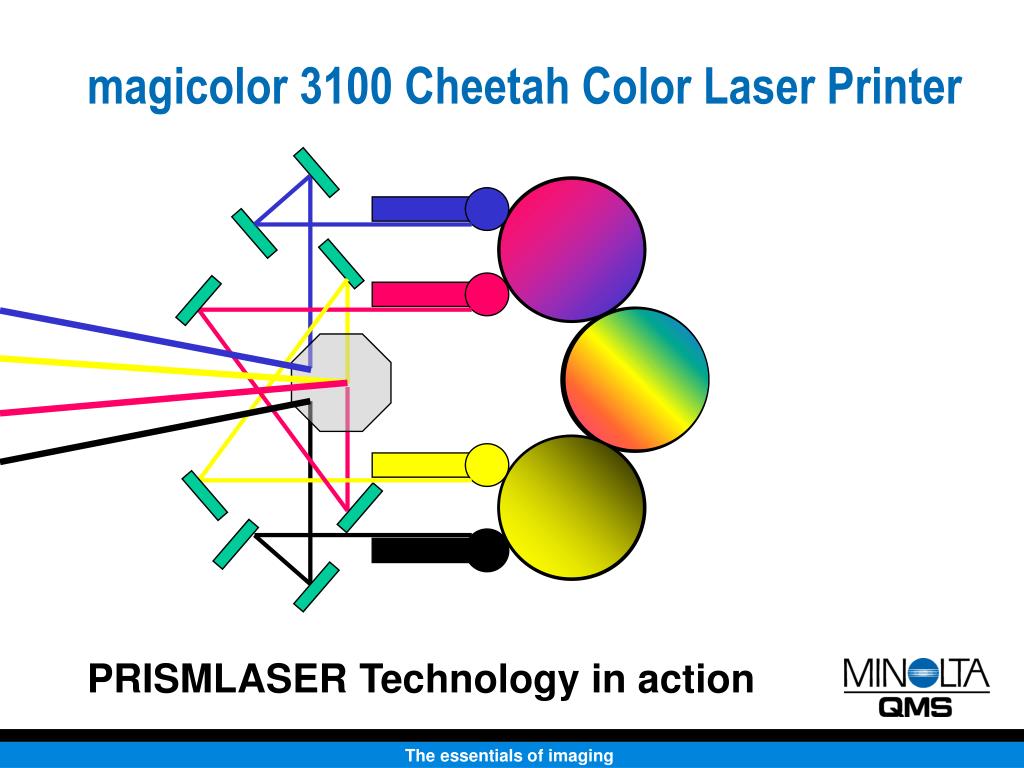

  5. magicolor 3100 Cheetah Color Laser Printer PRISMLASER Technology in action

  6. magicolor 3100 Cheetah Color Laser Printer Standard Features 16 ppm 16 ppm True 1200 x 1200 dpi Microfine, PhysicoChemical Standard 600 sheets 250 sheets Up to 8.5 x 14 inches 256 MB PostScript 3, PCL 6, PDF 10/100BaseTX Ethernet, USB, Parallel Speed - color Speed - b&w Resolution Toner Auto duplex Paper input Paper output Paper size Memory Emulations Interfaces HOT ITEM!

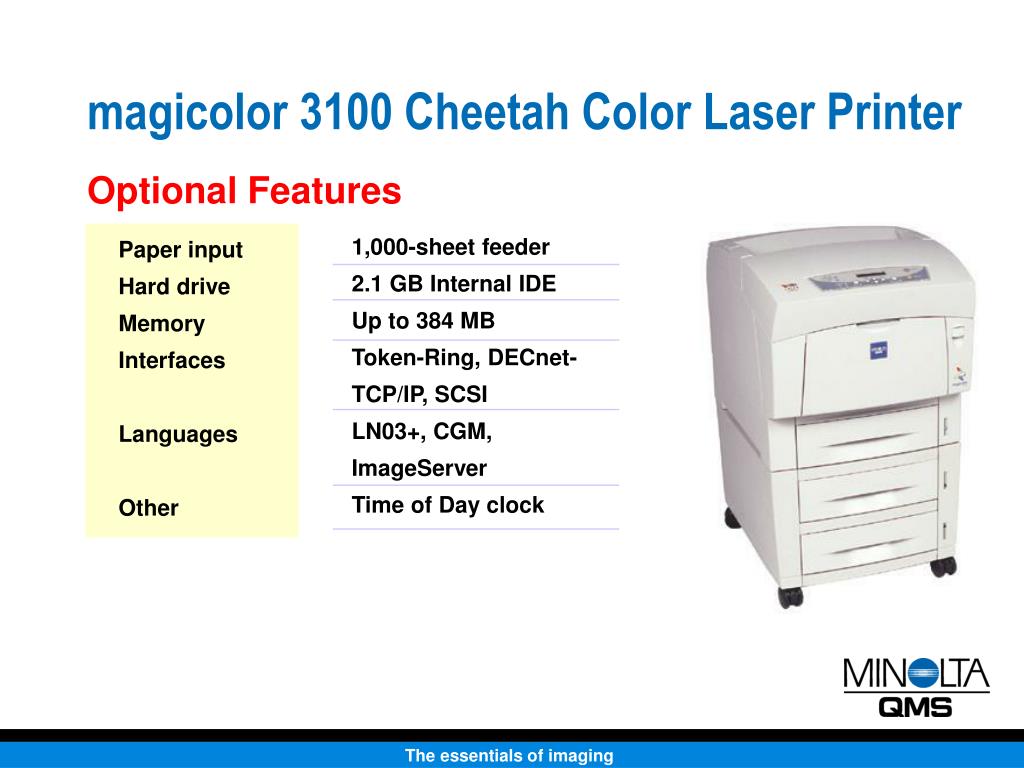

  7. magicolor 3100 Cheetah Color Laser Printer Optional Features 1,000-sheet feeder 2.1 GB Internal IDE Up to 384 MB Token-Ring, DECnet-TCP/IP, SCSI LN03+, CGM, ImageServer Time of Day clock Paper input Hard drive Memory Interfaces Languages Other

  8. magicolor 3100 Cheetah Color Laser Printer Target Customer • Business workgroups • Smaller businesses can use the printer as their primary printing resource • Workgroups in larger organizations are bestserved by the printer’s speed, standard duplexing, & low cost per page

  9. magicolor 3100 Cheetah Color Laser Printer Print Engine • Weight • Shipping - 101.2 lbs. (46 kg) • Installed - 76.8 lbs. (34.9 kg) • Without consumables - 64.2 lbs. (29.2 kg) • Dimensions(W x D x H) • Shipping - 22.5 x 29.5 x 31.7 inches (571 x 750 x 806 mm) • Installed - 17.3 x 25.1 x 17.5 inches (439 x 638 x 445 mm) • Duty Cycle • 60,000 impressions per month

  10. magicolor 3100 Cheetah Color Laser Printer Controller • Crown III controller architecture • 350 MHz MIPS CPU • 256 MB SDRAM (up to 384 MB) • 1200 x 1200 dpi resolution • 10/100BaseTX Ethernet, Parallel, & USB interfaces • PostScript 3, PDF, PCL 6, HP-GL, & Line Printer languages • One optional network interface • Optional internal IDE hard drive

  11. magicolor 3100 Cheetah Color Laser Printer Controller : Crown Architecture • Multitasking architecture • Improves workgroup productivity • Multiprotocol CrownNet interface • Enables seamless connectivity between systems • Support for device management standards • Enables easy printer and network administration • Support for network printing protocols • Eases transition into new operating standards

  12. magicolor 3100 Cheetah Color Laser Printer Controller : Platform & Protocol Support • Protocol support • TCP/IP • IPP • IPX/SPX • NetBEUI / NetBIOS • AppleTalk • USB • Platform support • Windows 95/98/Me • Windows 2000 • Windows NT 4.0 • Windows XP • NetWare 6 (NDPS) • Mac OS 8/9 • Mac OS X • UNIX • OS/2 • VAX/VMS

  13. magicolor 3100 Cheetah Color Laser Printer Controller : Printer Management • PageScope Network Printer Management • Designed for system administrators • Provides printer security, support, and information-gathering capabilities • Attractive, easy-to-use form minimizes wasted time and improves network productivity • Easily accessed from any computer on the network using a standard Web browser

  14. magicolor 3100 Cheetah Color Laser Printer Controller : Printer Management • CrownView Printer Management & Monitoring • Designed for any printer user • Conveniently review printer & print job status, check consumable levels, order consumables on-line, generate printer statistics • Easily accessed from the desktop using any Web browser

  15. magicolor 3100 Cheetah Color Laser Printer Controller : Color Support • AIC (Automatic Image Calibration) • For great quality without hands-on adjustments • Automatic ICC-based color matching • Generates best possible color based on a page’s contents • Windows ICM & Apple ColorSync profiles • Profile downloading • PANTONE certified • SWOP, Eurocolor, & Commercial Press emulations

  16. Built-in automatic duplexer 250-sheet output bin 100-sheet multipurpose tray 500-sheet input cassette 1,000-sheet high-capacity input feeder (optional) magicolor 3100 Cheetah Color Laser Printer Paper Handling

  17. magicolor 3100 Cheetah Color Laser Printer Paper Handling • Built-in automatic duplexer • A standard feature not found in base-model 4-pass color laser and LED printers • Significant saver in paper costs and filing space • 500-sheet input cassette • 100-sheet multipurpose tray • Ideal for printing labels, envelopes, transparencies, heavier stock • 1,000-sheet high-capacity input feeder • Two 500-sheet cassettes for heavier print volumes • 250-sheet output bin

  18. magicolor 3100 Cheetah Color Laser Printer Paper Handling • Supports a variety of media • Paper, transparencies, labels, glossy stock, thick stock, envelopes • Supports a range of paper weights • 16 - 20 lb. Bond (60 - 85 g/m2) • Up to 80 lb. Cover / 110 lb. Index (216 g/m2) • Supports Letter/A4, Legal, Envelopes

  19. magicolor 3100 Cheetah Color Laser Printer Print Quality • 1200 x 1200 dpi resolution • PRISMLASER Technology • One-pass printing for best registration with no distortion • Automatic color calibration and registration adjustment • No effort to achieve best quality output • New Microfine PhysicoChemical toner technology

  20. magicolor 3100 Cheetah Color Laser Printer Print Quality : Microfine PhysicoChemical Toner • Smaller particle, uniform in size & shape • Produces finer lines, more detailed lines, better halftones Microfine PhysicoChemical Toner Conventional Toner

  21. magicolor 3100 Cheetah Color Laser Printer Print Quality : Microfine PhysicoChemical Toner Microfine PhysicoChemical Toner is formulated to produce high-quality text, lines, and graphics.

  22. magicolor 3100 Cheetah Color Laser Printer Print Quality : Microfine PhysicoChemical Toner • Contains wax within the toner • Creates an oil-less fusing system • Means one less consumable to buy and replace • Creates high transfer efficiency • For low power consumption, less waste toner created, less media dependence • Produces high-quality output on recycled & plain copier paper, monochrome transparencies • No need for special media for best output

  23. Color-coded toner “PRISM” Imaging Unit magicolor 3100 Cheetah Color Laser Printer Consumables • 7 user-replaceable consumables • Cyan, Magenta, Yellow Toner (6,000 prints @ 5%) • Black Toner (8,500 prints @ 5%) • “PRISM” Imaging Unit (30,000 prints) • Transfer Unit (25,000 prints) - includes bias transfer roller/waste toner receptacle • Fuser Kit (100,000 prints) - includes fuser/feed rollers

  24. 1.5¢ 9¢ magicolor 3100 Cheetah Color Laser Printer Consumables • Low cost per print • Low cost per print in black & white and color makes the magicolor 3100 affordable to use all day, every day

  25. magicolor 3100 Cheetah Color Laser Printer A Competitive Comparison : Letter/A4 models Printer M-Q magicolor 3100 Xerox Phaser 1235N Lexmark C750 DN Oki 7400 N Street Price $2,999 $2,635 $3,771 $2,802 Speed 16 color16 b&w 12 color20 b&w 20 color20 b&w 12 color20 b&w Engine Tech. TandemPRISM LASER TandemLED TandemLaser TandemLED Paper Handling 600 std1000 optduplex std 630 std1000 opt 1,100 std2,000 opt 630 std1000 opt Resolution 1200 x 1200 1200 x 600 1200 x 1200 1200 x 1200 Toner Cap.K/CMY 8.5k / 6k 10k / 10k 6k / 6k 10k / 10k Duty Cycle 60k 60k 60k 50k PDL PS3PCL6 PS3PCL5c PS3PCL6 PS3PCL5c Ethernet 100Base std 100Base std 100Base std 100Base std Items in RED denote best in class — Cheetah’s got this territory covered!

  26. magicolor 3100 Cheetah Color Laser Printer A Competitive Comparison : Ledger/A3 models Printer Xerox Phaser 2135N Oki 9200 Oki 9400 DXN Lexmark Optra 1200C Street Price $5,725 $4,540 $5,820 $3,349 Speed 21 color26 b&w 21 color26 b&w 21 color26 b&w 12 color12 b&w Engine Tech. Tandem LED Tandem LED Tandem LED Tandem LED Paper Handling 650 std1650 opt 650 std1650 opt 650 std1650 optduplex std 350 std 850 opt Resolution 1200 x 600 1200 x 600 1200 x 1200 1200 IQ mode Toner Cap.K/CMY 15k / 15k 15k / 15k 15k / 15k 6.5k / 6.5k Duty Cycle 83k 83k 83k 20k PDL PS3PCL5c PS3PCL5c PS3PCL5c PS2PCL6 Ethernet 100Base std 100Base opt 100Base std 100Base opt (+$499)

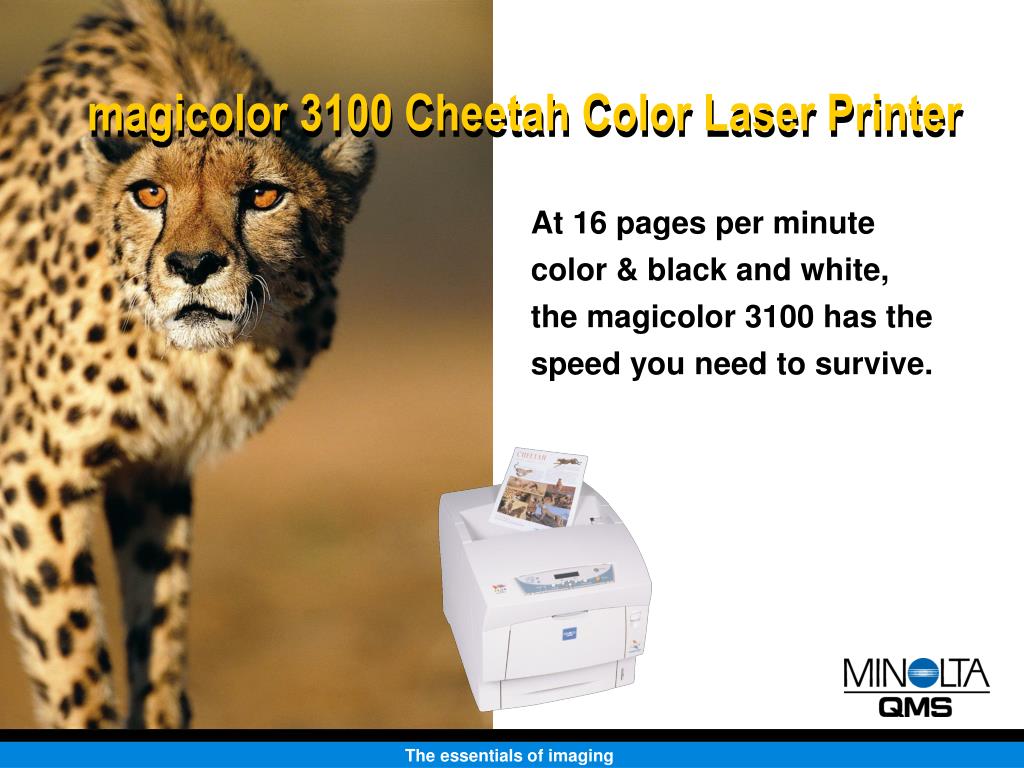

  27. magicolor 3100 Cheetah Color Laser Printer magicolor 3100 Cheetah Color Laser Printer At 16 pages per minute color & black and white, the magicolor 3100 has the speed you need to survive.
