  1. Accelerator Frontier: Opportunities for ImpactStuart Henderson PASI MeetingApril 4, 2013

  2. Outline • Opportunities in HEP • Broad Uses of Accelerators • Going Beyond Discovery Science to Applications • Opportunities and Challenges S. Henderson, PASI, April 4, 2013

  3. Fermilab’s Accelerator Strategy Establish a world-leading program at the Intensity Frontier, enabled by a world-class facility …and use this program to provide a cornerstone for an Energy Frontierfacility beyond LHC • LHC • Tevatron • LHC Upgrades in • luminosity and energy • Lepton Colliders Technology Development and Fundamental Accelerator Science …while relying on a strong program of technology development and fundamental accelerator science. S. Henderson, PASI, April 4, 2013

  4. Opportunities in HEP and Discovery Science: These are Well-known Very important topics are present areas of focus: • Project-X • PXIE/FETS • Concepts for optimized spallation target systems • Concepts for optimized irradiation target systems • Surface muon yields for MuSR -> Development of MuSR concept • Muon production target concepts -> development for high power targets (1MW) for “high” (> 30 MeV) energy in-flight muon beams to drive next-gen muonexpts and kaon beam experiments. • MuonAccelerators (NF/MC) • MICE, IDS/NF, EMMA, nuSTORM, MC, … • Technologies for HEP: • High-power targets: RaDIATE collaboration, liquid metal • Superconducting RF • Beam instrumentation • …and fundamental accelerator science: • Integrable Optics Test Accelerator, ASTA S. Henderson, PASI, April 4, 2013

  5. Opportunities in Fundamental Accelerator Science: The ASTA Facility • ASTA includes an ~800 MeV electron linac designed and built to ILC specs (an “ILC RF Unit”) • Low-energy and high-energy experimental areas • A small storage ring (IOTA) to explore novel non-linear beam dynamics • Proposal for ASTA completion and establishment of accelerator R&D user facility S. Henderson, PASI, April 4, 2013

  6. ASTA Science Thrusts S. Henderson, PASI, April 4, 2013

  7. Proton Accelerators for Science and Innovation Innovation, n, something newly introduced, such as a new method or device It is becoming increasingly important to demonstrate the relevance of HEP research to real-world problems Where are the opportunities for doing that? S. Henderson, PASI, April 4, 2013

  8. There are 30,000 Particle Accelerators Making an Impact on Our Lives Industry Energy and Environment Medicine Accelerators and Beams National Security Discovery Science S. Henderson, PASI, April 4, 2013

  9. Accelerators are Essential Tools in Industry A wide-range of industrial applications makes use of accelerator-produced beams for • Semiconductor (chip) manufacturing • Cross-linking and polymerization for tires, rubber, plastics • Sterilization, irradiation, welding, hardening, cutting, inspection Applied Materials, Inc. There are ~20,000 industrial accelerators Annual Market for industrial accelerator systems: $1.9 B Annual value of all products that make use of accelerator technology: $500B S. Henderson, PASI, April 4, 2013

  10. Accelerators are Essential Tools for Medical Treatment and Diagnosis • There are ~9000 medical acceleratorsin operation in the world • Annual market for medical accelerator systems: $4 B Tens of millions of patients receive accelerator-based diagnoses and treatments each year 50 medical isotopes, used for diagnosis and treatment, are routinely produced with accelerators Siemens Eclipse Cyclotron (11 MeV) marketed for PET isotope production S. Henderson, PASI, April 4, 2013

  11. Accelerators for National Security Accelerators are used for cargo scanning and “active interrogation” to detect special materials …and in Nuclear Defense: stockpile stewardship, materials characterization, radiography, and support of non-proliferation pRad movie of high-speed shock test of Sn disk at usec intervals S. Henderson, PASI, April 4, 2013

  12. What Are the Applications of the Future? S. Henderson, PASI, April 4, 2013

  13. Accelerators for the Environment • Accelerators can • purify drinking water and treat waste water • disinfect sewage sludge, • clean power-plant emissions by removing NOX and SOX from flue gases with high efficiency • R&D on new technologies may lead to better and more cost-effective approaches • Challenge: very high beam power (MW-class and beyond) at high-efficiency, high reliability and low cost S. Henderson, PASI, April 4, 2013

  14. Accelerators in the Energy Sector Accelerators have tremendous potential – largely untapped thus far – in the Energy Sector: Accelerator Driven Subcritical Reactors can transmute nuclear waste so it is much safer and simpler to store, while at the same time generating electrical power • Many R&D aspects can be pursued at a suitable facility: MYRRHA • Moving forward is hampered by lack of sense of urgency, and focus on economics of spent fuel and once-through cycle Generating electrical power from nuclear fusion by utilizing particle accelerators: Heavy-ion Inertial Confinement Fusion Enormous Challenges! MYRRHA Accelerator Driven Reactor Project, Mol, Belgium S. Henderson, PASI, April 4, 2013

  15. 316 SS Applications of Accelerators: Materials Irradiation • Materials for next generation fission reactors or fusion devices need an order of magnitude greater radiation resistance than those in use today • Accelerator-driven radiation sources can provide fission/fusion-relevant neutron fluxes Zinkle and Busby, Materials Today 12 (2009) 12. Fission reactors include very-high-temperature reactors (VHTR), supercritical water-cooled reactors (SCWR), gas-cooled fast reactors (GFR), lead-cooled fast reactors (LFR), sodium-cooled fast reactors (SFR), and molten-salt reactors (MSR). Courtesy R. Kurtz, PNNL

  16. Accelerators for Medical Applications: Radioisotope Production • Particle accelerators already are used to produce ~50 medical isotopes. New high power accelerators can solve specific problems: • Tenuous supply chain for clinically relevant fission-produced radioisotopes such as 99Mo/99mTc (most commonly used radioisotope); need to develop non-HEU production • Uncertainties in continuous access to specific radioisotopes for medical research • Production of new clinically relevant isotopes • US-articulated Needs and Goals • PoP demo of increased production of alpha-emitting radioisotopes for therapy • New electromagnetic isotope separator facility • New, 30–40 MeV variable-energy, multi-particle, high-current accelerator facility • Initiative to address significant increase in demand as research opportunities expand into general use S. Henderson, PASI, April 4, 2013

  17. Accelerators for Medical Applications: Beam Therapy • US-articulated Needs and Goals • Significant improvement in beam delivery and field-shaping systems • Motion correction – imaging, dose detection and flexibility of beam delivery • Ability to locate the position of the target in real time – requires substantial technical development • Reduce size and cost of accelerators and gantries • Emphasis is on Carbon-ion therapy • Higher biological effectiveness • Superior dose distribution • Beginning to see emerging interest in the U.S. (both public and private) • Proton Computed Tomography (pCT): capability of distinguishing subtle differences in density without contrast medium S. Henderson, PASI, April 4, 2013

  18. Compact Accelerators Much work ongoing world-wide to develop compact accelerators which have the potential for very compact (and less expensive) sources of x-rays, electrons and protons for beam therapy, radiation sources and other applications • Laser wakefield, dielectric wakefield, laser/foil ion sources, FFAGs, … W. Leemans, LBNL One billion volt accelerator (1.3 inches long) Concept for compact proton therapy accelerator, LLNL

  19. Can we Grow Connections with Industry? Key Ingredients and Issues: • Industrial capabilities • Industry does many things better than laboratories and universities. • They don’t need help on old technologies (electrostatic accelerators, conventional cyclotrons, RFQs, …) • The big players already have enormous R&D budgets (Varian, GE Medical, …) • Lab capabilities: • Labs are out in front in terms of new technologies: • Laboratories build and operate expensive infrastructure But, there are substantial barriers… S. Henderson, PASI, April 4, 2013

  20. Eric Isaacs (ANL Director) : “Historically, this is how the labs have viewed industry…” Courtesy: Eric Isaacs

  21. Eric Isaacs (ANL Director): “…and this is how industry has viewed us. “ S. Henderson, PASI, April 4, 2013 Courtesy: Eric Isaacs

  22. Making the Connections: the Illinois Accelerator Research Center (IARC) IARC is a new facility, expected to come online in FY15, depending on funding IARC is a partnership between the DOE and State of Illinois with a mission to bring together Industry, Universities and Fermilab to develop, demonstrate and transfer accelerator technology to solve problems of national importance in medicine, industry, energy, environment, security and discovery science S. Henderson, PASI, April 4, 2013

  23. View on Stewardship from the US Department of Energy Mike Zisman, DOE DOE Stewardship-PASI

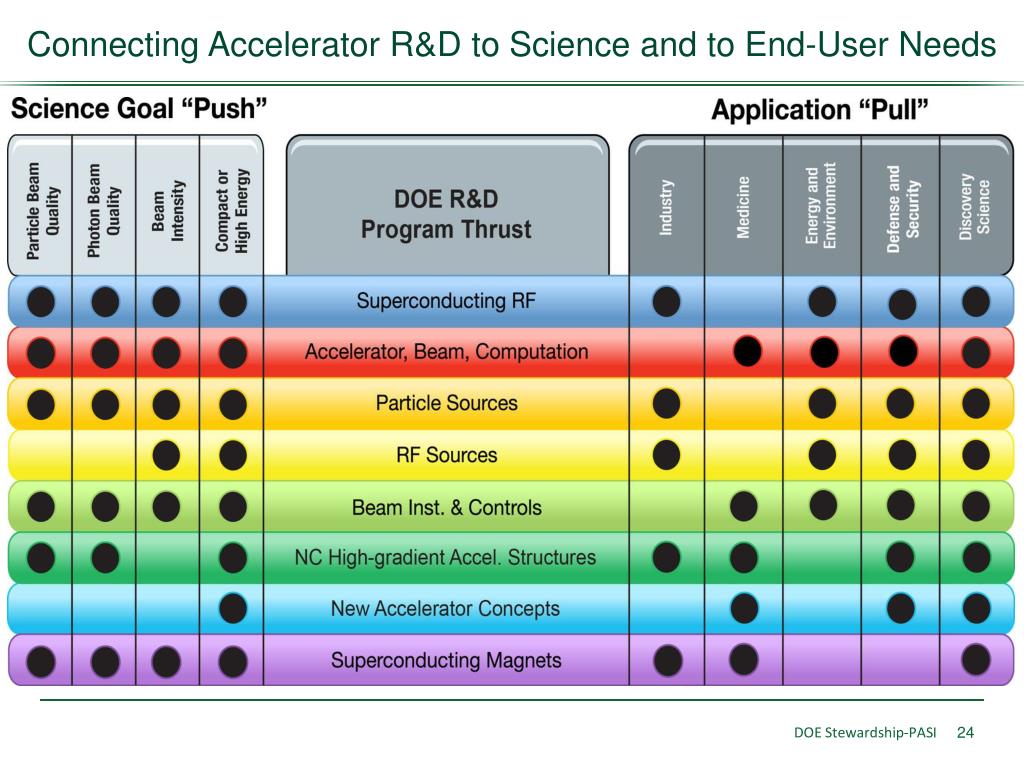

  24. Connecting Accelerator R&D to Science and to End-User Needs DOE Stewardship-PASI

  25. Request for a new activity in accelerator R&D from SEWD The Committee understands that powerful new accelerator technologies created for basic science and developed by industry will produce particle accelerators with the potential to address key economic and societal issues confronting our Nation. However, the Committee is concerned with the divide that exists in translating breakthroughs in accelerator science and technology into applications that benefit the marketplace and American competitiveness. The Committee directs the Department to submit a … 10-year strategic plan … for accelerator technology research and development to advance accelerator applications in energy and the environment, medicine, industry, national security, and discovery science. The strategic plan should be based on the results of the Department's 2010 workshop study, Accelerators for America's Future, that identified the opportunities and research challenges for next-generation accelerators and how to improve coordination between basic and applied accelerator research. The strategic plan should also identify the potential need for demonstration and development facilities to help bridge the gap between development and deployment. Senate Report 112-075, p. 93. (Ordered to be printed September 7, 2011) Accelerators for America's FutureWorkshop: October 2009Report: June 2010 DOE Stewardship-PASI

  26. The Accelerator R&D Stewardship Program • Mission: to support fundamental accelerator science and technology development of relevance to many fields and to disseminate accelerator knowledge and training to the broad community of accelerator users and providers. • Strategies: • Improve access to national laboratory accelerator facilities and resources for industrial and for other U.S. government agency users and developers of accelerators and related technology; • Work with accelerator user communities and industrial accelerator providers to develop innovative solutions to critical problems, to the mutual benefit of our customers and the DOE discovery science community; • Serve as a catalyst to broaden and strengthen the community of accelerator users and providers • Strategic plan sent to Congress in October 2012 DOE Stewardship-PASI

  27. Next Steps • Augment existing programs to provide infrastructure access for industrial users at DOE facilitiesand to increase support staff and funding for technology development at beam test facilities, such as ATF and FACET • completed survey of available national lab infrastructure and capabilities • develop plans via multi-lab workshop • In the mid-term (2–5 years), identify a few topical areas with high impact for focused work. Anticipated areas are: (1) improved particle beam delivery and control for cancer therapy facilities; and (2) laser development addressing the needs of the accelerator community, i.e., high peak power, high average power, and high electrical efficiency. Each topical area will have a stakeholder board. • In the longer term (5–10 years), select additional topical areas for focused work. New stakeholder boards will be created as topics are identified. • In steady state, SC/HEP goal is to support at least three topical areasat any given time. DOE Stewardship-PASI

  28. S. Henderson, PASI, April 4, 2013
