  1. GLYCOLYSIS

  2. GLUCOSE TRANSPORTERS

  3. METABOLIC FATES OF GLUCOSE • Catabolized to produce ATP • Stored as glycogen in liver and muscles • Converted to fatty acids and stored as triglycerides in adipose tissue

  4. CARBOHYDRATE CATABOLISM

  5. GLYCOLYSIS • A two-phase pathway in which • Glucose is oxidized into pyruvate • NAD+ is reduced to NADH + H+ • ATP is synthesized by substrate-level phosphorylation Pyruvate • Moves on to the Krebs cycle in an aerobic environment • Is reduced to lactate in an anaerobic environment

  6. Glucose 2 ATP Fructose 1,6-bisphosphate 4 ATP 2 NADH 2 Pyruvate GLYCOLYSIS – The phases I. Energy investment phase II. Energy generation phase

  7. ATP ADP GLUCOSE 6- PHOSPHATE Hexokinase Glucokinase GLYCOLYSISStep I. GLUCOSE

  8. Hexokinase/Glucokinase Hexokinase • Found in most tissues • Broad specificity • Low Km • Low Vmax Makes glucose available to tissues at low blood glucose levels

  9. Hexokinase/Glucokinase • Glucokinase • Found in liver and b cells of pancreas • Broad specificity • High Km • High Vmax • Clears glucose from blood after meals and at blood glucose levels > 100 mg/dl

  10. FRUCTOSE 6- PHOSPHATE Phosphoglucose isomerase GLYCOLYSISStep II. GLUCOSE 6- PHOSPHATE

  11. ATP ADP FRUCTOSE 1, 6- BISPHOSPHATE Phosphofructo-kinase I GLYCOLYSISStep III. FRUCTOSE 6- PHOSPHATE

  12. DIHYDROXACETONE PHOSPHATE Aldolase GLYCERALDEHYDE 3-PHOSPHATE GLYCOLYSISSteps IV, V. Triose phosphate isomerase FRUCTOSE 1, 6- BISPHOSPHATE

  13. NAD+ NADH + H+ Pi 1,3- BISPHOSPO-GLYCERATE Glyceraldehyde 3-phosphate dehydrogenase GLYCOLYSISStep VI. GLYCERALDEHYDE 3-PHOSPHATE

  14. ATP ADP 3- PHOSPHO-GLYCERATE Phosphoglycerate kinase GLYCOLYSISStep VII. 1,3- BISPHOSPHO-GLYCERATE

  15. SUBSTRATE-LEVEL PHOSPHORYLATION High-energy phosphate groups are transferred directly from phosphorylated substrates to ADP

  16. ATP ADP 1,3- BISPHOSPHO-GLYCERATE 3- PHOSPHO-GLYCERATE Phosphoglycerate kinase P-OH Phosphatase Mutase 2, 3- BISPHOSPHO-GLYCERATE H2O 2, 3- BISPHOSPHOGLYCERATE

  17. ARSENATE POISONING GLYCERALDEHYDE 3-PHOSPHATE Pi Pi ARSENATE Glyceraldehyde 3-phosphate dehydrogenase NAD+ GLYCOLYSIS CONTINUES… ENERGY IS DEPLETED H+ + NADH 1,3- BISPHOSPOGLYCERATE ADP ATP 3- PHOSPHOGLYCERATE

  18. 2- PHOSPHO-GLYCERATE Phosphoglycerate mutase GLYCOLYSISStep VIII. 3- PHOSPHO-GLYCERATE

  19. H2O PHOSPHOENOLPYRUVATE Enolase GLYCOLYSISStep IX. FLOURIDE 2- PHOSPHO-GLYCERATE

  20. ATP ADP PYRUVATE Pyruvate kinase GLYCOLYSISStep X. PHOSPHOENOLPYRUVATE

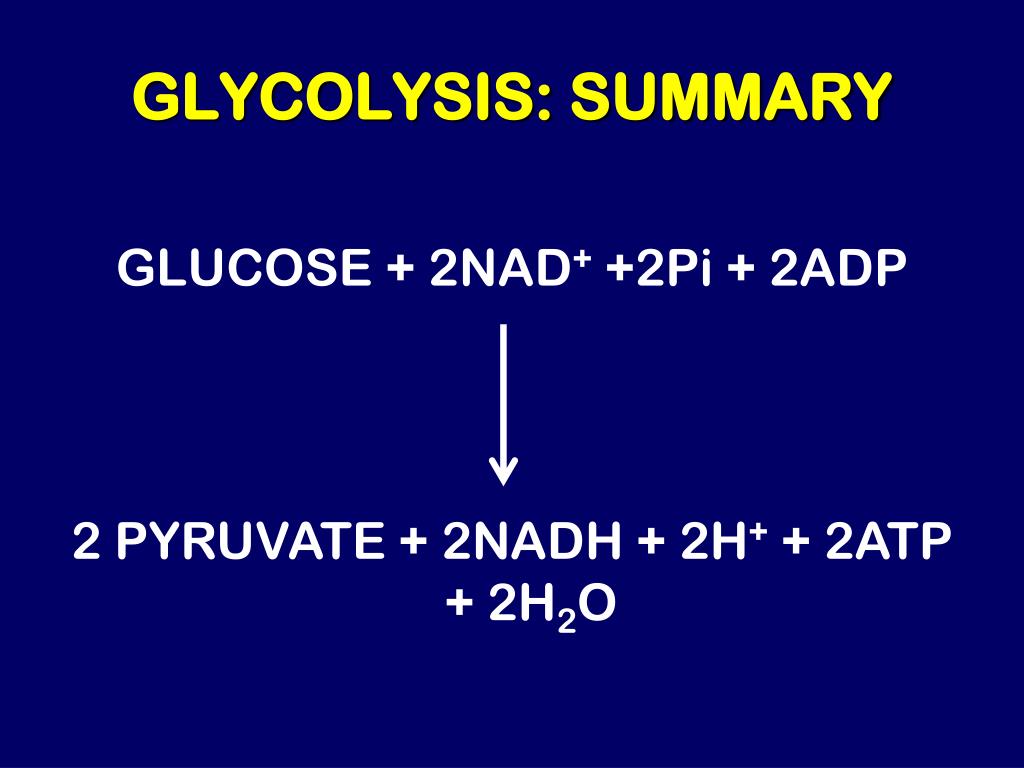

  21. GLYCOLYSIS: SUMMARY GLUCOSE + 2NAD+ +2Pi + 2ADP 2 PYRUVATE + 2NADH + 2H+ + 2ATP + 2H2O

  22. THE FATES OF PYRUVATE • ANAEROBIC CONDITIONS Reduced to lactate (In RBCs, the kidney medulla, lens and cornea of the eye, testes, leukocytes and in muscles during intensive exercise) • AEROBIC CONDITIONS oxidative decarboxylation to Acetyl CoA (in tissue with high oxidative capacity e.g. cardiac muscle, brain etc. )

  23. 1,3- BISPHOSPHO-GLYCERATE GLYCERALDEHYDE 3-PHOSPHATE NADH + H+ NAD+ LACTATE lactatedehydrogenase ANAEROBIC CONDITIONS PYRUVATE

  24. ANAEROBIC GLYCOLYSIS GLUCOSE + 2Pi + 2ADP 2 Lactate + 2ATP + 2H2O + 2H+

  25. NADH + H+ NAD CoA-SH ACETYL CoA Pyruvate dehydrogenase complex (E1 + E2 + E3) AEROBIC GLYCOLYSIS PYRUVATE

  26. For each molecule of glucose entering glycolysis, two molecules of acetyl CoA enter the Krebs cycle

  27. REGULATION OF GLYCOLYSIS • Hexokinase/Glucokinase • Phosphofructokinase • Pyruvate Kinase

  28. _ REGULATION OF HEXOKINASE GLUCOSE ATP Hexokinase ADP GLUCOSE 6- PHOSPHATE

  29. REGULATION OF GLUCOKINASE + _ GLUCOSE ATP Glucokinase ADP GLUCOSE 6- PHOSPHATE FRUCTOSE 6- PHOSPHATE

  30. REGULATION OF GLUCOKINASE ATP ADP GLUCOSE 6- PHOSPHATE GLUCOSE Glucokinase Glucokinase Nucleus GKRP GK FRUCTOSE 6- PHOSPHATE

  31. _ ATP, CITRATE + AMP, Fructose 2,6 bisphosphate REGULATION OF PHOSPHOFRUCTOKINASE 1 FRUCTOSE 6- PHOSPHATE Phosphofructokinase 1 FRUCTOSE 1,6- BISPHOSPHATE

  32. REGULATION OF PHOSPHOFRUCTOKINASE 1 FRUCTOSE 6- PHOSPHATE Phosphofructokinase 2 Well fed state  Insulin cAMP protein kinase Starvation  Glucagon  cAMP  Protein kinase P Kinase Phosphatase FRUCTOSE 2,6- BISPHOSPHATE

  33. REGULATION OF PYRUVATE KINASE FRUCTOSE 1,6- BISPHOSPHATE + Pyruvate kinase PYRUVATE

  34. REGULATION OF PYRUVATE KINASE PHOSPHOENOLPYRUVATE Starvation  Glucose  Glucagon  cAMP  Protein kinase A P Pyruvate kinase GLUCONEOGENESIS PYRUVATE

  35. GLUCOSE 5-C sugars GLUCOSE 6 PHOSPHATE Glycerol-P 1, 3 BISPHOSPHOGLYCERATE TGs Fatty acids 2, 3 BPG Serine 3 PHOSPHOGLYCERATE Alanine PYRUVATE TCA cycle Glu & other amino acids ACETYL CoA GLYCOLYSIS AND OTHER METABOLIC PATHWAYS

  36. THANK YOU!
