  1. Folds and folding In Ductile processes, deformation is retained. Plastic if permanent strain increases at same stress

  2. Some types of folds

  3. Folds and Folding

  4. Folds and folding

  5. Convexity and Age of Beds • Anticline - a fold that is convex in the direction of youngest beds • Syncline - a fold that is convex in the direction of oldest beds

  6. Folds - Definitions • Antiforms are anticline-shaped folds (convex-down) whose stratigraphic order has not been determined. • Synforms are syncline-shaped folds (convex-up) whose stratigraphic order has not been determined. • We apply these terms to any fold in which facing direction and/or stratigraphic order is unknown or uncertain. • Determining stratigraphic succession - which way is up!

  7. Direction of Fold Closing inflection point inflection point - change in curvature (i.e., concave to convex)

  8. Folds - Definitions • Overturned folds are those who have a limb that is upside down, it has rotated beyond vertical, i.e. dipping past 90o from its original horizontal position°.

  9. Folds - Geometric Properties • The most basic element of a fold is the folded surface • We usually describe folds in normal profile view as seen by looking down the fold axis or down plunge.

  10. Folds - Geometric Properties • In normal profile view, folded surfaces can be divided up into limbs and hinges. • Hinge: Region of Greatest Curvature • If the hinge is sharp, that point is called the hinge point otherwise it is called a hinge zone. • Fold limbs commonly curve, and the location where segments of opposite convexity join is called the inflection point.

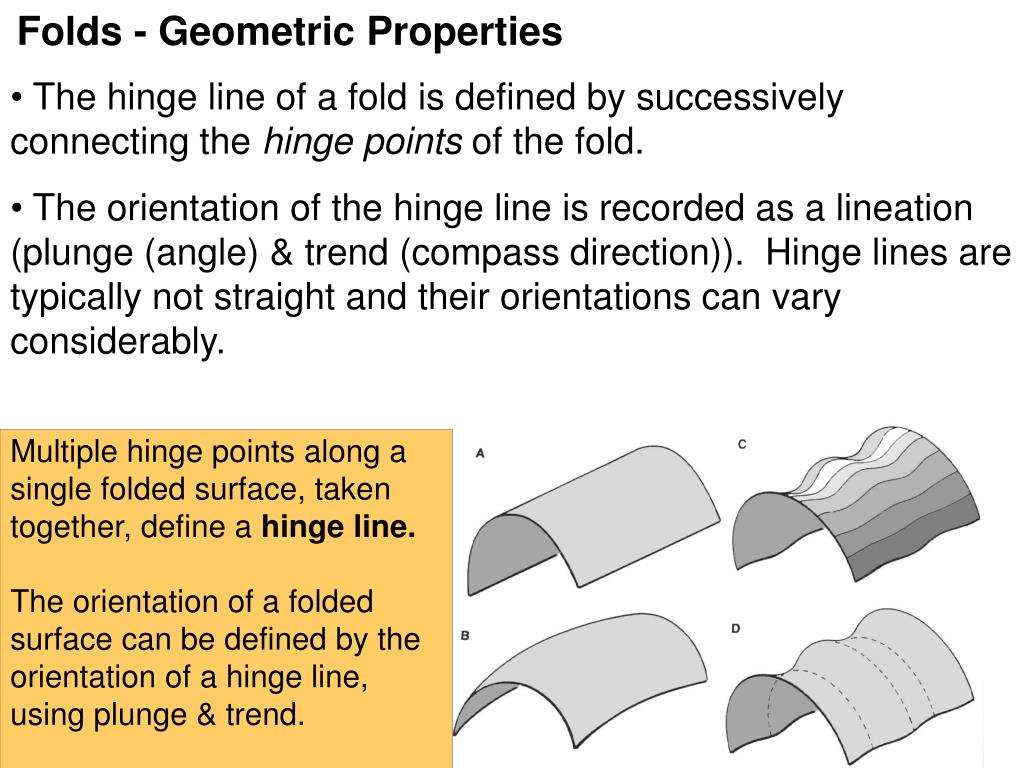

  11. Folds - Geometric Properties • The hinge line of a fold is defined by successively connecting the hinge points of the fold. • The orientation of the hinge line is recorded as a lineation (plunge (angle) & trend (compass direction)). Hinge lines are typically not straight and their orientations can vary considerably. Multiple hinge points along a single folded surface, taken together, define a hinge line. The orientation of a folded surface can be defined by the orientation of a hinge line, using plunge & trend.

  12. Folds - Geometric Properties • To establish the orientation or attitude of a fold, it is necessary to know its hinge orientationand the orientation of the axial plane or axial surface. The trend and plunge of a hinge line of a fold does not uniquely define the orientation of the fold Folds with the same hinge line

  13. Same hinge line direction Same axial surface We need more information to distinguish these, maybe orientations of the limbs

  14. Folds - Geometric Properties • The axial surface of a fold connects all the hinge points in all successive layers. • It may be planar - an axial plane, or a curvi-planar surface - an axial surface.

  15. Determining the Fold Axial Surface

  16. Determining the Fold Axial Surface

  17. Folds - Hinge lines & Axial Surfaces Hinge lines are lines described by a lineation that lies on the axial surface, which is itself described by local strike and dip. Axial surface - Surface created by the hinge lines of consecutive layers within the fold area - it may be planar or curved. Described by strike and dip

  18. How can we measure the axial surface? • We can measure its dip direction and the angle of dip • Strike can always be determined by remembering that strike is perpendicular to dip

  19. Profile Plane of a Fold

  20. Interlimb angle “fold tightness”, four categories

  21. Angularity of Interlimb Angle

  22. Attitude of Axial Surface

  23. Cylindrical or Non-Cylindrical Folds

  24. Stratigraphic Facing Graded Bedding

  25. Parasitic Folds

  26. Vergence Parasitic folds Give us information about sense of shear on the fold limbs as well as the location of larger-scale fold hinges. Think of S and Z folds, their asymmetry will give a sense of rotation, when viewed down plunge.
