  1. NXP Integrated Discrete HDMI protection

  2. HDMI transmitter solutions appliances ESD-protection in plastic packages IP4791CZ12+2pcs IP4283CZ10 level shift, buffer and ESD-protection (8 kV contact) for DDCs, CEC, HP ESD-protection in plastic packages IP4221CZ6+2pcs IP4283CZ10 just ESD-production ESD-protection in CSP IP4310CX8/P + IP4309CX9: DDCs, CEC, hotplug with pull-up/-down resistors and 15 kV contact ESD-protection

  3. IP4791 key feature HDMI 1.3 compliant Pb-free, Restriction of Hazardous Substances (RoHS) compliant and free of halogen and antimony. Robust ESD protection without degradation after multiple ESD strikes Low leakage even after several hundred ESD discharges Bidirectional level shifting buffer provided for DDC clock and data channels Hot plug detect module with pull-down resistor

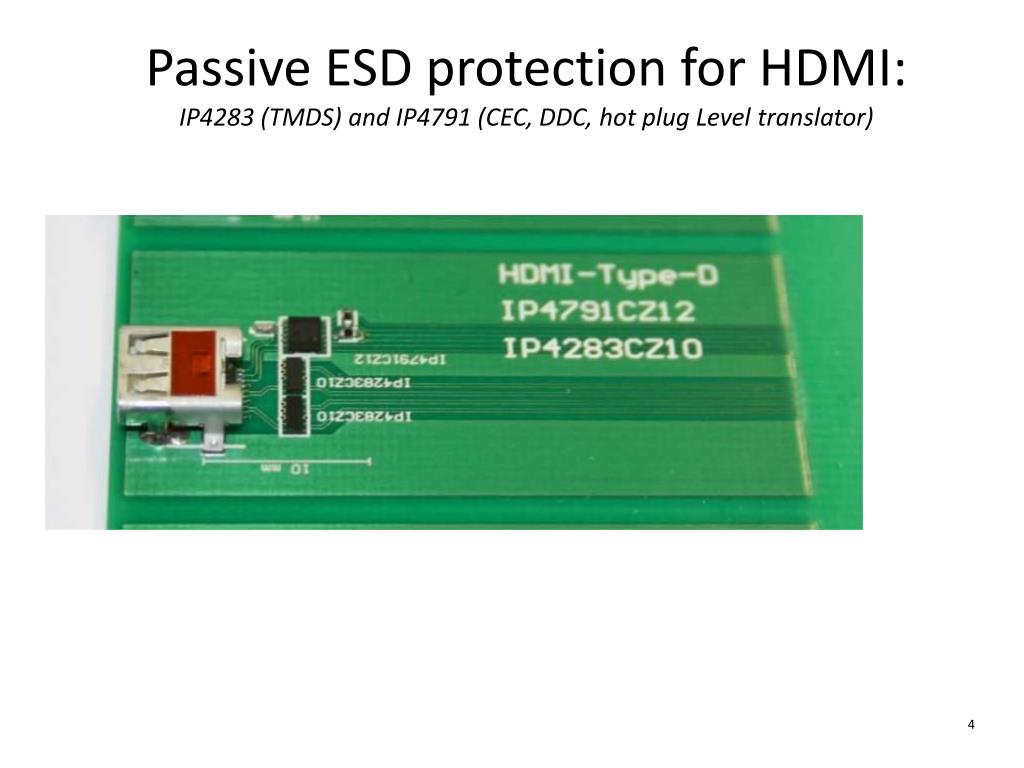

  4. Passive ESD protection for HDMI:IP4283 (TMDS) and IP4791 (CEC, DDC, hot plug Level translator) 2014/8/30 4

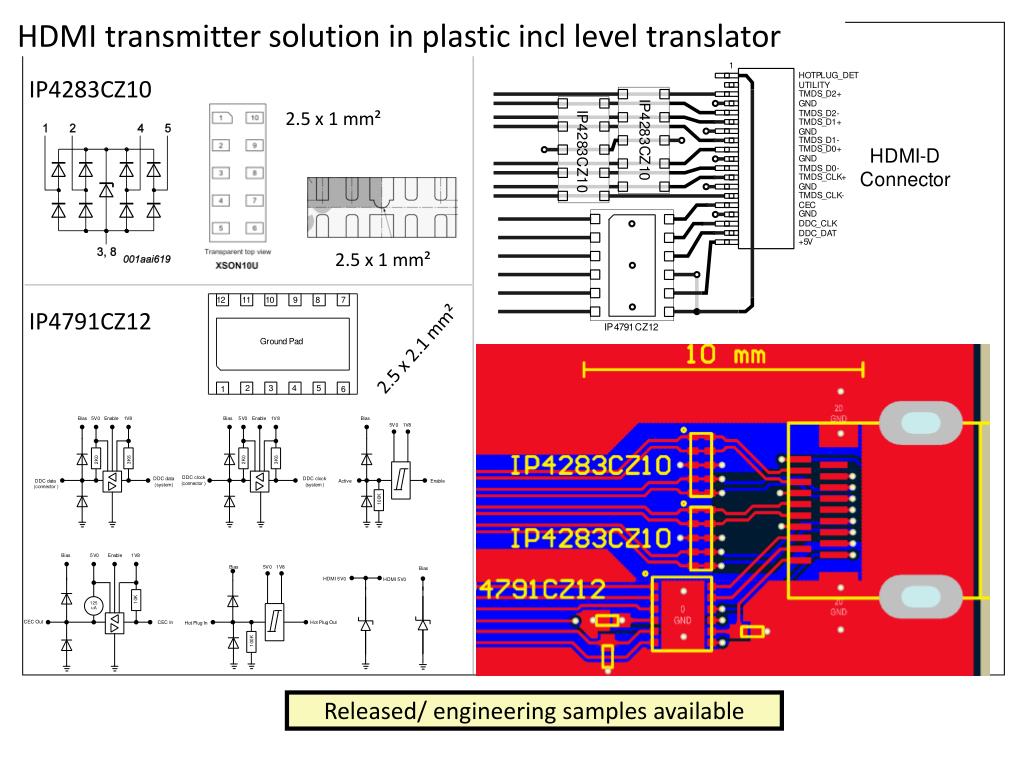

  5. HDMI transmitter solution in plastic incl level translator IP4283CZ10 2.5 x 1 mm² 2.5 x 1 mm² IP4791CZ12 2.5 x 2.1 mm² D-type connector footprint Released/ engineering samples available
