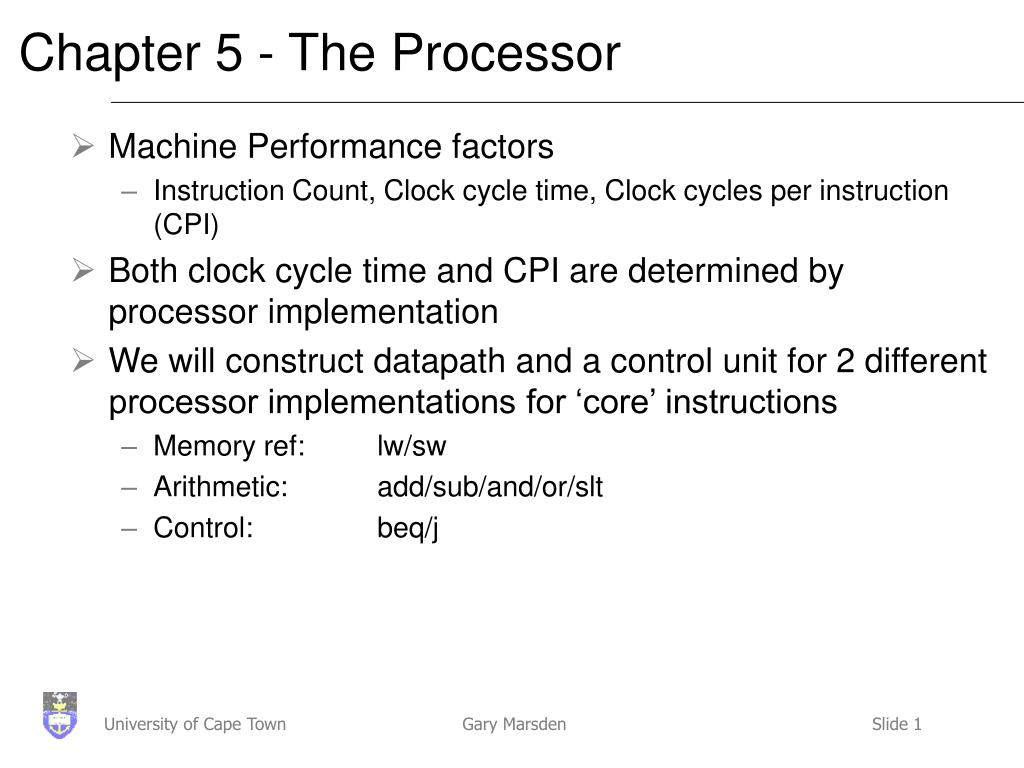

  1. Chapter 5 - The Processor • Machine Performance factors • Instruction Count, Clock cycle time, Clock cycles per instruction (CPI) • Both clock cycle time and CPI are determined by processor implementation • We will construct datapath and a control unit for 2 different processor implementations for ‘core’ instructions • Memory ref: lw/sw • Arithmetic: add/sub/and/or/slt • Control: beq/j

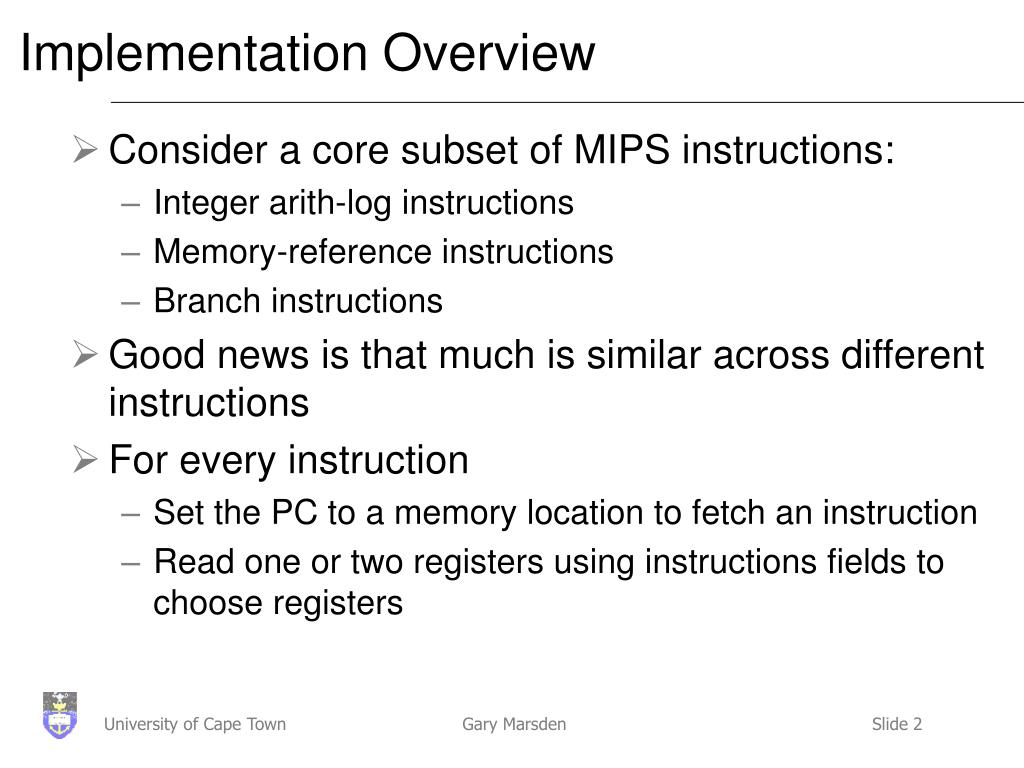

  2. Implementation Overview • Consider a core subset of MIPS instructions: • Integer arith-log instructions • Memory-reference instructions • Branch instructions • Good news is that much is similar across different instructions • For every instruction • Set the PC to a memory location to fetch an instruction • Read one or two registers using instructions fields to choose registers

  3. Differing Instructions • After previous 2 steps, instructions diverge • All instructions do use the ALU next • Arith-log: for opcode execution • Mem-ref: for effective address calculation • Branches: for comparison • After using the ALU • Arith-log: write data from ALU to register • Mem-ref: access memory containing data to complete a store or retrieve a word being loaded • Branch: may need to exchange next instruction address based on comparison

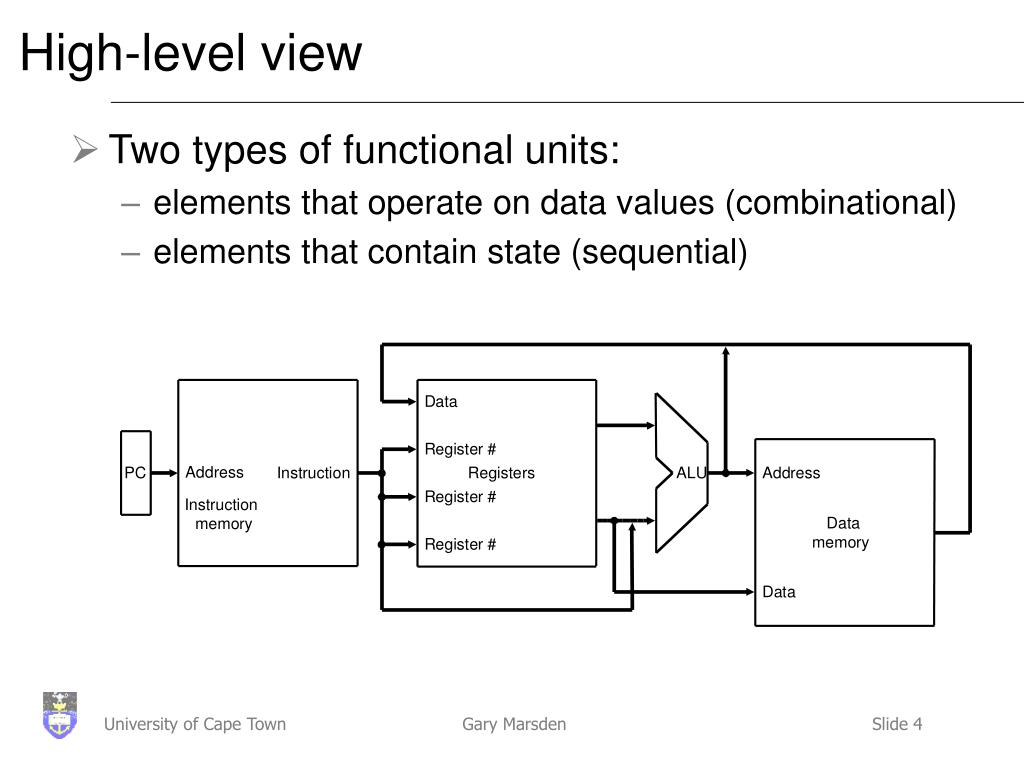

  4. High-level view • Two types of functional units: • elements that operate on data values (combinational) • elements that contain state (sequential)

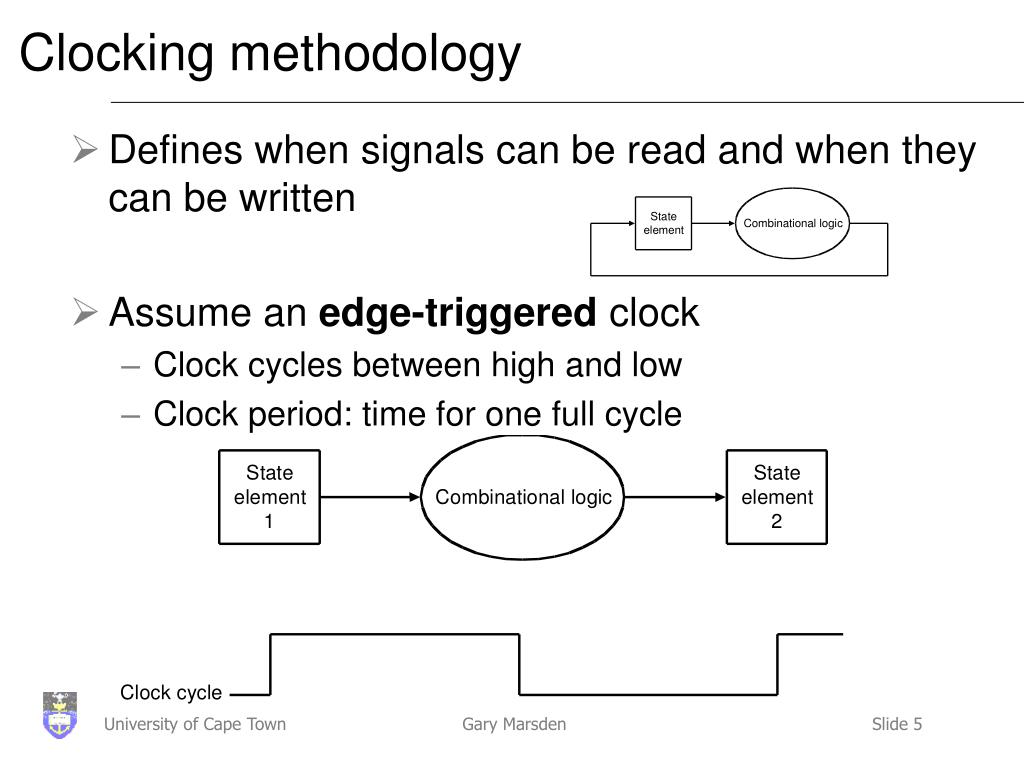

  5. Clocking methodology • Defines when signals can be read and when they can be written • Assume an edge-triggered clock • Clock cycles between high and low • Clock period: time for one full cycle

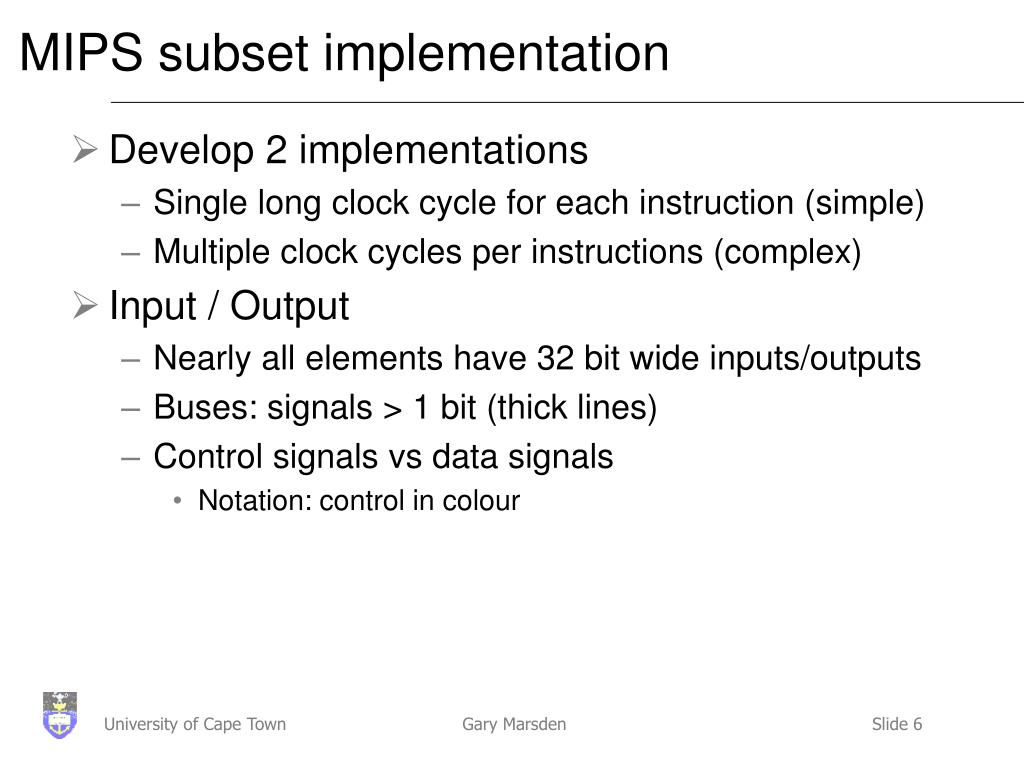

  6. MIPS subset implementation • Develop 2 implementations • Single long clock cycle for each instruction (simple) • Multiple clock cycles per instructions (complex) • Input / Output • Nearly all elements have 32 bit wide inputs/outputs • Buses: signals > 1 bit (thick lines) • Control signals vs data signals • Notation: control in colour

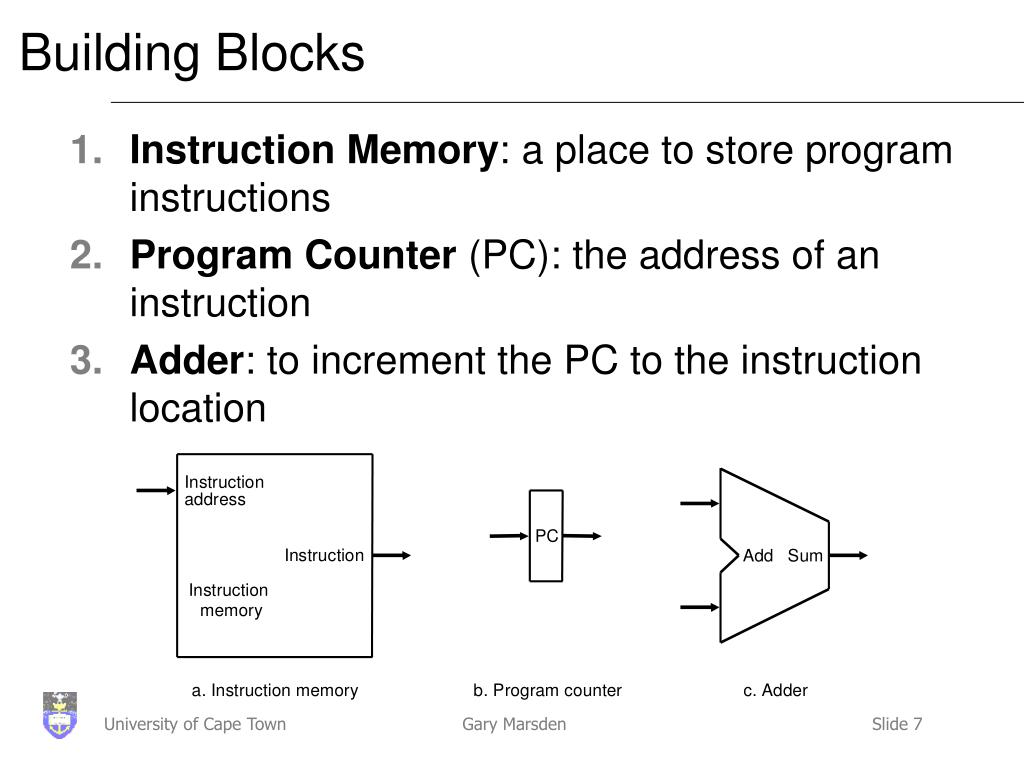

  7. Building Blocks • Instruction Memory: a place to store program instructions • Program Counter (PC): the address of an instruction • Adder: to increment the PC to the instruction location

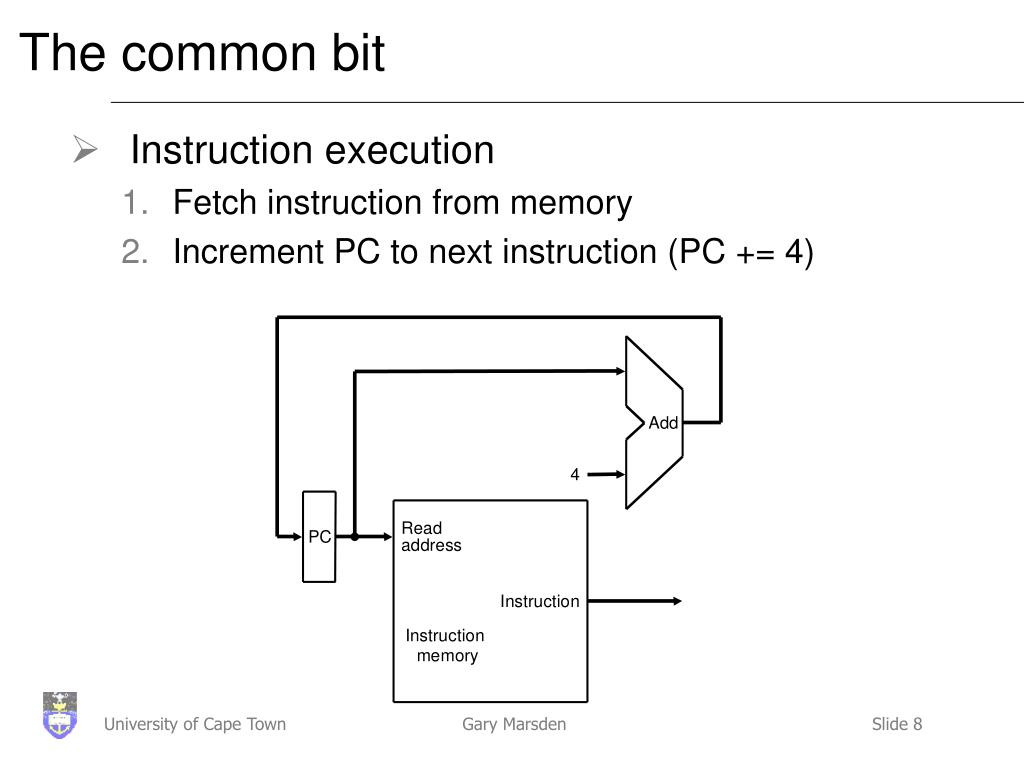

  8. The common bit • Instruction execution • Fetch instruction from memory • Increment PC to next instruction (PC += 4)

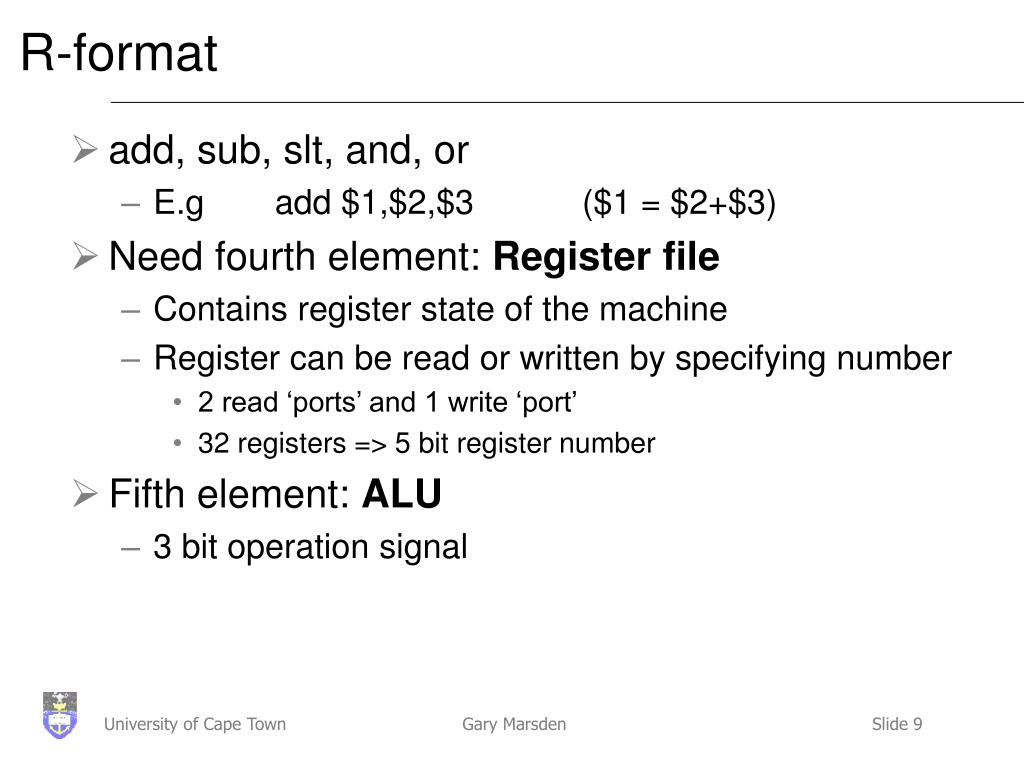

  9. R-format • add, sub, slt, and, or • E.g add $1,$2,$3 ($1 = $2+$3) • Need fourth element: Register file • Contains register state of the machine • Register can be read or written by specifying number • 2 read ‘ports’ and 1 write ‘port’ • 32 registers => 5 bit register number • Fifth element: ALU • 3 bit operation signal

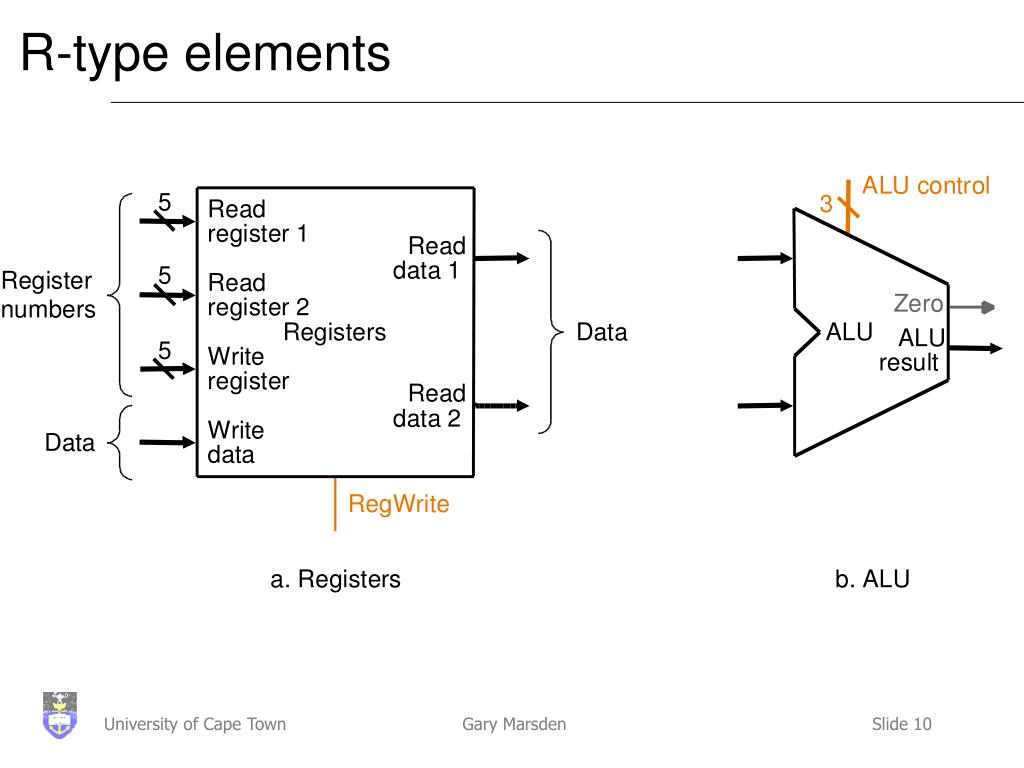

  10. R-type elements

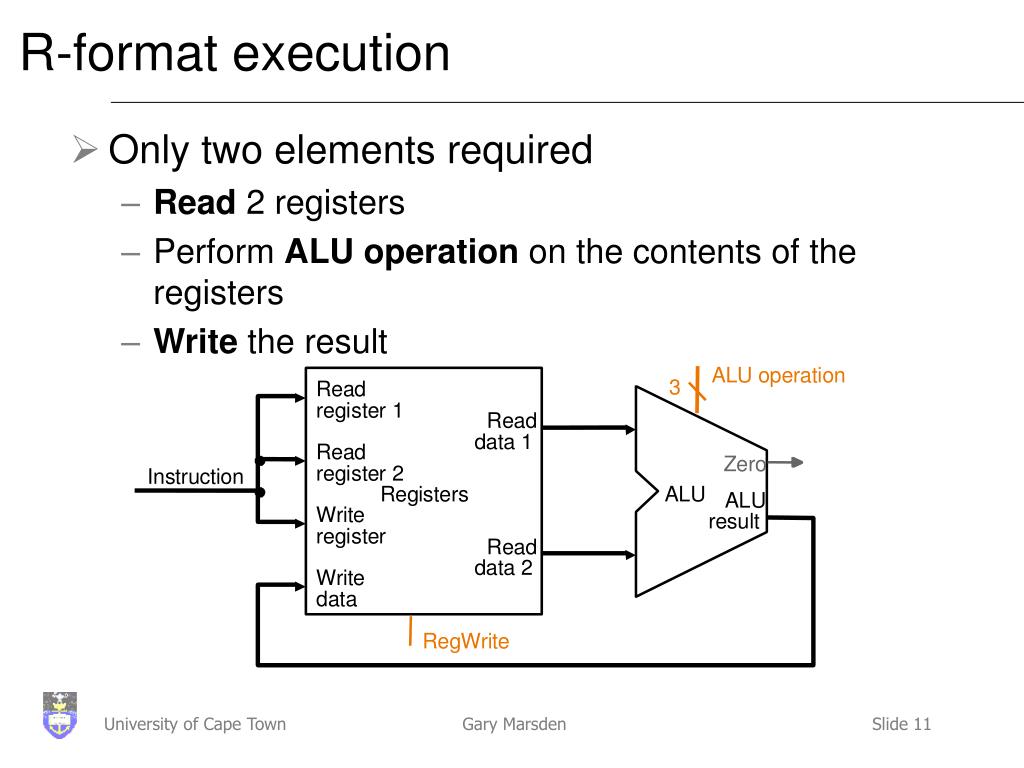

  11. R-format execution • Only two elements required • Read 2 registers • Perform ALU operation on the contents of the registers • Write the result A L U o p e r a t i o n 3 R e a d r e g i s t e r 1 R e a d d a t a 1 R e a d Z e r o r e g i s t e r 2 I n s t r u c t i o n R e g i s t e r s A L U A L U W r i t e r e s u l t r e g i s t e r R e a d d a t a 2 W r i t e d a t a R e g W r i t e

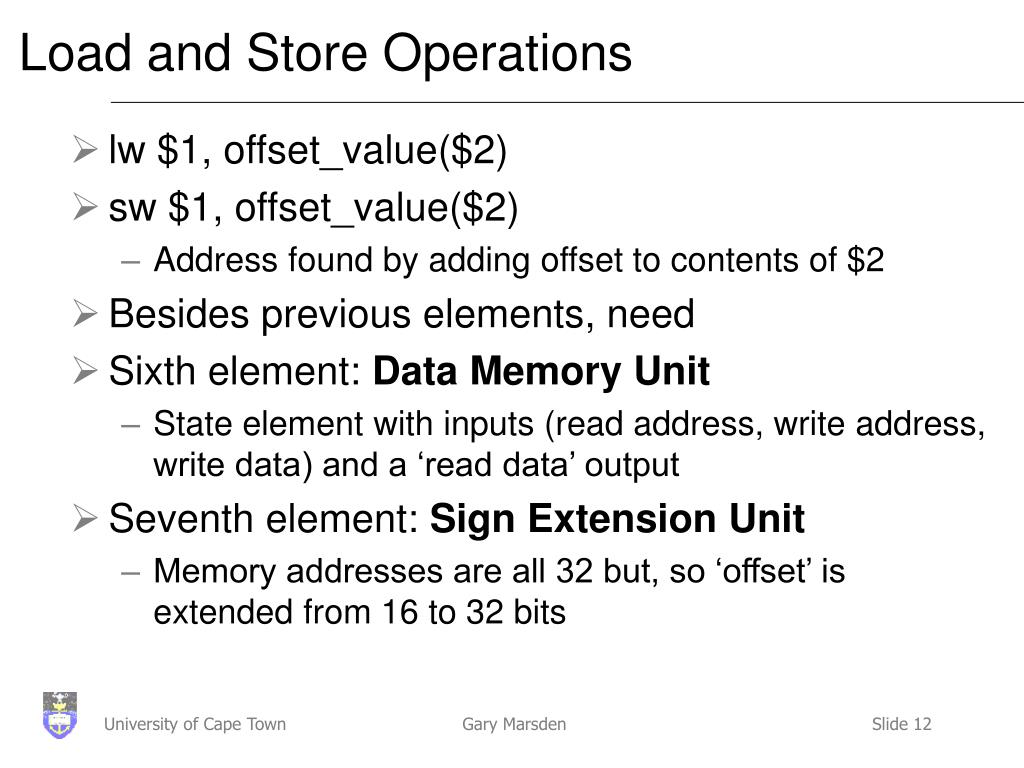

  12. Load and Store Operations • lw $1, offset_value($2) • sw $1, offset_value($2) • Address found by adding offset to contents of $2 • Besides previous elements, need • Sixth element: Data Memory Unit • State element with inputs (read address, write address, write data) and a ‘read data’ output • Seventh element: Sign Extension Unit • Memory addresses are all 32 but, so ‘offset’ is extended from 16 to 32 bits

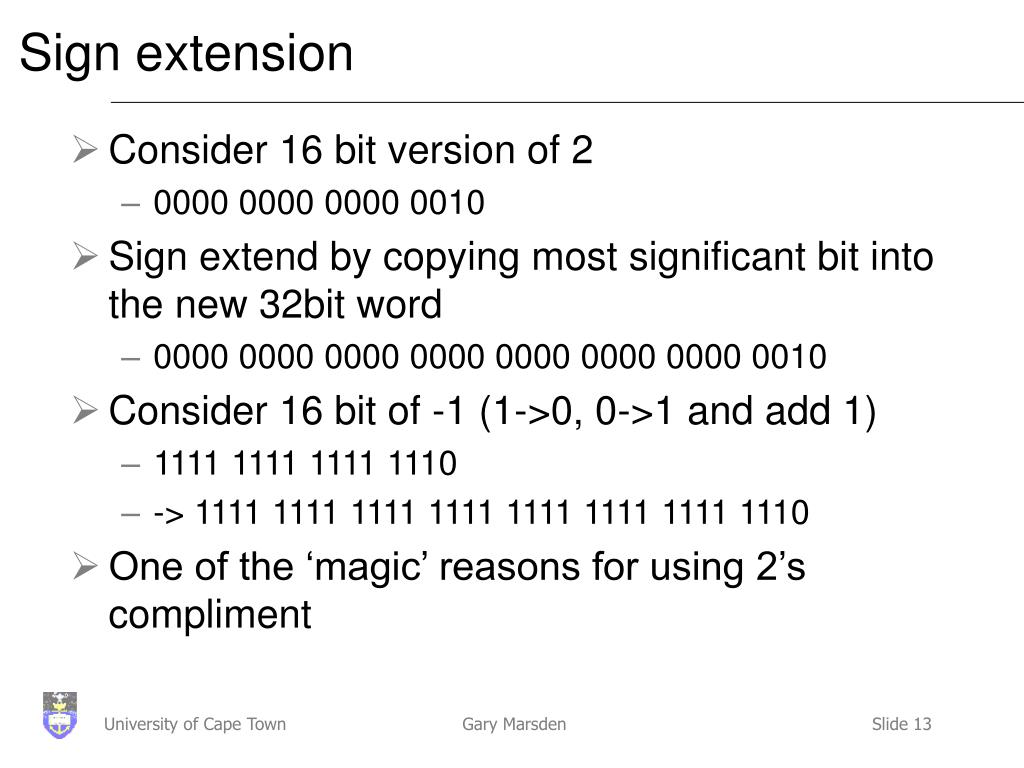

  13. Sign extension • Consider 16 bit version of 2 • 0000 0000 0000 0010 • Sign extend by copying most significant bit into the new 32bit word • 0000 0000 0000 0000 0000 0000 0000 0010 • Consider 16 bit of -1 (1->0, 0->1 and add 1) • 1111 1111 1111 1110 • -> 1111 1111 1111 1111 1111 1111 1111 1110 • One of the ‘magic’ reasons for using 2’s compliment

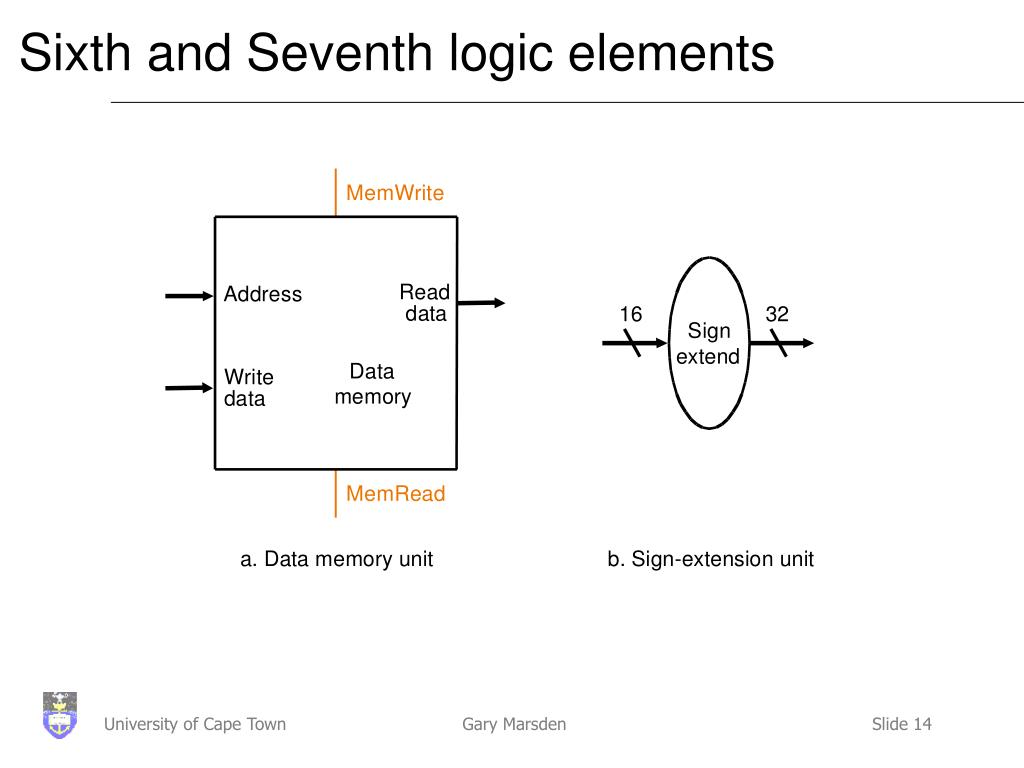

  14. Sixth and Seventh logic elements

  15. Executing load and store • Address in memory is sign extend (offset + contents of $2) • Store: value from $1 is put in this location • Load: value from location is put in to $1

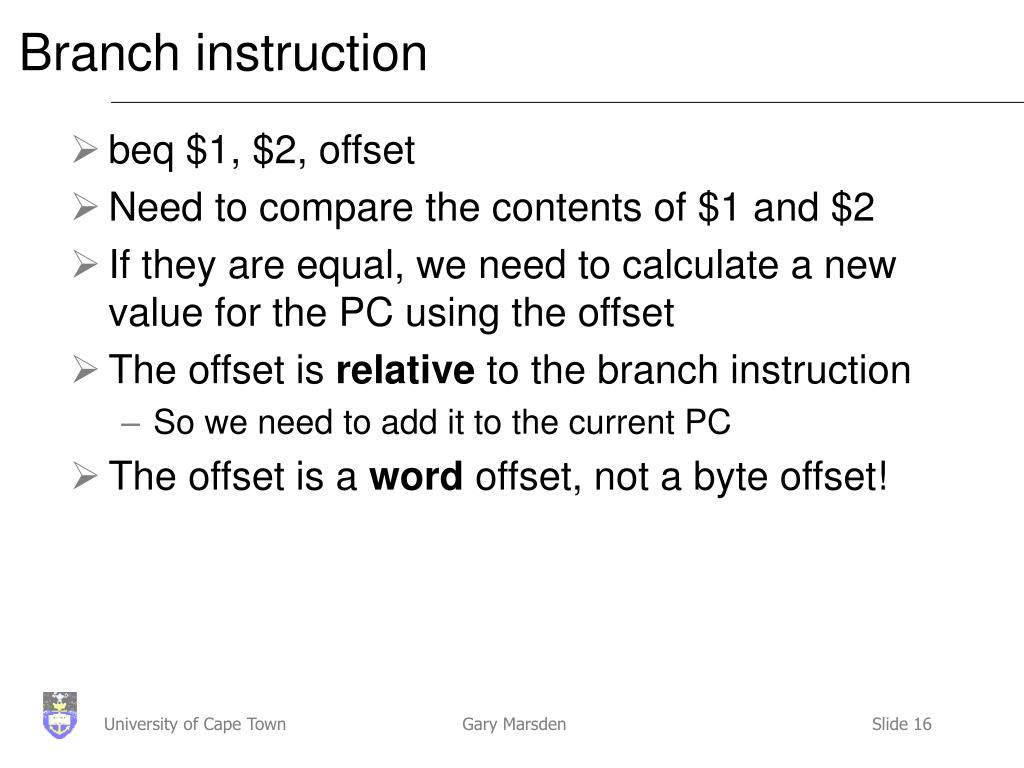

  16. Branch instruction • beq $1, $2, offset • Need to compare the contents of $1 and $2 • If they are equal, we need to calculate a new value for the PC using the offset • The offset is relative to the branch instruction • So we need to add it to the current PC • The offset is a word offset, not a byte offset!

  17. Word offset • If the offset was a byte offset, the last two bits would always be ‘00’ as instructions take 4 bytes of memory: • 0, 4, 8, 12, 16, 20 etc. • 00000, 00100, 01000,01100, 10000, 10100 etc. • This is wasteful • By using a word offset, the range is extended by a factor of four

  18. Executing branch • If ($1 == $2) PC = PC + (offset << 2)

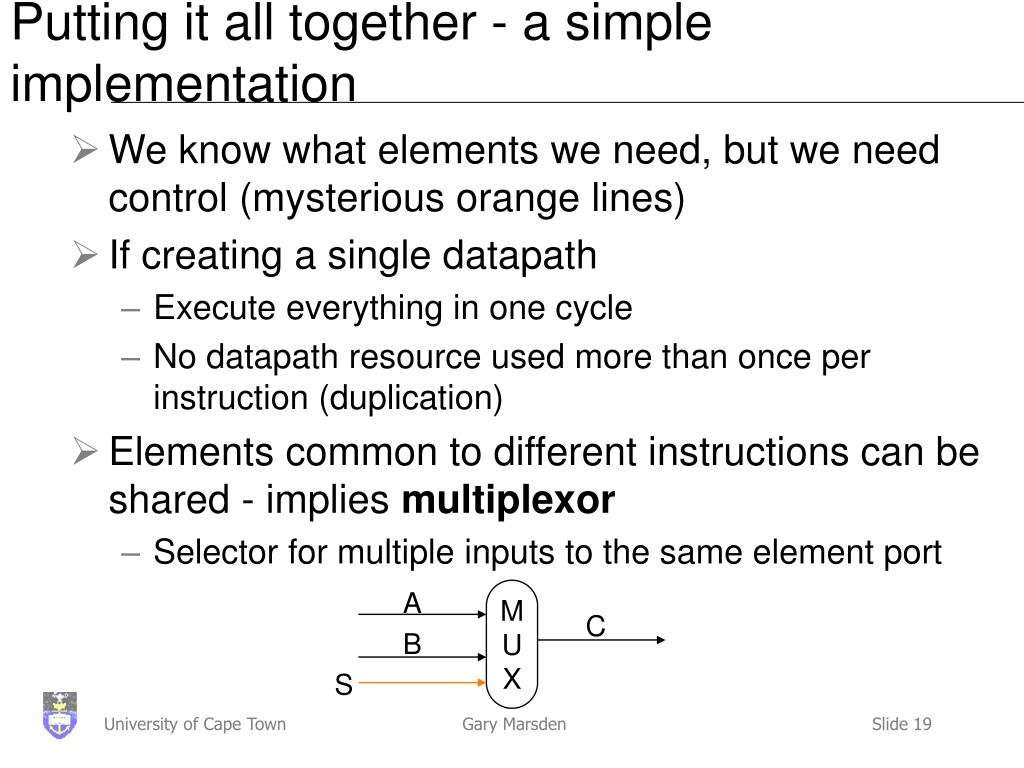

  19. Putting it all together - a simple implementation • We know what elements we need, but we need control (mysterious orange lines) • If creating a single datapath • Execute everything in one cycle • No datapath resource used more than once per instruction (duplication) • Elements common to different instructions can be shared - implies multiplexor • Selector for multiple inputs to the same element port A M U X C B S

  20. Combined path • Key differences between arith-log and mem-ref: Second ALU input & Result register input

  21. Adding branch path • Use adder to compute target address • Another Mux for PC

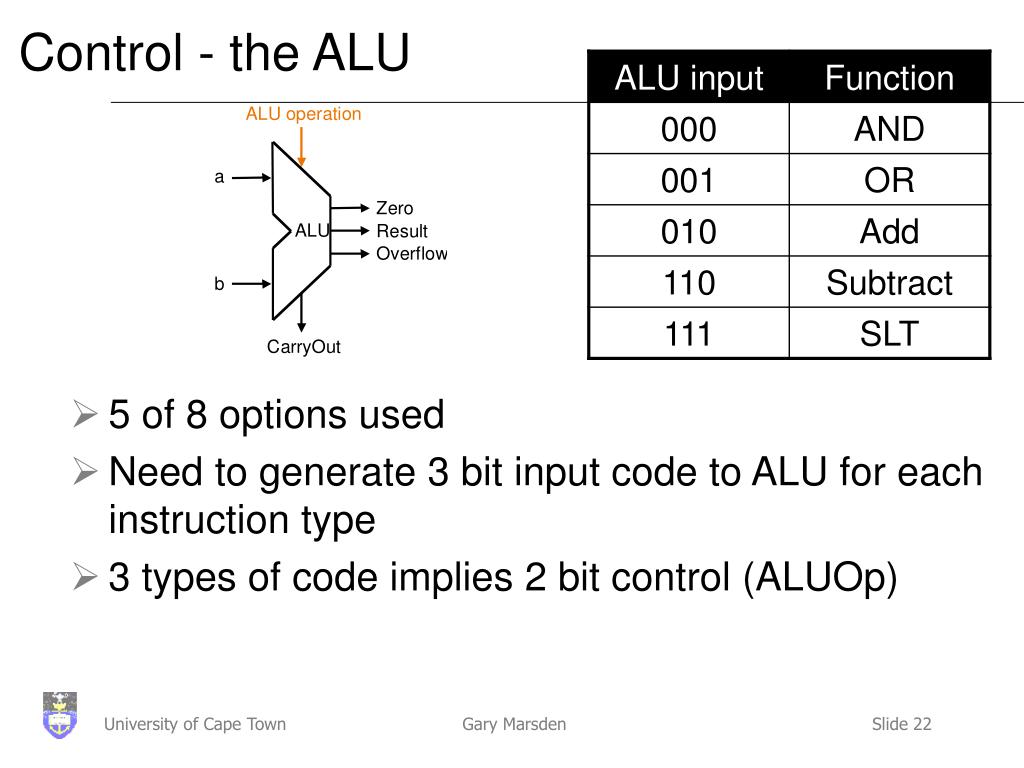

  22. Control - the ALU • 5 of 8 options used • Need to generate 3 bit input code to ALU for each instruction type • 3 types of code implies 2 bit control (ALUOp)

  23. ALU control for instruction types

  24. Main control • ALU control relatively easy (not temporal) • PLA / Simple custom controller • To define the rest of the control circuit • Identify control lines and instruction components • Before we do that, we need to look at the instruction types to understand data bus requirements

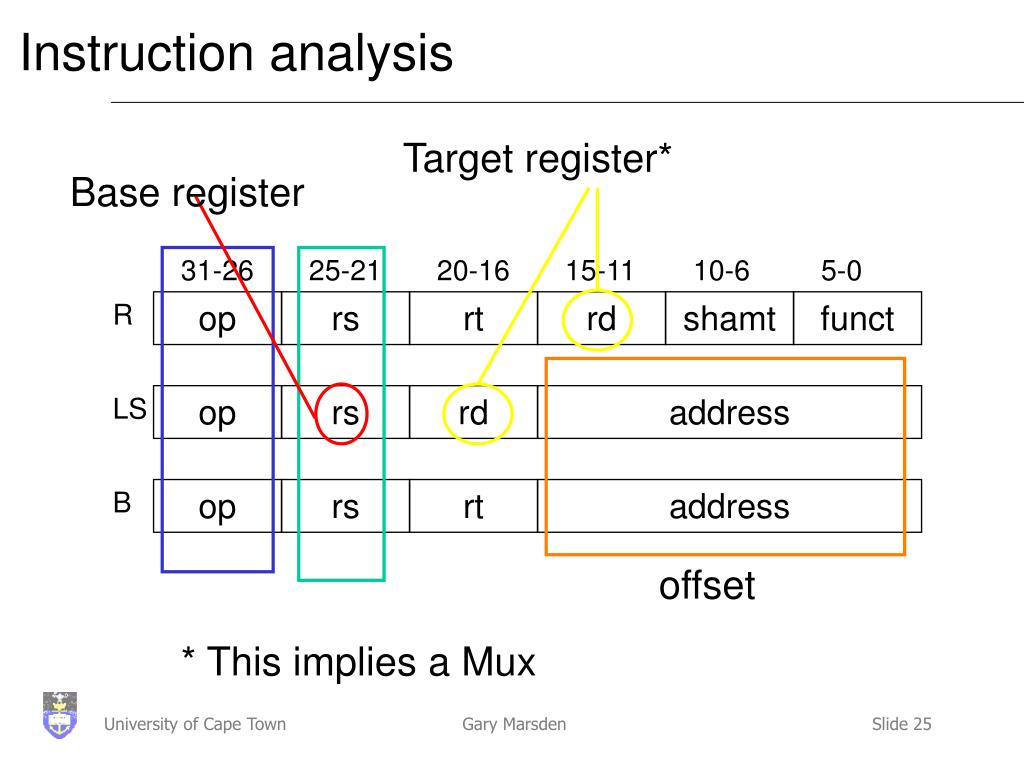

  25. Instruction analysis Target register* Base register 31-26 25-21 20-16 15-11 10-6 5-0 R op rs rt rd shamt funct LS op rs rd address B op rs rt address offset * This implies a Mux

  26. What does that look like?

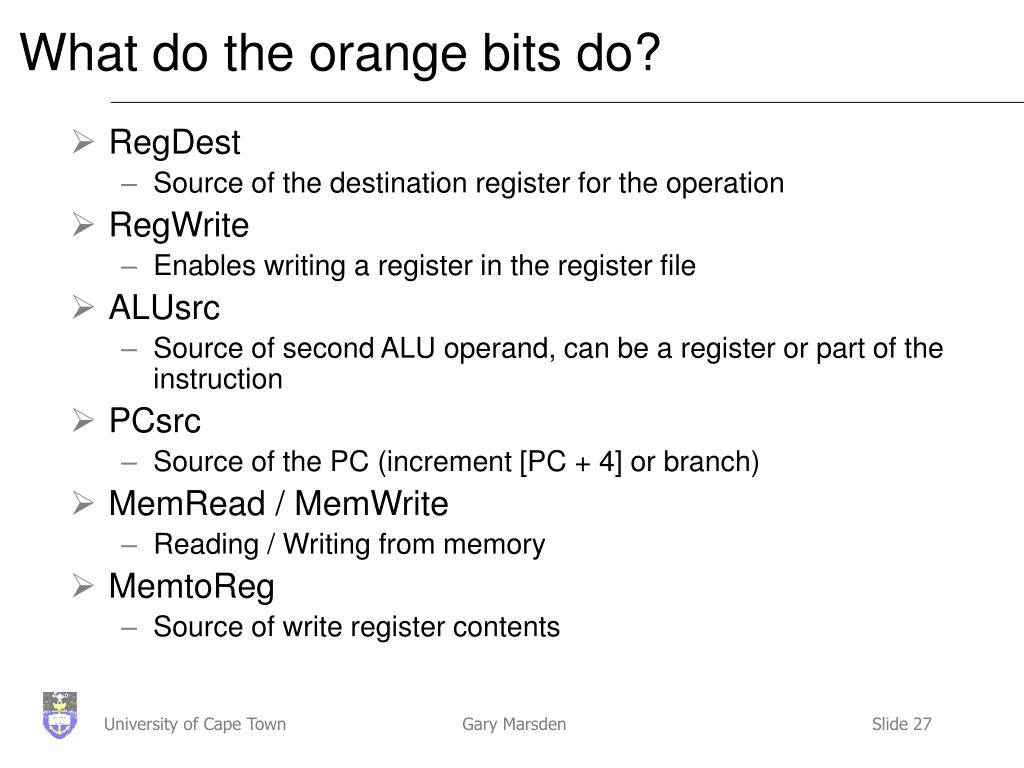

  27. What do the orange bits do? • RegDest • Source of the destination register for the operation • RegWrite • Enables writing a register in the register file • ALUsrc • Source of second ALU operand, can be a register or part of the instruction • PCsrc • Source of the PC (increment [PC + 4] or branch) • MemRead / MemWrite • Reading / Writing from memory • MemtoReg • Source of write register contents

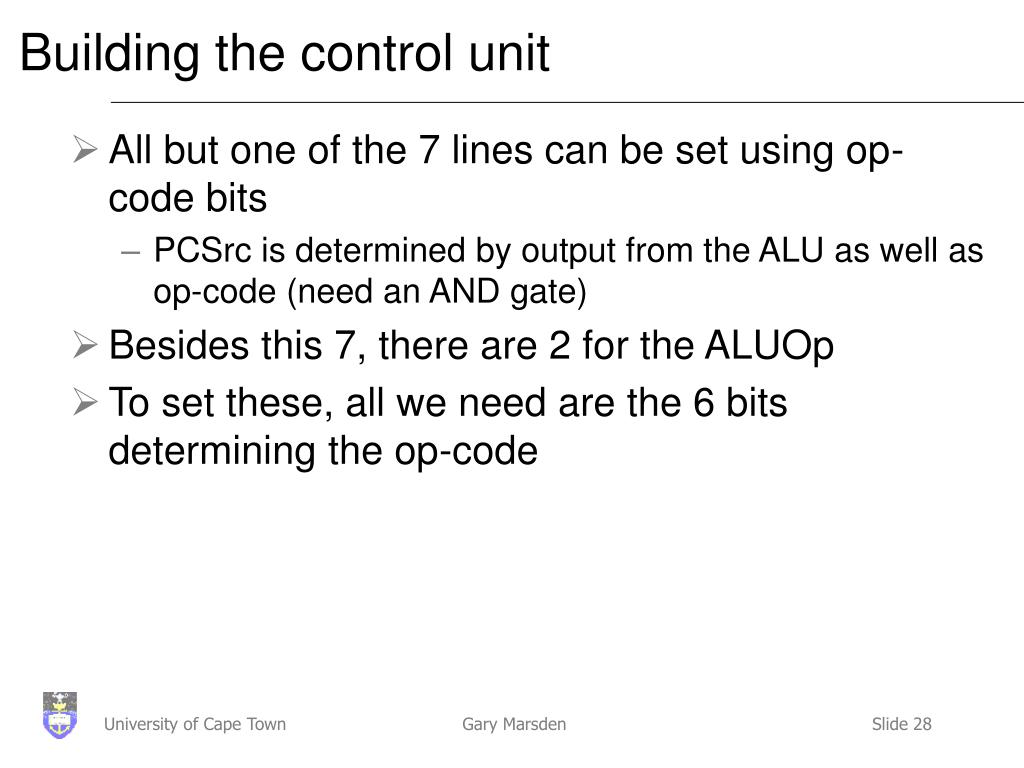

  28. Building the control unit • All but one of the 7 lines can be set using op-code bits • PCSrc is determined by output from the ALU as well as op-code (need an AND gate) • Besides this 7, there are 2 for the ALUOp • To set these, all we need are the 6 bits determining the op-code

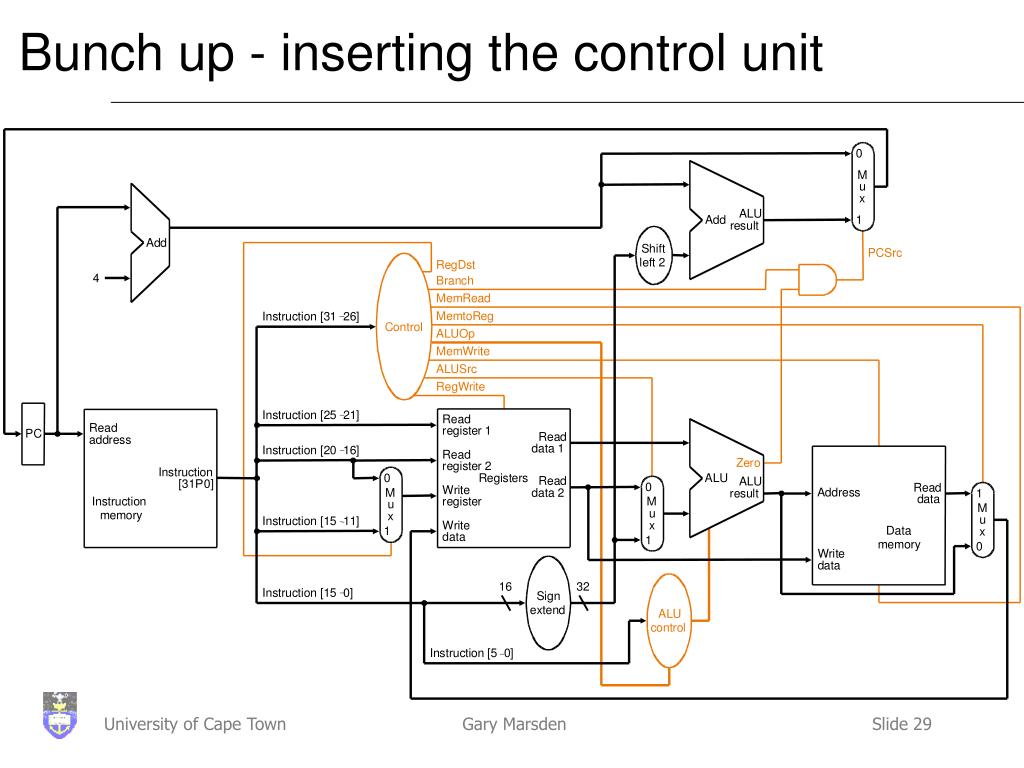

  29. Bunch up - inserting the control unit

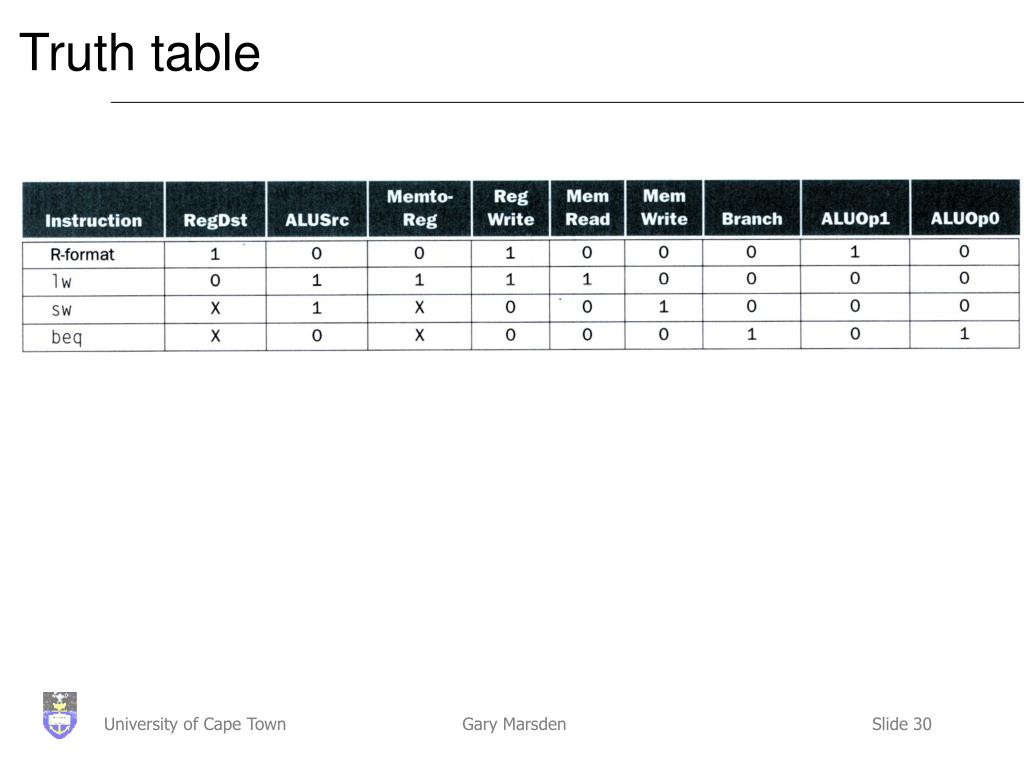

  30. Truth table

  31. Sample R-type execution • Instruction fetched and PC incremented • $2 and $3 are read from register file • ALU operates on the data • The result from the ALU is written to register file
