  1. Fiber Multiplexers (Optimux) – Everything Over Fiber • Presented by: • CBNetworks • Technical Support • support.technique@cbnetworks.fr • http://www.cbnetworks.fr

  2. Agenda • Market Background • Target Customers • Target Applications • Family Overview • Product Line Strengths • Summary • Appendix- Product Specs

  3. Market – Background & Trends • Market Background • Target Customers • Target Applications • Product Line Overview • Family Strengths • Summary

  4. Target Customers • Market Background • Target Customers • Target Applications • Product Line Overview • Family Strengths • Summary • Carriers & service providers • Cellular operators • Enterprises – Campuses, Banks, etc. • Utility – Power, Gas & Oil, Electricity, etc. • Transportation – Rail, Highways, etc. • Government & Military Transportation Service Provider Military Government Utilities Airports Enterprise Oil & Gas

  5. OP-108C OP-108C OP-108C OP-108C Target Applications • Market Background • Target Customers • Target Applications • Product Line Overview • Family Strengths • Summary Key Benefits: • Transparency – Clocks & Services • Redundancy – Uplinks, Power Supplies, Tributaries • Simplicity – Plug & Play Multi-service Drop & Insert/Ring Extension/Fan Out POP Branch 2 STM-1 1+1 MP-4100 FE OP-108 F.O SDH PBX GbE 1+1 1-4 E1 Branch 20 GbE ISP FE OP-108 PSN Cisco F.O PBX NMS RADview 1-4 E1

  6. Target Applications • Market Background • Target Customers • Target Applications • Product Line Overview • Family Strengths • Summary Key Benefits: • Transparency – Clocks & Services • Redundancy – Uplinks, Power Supplies, Tributaries • Simplicity – Plug & Play Multi-service Drop & Insert/Ring Extension/Fan Out Optimux Optimux Optimux F.O E1/T1 F.O MP-2100 Voice Switch FXO E1/T1 E1/T1 E1/T1 E1/T1 MP-2100 MP-2100 Airmux-200 MP-2100 Village

  7. Target Applications • Market Background • Target Customers • Target Applications • Product Line Overview • Family Strengths • Summary Key Benefits: • Transparency – Clocks & Services • Redundancy – Uplinks, Power Supplies, Tributaries • Simplicity – Plug & Play Multi-service Drop & Insert/Ring Extension/Fan Out ADM ADM Optimux Optimux SDH/SONET SDH/SONET SDH/SONET

  8. OP-108C OP-108C OP-108C OP-34C Multi-Service Solution over Fiber in the Last Mile • Market Background • Target Customers • Target Applications • Product Line Overview • Family Strengths • Summary • Benefits: • Reduce Opex/Capex by Multiservice aggregation device at the PoP • Both E1 and Eth services over Fiber/Single Fiber • Complete Last Mile solution Branch 1 FE FE OP-108 OP-108 F.O PBX PBX 1-4 E1 1-4 E1 POP Branch 2 STM-1 1+1 MP-4100 FE OP-108 F.O SDH PBX GbE 1+1 1-4 E1 Branch 20 GbE ISP FE OP-34 F.O PSN Cisco PBX NMS RADview 1-15E1

  9. Drop & Insert • Market Background • Target Customers • Target Applications • Product Line Overview • Family Strengths • Summary • Benefits • Expanding the services based on customers • Complete solution for isolated sites • One shop solution Main City NMS Optimux-45 Optimux-45 Optimux-45 F.O (120Km) E1/T1 F.O (120Km) MP-2100 Voice Switch FXO E1/T1 E1/T1 SDH/SONET E1/T1 MP-2100 Airmux-200 Airmux-200 CVS Airmux-200 MAP MP-2100 MP-2100 NMS Optimux Village Last Mile Village ETH Access IAD’s

  10. Ring Solution • Market Background • Target Customers • Target Applications • Product Line Overview • Family Strengths • Summary • Benefits: • Cost effective ring solution • E1 & T1 multiplexed into T3 • Less than 50ms flip time • Ring support over: Radio & Fiber Mathematics 11 E1 Design 11 E1 Campus A Campus B Optimux-45 Engineering Art’s Optimux-45 ADM ADM ADM Optimux-45 Optimux-45 Optimux-45 SDH Optimux-45 10 E1 Physics ADM 10 E1 Architecture

  11. Service extension over standard SDH/SONET network/Fan Out • Market Background • Target Customers • Target Applications • Product Line Overview • Family Strengths • Summary • Benefits: • Cost effective • Fully redundant solution • Standard protocol • Full resilience – more than 100 years MTBF ADM ADM Optimux Optimux 3xE3 or 3xT3 Up to 63 E1s or Up to 84 T1s SDH/SONET SDH/SONET SDH/SONET Optimux Channelized E3/T3 STM-1/OC-3

  12. Product Line Overview • Market Background • Target Customers • Target Applications • Product Line Overview • Family Strengths • Summary Optimux-108/Optimux-106 Uplink = 108 Mbps FO 4 x E1/T1 100 Mbps ETH MNG Optimux-34/Optimux-25 Uplink = 34 Mbps 12 x E1/T1 (E3 or Fiber) ETH 16 Mbps Granularity 8 x E1/T1 16 x E1/T1 ETH 8 Mbps Granularity MNG Optimux-45 Uplink = 45 Mbps FO Coax TDM (T3 or Fiber) 21 x E1 / 28 x T1 MNG Uplink = 155 Mbps Optimux-1551/Optimux-1553 FO Coax TDM (STM-1/OC-3 or copper) 63 x E1 / 84 x T1 MNG

  13. Product Line Table • Market Background • Target Customers • Target Applications • Product Line Overview • Family Strengths • Summary Special Features Hot swap uplinks, wide range PS LRS/MPcard, works Vs. Two remote OPTIMUX-106/108 ETH activation Key; Hot swap uplinks (SFP based) and PS; Standard E3 LRS/MP card, works Vs. OPTIMUX-25/34 Less than 50ms flip; G.747 Full redundancy; 63xE1/84xT1 ; 3xE3/3xT3 over 155Mbps

  14. Optimux Family Strengths • Market Background • Target Customers • Target Applications • Product Line Overview • Family Strengths • Summary LRS-102 (Transparent) OP-106/108 OP-25/34 Optimux-106/108 Optimux-25/34 MP-4100 (Aggregation) OP-106/108 OP-25/34 Optimux-45/L Optimux- 1551/3 12,000 units during 2008

  15. Summary • Market Background • Target Customers • Target Applications • Product Line Overview • Family Strengths • Summary • Market Trends • Customers • Applications & Strengths Transportation Service Provider Military Government Utilities Airports Enterprise Oil & Gas

  16. Technical Support • support.technique@cbnetworks.fr • http://www.cbnetworks.fr

  17. Optimux-106/108 • Market Background • Target Customers • Target Applications • Product Line Overview • Summary • Appendix • Uplink: Fiber optic • Tributaries: OP-106 (81 Mbps): 4 x T1 channels and 10/100 BaseT Ethernet OP-108 (108 Mbps): 4 x E1 channels and 10/100 BaseT Ethernet or 2 Mbps V.35 • Transmission reliability: Optional redundancy via a secondary link • Size: 1U high, half 19’’ wide chassis • Power supply: Wide range(100-240VAC & –48VDC) • System redundancy: Optional secondary power supply and hot swap main link • Management: SNMP agent, ASCII terminal, Telnet, RADview Network Management System and remote management using in-band channel

  18. Optimux-108/106 stand alone Redundant, hot swap uplinks Control port, mini-connector V.35 interface (2.048 Mbps) 2 x Wide-range (AC/DC) PS 4xE1 ports (Balanced or Unbalanced) Alarm port Management Ethernet port (10/100BaseT)

  19. Optimux-106/108C for LRS-102 Features: Dual E1/T1 and Ethernet multiplexer over F.O links Varied fiber interfaces Hot Swappable Uplink Redundancy (SFP) Central management point on the LRS-102/MP-4100 Winning points: High reliability Complete solution High density, up to 96 E1/T1 and 24 ETH ports (up to 24 Optimux-108/106 in 4U chassis) • Market Background • Target Customers • Target Applications • Product Line Overview • Summary • Appendix

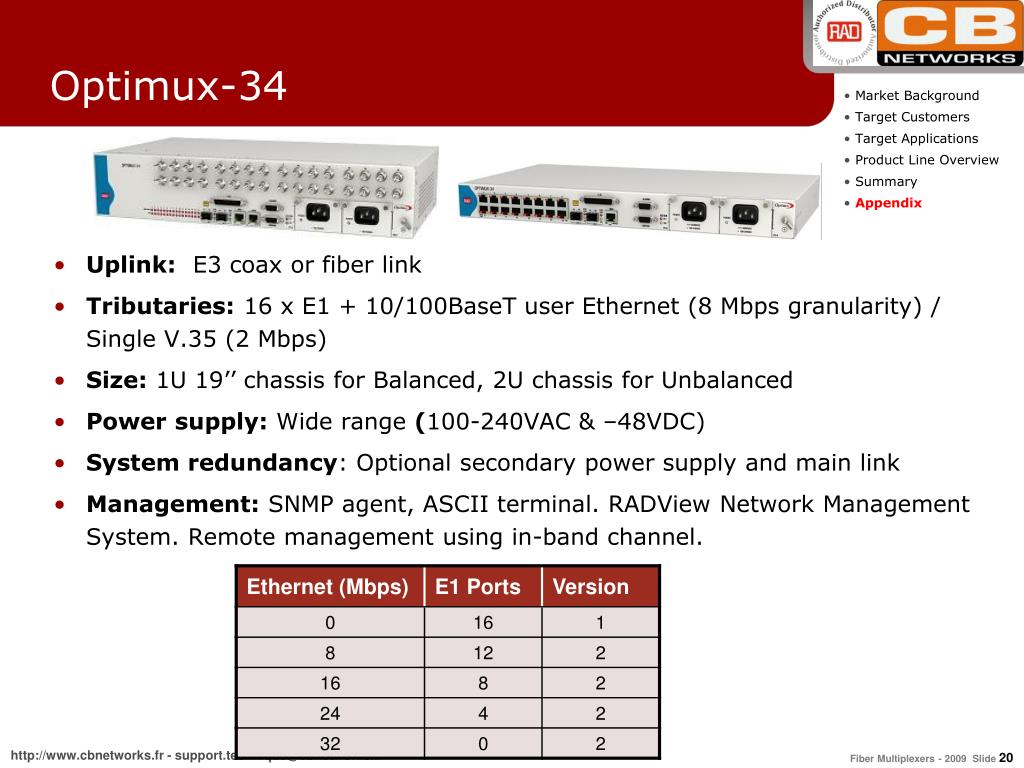

  20. Optimux-34 • Market Background • Target Customers • Target Applications • Product Line Overview • Summary • Appendix • Uplink: E3 coax or fiber link • Tributaries: 16 x E1 + 10/100BaseT user Ethernet (8 Mbps granularity) / Single V.35 (2 Mbps) • Size: 1U 19’’ chassis for Balanced, 2U chassis for Unbalanced • Power supply: Wide range (100-240VAC & –48VDC) • System redundancy: Optional secondary power supply and main link • Management: SNMP agent, ASCII terminal. RADView Network Management System. Remote management using in-band channel.

  21. Optimux-25 • Market Background • Target Customers • Target Applications • Product Line Overview • Summary • Appendix • Uplink: Coax or fiber link • Tributaries: 16 x T1 / 10/100BaseT user Ethernet (6 Mbps granularity) / single V.35 (1.544 Mbps) • Size: 1U 19’’ chassis • Power supply: Wide range (100-240VAC & –48VDC) • System redundancy: Optional secondary power supply and SFP based main link • Management: SNMP agent, ASCII terminal. RADview Network Management System. Remote management using in-band channel.

  22. Optimux-25/34C for LRS-102 • Market Background • Target Customers • Target Applications • Product Line Overview • Summary • Appendix • Features: • Dual E1/T1 and Ethernet multiplexer over F.O links • Varied fiber interfaces • Hot Swappable Uplink Redundancy (SFP) • Central management point on the LRS-102/MP-4100 • Winning points: • High reliability • Complete solution • High density, up to 192 E1/T1 in central site

  23. OP-34C OP-34C OP-34C OP-34C Multi-Service Solution over Fiber in the Last Mile • Market Background • Target Customers • Target Applications • Product Line Overview • Family Strengths • Summary • Benefits: • Reduce Opex/Capex by Multiservice aggregation device at the PoP • Both E1 and Eth services over single Fiber • Complete Last Mile solution Branch 1 FE Optimux-34 F.O PBX 1-16 E1 POP Branch 2 n x E1’s LRS-102 FE SDH Optimux-34 F.O PBX 1-16 E1 Branch 20 ISP FE Optimux-34 F.O PBX 1-16E1 NMS RADview

  24. Optimux-45 • Market Background • Target Customers • Target Applications • Product Line Overview • Summary • Appendix The most cost effective alternative solution to SDH network • Uplink: Coax or fiber T3 link • Ring and daisy chain support • Tributaries: 3 x E1/4 x T1, 6 x E1/8 x T1, 9 x E1/12 x T1 and 21 x E1/28 x T1 channels. T2 granularity according to G.747 standard. • Transmission reliability: Optional redundancy via a secondary link. Less then 50msec protection. • 1U chassis • Power supply: 100-240VAC, +24VDC or –48VDC • System redundancy: Optional secondary power supply for redundancy • Management: SNMP agent, ASCII terminal. RADview Network Management System. Remote management using in-band channel.

  25. Optimux-1551SDH/SONET Multiplexer • Market Background • Target Customers • Target Applications • Product Line Overview • Summary • Appendix • Uplink: Coax or fiber STM-1 or OC-3 link • Tributaries: Up to 63 x E1 or 84 x T1 links • Transmission reliability: Optional redundancy on the up link and tributaries • System redundancy: Optional secondary power supply for redundancy • Management: SNMP agent, ASCII terminal. Telnet, ConfiguRAD and RADview NMS • Compact 2U-high chassis Hot Swap Tributaries Hot Swap PS Modules Hot Swap Fans Hot Swap Main Link Modules

  26. Optimux-1553SDH/SONET Multiplexer • Market Background • Target Customers • Target Applications • Product Line Overview • Summary • Appendix • Uplink: Coax or fiber STM-1 or OC-3 link • Tributaries: Up to 3 x E3 or 3 x T3 links • Transmission reliability: Optional redundancy on the up link and tributaries • System redundancy: Optional secondary power supply for redundancy • Management: SNMP agent, ASCII terminal. Telnet, ConfiguRAD and RADview NMS. • Size: Compact 1U-high chassis Hot Swap Multiplexer Cards Hot Swap Main Link Modules Hot Swap PS Modules

  27. LRS-102 Central Solution • Market Background • Target Customers • Target Applications • Product Line Overview • Summary • Appendix • A 4U height chassis • Optional redundant power supplies • Optional redundant common logic • 12 I/O slots • 12 x Optimux-25/34 ports (Beta) • 24 x Optimux-106/108C ports • 96 x 2w SHDSL.bis ASMi-54C ports • 96 x 2w SHDSL ASMi-52C ports (Q1/09) • Unit allows a mix and match rack • Central management via the common logic module
