  1. FERC’s Expectation for EAPs Natural Hazards: Events and Response David Lord, P.E., D2SI Dam Safety Risk team – Portland, Or 1

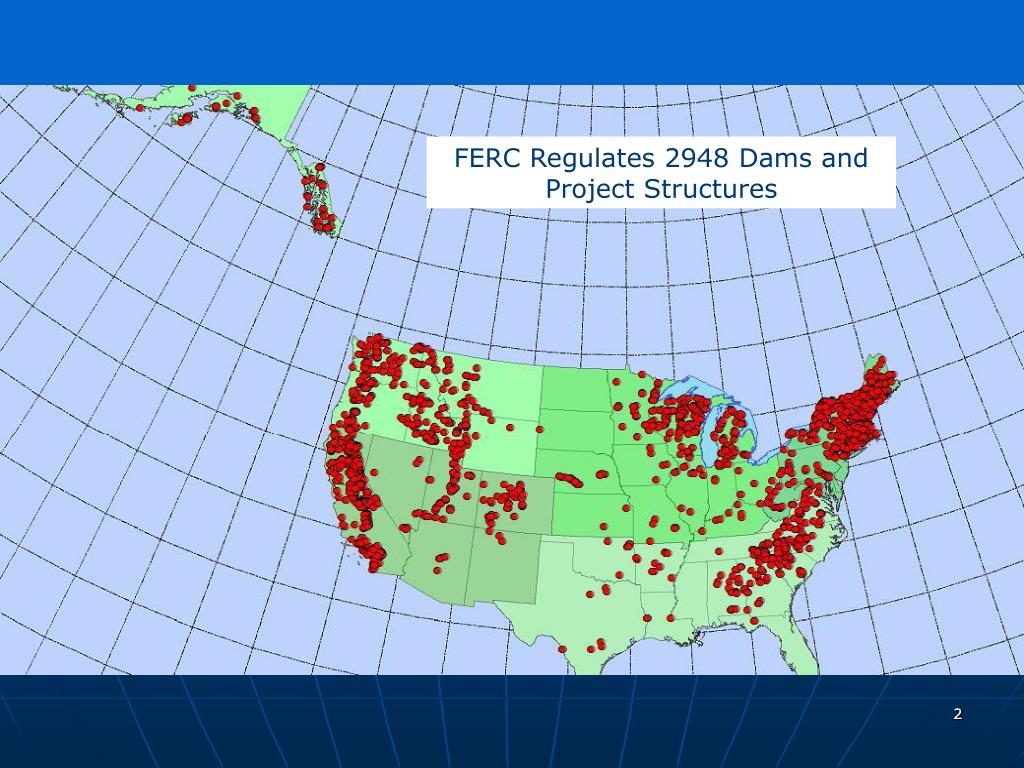

  2. FERC Regulates 2948 Dams and Project Structures 2

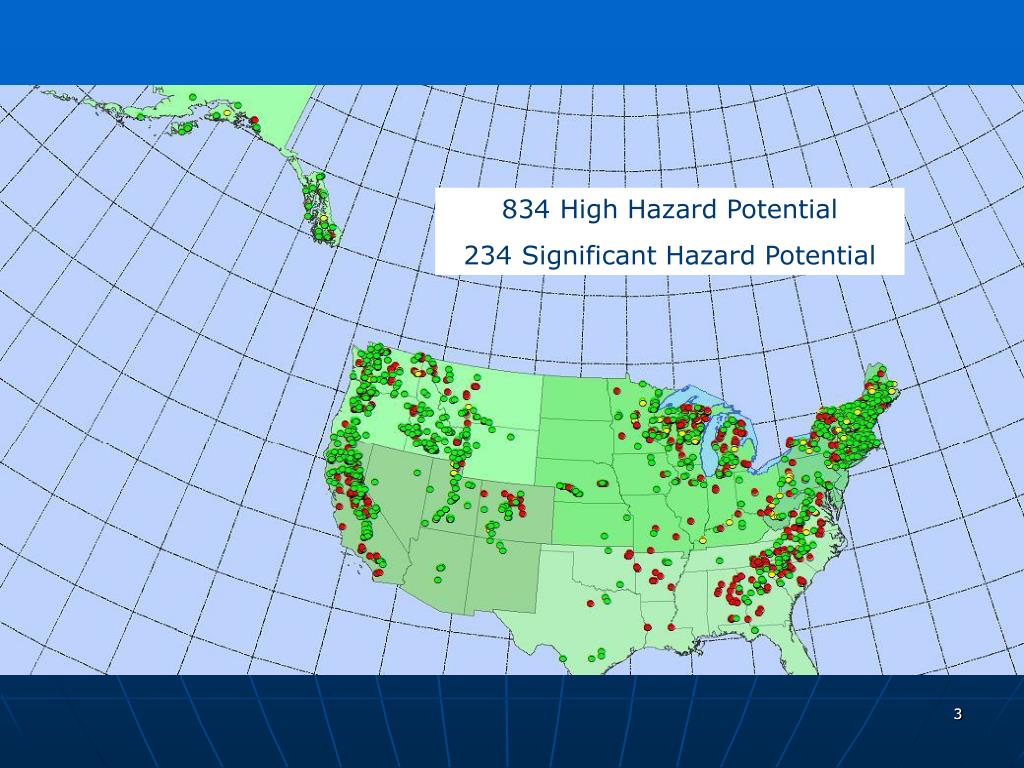

  3. 834 High Hazard Potential 234 Significant Hazard Potential 3

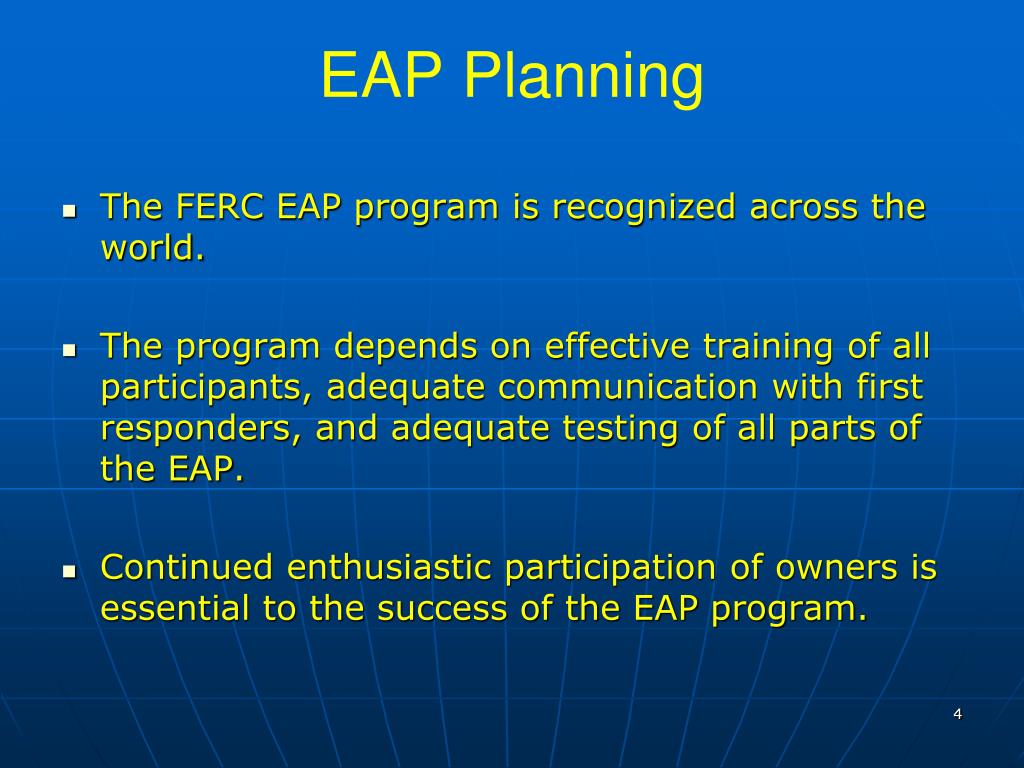

  4. EAP Planning The FERC EAP program is recognized across the world. The program depends on effective training of all participants, adequate communication with first responders, and adequate testing of all parts of the EAP. Continued enthusiastic participation of owners is essential to the success of the EAP program. 4

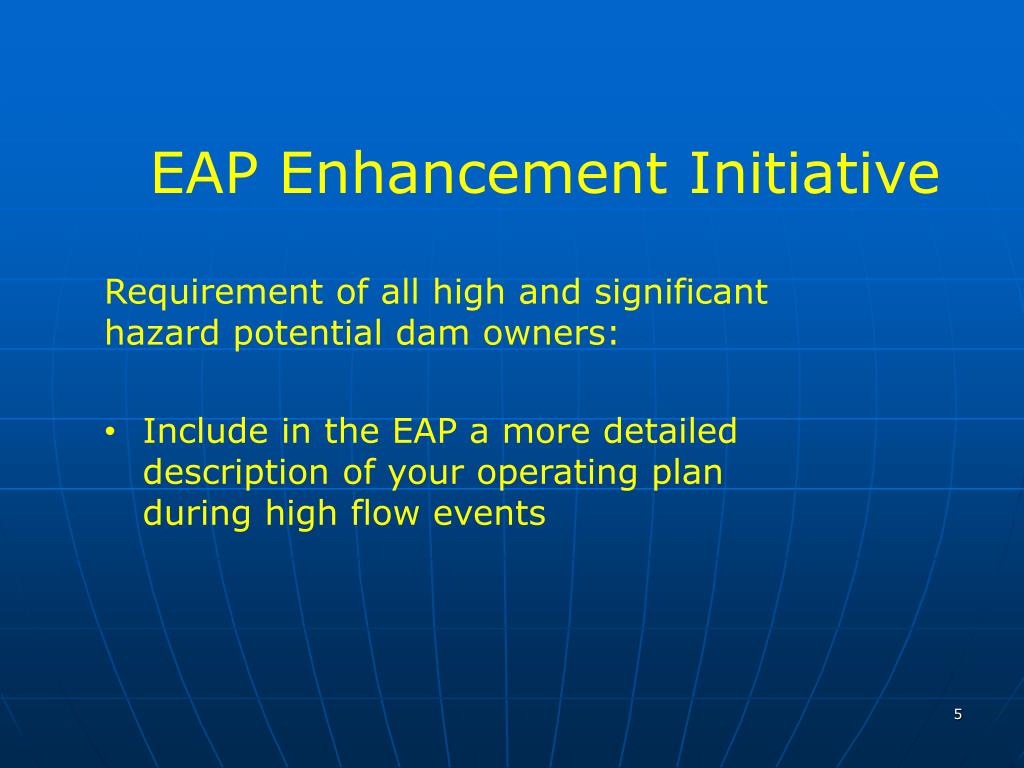

  5. EAP Enhancement Initiative • Requirement of all high and significant hazard potential dam owners: • Include in the EAP a more detailed description of your operating plan during high flow events

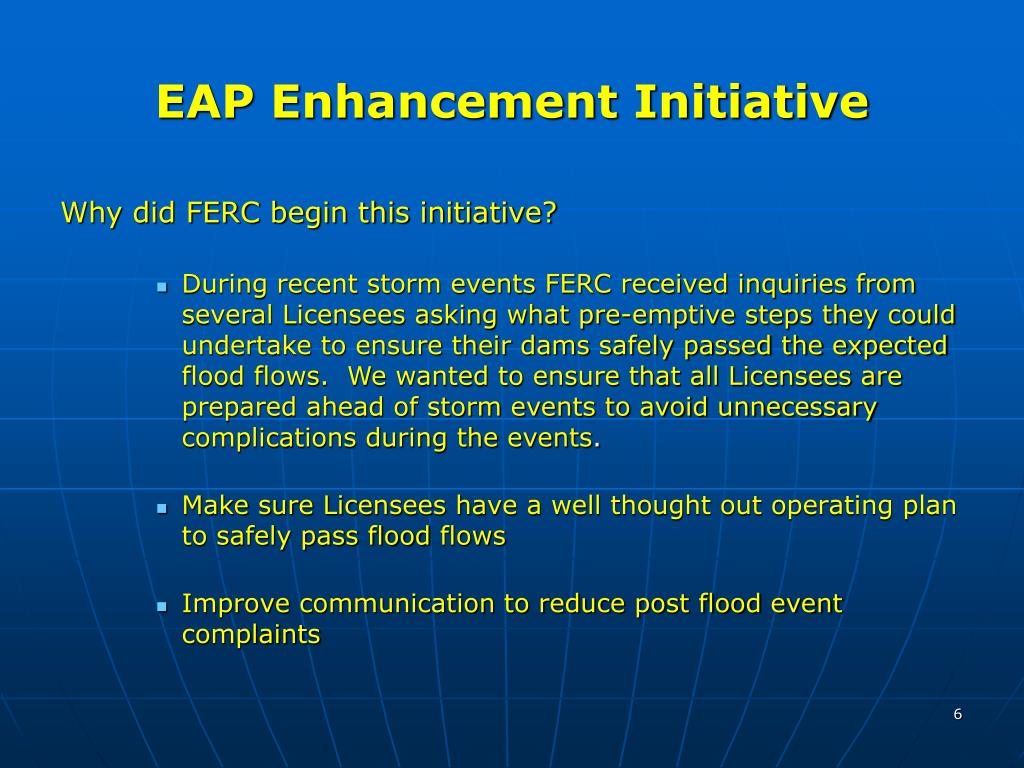

  6. EAP Enhancement Initiative Why did FERC begin this initiative? • During recent storm events FERC received inquiries from several Licensees asking what pre-emptive steps they could undertake to ensure their dams safely passed the expected flood flows. We wanted to ensure that all Licensees are prepared ahead of storm events to avoid unnecessary complications during the events. • Make sure Licensees have a well thought out operating plan to safely pass flood flows • Improve communication to reduce post flood event complaints

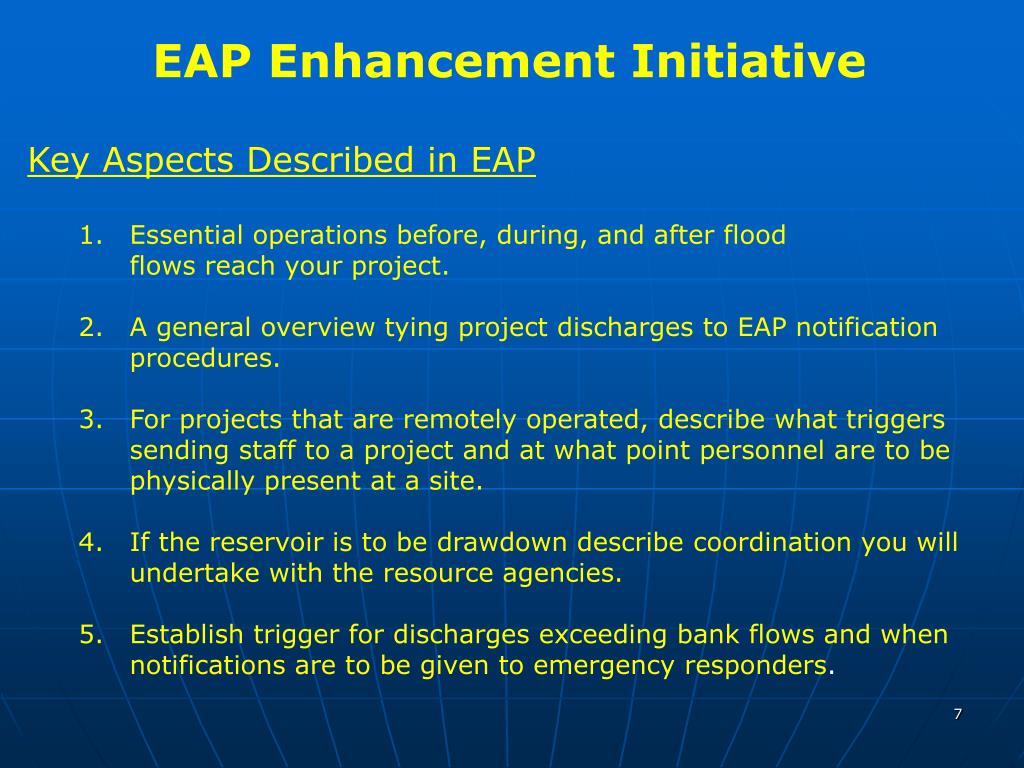

  7. EAP Enhancement Initiative Key Aspects Described in EAP Essential operations before, during, and after flood flows reach your project. 2. A general overview tying project discharges to EAP notification procedures. 3. For projects that are remotely operated, describe what triggers sending staff to a project and at what point personnel are to be physically present at a site. 4. If the reservoir is to be drawdown describe coordination you will undertake with the resource agencies. 5. Establish trigger for discharges exceeding bank flows and when notifications are to be given to emergency responders.

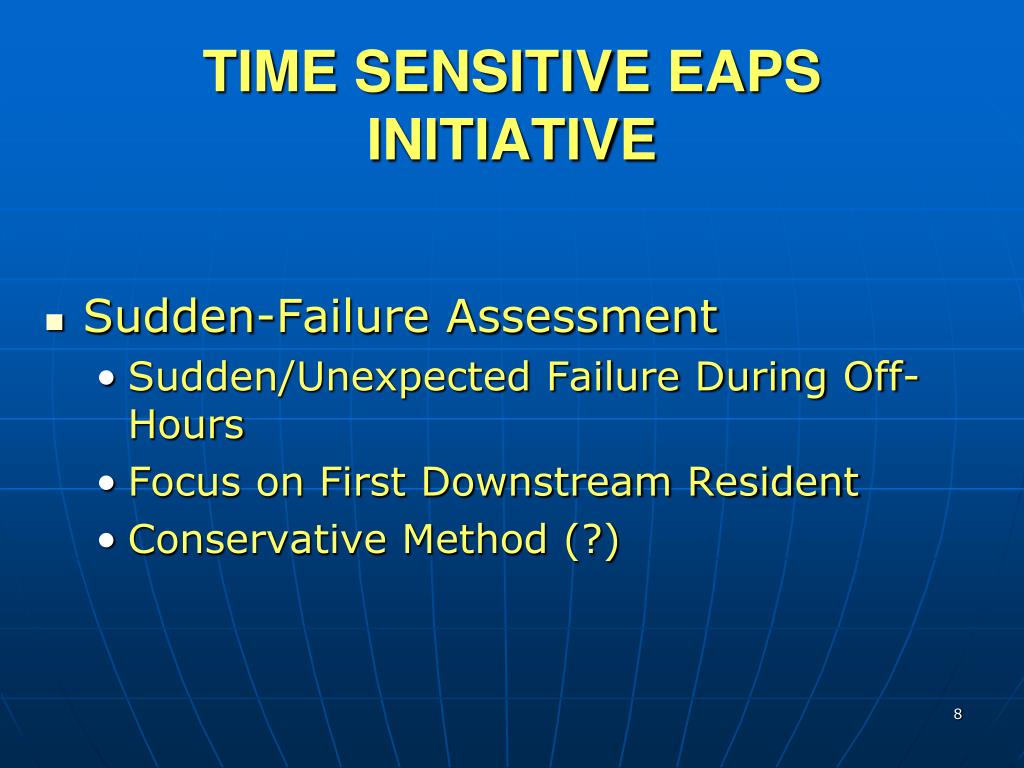

  8. TIME SENSITIVE EAPSINITIATIVE • Sudden-Failure Assessment • Sudden/Unexpected Failure During Off-Hours • Focus on First Downstream Resident • Conservative Method (?)

  9. METHOD FOR ASSESSING TIME SENSITIVE EAPS • Determine Time to Impact • Determine Dam Owner’s Response Time • Detection Time • Verification Time • Notification Time • Get Estimate of EMA’s Response Time • Calculate Excess Response Time • Assess Results

  10. SUDDEN FAILURE ASSESSMENTTime to Impact

  11. SUDDEN FAILURE ASSESSMENTDetection Time • Amount of Time after Failure Begins until Dam Owner is Aware of Problem • Typically Triggered by Instrument • Assume Non-Working Hours • Based on Test of System

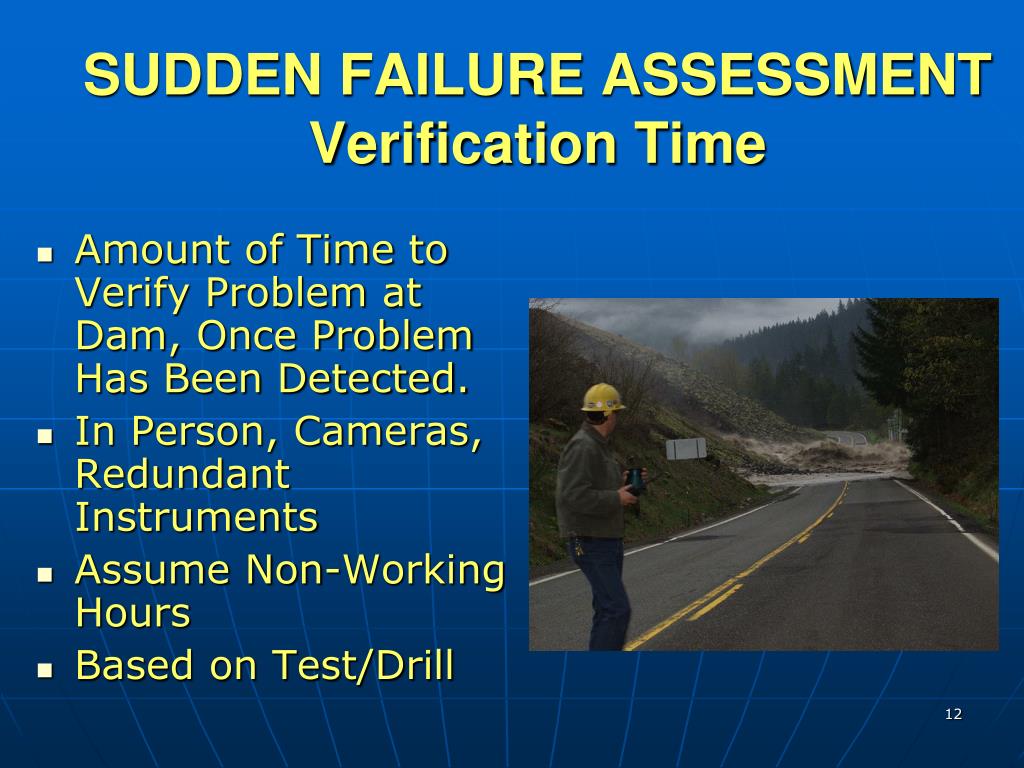

  12. SUDDEN FAILURE ASSESSMENTVerification Time • Amount of Time to Verify Problem at Dam, Once Problem Has Been Detected. • In Person, Cameras, Redundant Instruments • Assume Non-Working Hours • Based on Test/Drill

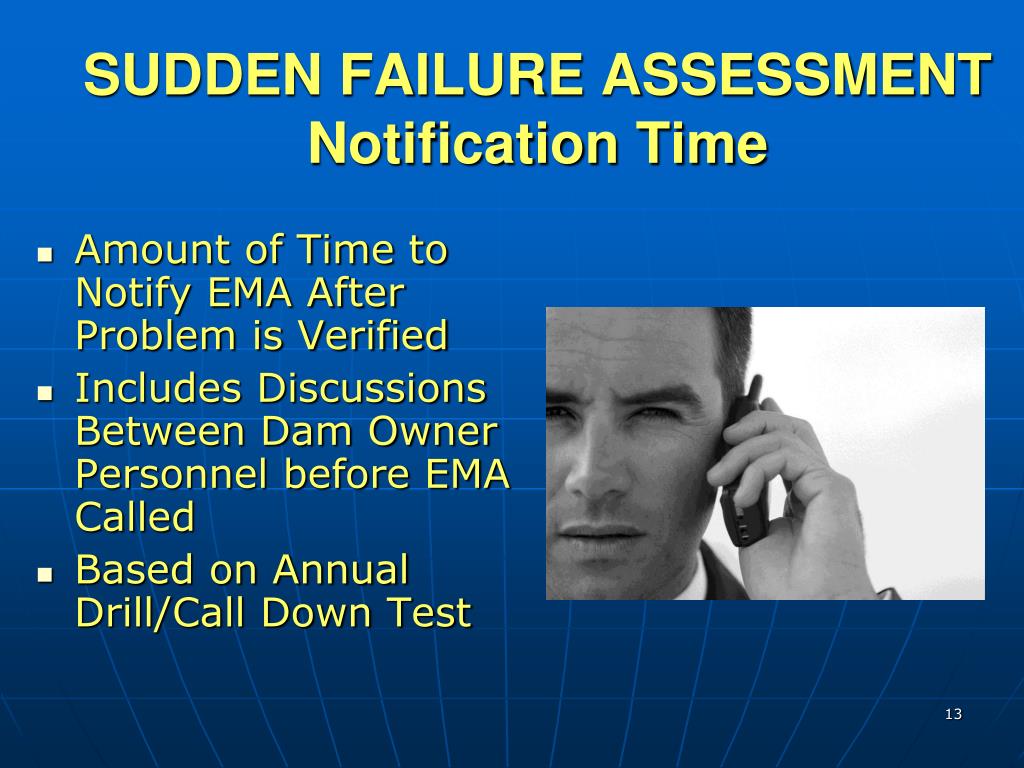

  13. SUDDEN FAILURE ASSESSMENTNotification Time • Amount of Time to Notify EMA After Problem is Verified • Includes Discussions Between Dam Owner Personnel before EMA Called • Based on Annual Drill/Call Down Test

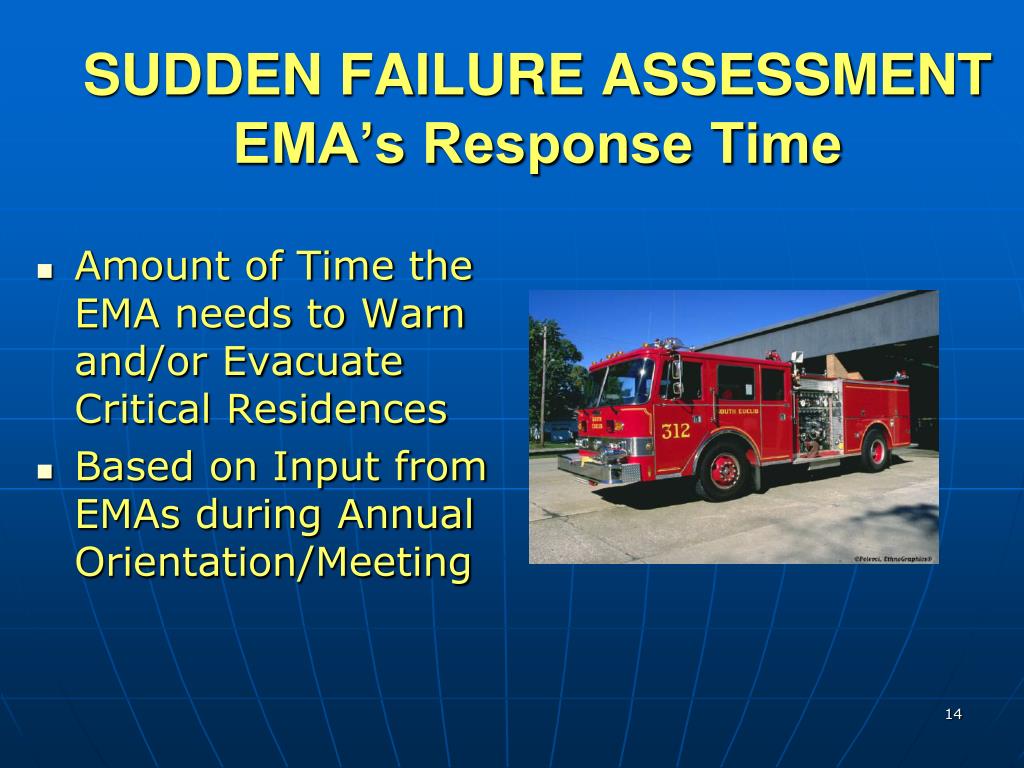

  14. SUDDEN FAILURE ASSESSMENTEMA’s Response Time • Amount of Time the EMA needs to Warn and/or Evacuate Critical Residences • Based on Input from EMAs during Annual Orientation/Meeting

  15. SUDDEN FAILURE ASSESSMENTAssess Results

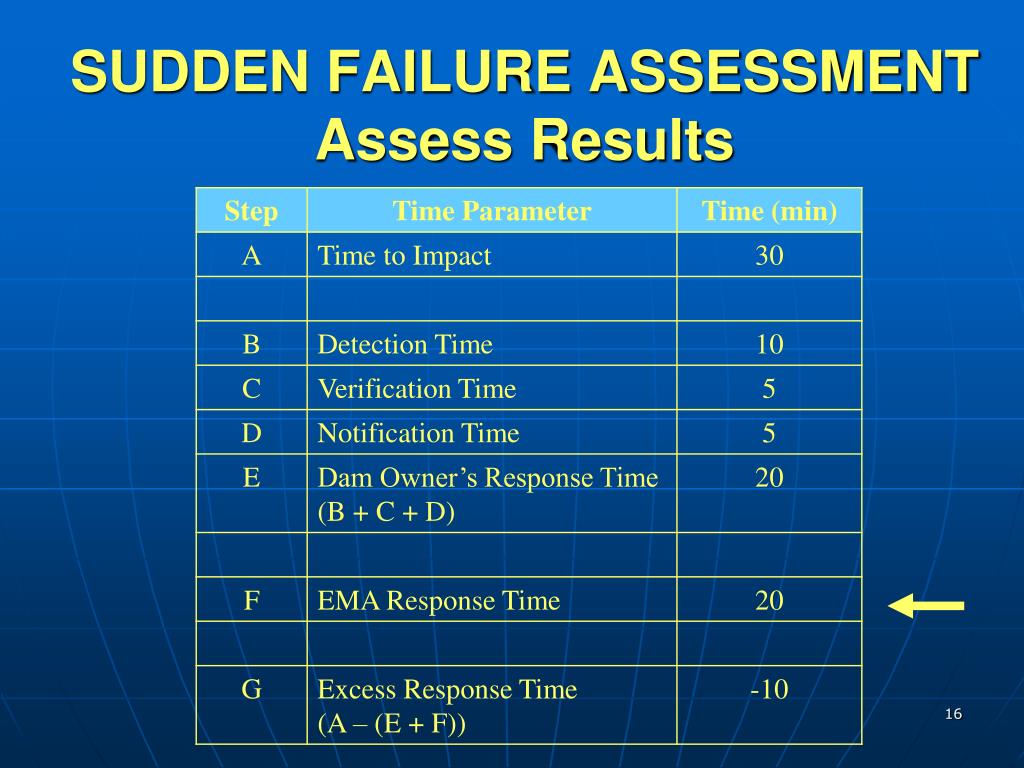

  16. SUDDEN FAILURE ASSESSMENTAssess Results

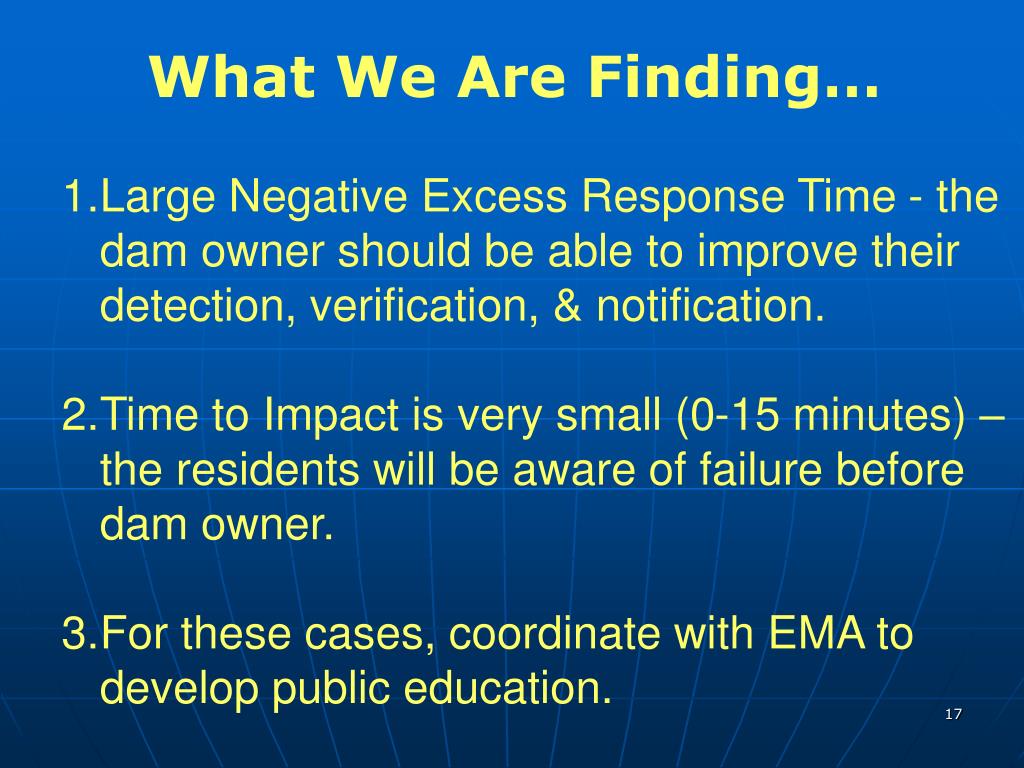

  17. What We Are Finding… • Large Negative Excess Response Time - the dam owner should be able to improve their detection, verification, & notification. • Time to Impact is very small (0-15 minutes) – the residents will be aware of failure before dam owner. • For these cases, coordinate with EMA to develop public education.

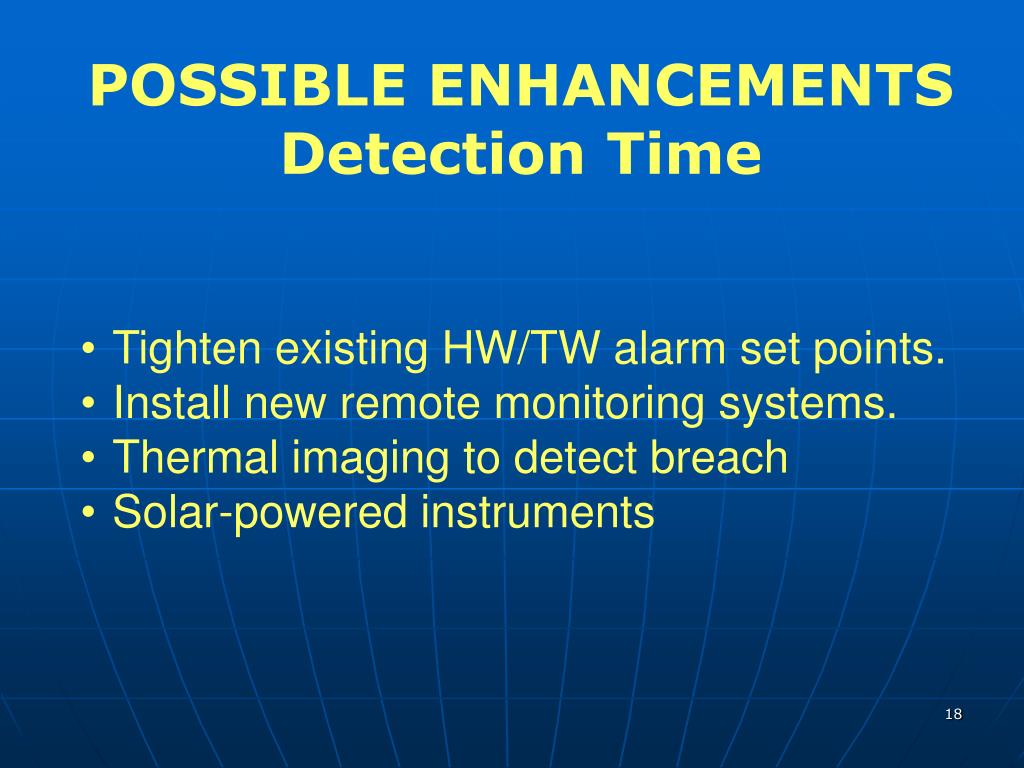

  18. POSSIBLE ENHANCEMENTS Detection Time • Tighten existing HW/TW alarm set points. • Install new remote monitoring systems. • Thermal imaging to detect breach • Solar-powered instruments

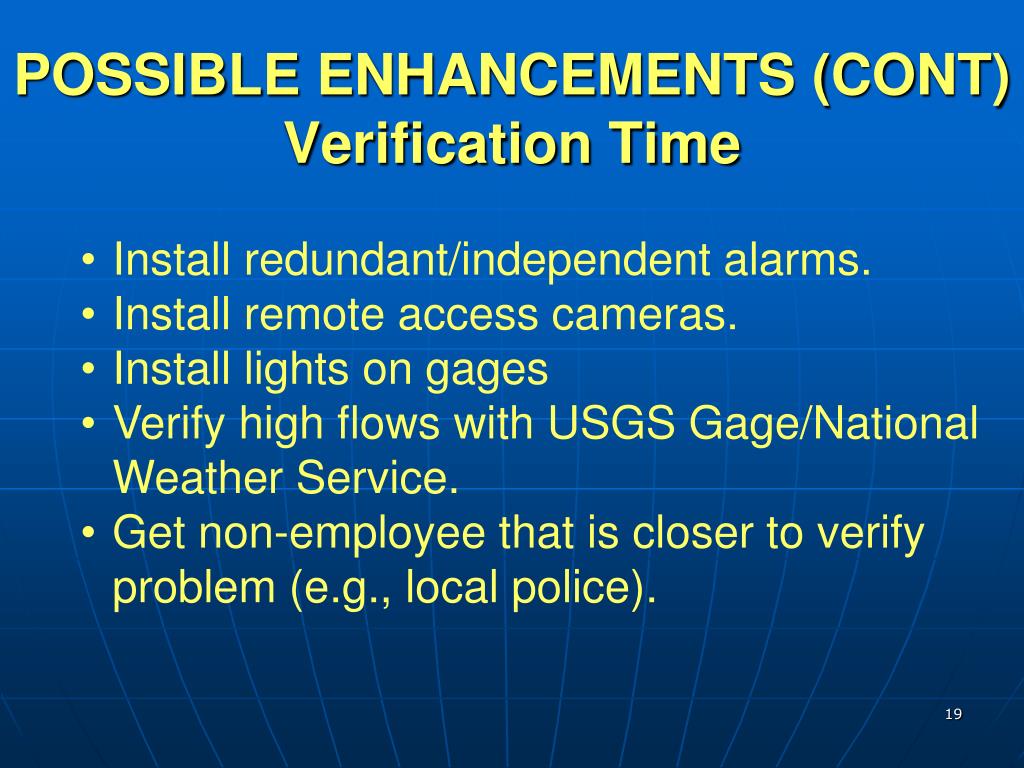

  19. POSSIBLE ENHANCEMENTS (CONT)Verification Time • Install redundant/independent alarms. • Install remote access cameras. • Install lights on gages • Verify high flows with USGS Gage/National Weather Service. • Get non-employee that is closer to verify problem (e.g., local police).

  20. POSSIBLE ENHANCEMENTS (CONT)Notification Time • Streamline Internal Procedures (Notification Flow Chart). • Add Redundancy to Callers. • Preliminary Notification of EMAs • Develop Pre-Scripted Messages. • Use dam-owner controlled Reverse 911 system to notify several agencies at once.

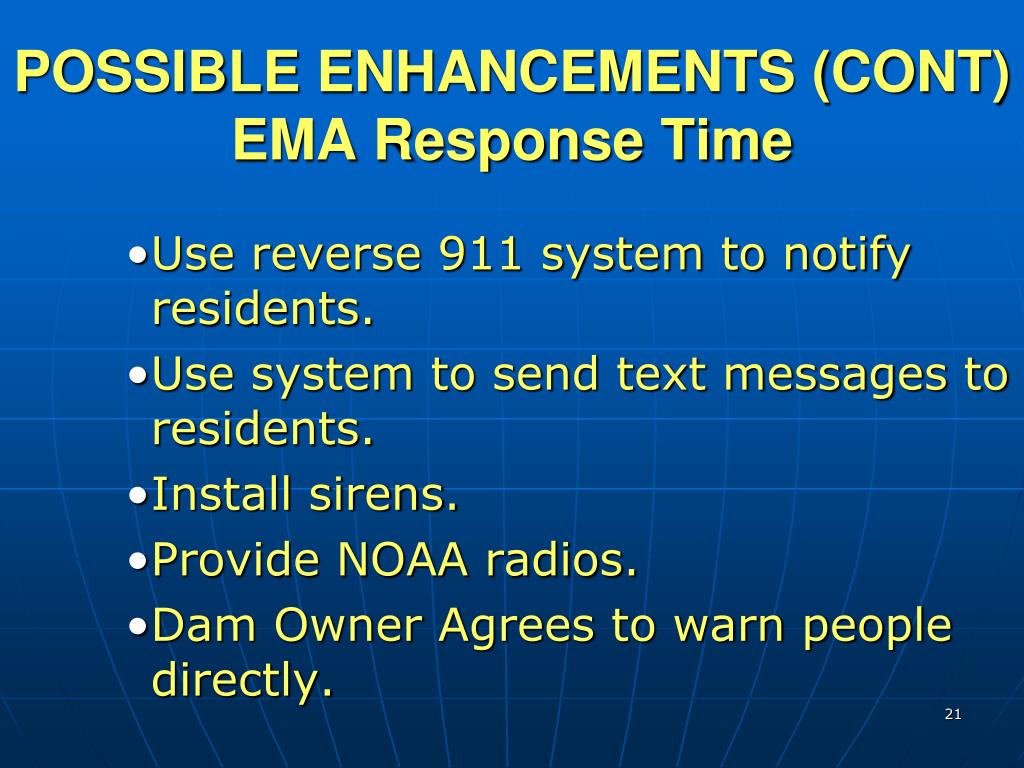

  21. POSSIBLE ENHANCEMENTS (CONT)EMA Response Time • Use reverse 911 system to notify residents. • Use system to send text messages to residents. • Install sirens. • Provide NOAA radios. • Dam Owner Agrees to warn people directly.

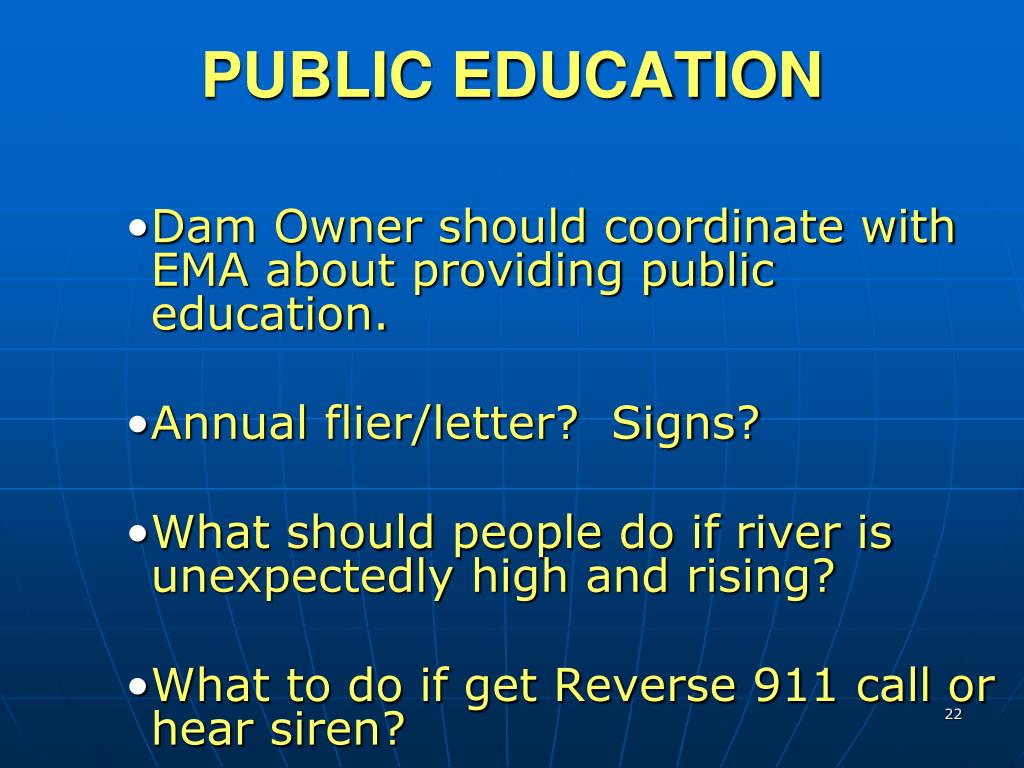

  22. PUBLIC EDUCATION • Dam Owner should coordinate with EMA about providing public education. • Annual flier/letter? Signs? • What should people do if river is unexpectedly high and rising? • What to do if get Reverse 911 call or hear siren?

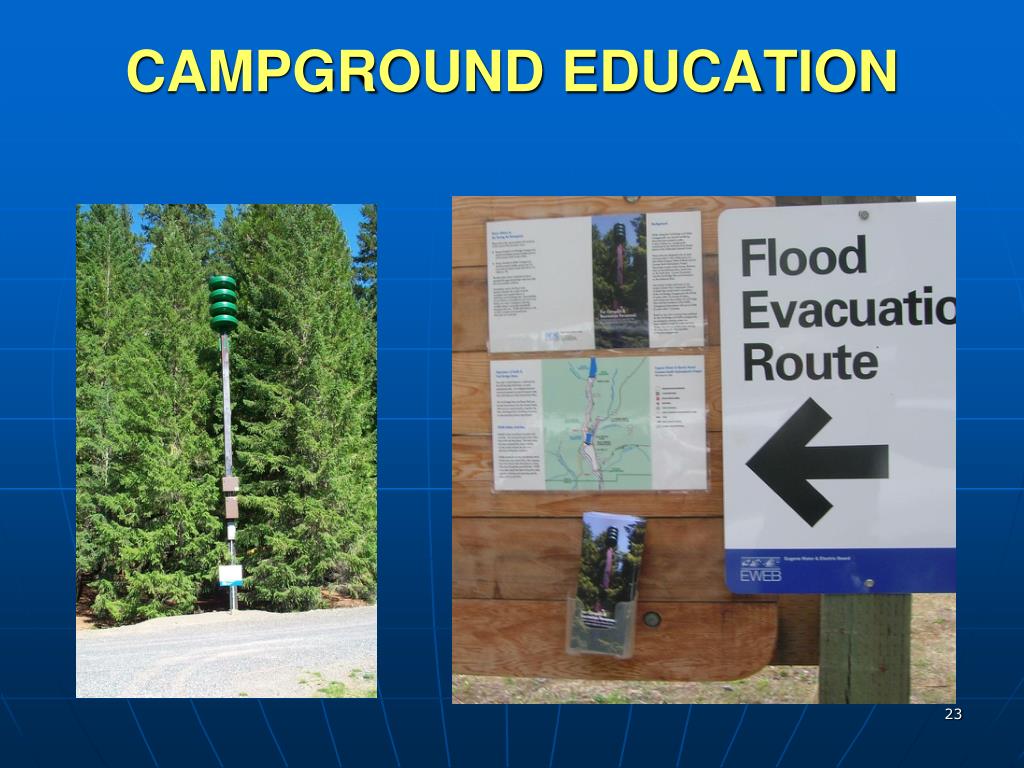

  23. CAMPGROUND EDUCATION

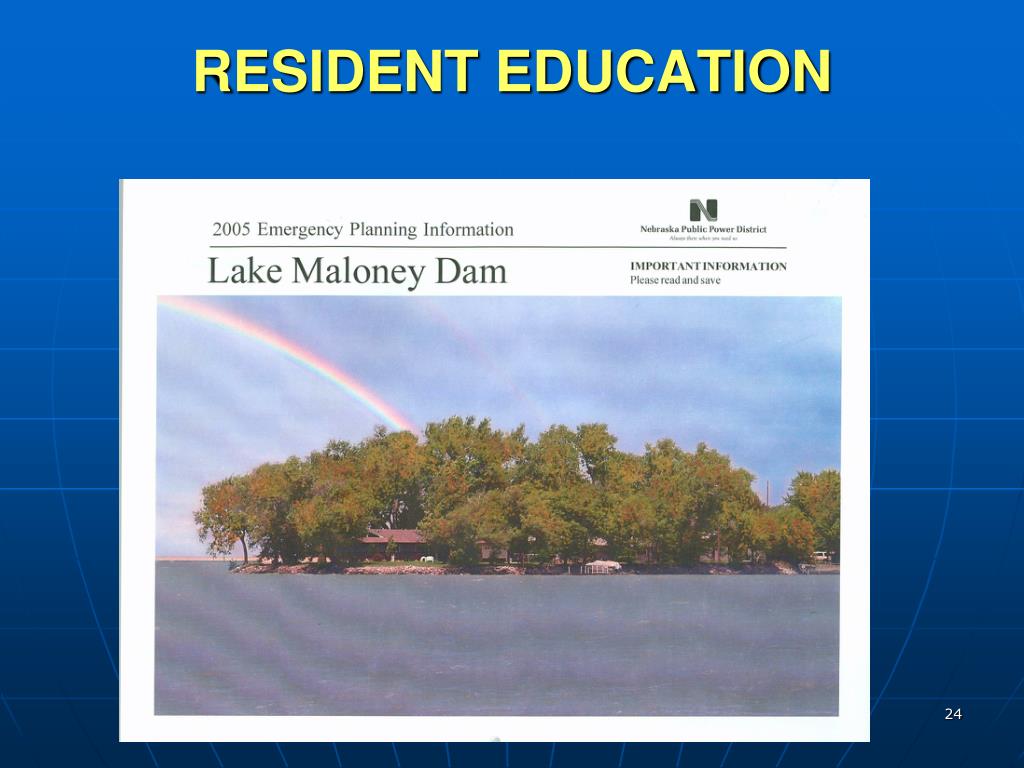

  24. RESIDENT EDUCATION

  25. EXAMPLE LETTER • Our records indicate you live near the White River near Blackstone Dam. Although the dam is safe, it’s possible that high flows or problems at the dam would call for evacuations. • If the river is unexpectedly high and rising, call 911 and move to high ground (Main Street near the Burger Shack). • Do not walk or drive through moving/deep standing water. If there is no safe escape from your house, go to upper floors and call 911. • Your phone number is in the White County automated warning system. If you receive an automated message about high flows – follow the directions in the message. • If you have any questions, call Joe Rogers of the White County Emergency Management Agency at (201) 555-1313

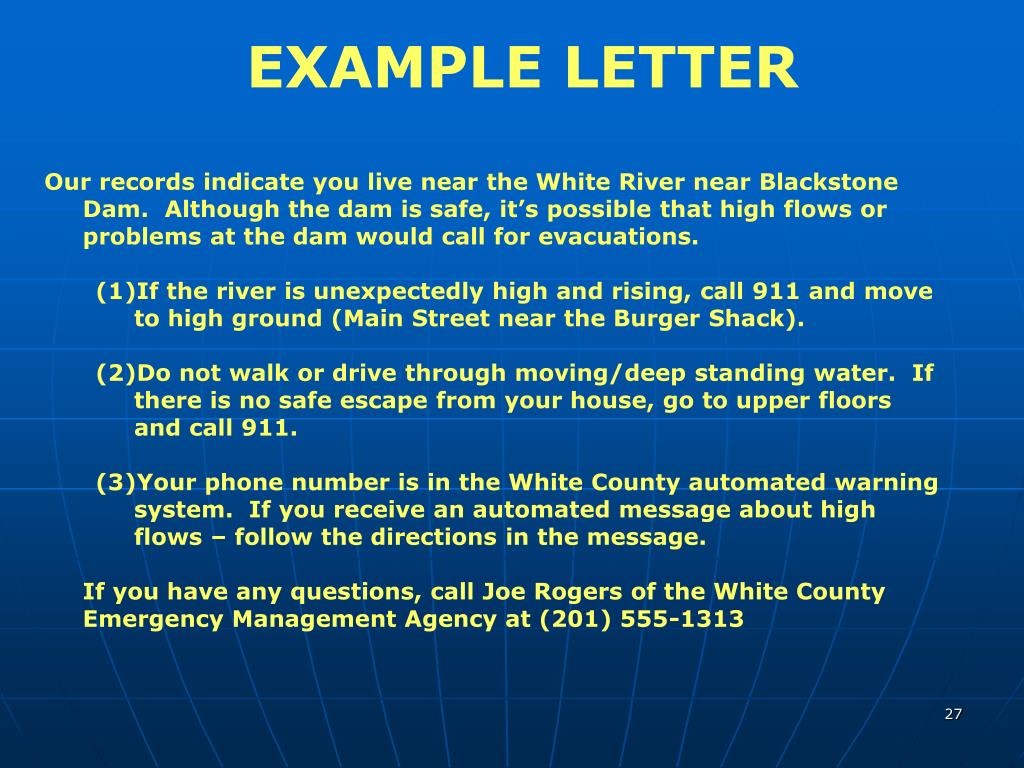

  26. EXAMPLE LETTER • Our records indicate you live near the White River near Blackstone Dam. Although the dam is safe, it’s possible that high flows or problems at the dam would call for evacuations. • If the river is unexpectedly high and rising, call 911 and move to high ground (Main Street near the Burger Shack). • Do not walk or drive through moving/deep standing water. If there is no safe escape from your house, go to upper floors and call 911. • Your phone number is in the White County automated warning system. If you receive an automated message about high flows – follow the directions in the message. • If you have any questions, call Joe Rogers of the White County Emergency Management Agency at (201) 555-1313

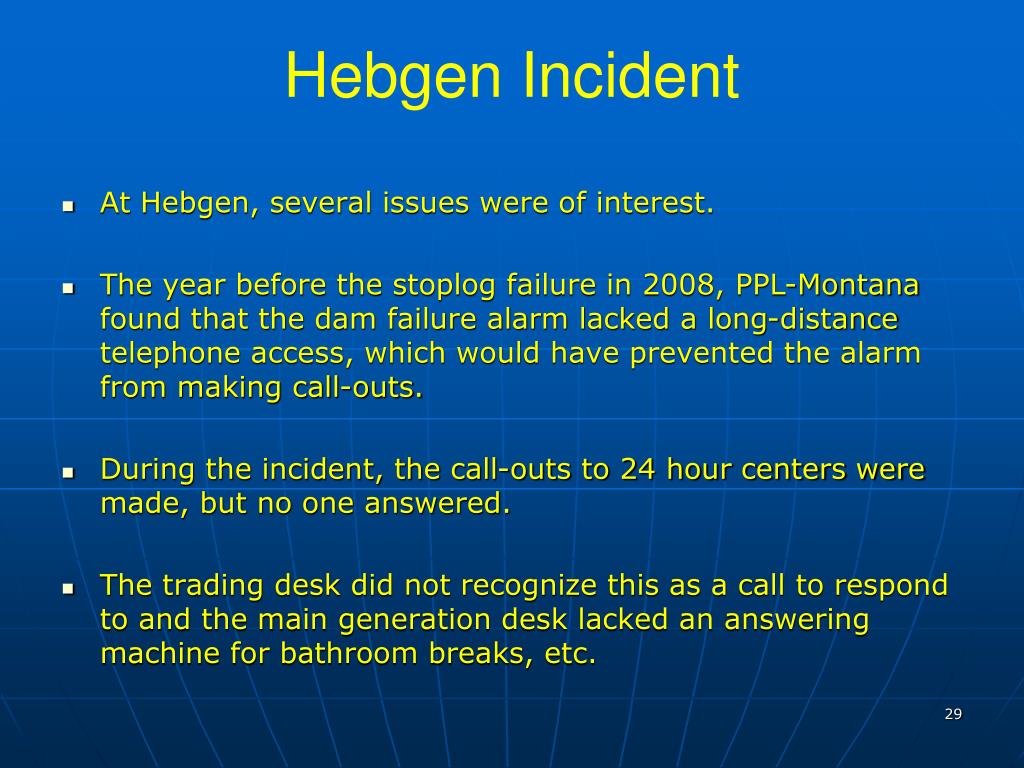

  27. Hebgen Incident At Hebgen, several issues were of interest. The year before the stoplog failure in 2008, PPL-Montana found that the dam failure alarm lacked a long-distance telephone access, which would have prevented the alarm from making call-outs. During the incident, the call-outs to 24 hour centers were made, but no one answered. The trading desk did not recognize this as a call to respond to and the main generation desk lacked an answering machine for bathroom breaks, etc.

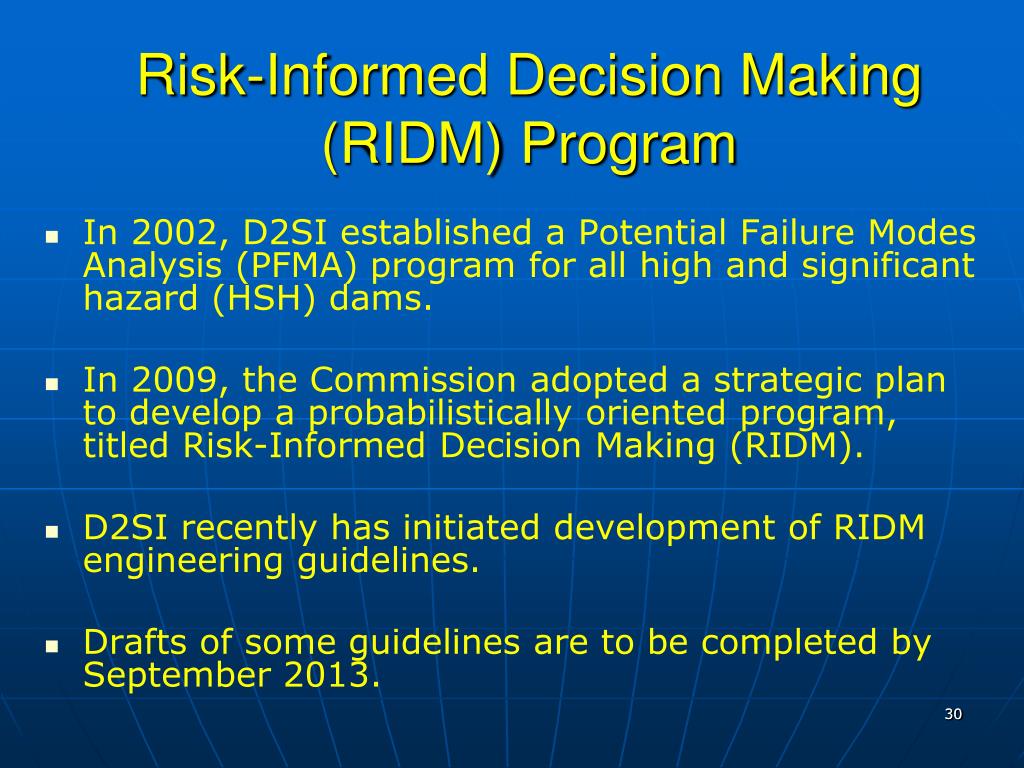

  28. Risk-Informed Decision Making (RIDM) Program • In 2002, D2SI established a Potential Failure Modes Analysis (PFMA) program for all high and significant hazard (HSH) dams. • In 2009, the Commission adopted a strategic plan to develop a probabilistically oriented program, titled Risk-Informed Decision Making (RIDM). • D2SI recently has initiated development of RIDM engineering guidelines. • Drafts of some guidelines are to be completed by September 2013. 30

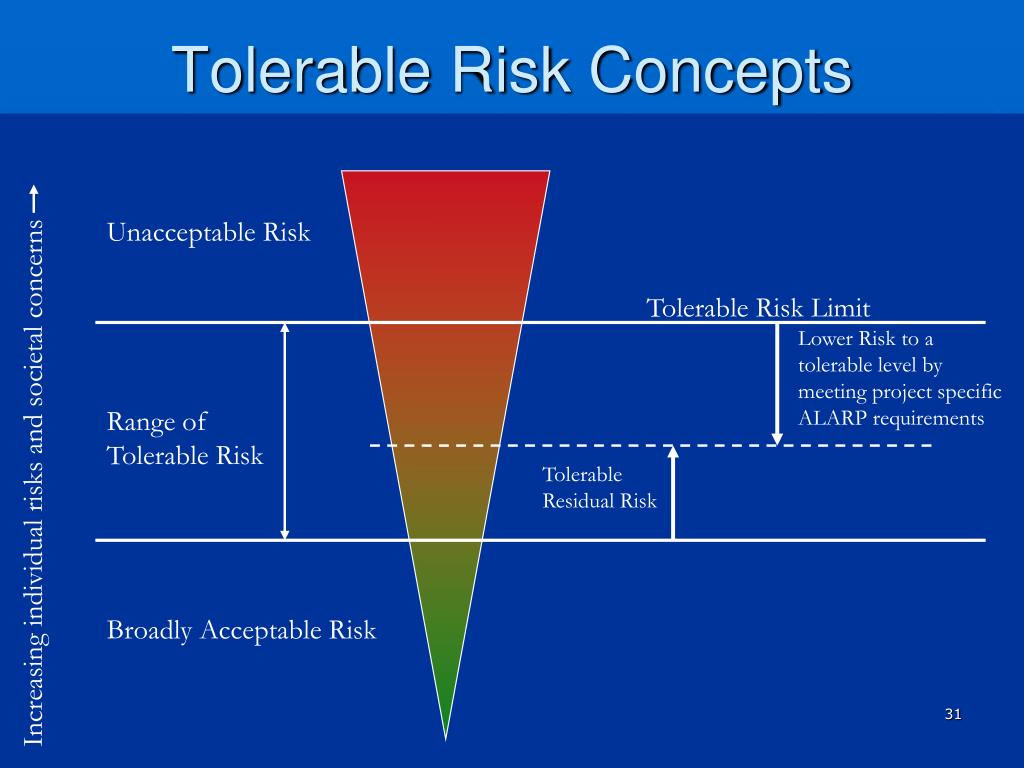

  29. Tolerable Risk Concepts 31

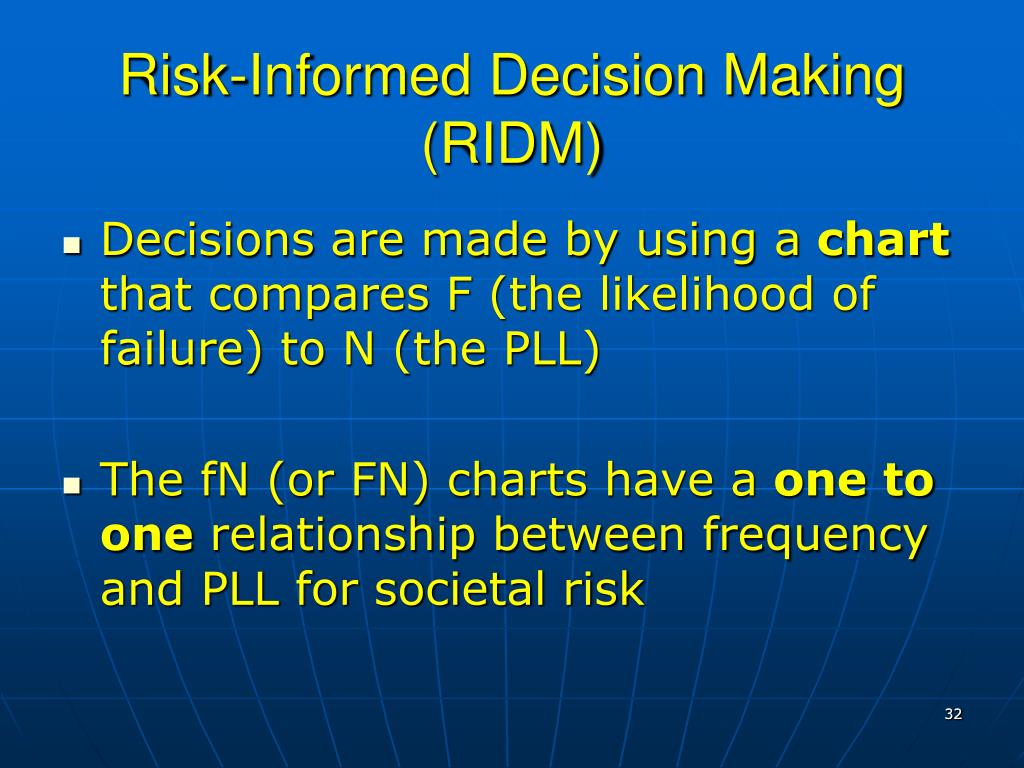

  30. Risk-Informed Decision Making (RIDM) • Decisions are made by using a chart that compares F (the likelihood of failure) to N (the PLL) • The fN (or FN) charts have a one to one relationship between frequency and PLL for societal risk 32

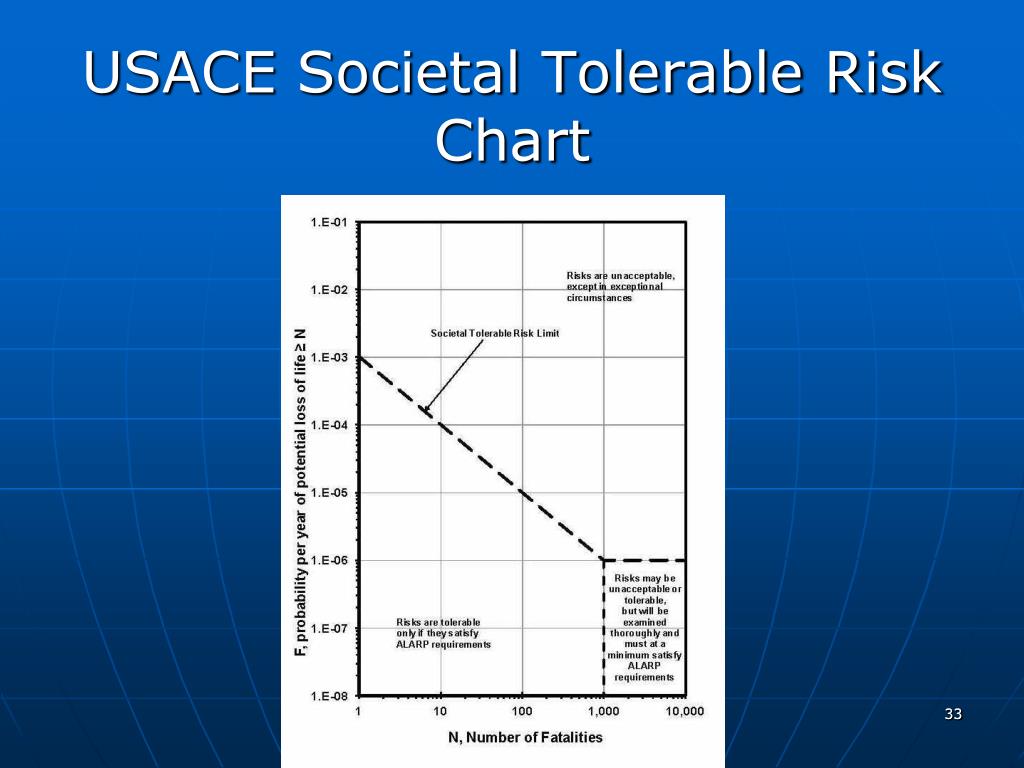

  31. USACE Societal Tolerable Risk Chart 33

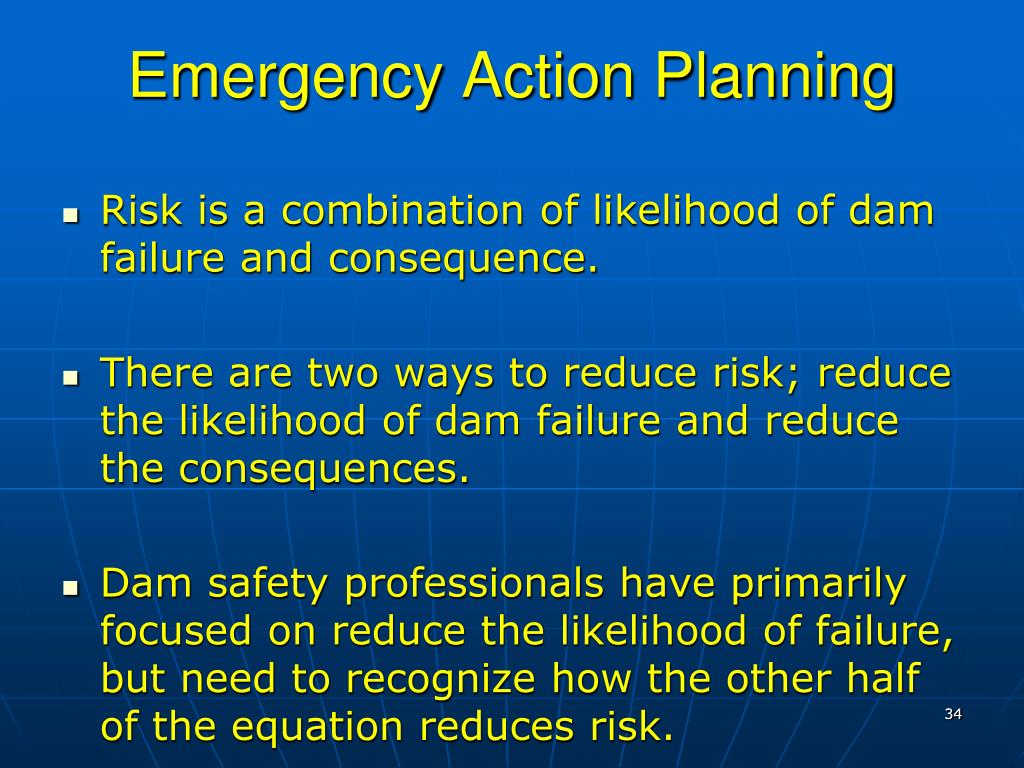

  32. Emergency Action Planning • Risk is a combination of likelihood of dam failure and consequence. • There are two ways to reduce risk; reduce the likelihood of dam failure and reduce the consequences. • Dam safety professionals have primarily focused on reduce the likelihood of failure, but need to recognize how the other half of the equation reduces risk. 34

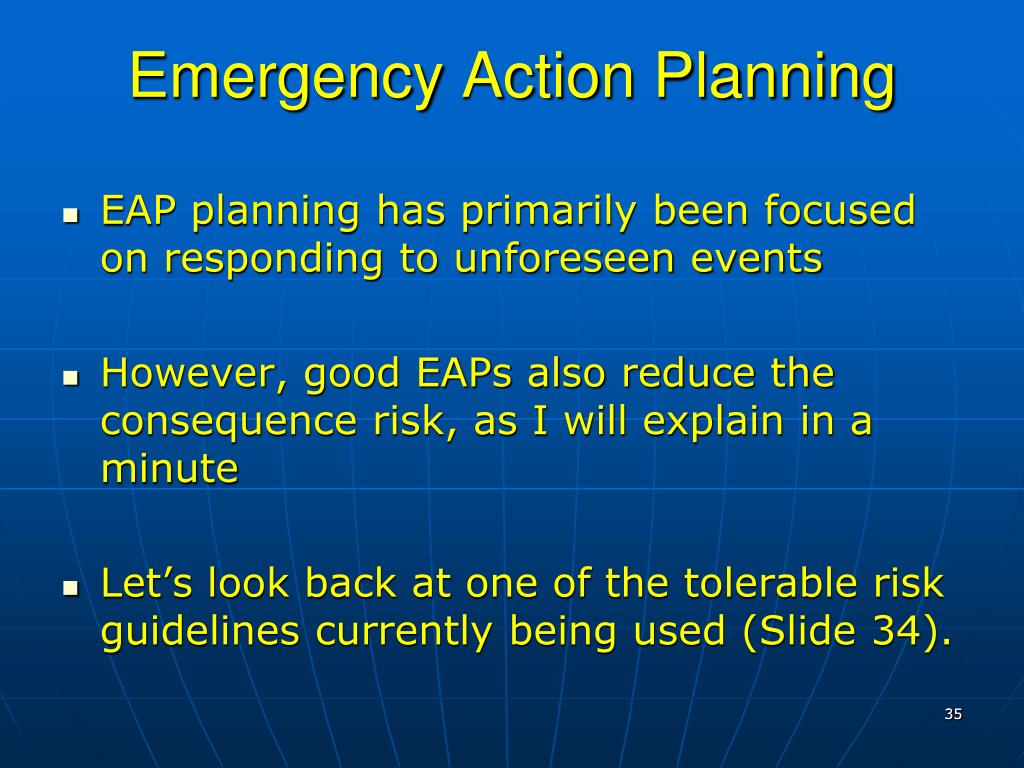

  33. Emergency Action Planning EAP planning has primarily been focused on responding to unforeseen events However, good EAPs also reduce the consequence risk, as I will explain in a minute Let’s look back at one of the tolerable risk guidelines currently being used (Slide 34). 35

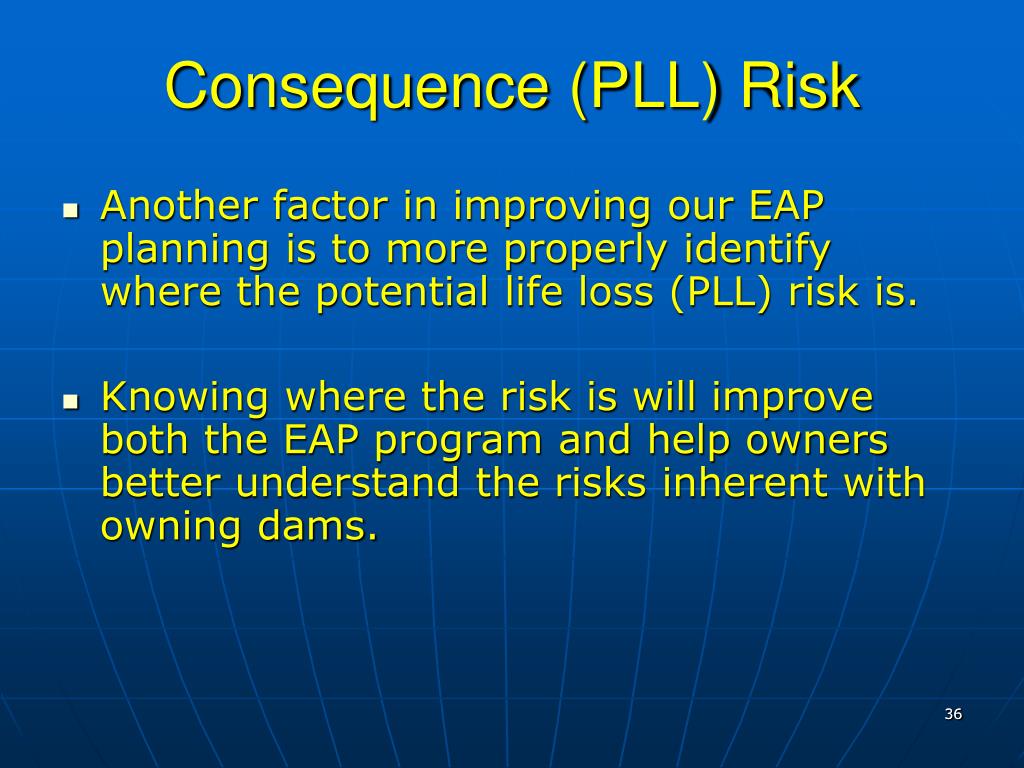

  34. Consequence (PLL) Risk Another factor in improving our EAP planning is to more properly identify where the potential life loss (PLL) risk is. Knowing where the risk is will improve both the EAP program and help owners better understand the risks inherent with owning dams. 36

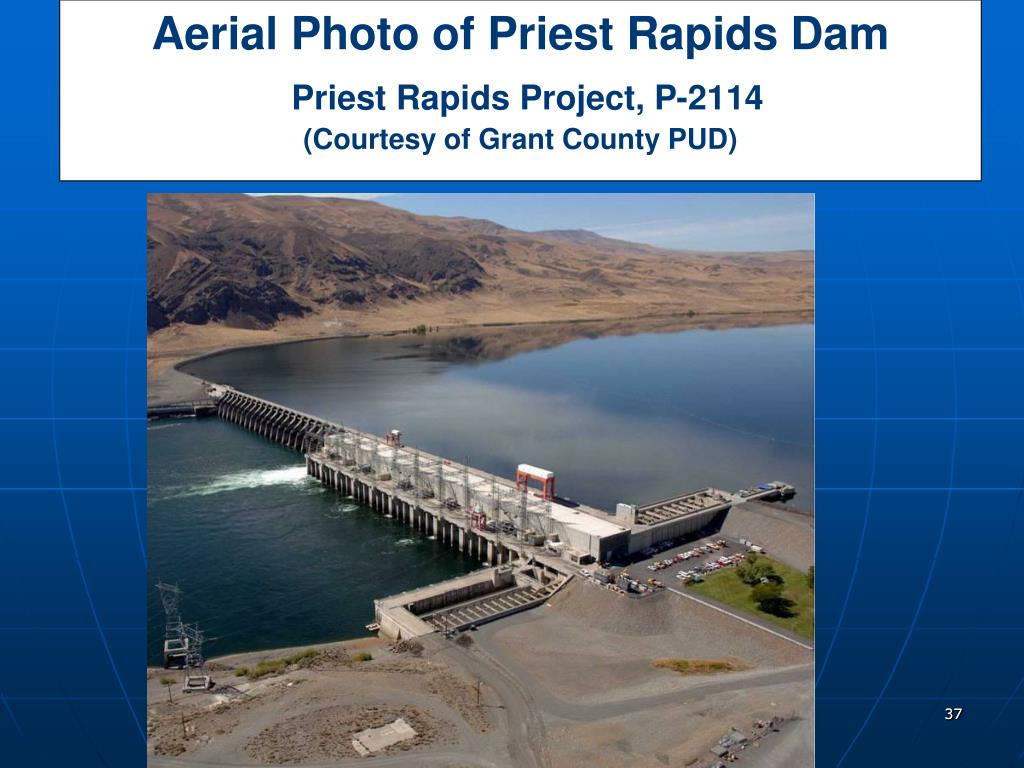

  35. Aerial Photo of Priest Rapids DamPriest Rapids Project, P-2114(Courtesy of Grant County PUD) 37

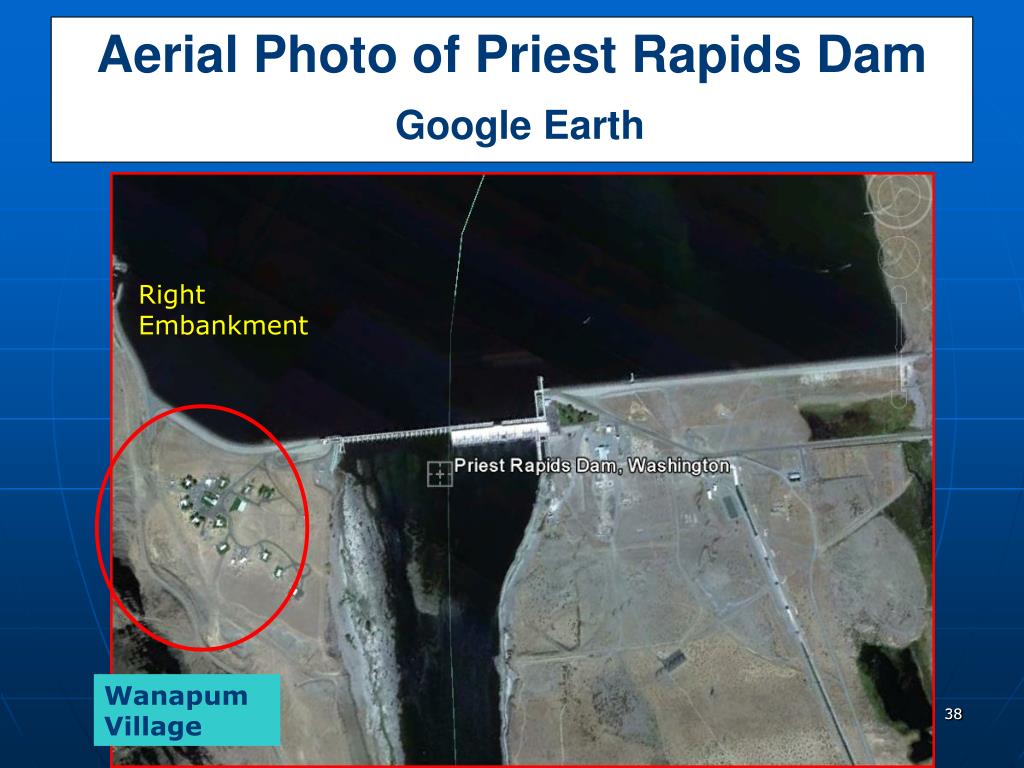

  36. Aerial Photo of Priest Rapids DamGoogle Earth Right Embankment Wanapum Village 38

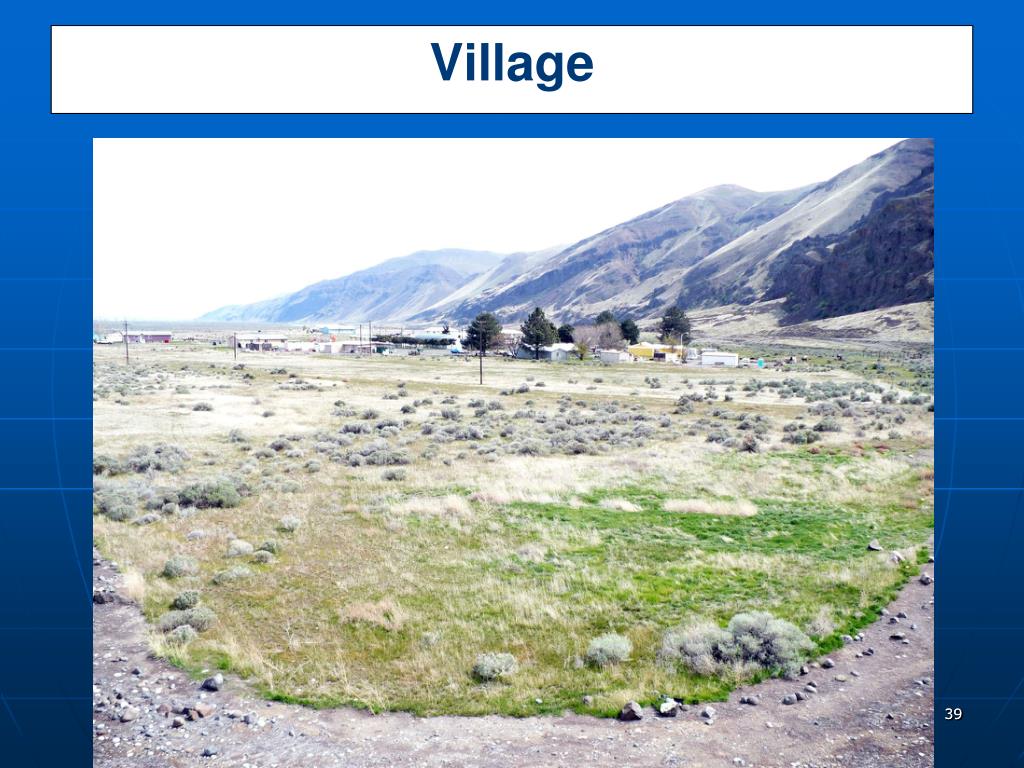

  37. Village Wanapum Village 39

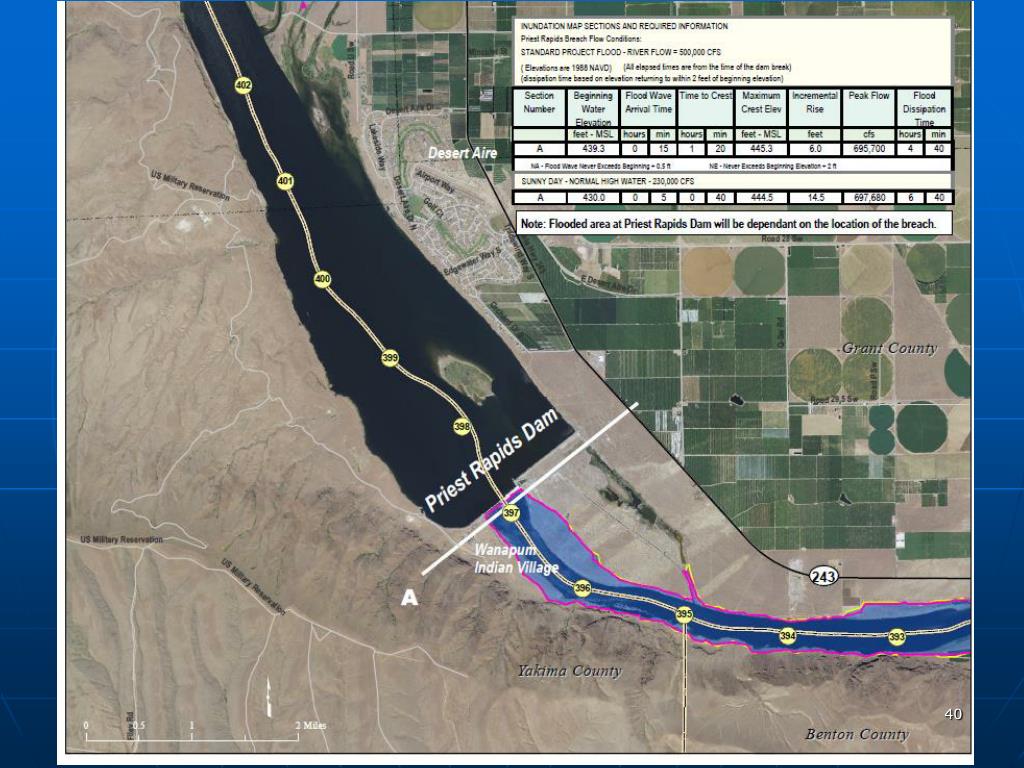

  38. Wanapum Village 40

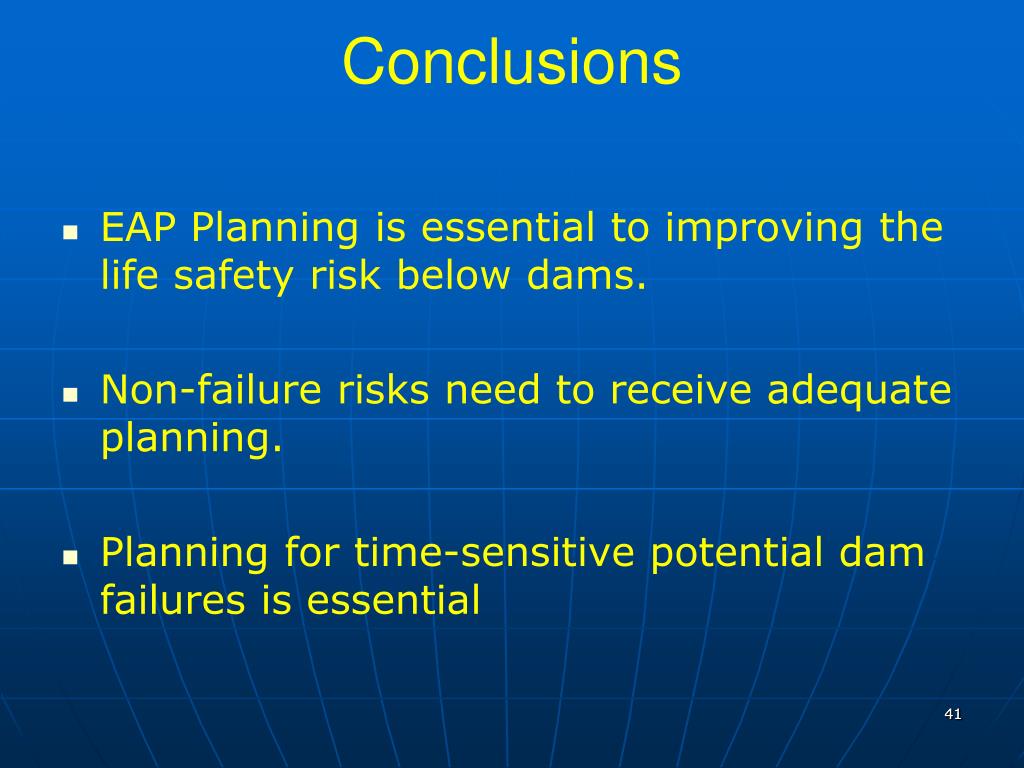

  39. Conclusions • EAP Planning is essential to improving the life safety risk below dams. • Non-failure risks need to receive adequate planning. • Planning for time-sensitive potential dam failures is essential 41

  40. Conclusions • Dam failure alarm systems should be adequately tested • Owners should develop a full understanding of the potential life loss from a dam failure. • Pre-planning for early intervention during a dam incident could effectively reduce the likelihood of dam failure. 42
