  1. This presentation will probably involve audience discussion, which will create action items. Use PowerPoint to keep track of these action items during your presentation • In Slide Show, click on the right mouse button • Select “Meeting Minder” • Select the “Action Items” tab • Type in action items as they come up • Click OK to dismiss this box • This will automatically create an Action Item slide at the end of your presentation with your points entered. PartitionMaker Design Strategy Ideas Rodrigo Coura Torres

  2. Summary • System Design (Draft Version). • Non-Interactive user mode approach (Draft Version). • Conclusions

  3. Create LVL2 Partition R=8, S=2, U=30 Create 8 ROSs Create 30 L2PU Create 2 L2SV L2SV Component ROS Component L2PU Component Native Language Functionalities Development Design • Multi-level approach. • In the lowest level, there will be the DAQ/HLT-I components, organized as: • Ordinary: ROS, L2SV, L2PU, SFI, DFM, etc. • Containers: Segments and partitions. • Higher level methods will combine these components and their functionalities to generate partitions. • Opportunity to work with high or low level functions, according to knowledge / need.

  4. Development Design • Should be an interface declaring common methods that will be called by the higher level functions. • Each component is responsible to define its behavior within the PartitionMaker, by implementing this interface. • Advantages: • Simpler to implement. • Easy addition of plug-ins. • Workload can be split among many developers. Fast Development Cycle!

  5. Ideas for the Non-Interactive Interface • Integrated working environment, like PAW, ROOT, Matlab, etc. • It should provide access to all the PartitionMaker functionalities. • After create / modify the partition’s components, an export function should generate the final database file. • Should allow the execution of scripts, in order to apply on-the-fly modifications to partitions. • The functionalities implemented should be used to develop higher level functions to support very specific user needs.

  6. Example: //Crating a new LVL2 partition (ROS=8, L2SV=2, L2PU=0). Partition p = new Partition(‘LVL2’,8,2,0); //Scalability test varying the number of L2PUs from 1 to 30. for i=1:30, L2PUApp l2pu = new L2PUApp(); // Creating a new L2PU application. p.addComponents(l2pu); // Adding the new application. p.export(‘my_part.xml’); // Generating the database file. // User made function to test the TDAQ with the generate partition. testTDAQ(‘my_part.xml’); end

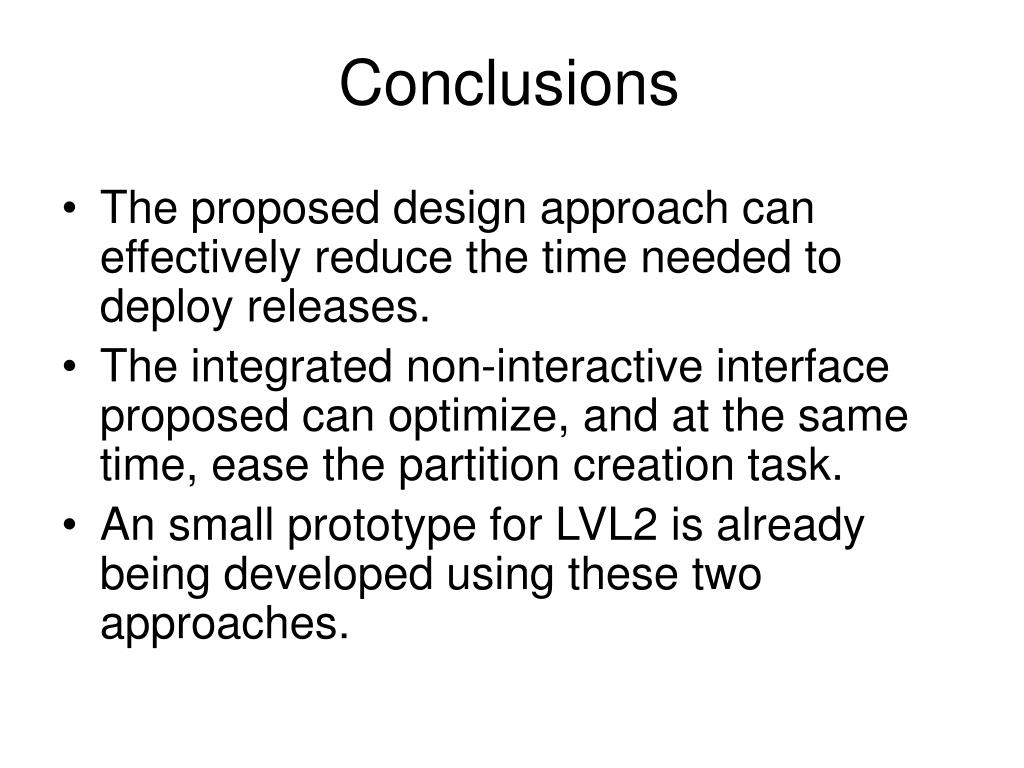

  7. Conclusions • The proposed design approach can effectively reduce the time needed to deploy releases. • The integrated non-interactive interface proposed can optimize, and at the same time, ease the partition creation task. • An small prototype for LVL2 is already being developed using these two approaches.
