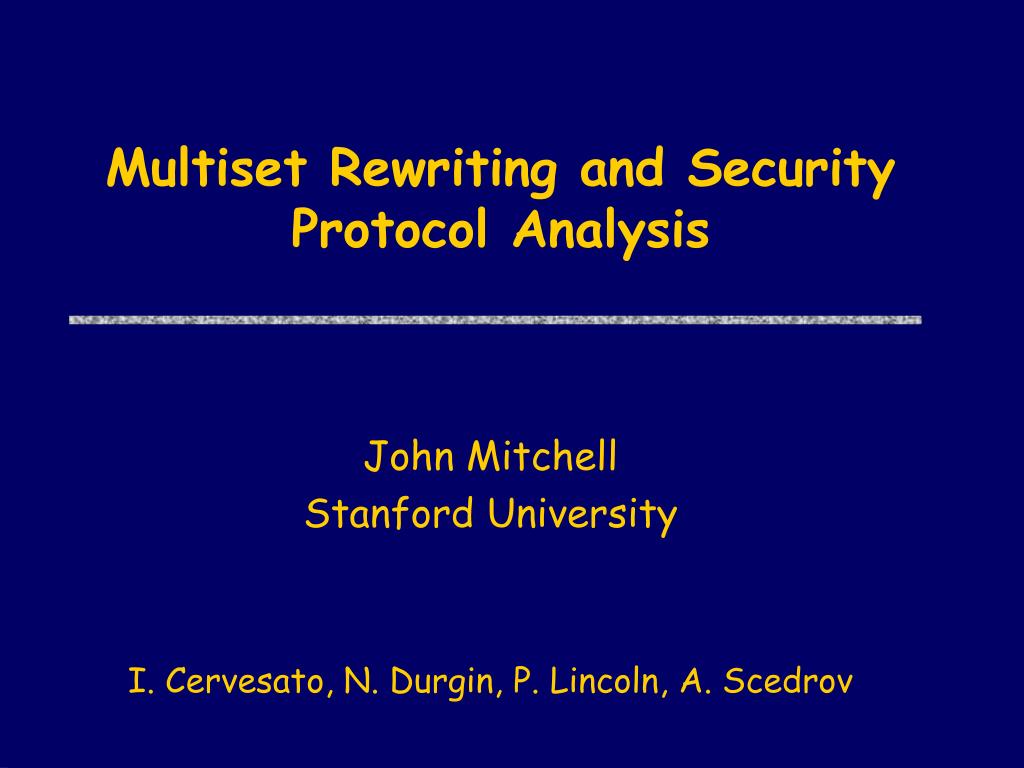

  1. Multiset Rewriting and Security Protocol Analysis John Mitchell Stanford University I. Cervesato, N. Durgin, P. Lincoln, A. Scedrov

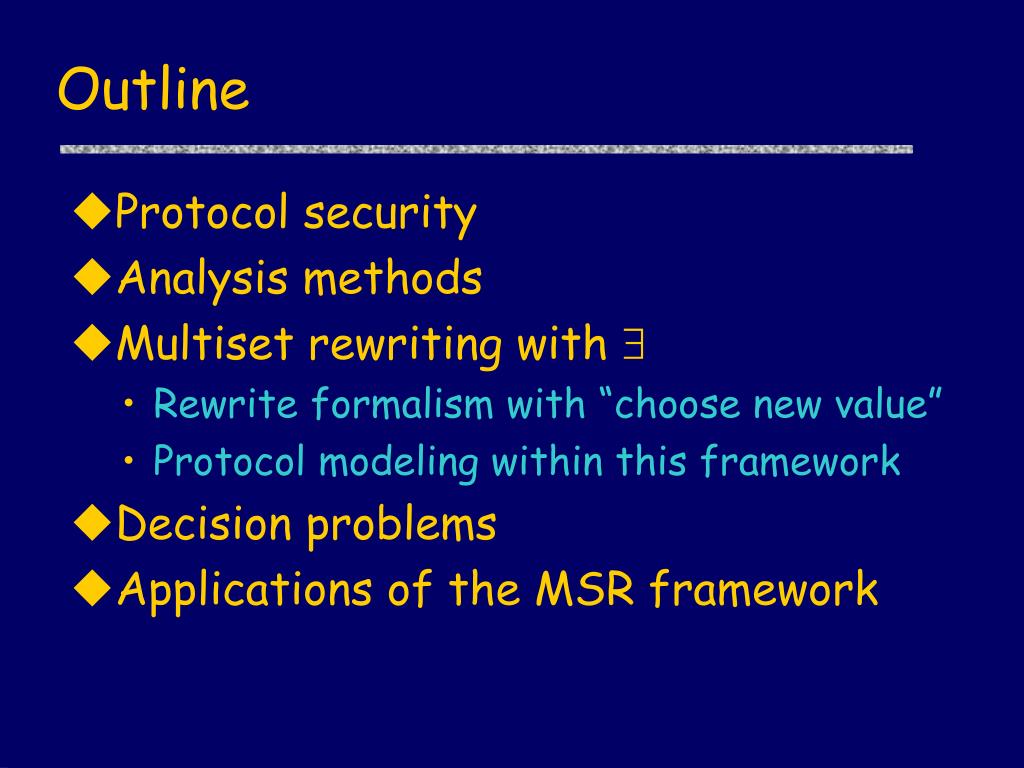

  2. Outline • Protocol security • Analysis methods • Multiset rewriting with  • Rewrite formalism with “choose new value” • Protocol modeling within this framework • Decision problems • Applications of the MSR framework

  3. Protocol Security • Cryptographic Protocol • Program distributed over network • Use cryptography to achieve goal • Attacker • Read, intercept, replace messages, and remember their contents • Correctness • Attacker cannot learn protected secret or cause incorrect protocol completion

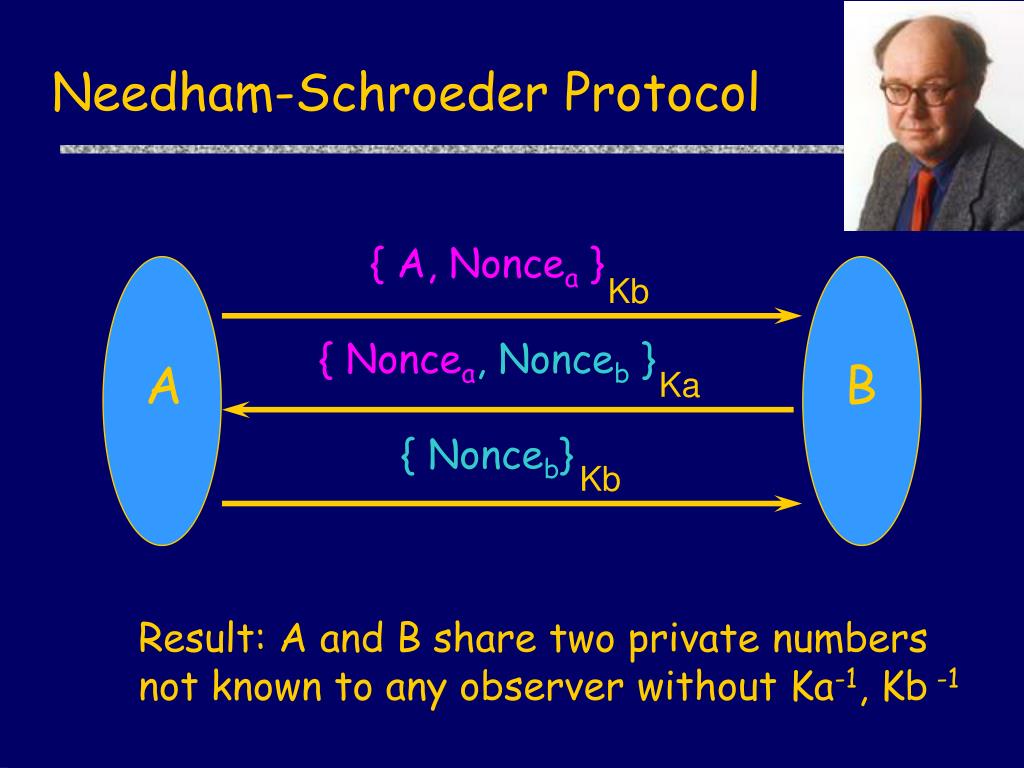

  4. Needham-Schroeder Protocol { A, Noncea } { Noncea, Nonceb } { Nonceb} Kb A B Ka Kb Result: A and B share two private numbers not known to any observer without Ka-1, Kb-1

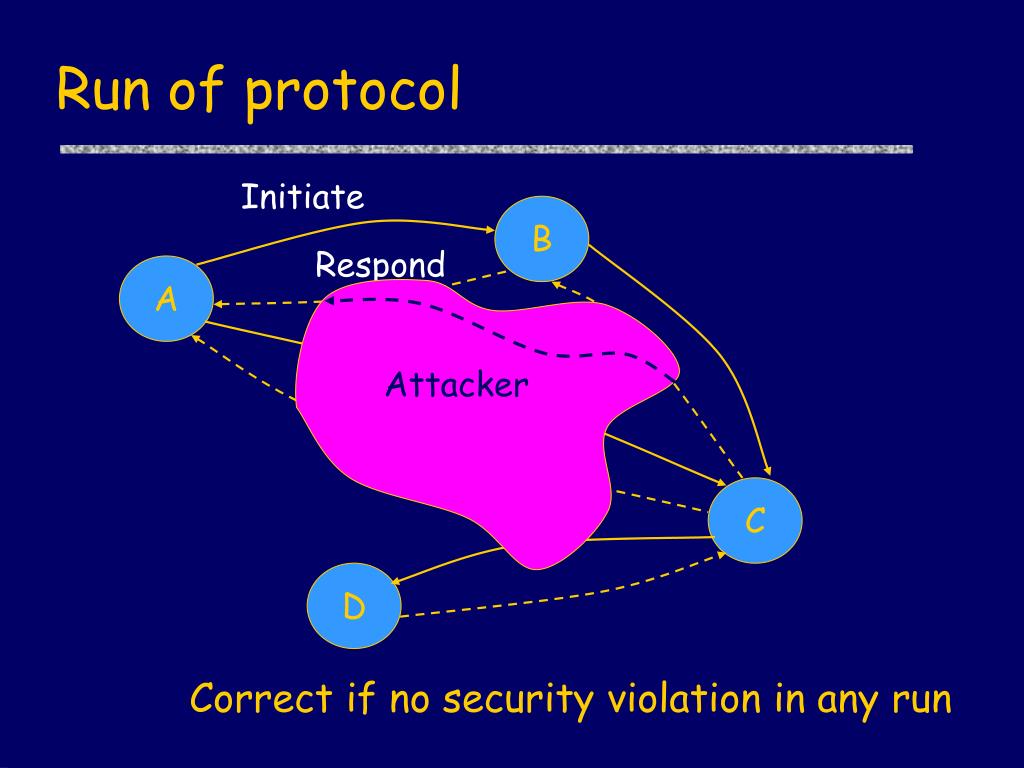

  5. Initiate Respond Attacker C D Run of protocol B A Correct if no security violation in any run

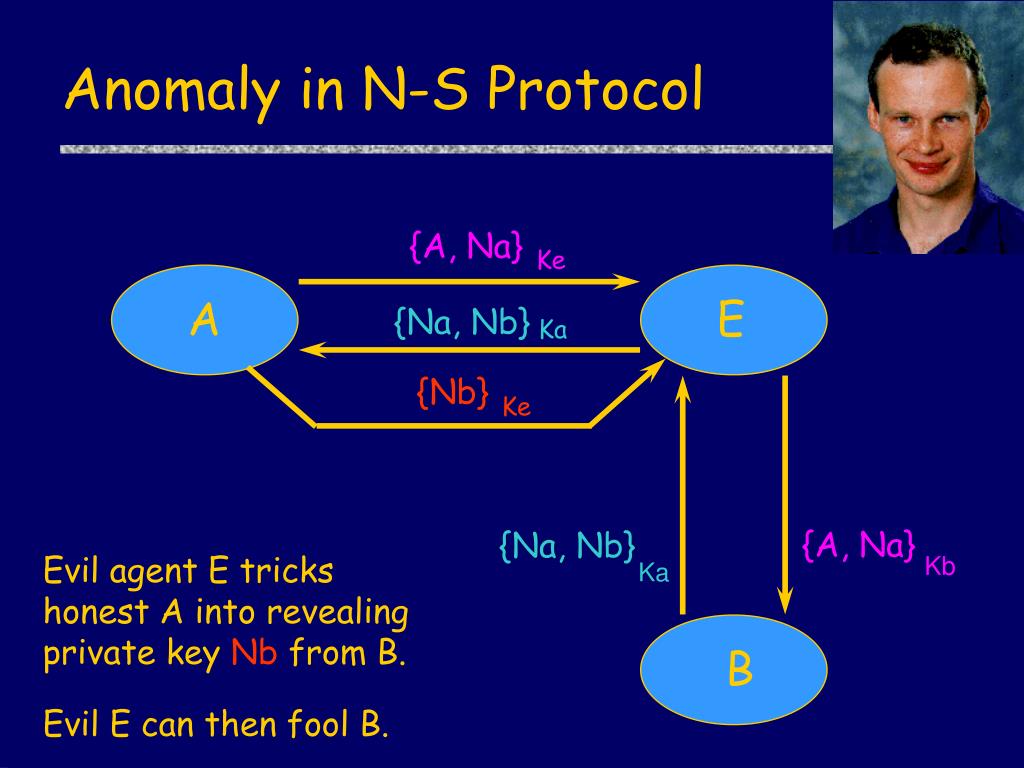

  6. Anomaly in N-S Protocol [Lowe] {A, Na} Ke A E {Na, Nb} Ka {Nb} Ke {A, Na} {Na, Nb} Evil agent E tricks honest A into revealing private key Nb from B. Kb Ka B Evil E can then fool B.

  7. Contract Signing (Fair Exchange) • Both parties want to sign a contract • Neither wants to commit first Immunity deal

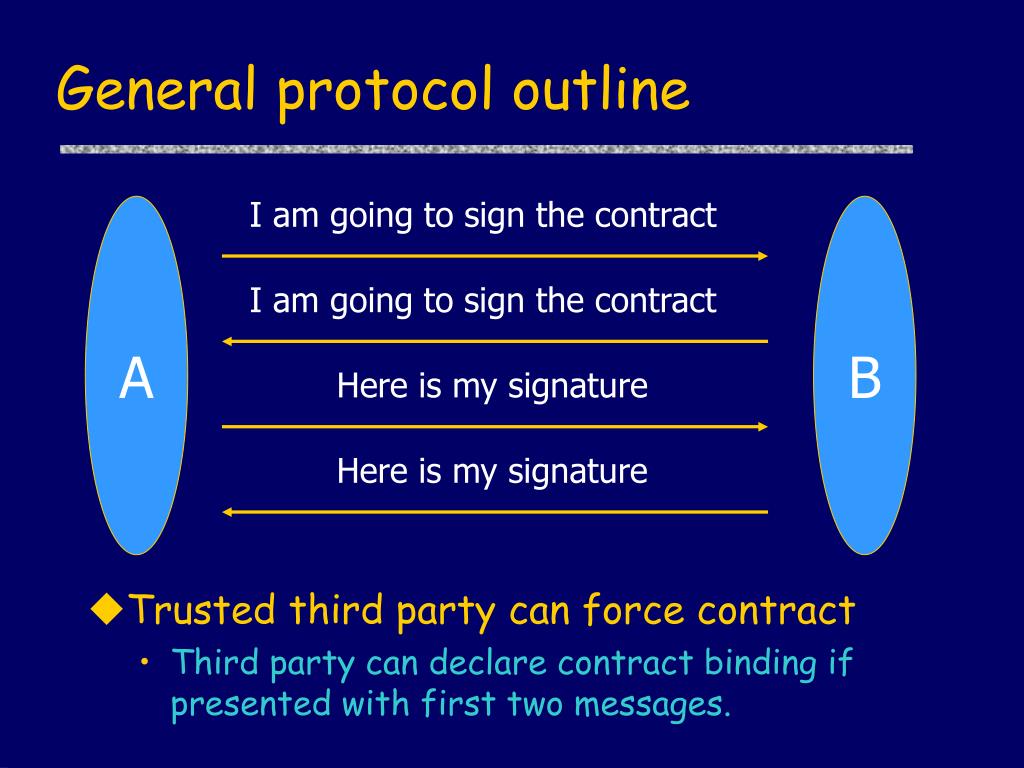

  8. I am going to sign the contract I am going to sign the contract Here is my signature Here is my signature General protocol outline • Trusted third party can force contract • Third party can declare contract binding if presented with first two messages. A B

  9. Asokan-Shoup-Waidner protocol Agree Abort B A m1= sign(A, c, hash(r_A) ) A B sign(B, m1, hash(r_B) ) a1 Network ??? r_A T If not already resolved r_B sigT(a1,abort) Resolve Attack? m1 A B m2 A Net ??? T T sigT(m1, m2)

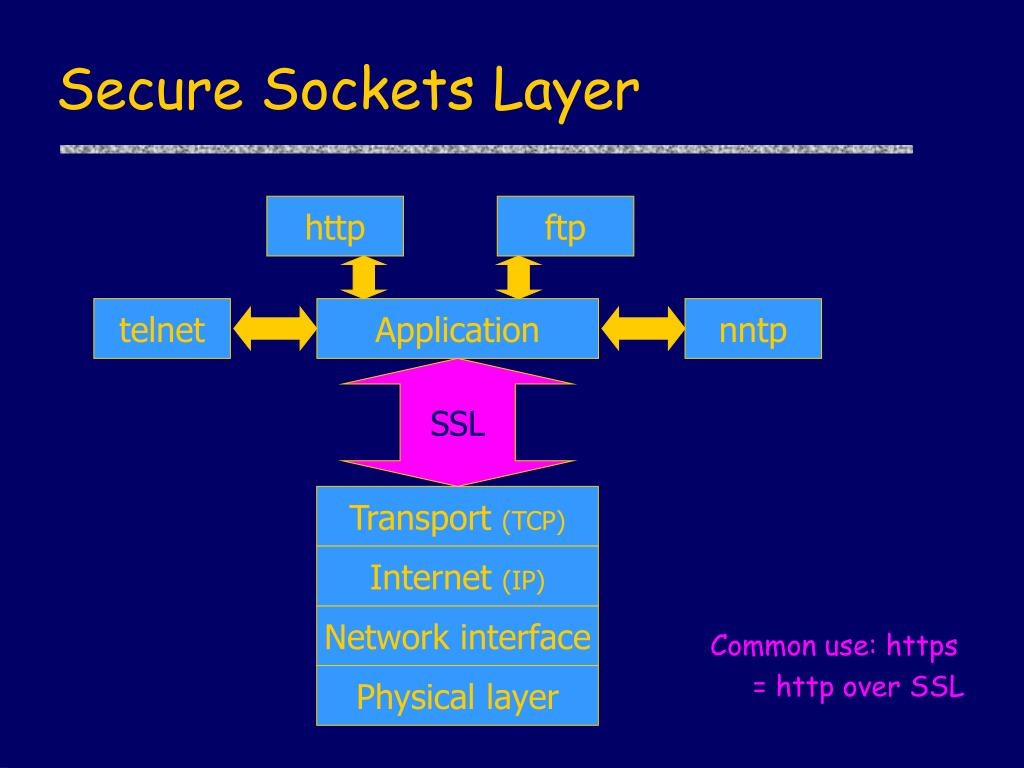

  10. Transport (TCP) Internet (IP) Network interface Physical layer Secure Sockets Layer http ftp telnet Application nntp SSL Common use: https = http over SSL

  11. Handshake Protocol Signature:signCA{…} Encryption:{ …}K Hash:Hash( …) ClientHelloCSC, VerC, SuiteC, NC ServerHelloS  CVerS, SuiteS, NS,signCA{S, KS} ClientVerify C  SsignCA{C, VC } {VerC, SecretC} signC {Hash(Master(NC, NS, SecretC) + Pad2 + Hash(Msgs + C + Master(NC, NS, SecretC) + Pad1)) } (Change to negotiated cipher) ServerFinished S  C{Hash(Master(NC, NS, SecretC) + Pad2 + Hash(Msgs + S + Master(NC, NS, SecretC) + Pad1)) } ClientFinishedC  S{Hash(Master(NC, NS, SecretC) + Pad2 + Hash( Msgs + C + Master(NC, NS, SecretC) + Pad1)) } KS Master(NC, NS, SecretC) Master(NC, NS, SecretC)

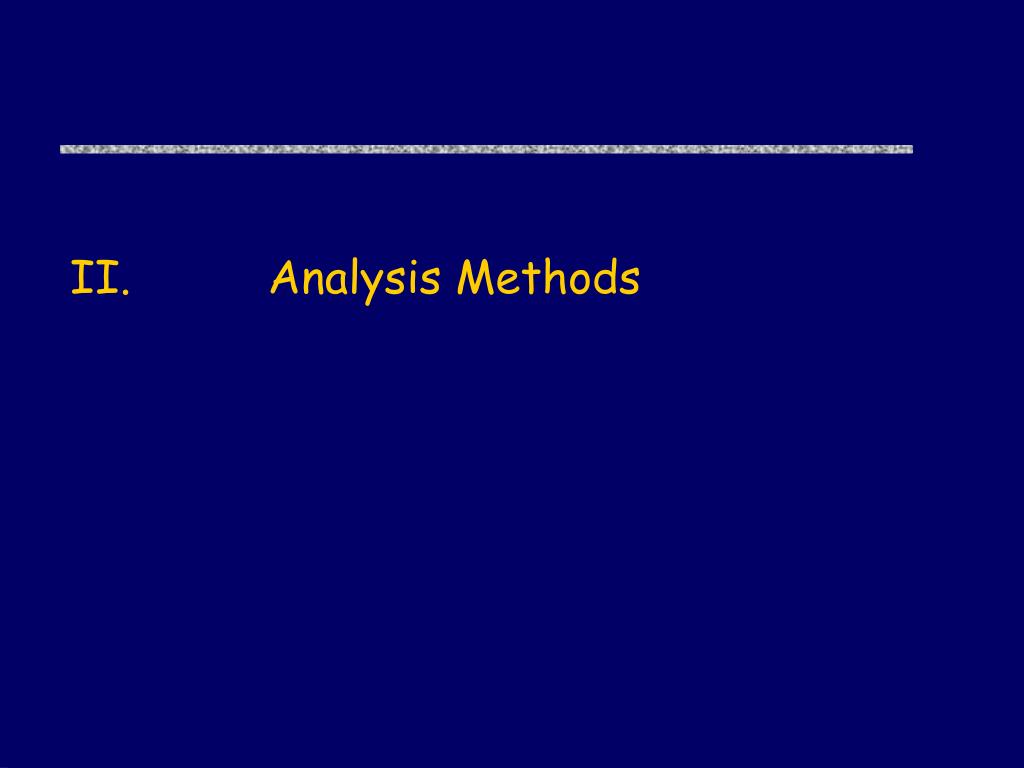

  12. II. Analysis Methods

  13. Protocol Analysis Methods • Non-formal approaches (useful, but no tools…) • Some crypto-based proofs [Bellare, Rogaway] • Communicating Turing Machines [Canetti] • BAN and related logics • Axiomatic semantics of protocol steps • Methods based on operational semantics • Intruder model derived from Dolev-Yao • Protocol gives rise to set of traces • Denotation of protocol = set of runs involving arbitrary number of principals plus intruder

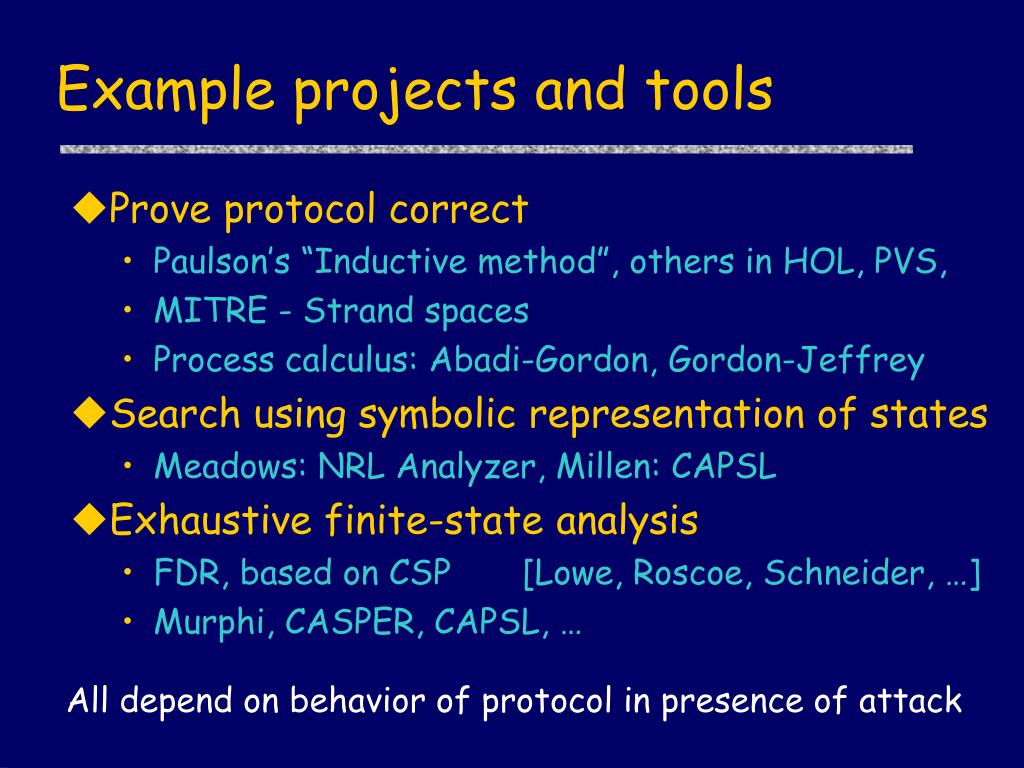

  14. Example projects and tools • Prove protocol correct • Paulson’s “Inductive method”, others in HOL, PVS, • MITRE - Strand spaces • Process calculus: Abadi-Gordon, Gordon-Jeffrey • Search using symbolic representation of states • Meadows: NRL Analyzer, Millen: CAPSL • Exhaustive finite-state analysis • FDR, based on CSP [Lowe, Roscoe, Schneider, …] • Murphi, CASPER, CAPSL, … All depend on behavior of protocol in presence of attack

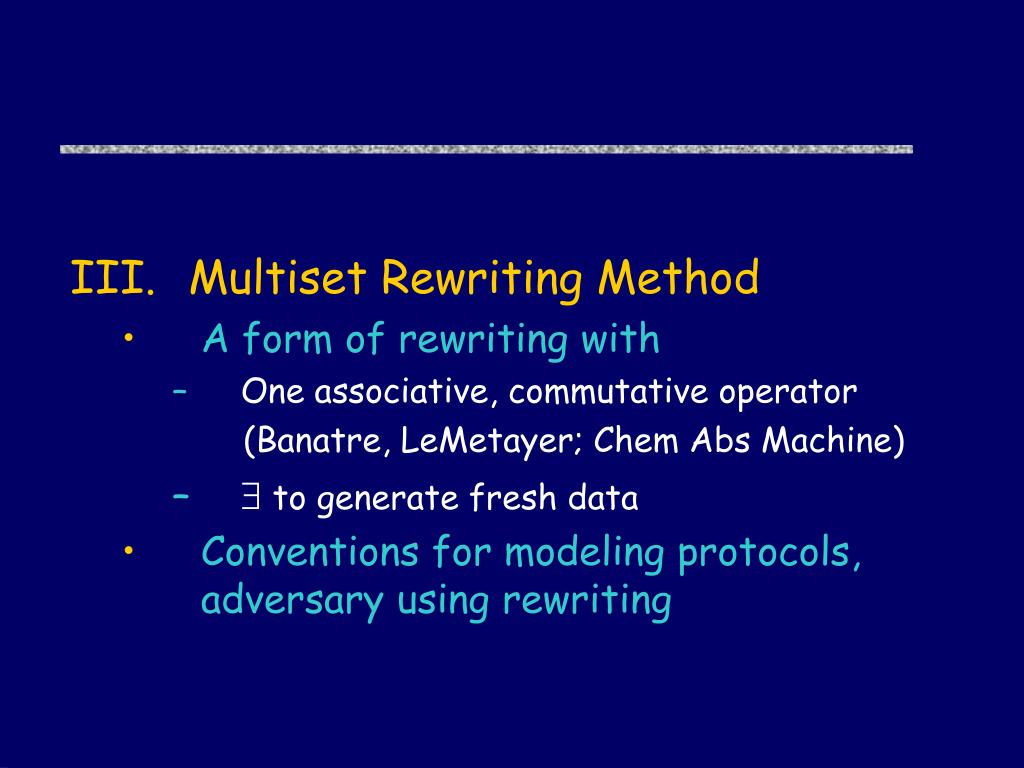

  15. Multiset Rewriting Method • A form of rewriting with • One associative, commutative operator (Banatre, LeMetayer; Chem Abs Machine) •  to generate fresh data • Conventions for modeling protocols, adversary using rewriting

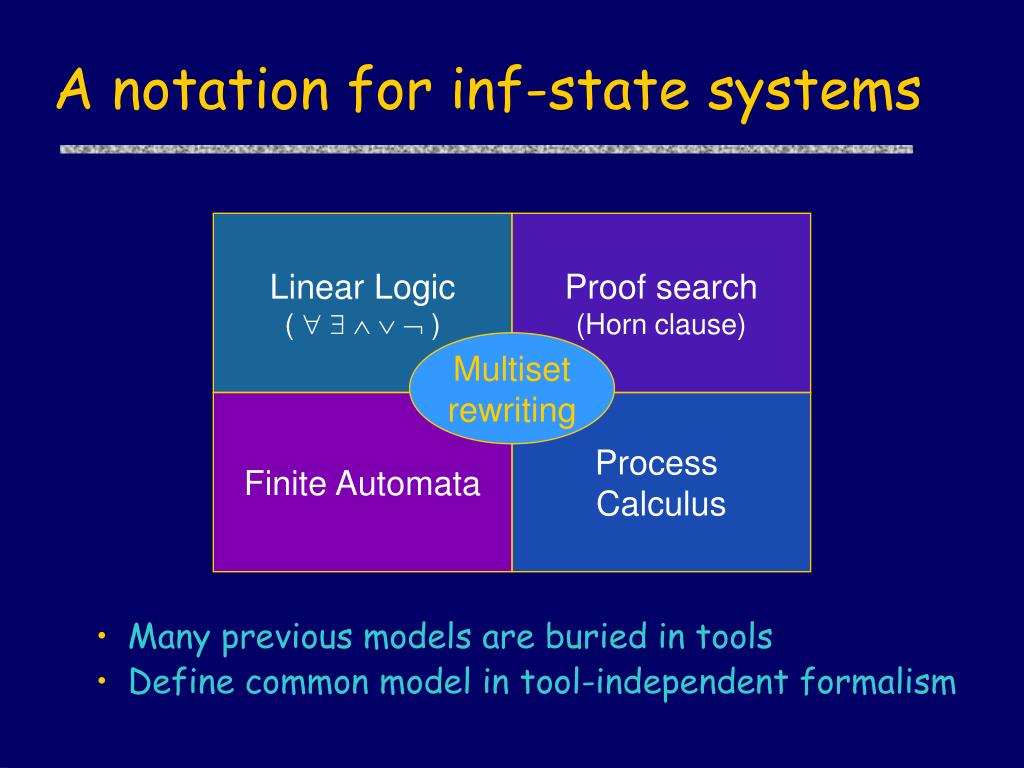

  16. Linear Logic (      ) Proof search (Horn clause) Multiset rewriting Finite Automata Process Calculus A notation for inf-state systems • Many previous models are buried in tools • Define common model in tool-independent formalism

  17. Modeling Requirements • Express properties of protocols • Initialization • Principals and their private/shared data • Nonces • Generate fresh random data • Model attacker • Characterize possible messages by attacker • Cryptography • Set of runs of protocol under attack

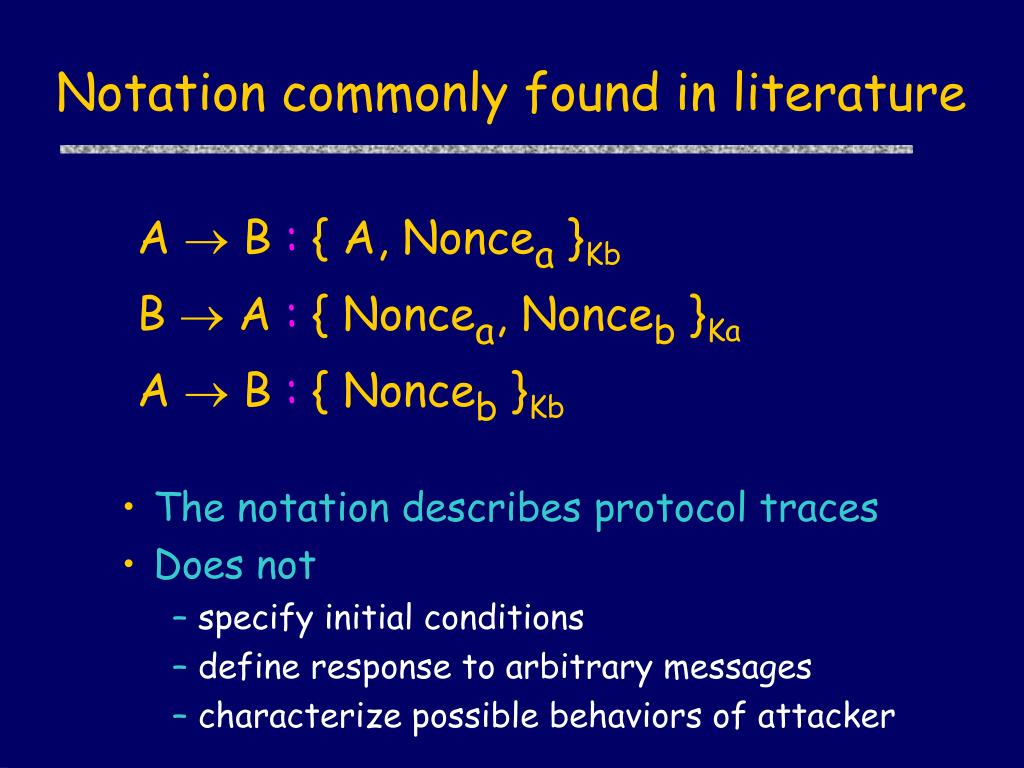

  18. Notation commonly found in literature • The notation describes protocol traces • Does not • specify initial conditions • define response to arbitrary messages • characterize possible behaviors of attacker A  B : { A, Noncea }Kb B  A : { Noncea, Nonceb }Ka A  B : { Nonceb }Kb

  19. Rewriting Notation • Non-deterministic infinite-state systems • Facts F ::= P(t1, …, tn) t ::= x | c | f(t1, …, tn) • States { F1, ..., Fn } • Multiset of facts • Includes network messages, private state • Intruder will see messages, not private state Multi-sorted first-order atomic formulas

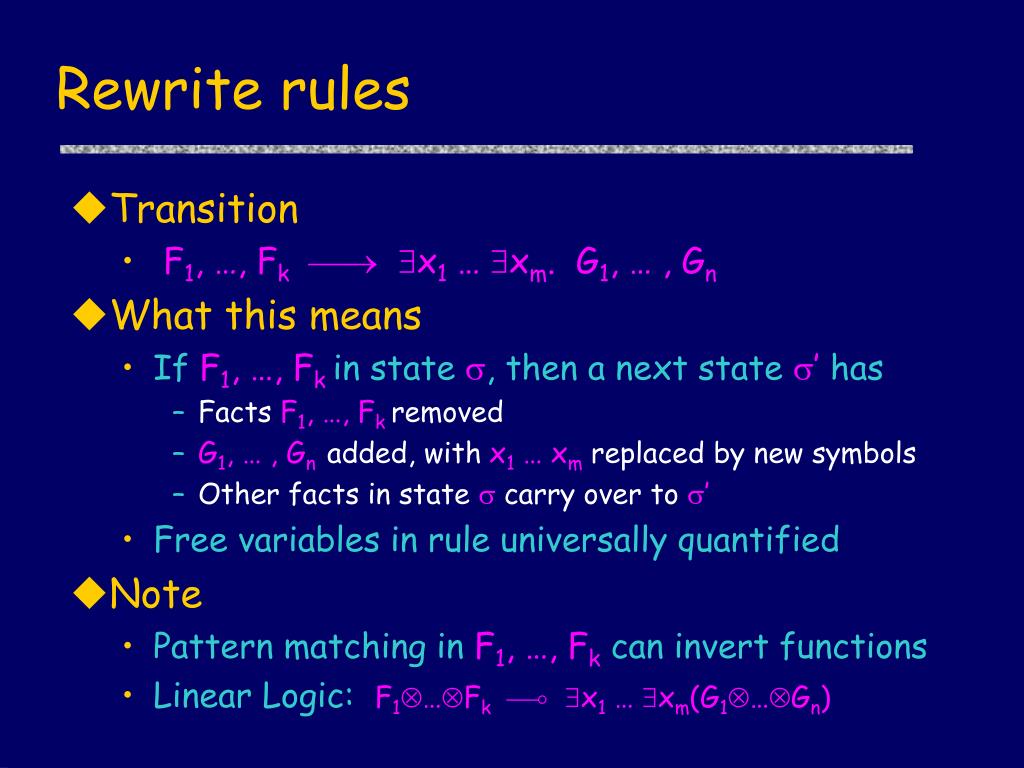

  20. Rewrite rules • Transition • F1, …, Fkx1 … xm. G1, … , Gn • What this means • If F1, …, Fkin state, then a next state ’ has • Facts F1, …, Fkremoved • G1, … , Gnadded, with x1 … xm replaced by new symbols • Other facts in state carry over to’ • Free variables in rule universally quantified • Note • Pattern matching in F1, …, Fkcan invert functions • Linear Logic: F1…Fkx1 … xm(G1…Gn)

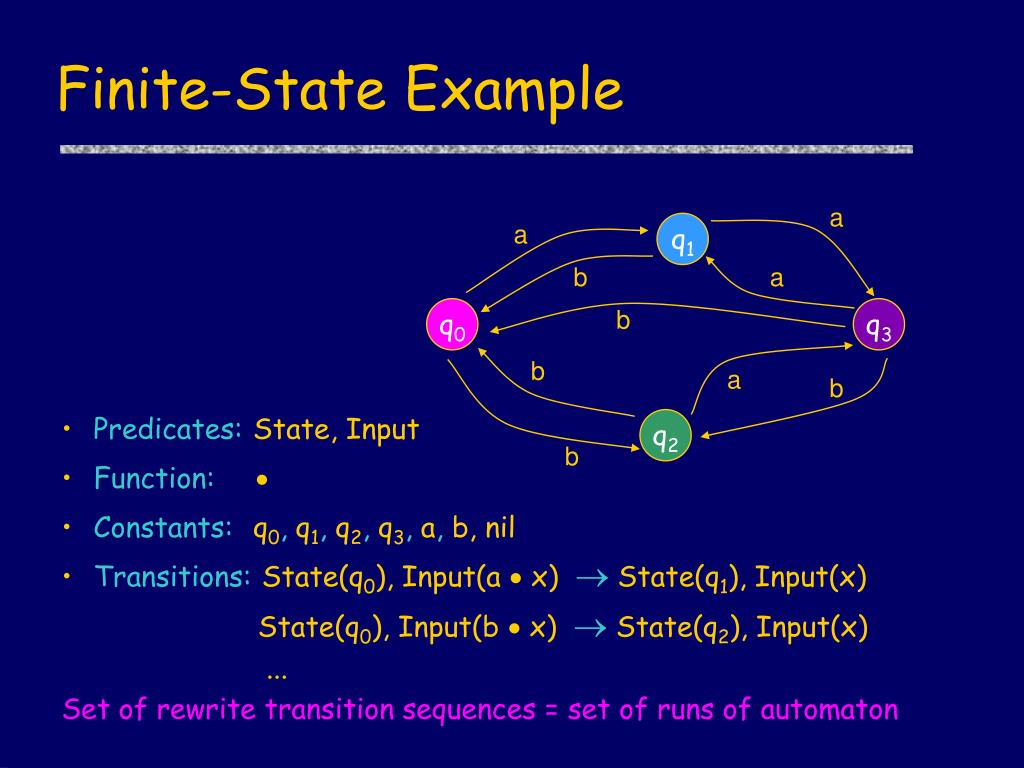

  21. Finite-State Example • Predicates:State, Input • Function: • Constants:q0, q1, q2, q3, a, b, nil • Transitions:State(q0), Input(a  x)  State(q1), Input(x) State(q0), Input(b  x)  State(q2), Input(x) ... Set of rewrite transition sequences = set of runs of automaton a a q1 b a q0 b q3 b a b q2 b

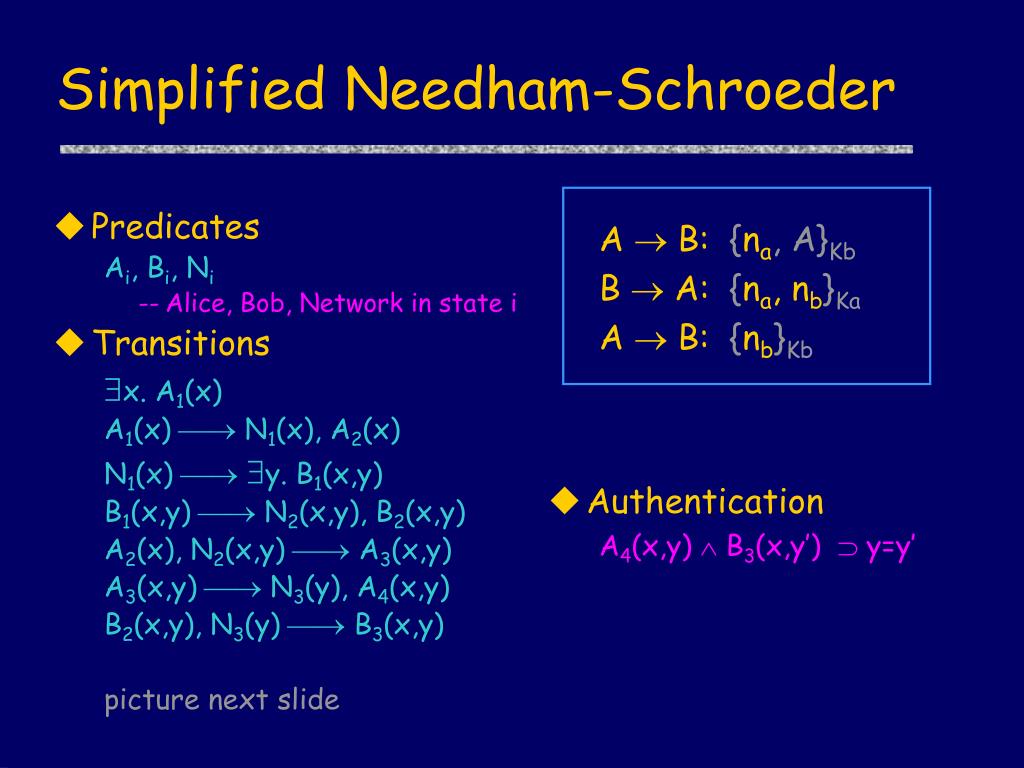

  22. Simplified Needham-Schroeder • Predicates Ai, Bi, Ni --Alice, Bob, Network in state i • Transitions x. A1(x) A1(x)  N1(x), A2(x) N1(x)  y. B1(x,y) B1(x,y)  N2(x,y), B2(x,y) A2(x), N2(x,y)  A3(x,y) A3(x,y)  N3(y), A4(x,y) B2(x,y), N3(y)  B3(x,y) picture next slide A  B: {na, A}Kb B  A: {na, nb}Ka A  B: {nb}Kb • Authentication A4(x,y)  B3(x,y’)  y=y’

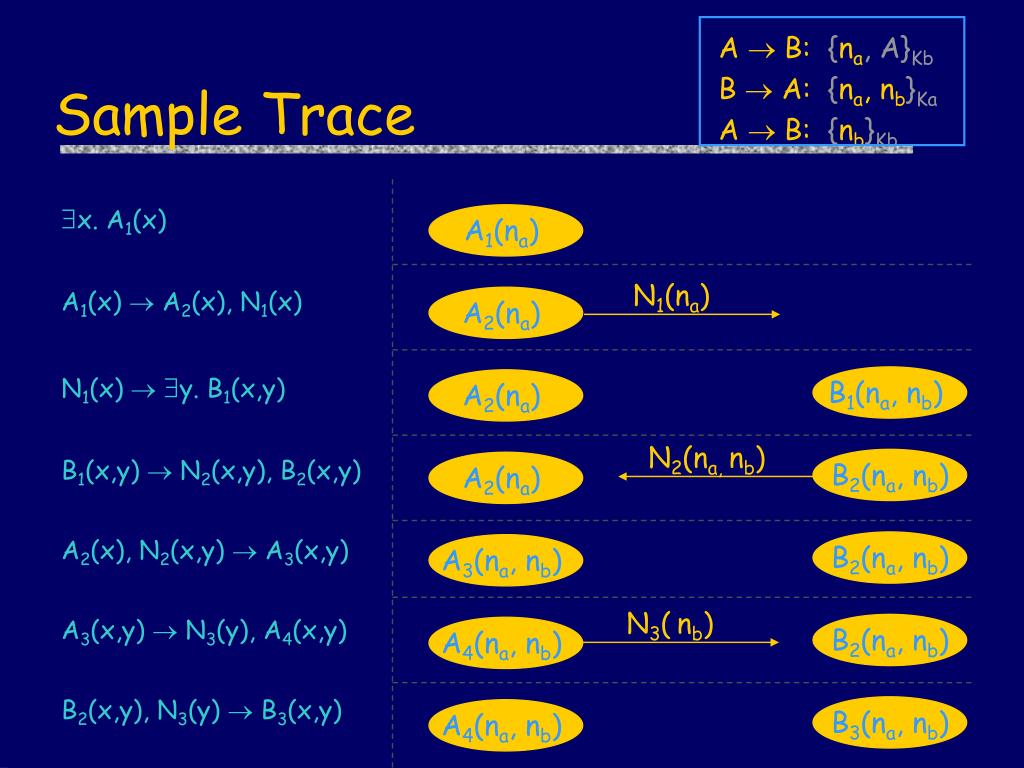

  23. A  B: {na, A}Kb B  A: {na, nb}Ka A  B: {nb}Kb Sample Trace x. A1(x) A1(x)  A2(x), N1(x) N1(x)  y. B1(x,y) B1(x,y)  N2(x,y), B2(x,y) A2(x), N2(x,y)  A3(x,y) A3(x,y)  N3(y), A4(x,y) B2(x,y), N3(y)  B3(x,y) A1(na) N1(na) A2(na) B1(na, nb) A2(na) N2(na, nb) B2(na, nb) A2(na) B2(na, nb) A3(na, nb) N3(nb) B2(na, nb) A4(na, nb) B3(na, nb) A4(na, nb)

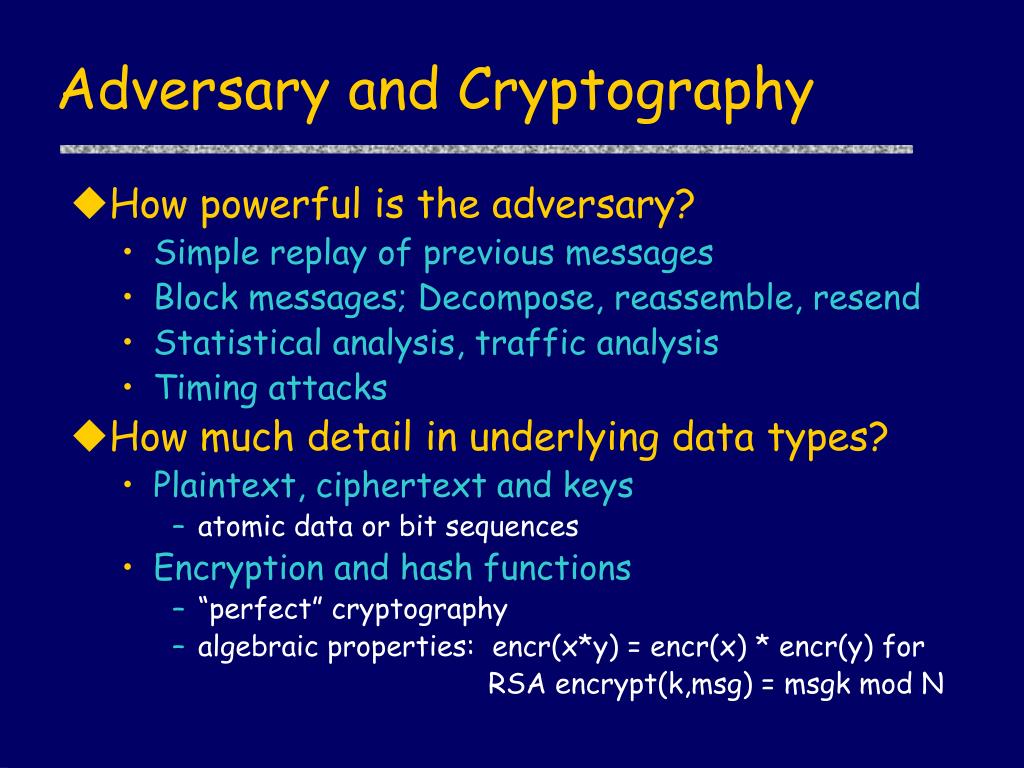

  24. Adversary and Cryptography • How powerful is the adversary? • Simple replay of previous messages • Block messages; Decompose, reassemble, resend • Statistical analysis, traffic analysis • Timing attacks • How much detail in underlying data types? • Plaintext, ciphertext and keys • atomic data or bit sequences • Encryption and hash functions • “perfect” cryptography • algebraic properties: encr(x*y) = encr(x) * encr(y) for RSA encrypt(k,msg) = msgk mod N

  25. Common Intruder Model • Derived from Dolev-Yao model • Adversary is nondeterministic process • Adversary can • Block network traffic • Read any message, decompose into parts • Decrypt if key is known to adversary • Insert new message from data it has observed • Adversary cannot • Gain partial knowledge • Guess part of a key • Perform statistical tests, …

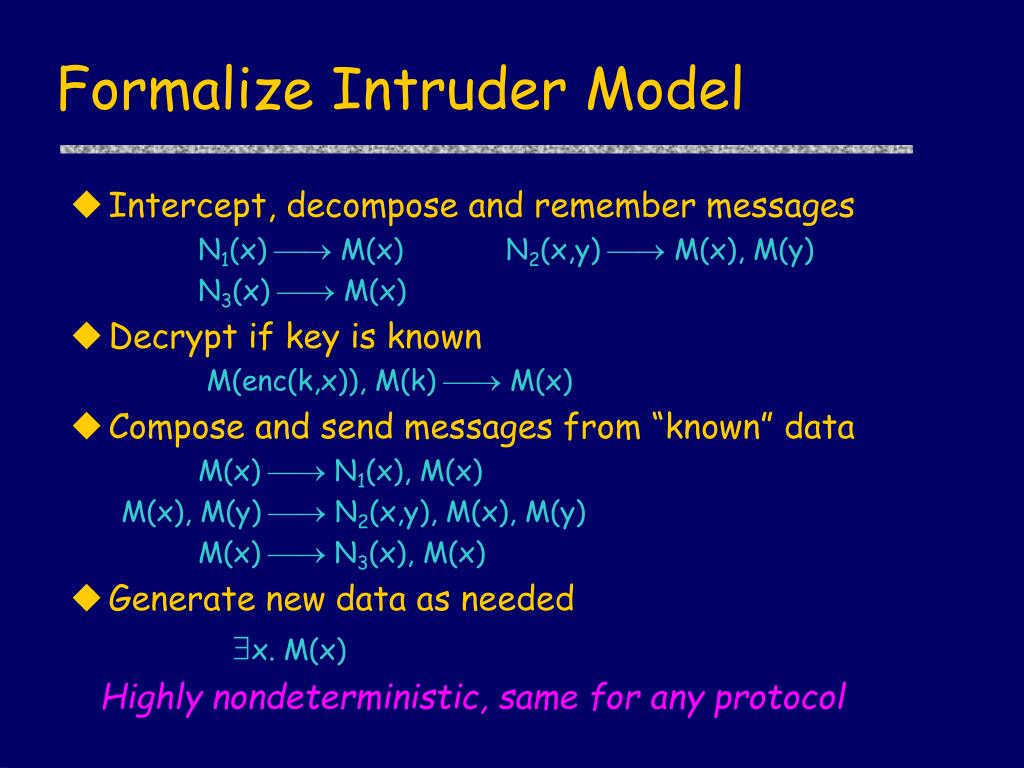

  26. Formalize Intruder Model • Intercept, decompose and remember messages N1(x)  M(x) N2(x,y)  M(x), M(y) N3(x)  M(x) • Decrypt if key is known M(enc(k,x)), M(k)  M(x) • Compose and send messages from “known” data M(x)  N1(x), M(x) M(x), M(y)  N2(x,y), M(x), M(y) M(x)  N3(x), M(x) • Generate new data as needed x. M(x) Highly nondeterministic, same for any protocol

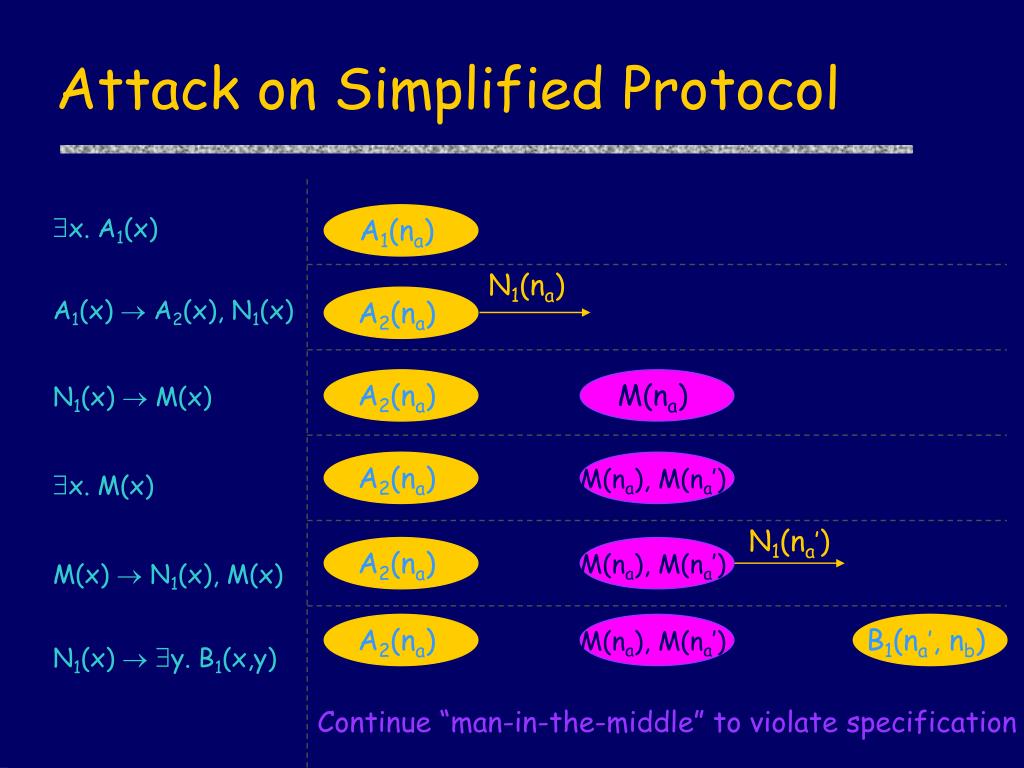

  27. Attack on Simplified Protocol x. A1(x) A1(x)  A2(x), N1(x) N1(x)  M(x) x. M(x) M(x)  N1(x), M(x) N1(x)  y. B1(x,y) A1(na) N1(na) A2(na) A2(na) M(na) A2(na) M(na), M(na’) N1(na’) A2(na) M(na), M(na’) A2(na) M(na), M(na’) B1(na’, nb) Continue “man-in-the-middle” to violate specification

  28. Protocols vs Rewrite rules • Can axiomatize any computational system • But -- protocols are not arbitrary programs Choose principals Select roles Client Client TGS Server

  29. Protocol theory • Initialization theory • Bounded theory that “precedes” protocol run • Example:  key. Principal(key) • Role generation theory • Principal(key)  A0(key), Principal(key) • Principal(key)  B0(key), Principal(key) • Role theory • Finite ordered list of rules Ai(…), Nj(…)  … Ak(…), Nl(x)where i<k, j<l • Can also have persistent predicates on left/right

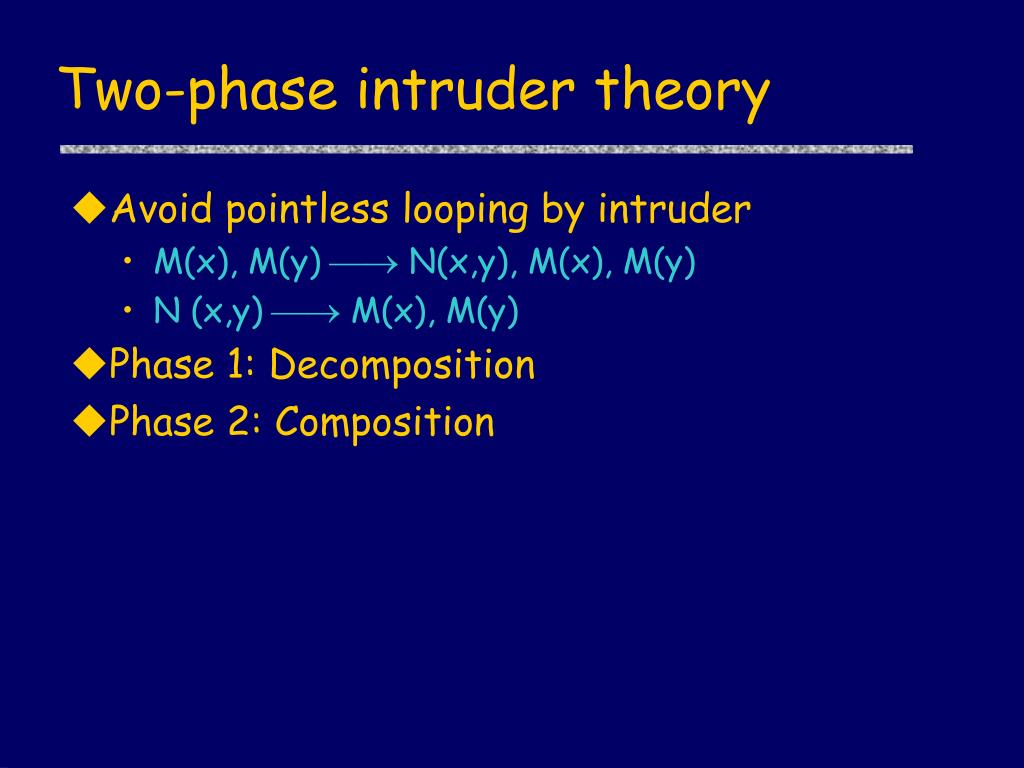

  30. Two-phase intruder theory • Avoid pointless looping by intruder • M(x), M(y)  N(x,y), M(x), M(y) • N (x,y)  M(x), M(y) • Phase 1: Decomposition • Phase 2: Composition

  31. Thesis: MSR Model is accurate • Captures “Dolev-Yao-Needham-Millen-Meadows- …” model • MSR defines set of traces protocol and attacker • Connections with approach in other formalisms • Useful for protocol analysis • Errors shown by model are errors in protocol • If no error appears, then no attack can be carried out using only the actions allowed by the model

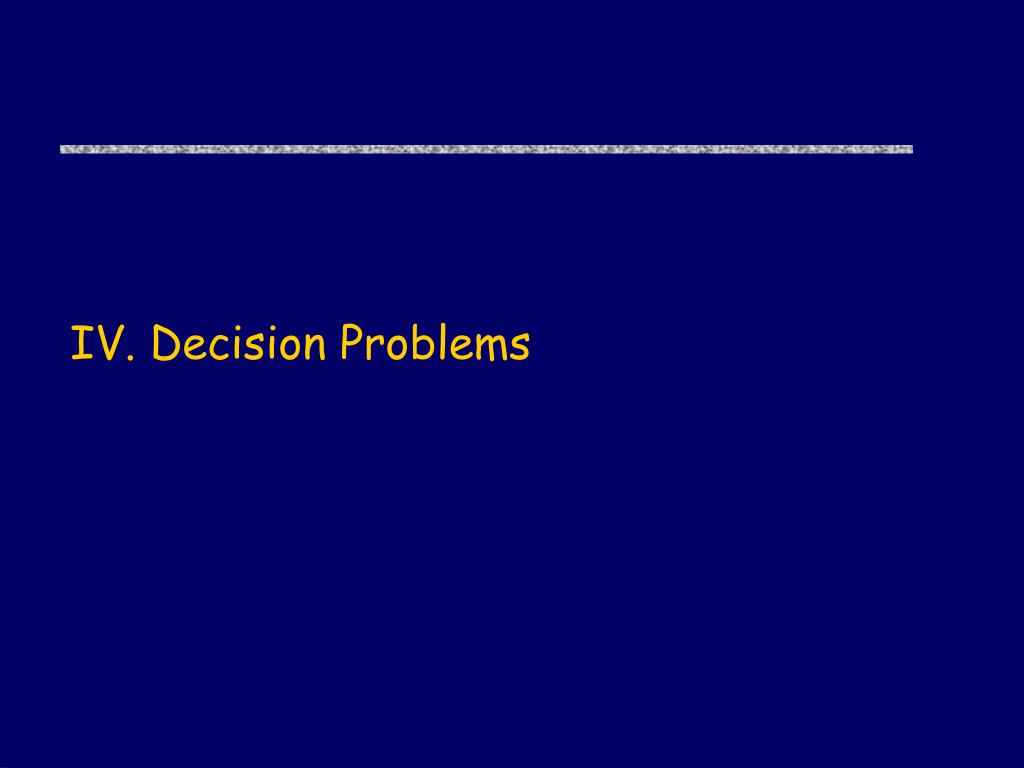

  32. IV. Decision Problems

  33. Bounded # of roles Bounded use of  Unbounded use of  Intruder with  ,   only Intruder w/o  ,   only Complexity results using MSR Key insight: existential quantification () captures cryptographic nonce; main source of complexity NP – complete ?? Undecidable DExp – time All: Finite number of different roles, each role of finite length, bounded message size [Durgin, Lincoln, Mitchell, Scedrov]

  34. Bounded # of subsets Bounded use of  Unbounded use of  Transfer rules with  ,   only Transfer rules w/o  ,   only [Durgin, Lincoln, Mitchell, Scedrov] Corresponding rewrite systems • Standard set of rules, standard rewrite sequence • Partition into disjoint subsets • Each subset progresses finitely • Fixed set of rules move terms from one subset to another • Bounded number of function symbols in any term NP – complete ?? Undecidable DExp – time

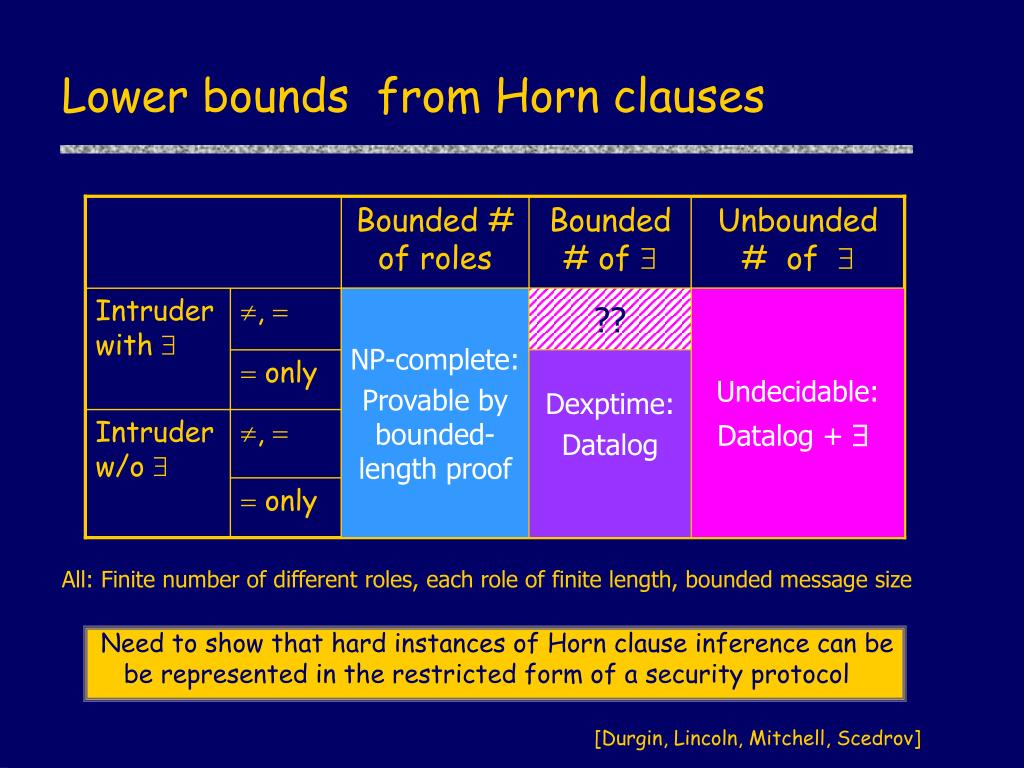

  35. Bounded # of roles Bounded # of  Unbounded # of  Intruder with  ,   only Intruder w/o  ,   only Lower bounds from Horn clauses Need to show that hard instances of Horn clause inference can be be represented in the restricted form of a security protocol NP-complete: Provable by bounded-length proof ?? Undecidable: Datalog +  Dexptime: Datalog All: Finite number of different roles, each role of finite length, bounded message size [Durgin, Lincoln, Mitchell, Scedrov]

  36. Additional decidable cases • Bounded role instances, unbounded msg size • Huima 99: decidable • Amadio, Lugiez: NP w/ atomic keys • Rusinowitch, Turuani: NP-complete, composite keys • Other studies, e.g., Kusters: unbounded # data fields • Constraint systems • Cortier, Comon: Limited equality test • Millen, Shmatikov: Finite-length runs All: bound number of role instances

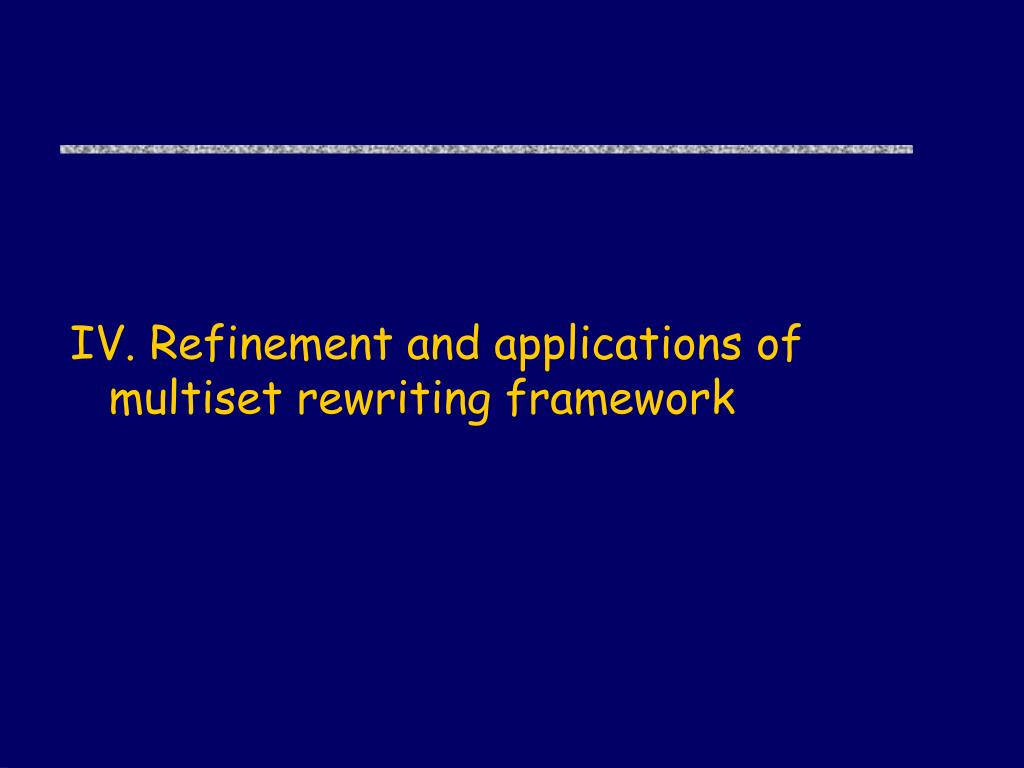

  37. IV. Refinement and applications of multiset rewriting framework

  38. Using MSR for protocol analysis • Extensions and general properties • Add dependent types and subsorting [C] • DY intruder is most powerful attacker [C] • Relate to other models • Strand space model [CDLMS] • Linear logic provability [CDKS] • Prove protocols correct • Contract signing [Chadha, Kanovich, Scedrov] • Kerberos 5 [Butler, Cervesato, Jaggard, Scedrov]

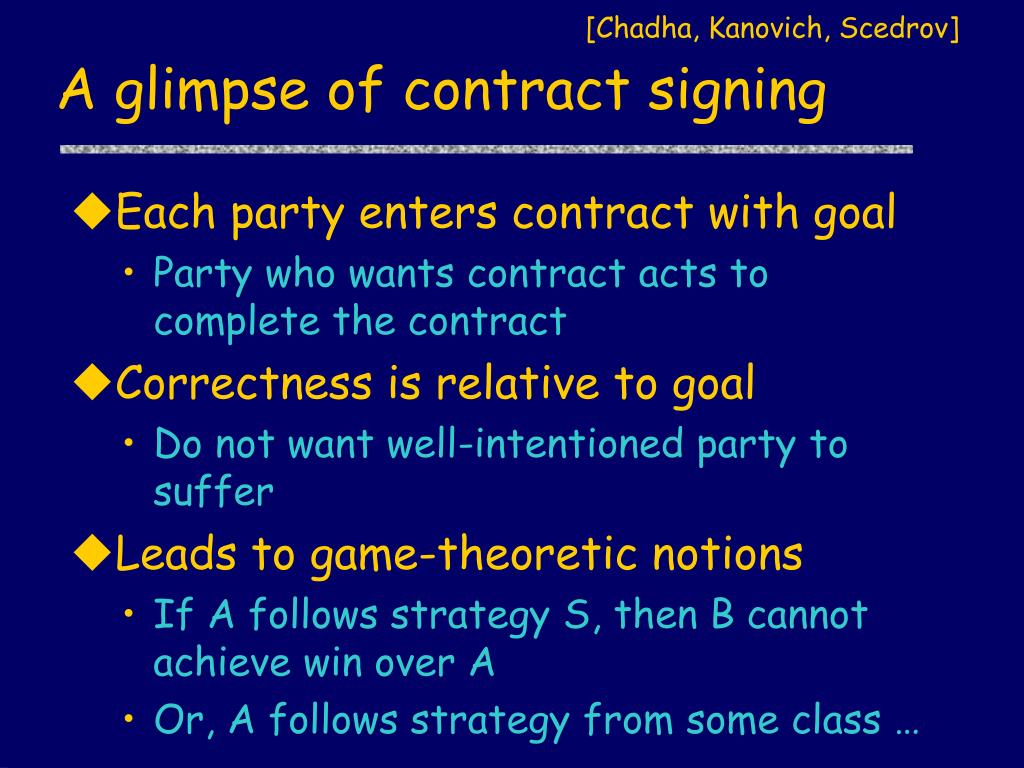

  39. [Chadha, Kanovich, Scedrov] A glimpse of contract signing • Each party enters contract with goal • Party who wants contract acts to complete the contract • Correctness is relative to goal • Do not want well-intentioned party to suffer • Leads to game-theoretic notions • If A follows strategy S, then B cannot achieve win over A • Or, A follows strategy from some class …

  40. S1 S3 S2 S4 S5 S8 S6 S7 Strategy: example S • Define execution tree using MSR • Prune tree according to assumed strategy • Determine correctness

  41. Honest participant • Principle A is said to be honest if • A moves only according to protocol Equivalent: A’s key not known to adversary

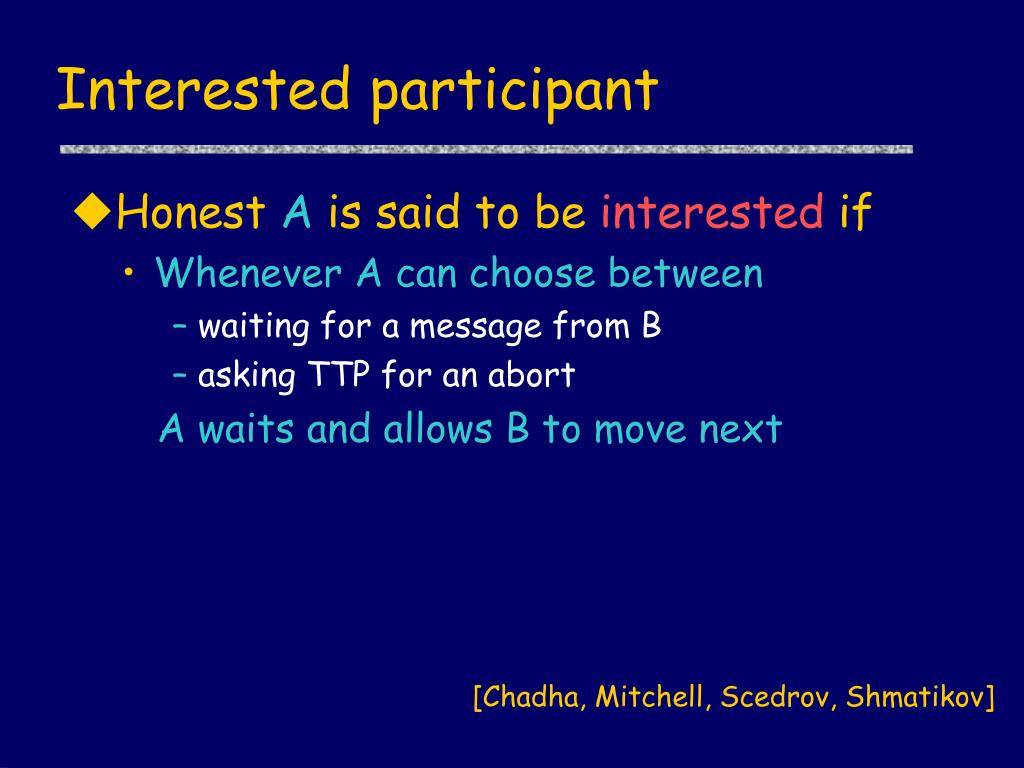

  42. Interested participant • Honest A is said to be interested if • Whenever A can choose between • waiting for a message from B • asking TTP for an abort A waits and allows B to move next [Chadha, Mitchell, Scedrov, Shmatikov]

  43. Optimistic participant • Honest A is said to be optimistic if • Whenever A can choose between • waiting for a message from B • contacting TTP for any purpose A waits and allows B to move next

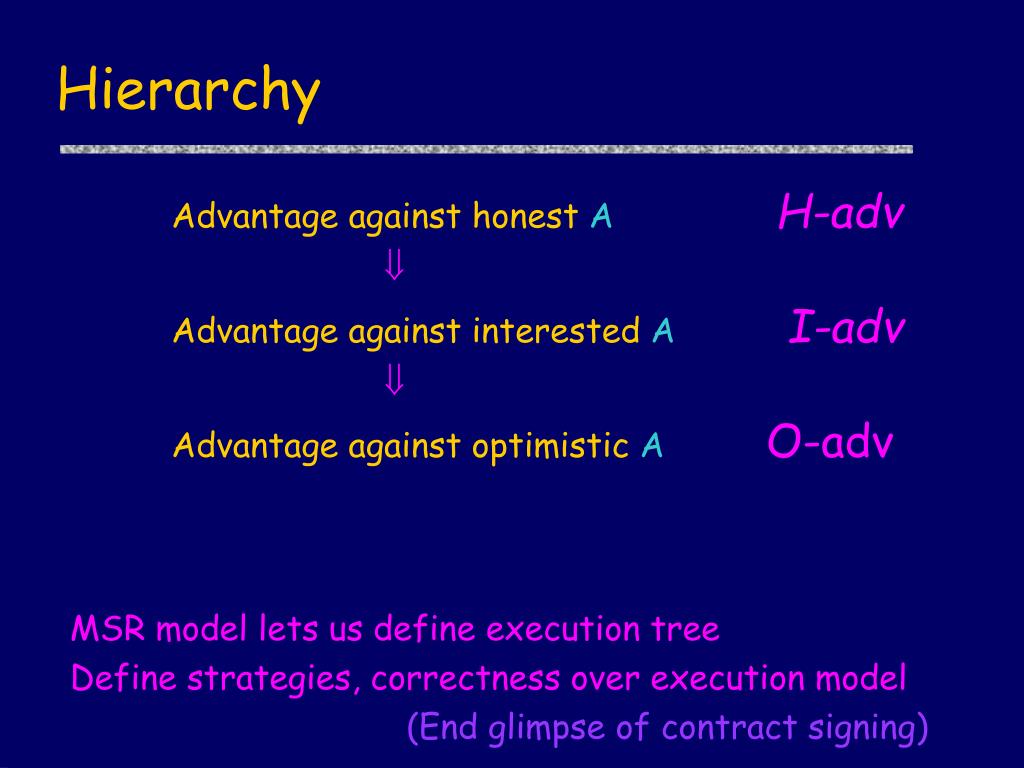

  44. Hierarchy Advantage against honest A H-adv  Advantage against interested A I-adv  Advantage against optimistic A O-adv MSR model lets us define execution tree Define strategies, correctness over execution model (End glimpse of contract signing)

  45.   Protocol analysis spectrum Hand proofs  High Poly-time calculus Multiset rewriting with  Spi-calculus  Sophistication of attacks Strands  Paulson    NRL  Bolignano BAN logic   Low Model checking Protocol logic   FDR Murj Low High Protocol complexity

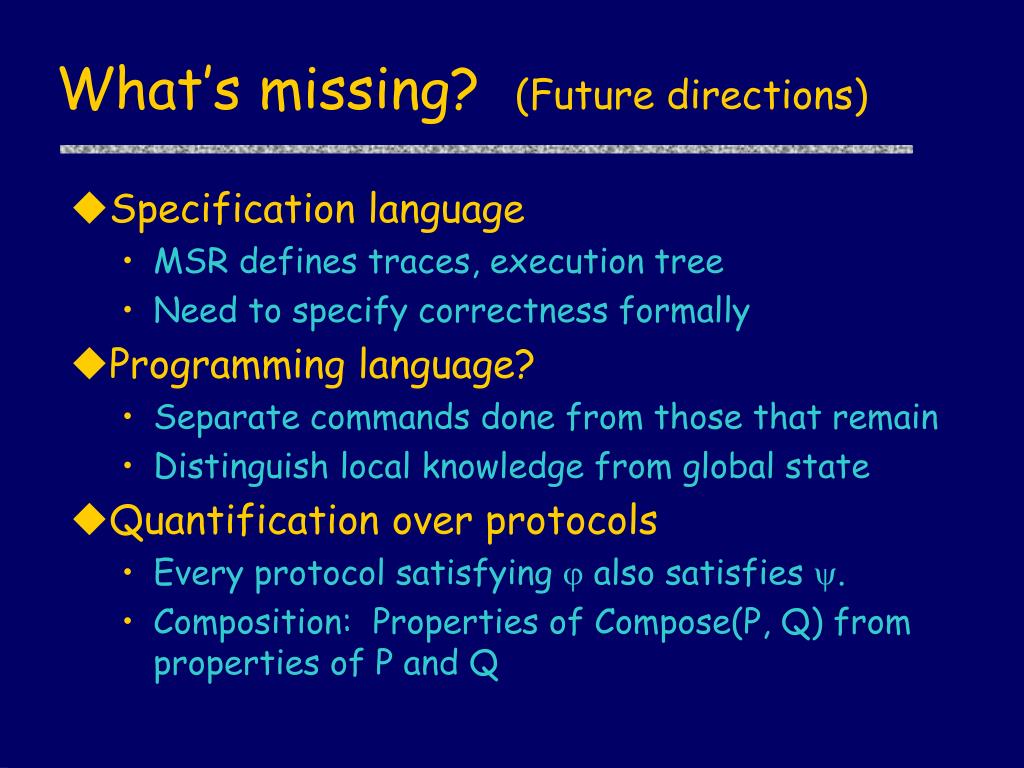

  46. What’s missing? (Future directions) • Specification language • MSR defines traces, execution tree • Need to specify correctness formally • Programming language? • Separate commands done from those that remain • Distinguish local knowledge from global state • Quantification over protocols • Every protocol satisfying  also satisfies . • Composition: Properties of Compose(P, Q) from properties of P and Q

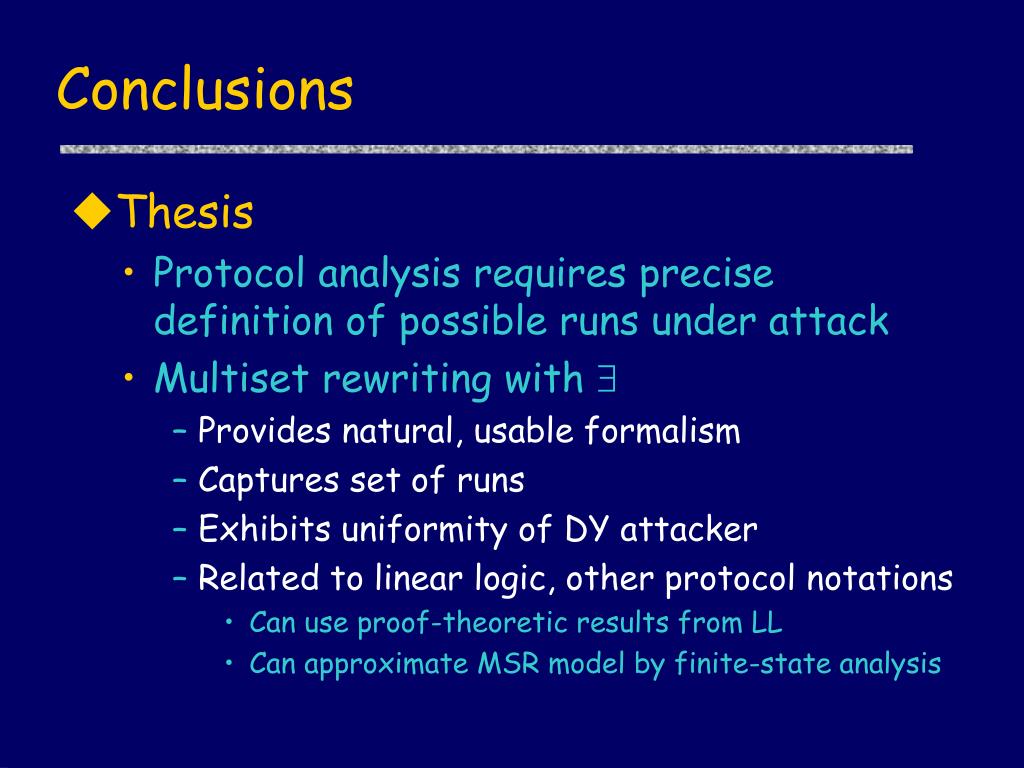

  47. Conclusions • Thesis • Protocol analysis requires precise definition of possible runs under attack • Multiset rewriting with  • Provides natural, usable formalism • Captures set of runs • Exhibits uniformity of DY attacker • Related to linear logic, other protocol notations • Can use proof-theoretic results from LL • Can approximate MSR model by finite-state analysis

  48. Conclusions • Results • Decision problems • NP-complete with bounded role instances • Dexp-time complete with bounded nonces () • Undecidable even if everything else bounded • Applications • Metatheory • Two attackers no better than one • Correctness of model checking optimizations • Protocol analysis • Contract signing, Kerberos v5
