  1. VIDEO TECHNOLOGIES Iwan Sonjaya,ST.MMT,MT Computer and Informatics Engineering Dept.State Polytechnic Of Jakarta

  2. Video Technologies ANALOG DIGITAL

  3. Analog Video Technology • Analog means ?

  4. Analog Video Technology Analog Formats • Videotape • VHS (remember BETA?) • 8mm • Laserdisc • Familiar? Obsolete? • Why discuss?

  5. Analog Video Technology • Videotape • Laserdisc

  6. Video (Analog Tape) Positives • Familiar, common hardware • VCRs, players, camcorders • Perceived image “quality” • Impact of screen size • Full color depth (~ 24-bit)

  7. Video (Analog Tape) Positives • RECORDABLE & erasable • Inexpensive hardware & tapes • Can be digitized 

  8. Video (Analog Tape) Negatives • Quality of NTSC (standard N. Am. television) • TV vs. Monitor • Fundamentally linear • Hard to use segments • Example(s) • Computer control ??

  9. Video (Analog Tape) Negatives • Limited manipulation • Costly hardware to edit • Quality loss by generation • Distance distribution • Limited rapid sharing • cf. video conferencing

  10. Analog Video Technologies • Videotape • Laserdisc (Laser videodisc)

  11. Laserdisc (Analog) Overview • Precursor to DVD • Advantages & Disadvantages • Laserdisc technology • Advanced systems

  12. Laserdiscs +/- Advantages • Higher video quality • Multi-channel sound • Double-sided • Still frame & special effects • Potential for random access • Non-linear = hyper

  13. Laserdiscs +/- Disadvantages • ‘Special’ hardware • Unfamiliar at home • Bulky • Cost of hardware • vs VCR (or DVD) • No local recording

  14. Video Technologies ANALOG DIGITAL

  15. Video • Video, like sound, is recorded and played an as analog signal • Analog video must be digitized in order for it to put into a multimedia file • Digital video has many advantages, but file size is important

  16. Video • Several elements determine file size: • Frame rate • Image size • Color depth • To determine file size use the following formula: • Frames per second X image size X color depth / 8 = file size

  17. Video Compression and Editing • There are two types of video compression • Lossless – preserves the exact image throughout the compression • Lossy – eliminates some of the data in the image (provides greater compression ratios than lossless) • Remember – there is always a trade off, file size versus image quality

  18. Video on the Internet • There are two types of video transfer over the Internet • HTTP (Hypertext Transfer Protocol) – downloads the entire video to the hard drive on the user’s computer • RTSP (Real-Time Streaming Protocol) – is a continuous-playing, streaming technology in which the user’s computer is in constant contact with the server playing the video

  19. Video Tips

  20. Video Tips

  21. Digital Video What is it? • Most commonly: • Analog video – digitized • Computer files • Newer technology: • Original digital video (DV) • Bits on a digital tape

  22. Creating Digital Video Hardware • AnalogDigitizing Gear • $50 - $1000+ • Internal, external, both • Digital camcorder + IEEE 1394 • “Firewire” or “i Link” • Many digital ‘still’ cameras • Highly variable results • PC / web cameras (“golf balls”)

  23. Creating Digital Video Software • Comes with hardware • Capture, then edit • Not necessarily same software • Varied features, e.g. formats • Varied learning curve • Match to need & skill • iMovie / Movie Maker to Premier

  24. Other Digital Video Sources • Clip video (CD / Web) • Download from web sites • Varies by video format • “Screen capture” software • Camtasia, CamStudio, etc. • Morphing software • Animation software • Flash, et al – beyond our scope • Class web page has links

  25. Digital Video Concepts • Video = “frames” • How many / sec? • Apply still image file size concept • Video = ++MB • Forget KB 

  26. Digital Video Concepts • Image Size (‘window’ on screen) • Pixel dimensions • Common Sizes • 160 x 120 (‘1/16’) • 320 x 240 (‘1/4’) • 640 x 480 (‘full’ screen) • 720 x 480 (DVD, ‘wider’ screen) • What does a viewer really see?

  27. Digital Video Concepts DV File Size Factors • Image pixel dimensions • Just like still images • FPS • Frames per second • Number required? • Color depth (bits) • Increasingly, no option

  28. Digital Video Concepts DV File Size Factors • Video (file) format (more later) • QuickTime / AVI / WMV • MPEG (mpg) • Streaming • CODEC • Compression / decomp algorithm • Sometime selectable (cf. audio) • Audio quality • Limited impact

  29. Digital Video Benefits • Inexpensive hardware to create • Edit electronically with software (non-linear editing) • Just another (large) file = transmission potential • FTP, email, or on web pages • Keep file size down! • Or stream it • More flexible use

  30. Digital Video Issues • Image quality (e.g. jaggies) • Limited resizing (pixels, jerky) • Differing formats / architectures • Non-standard compression schemes • Broadway AVI & M-JPEG • Codec compatibility / availability • Storage requirements / downloads

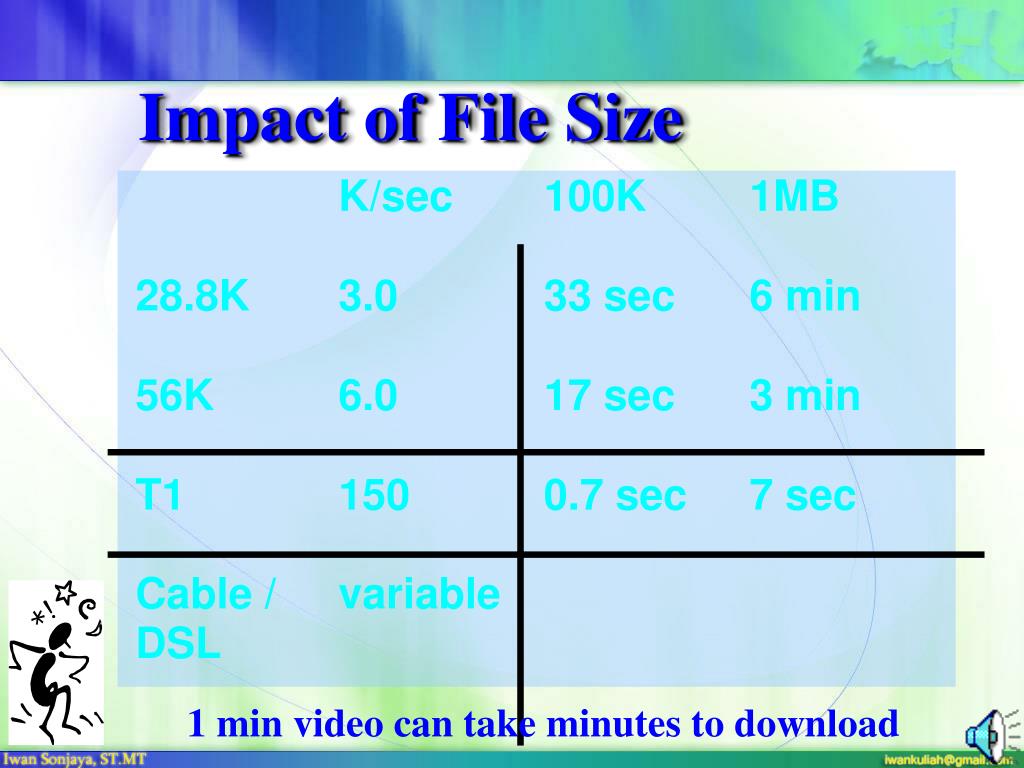

  31. Impact of File Size 1 min video can take minutes to download

  32. DV Formats • QuickTime (mov) • Background / compatibility • Video for Windows (avi) • WMV • MPEG (mpg, mp#) • Current standard ? • Video CD / DVD • Streaming competition (later) • Real vs MS vs QT

  33. ‘Exotic’ DV • VCD (Video CD) • Mpeg-1 • Common outside US • QTVR • Lighthouse (HS) • Orlando Art Museum

  34. Other Digital Video Topics • Creating digital video • Capturing • Editing • Producing • DVD • Streaming
