  1. Arrhythmias Dr. Ahmad Hersi Med 441 6/1/2009

  2. Conduction System Septal Branch

  3. Depolarization Sequence

  4. Catechism Identification Quality Rate Rhythm Axis Waves and intervals Specifics

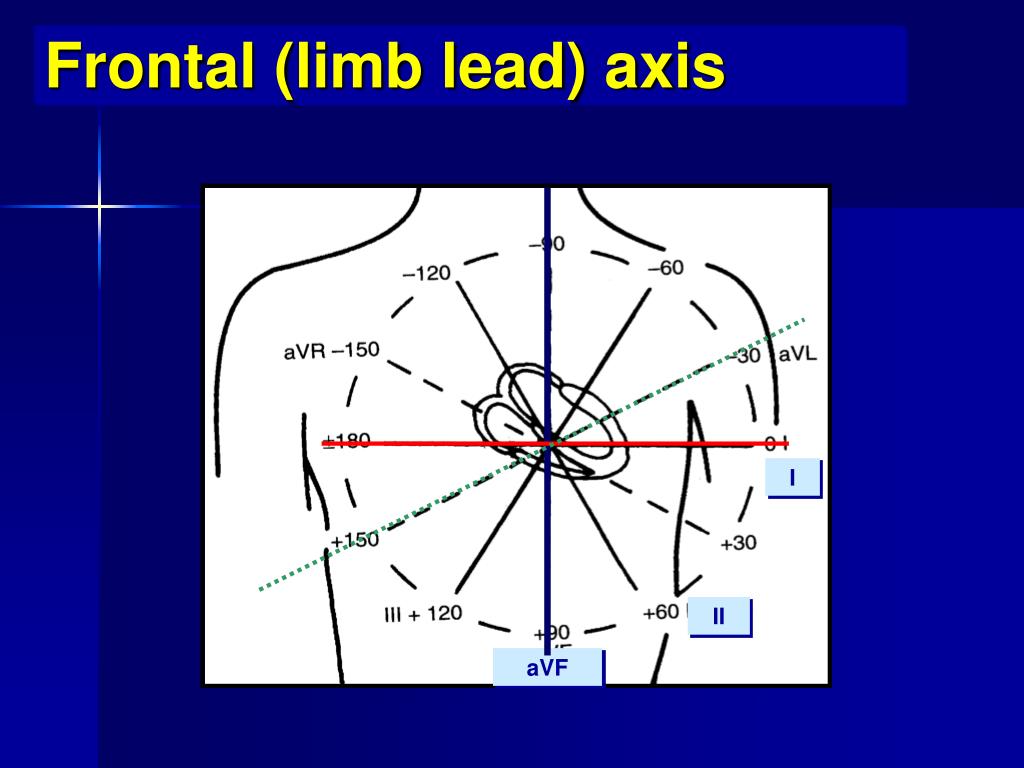

  5. I II aVF Frontal (limb lead) axis

  6. I II aVF Limb-lead Misplacement

  7. Precordial Leads V4: 5th ICS mid-clavicular line V6: lateral to V4 mid-axillary line V1: Right 4th ICS parasternal V2: Left 4th ICS parasternal

  8. Start if possible on a beat whose QRS (usually R wave) is on the border of a large square Count Large squares (0.2 seconds each) 300 100 60 40 150 75 50 Rate This tracing example shows a rate of 100 bpm

  9. Rate determination for irregular rhythm * 8 times 10 = 80 bpm 30 For irregular rhythm (such as atrial fibrillation), the method shown on the last slide may be inaccurate. Use this alternate method. Start as before by finding a QRS that lands on the border of a large square (*). Then count 30 large squares (= 0.2 X 30 = 6 seconds). Add up all beats (QRSs) that land within the interval (not counting that first beat (*) and multiple by 10. This equals the number of beats per minute.

  10. Rhythm “Cherchez la P” • To be convinced of sinus rhythm, you should see a P wave in front of every QRS, and the PR interval should not alter, and be of a plausible length. • Lead II is usually the best lead for seeing P waves, and is often used for rhythm strips.

  11. QRS Axis Left I (-) aVF (-) II (-) I (+) aVF (-) II (-) Right Normal I (+) aVF (+) II (+) I (-) aVF (+) II (+)

  12. I aVF II Quick Method for QRS Axis

  13. The P Wave • Normally from sinus node • Upright in I, II, aVF, V4-V6 • Monophasic (except V1) • Normal ranges: • < 0.12 sec wide • < 2.5 mm tall

  14. The PR Interval • Measure from beginning of P wave to onset of QRS. Usually measure in Lead II • Measure the longest PR interval in the limb leads • Normal range 0.12-0.20 seconds • < 0.12 = Accelerated conduction • > 0.2 = Heart block

  15. Right Atrial Enlargement

  16. Left Atrial Enlargement

  17. The QRS Complex

  18. The Q Wave

  19. The J - Point

  20. QRS Waveforms

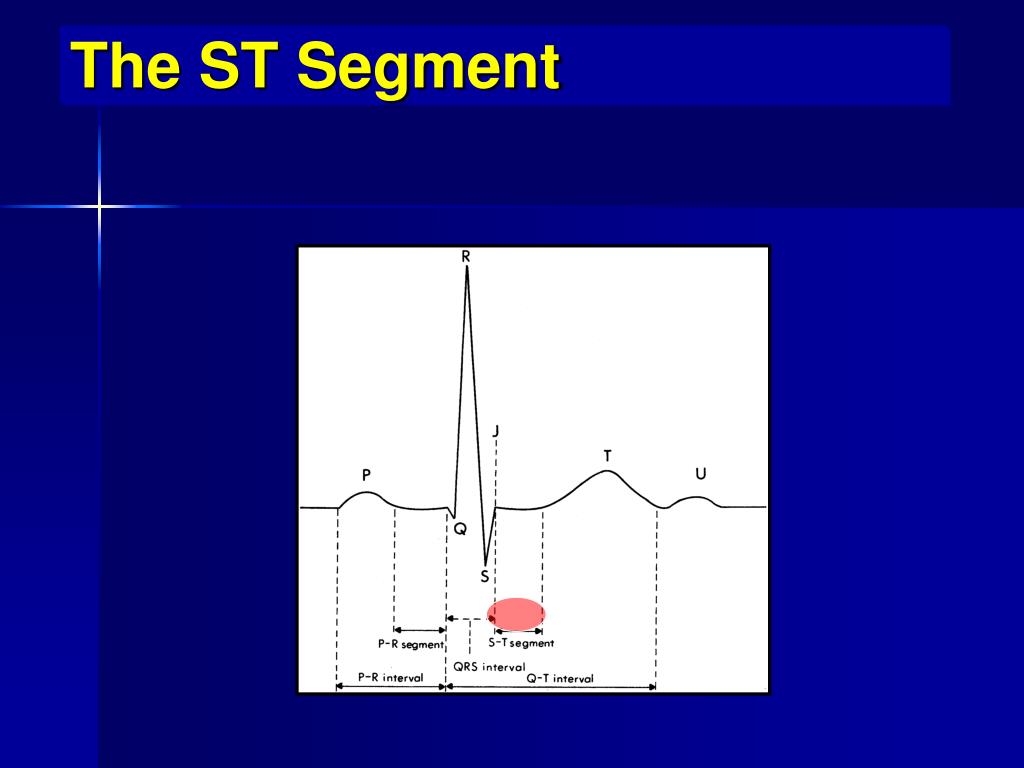

  21. The ST Segment

  22. The T Wave • T waves may be normally inverted in aVR (almost always), III (frequently), and V1 (sometimes). • T waves are “tall” if their height is: • > 50% QRS height • > 5mm in limb lead • > 10 mm in precordial lead

  23. The QT Interval

  24. The U Wave • Causes: • Normal • Bradycardia • CAD • Hypertension • Hypokalemia • Hypercalcemia

  25. Left Ventricular Hypertrophy * * * *

  26. Right Ventricular Hypertrophy

  27. LBBB

  28. RBBB

  29. Case 1 • 65 yr woman, presents to ER with Dizziness for 2hrs. • In the past, a doctor told her that her heart rate is slow. • Healthy otherwise, and is not on med’s. • O/E : Bp=170/100

  30. Another dizzy lady

  31. Had syncope

  32. What is the appropriate therapy?

  33. Management • ABC • V/S • If serious symptoms or signs: - Atropine 1 mg - TCP - Dopamine - Epinephrine - Isoproterenol

  34. Management • If clinically stable: - Prepare for TVP as a bridge device

  35. Case 2 • 25yr old woman • 1 hr h/o palpitation • No other cardiac symptoms • Intermittent palpitation in the last 3 months , this episode is long • BP= 120/70

  36. What is your management?

  37. Management Narrow Complex tachycardia Serious signs and symptoms Stable clinically Vagal maneuvers Immediate Cardioversion Adenosine or Verapamil Consider BB, Diltiazem , or Digoxin

  38. Case 3 • 60 yrs C/O sudden onset dyspnea for last 1/2hr • Past MI 1 yr ago, received thrombolytics. • His ECHO at the time revealed impaired LV systolic function • Med’s: ASA, Bisoprolol, Lisinopril, and Lasix • On exam , BP=80/50

  39. Bouts of palpitations
