Excitation Vectors

Input. Combinational Logic. Output. Excitation Vectors. States. Memory. RS Latch Q+ = S + R’ Q. Two Problems: R=S= 1 Not allowed, Data is transparent. Q. D. CLK. The D Latch. Q + = D. Problem: Level sensitive. JK Latch : Universal, Level sensitive,

Download Presentation

Excitation Vectors

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

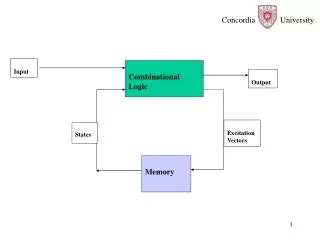

  1. Input Combinational Logic Output Excitation Vectors States Memory

  2. RS Latch Q+ = S + R’ Q Two Problems: R=S= 1 Not allowed, Data is transparent

  3. Q D CLK The D Latch Q+ = D Problem: Level sensitive

  4. JK Latch : Universal, Level sensitive, Timing Constraints due to feed back.

  5. Master Slave Flip Flop Edge sensitive,Set up and Hold time

  6. Master Slave Flip Flop Edge sensitive,-Falling Edge Set Up and Hold Time constraints Path to setup data Master Slave Q Q Q D D D D D Latch Latch Q C C C Path to hold data D C Q

  7. Edge triggered Flip Flop: Set up and Hold time Constraints

  8. Edge Triggered, D Flip Flop, With Reset NAND1 S Q NAND2 NAND5 clk R NAND3 NAND6 D NAND4 reset Active Low

  9. Edge Triggered, D Flip Flop When CLK=0 NAND1 S 1 0 Q NAND2 NAND5 Clk=0 0 R 1 NAND3 NAND6 D NAND4 reset Active Low

  10. NAND1 S Q NAND2 NAND5 clk R NAND3 NAND6 D NAND4 reset When CLK changes from 0 to 1 Case1, D=0: tsetup= t4, thold=t3 Path for hold Path for set up

  11. NAND1 S Q NAND2 NAND5 clk R NAND3 NAND6 D NAND4 reset When CLK changes from 0 to 1 Case2, D=1 tsetup=t4 + t1 thold= t2 Path to set up Path to hold

  12. NAND1 S Q NAND2 NAND5 clk R NAND3 NAND6 D NAND4 reset When CLK changes from 0 to 1 Case1, D=0: tsetup= t4, thold=t3 Case2, D=1 tsetup=t4 + t1 thold= t2

  13. D Flip Flop

  14. Q+ = JQ’ + K’Q

  15. J T T Q K CLK CLK Q T-Flip Flop Q+ = JQ’ + K’Q J=K=T Q+ =TQ’ + T’ Q T=1 Q+ = Q’ T=0 Q+ = Q

  16. Q D D T Q T CLK CLK CLK Q T-Flip Flop Q+ = JQ’ + K’Q J=K=T Q+ =TQ’ + T’ Q T=1 Q+ = Q’ T=0 Q+ = Q
